Features:

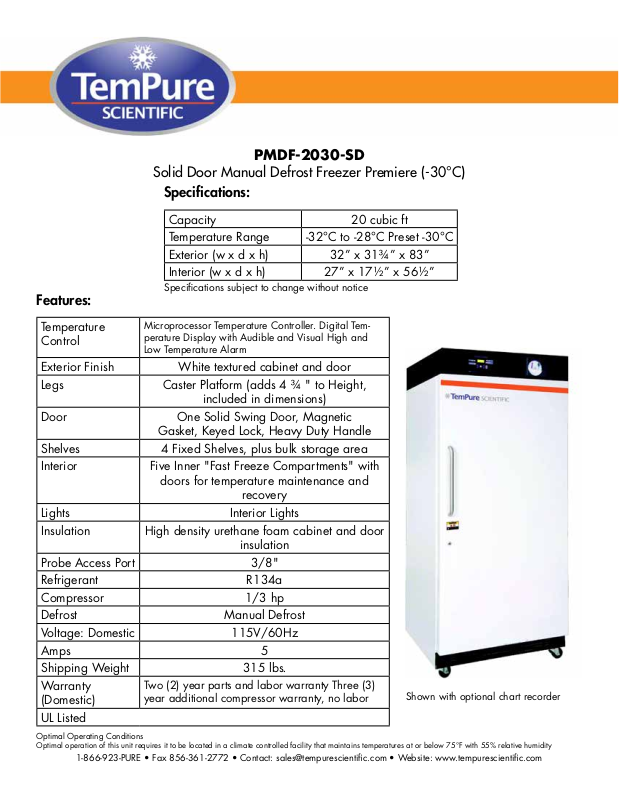

PMDF-2030-SD
Solid Door Manual Defrost Freezer Premiere (-30°C)
Specifications:
Capacity 20 cubic ft
Temperature Range -32°C to -28°C Preset -30°C
Exterior (w x d x h) 32” x 31¾” x 83”
Interior (w x d x h) 27” x 17½” x 56½”
Specifications subject to change without notice
Temperature
Control
Microprocessor Temperature Controller. Digital Temperature Display with Audible and Visual High and
Low Temperature Alarm
Exterior Finish White textured cabinet and door
Legs Caster Platform (adds 4 ¾ " to Height,
included in dimensions)
Door One Solid Swing Door, Magnetic
Gasket, Keyed Lock, Heavy Duty Handle
Shelves 4 Fixed Shelves, plus bulk storage area
Interior Five Inner "Fast Freeze Compartments" with
doors for temperature maintenance and
recovery
Lights Interior Lights
Insulation High density urethane foam cabinet and door
insulation
Probe Access Port 3/8"
Refrigerant R134a
Compressor 1/3 hp
Defrost Manual Defrost
Voltage: Domestic 115V/60Hz
Amps 5
Shipping Weight 315 lbs.
Warranty
(Domestic)
Two (2) year parts and labor warranty Three (3)
year additional compressor warranty, no labor
Shown with optional chart recorder
UL Listed
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
Exterior
59¼”
PMDF-2030-SD
Premier Manual Defrost Freezer
32”
26¼”
5½”
115VAC/60Hz/1PH
NEMA-5-15R
Unit Weight
Front View Side View Top View
4 Fixed
31¾”
78¼”
4¾”
1 Solid 5 32 31¾ 83 5 213 lbs.1/3
83”
32”
20 Manual
CUTSHEET
Model Defrost Door Int Door Shelves W” D” H” H.P. AmpsCu. Ft
ABT-2020MB
PMDF-2030-SD
