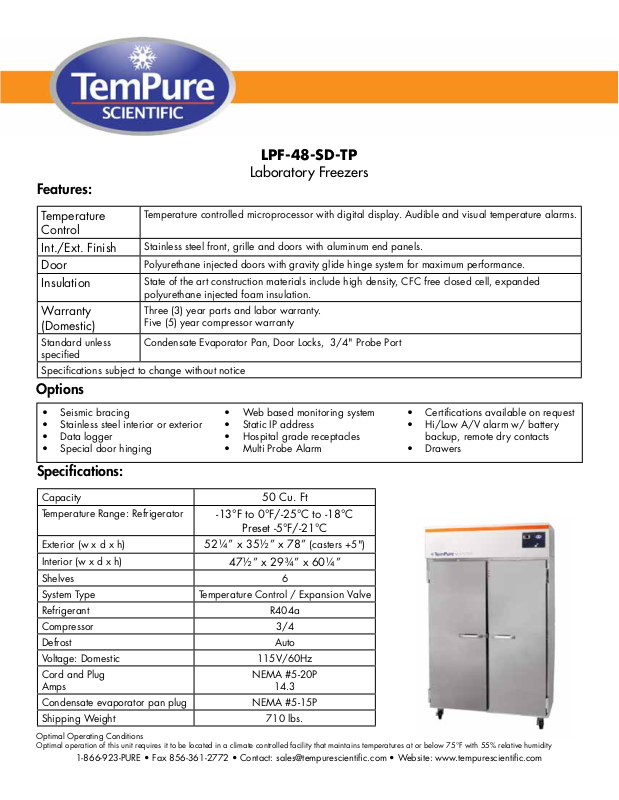

Tempure Scientific LPF-48-SD-TP User Manual
Features:
LPF-48-SD-TP
Laboratory Freezers
Temperature
Temperature controlled microprocessor with digital display. Audible and visual temperature alarms.
Control
Int./Ext. Finish
Door
Insulation
Warranty
(Domestic)
Standard unless
specied
Specications subject to change without notice
Stainless steel front, grille and doors with aluminum end panels.
Polyurethane injected doors with gravity glide hinge system for maximum performance.
State of the art construction materials include high density, CFC free closed cell, expanded
polyurethane injected foam insulation.
Three (3) year parts and labor warranty.
Five (5) year compressor warranty
Condensate Evaporator Pan, Door Locks, 3/4" Probe Port
Options
• Seismic bracing
• Stainless steel interior or exterior
• Data logger
• Special door hinging
• Web based monitoring system
• Static IP address
• Hospital grade receptacles
• Multi Probe Alarm
• Certications available on request
• Hi/Low A/V alarm w/ battery
backup, remote dry contacts
• Drawers
Specifications:
Capacity
Temperature Range: Refrigerator
Exterior (w x d x h)
Interior (w x d x h)
Shelves 6
System Type Temperature Control / Expansion Valve
Refrigerant R404a
Compressor 3/4
Defrost Auto
Voltage: Domestic 115V/60Hz
Cord and Plug
Amps
Condensate evaporator pan plug NEMA #5-15P
Shipping Weight 710 lbs.
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
-13°F to 0°F/-25°C to -18°C
52¼” x 35½” x 78” (casters +5")
47½” x 29¾” x 60¼”
50 Cu. Ft
Preset -5°F/-21°C
NEMA #5-20P
14.3
Exterior
25¾”
710
14.3
½
LPF-48-SD-TP
Laboratory Freezer
Side View Top View
”
35½
35½”
Probe
Hole
W” D” H”
35½ 78
52¼
6
0
78”
5”
Auto
Auto
52¼”
50 2
Front View
CUTSHEET
LPF-48-SD-TP
Model Defrost Door Int Door Shelves H.P. Amps WeightCu. Ft
