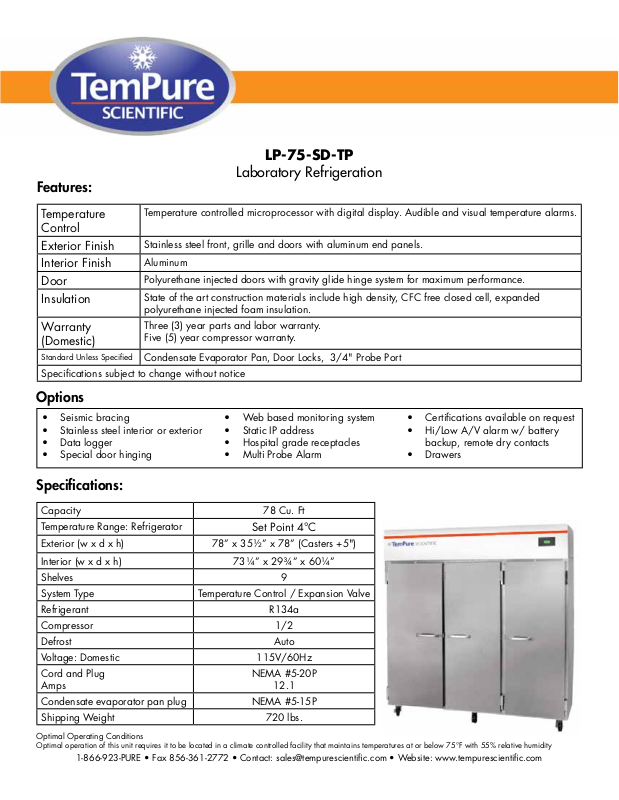

Tempure Scientific LP-75-SD-TP User Manual
Features:
LP-75-SD-TP
Laboratory Refrigeration
Temperature
Temperature controlled microprocessor with digital display. Audible and visual temperature alarms.
Control
Exterior Finish
Interior Finish
Door
Insulation
Warranty
(Domestic)
Standard Unless Specified
Specifications subject to change without notice
Stainless steel front, grille and doors with aluminum end panels.
Aluminum
Polyurethane injected doors with gravity glide hinge system for maximum performance.
State of the art construction materials include high density, CFC free closed cell, expanded
polyurethane injected foam insulation.
Three (3) year parts and labor warranty.
Five (5) year compressor warranty.
Condensate Evaporator Pan, Door Locks, 3/4" Probe Port
Options
• Seismic bracing
• Stainless steel interior or exterior
• Data logger
• Special door hinging
• Web based monitoring system
• Static IP address
• Hospital grade receptacles
• Multi Probe Alarm
Specifications:
• Certifications available on request
• Hi/Low A/V alarm w/ battery
backup, remote dry contacts
• Drawers
Capacity 78 Cu. Ft
Temperature Range: Refrigerator
Exterior (w x d x h) 78” x 35½” x 78” (Casters +5")
Interior (w x d x h) 73¼” x 29¾” x 60¼”
Shelves 9
System Type Temperature Control / Expansion Valve
Refrigerant R134a
Compressor 1/2
Defrost Auto
Voltage: Domestic 115V/60Hz
Cord and Plug
Amps
Condensate evaporator pan plug NEMA #5-15P
Shipping Weight 720 lbs.
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
Set Point 4°C
NEMA #5-20P
12.1
Exterior
23¾”
13.8
78”
½ 720 lbs.LP-75-SD-TP
LP-75-SD-TP
laboratory Refrigerator
W” D” H”
35½ 78
78
35½”
35½”
78”
13/32”
Probe
Hole
5”
Auto
78”
Front View Side View Top View
78 3 0 9
CUTSHEET
Model Defrost Door Int Door Shelves H.P. Amps WeightCu. Ft
