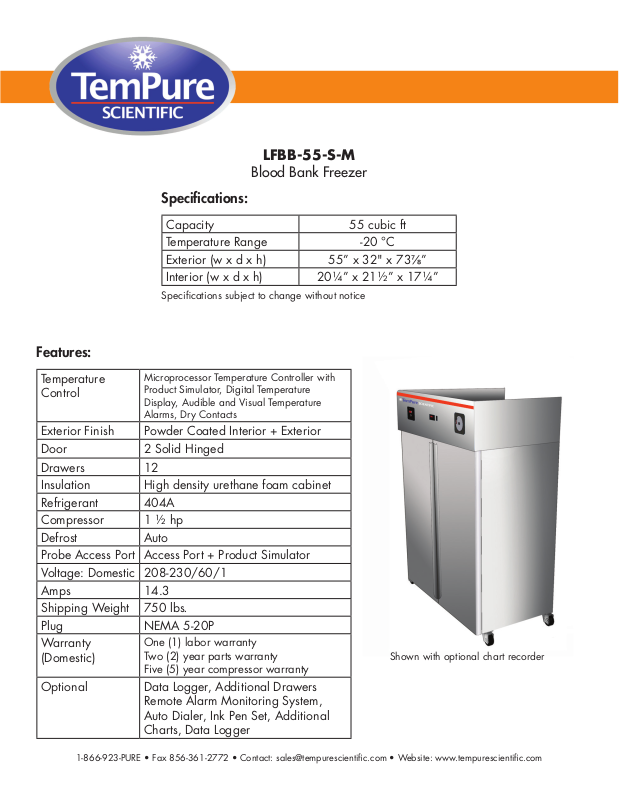

Tempure Scientific LFBB-55-S-M User Manual
Features:
LFBB-55-S-M
Blood Bank Freezer
Specifications:
Capacity 55 cubic ft
Temperature Range -20 °C
Exterior (w x d x h) 55” x 32" x 73⅞”
Interior (w x d x h) 20¼” x 21½” x 17¼”
Specications subject to change without notice
Temperature
Control
Microprocessor Temperature Controller with
Product Simulator, Digital Temperature
Display, Audible and Visual Temperature
Alarms, Dry Contacts
Exterior Finish Powder Coated Interior + Exterior
Door 2 Solid Hinged
Drawers 12
Insulation High density urethane foam cabinet
Refrigerant 404A
Compressor 1 ½ hp
Defrost Auto
Probe Access Port Access Port + Product Simulator
Voltage: Domestic 208-230/60/1
Amps 14.3
Shipping Weight 750 lbs.
Plug NEMA 5-20P
Warranty
(Domestic)
One (1) labor warranty
Two (2) year parts warranty
Five (5) year compressor warranty
Shown with optional chart recorder
Optional Data Logger, Additional Drawers
Remote Alarm Monitoring System,
Auto Dialer, Ink Pen Set, Additional
Charts, Data Logger
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
Exterior
Top View
115VAC/60Hz/1PH
NEMA-5-20P
750 lbs.
Blood Bank Freezer
LFBB-55-S-M
Side View
”
32
32”
73 73⅞
55” 32”
Probe
Hole
”
73⅞
5”
12
11/9/2012
2 Solid 14.3
55”
Front View
CUTSHEET
Model Defrost Door Drawers H.P. Amps WeightCu. Ft W” D” H”
55 Auto
LFBB-55-S-M
