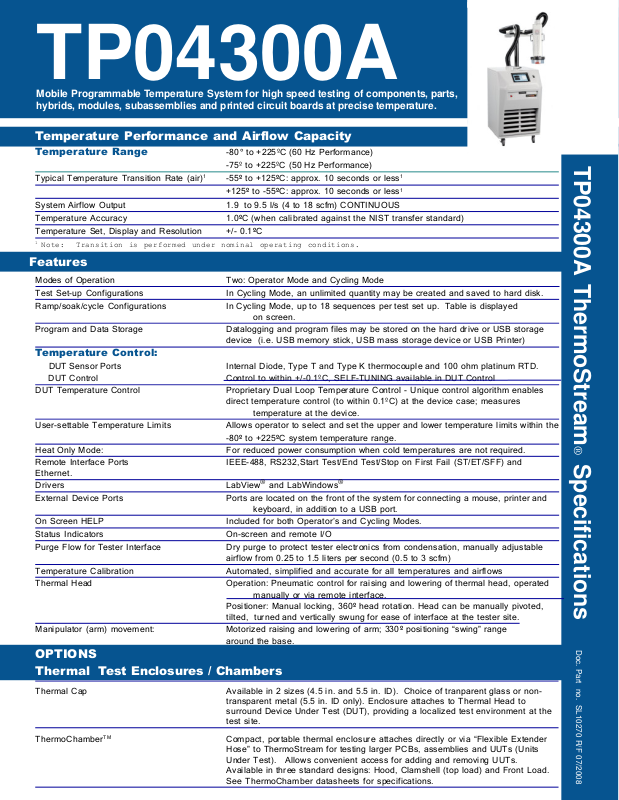

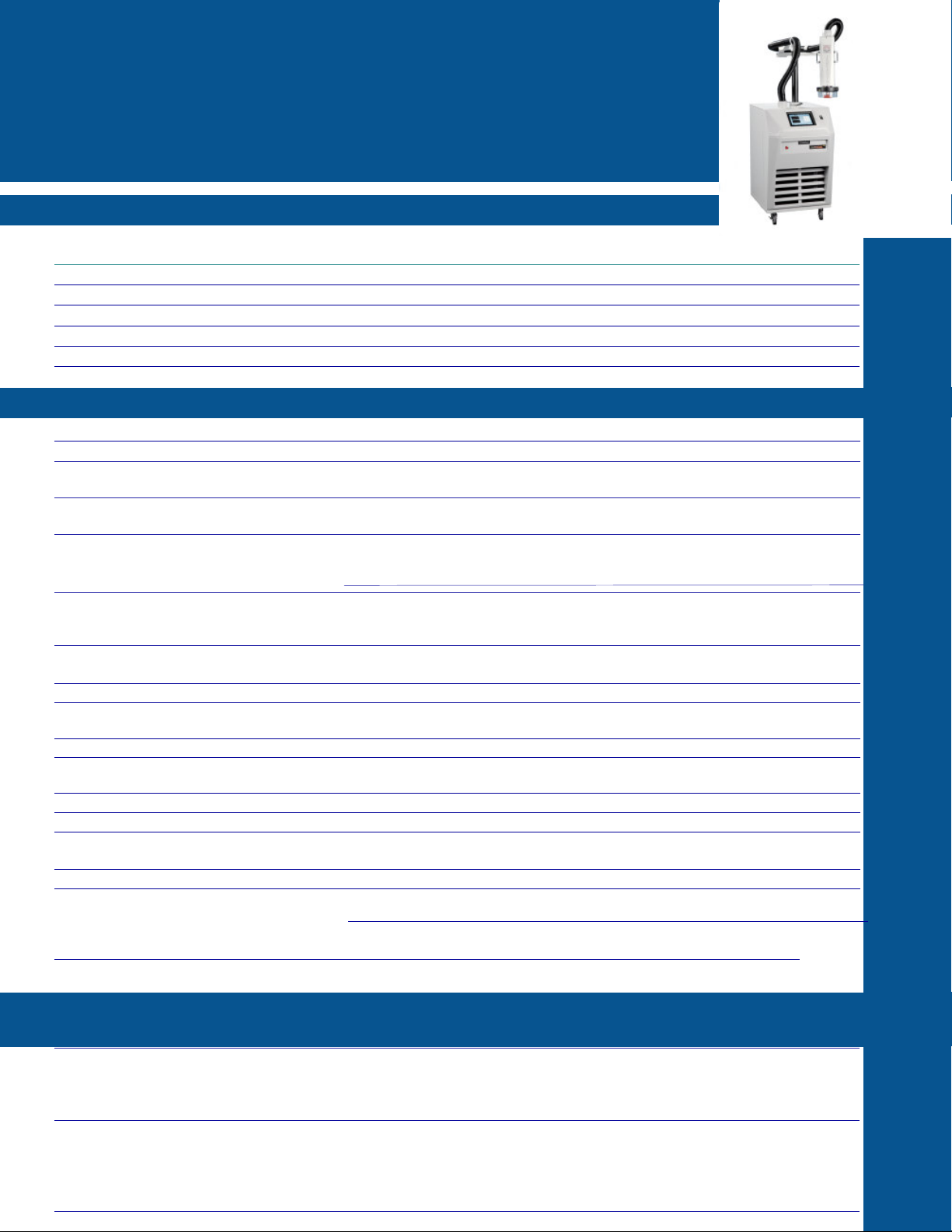

Temptronic TP04300A Data Sheet

Page 1

TP04300A

Mobile Programmable Temperature System for high speed testing of components, parts, hybrids, modules, subassemblies and printed circuit boards at precise temperature.

Temperature Performance and Airflow Capacity

Temperature Range -80° to +225ºC (60 Hz Performance)

-75º to +225ºC (50 Hz Performance)

Typical Temperature Transition Rate (air)

System Airflow Output 1.9 to 9.5 l/s (4 to 18 scfm) CONTINUOUS

Temperature Accuracy 1.0ºC (when calibrated against the NIST transfer standard)

Temperature Set, Display and Resolution +/- 0.1ºC

Note: Transition is performed under nominal operating conditions.

-55º to +125ºC: approx. 10 seconds or less

+125º to -55ºC: approx. 10 seconds or less

Features

Modes of Operation Two: Operator Mode and Cycling Mode

Test Set-up Configurations In Cycling Mode, an unlimited quantity may be created and saved to hard disk.

Ramp/soak/cycle Configurations In Cycling Mode, up to 18 sequences per test set up. Table is displayed

on screen.

Program and Data Storage Datalogging and program files may be stored on the hard drive or USB storage

device (i.e. USB memory stick, USB mass storage device or USB Printer)

Temperature Control:

DUT Sensor Ports Internal Diode, Type T and Type K thermocouple and 100 ohm platinum RTD. DUT Control Control to within +/-0.1ºC, SELF-TUNING available in DUT Control

DUT Temperature Control Proprietary Dual Loop Temperature Control - Unique control algorithm enables

direct temperature control (to within 0.1ºC) at the device case; measures

temperature at the device.

User-settable Temperature Limits Allows operator to select and set the upper and lower temperature limits within the

-80º to +225ºC system temperature range.

Heat Only Mode: For reduced power consumption when cold temperatures are not required. Remote Interface Ports IEEE-488, RS232,Start Test/End Test/Stop on First Fail (ST/ET/SFF) and

Ethernet. Drivers LabView® and LabWindows

External Device Ports Ports are located on the front of the system for connecting a mouse, printer and

keyboard, in addition to a USB port.

On Screen HELP Included for both Operator’s and Cycling Modes.

Status Indicators On-screen and remote I/O

Purge Flow for Tester Interface Dry purge to protect tester electronics from condensation, manually adjustable

airflow from 0.25 to 1.5 liters per second (0.5 to 3 scfm)

Temperature Calibration Automated, simplified and accurate for all temperatures and airflows

Thermal Head Operation: Pneumatic control for raising and lowering of thermal head, operated

manually or via remote interface.

Positioner: Manual locking, 360º head rotation. Head can be manually pivoted, tilted, turned and vertically swung for ease of interface at the tester site.

Manipulator (arm) movement: Motorized raising and lowering of arm; 330º positioning “swing” range

around the base.

OPTIONS Thermal Test Enclosures / Chambers

TP04300A ThermoStream® Specifications

Doc. Part no. SL10270 R/F 07/2008

Thermal Cap Available in 2 sizes (4.5 in. and 5.5 in. ID). Choice of tranparent glass or non-

transparent metal (5.5 in. ID only). Enclosure attaches to Thermal Head to surround Device Under Test (DUT), providing a localized test environment at the test site.

ThermoChamber

Compact, portable thermal enclosure attaches directly or via “Flexible Extender Hose” to ThermoStream for testing larger PCBs, assemblies and UUTs (Units Under Test). Allows convenient access for adding and removing UUTs. Available in three standard designs: Hood, Clamshell (top load) and Front Load. See ThermoChamber datasheets for specifications.

Page 2

TP04300A

Mobile Programmable Temperature Source for testing components, parts, hybrids,

modules, subassemblies and printed circuit boards at precise temperature

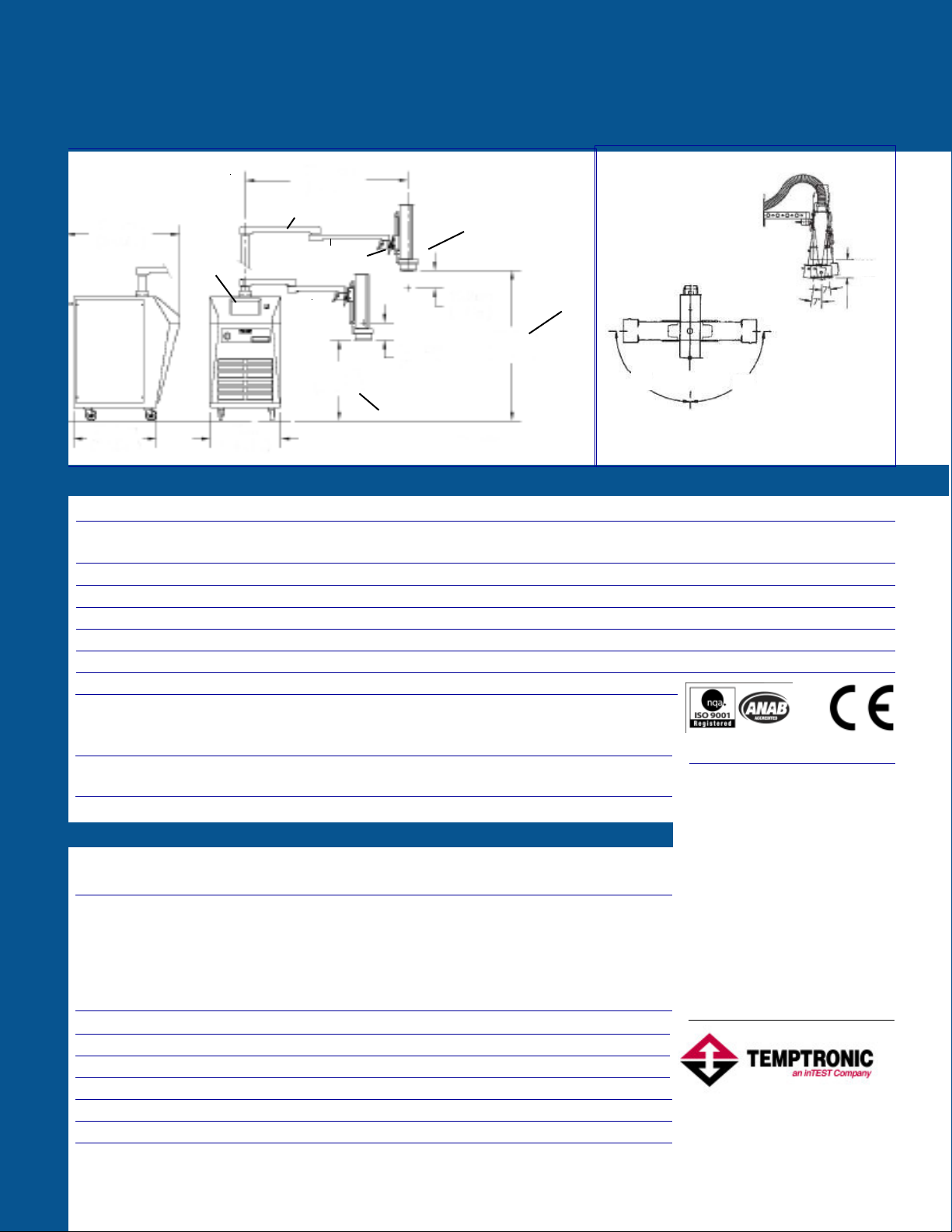

Side View

99.1 cm (39 in.)

Doc. Part no. SL10270 R/F 07/2008

72.4 cm (28.5 in.)

Front Panel Touchscreen

61 cm (24.0 in.)

139.7 cm (55 in.)

Manipulator (arm)

Locking Mechanism

69.6 cm (27.4 in.)

Environmental and Safety Features

Over Temperature Protection +235ºC (factory set); (Also, operator can set high and low air temperature limits.)

Mobility Four swivel caster wheels with locks ((10.16 cm (4 inch) diameter) static dissipative;

Refrigerants HCFC- and CFC-free, non-toxic, non-flammable

Serviceability Auto-diagnostics and field replaceable modules

Maximum Operating Height

Minimum Operating Height 69.6 cm. (27.4 in.) approximately

Noise Level <65 dBA

Taller operating height is optional. Contact factory for details.

Weights and Dimensions

Base

: Width: 61.0 cm. (24 in.), Depth: 72.4 cm. (28.5

in.), Height: 108 cm. (42.5 in.)

System Weight: Not packed: 236 kg (520 lbs.);

An additional 20.3 cm (8 in.) clearance is required for supply connections and cabinet ventilation.

Facility Requirements

Power

Compressed Air

Clean, Dry Air (CDA): Filtered to 5 micron particulate contamination.

Supply Pressure 6.2 to 7.6 BAR ( 90 to 110 PSIG)

Supply Flow at Minimum Supply Pressure 7.2 to 14.3 l/s (15 to 30 scfm); 25 scfm nominal

Air Supply Temperature +20º to +25ºC ; +22ºC nominal

Operating Environment

Operating Temperature +20º to +28ºC; +23ºC nominal

Humidity 0 to 60% ; 45% nominal

Under operating conditions which are greater or less than nominal, performance may be less than

TP04300A ThermoStream Specifications

5 5

Note: System is configured for operation within voltages listed above using an internal transformer.

specification provided.

Please specify power configuration with order.

Front View

Thermal Head (right) can be tilted or swung ±7° and locked in place for ease of

positioning at test site.

15.2 cm (6 in.)

Minimum Operating Height

Thermal Head

15.2 cm (6 in.)

Maximum Operating

Height

130.3 cm (51.2 in.)

rear handle for ease of transport

130.3 cm. (51.25 in.) approximately

Packed: 365 kg (805 lbs.)

200-250 VAC (230 V nominal), 50/60 Hz,

30 amp, 1 phase

Oil Content: <0.01 ppm. by weight , filtered

to 0.01 micron oil contaminant.

Dewpoint: <10ºC @ 6.2 BAR (90 PSI)

90º

Head Rotation Front View

ISO 9001-2000 Certified

Corporation. These specifications are valid for the standard product and are subject to change without notice. Applications requiring modification to electrical, mechanical or thermal characteristics should be discussed with Temptronic for possible accommodation at additional cost. ThermoStream® is a registered trademark of Temptronic Corporation. Windows® is a registered trademark of Microsoft Corporation. Ethernet is a registered trademark of XEROX Corporation. LabView is a registered trademark of National Instruments Corporation. Printed in USA.

Doc. Part no. SL10270 R/F July 2008

90º

Thermal head’s range of rotation around the manipulator arm.

4 Commercial St. Sharon, MA 02067 USA Tel: 781-688-2300 FAX: 781-688-2301 www.temptronic.com

15.25 cm (6 in.)
