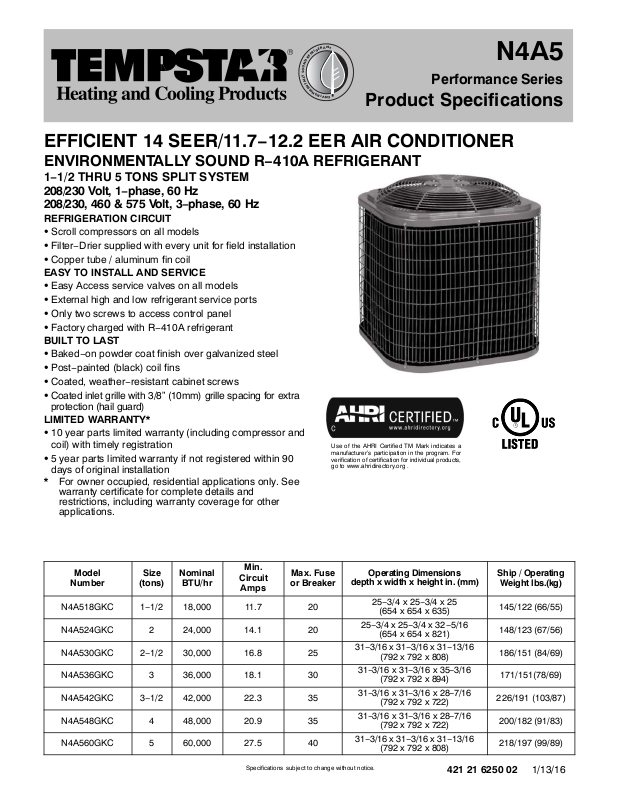

Performance Series
N4A5
Product Specifications
EFFICIENT 14 SEER/11.7−12.2 EER AIR CONDITIONER
ENVIRONMENTALLY SOUND R−410A REFRIGERANT
1−1/2 THRU 5 TONS SPLIT SYSTEM
208/230 Volt, 1−phase, 60 Hz
208/230, 460 & 575 Volt, 3−phase, 60 Hz
REFRIGERATION CIRCUIT
S Scroll compressors on all models
S Filter−Drier supplied with every unit for field installation
S Copper tube / aluminum fin coil
EASY TO INSTALL AND SERVICE
S Easy Access service valves on all models
S External high and low refrigerant service ports
S Only two screws to access control panel
S Factory charged with R−410A refrigerant
BUILT TO LAST
S Baked−on powder coat finish over galvanized steel
S Post−painted (black) coil fins
S Coated, weather−resistant cabinet screws
S Coated inlet grille with 3/8” (10mm) grille spacing for extra
protection (hail guard)
LIMITED WARRANTY*
S 10 year parts limited warranty (including compressor and
coil) with timely registration
S 5 year parts limited warranty if not registered within 90
days of original installation
* For owner occupied, residential applications only. See
warranty certificate for complete details and
restrictions, including warranty coverage for other
applications.
Use of the AHRI Certified TM Mark indicates a
manufacturer’s participation in the program. For
verification of certification for individual products,
go to www.ahridirectory.org .
Model
Number
Size
(tons)
Nominal
BTU/hr
Min.
Circuit
Amps
Max. Fuse
or Breaker
N4A518GKC 1−1/2 18,000 11.7 20
N4A524GKC 2 24,000 14.1 20
N4A530GKC 2−1/2 30,000 16.8 25
N4A536GKC 3 36,000 18.1 30
N4A542GKC 3−1/2 42,000 22.3 35
N4A548GKC 4 48,000 20.9 35
N4A560GKC 5 60,000 27.5 40
Specifications subject to change without notice.
Operating Dimensions
depth x width x height in. (mm)
25−3/4 x 25−3/4 x 25
(654 x 654 x 635)
25−3/4 x 25−3/4 x 32−5/16
(654 x 654 x 821)
31−3/16 x 31−3/16 x 31−13/16
(792 x 792 x 808)
31−3/16 x 31−3/16 x 35−3/16
(792 x 792 x 894)
31−3/16 x 31−3/16 x 28−7/16
(792 x 792 x 722)
31−3/16 x 31−3/16 x 28−7/16
(792 x 792 x 722)
31−3/16 x 31−3/16 x 31−13/16
(792 x 792 x 808)
421 21 6250 02 1/13/16
Ship / Operating
Weight lbs.(kg)
145/122 (66/55)
148/123 (67/56)
186/151 (84/69)
171/151(78/69)
226/191 (103/87)
200/182 (91/83)
218/197 (99/89)
Page 2
PRODUCT SPECIFICATIONS Split System Air Conditioner: N4A5
OUTDOOR UNIT MODEL NUMBER IDENTIFICATION GUIDE
Digit Position: 1 2 3 4 5, 6 7 8 9 10 11 12
Example Part Number:
T = Tempstar Mainline
N = Tempstar Entry BRANDING
4 = R−410A REFRIGERANT
A = Air Conditioner
H = Heat Pump TYPE
5 = 15 SEER
18 = 18,000 BTUH = 1−1/2 tons
24 = 24,000 BTUH = 2 tons
30 = 30,000 BTUH = 2−1/2 tons
36 = 36,000 BTUH = 3 tons
42 = 42,000 BTUH = 3−1/2 tons
48 = 48,000 BTUH = 4 tons
60 = 60,000 BTUH = 5 tons NOMINAL CAPACITY
A = Standard Grille
G = Coil Guard Grille
C = Coastal FEATURES
K = 208/230−1−60
H = 208/230−3−60
L = 460−3−60
S = 575−3−60 VOLTAGE
Sales Code
Engineering Revision
Extra Digit
Extra Digit
N 4 A 5 18 G K C 1 0 0
NOMINAL EFFICIENCY
ACCESSORIES PART NUMBER IDENTIFICATION GUIDE
Digit Position: 1 2 3 4 5 6, 7 8, 9 10, 11
Example Part Number:
N = Non−Branded BRANDING
A = Accessory PRODUCT GROUP
S = Split System (AC & HP) KIT USAGE
A = Original
B = 2nd Generation MAJOR SERIES
0 = Generic or Not Applicable
2 = R−22
4 = R−410A REFRIGERANT
Product Identifier Number
Package Quantity
Type of Kit (Example: CH = Crankcase Heater)
2 421 21 6250 02
Specifications subject to change without notice.
N A S A 0 0 1 01 C H
Page 3
PRODUCT SPECIFICATIONS Split System Air Conditioner: N4A5
SD5270−4 REV B
Shipping
Rooftop
Minimum
Mounting Pad
Ground
Minimum
Mounting Pad
L x W x H
Dimensions
Y
Size
X
Size
Dimensions Inches (English)
A B C D E F G K L M N P
25−3/4 25 3−3/4 3/4 4−7/16 21−1/4 9−1/8 2−13/16 1/2 13 15−1/4 9−3/4 25−3/4 x 25−3/4 20−7/16 x 20−7/16 27−7/8 x 27−7/8 x 32−9/16
25−3/4 32−5/16 3−3/4 3/4 4−7/16 21−1/4 9−1/8 2−13/16 1/2 13−5/8 13−1/4 15−1/16 25−3/4 x 25−3/4 20−7/16 x 20−7/16 27−7/8 x 27−7/8 x 36−5/8
31−3/16 31−13/16 3−3/4 3/4 6−9/16 24−11/ 16 9−1/8 2−13/16 1/2 16−1/8 15−1/16 12−5/8 31−3/16 x 31−3/16 23 x 23 33−3/8 x 33−3/8 x 34
31−3/16 35−3/16 3−7/8 7/8 6−9/16 24−11/ 16 9−1/8 2−15/16 5/8 16−1/8 16−3/8 14−7/16 31−3/16 x 31−3/16 23 x 23 33−3/8 x 33−3/8 x 37−7/16
31−3/16 28−7/16 3−7/8 7/8 6−9/16 24−11/ 16 9−1/8 2−15/16 5/8 15−7/8 17 11 −7/8 31−3/16 x 31−3/16 23 x 23 33−3/8 x 33−3/8 x 30−5/8
31−3/16 28−7/16 3−7/8 7/8 6−9/16 24−11/ 16 9−1/8 2−15/16 5/8 16−3/16 16−1/4 10−1/4 31−3/16 x 31−3/16 23 x 23 33−3/8 x 33−3/8 x 30−5/8
31−3/16 31−13/16 3−7/8 7/8 6−9/16 24−11/1 6 9−1/8 2−15/16 5/8 15−1/2 16 10−7/8 31−3/16 x 31−3/16 23 x 23 33−3/8 x 33−3/8 x 34
Model
1. Allow 30” clearance to service side of unit, 48” above unit, 6“ on one side, 12” on remaining sides and 24” between units for proper airflow.
2. Minimum outdoor operating ambient in cooling mode is 55ºF, max 125ºF.
3. Center of Gravity
421 21 6250 02 3
Specifications subject to change without notice.
N4A518GKC
N4A524GKC
N4A530GKC
N4A536GKC
N4A542GKC
N4A548GKC
N4A560GKC
Page 4
PRODUCT SPECIFICATIONS Split System Air Conditioner: N4A5
SD5270−4 REV B
Shipping
Rooftop
Minimum
Mounting
Ground
Minimum
Mounting
L x W x H
Dimensions
Y
Pad Size
X
Pad Size
Dimensions mm (SI Metric)
A B C D E F G K L M N P
654 635 95 19 113 540 232 71 13 330 387 248 654 X 654 518 x 518 708 x 708 x 827
654 821 95 19 113 540 232 71 13 340 337 383 654 x 654 518 x 518 708 x 708 x 827
792 808 95 19 167 627 232 71 13 410 383 321 792 x 792 583 x 583 847 x 847 x 864
792 894 98 22 167 627 232 75 16 410 416 367 792 x 792 583 x 583 847 x 847 x 951
792 722 98 22 167 627 232 75 16 403 432 302 792 x 792 583 x 583 847 x 847 x 778
792 722 98 22 167 627 232 75 16 411 413 260 792 x 792 583 x 583 847 x 847 x 778
792 808 98 22 167 627 232 75 16 394 406 276 792 x 792 583 x 583 847 x 847 x 864
1. Allow 762 mm clearance to service side of unit, 1219 mm above unit, 152 mm on one side, 305 mm on remaining sides, and 610mm between units for proper airflow.
2. Minimum outdoor operating ambient in cooling mode is 13ºC, max 52ºC.
3. Center of Gravity
4 421 21 6250 02
Specifications subject to change without notice.
Model
N4A518GKC
N4A524GKC
N4A530GKC
N4A536GKC
N4A542GKC
N4A548GKC
N4A560GKC
Page 5
PRODUCT SPECIFICATIONS Split System Air Conditioner: N4A5
PHYSICAL DATA
UNIT SIZE 18 24 30 36 42 48 60
Compressor Type Scroll
REFRIGERANT R-410A
Control TXV Hard Shutoff
Charge (lb) 3.20 (1.45) 4.60 (2.09) 5.67 (2.57) 6.40 (2.90) 7.46 (3.38) 8.31 (3.77) 9.39 (4.26)
COND FAN Propeller Type, Direct Drive
Air Discharge Vertical
Air Qty (CFM) 1700 1881 2614 3365 3700 3545 3700
Motor HP 1/12 1/12 1/10 1/5 1/4 1/4 1/4
Motor RPM 1100 1100 1100 1100 1100 1110 1100
COND COIL
Face Area (Sq ft) 9.85 11.2 17.24 19.4 15.1 15.1 17.25
Fins per In. 25 25 25 25 20 20 25
Rows 1 1 1 1 2 2 2
Circuits 3 5 4 5 6 6 8
VALVE CONNECT. (In. ID)
Vapor 3/4 3/4 3/4 7/8 7/8 7/8 7/8
Liquid 3/8
REFRIGERANT TUBES (In. OD)
Rated Vapor* 3/4 3/4 3/4 7/8 7/8 7/8 1-1/8
Max Liquid Line 3/8
* Units are rated with 25 ft (7.6 m) of lineset length. See Vapor Line Sizing and Cooling Capacity Loss table when using other sizes and lengths of lineset. Note: See
unit Installation Instruction for proper installation.
UNIT SIZE V/PH
18
24 62.9 10.9 0.50 14.1 20
30 67.8 12.8 0.75 16.8 25
36 79.0 13.6 1.10 18.1 30
42 109.0 16.7 1.40 22.3 35
48 105.7 15.6 1.40 20.9 35
* Permissible limits of the voltage range at which the unit will operate satisfactorily
{ Time−Delay fuse.
Complies with 2010 requirements of ASHRAE Standards 90.1
60 127.1 20.8 1.52 27.5 40
FLA − Full Load Amps
LRA − Locked Rotor Amps
MCA − Minimum Circuit Amps
RLA − Rated Load Amps
NOTE: Control circuit is 24V on all units and requires external power source. Copper wire must be used from service disconnect to unit.
All motors/compressors contain internal overload protection.
208/230/1-60 253 197
OPER VOLTS* COMPR FAN
MAX MIN LRA RLA FLA
47.5 9.0 0.40 11.7 20
MCA
MAX FUSE{
or CKT BRK
AMPS
A–WEIGHTED SOUND POWER (dBA)
UNIT SIZE
Standard
Rating (dBA)
125 250 500 1000 2000 4000 8000
18 75 46.0 55.0 59.5 64.0 60.5 54.5 48.5
24 71 50.5 53.5 58.5 60.5 60.0 56.5 52.5
30 73 49.5 56.0 62.5 64.0 60.5 57.5 53.5
36 75 49.0 57.0 62.5 66.0 61.0 58.5 52.0
42 75 52.5 63.0 64.0 63.0 62.0 58.0 52.0
48 76 53.0 61.0 64.0 65.5 62.0 59.5 50.5
60 75 53.5 57.0 62.5 63.5 61.5 57.5 51.0
NOTE: Tested in compliance with AHRI 270–1995 (not listed with AHRI)
TYPICAL OCTAVE BAND SPECTRUM (dBA without tone adjustment)
A–WEIGHTED SOUND POWER (dBA) WITH SOUND SHIELD
UNIT SIZE
Standard
Rating (dBA)
125 250 500 1000 2000 4000 8000
18 75 46.5 55.5 59.5 63.5 60.0 54.0 47.0
24 71 47.5 53.5 58.0 59.5 60.0 55.5 49.0
30 72 49.0 56.5 61.5 62.5 60.0 57.0 52.0
36 73 49.5 57.0 62.0 64.0 60.0 58.0 51.0
42 74 53.5 64.0 64.0 62.5 61.0 56.5 50.5
48 73 54.5 61.0 63.5 62.5 60.0 56.5 47.5
60 73 53.5 59.0 63.0 62.5 59.5 56.0 48.0
NOTE: Tested in compliance with AHRI 270–1995 (not listed with AHRI)
421 21 6250 02 5
TYPICAL OCTAVE BAND SPECTRUM (dBA without tone adjustment)
Specifications subject to change without notice.
Page 6
PRODUCT SPECIFICATIONS Split System Air Conditioner: N4A5
METERING DEVICE
UNIT SIZE - SERIES
18
24 10 (5.56)
30 12 (6.67)
36 11 (6.11)
42 11 (6.11)
48 11 (6.11)
60 13 (7.22)
* TXV must be ordered separately when indoor coil is not equipped with a TXV. TXV must be hard–shutoff type.
REFRIGERANT CHARGE ADJUSTMENTS
Liquid Line Size R-410A Charge oz/ft
3/8
5/16 0.40
1/4 0.27
Units are factory charged for 15 ft (4.6 m) of 3/8” liquid line. The factory charge for 3/8” lineset 9 oz. When using other length or
diameter liquid lines, charge adjustments are required per the chart above.
Charging Formula:
[(Lineset oz/ft x total length) – (factory charge for lineset)] = charge adjustment
Example 1: System has 15 ft of line set using existing 1/4“ liquid line. What charge adjustment is required?
Formula: (.27 oz/ft x 15ft) – (9 oz) = (-4.95) oz.
Net result is to remove 4.95 oz of refrigerant from the system
Example 2: System has 45 ft of existing 5/16” liquid line. What is the charge adjustment?
Formula: (.40 oz/ft. x 45ft) – (9 oz.) = 9 oz.
Net result is to add 9 oz of refrigerant to the system
INDOOOR
TXV*
REQUIRED SUBCOOLING _F (_C)
13 (7.22)
0.60
(Factory charge for lineset = 9 oz)
LONG LINE APPLICATIONS
An application is considered Long Line, when the refrigerant level in the system requires the use of accessories to maintain
acceptable refrigerant management for systems reliability. See Accessory Usage Guideline table for required accessories. Defining a
system as long line depends on the liquid line diameter, actual length of the tubing, and vertical separation between the indoor and
outdoor units.
For Air Conditioner systems, the charts below shows when an application requires a TXV and long line accessories due to lineset
length.
AC with R−410A Refrigerant Long Line Description ft (m) Beyond these lengths, a TXV is required
Total Length Outdoor Unit Above or Below Indoor Unit
TXV required beyond 50 ft. (15.2 m) TXV required beyond 20 ft. (6.1 m)
AC with R−410A Refrigerant Long Line Description ft (m) (Beyond these lengths, long line accessories are required)
Liquid Line Size Units On Same Level Outdoor Below Indoor Outdoor Above Indoor
1/4 + TXV
No accessories needed within al
lowed lengths
5/16 + TXV 120 (36.6) 50 (15.2) vertical or 120 (36.6) total 120 (36.6)
3/8 + TXV 80 (24.4) 35 (10.7) vertical or 80 (24.4) total 80 (24.4)
Note: See Long Line Guideline for details
No accessories needed within
allowed lengths
175 (53.3)
6 421 21 6250 02
Specifications subject to change without notice.
Page 7
PRODUCT SPECIFICATIONS Split System Air Conditioner: N4A5
VAPOR LINE SIZING AND COOLING CAPACITY LOSS
Acceptable vapor line diameters provide adequate oil return to the compressor while avoiding excessive capacity loss. The suction
line diameters shown in the chart below are acceptable for AC systems with R−410A refrigerant:
Unit
Nominal
Size (Btuh)
18
1 Stage
AC with
R-410A
24
1 Stage
AC with
R-410A
30
1 Stage
AC with
R-410A
36
1 Stage
AC with
R-410A
42
1 Stage
AC with
R-410A
48
1 Stage
AC with
R-410A
60
1 Stage
AC with
R-410A
Maximum
Liquid Line
Diameters
(In. OD)
3/8
3/8
3/8
3/8
3/8
3/8
3/8
Vapor Line
Diameters
(In. OD)
1/2 1 2 3 5 6 7 8 9 11
5/8 0 1 1 1 2 2 2 3 3
3/4 0 0 0 0 1 1 1 1 1
5/8 0 1 2 2 3 3 4 5 5
3/4 0 0 1 1 1 1 1 2 2
7/8 0 0 0 0 0 1 1 1 1
5/8 1 2 3 3 4 5 6 7 8
3/4 0 0 1 1 1 2 2 2 3
7/8 0 0 0 0 1 1 1 1 1
5/8 1 2 4 5 6 8 9 10 12
3/4 0 1 1 2 2 3 3 4 4
7/8 0 0 0 1 1 1 1 2 2
3/4 0 1 2 2 3 4 4 5 6
7/8 0 0 1 1 1 2 2 2 3
1 1/8 0 0 0 0 0 0 0 0 0
3/4 0 1 2 3 4 5 5 6 7
7/8 0 0 1 1 2 2 2 3 3
1 1/8 0 0 0 0 0 0 0 1 1
3/4 1 2 4 5 6 7 9 10 11
7/8 0 1 2 2 3 4 4 5 5
1 1/8 0 0 0 1 1 1 1 1 1
26-50
(7.9-15.2)
51-80
(15.5-24.4)
81-100
(24.7-30.5)
Consult the Long Line Application Guideline document before purchasing/installing line sets.
Applications in shaded area may have height restrictions that limit allowable total equivalent length when outdoor unit is below indoor
unit.
Cooling Capacity Loss (%)
Total Equivalent Line Length ft. (m)
101-125
(30.8-38.1)
126-150
(38.4-45.7)
151-175
(46.0-53.3)
176-200
(53.6-61.0)
201-225
(61.3-68.6)
226-250
(68.9-76.2)
TESTED AHRI COMBINATION RATINGS
NOTE: For complete ratings information, use the AHRI website directory search: www.AHRIdirectory.org.
New ratings may be listed online before Specification Sheets are updated.
UNIT SIZE
18 EA**1917AL* 17,200 TXV 14.00 12.20
24 EA**2517AL* 24,000 TXV 14.50 12.50
30 EA**3721AL* 29,600 TXV 14.50 12.50
36 EA**3721AL* 34,600 TXV 14.00 12.20
42 EA**4321AL* 40,000 TXV 14.00 12.20
48 EA**6124AL* 45,000 TXV 14.50 11.70
60 EA**6024AL* 56,500 TXV 14.00 11.70
AHRI — Air Conditioning, Heating & Refrigeration Institute
EER — Energy Efficiency Ratio − 80_F (26.6_C) indoor db/67_F (19.4_C) indoor wb & 95_F (35_C) outdoor wb.
SEER — Seasonal Energy Efficiency Ratio
TDR — Time−Delay Relay. In most cases, only one method should be used to achieve TDR function. Using more than one method in a system may cause degradation in performance.
Use either the accessory Time−Delay Relay or a furnace equipped with TDR. Most ICP furnaces are equipped with TDR.
NOTES:
1. Ratings are net values reflecting the effects of circulating fan motor heat. Supplemental electric heat is not included.
2. Tested outdoor/indoor combinations have been tested in accordance with DOE test procedures for central air conditioners. Ratings for other combinations are determined under DOE computer
simulation procedures.
3. Determine actual CFM values obtainable for your system by referring to fan performance data in fan coil or furnace coil literature.
4. Do not apply with capillary tube coils as performance and reliability are significantly affected.
INDOOR
MODEL
CAPACITY
TESTED AHRI COMBINATION RATINGS* Or scan this QR code:
NOTE: Ratings contained in this document are subject to change at any time.
For AHRI ratings certificates, please refer to the AHRI directory. www.ahridirectory.org
Additional ratings and system combinations can be accessed via the Tempstar database:
http://www.icpeqp.com/AHRIratings/ratings.aspx?Brand=Tempstar
AHRI STANDARD RATINGS
FACTORY
ENHANCE
COOLING
STANDARD TDR TXV
SEER
EER
FURNACE MODEL
421 21 6250 02 7
Specifications subject to change without notice.
Page 8
PRODUCT SPECIFICATIONS Split System Air Conditioner: N4A5
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
CONDENSER ENTERING AIR TEMPERATURES °F (°C)
Capacity MBtuh
Total
Capacity MBtuh
Total
75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)
Capacity MBtuh
KW**
System
KW**
System
N4A518GKA Outdoor Section With EA*4X24B** Indoor Section
KW**
System
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
CONDENSER ENTERING AIR TEMPERATURES °F (°C)
Capacity MBtuh
Total
Capacity MBtuh
Total
75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)
Capacity MBtuh
KW**
System
KW**
System
N4A524GKA Outdoor Section With EA*4X25L17** Indoor Section
KW**
System
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
EWB
°F (°C)
72 (22.2) 20.56 10.96 1.11 19.77 10.67 1.25 18.93 10.35 1.40 17.98 10.00 1.58 16.91 9.62 1.77 15.70 9.18 2.00
67 (19.4) 18.80 13.55 1.12 18.03 13.23 1.26 17.20 12.89 1.41 16.29 12.52 1.58 15.26 12.11 1.78 14.11 11.66 2.00
62 (16.7) 17.21 16.10 1.13 16.46 15.76 1.27 15.67 15.40 1.42 14.89 14.89 1.59 14.11 14.11 1.78 13.23 13.23 2.00
57 (13.9) 16.82 16.82 1.14 16.21 16.21 1.27 15.57 15.57 1.42 14.86 14.86 1.59 14.08 14.08 1.78 13.20 13.20 2.00
72 (22.2) 20.91 11.56 1.14 20.10 11.27 1.27 19.23 10.95 1.43 18.25 10.60 1.60 17.16 10.22 1.80 15.91 9.78 2.02
67 (19.4) 19.14 14.52 1.15 18.35 14.21 1.28 17.50 13.87 1.44 16.56 13.49 1.61 15.51 13.08 1.80 14.33 12.62 2.03
62 (16.7) 17.61 17.44 1.16 16.94 16.94 1.29 16.27 16.27 1.44 15.53 15.53 1.61 14.70 14.70 1.81 13.77 13.77 2.03
57 (13.9) 17.54 17.54 1.16 16.91 16.91 1.29 16.24 16.24 1.44 15.50 15.50 1.61 14.68 14.68 1.81 13.75 13.75 2.03
72 (22.2) 21.16 12.15 1.16 20.33 11.86 1.30 19.44 11.54 1.46 18.44 11.19 1.63 17.32 10.80 1.83 16.05 10.37 2.05
67 (19.4) 19.39 15.48 1.17 18.58 15.16 1.31 17.72 14.81 1.46 16.77 14.44 1.63 15.69 14.03 1.83 14.49 13.56 2.05
62 (16.7) 18.17 18.17 1.18 17.52 17.52 1.32 16.82 16.82 1.47 16.05 16.05 1.64 15.19 15.19 1.83 14.22 14.22 2.06
63 (17.2)†† 18.12 14.87 1.18 17.31 14.52 1.32 16.46 14.16 1.47 15.53 13.77 1.64 14.49 13.33 1.84 13.33 12.84 2.06
675
57 (13.9) 18.14 18.14 1.18 17.49 17.49 1.32 16.79 16.79 1.47 16.03 16.03 1.64 15.17 15.17 1.83 14.20 14.20 2.06
EVAPORATOR AIR
CFM
63 (17.2)†† 17.52 13.07 1.13 16.75 12.73 1.27 15.94 12.37 1.42 15.04 11.98 1.59 14.05 11.55 1.78 12.94 11.08 2.01
525
63 (17.2)†† 17.86 13.98 1.16 17.08 13.64 1.29 16.24 13.28 1.44 15.32 12.88 1.61 14.30 12.45 1.81 13.16 11.97 2.03
600
DETAILED COOLING CAPACITIES#
8 421 21 6250 02
EWB
°F (°C)
72 (22.2) 28.74 15.34 1.56 27.56 14.90 1.73 26.33 14.44 1.92 25.00 13.95 2.14 23.56 13.43 2.40 21.93 12.85 2.70
67 (19.4) 26.25 18.97 1.56 25.16 18.51 1.73 24.00 18.04 1.92 22.78 17.53 2.14 21.42 16.99 2.40 19.90 16.39 2.70
62 (16.7) 23.96 22.48 1.56 22.96 22.01 1.73 21.90 21.51 1.92 20.82 20.82 2.14 19.79 19.79 2.40 18.66 18.66 2.70
57 (13.9) 23.35 23.35 1.56 22.55 22.55 1.73 21.70 21.70 1.92 20.79 20.79 2.14 19.76 19.76 2.40 18.63 18.63 2.70
72 (22.2) 29.22 16.18 1.60 28.00 15.74 1.77 26.71 15.27 1.96 25.33 14.78 2.18 23.85 14.26 2.44 22.16 13.67 2.73
63 (17.2)†† 24.47 18.29 1.56 23.43 17.84 1.73 22.35 17.34 1.92 21.19 16.83 2.14 19.88 16.27 2.40 18.47 15.67 2.71
EVAPORATOR AIR
CFM
Specifications subject to change without notice.
700
67 (19.4) 26.70 20.31 1.60 25.57 19.85 1.77 24.37 19.37 1.96 23.09 18.86 2.18 21.71 18.31 2.44 20.15 17.70 2.74
63 (17.2)†† 24.93 19.55 1.60 23.86 19.08 1.77 22.73 18.59 1.96 21.52 18.07 2.18 20.17 17.49 2.44 18.72 16.88 2.74
800
62 (16.7) 24.49 24.27 1.60 23.54 23.54 1.77 22.63 22.63 1.96 21.65 21.65 2.18 20.56 20.56 2.44 19.34 19.34 2.74
57 (13.9) 24.36 24.36 1.60 23.50 23.50 1.77 22.60 22.60 1.96 21.62 21.62 2.18 20.53 20.53 2.44 19.32 19.32 2.74
72 (22.2) 29.57 17.01 1.63 28.30 16.56 1.80 26.98 16.09 2.00 25.56 15.60 2.22 24.03 15.06 2.47 22.31 14.47 2.77
67 (19.4) 27.04 21.62 1.63 25.87 21.16 1.80 24.63 20.66 1.99 23.32 20.15 2.22 21.91 19.59 2.47 20.32 18.96 2.77
63 (17.2)†† 25.27 20.77 1.63 24.17 20.29 1.80 23.00 19.80 2.00 21.76 19.27 2.22 20.38 18.68 2.48 18.89 18.04 2.78
900
62 (16.7) 25.23 25.23 1.63 24.32 24.32 1.80 23.36 23.36 2.00 22.32 22.32 2.22 21.19 21.19 2.47 19.90 19.90 2.77
57 (13.9) 25.19 25.19 1.63 24.28 24.28 1.80 23.33 23.33 2.00 22.30 22.30 2.22 21.16 21.16 2.47 19.87 19.87 2.77
See notes on page 7
Page 9
PRODUCT SPECIFICATIONS Split System Air Conditioner: N4A5
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
CONDENSER ENTERING AIR TEMPERATURES °F (°C)
Capacity MBtuh
Total
Capacity MBtuh
Total
75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)
Capacity MBtuh
KW**
System
CONDENSER ENTERING AIR TEMPERATURES °F (°C)
KW**
System
N4A530GKA Outdoor Section With EA*4X37L21** Indoor Section
KW**
System
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)
Capacity MBtuh
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
N4A536GKA Outdoor Section With EA*4X37L21** Indoor Section
EWB
°F (°C)
72 (22.2) 34.17 17.94 1.96 32.63 17.38 2.16 31.02 16.79 2.40 29.33 16.18 2.66 27.51 15.54 2.98 25.57 14.86 3.35
67 (19.4) 31.02 22.10 1.97 29.61 21.53 2.17 28.14 20.94 2.40 26.58 20.31 2.66 24.91 19.66 2.98 23.13 18.96 3.35
62 (16.7) 28.19 26.15 1.97 26.92 25.56 2.17 25.60 25.36 2.40 24.34 24.34 2.66 23.11 23.11 2.98 21.76 21.76 3.35
57 (13.9) 27.51 27.51 1.97 26.51 26.51 2.17 25.45 25.45 2.40 24.30 24.30 2.66 23.07 23.07 2.98 21.73 21.73 3.35
72 (22.2) 34.79 18.95 2.01 33.19 18.37 2.21 31.51 17.78 2.44 29.73 17.16 2.71 27.85 16.51 3.03 25.85 15.82 3.40
67 (19.4) 31.61 23.69 2.01 30.13 23.11 2.21 28.60 22.50 2.44 26.98 21.87 2.71 25.25 21.19 3.03 23.42 20.49 3.40
62 (16.7) 28.87 28.71 2.01 27.71 27.71 2.22 26.56 26.56 2.45 25.33 25.33 2.71 24.00 24.00 3.03 22.57 22.57 3.40
57 (13.9) 28.75 28.75 2.01 27.66 27.66 2.22 26.52 26.52 2.45 25.29 25.29 2.71 23.97 23.97 3.03 22.54 22.54 3.40
72 (22.2) 35.24 19.93 2.06 33.57 19.35 2.26 31.84 18.74 2.49 30.02 18.11 2.76 28.08 17.45 3.08 26.02 16.75 3.45
67 (19.4) 32.05 25.24 2.06 30.53 24.64 2.26 28.94 24.02 2.49 27.27 23.37 2.76 25.51 22.69 3.08 23.63 21.95 3.45
62 (16.7) 29.83 29.83 2.06 28.67 28.67 2.26 27.45 27.45 2.49 26.15 26.15 2.76 24.74 24.74 3.07 23.23 23.23 3.45
63 (17.2)†† 29.77 24.16 2.06 28.34 23.56 2.26 26.86 22.94 2.49 25.30 22.28 2.76 23.65 21.59 3.08 21.90 20.83 3.45
1125
57 (13.9) 29.79 29.79 2.06 28.63 28.63 2.26 27.41 27.41 2.49 26.11 26.11 2.76 24.71 24.71 3.07 23.20 23.20 3.45
EVAPORATOR AIR
CFM
63 (17.2)†† 28.77 21.25 1.97 27.46 20.67 2.17 26.08 20.08 2.40 24.62 19.45 2.67 23.07 18.79 2.98 21.39 18.09 3.35
875
63 (17.2)†† 29.34 22.73 2.02 27.97 22.14 2.22 26.53 21.53 2.45 25.01 20.89 2.71 23.40 20.21 3.03 21.68 19.49 3.40
1000
DETAILED COOLING CAPACITIES# CONTINUED
421 21 6250 02 9
EWB
°F (°C)
72 (22.2) 41.37 21.28 2.29 39.61 20.66 2.57 37.34 19.87 2.85 34.80 19.01 3.15 32.22 18.13 3.51 29.74 17.32 3.96
67 (19.4) 38.24 26.63 2.29 36.68 26.02 2.57 34.60 25.21 2.84 32.26 24.32 3.13 29.89 23.42 3.49 27.60 22.56 3.93
62 (16.7) 35.20 31.75 2.31 33.85 31.13 2.57 32.01 31.87 2.83 30.18 30.18 3.12 28.33 28.33 3.48 26.52 26.52 3.92
57 (13.9) 34.54 34.54 2.31 33.43 33.43 2.58 31.90 31.90 2.83 30.14 30.14 3.12 28.29 28.29 3.48 26.48 26.48 3.92
72 (22.2) 41.83 22.41 2.34 39.99 21.78 2.63 37.64 20.98 2.91 35.04 20.11 3.22 32.39 19.23 3.58 29.84 18.39 4.02
63 (17.2)†† 35.82 25.73 2.30 34.41 25.13 2.57 32.47 24.32 2.84 30.30 23.42 3.12 28.06 22.51 3.48 25.93 21.65 3.92
EVAPORATOR AIR
CFM
Specifications subject to change without notice.
1050
67 (19.4) 38.76 28.48 2.35 37.13 27.85 2.62 34.98 27.03 2.90 32.57 26.13 3.19 30.13 25.21 3.55 27.79 24.32 3.99
63 (17.2)†† 36.39 27.47 2.36 34.91 26.85 2.63 32.90 26.03 2.89 30.64 25.11 3.18 28.35 24.18 3.54 26.16 23.28 3.98
1200
62 (16.7) 35.97 35.97 2.36 34.75 34.75 2.63 33.08 33.08 2.89 31.17 31.17 3.18 29.19 29.19 3.54 27.24 27.24 3.99
57 (13.9) 35.91 35.91 2.36 34.70 34.70 2.63 33.04 33.04 2.89 31.13 31.13 3.18 29.16 29.16 3.54 27.22 27.22 3.99
72 (22.2) 42.12 23.50 2.40 40.23 22.86 2.69 37.82 22.05 2.97 35.16 21.18 3.28 32.45 20.29 3.64 29.86 19.44 4.09
67 (19.4) 39.13 30.28 2.40 37.44 29.64 2.68 35.23 28.80 2.96 32.78 27.87 3.25 30.31 26.93 3.61 27.93 25.97 4.06
63 (17.2)†† 36.81 29.15 2.41 35.26 28.52 2.69 33.20 27.67 2.95 30.89 26.73 3.24 28.56 25.77 3.60 26.36 26.11 4.04
1350
62 (16.7) 37.06 37.06 2.41 35.74 35.74 2.68 33.96 33.96 2.95 31.94 31.94 3.25 29.84 29.84 3.61 27.79 27.79 4.05
57 (13.9) 37.01 37.01 2.41 35.70 35.70 2.68 33.92 33.92 2.95 31.90 31.90 3.25 29.81 29.81 3.61 27.76 27.76 4.05
See notes on page 7
Page 10
PRODUCT SPECIFICATIONS Split System Air Conditioner: N4A5
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
CONDENSER ENTERING AIR TEMPERATURES °F (°C)
Capacity MBtuh
Total
Capacity MBtuh
Total
75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)
Capacity MBtuh
KW**
System
CONDENSER ENTERING AIR TEMPERATURES °F (°C)
KW**
System
N4A542GKA Outdoor Section With EA*4X43L21** Indoor Section
KW**
System
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)
Capacity MBtuh
Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡
N4A548GKA Outdoor Section With EA*4X61L24** Indoor Section
EWB
°F (°C)
72 (22.2) 48.28 25.79 2.74 46.16 24.99 3.00 43.98 24.17 3.29 41.66 23.31 3.63 39.16 22.40 4.04 36.41 21.40 4.50
67 (19.4) 43.89 31.69 2.73 41.97 30.88 2.98 40.00 30.07 3.28 37.90 29.20 3.62 35.60 28.27 4.02 33.08 27.26 4.49
62 (16.7) 39.99 37.46 2.72 38.27 36.64 2.97 36.52 35.78 3.27 34.69 34.69 3.61 32.98 32.98 4.01 31.05 31.05 4.48
57 (13.9) 38.93 38.93 2.71 37.58 37.58 2.97 36.15 36.15 3.27 34.63 34.63 3.61 32.93 32.93 4.01 31.01 31.01 4.48
72 (22.2) 49.27 27.40 2.83 47.02 26.58 3.08 44.73 25.75 3.37 42.31 24.87 3.71 39.69 23.94 4.11 36.83 22.93 4.58
67 (19.4) 44.84 34.26 2.81 42.81 33.44 3.06 40.73 32.59 3.36 38.54 31.71 3.70 36.15 30.76 4.10 33.53 29.71 4.57
62 (16.7) 41.13 40.72 2.80 39.50 39.50 3.05 37.95 37.95 3.35 36.27 36.27 3.69 34.43 34.43 4.10 32.35 32.35 4.56
57 (13.9) 40.93 40.93 2.80 39.44 39.44 3.05 37.89 37.89 3.35 36.22 36.22 3.69 34.38 34.38 4.10 32.31 32.31 4.56
72 (22.2) 49.87 28.75 2.90 47.56 27.92 3.15 45.18 27.07 3.44 42.68 26.18 3.78 39.99 25.24 4.18 37.06 24.23 4.65
67 (19.4) 45.42 36.42 2.88 43.33 35.58 3.13 41.19 34.72 3.43 38.93 33.82 3.77 36.49 32.84 4.17 33.83 31.75 4.64
62 (16.7) 42.38 42.38 2.87 40.78 40.78 3.13 39.13 39.13 3.42 37.35 37.35 3.77 35.40 35.40 4.17 33.21 33.21 4.64
63 (17.2)†† 42.22 34.88 2.87 40.28 34.04 3.12 38.30 33.18 3.42 36.20 32.27 3.76 33.93 31.29 4.16 31.44 30.18 4.63
1575
57 (13.9) 42.32 42.32 2.87 40.73 40.73 3.13 39.08 39.08 3.42 37.31 37.31 3.77 35.35 35.35 4.17 33.17 33.17 4.64
EVAPORATOR AIR
CFM
63 (17.2)†† 40.73 30.48 2.72 38.96 29.68 2.98 37.13 28.87 3.27 35.18 28.01 3.61 33.05 27.08 4.01 30.68 26.05 4.48
1200
63 (17.2)†† 41.64 32.87 2.80 39.77 32.05 3.05 37.85 31.21 3.35 35.82 30.33 3.69 33.59 29.38 4.09 31.14 28.32 4.56
1400
DETAILED COOLING CAPACITIES# CONTINUED
10 421 21 6250 02
EWB
°F (°C)
72 (22.2) 53.91 26.70 3.12 51.70 25.95 3.46 49.29 25.14 3.81 46.61 24.25 4.20 43.50 23.23 4.66 39.94 22.07 5.22
67 (19.4) 49.07 33.08 3.15 47.03 32.30 3.47 44.83 31.48 3.81 42.36 30.56 4.19 39.52 29.52 4.65 36.26 28.33 5.22
62 (16.7) 44.81 39.26 3.16 42.96 38.43 3.48 41.03 40.90 3.80 39.14 39.14 4.18 36.99 36.99 4.64 34.49 34.49 5.22
57 (13.9) 44.02 44.02 3.16 42.51 42.51 3.48 40.91 40.91 3.80 39.08 39.08 4.18 36.94 36.94 4.64 34.44 34.44 5.22
72 (22.2) 54.74 28.18 3.20 52.46 27.42 3.54 49.97 26.60 3.89 47.17 25.68 4.28 43.95 24.64 4.74 40.30 23.48 5.30
63 (17.2)†† 45.60 31.80 3.16 43.67 31.02 3.48 41.61 30.19 3.81 39.31 29.27 4.18 36.66 28.22 4.64 33.61 27.02 5.22
EVAPORATOR AIR
CFM
Specifications subject to change without notice.
1400
67 (19.4) 49.91 35.43 3.22 47.78 34.64 3.55 45.50 33.80 3.89 42.95 32.87 4.27 40.01 31.79 4.73 36.67 30.58 5.30
63 (17.2)†† 46.41 33.99 3.23 44.41 33.19 3.55 42.28 32.35 3.89 39.89 31.40 4.26 37.15 30.32 4.72 34.04 29.09 5.30
1600
62 (16.7) 45.97 45.97 3.23 44.36 44.36 3.55 42.62 42.62 3.89 40.65 40.65 4.27 38.35 38.35 4.73 35.68 35.68 5.30
57 (13.9) 45.90 45.90 3.23 44.29 44.29 3.55 42.56 42.56 3.89 40.59 40.59 4.27 38.30 38.30 4.73 35.63 35.63 5.30
72 (22.2) 55.35 29.59 3.27 53.00 28.82 3.62 50.43 27.99 3.97 47.55 27.07 4.35 44.26 26.02 4.82 40.51 24.83 5.38
67 (19.4) 50.51 37.70 3.29 48.34 36.90 3.63 45.99 36.05 3.97 43.37 35.09 4.35 40.38 33.98 4.81 37.00 32.68 5.38
63 (17.2)†† 47.02 36.10 3.31 44.97 35.29 3.63 42.77 34.42 3.97 40.33 33.45 4.34 37.54 32.33 4.81 34.39 30.98 5.38
1800
62 (16.7) 47.51 47.51 3.31 45.80 45.80 3.63 43.96 43.96 3.97 41.87 41.87 4.35 39.44 39.44 4.81 36.63 36.63 5.38
57 (13.9) 47.45 47.45 3.31 45.74 45.74 3.63 43.91 43.91 3.97 41.82 41.82 4.35 39.40 39.40 4.81 36.58 36.58 5.38
See notes on page 7
Page 11
PRODUCT SPECIFICATIONS Split System Air Conditioner: N4A5
Total
KW**
System
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
CONDENSER ENTERING AIR TEMPERATURES °F (°C)
Capacity MBtuh
Total
KW**
System
Capacity MBtuh
Total
KW**
System
N4A560GKA Outdoor Section With EA*4X60L24** Indoor Section
Capacity MBtuh
Total
KW**
System
75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)
Capacity MBtuh
EWB
°F (°C)
72 (22.2) 68.41 35.82 4.01 65.35 34.67 4.39 62.15 33.49 4.86 58.70 32.23 5.39 55.01 30.89 5.96 50.87 29.41 6.55
67 (19.4) 62.24 44.04 4.01 59.41 42.88 4.38 56.50 41.69 4.83 53.38 40.43 5.35 50.00 39.08 5.91 46.23 37.59 6.49
62 (16.7) 56.92 52.17 4.02 54.40 50.96 4.37 51.84 49.69 4.81 49.16 49.16 5.32 46.64 46.64 5.88 43.73 43.73 6.46
57 (13.9) 55.64 55.64 4.02 53.56 53.56 4.37 51.43 51.43 4.81 49.13 49.13 5.32 46.56 46.56 5.88 43.68 43.68 6.46
72 (22.2) 69.54 37.55 4.10 66.36 36.39 4.49 63.04 35.18 4.96 59.50 33.91 5.49 55.63 32.53 6.06 51.36 31.03 6.66
67 (19.4) 63.30 46.83 4.11 60.35 45.64 4.47 57.34 44.44 4.93 54.11 43.16 5.45 50.61 41.77 6.01 46.74 40.24 6.60
62 (16.7) 58.25 55.83 4.11 55.72 55.33 4.47 53.37 53.37 4.91 50.91 50.91 5.43 48.16 48.16 5.99 45.09 45.09 6.58
57 (13.9) 57.80 57.80 4.11 55.59 55.59 4.47 53.30 53.30 4.91 50.84 50.84 5.43 48.11 48.11 5.99 45.03 45.03 6.58
72 (22.2) 70.37 39.17 4.20 67.10 37.99 4.59 63.67 36.77 5.06 60.02 35.48 5.59 56.04 34.08 6.17 51.66 32.55 6.76
67 (19.4) 64.08 49.47 4.20 61.08 48.28 4.57 57.95 47.04 5.03 54.64 45.73 5.55 51.07 44.31 6.12 47.12 42.69 6.70
62 (16.7) 59.69 59.69 4.20 57.32 57.32 4.56 54.90 54.90 5.02 52.28 52.28 5.53 49.41 49.41 6.10 46.17 46.17 6.69
63 (17.2)†† 59.56 47.41 4.20 56.73 46.20 4.56 53.82 44.95 5.01 50.77 43.65 5.52 47.44 42.21 6.08 43.78 40.57 6.66
2250
57 (13.9) 59.58 59.58 4.20 57.25 57.25 4.56 54.83 54.83 5.02 52.23 52.23 5.53 49.35 49.35 6.10 46.12 46.12 6.69
(245 kW) per 1000 CFM (480 L/S) of indoor coil air per degree above 80_F (27_C).
{ Total and sensible capacities are net capacities. Blower motor heat has been subtracted.
} Sensible capacities shown are based on 80_F (27_C) entering air at the indoor coil. For sensible capacities at other than 80_F (27_C), deduct 835 Btuh (245 kW) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80_F (27_C), or add 835 Btuh
# Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per AHRI standard 210/240-2008. If additional tubing length and/or indoor unit is located above outdoor unit, a slight variation in capacity may occur.
** System kw is total of indoor and outdoor unit kilowatts.
{{ At TVA rating indoor condition (75_F edb/63_F ewb). All other indoor air temperatures are at 80_F edb.
NOTE: When the required data falls between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.
EWB — Entering Wet Bulb
Specifications subject to change without notice.
EVAPORATOR AIR
CFM
63 (17.2)†† 57.78 42.37 4.02 55.13 41.19 4.37 52.41 39.99 4.81 49.54 38.75 5.32 46.39 37.40 5.87 42.89 35.91 6.45
1750
63 (17.2)†† 58.79 44.95 4.11 56.04 43.76 4.47 53.23 42.55 4.91 50.24 41.27 5.42 47.00 39.89 5.98 43.39 38.33 6.56
2000
DETAILED COOLING CAPACITIES# CONTINUED
421 21 6250 02 11
Page 12
PRODUCT SPECIFICATIONS Split System Air Conditioner: N4A5
ACCESSORY USAGE GUIDELINE
REQUIRED FOR
Accessory
LOW−AMBIENT
APPLICATIONS
{Below 55°F (13°C)}
Crankcase Heater Yes Yes
Evaporator Freeze Thermostat Yes No
Winter Start Control Yes** No
TXV Yes Yesǂ
Hard Start Kit (Capacitor & Relay) Yes Yes
Low Ambient Kit (Pressure Switch) Yes No
Support Feet, 4” (102mm) tall Recommended No
* Refer to the Long Line Application Guideline document.
** Can only be installed in conjunction with the Low Pressure Switch
ǂ TXV required beyond 20 ft (6.1m) vertical separation or 50 ft (15.2) total length.
ACCESSORIES
REQUIRED FOR
LONG−LINE
APPLICATIONS*
Part Number Description
Used On
Model Size
NASA001CH Crankcase Heater for Scroll Compressor (208/230 V) 42 − 60
NASA003CH Crankcase Heater for Scroll Compressor (208/230 V) 18 − 36
NASA001SC Start Component − PTC Device 24 − 60
NASA00201FS Evaporator Freeze Thermostat ALL
NASA403PS Low Pressure Switch, AC, R−410A ALL
NASA401LS Liquid Line Solenoid Valve, R−410A ALL
NASA001TD Time Delay Relay, Indoor Blower ALL
NASA00201WS Winter Start Control ALL
NASA001AC Anti−Cycle Timer (5 minute delay) ALL
NASA404PS High Pressure Switch, AC or HP, R−410A ALL
NASA005SC Hard Start Kit (Capacitor & Relay) ALL
NASA401LA Low Ambient Kit (Pressure Switch), R−410A ALL
NASA00201SF Support Feet, 4” (102mm) tall (5 blocks) 18 − 36
NASA001SF Support Feet, 4” (102mm) tall (4 blocks) 42 − 60
NASA001SJ Sound Jacket, Compressor 18 − 48
NASA003SJ Sound Jacket, Compressor 60
EBAC05TXVX TXV Kit, R−410A − 2005−2009 R−22 TXV Fancoils (air handlers) 18 − 30
EBAC06TXVX TXV Kit, R−410A − 2005−2009 R−22 TXV Fancoils (air handlers) 36 − 42
EBAC07TXVX TXV Kit, R−410A − 2005−2009 R−22 TXV Fancoils (air handlers) 48 − 60
NAEA40501TX TXV Kit, R−410A for use with copper or tin fan coils 18 − 30
NAEA40601TX TXV Kit, R−410A for use with copper or tin fan coils 36 − 42
NAEA40701TX TXV Kit, R−410A for use with copper or tin fan coils 60
NAEA40501TX TXV Kit, R−410A for use with aluminum fan coils 18 − 30
NAEA40601TX TXV Kit, R−410A for use with aluminum fan coils 36 − 42
NAEA40701TX TXV Kit, R−410A for use with aluminum fan coils 60
Copyright 2016 International Comfort Products
Lewisburg, Tennessee 37091 USA
www.GoTempstar.com
421 21 6250 02 12
Specifications subject to change without notice.
Loading...
