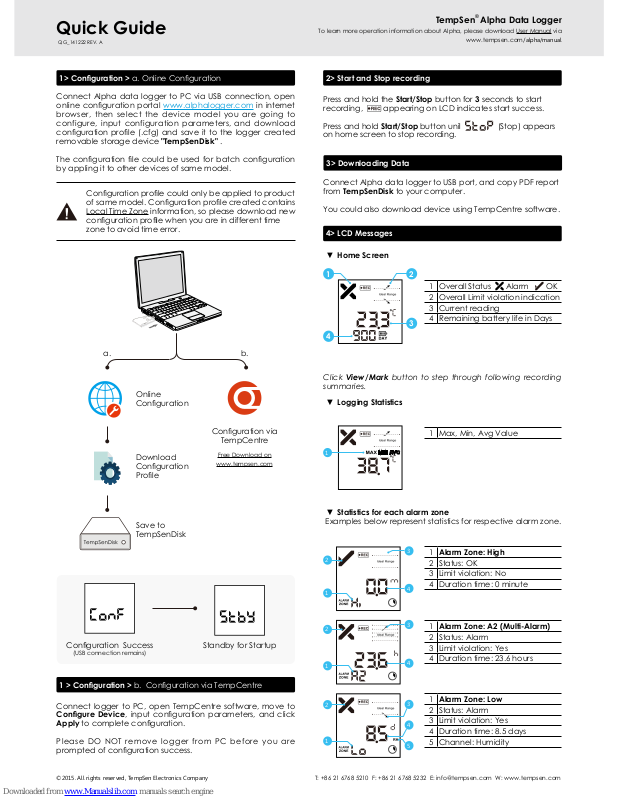

TempSen Alpha Quick Manual

Connect Alpha data logger to PC via USB connection, open

online conguration portal www.alphalogger.com in internet
browser, then select the device model you are going to
configure, input configuration parameters, and download
conguration prole (.cfg) and save it to the logger created

removable storage device "TempSenDisk" .

The conguration le could be used for batch conguration

by appling it to other devices of same model.

Press and hold the Start/Stop button for 3 seconds to start
recording,

appearing on LCD indicates start success.

Press and hold Start/Stop button unil

(Stop) appears

on home screen to stop recording.

Connect logger to PC, open TempCentre software, move to

Congure Device, input conguration parameters, and click

Apply to complete conguration.

Please DO NOT remove logger from PC before you are
prompted of conguration success.

Quick Guide

To learn more operation information about Alpha, please download User Manual via

www.tempsen.com/

alpha/manual

TempSen® Alpha Data Logger

Conguration prole could only be applied to product
of same model. Conguration prole created contains

Local Time Zone information, so please download new

conguration prole when you are in different time

zone to avoid time error.

Conguration via

TempCentre

Online

Conguration

Download

Conguration
Prole

Save to

TempSenDisk

Conguration Success

(USB connection remains)

Standby for Startup

Click View/Mark button to step through following recording
summaries.

▼ Home Screen

▼ Logging Statistics

▼ Statistics for each alarm zone

Examples below represent statistics for respective alarm zone.

1

Overall Status

Alarm OK

2 Overall Limit violation indication
3 Current reading
4 Remaining battery life in Days

1 Max, Min, Avg Value

1 Alarm Zone: High
2 Status: OK
3 Limit violation: No
4 Duration time: 0 minute

1 Alarm Zone: A2 (Multi-Alarm)
2 Status: Alarm
3 Limit violation: Yes
4 Duration time: 23.6 hours

1 Alarm Zone: Low
2 Status: Alarm
3 Limit violation: Yes
4 Duration time: 8.5 days

5 Channel: Humidity

1> Conguration > a. Online Conguration 2> Start and Stop recording

4> LCD Messages

1 > Conguration > b. Conguration via TempCentre

1 2

3

4

2

2

1

1

5

3

3

4

4

1

a. b.

3

2

1

4

©2015. All rights reserved, TempSen Electronics Company

T: [phone] F: [phone] E: [e-mail] W: www.tempsen.com

3> Downloading Data

Connect Alpha data logger to USB port, and copy PDF report
from TempSenDisk to your computer.

You could also download device using TempCentre software.

QG_141222 REV. A

Free Download on

www.tempsen.com

Press the View/Mark button for 5 seconds to add a time mark,
"

" icon flashing indicates a time mark is about to be

added, up to 9 marks available.

Remaining battery life displays on home screen, logger would
stop working after battery life ran out.

Please pay attention to battery EXP date (Expiry Date) on the

rear of each device every time before starting recording, any

use beyond EXP date will not be guaranteed.

"NC." (No Connection)appeas on LCD

after sensor removed.

Removal of external sensor probe during
recording or after configuration would
lead to recording stop or start failure.

Please hold the connector of probe to
install and remove external probe.

1

External sensor probe only applies to

specic Alpha models.

Please install device into bracket from
bottom up.

Battery life runs out

Remaining battery life beigns to minus 1 day
every calendar day after rst conguration.

TempSen warrants this TempSen-branded hardware product against
defects in materials and workmanship under normal use for a period
of ONE (1) YEAR from the date of retail purchase by the original end­user purchaser (“Warranty Period”). If a hardware defect arises and
a valid claim within the Warranty Period, as its option and to the
extent permitted by law, TempSen will either (1) repair the hardware
defect at no charge, using new parts or parts equivalent to new in
performance and reliability, (2) exchange the new product with a
product is new or equivalent to new in performance and reliability
and is at least functionally equivalent to the original product, or (3)
refund the purchase price of this product. TempSen may request that
you replace defective parts with new or refurbished user-installable
parts that TempSen provides in fulllment of its warranty obligation. A
replacement product or parts, including a user-installable part that has
been installed in accordance with instructions provided by TempSen,
assumes the remaining warranty of the original product or ninety (90)

days from the date of replacement or repair, whichever provides

longer coverage for you. When a product or part is exchanged, any
replacement item becomes your property and the replaced item
becomes TempSen’s property. Parts provided by TempSen in fulllment
it’s warranty obligation must be used in products for which warranty
service is claimed. When a refund is given, the product for which
the refund is provided must be returned to TempSen and becomes

TempSen’s property.

EXCLUSIONS AND LIMITATIONS
This Limited Warranty applies only to the hardware product
manufactured by or for TempSen that can be identified by the
“TempSen” trademark, trade name, or logo afxed to it. The Limited
Warranty does not apply to any non-TempSen hardware product or
any software, even if packaged or sold with the TempSen hardware.
Manufacturers, suppliers, publishers, other than TempSen, may provide
their own warranties to the end user purchaser, but TempSen, in so
far as permitted by law, provides their products “as is”. Software
distributed by TempSen with or without the TempSen brand name
(including, but not limited to system software) is not covered under this
Limited Warranty. Refer to the licensing agreement accompanying the
software for details of your rights with respect to its use.

TempSen does not warrant that the operation of product will be
uninterrupted or error-free. TempSen is not responsible for the damage
arising from failure to follow instructions relating to the product’s use.

This warranty does not apply: (a) to consumable parts, such as
batteries, unless damage has occurred due to a defect in materials
or workmanship; (b) to cosmetic damage, including but not limited to
scratches, dents, and broken plastic on ports; (c) to damage caused
with non-TempSen products; (d) to damage caused by accident,
abuse, misuse, flood, fire, earthquake, or other external causes; (e)
to damage caused by operating the product outside the permitted
or intended uses described by TempSen; (f) to damage caused by
service (including upgrades and expansions) performed by anyone
who is not a representative of TempSen or TempSen Authorized Service
Provider; (g) to a product or part that has been modified to alter
functionality or capability without the written permission of TempSen; or
(h) if any TempSen serial number has been removed or defaced.

IMPORTANT: DO NOT OPEN THE HARDWARE PRODUCT. OPENING THE
HARDWARE PRODUCT MAY CAUSE DAMAGE THAT IS NOT COVERED BY
THIS WARRANTY. ONLY TEMPSEN OR AN AUTHORIZED SERVICE PROVIDER
SHOULD PERFORM SERVICE ON THIS HARDWARE PRODUCT.

Quick Guide

TempSen® Alpha Data Logger

5> Adding Time Mark

6> Battery

7> External Sensor Probe

1

8> Mounting Bracket

2

9> Warranty

©2015. All rights reserved, TempSen Electronics Company

T: [phone] F: [phone] E: [e-mail] W: www.tempsen.com

Please go to www.alphalogger.com for online Operation Instruction .
Please call us at [phone] or send email to
[e-mail] for technical assistance.

Battery inside is not rechargable and replaceable.

Please refer to respective technical data for specic

battery life of each model.

Please follow local regulations when recycling or

disposing of Alpha data loggers.

2

Mounting bracket only supplied with

certain Alpha models.
