T52 CONFIGURAT OR

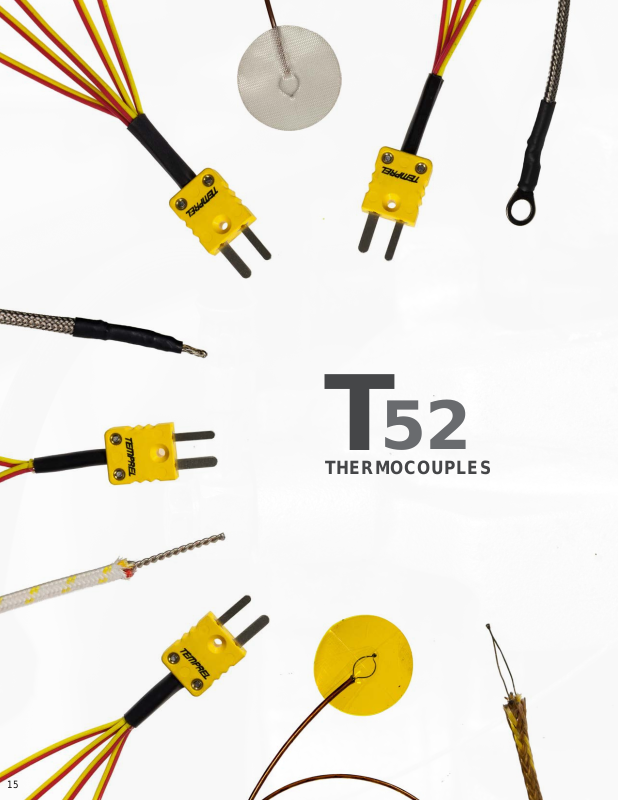

Flexible insulated thermocouple with multiple options at sensing tip.

(Averaging thermocouples available upon request. Specify wire count from the connector when placing your order.)

1

J -

JSR -

M -

MJ -

MJSR -

MP -

MPSR -

O -

OC -

P -

PSR -

S -

S3 -

T -

4

T52 :

Connectors#1

Put on Standard-Jack
Put on Standard-Jack with Strain Relief
Molded on Mini-Plug
Put on Mini-Jack
Put on Mini-Jack with Strain Relief
Put on Mini-Plug
Put on Mini-Plug with Strain Relief
Open Wire end, No Connector Option
Open Wire
Put on Standard-Plug
Put on Standard-Plug with Strain Relief
Molded on Standard-Plug
Molded on 3 Prong Standard-Plug
Terminals

see page # 29-30

(wire blunt cut)

(Specify type & size when placing your order)

3

Sample shown: T52-MGW-12J-4F

1 2 3 4 5

Specify Wire Length#3

______

Calibration#4
Wire Insulation#5

Append prex “R” to the begining of any options listed below to call for

**

Stainless Steel Overbraid on wire. Example “R4F”

(solid wire)

2F

(solid wire)

2G

(solid wire)

2K

(solid wire)

2P

(solid wire)

2T

Inches

-

(stranded wire)

4F

(stranded wire)

4G

(stranded wire)

4K

(stranded wire)

4P

(stranded wire)

4T

T JE K

- Fiberglass

- High Temp Fiberglass

- Polyimide

- PVC

- Fluoropolymer FEP

2

T52 THERMOCOUPLES

Junction T ype

#2

E -

Exposed

EC -

Cement Adhesive Pad

EPD -

1 1/16” Polyimide Adhesive Disc

EGD -

1 1/16” Glass Adhesive Disc

ETW -

Exposed with 1” Twisted and Welded Junction

GW -

Grounded Washer

UW -

Ungrounded Washer

see page # 37-38
