Temprel Inc T24 Catalog Page

T

THERMOCOUPLES

24

9

T24 CONFIGURAT OR

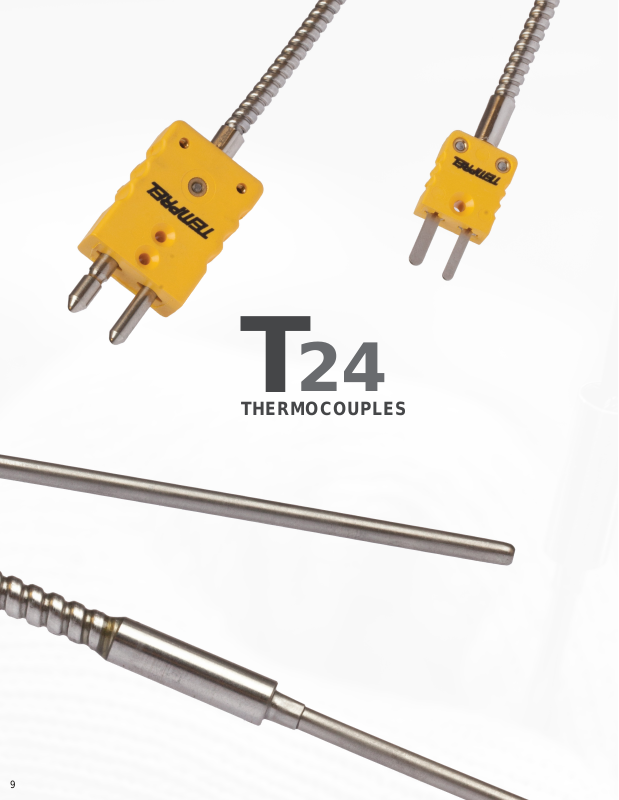

A sheathed thermocouple with compacted MgO insulation, utilizing a heavy duty

transition tting and lead protected by stainless steel interlocking armor.

(Stainless steel interlocking armor comes standard with T24.)

1

7

4

Sample shown: T24-MU-4J-CS-LC4-A-2F

10

38

2

T24 :

1 2

Connectors#1

J -

Put On Standard-Jack

M -

Molded on Mini-Plug

MJ -

Put On Mini-Jack

MP -

Put on Mini-Plug

O -

Open Wire end, No Connector Option

OC -

Open Wire

P -

Put on Standard-Plug

S -

Molded on Standard-Plug

S3 -

Molded on 3 Prong Standard-Plug

T -

Terminals

Junction T ype

#2

E -

Exposed

G -

Grounded

S -

Semi-Shielded

U -

Ungrounded

U2 -

Ungrounded Separate for Dual Element

#3

Specify Probe Length in Inches

Probe lengths may vary +/- .125” unless otherwise specied.

**

Probe length is measured from the tip of the

-

______

probe to the rst xed attachment.

Calibration#4

#5

Probe Diameter

AAA -

.032”

(34 AWG wire)

AA -

.040”

(32 AWG wire)

A -

.062” 1/16”

B -

.090”

(25 AWG wire)

see page # 29-30

(wire blunt cut)

(Specify type & size when placing your order)

see page # 37-38

T JE K

C -

.125” 1/8”

D -

.188” 3/16”

(28 AWG wire)

E -

.250” 1/4”

3 4 5 6

(Prex T24 Changes to D24 for Dual Element)

Probe Material#6

S -

304 Stainless Steel

S10 -

310 Stainless Steel

S16 -

316 Stainless Steel

Transition#7

LA -

Stainless Steel with High Temperature Epoxy (600

LC -

Stainless Steel with High Temperature Ceramic Potting (2800

LE -

Stainless Steel with Epoxy Potting (500

Specify Wire Length in Inches#8

-

______

Wire Insulation#9

(solid wire)

2F

(solid wire)

2G

(solid wire)
(solid wire)
(solid wire)

2K

2P
2T

Available Options#10

Leave blank for standard probe tip.

**

BP -

Bullet Point

CP -

Cone Point

HPT -

Hypodermic Point

18PP -

1/8” Pipe Plug

14PP -

(22 AWG wire)

(19 AWG wire)

(16 AWG wire)

38PP -

RT -

W -

WP -

1/4” Pipe Plug
3/8” Pipe Plug

Reduced Tip
Washer
Weld Pad

A

7 8 9 10

Interlocking Armor

see page # 37-38

I -

H -

Length as measured from transition to the connector.

(stranded wire)

4F

(stranded wire)

4G

(stranded wire)

4K

(stranded wire)

4P

(stranded wire)

4T

( .125” to .062” diameter)

(Only available with .062“ or 1/16” probe diameter)

(Only available with .062” or 1/16” probe diameter)

- Fiberglass

- High Temp Fiberglass

- Polyimide

- PVC

- Fluoropolymer FEP

(Sharpened to needle point)

®

Inconel
Hastelloy X

®

o

F)

o

F)

o

F)

T24 THERMOCOUPLES

10
