Temprel Inc T23 Catalog Page

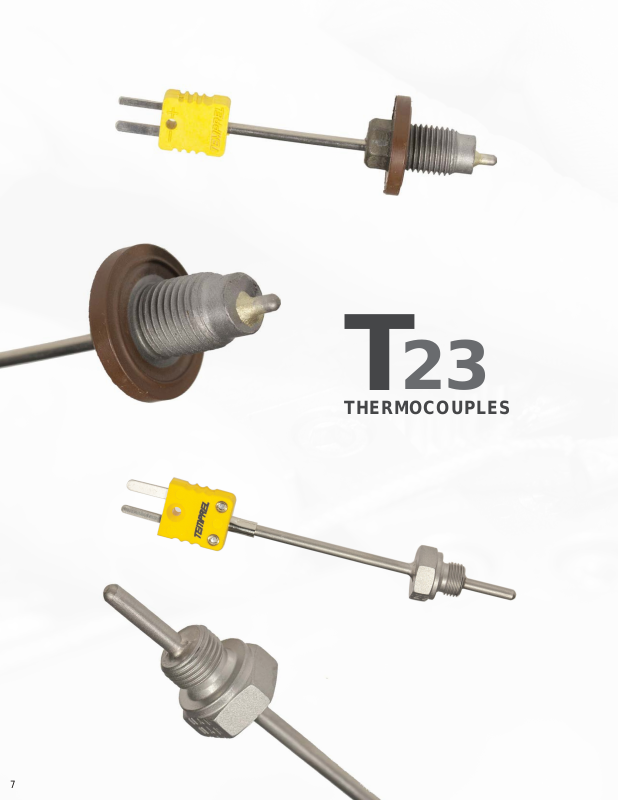

T

THERMOCOUPLES

23

7

T23 CONFIGURATOR

Quick disconnect thermocouple with compacted MgO insulation

with a xed mount threaded tting mounted directly on the sheath.

7

1

4

Sample shown: T23-MU-6J-CS-14PP

3

2

Connectors#1

J -

Put On Standard-Jack

M -

Molded on Mini-Plug

MJ -

Put On Mini-Jack

MP -

Put on Mini-Plug

P -

Put on Standard-Plug

S -

Molded on Standard-Plug

Junction T ype

#2

E -

Exposed

G -

Grounded

S -

Semi-Shielded

U -

Ungrounded

U2 -

Ungrounded Separate for Dual Element

see page # 29-30

see page # 37-38

Specify Probe Length#3

Probe lengths may vary +/- .125” unless otherwise specied.

**

Inches

-

______

Calibration#4

T JE K

T23 :

1 2 3 4 5 6

(Prex T23 Changes to D23 for Dual Element)

#5

Probe Diameter

AAA -

.032”

(34 AWG wire)

AA -

.040”

(32 AWG wire)

A -

.062” 1/16”

B -

.090”

(28 AWG wire)

(25 AWG wire)

Probe Material#6

S -

304 Stainless Steel

S10 -

310 Stainless Steel

S16 -

316 Stainless Steel

Available Options#7

Custom ttings options available. Call Temprel to learn more.

**

Leave blank for standard probe tip.

BP -

Bullet Point

CP -

Cone Point

HPT -

Hypodermic Point

18PP -

1/8” Pipe Plug

14PP -

1/4” Pipe Plug

38PP -

3/8” Pipe Plug

RT -

Reduced Tip

7

C ­D ­E -

see page # 37-38

I -

Inconel

H -

Hastelloy X

(Sharpened to needle point)

( .125” to .062” diameter)

.125” 1/8”
.188” 3/16”
.250” 1/4”

®

®

(22 AWG wire)

(19 AWG wire)

(16 AWG wire)

T23 THERMOCOUPLES

8
