T21 CONFIGURAT OR

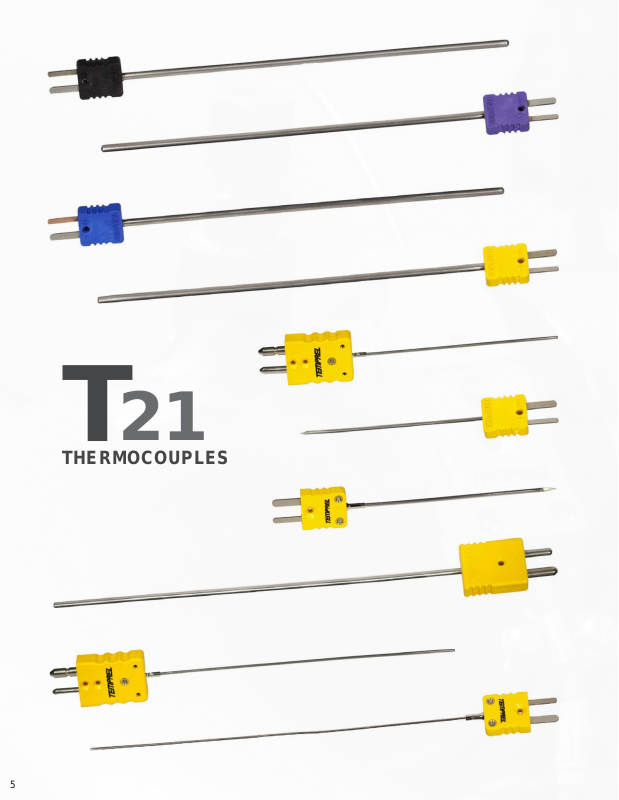

Quick disconnect thermocouple with compacted MgO insulation

employing a glass-lled, nylon connector directly on the sheath.

1

7

3

4

Sample shown: T21-MU-6E-CI

2

Connectors#1

J -

Put On Standard-Jack

M -

Molded on Mini-Plug

MJ -

Put On Mini-Jack

MP -

Put on Mini-Plug

P -

Put on Standard-Plug

S -

Molded on Standard-Plug

Junction T ype

#2

E -

Exposed

G -

Grounded

S -

Semi-Shielded

U -

Ungrounded

U2 -

Ungrounded Separate for Dual Element

see page # 29-30

see page # 37-38

Specify Probe Length in Inches#3

Probe lengths may vary +/- .125” unless otherwise specied.

**

Probe length is measured from the tip of the

-

______

probe to the rst xed attachment.

T21 :

1 2 3 4 5 6

(Prex T21 Changes to D21 for Dual Element)

#5

AAA -

AA -

S10 ­S16 -

BP ­CP -

HPT -

RT -

7

Calibration#4

T JE K

Probe Diameter

.032”

(34 AWG wire)

.040”

(32 AWG wire)

A -

.062” 1/16”

B -

.090”

(25 AWG wire)

Probe Material#6

S -

304 Stainless Steel
310 Stainless Steel
316 Stainless Steel

(28 AWG wire)

C -

.125” 1/8”

D -

.188” 3/16”

E -

.250” 1/4”

see page # 37-38

I -

Inconel

H -

Hastelloy X

Available Options#7

Leave blank if none of the options listed below are needed.

**

Bullet Point
Cone Point

Hypodermic Point
Reduced Tip

(Sharpened to needle point)

( .125” to .062” diameter)

®

®

(22 AWG wire)

(19 AWG wire)

(16 AWG wire)

T21 THERMOCOUPLES
