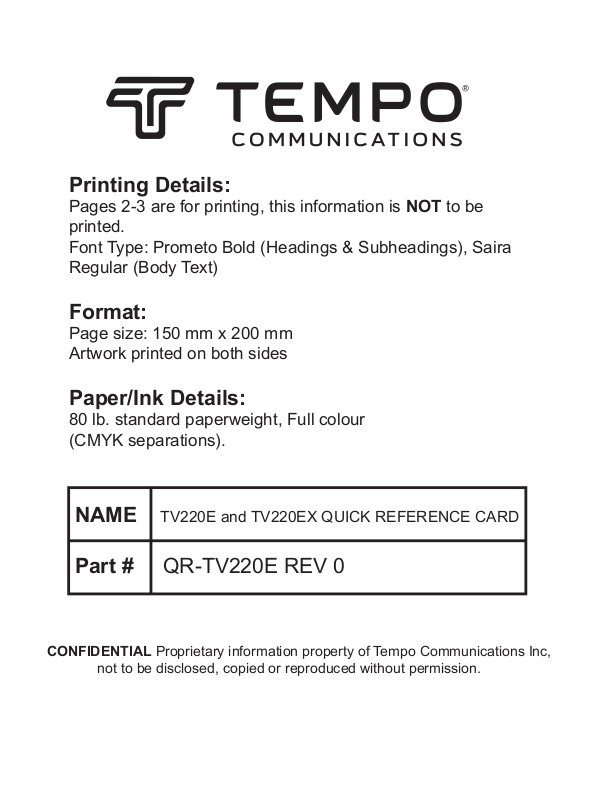

Printing Details:

Pages 2-3 are for printing, this information is NOT to be printed. Font Type: Prometo Bold (Headings & Subheadings), Saira Regular (Body Text)

Format:

Page size: 150 mm x 200 mm Artwork printed on both sides

Paper/Ink Details:

80 lb. standard paperweight, Full colour (CMYK separations).

NAME TV220E and TV220EX QUICK REFERENCE CARD

Part # QR-TV220E REV 0

CONFIDENTIAL Proprietary information property of Tempo Communications Inc,

not to be disclosed, copied or reproduced without permission.

Page 2

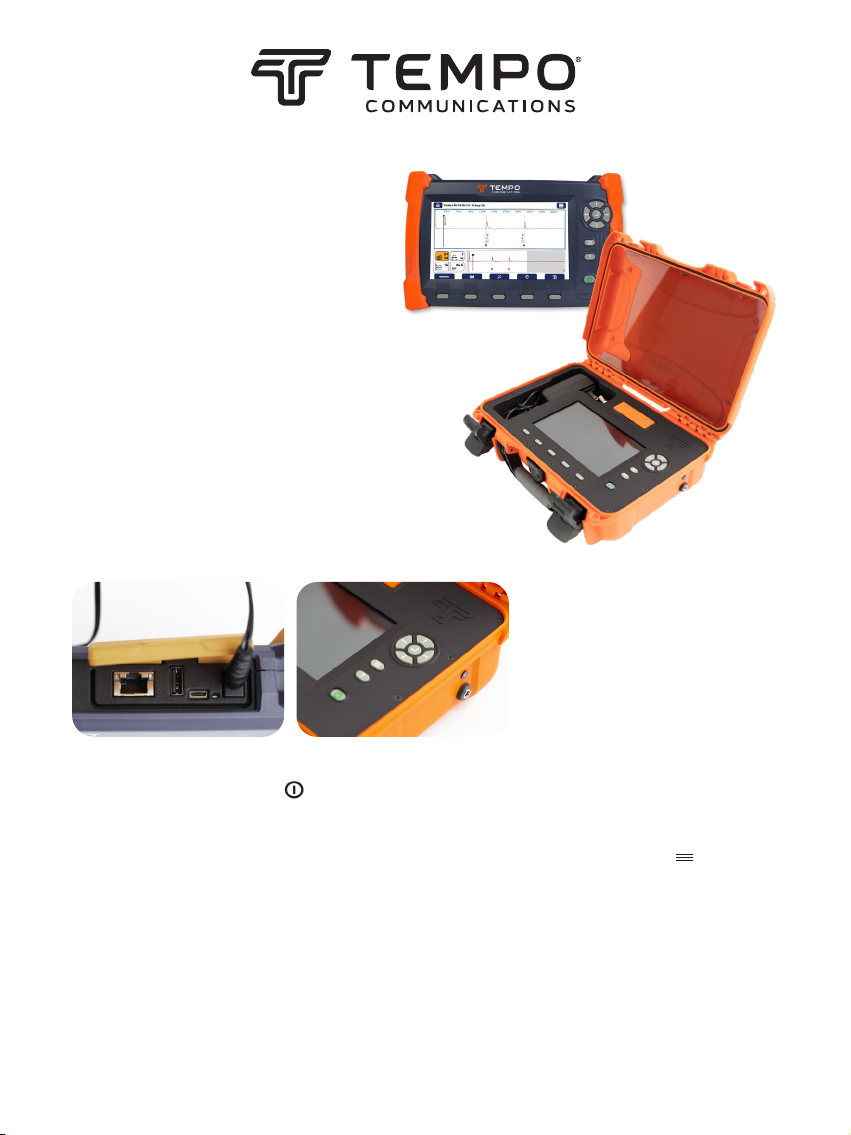

CableScout™ 220

Quick Reference

Models TV220E and TV220EX

Introduction

CableScout 220E is a highly advanced time

domain reectometer for telecommunication

technicians to diagnose trouble on modern hybrid cable tv networks or similar 75-ohm coaxial cable systems. It can additionally be

used on other types of cable, either directly or via a matching transformer.

Getting Started

Charge the Battery

Before rst use charge the battery for at least one hour. Connecting

the included AC adaptor or DC vehicle power lead to the 12V input

socket at the back of the unit. The

LED alongside will indicate that the unit is charging.

Power On

Press and release the button . The display should light up and display the product logo.

Settings

Upon rst power up the settings screen should be shown. If not, select the settings menu and set the unit to your local time, preferred language, distance units etc.

Full Instructions

The full operating instruction for the CableScout can be accessed in your language by

pressing the help button (?) at any time.

Page 3

Specications

General

• Power Source: Internal Lithium Polymer Battery, four cells x 15 Wh

• External Power: 12V dc (10 to 15 V), 2.5 A

• Typical operating time: >8 hours at typical screen brightness

• Display: 7” (180 mm) diagonal, 1024 x 600 full colour

• Backlight: 0 to 800 nits

• Result storage: Internal ash drive

• Connectivity: USB (OTG), Ethernet (100 base T), Wi-Fi*, Bluetooth*

• Operating temperature: 0 to 50 C

• Storage temperature: -20 to 70 C

• Size: TV220E 262 x 162 x 55 mm, TV220EX 291 x 178 x 93 mm

• Weight: TV220E 1.15 kg (2.54 lb), TV220EX 2.30 kg (5 lb)

Test Specications

• Type: Pulse

• Pulse shape: ½ sine

• Pulse widths: 1, 5, 25 ns precision, 125, 250, 500 ns digital

• Impedance: 75 ohm

• Amplitude: >5V peak

• Input voltage protection: ±400 V peak*

• Overvoltage category: CAT-I (TNV-3, 1.5 kV surge)

• Filtering: 1, 2, 4, 8, 16, 32

• Maximum distance: 18.3 kft (5.58km) @ VoP = 0.93

• Horizontal resolution: 204 ps (approx. 75 mm or 3”)

*CAUTION NOT FOR TESTING POWER CIRCUITS WITHOUT SUPPLEMENTARY ISOLATION Designed and manufactured in the USA by Tempo Communications Inc., 1390 Aspen Way, Vista, California USA, 92081, using components sourced globally. www.TempoCom.com
