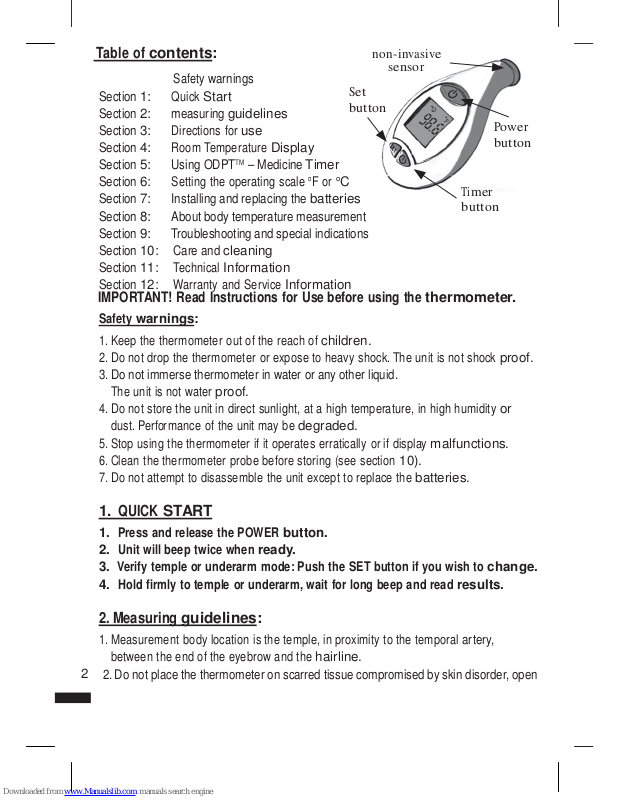

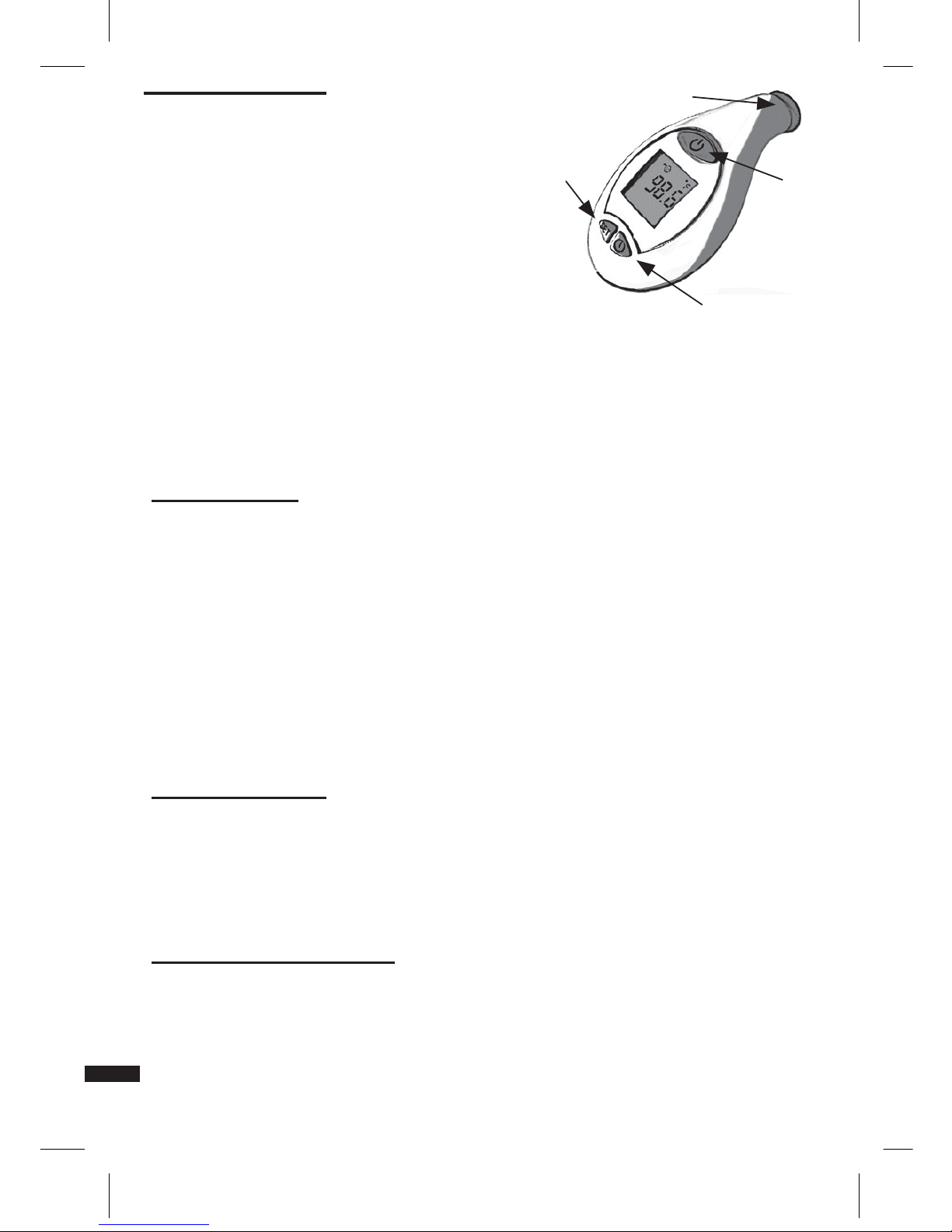

Timer
button
IMPORTANT! Read Instructions for Use before using the
thermometer.
Safety
warnings:
1. Keep the thermometer out of the reach of
children.
2. Do not drop the thermometer or expose to heavy shock. The unit is not shock
proof.
3. Do not immerse thermometer in water or any other liquid.
The unit is not water
proof.
4. Do not store the unit in direct sunlight, at a high temperature, in high humidity
or
dust. Performance of the unit may be
degraded.
5. Stop using the thermometer if it operates erratically or if display
malfunctions.
6. Clean the thermometer probe before storing (see section
10).
7. Do not attempt to disassemble the unit except to replace the
batteries.
1.
QUICK
START
1.
Press and release the POWER
button.
2.
Unit will beep twice when
ready.
3.
Verify temple or underarm mode: Push the SET button if you wish to
change.
4.
Hold firmly to temple or underarm, wait for long beep and read
results.
2. Measuring
guidelines:
1. Measurement body location is the temple, in proximity to the temporal
artery,
between the end of the eyebrow and the
hairline.
2
2. Do not place the thermometer on scarred tissue compromised by skin disorder, open
sores or abrasions and patients in
trauma.
3. Temperature readings are affected by many factors including exercise and
drinking
hot or cold beverages prior to taking a
reading.
4. Consult your physician when using drug therapies that may raise the local skin
temperature in the forehead; this may lead to incorrect
reading.
5. Do not place the thermometer on skin exposed to direct sunlight, fireplace heat,
air
conditioner flow and cold/warm compress
therapies.
6. Wait at least two minute between consecutive measurements for the unit to readjust
to room
temperature.
7. If the thermometer has been stored in a cold temperature, allow the unit to
warm
naturally to room temperature before
using.
8. Performance of the device may be degraded if operated or stored outside stated
temperature and humidity
ranges.
3. Directions for
Use:
Use this thermometer on a clean and dry skin
surface.
Wipe away any perspiration prior to
use.

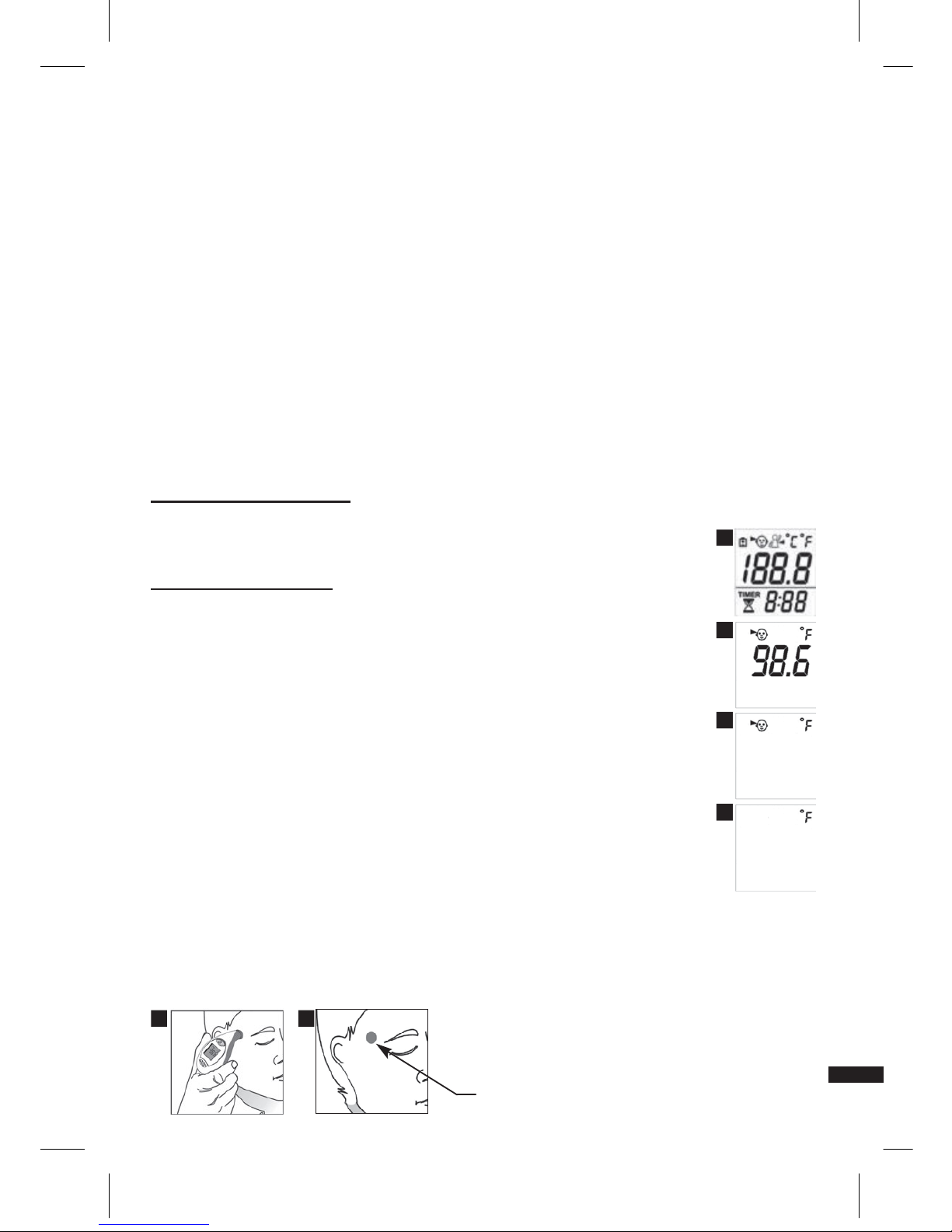

1
Taking
Temperature:
1. Press and release the Power button, you will hear one short
beep.
All segments will be displayed (Figure 1) and the backlight will
turn
2
on
automatically.
2. The previous result will be displayed for 2 seconds (Figure
2).
3
3. Wait for the hourglass icon to disappear, then two beeps will
be
heard to indicate that the thermometer is now ready
to
measure.
4
4. Verify that you are in the correct mode: temple or
underarm
(figures 3, 4), if you wish to change. Press and release the SET
button.
Do not try to take a measurement before the two beeps are
heard.
5.
For forehead measurement:
Move hair aside from the temporal area and
apply
the probe to bare skin, in the center of the temple area, between the end of
the
eyebrow and the hairline (Figures 5a + 5b). Gently press and hold to ensure good
5a
5b
contact with the skin is
maintained.
Temple
area
3
For underarm
measurement:
a
. Place the thermometer probe in the center of the armpit as shown
6
(figure
6).
Gently press the thermometer's probe in an upward
motion.
b
. leave the patient's arm raised up until
completed.
Correct placing and good contact with the skin ensure reliable
readouts.
6. As soon as the thermometer is in place, the measurement
will
7
start automatically. A running circle will appear indicating that
the
measurement is progressing successfully (Figure
7).
Make sure that the thermometer and the patient do not move
while measurement is in
progress.
7. A temperature reading will be displayed within 6-8 seconds. One long beep will
be
heard to indicate that measurement is complete and temperature will be
displayed
for about 1 minute. The backlight will stay on until the device is shut
down.
8. Press and release the Power button to turn the thermometer off, or it will shut
off
automatically within 1
minute.
If you need to take another reading – wait 2 minutes after turning the
thermometer off and then begin
again.

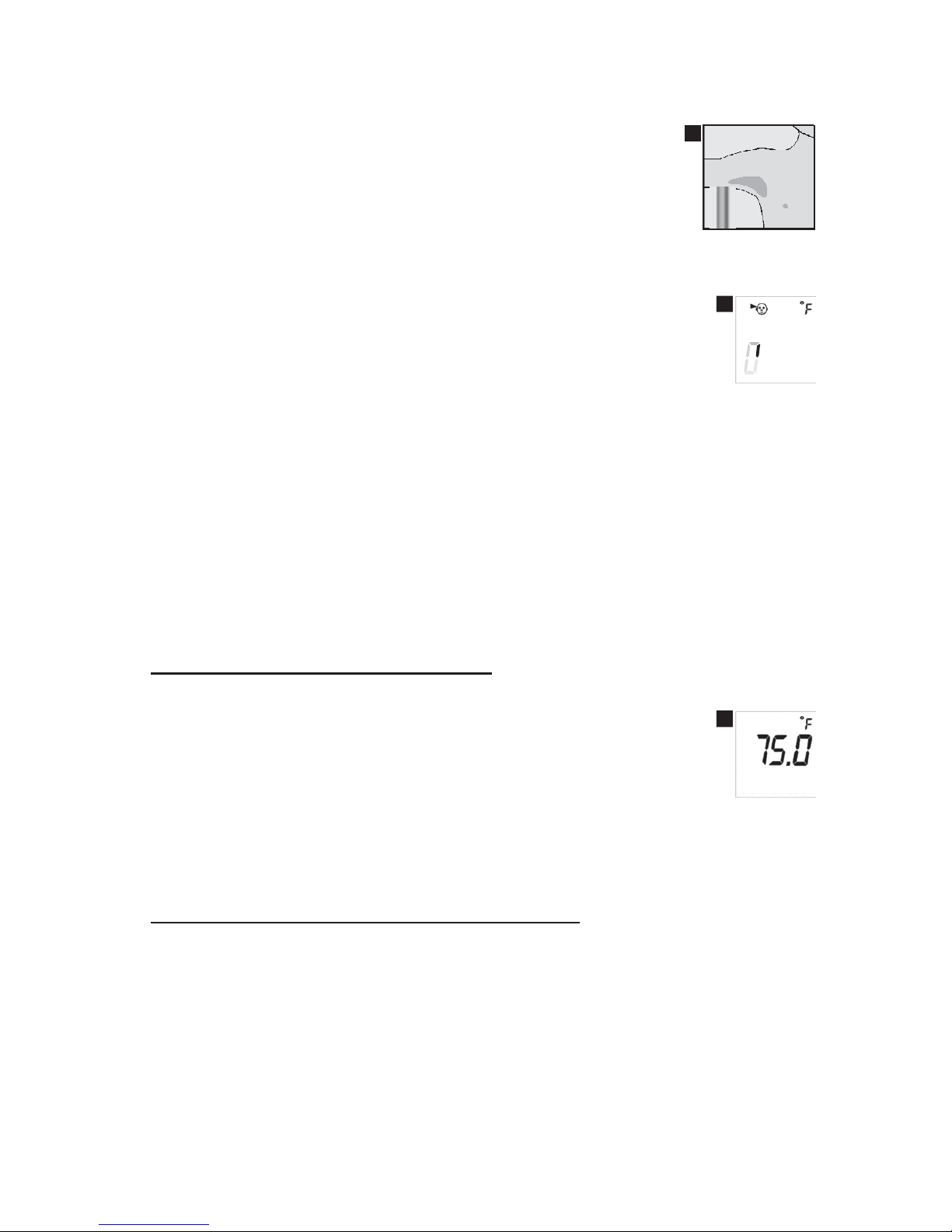

4. ROOM TEMPERATURE
DISPLAY:
1.
When the thermometer is OFF, continuously press the power
button.
2.
The last body temperature will be displayed, and then will
switch
8
to the room temperature. (see figure
8)
The room temperature will be displayed unless you press the
power button again and switch off the
thermometer.
5. Using ODPT
TM
– Over Dose Protective
Timer:
The ODPT
TM
timer is designed to track the time elapsed between giving
medicine
dosages to patient and to act as an alert to parents as to when next medicine dosage
should be given (based on time cycle set by
parent).
4
How to Set & Start
Timer
a. Setting- up the time
cycle:
The ODPT
TM
timer is set for 6 hours by
default.
To change the cycle (from 1-8
hours):
1. Switch OFF the
thermometer.
2. Press and hold the SET
button.
3. Continue pressing the SET button, then press the
timer
button once and release
both
buttons.
4. The interval time value will blink on the
display.
5. Press the
“Timer”
button to scroll through time interval
options.

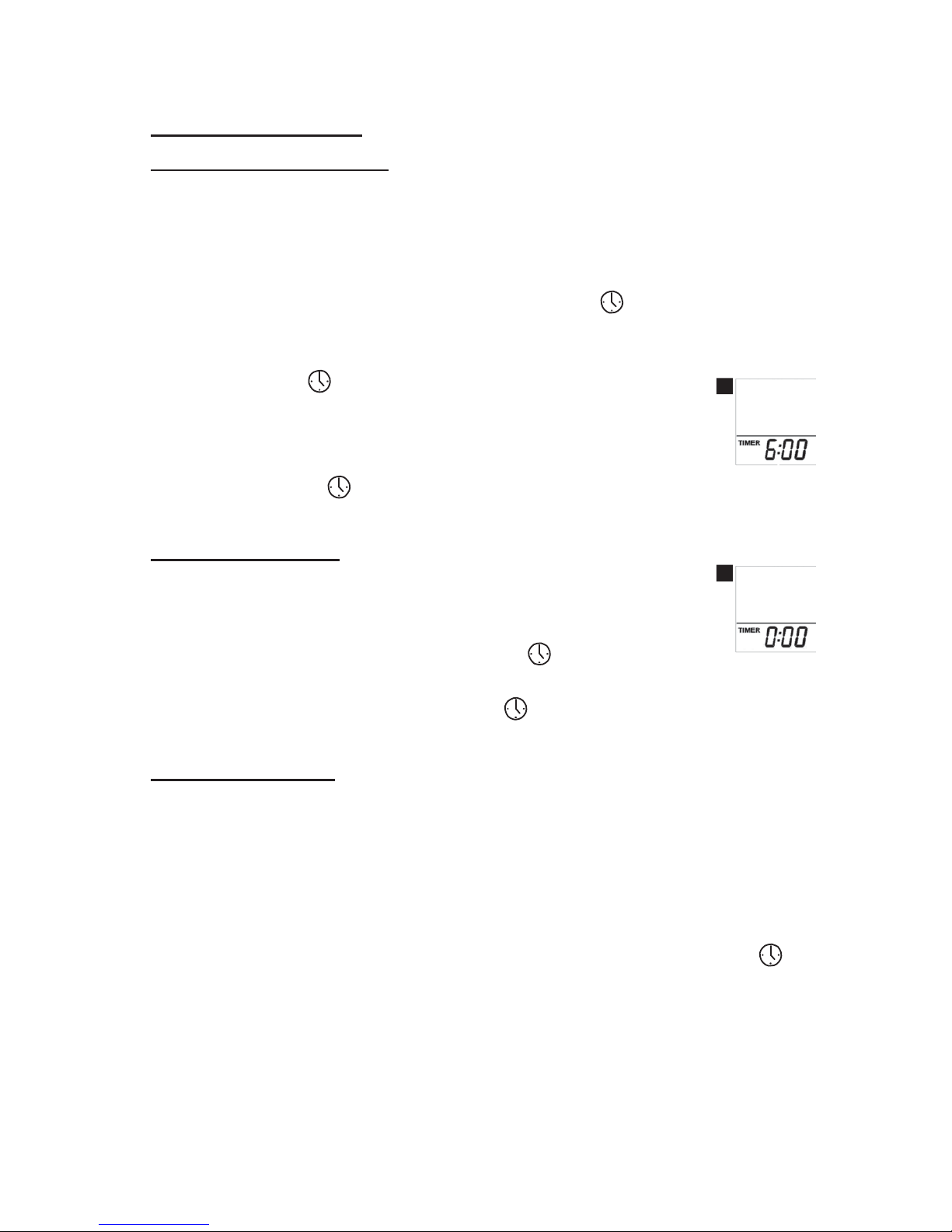

9
The display will show time values between 1-8
hours
(1, 2, 3, 4, 5, 6, 7, 8) and then back to 1 hour (starting over again).
(See figure
9).
6. Release the
“Timer”
button when the desired value appears on the
display. Then
press the SET button in order to set the desired
value.
b. Operating the
timer:
1.
To start the timer press and release the “Timer” button. The
timer's
10
display will show "0:00" (See figure 10) . Press again and the timer
will start counting seconds until "0:01" minute and then
minutes.
2.
To reset the timer press and hold the
“Timer” button.
(Press the “Timer” button until display changes to “0:00”).
3.
To start the timer again, press the
“Timer”
button
again. The count will start
from
“0:00”.
IMPORTANT
NOTES:
•
The ODPT
TM
timer can be used while the thermometer is on or
off.
•
The ODPT
TM
timer continues to count the time elapsed even if the thermometer
is
turned
off.
•
It is not possible to turn on the timer when conducting temperature
measurement.
Temperatures can be taken while the timer is
running.
•
If the ODPT
TM
timer is stopped mid-cycle, cycle must be reset by pressing and
holding the timer button for 3 seconds. To resume the timer press the
timer
button
again.
•
When the time cycle has ended the thermometer will beep. The display will
blink
the pre-set time cycle for 60
seconds.
For example, if the timer was set to 6 hours, the image “6:00” will blink on
the
display.
5
6. Setting the operating scale °F or
°C
The device setting is by default Fahrenheit (°F).
To change the scale to °C, or back to
°F:
1.
While OFF, press and hold the SET
button.
2.
Continue pressing SET, then press the POWER
button.
3.
Continue pressing both buttons until the scale changes and then
release.
4.
Wait for 2 beeps and measure temperature (see section
3)
7. Installing and replacing the
Batteries:
The thermometer uses 2 standard AAA 1.5v batteries. To install/replace, first
switch
off the
device:
1.
Using a screwdriver, loosen the screw on the battery cover and lift it off the
thermometer.
2.
Remove the drained batteries and place new batteries in the battery
compartment,
matching polarity according to the
diagram.
3.
Secure the battery cover using the
screw.
IMPORTANT: It is recommended to remove the batteries from the
thermometer when it is not used for a long
period.
WARNING:
Do not dispose of batteries in fire, recharge, put in
backwards,
disassemble, mix with used or other battery types – they may explode or leak and
cause injury. Waste batteries should be deposit in a batteries recycling trash
only.
8.
About body temperature
measurement:
How does the thermometer
work?

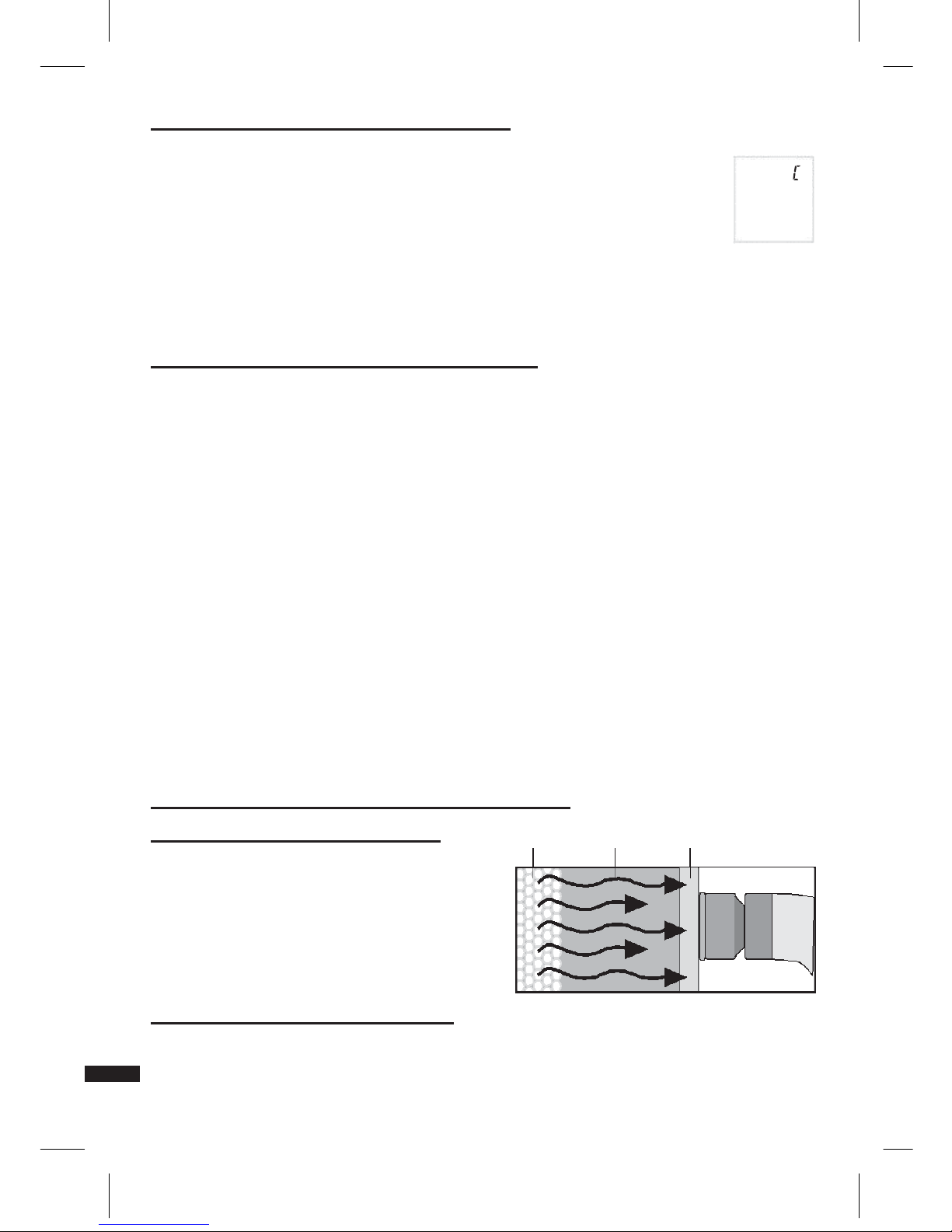

The accurate measurement is obtained
by using a unique probe,
which
measures the heat flow from the
blood
vessels to the skin and converts
it
to body
temperature.
Information about Body Temperature
What is “normal” body temperature?
Blood
vessels
Energy
Flow
Skin
“Normal” body temperature varies from person to person, changes according to
time
6
of day and body location. Hot or cold baths, physical exercise, smoking and
drinking,
hot or cold drinks may change body temperature by one degree or
more.
The following table shows the temperature
ranges:
What is
fever?
Average normal temperature
ranges
Forehead
Over
37.8°C/100°F
36.1°C–37.8°C
/ 97.0°F-100.0°F
Rectal*
Over
38°C/100.4°F
36.3°C–38°C
/ 97.3°F-100.4°F
Oral*
Over 37.8°C/100.0°F
36.1°C–37.8°C
/ 97.0°F-100.0°F
Axilla*
(armpit) Over
37.2°C/99.0°F
35.2°C–37.2°C
/ 95.4°F-99.0°F
*Fever definitions according to the American Medical Association
The thermometer is designed to measure the temperature in the forehead, in
proximity
to the temple area, between the eye socket and the hairline. It is important to
know
that the thermal characteristics of each measurement body location – temporal,
axillar,
oral or rectal - are unique. The variance in temperature measurement in different
body
locations is due to the human body and not the
thermometer.
IMPORTANT: It is recommended to measure the body temperature when
healthy to establish the specific “normal”
temperature
9.
Troubleshooting and special
indications
The thermometer has been designed to display feedback-warnings to ensure proper
usage and accurate temperature
measurement. When an error appears, the
device
will "beep" 5 times, and then the thermometer will turn off automatically. In the
event
of a malfunction or incorrect temperature measurement, the following warnings will
be
displayed:

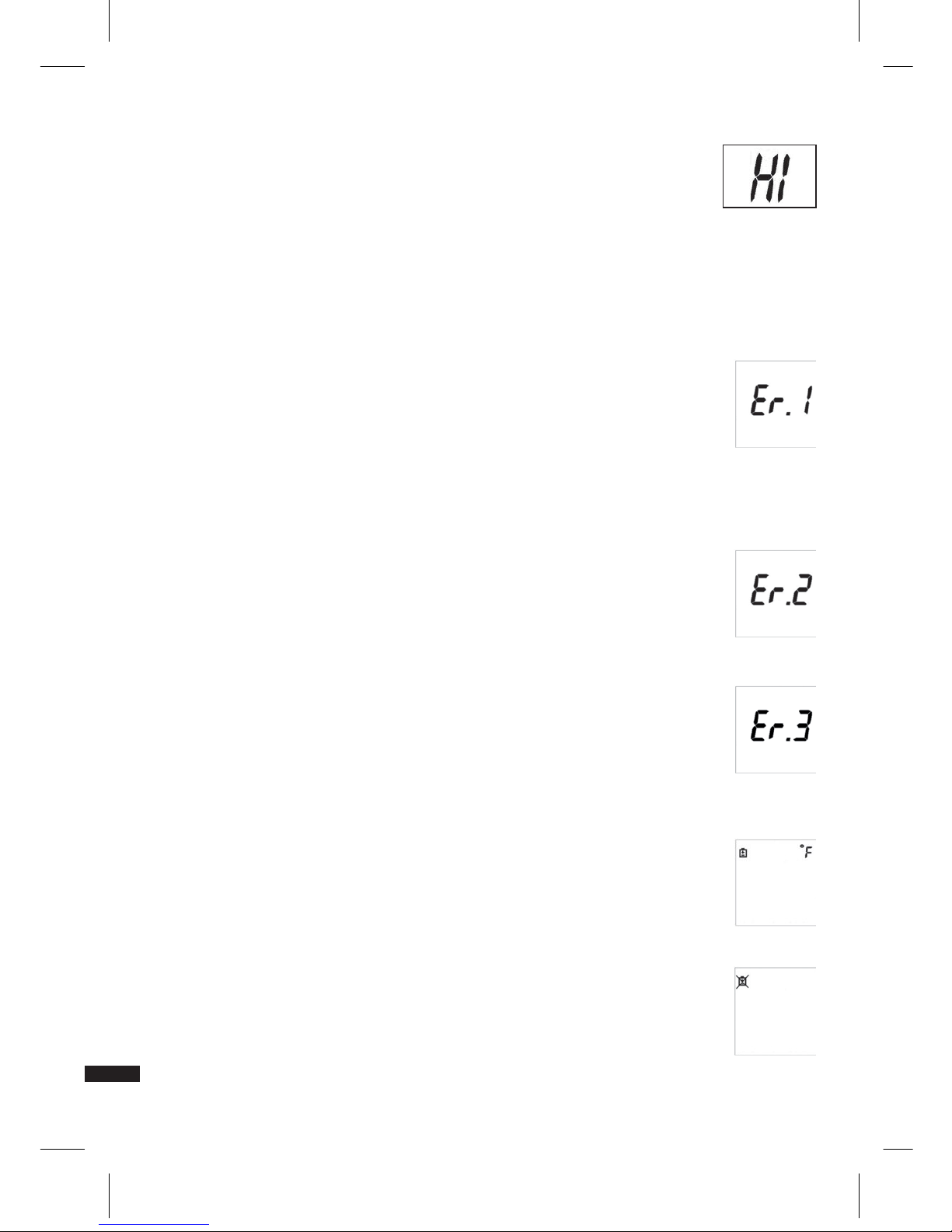

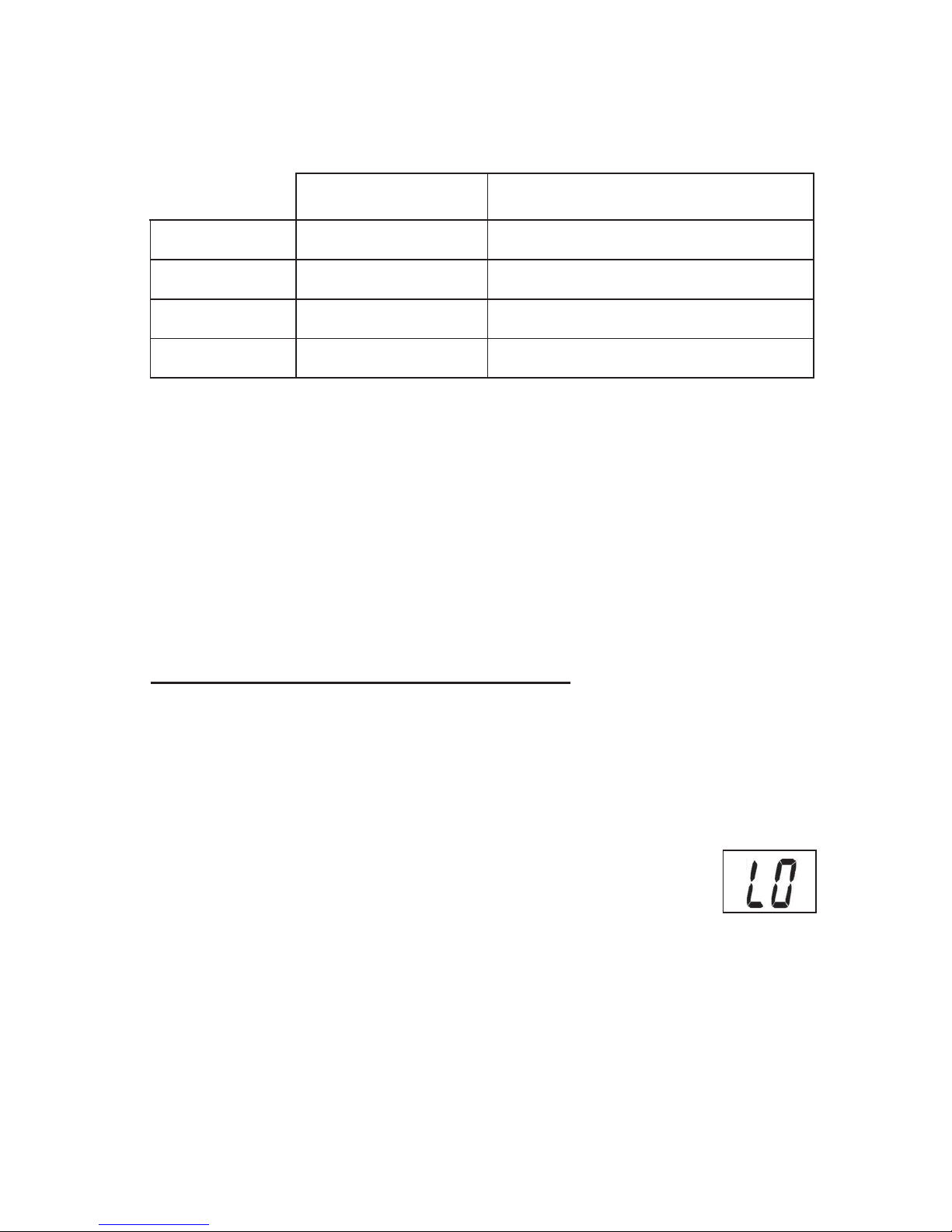

Indication:
The measured temperature is below 95°F (35°C) and the
display presents:
LO.
Instruction:
1. Turn the unit OFF and then ON
again.
2. Retake temperature using proper placement technique
(see section 3),
while ensuring normal room temperature
(73°F – 77°F / 23°C – 25°C).
3. If still reads LO, this indicates that the patient has a low
body
temperature.
7
Indication:
The measured temperature is above 107.6°F (42°C) and the
display presents:
HI
Instruction:
1. Turn the unit OFF and then ON
again.
2. Retake temperature using proper technique (see section
3).
3. If still reads HI, this indicates that the patient has a high
fever.
WARNING! A high fever or low body temperature requires seeking
immediate medical
attention
Indication
1:
The thermometer is too cold or too hot to
operate.
Instructions:
Indication
2:
1. Verify room temperature within product
range 60.8°F-104°F (16° C - 40°
C)
2. Retake temperature using proper technique (See section
3).
Temperature did not register because of poor contact, patient
movement or poor
placement.
Instruction:
Turn the unit OFF, wait 2 minutes, turn it ON again and
retake
temperature using proper technique.( See section
3).
Indication
3:
Unit
malfunctioned.
Instruction:
Indication
4:
Do not use the thermometer – contact service. (See section
9).
Low battery - Battery icon is on
continuously.
Instruction:
Indication
5:
The battery has enough remaining life for
approximately
10 more
measurements
Drained battery – only Battery icon is on when thermometer is
turned
on and the device turns itself
OFF.
Instruction:
8
The battery is drained - replace battery.(See section
4)
10. Care and
Cleaning
* Wipe the tip and probe with an alcohol swab or a cotton swab moistened with
70%
isopropyl alcohol before & after each
use.
After cleaning, wait at least 2 minutes before taking a measurement for the unit
to
readjust to room
temperature.
*
Use only a soft dry cloth to clean the body of the thermometer (if necessary). Never
use an abrasive cleanser or submerge the thermometer in water or other
liquids.
*
Do not expose the thermometer to extreme temperatures, humidity, direct sunlight
or
shock. Store at room
temperature.
11.
Technical
Specifications
Feature
Performance
/ Data
Measurement
time
6-8
seconds
Measurement
locations
Temple area of the forehead and
underarm
Measurement
range
95°F to 107.6°F (35°C to
42°C)
Operation
environme
60.8°F-104°F (16° C - 40°
C)
Humidity: 15-95% (non condensing)
Storage
environment
-4°F to 122°F (-20° C - 50°
C),
Humidity: 15-95% (non condensing)
Measurement
scales
Celsius or
Fahrenheit
Accuracy
Complies with ASTM E 1112-00 standard
requirements
Display
TN LCD 0.78" X 0.77" (20 mm X 19.6
mm)
Batteries
2 AAA 1.5volt
batteries
Battery
life
Minimum 1000 full duty cycles over 24 month
period
Weight
2oz (56gr) including
batteries
Dimensions
3.9" X 2.05" X 1.25" (10x5.2x3.2
cm)
Memory
Last reading display when turned
on
Auto shut
off
After 60
seconds
Case
material
Food grade ABS
plastic
Probe
material
Food grade Stainless steel,
silicone
9
12.
Warranty and Service
Information:
All private label Walgreens products have a lifetime guarantee against
manufacturers
defect under normal use. Following the directions closely will ensure years
of
dependable operation. If the thermometer does not function properly, first check
the
batteries (see section 7). Replace if
necessary.
If the thermometer does not function properly, please write to us
at:
customerservice@medisim-usa.com, or call us at
1-888-723-3659.
Our representatives will provide further instructions on how to correct the trouble or will
ask you to return it for
repair/replacement.
*
Internally powered
device
* Type - BF Applied
part.
*
Degree of protection against ingress of water:
Ordinary
Distributed by: Medisim Ltd., G.G Communication Center, Neve ilan 90850
Israel.
Protected by US patent # 6,280,397 B1 and patent application #
11,444,710.
Made in
China
Read the Instructions for Use
Applied part type BF equipment
10
Loading...
