Tempest POWER BLOWER Operation Manual

POWER BLOWER

OPERATIONS MANUAL

APRIL 2007

Tempest Technology, Inc.

4708 N. Blythe Ave

Fresno, CA 93722

800-346-2143

www.tempest-edge.com

Introduction

®TEMPEST TECHNOLOGY CORPORATION
is the leading manufacturer of products and
accessories for environmental management in
firefighting, industrial, and golf/turf applications

TEMPEST began business as a
manufacturer of gasoline and electric
powered blowers for the fire service,
whose departments use the ®TEMPEST
POWER BLOWER to provide “Positive
Pressure Ventilation”(PPV) to remove
heat, gases and smoke from the interior of
a burning structure.

TEMPEST has expanded into other
industries and found new applications for
its products. The ®TEMPEST POWER
BLOWER and PPV are used by
construction contractors to control dust,
fumes and unhealthy gases like carbon
monoxide; greatly improving safety in
confined spaces.

®TEMPEST TECHNOLOGY
CORPORATION has established a
reputation as a leader and innovator in the
air movement industry and continues in
that role today.

About This Manual

Contact

This manual is produced solely for the use of
purchasers and operators of ®TEMPEST
TECHNOLOGY CORPORATION equipment.
Any reproduction, retransmission, or other use of
the contents of this manual without written
consent of ®TEMPEST TECHNOLOGY
CORPORATION is strictly prohibited.

It is the intent of this manual to provide the
owner/operator of ®TEMPEST products with
both general and specific information regarding
the safe and proper operation and maintenance of
the equipment described within.

If after careful review, any questions arise
concerning any portion of this manual, contact
®TEMPEST TECHNOLOGY CORPORATION
for assistance at:

®TEMPEST TECHNOLOGY, INC.

4708 N. BLYTHE AVENUE

FRESNO, CA 93722
Phone [phone]

FAX: [phone]
E-MAIL:

WEB PAGE: www.tempest-edge.com

[email protected]

Table of Contents

SAFETY PAGE

Safety Guide 2.1

GENERAL INFORMATION

Blower Identification 3.1
Warranty Card 3.2
Power Blower Data 3.3
Power Blower Information 3.6

OPERATION

Operating Procedures 4.1
Pre-Operation 4.1

Fuel, and Fuel Tank Capacities 4.2

Operation 4.3
Set-Up, Starting and Stopping Instructions 4.4

MAINTENANCE

Maintenance Procedures 5.1
Oil Change 5.1
Air Cleaner and Elements 5.2
Cooling System, Spark Plug 5.3
Emissions Control System 5.4
Belt Adjustment for Belt-Drive Power Blowers 5.4
Belt Replacement for Belt-Drive Power Blowers 5.5
Blade Removal 5.7
Blade Installation 5.8
Maintenance Schedule 5.8

PPV

PPV Set-up Procedures 6.1
Single Blower Placement 6.1
Multiple Blower Placement 6.2
Exhaust Opening 6.4
Weather Effects on PPV 6.6

TROUBLESHOOTING

Blower Troubleshooting 7.1
Blower Fails To Start 7.1
Poor Blower Performance 7.2
Blower Movement 7.2

PART NUMBERS

Honda Belt Drive Blowers 8.1
Honda Direct Drive Blowers 8.2
Tecumseh Belt Drive Blowers 8.3
Tecumseh Direct Drive Blowers 8.4
Briggs & Stratton Direct Drive Blowers 8.5
Bushings for Blade Replacement 8.6

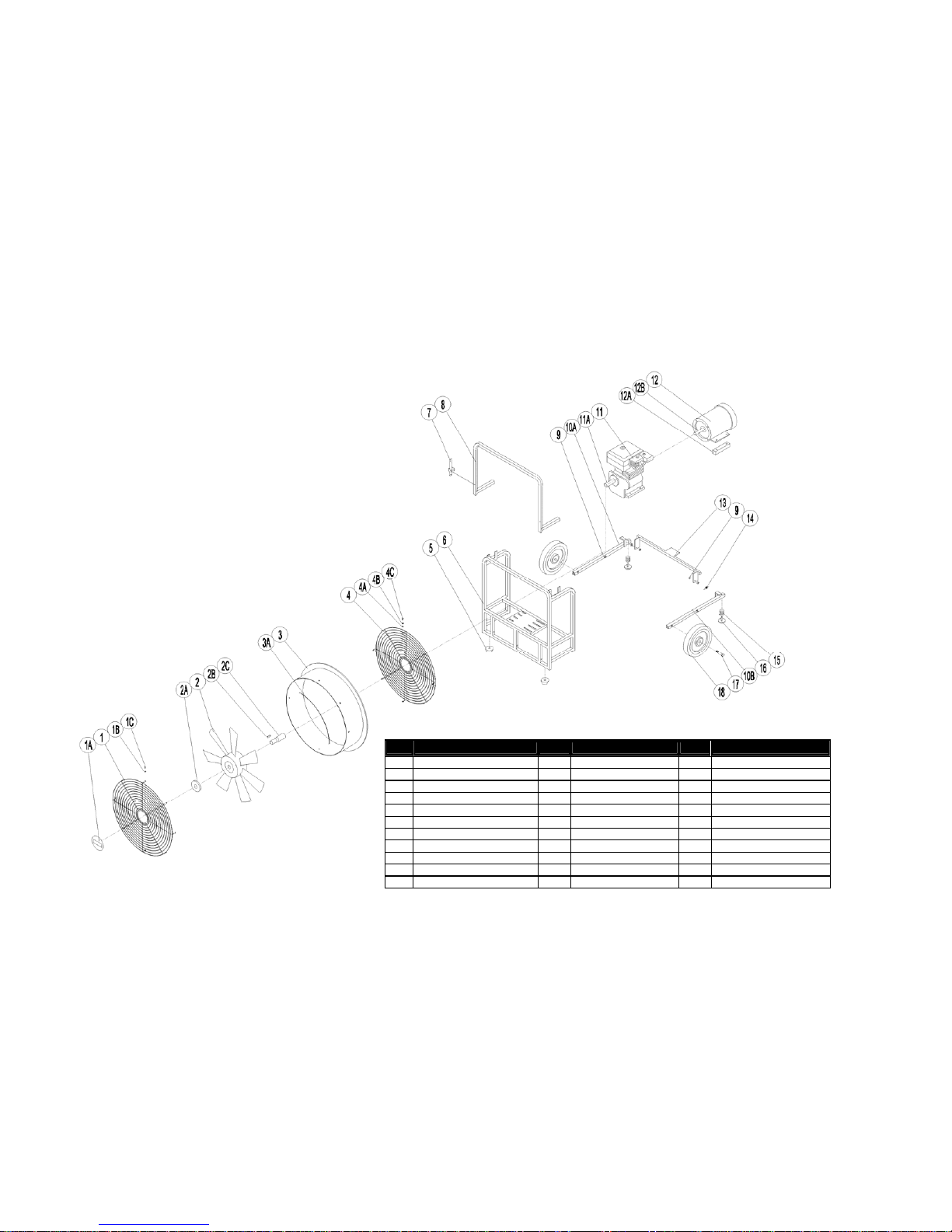

BLOWER DRAWINGS

Direct Drive Units (Gas or Electric) 9.0

Belt Drive Unit 9.0
Pole Mount Unit (Electric) 9.0

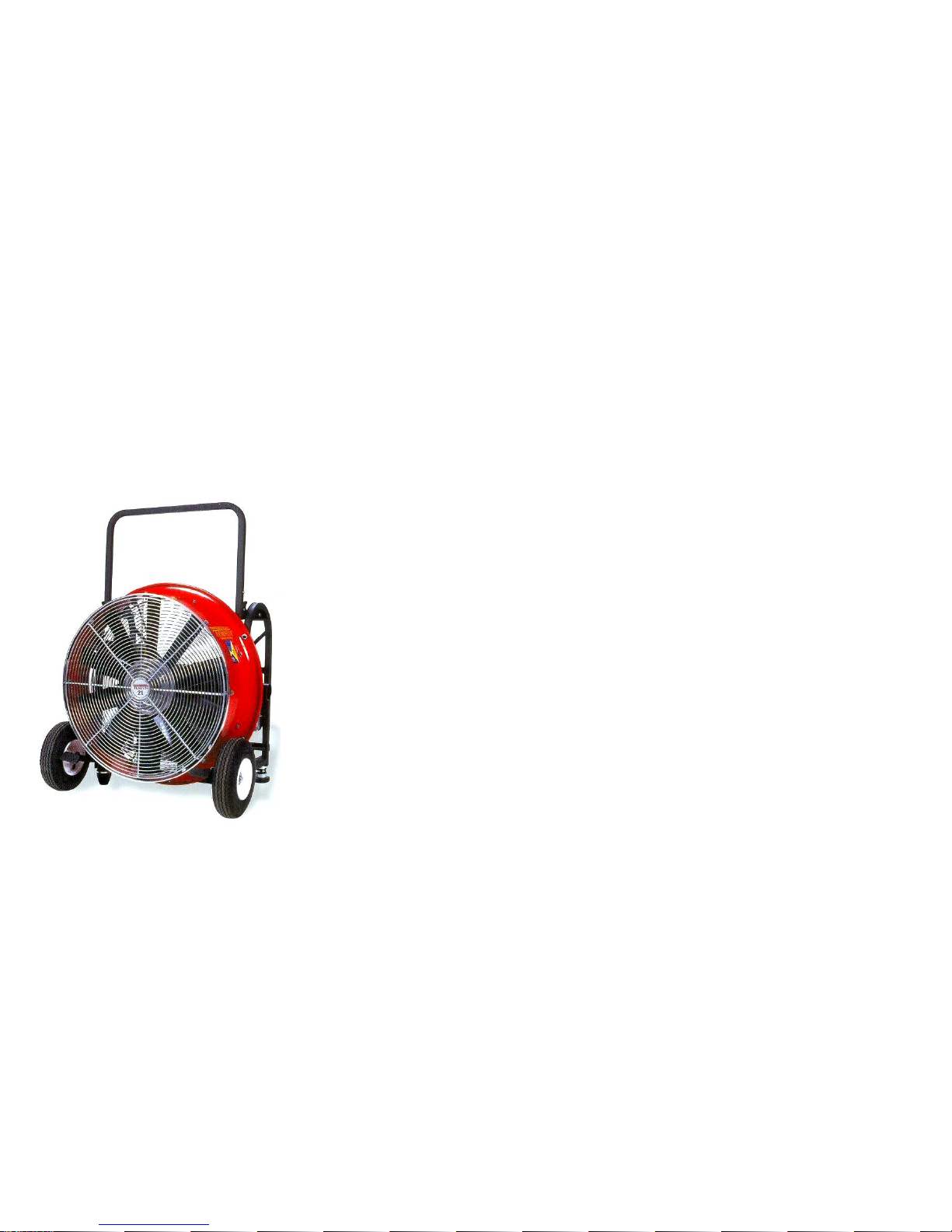

Safety Guide

Safety Guide Failure to follow the operating, maintenance and

lubrication requirements set forth in this
Operation and Maintenance Manual may result in
serious personal injury and/or damage to
equipment.

The following WARNING statements indicate
potentially hazardous conditions for
operators and equipment. Make certain that
anyone who works on or around the blower
has read and fully understands the safety
precautions listed.

1. Carefully read this Operation and Maintenance

Manual before attempting to operate, service or
disassemble any part of your ®TEMPEST
POWER BLOWER.

2. Never operate the unit when mentally or

physically fatigued.

3. Stay away from rotating parts; avoid wearing

loose jackets, shirts, and ties. Keep hands and feet
away from the blower.

4. Keep all unauthorized personnel at a safe distance

from the blower.

5. Keep all guards in place. Never make repairs

while the unit is running. Never operate if any
guard or grill is not in place.

6. Always wear eye protection. Loose debris can be

picked up in the air stream and flown in the air.

Safety Guide 2.1

Safety Guide Continued…

7. Hearing protection is required. Motor and air

noise may exceed safe DB levels.

8. Gasoline is extremely flammable and is explosive

under certain conditions. To prevent fire hazards,
do not place flammable objects close to the
engine.

9. Do not overfill the fuel tank. After refueling,

make sure the tank cap is closed properly and
secured. If any fuel is spilled, make sure the area
is dry before starting the engine.

10. Never operate gasoline-powered blowers in an

enclosed or confined area. Exhaust contains
poisonous carbon monoxide gas; exposure may
cause loss of consciousness and may lead to
death.

11. The muffler becomes very hot during operation
and remains hot for some time after stopping the
engine. Be careful not to touch the muffler while
it is hot. To avoid severe burns or fire hazards, let
the engine cool before transporting or storing the
unit.

12. It is the sole responsibility of the owner/operator
to develop and practice the proper use of the
®TEMPEST POWER BLOWER in accordance
with generally accepted ventilation procedures as
well as the department’s own operating
procedures before placing the unit into service.

Safety Guide 2.2

General Information

Blower Identification

Each ®TEMPEST POWER BLOWER has a
model number as well as a serial number
(Figure 1.1). The model number signifies

TEMPEST TECHNOLOGY CORP.

PRODUCT
MODEL NO.
SERIAL NO.

Figure 1.1

information such as blade diameter, engine
type and horsepower. The serial number relates
to information referencing the date of
manufacture. This information is useful should
it become necessary to contact the factory
regarding your Power Blower.

Please write the Serial Number of your
®TEMPEST POWER BLOWER in the spaces
below. This will aid us in identifying which
model you have when assisting you.

Model Number:
Serial Number: ____
Date Purchased:

Serial Number Locations

BELT-DRIVE and DIRECT DRIVE
GASOLINE POWERED UNITS: The serial

number is located on the side of the engine
housing.

ELECTRIC POWERED UNITS: The serial
number is located on a plate attached to the
motor.

General Information 3.1

Warranty

Figure 1.2

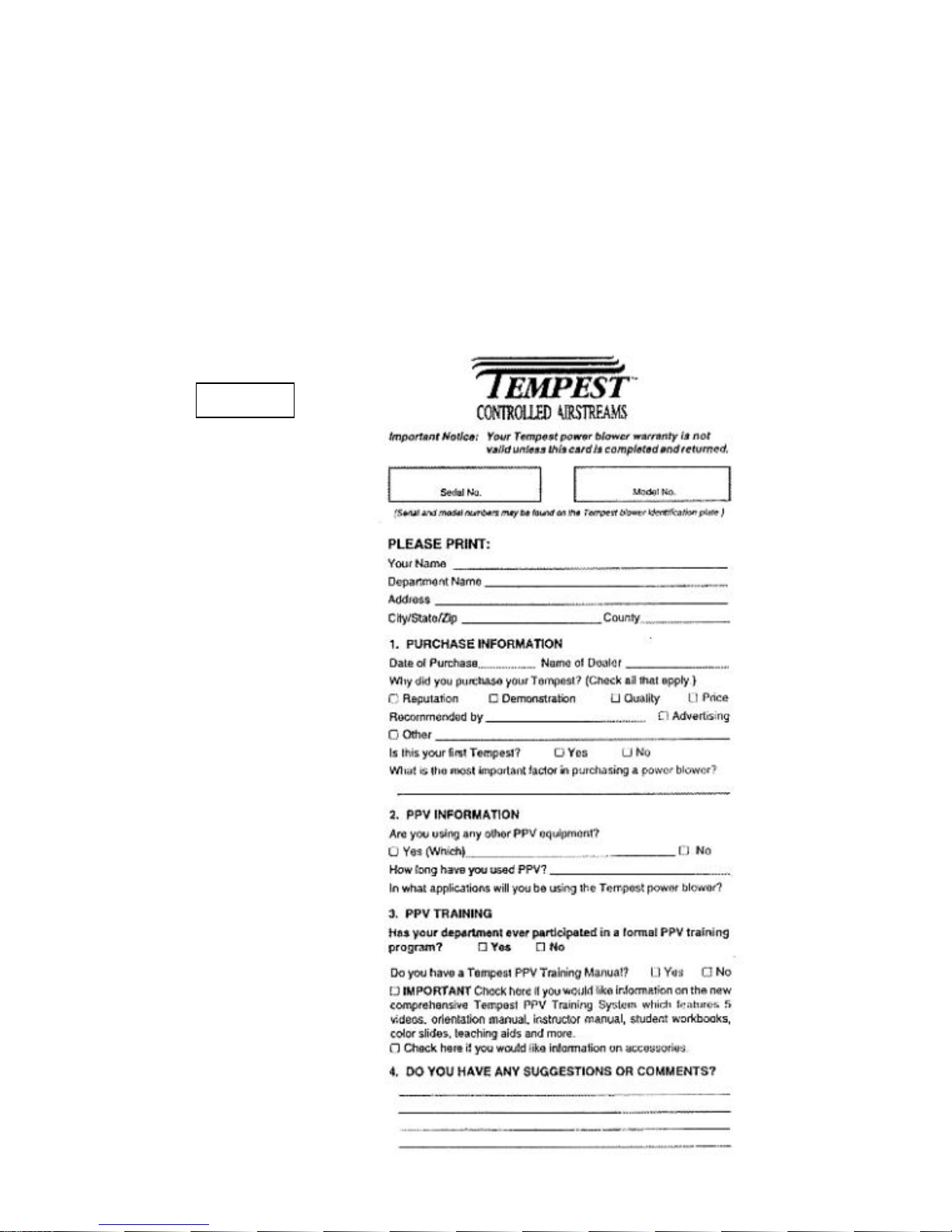

Be sure to fill out and return the warranty card
to TEMPEST TECHNOLOGY
CORPORATION in order to activate the
warranty. (Figure 1.2)

General Information 3.2

Power Blower Data

TYPE:
Positive Pressure Ventilator

BLADE:

Air Flex Fiberglass Reinforced Polyamide
High Strength Blades, Die Cast Aluminum

or Polypropylene.

BUSHING:

Keyed Shaft and Set or Cap Screws.

SHROUD:

Turbo 2000 Tapered Aluminum.

DRIVE:

Industrial-Type, Straight-Banded V-Belt

(On Belt-Drive Blowers) or Direct Drive
(On Direct Drive Blowers).

BEARINGS:

Locking, Self-Aligning and Permanently
Lubricated.

FRAME:

Rugged, Lightweight, Square-Steel Tubing
with Powder-Coat Finish.

TILT MECHANISM:

Patented Five-Positions, Foot-Operated Tilt
Mechanism (The Winning Step).

GRILL:

Continuous Circular-Wound, External-Weld
Steel Wire with 8 Tie Points for Additional
Safety.

General Information 3.3

Power Blower Data continued…

VIBRATION DAMPENERS:

Steel-Reinforced Rubber.

GAS ENGINES:

TYPE: Single Cylinder, 4 Stroke, Gasoline
COOLING: Forced Air

LUBRICATION: Splash Type Oil Reservoir
STARTING: Recoil with Auto Rewind

Belt Drive Gasoline Power Blowers

BELT-DRIVE
GAS

BD 18-T-5.5 TECHUMSEH 5.5 10,903 8 4,070 21.50 21.00 24.25 79
BD 18-H-5.5 HONDA 5.5 15,023 5 3,870 21.50 21.00 24.25 85
BD 21-T-5.5 TECHUMSEH 5.5 18,673 9 3,350 25.00 22.00 26.25 87
BD 21-H-6.5 HONDA 6.5 17,743 5 3,125 25.00 22.00 26.25 93
BD 24-T-5.5 TECHUMSEH 5.5 17,314 6 3,190 28.25 22.00 31.00 86
BD 24-H-6.5 HONDA 6.5 18,130 5 3,175 28.25 22.00 31.00 92
BD 27-T-10 TECHUMSEH 10.0 23,690 10 2,643 30.50 23.50 32.50 137
BD 27-H-13 HONDA 13.0 23,943 10 2,672 30.50 23.50 32.50 155

ENGINE HP CFM S/B RPM WIDTH DEPTH HEIGHT LBS

Direct Drive Gasoline Power Blowers

DIRECT­DRIVE GAS

DD 16-T-5.5 TECHUMSEH 5.5 10,399 4 3,650 19.00 19.75 21.25 61
DD 16-H-5.5 HONDA 5.5 12,008 4 3,725 19.00 19.75 21.25 67
DD 18-T-5.5 TECHUMSEH 5.5 13,800 5 3,625 22.50 21.00 24.00 71
DD 18-H-5.5 HONDA 5.5 14,733 5 3,765 22.50 21.00 24.00 77
DD 21-B-5.5 BRIGGS 5.5 17,135 7 3,425 25.00 21.00 26.00 73
DD 21-T-5.5 TECHUMSEH 5.5 17,613 7 3,425 25.00 21.00 26.00 72
DD 21-H-6.5 HONDA 6.5 20,152 7 3,740 25.00 21.00 26.00 79
DD 24-B-5.5 BRIGGS 5.5 18,290 7 3,400 28.25 21.25 30.00 76
DD 24-T-5.5 TECHUMSEH 5.5 15,300 7 2,950 28.25 22.50 30.00 76
DD 24-H-6.5 HONDA 6.5 19,606 6 3,450 28.25 21.25 30.00 82
DD 36-B-5.5 BRIGGS 5.5 19,367 8 2,510 41.50 24.00 43.50 97

General Information 3.4

ENGINE HP CFM S/B RPM WIDTH DEPTH HEIGHT LBS

Power Blower Data continued…

ELECTRIC MOTORS:

All electric motors are single phase, 60
Hz, rigid base, 56 frame, with ball
bearings and manual reset overload
protection.

ELECTRIC
UNITS

EB-12 ELECTRIC 1 TEFC 7,683 N.A. 3,450 16.00 19.50 21.50 45
EBS-16 ELECTRIC 1/3

EBS-16M
(W/MISTER)

EB-16 ELECTRIC 1.5

EB-18 ELECTRIC 1 TEFC 8,748 6 1,750 22.25 21.00 24.00 71
EB-21 ELECTRIC 1 TEFC 11,698 7 1,731 25.00 21.00 26.00 72
EB-24 ELECTRIC 1 TEFC 12,867 7 1,736 28.25 22.50 30.00 75
EB-36 ELECTRIC 1 TEFC 13,281 8 1,750 41.50 24.50 43.50 94

ENGINE HP CFM S/B RPM WIDTH DEPTH HEIGHT LBS

3,200 N.A. 1,736 18.75 14.25 19.50 47

TEFC

ELECTRIC 1/3

TEFC

TEFC

3,200 N.A. 1,736 18.75 14.25 19.50 47

11,804 6 3,450 18.50 20.00 20.50 66

Electric Blower Power Requirements*

Based upon 115 v blower on a 20 amp circuit.

BLOWER MODEL MOTOR

HP

EB-12 1.0 48 6,000 16 1,900
EB-16 1.5 54.6 6,300 18.2 2,100
EBS-16 1/3 10.9 1,300 6.3 756
EB-18 1.0 48 6,000 16 1,900
EB-21 1.0 48 6,000 16 1,900
EB-24 1.0 48 6,000 16 1,900
EB-36 1.0 47.3 6,000 12.1 1,452

STARTING
AMPS

STARTING
WATTS

RUNNING
AMPS

*Starting amps and watts are momentary

Maximum Power Cord Length (in feet)**

MOTOR H.P. 14 GAUGE 12 GAUGE 10 GAUGE 8 GAUGE 6 GAUGE

1/3 215’ 330’ 550’ 850’ 1,350’

1.0 60’ 95’ 150’ 240’ 380’

1.5 45’ 1.75’ 115’ 190’ 300’

**Calculations based upon one blower connected to 20 amp circuit.

RUNNING
WATTS

General Information 3.5

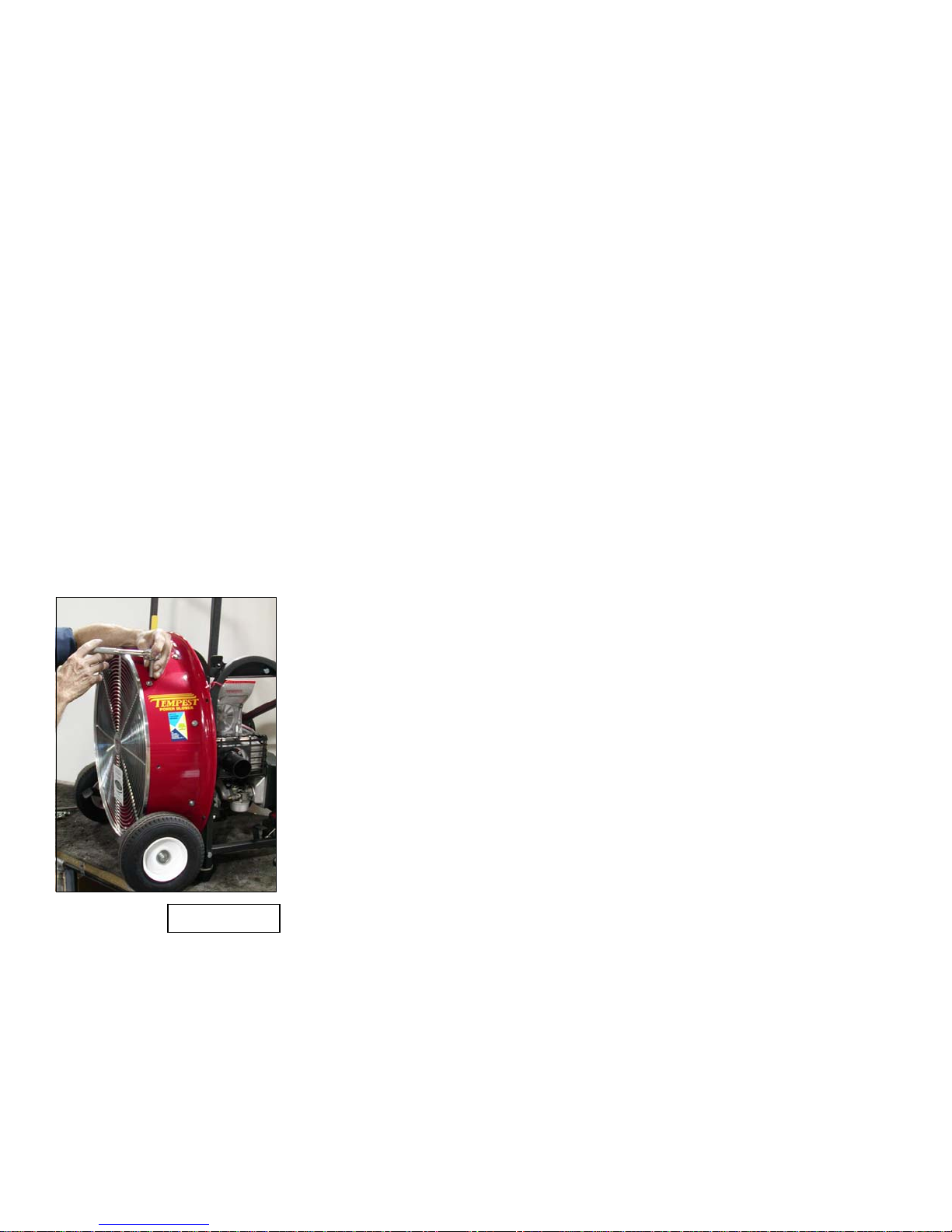

Power Blower Information

3

The ®Tempest Power Blower is a high
powered, portable blower used for Positive
Pressure Ventilation (PPV), a ventilation
technique that quickly and efficiently replaces
hazardous interior environments.

PPV was pioneered in the fire fighting industry
where fire fighters use the ®Tempest Power
Blower to ventilate smoke, heat, and harmful
gases from buildings. This creates a safer
environment for them to work in and makes it
easier for them to find victims and extinguish
the fire.

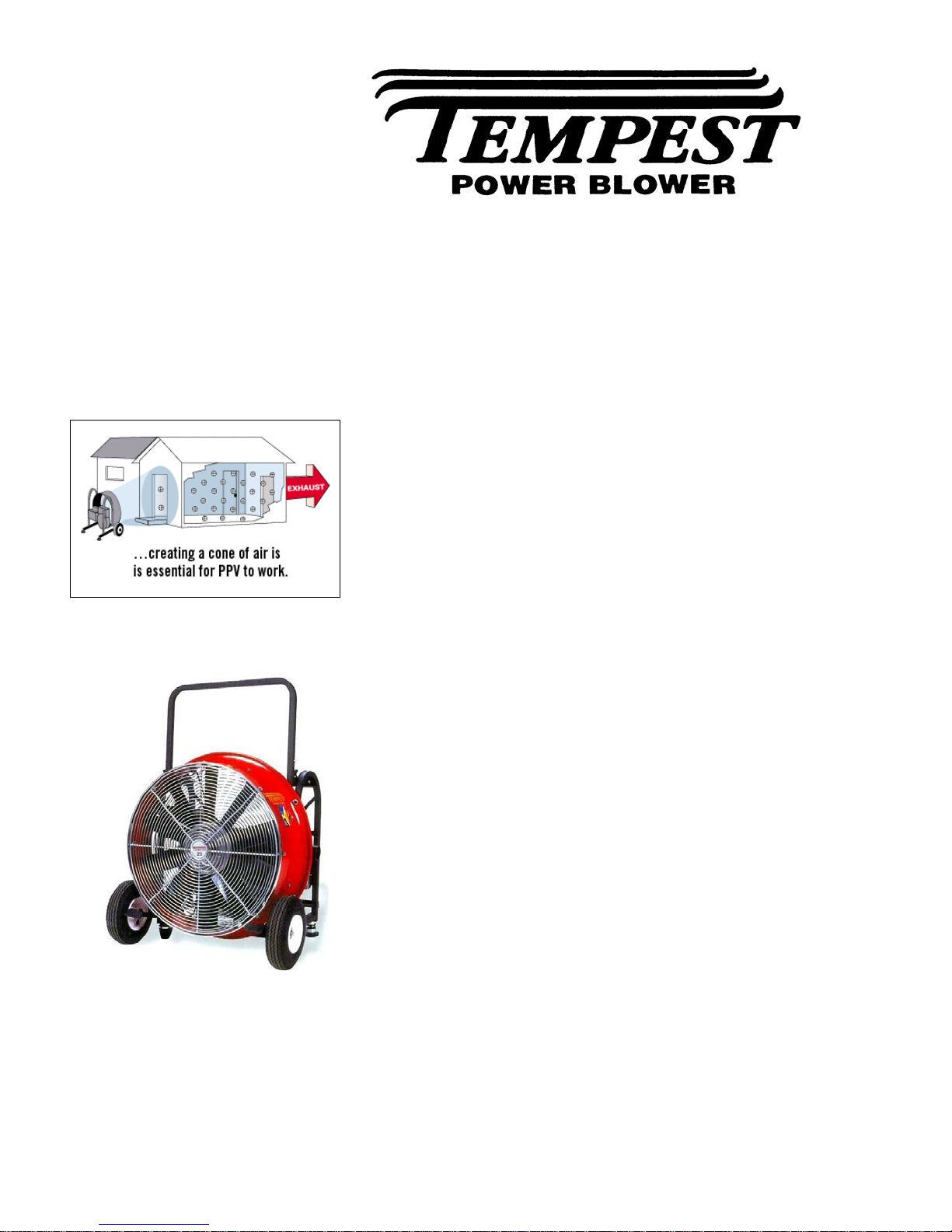

Figure 1.

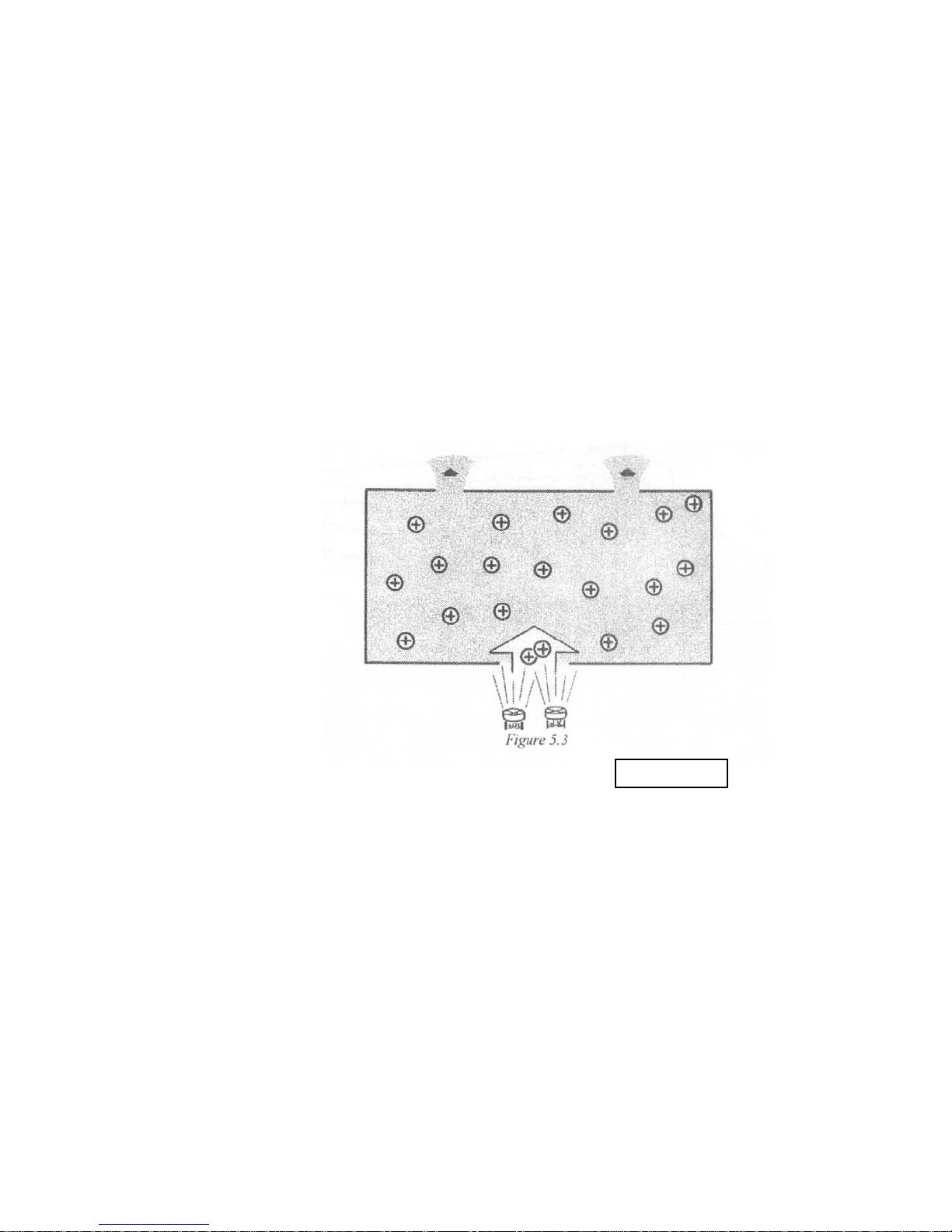

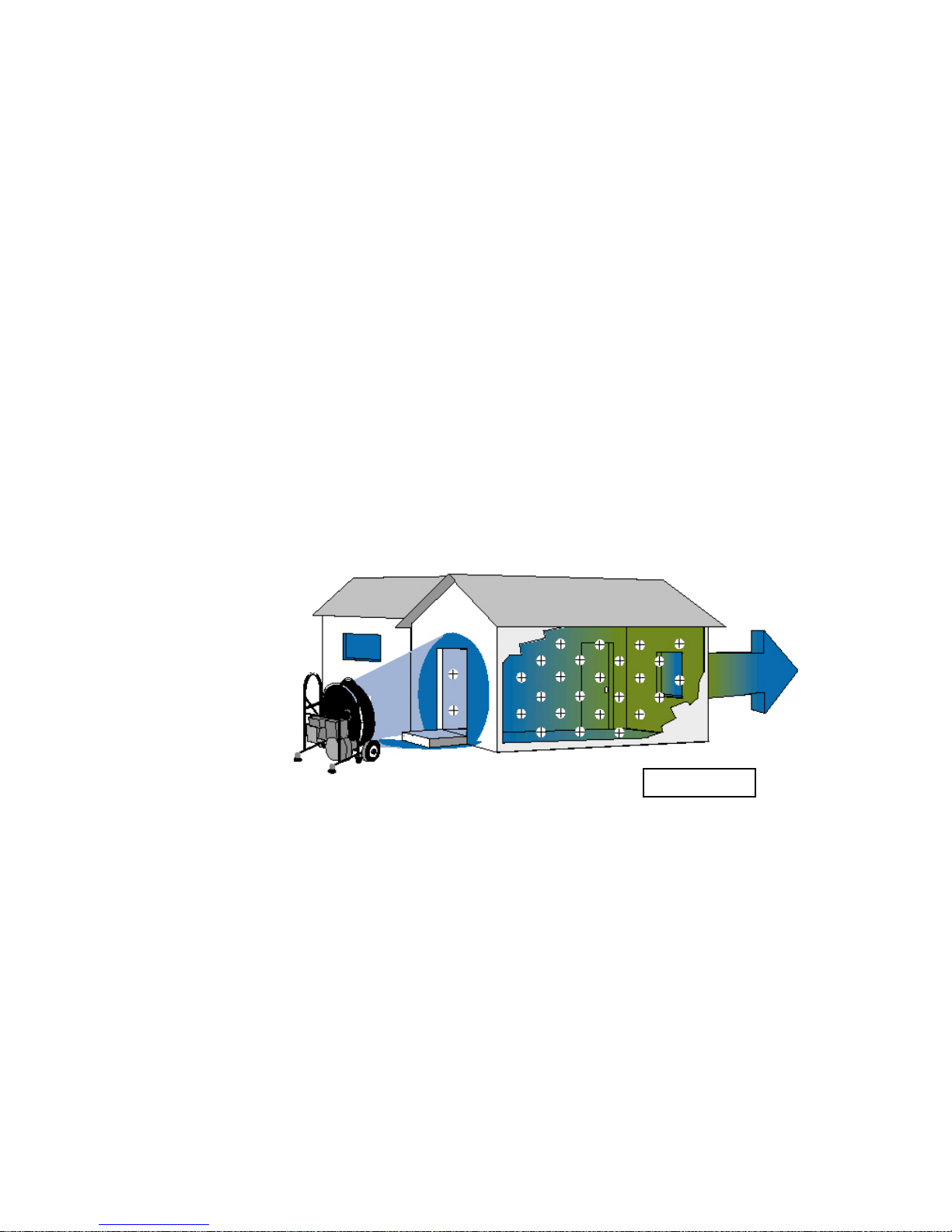

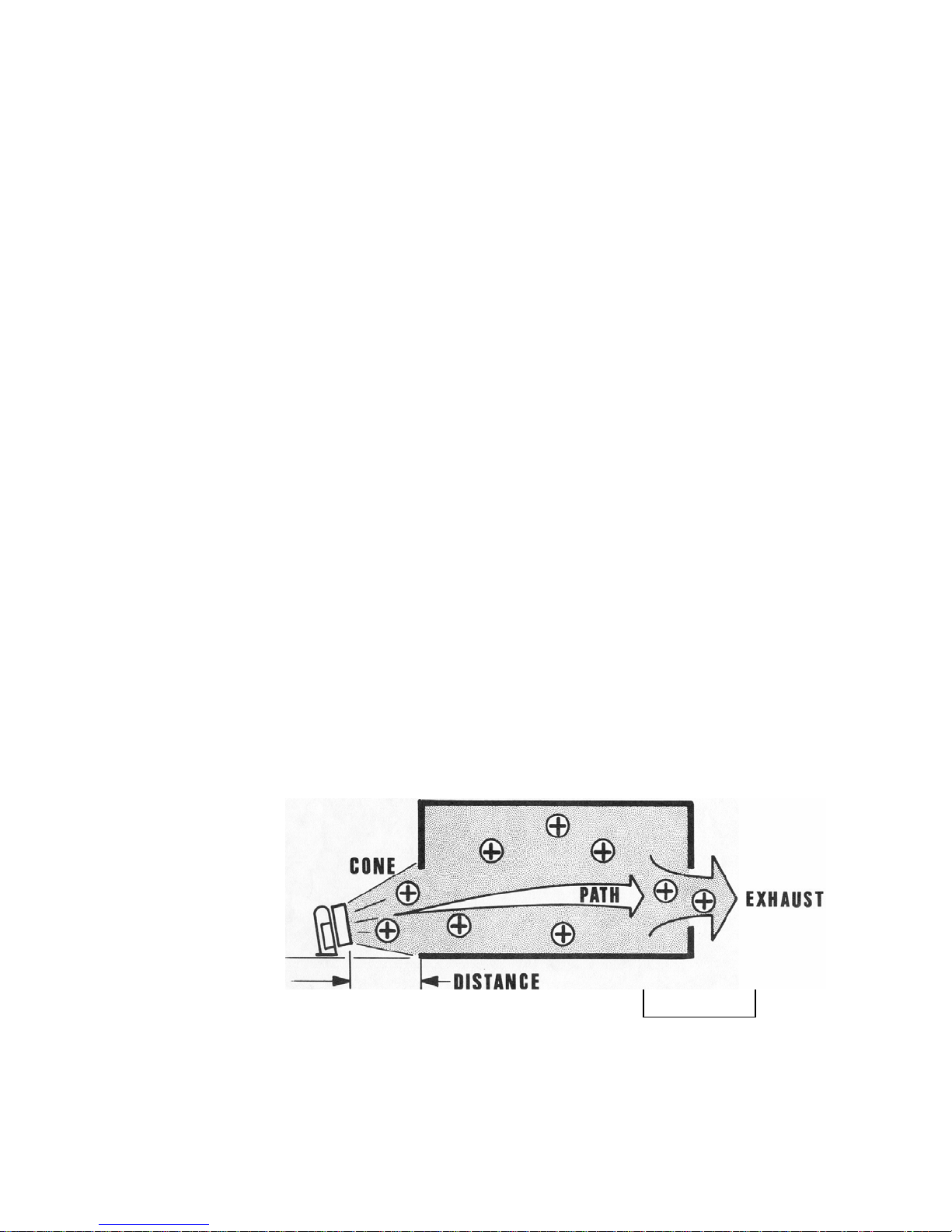

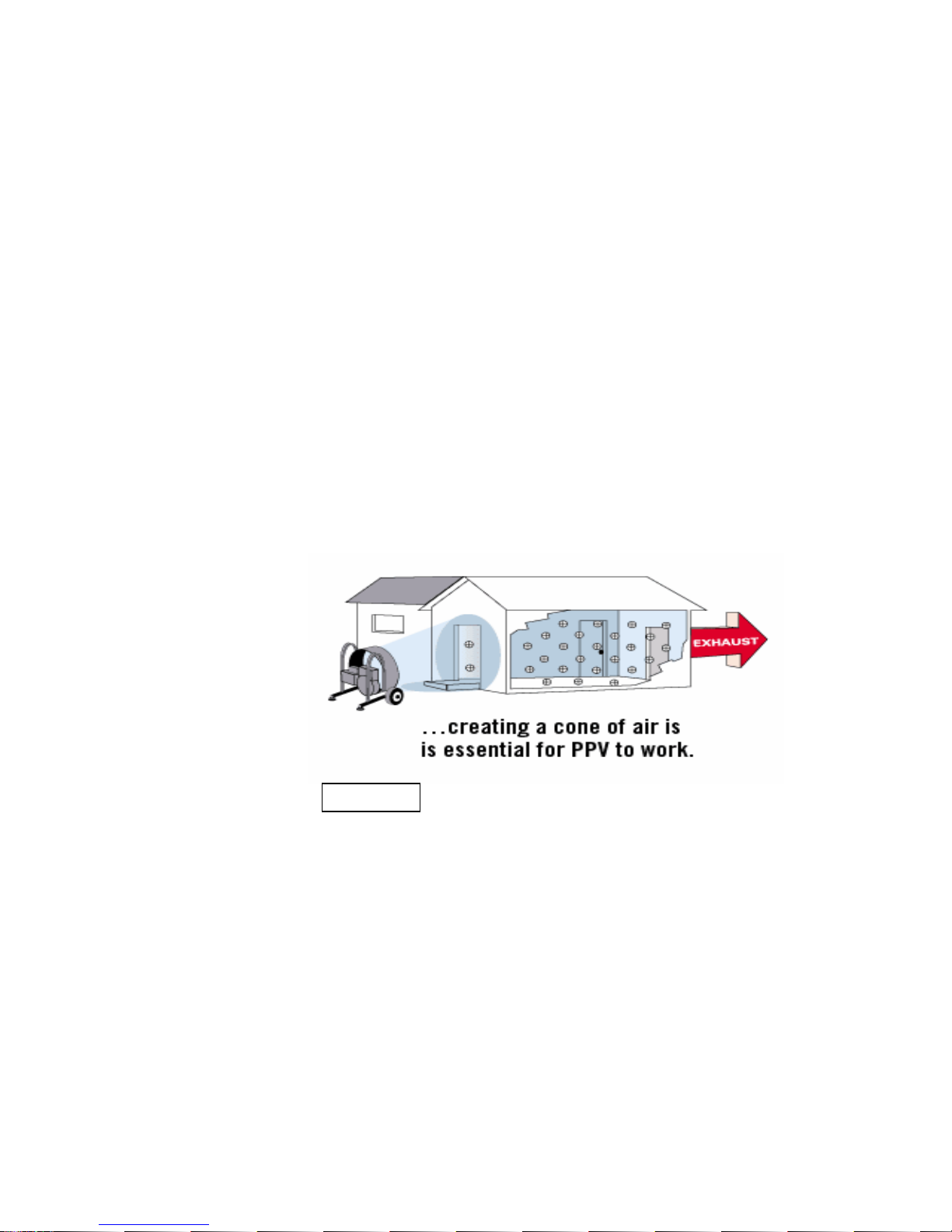

PPV relies on two principles, (1) a cone shaped
air pattern, and (2) pressure. To accomplish
Positive Pressure Ventilation, the blower is
placed on the outside of the structure. It is
positioned so that the cone shaped air pattern
created by the blower completely seals the

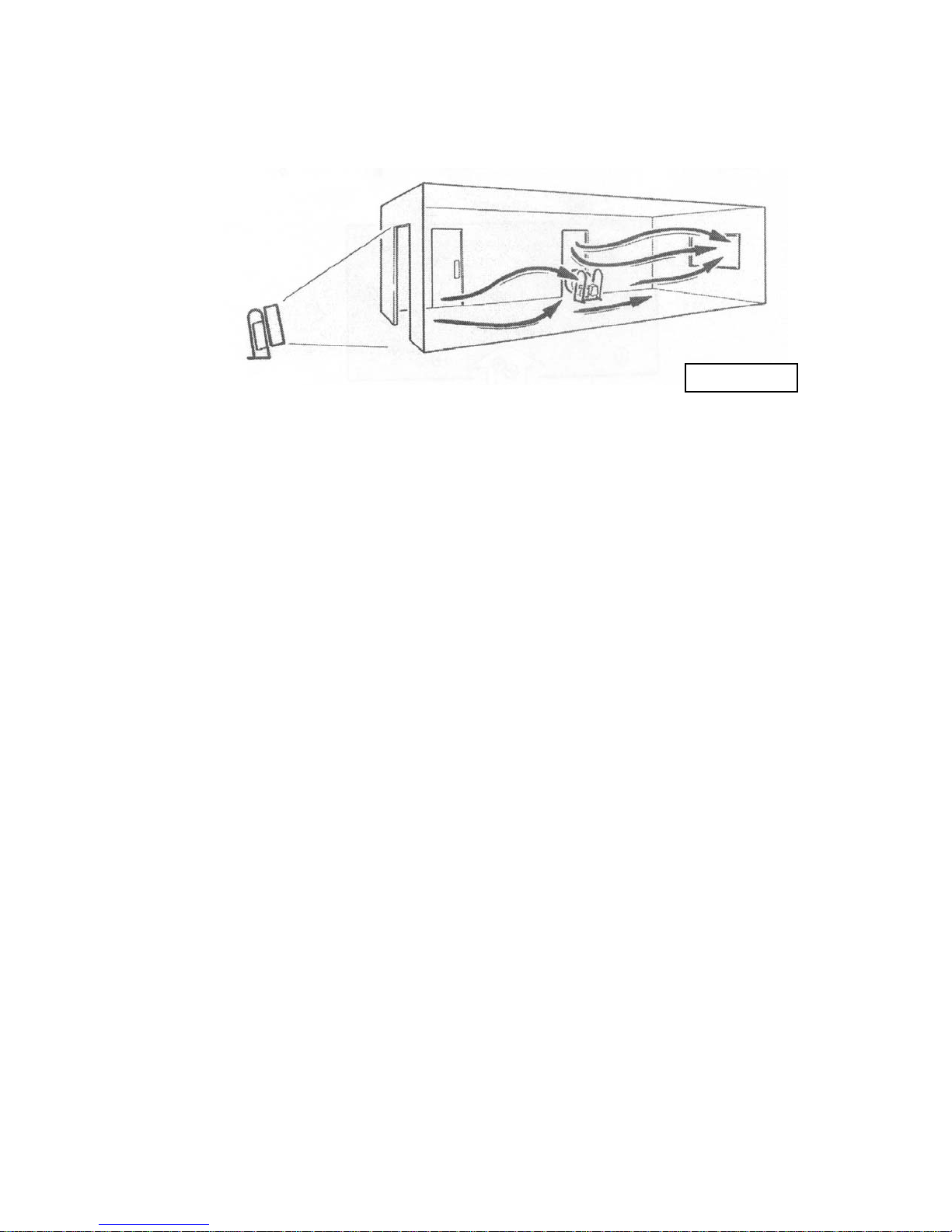

entrance opening (Figure 1.3). When this seal
is achieved, the air pressure is increased
equally at all points inside the structure. When

General Information 3.6

Power Blower Information continued…

an exhaust opening is created, all of the interior
air moves in one mass towards it. The result is
fast, efficient ventilation of the entire structure.

For additional information on how to
accomplish PPV, refer to “PPV Set-Up
Procedures” in this Manual.

Note:

The ®Tempest Power Blower is the most
efficient tool for PPV for two reasons. First,
the exclusive Tempest tapered shroud design
creates a wide, stable, conical air pattern.
Second, the seven blade air movement impeller
used on all Tempest blowers is designed to
create high pressure. These two features make
the ®Tempest Power Blower such a powerful
ventilation tool.

As with any new technique, Positive Pressure
ventilation requires training and education in
order to be implemented properly and safely.
Tempest offers a complete PPV TRAINING
PROGRAM, which covers many applications
of this powerful ventilation technique. For
more information contact your local dealer or
the Tempest factory direct for a free brochure
on PPV.

General Information 3.7

Operating Procedures

The information and instructions in this section
should be routinely reviewed and followed before

Pre-Operation

the actual operation of ®Tempest Power Blowers

.

VISUAL INSPECTION

After receiving and unpacking your blower, be
sure to carefully inspect it for any damage that
might have occurred during shipping. Should you
find any damage: PLEASE NOTIFY TEMPEST

TECHNOLOGY IMMEDIATELY AT:
1-800-346-2143

ENGINE OIL

Be sure to use only high quality detergent oil.
Detergent oils keep the engine cleaner and retards
the formation of gum and varnish deposits.

RECOMMENDED OILS

HONDA engines: SF or SG SAE 10W-30 oil.

TECHUMSEH engines: SF, SG, SH, or SH/CD

SAE 30 oil

BRIGGS & STRATTON engines: SE, SF, SG

SAE 30 oil

Operating Procedures 4.1

Pre-Operation continued…

OIL SUMP CAPACITIES

ENGINE CAPACITY QUARTS / LITRES

BRIGGS 5.5 HP 20 FL. OZ. .66 QUARTS OR .59 LITERS
HONDA GX160 5.5 HP 20 FL. OZ. .63 QUARTS OR .6 LITERS
HONDA GX200 6.5 HP 20 FL. OZ. .63 QUARTS OR .6 LITERS
HONDA GX390 13 HP 37 FL. OZ. 1.16 QUARTS OR .77 LITERS
TECHUMSEH OHH5 5.5HP 21 FL. OZ. .66 QUARTS OR .62 LITERS
TECHUMSEH HM100 10 HP 26 FL. OZ. .81 QUARTS OR .77 LITERS

FILLING THE CRANKCASE

Place blower on a level surface and make sure that
the engine is level. Remove the oil fill plug or
dipstick. POUR OIL SLOWLY into the
crankcase. Replace oil fill plug or dipstick and
tighten securely. Refer to the engine
manufacturers Owners Manual for additional
information regarding specific oil requirements.

CAUTION: DO NOT OVERFILL THE ENGINE.
EXCESS OIL VAPOR CAN BE EJECTED
FROM THE ENGINE BREATHER WHILE
RUNNING IN FULL TILT POSITION.

FUEL

Always use clean, fresh, lead-free gasoline with
an octane rating of 86 or higher. DO NOT USE
leaded gasolines. Refer to the engine
manufacturers Owners Manual for acceptable
substitute gasolines.

Operating Procedures 4.2

Pre-Operation continued…

CAUTION: PRECAUTIONS MUST BE
FOLLOWED WHENEVER REFUELING
GASOLINE ENGINES. PLEASE FOLLOW
THE LISTED GUIDELINES.

NEVER FILL THE FUEL TANK INDOORS.
NEVER FILL THE FUEL TANK WHILE THE

ENGINE IS RUNNING OR HOT.
DO NOT SMOKE DURING REFUELING.
NEVER FILL THE FUEL TANK COMPLETELY.

FILL THE TANK TO BOTTOM OF FILLER
NECK TO PROVIDE SPACE FOR FUEL
EXPANSION.

Operation

WIPE ANY SPILLAGE FROM ENGINE AND
COMPONENTS BEFORE STARTING THE
ENGINE.

FUEL TANK CAPACITY

ENGINE CAPACITY QUARTS / LITRES

BRIGGS 5.5 HP 96 FL. OZ. 3 QUARTS OR 2.85 LITERS
HONDA GX160 5.5 HP 121.6 FL. OZ. 3.8 QUARTS OR 3.6 LITERS
HONDA GX200 6.5 HP 121.6 FL. OZ. 3.8 QUARTS OR 3.6 LITERS
HONDA GX390 13 HP 192 FL. OZ. 6 QUARTS OR 6.34 LITERS
TECHUMSEH OHH5 5.5HP 64 FL. OZ. 2 QUARTS OR 2.11 LITERS
TECHUMSEH HM100 10 HP 128 FL. OZ. 4 QUARTS OR 4.22 LITERS

SET-UP, STARTING AND STOPPING

Assuming the previous Pre-Operation instructions
have been followed the blower is now ready to

Operating Procedures 4.3

Operation continued…

run. Please review the engine manufacturers
Owners Manual regarding starting and stopping as
well as the instructions in this section before
actually starting the blower.

CAUTION: NEVER MOVE THE BLOWER
WHILE IT IS IN OPERATION. SEVERE
PERSONAL INJURY IS POSSIBLE AS WELL
AS DAMAGE TO THE BLOWER.

ALWAYS SHUT-DOWN THE BLOWER
PRIOR TO MOVING!

SET-UP

Position the blower in the desired location,
making sure it is placed on a flat, hard and debris
free surface.

STARTING

1. Set the fuel valve in the “ON” position.

2. Set the stop switch to the “ON” position.

3. Set (if equipped) the choke lever to the

“CLOSED” or “STARTING” position.

4. Set the throttle lever to the “STARTING”

position.

5. Grasp the starter handle, take up the slack, and

pull the rope briskly. Let the rope return slowly.
Repeat as necessary until the engine starts. Do not
over pull the rope.

Operating Procedures 4.4

6. If equipped with a choke, move the choke lever to

the ½ position until the engine runs smoothly and
then to the open or off position.

7. Move the throttle to the desired speed. NOTE:

Some blowers may tend to “walk” if the throttle is
not in the full position

.

STOPPING

1. Move the throttle to the “IDLE” position.

2. Move throttle lever to the “OFF” position unless

equipped with a stop switch. If a stop switch is
provided, turn the switch to the “OFF” position.

Operating Procedures 4.5

Maintenance Procedures

Proper maintenance is necessary to ensure that
your ®Tempest Power Blower operates as
efficiently and trouble-free as possible. By
following the instructions in this section you will
be providing the maintenance needed to achieve
this goal.

CAUTION: THE ENGINE MAY START
SIMPLY BY ROTATING THE BLADES.
ALWAYS REMOVE THE SPARK PLUG WIRE
PRIOR TO WORKING ON THE BLADE SIDE
OF THE MOTOR.

Oil Filler Cap

OIL CHANGE

Check the engine oil level before each use. The
oil should be changed after the first three (3)
operating hours and every 50 hours thereafter. Oil
changes should be performed more frequently if
the blower is being operated in dusty or dirty
conditions. Changing the oil is easier when the
engine is still warm (not hot) from a recent
running.

PROCEDURES

1. Position the blower so the engine oil drain plug

is the lowest point on the engine.

2. Place a two quart or larger container under the oil

drain plug for the oil to drain into.

3. Remove the oil drain plug.

4. Install the oil drain plug and tighten securely.

Maintenance 5.1

Maintenance Procedures continued…

5. Remove the oil filler cap and refill with the

recommended oil (refer to the Pre-Operation
instructions in the Operations section) and check
the oil level.

AIR CLEANER

A dirty air cleaner will restrict airflow to the
carburetor. To prevent carburetor malfunction,
service the air cleaner regularly. More frequent
service may be necessary when the blower is
operated in extremely dusty conditions.

NOTE: NEVER RUN THE ENGINE WITH THE
AIR CLEANER REMOVED. RAPID ENGINE
WEAR WILL RESULT FROM
CONTAMINANTS, SUCH AS DUST AND DIRT
BEING DRAWN THROUGH THE
CARBURETOR AND INTO THE ENGINE.

CLEANING AIR FILTER ELEMENTS

Foam Element:

1. Wash the element in a solution of household

detergent and warm water, then rinse thoroughly.
Allow the element to dry completely.

2. Soak the element in clean engine oil, and squeeze

out the excess oil. NOTE: the engine will smoke
during initial start-up if too much oil is left in the
foam element.

Maintenance 5.2

Maintenance Procedures continued…

Paper Element:

1. To remove excess dirt, tap the element lightly

several times on a hard surface or blow
compressed air through the filter from the inside
out.

2. Do not try to brush the dirt off. Brushing will

force dirt into the filter fibers.

3. Replace the element if it becomes excessively

dirty.

COOLING SYSTEM

Frequently remove dirt and debris from the
cooling fins, air intake screen, levers and linkage.
This will ensure adequate cooling and correct
engine speed. Refer to the engine manufacturer’s
Owners Manual for additional cooling system
information.

SPARK PLUG

A correctly firing spark plug is essential for the
power blower to operate properly. Check the
engine spark plug yearly or every 100 hours by
following the listed procedures.

1. Clean the area around the spark plug.

2. Remove and inspect the spark plug.

3. Replace the spark plug if the electrodes are pitted,

burned, or the porcelain is cracked. Check the
electrode gap with a wire feeler gauge and set to
the engine manufacturer’s specifications.

Maintenance 5.3

Maintenance Procedures continued…

4. Make sure the spark plug washer is in good

condition, and hand start the spark plug to prevent
cross threading.

5. After the spark plug is seated, tighten with a spark

plug wrench to compress the washer.

CARBURETOR
All carburetors comply with federal & state

regulations and are preset by the engine
manufacturer. Engine performance may differ at
various altitudes and climates. If you feel that the
carburetor on your blower needs adjusting contact
Tempest Technology or your local engine dealer.

Figure 4.1

EMISSION CONTROL SYSTEM

State regulations require that all manufacturers of
gas powered engines furnish written instructions
describing the Operation and Maintenance of the
emission control systems. These instructions vary
depending on engine type. Please refer to your
engine Operation and Maintenance Owners
Manual under the heading “Emission Control
Systems” for specific information and
instructions.

BELT ADJUSTMENT

The blower drive belt has been adjusted at the
factory prior to delivery. However, the belt should
be inspected and checked after the initial three (3)
hours of operation as it may require retightening
due to belt stretch. It should be inspected after

Maintenance 5.4

Maintenance Procedures continued…

every 25 hours of operating time. Operating the
blower with a loose belt will cause excessive wear
and reduce performance. Follow the procedures
listed to properly adjust the drive belt.

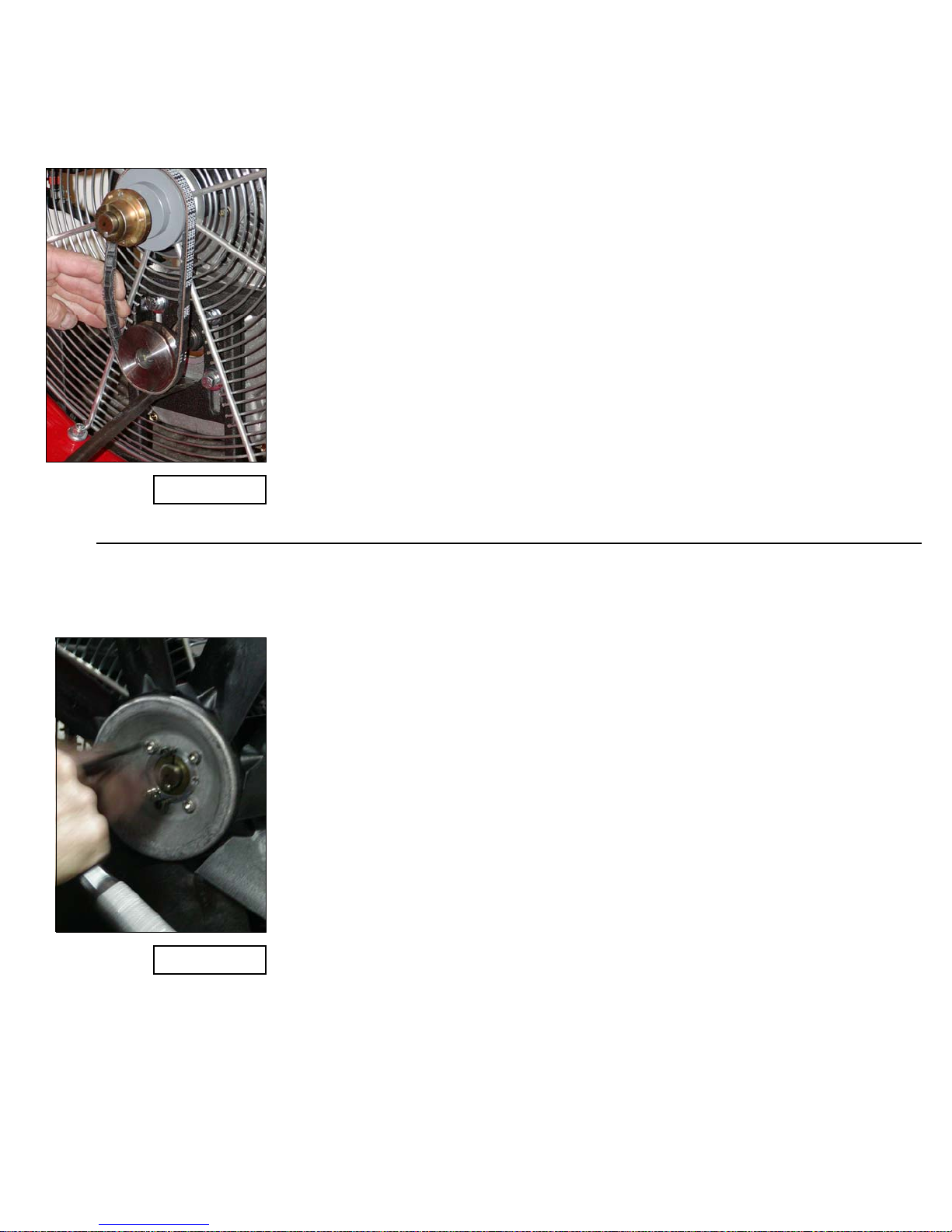

1. Remove the eight bolts holding the front grill in

place and remove the grill. (Figure 4.1)

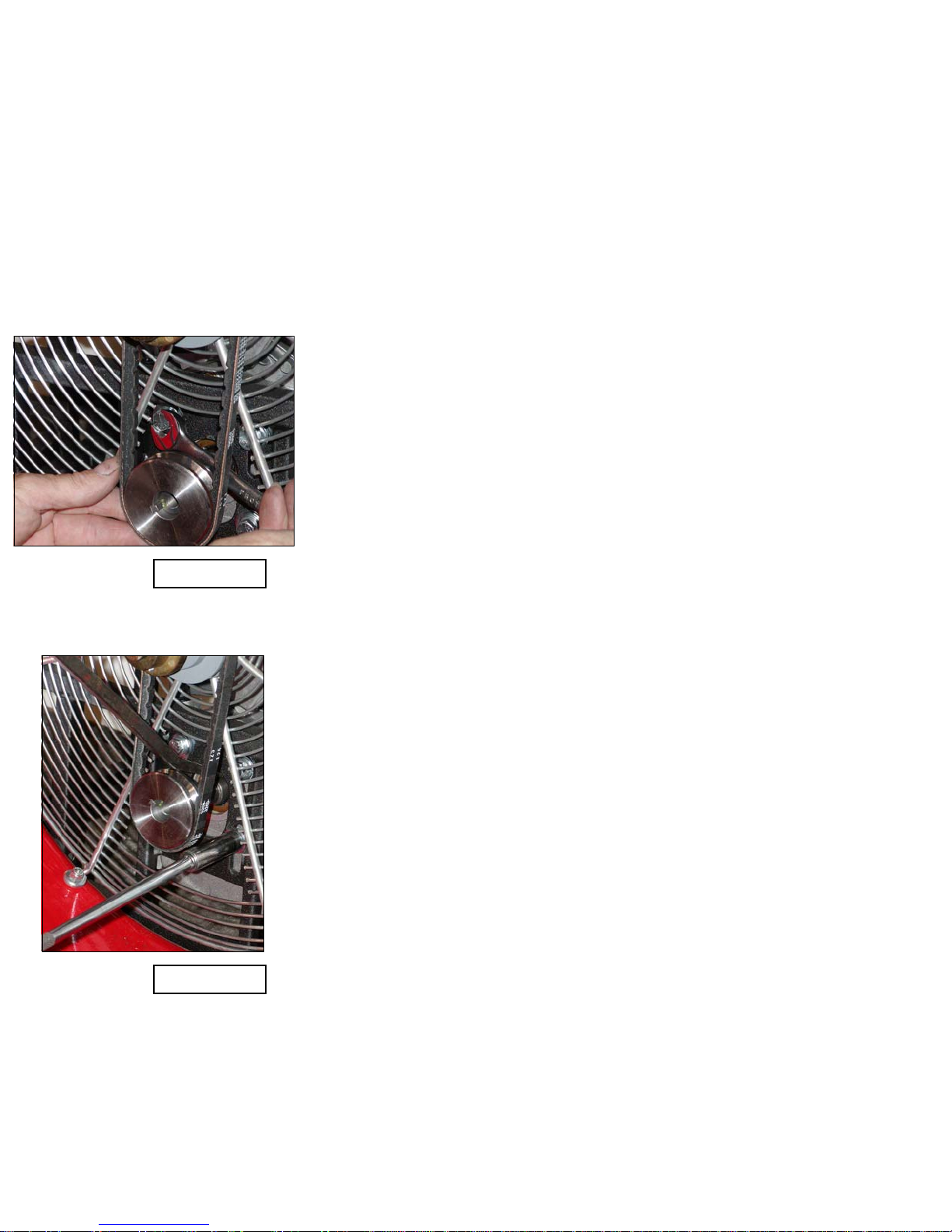

2. Loosen the four front engine mount bolts. On the

Honda 13 HP models the rear mounting studs
must also be loosened. (Figure 4.2)

3. Use a lever to pry or push the engine downward to

tighten the belt (s). (Figure 4.3) The belt(s) should

Figure 4.2

Figure 4.3

be snug and have very little play. DO NOT
OVERTIGHTEN THE BELT(S).

4. Tighten the front engine mount bolts. On the

Honda 13 HP models the rear mounting studs
must also be tightened.

5. Re-install the front grill and test the blower.

BELT REPLACEMENT

1. Remove the eight bolts holding the front grill in

place and remove the grill. (Figure 4.1)

2. Loosen the four front engine mount bolts. On the

Honda 13 HP models the rear mounting studs
must also be loosened. (Figure 4.2)

3. Pry the engine up to loosen and remove the

belt(s). (Figure 4.4)

Maintenance 5.5

Maintenance Procedures continued…

4. Use a lever to pry or push the engine downward to

tighten the belt (s). The belt(s) should be snug and
have very little play. DO NOT OVERTIGHTEN
THE BELT (S).

5. Tighten the front engine mount bolts. On the

Honda 13 HP models the rear mounting studs
must also be tightened.

Re-install the front grill and test the blower

Figure 4.4

BLADE REMOVAL AND INSTALLATION FOR THE FOLLOWING BLADES

EB18 blade (260-075) requires a J 5/8 bushing

DD18 blade (260-075) requires a J 1 bushing.
BD18 blade (260-075) requires a J 3/4 bushing
EB21 blade (260-019) requires a J 5/8 bushing
DD21 blade (260-019) requires a J 1 bushing
BD21 blade (260-019) requires a J 3/4 bushing
EB24 blade (260-021) requires a J 5/8 bushing
DD24 blade (260-021) requires a J 1 bushing
BD24 blade (260-026) requires a J 3/4 bushing

BLOWER BLADE

CAUTION: THE ENGINE MAY START

Figure 4.5

SIMPLY BY ROTATING THE BLADES.
ALWAYS REMOVE THE SPARK PLUG WIRE
PRIOR TO WORKING ON THE BLADE SIDE
OF THE MOTOR.

Maintenance 5.6

Maintenance Procedures continued…

BLADE REMOVAL PROCEDURES

1. Remove the eight bolts holding the front grill in

place and remove the grill. (Figure 4.1)

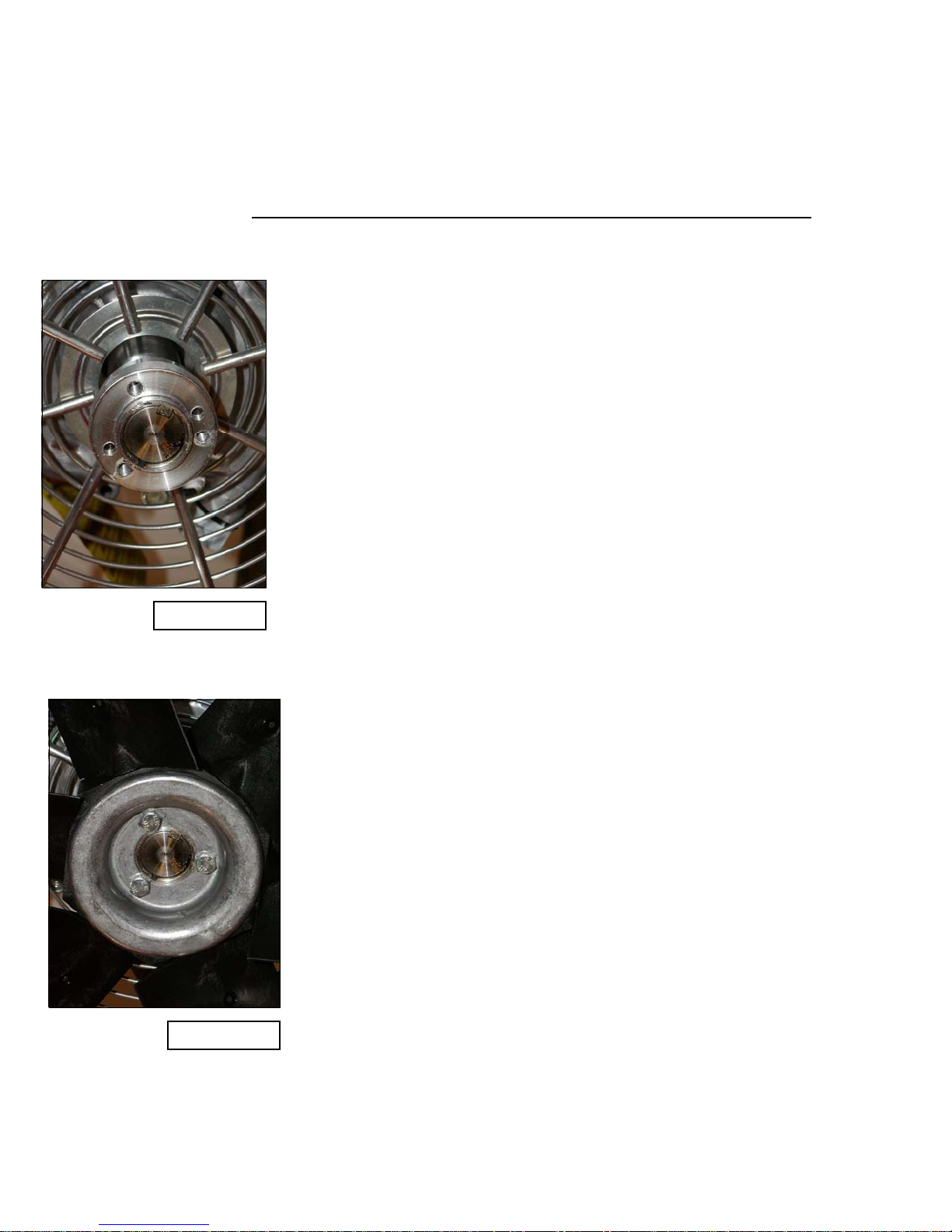

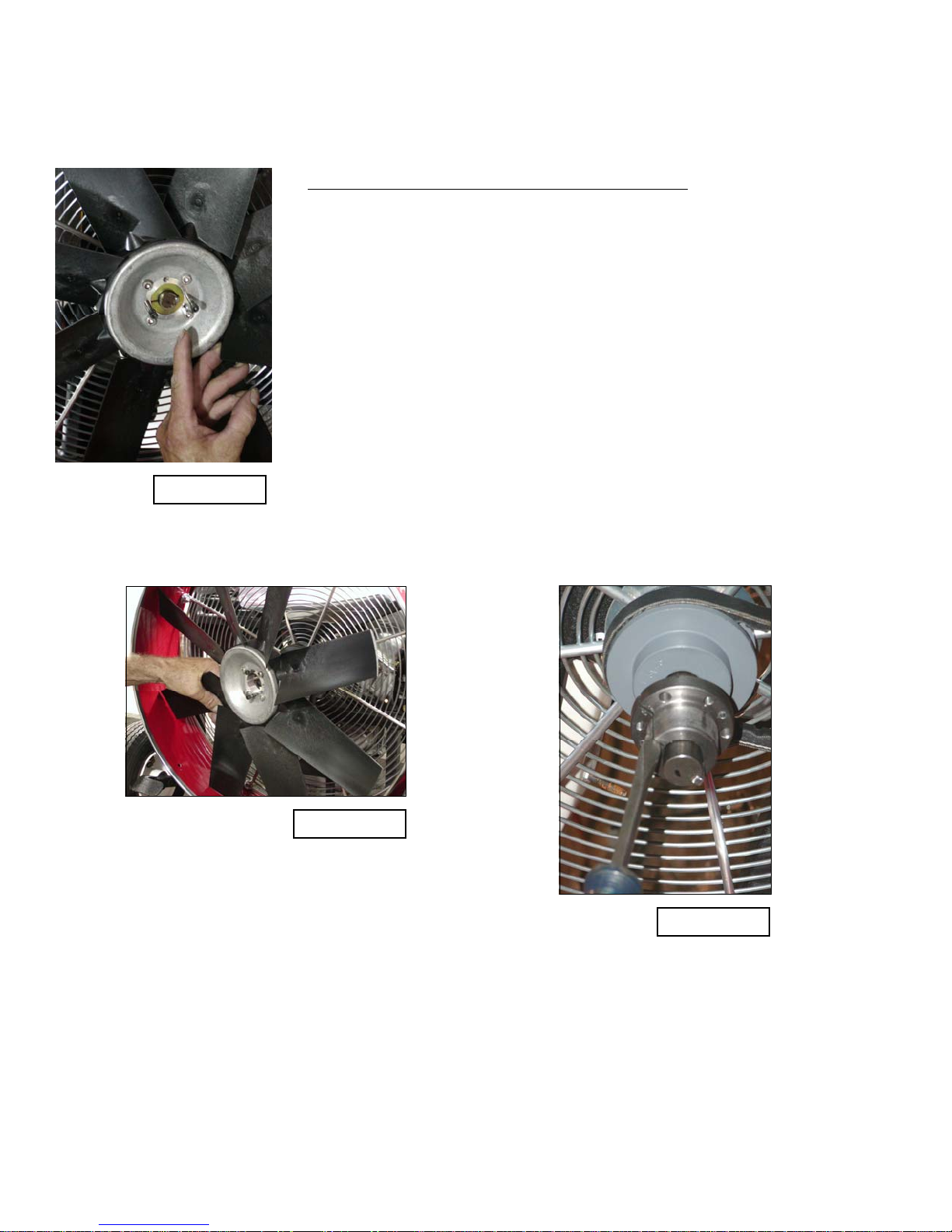

2. Remove the three cap screws in the center of the

fan blade bushing with an 5/32 hex bit (Allen
wrench). (Figure 4.5)

3. Insert the cap screws into the adjoining threaded

holes in the bushing. (Figure 4.6) Turn the screws
in a clockwise manner. Tighten the cap screws

Figure 4.6

progressively with the wrench. Evenly tighten
each cap screw ¼ to ½ a turn successively until
the blade slides off of the bushing. (Figure 4.7)

Figure 4.7

4. Insert a small screwdriver into the bushing slot

(Figure 4.8) to release the bushing from the
engine shaft. Be careful not to damage the end of

Figure 4.8

the jackshaft. Remove the bushing and blade.

Maintenance 5.7

Maintenance Procedures continued…

BLADE INSTALLATION

1. Put bushing on motor shaft (Fig. 4.8). Tighten the

allen screw on the bushing. Put blade on bushing
(Fig. 4.7). Put lock washers on the three allen
screws and insert into drilled holes of blade. Turn
each screw and tighten evenly.

2. Reinstall front grill.

BLADE REMOVAL AND INSTALLATION FOR THE FOLLOWING
BLADES

DD16 blade (260-030) requires a G 1 bushing and a 3/16” X ¼” X 1” key.
EB18VSF blade (260-068) requires a G 5/8 bushing and a 3/16” X 1 3/8”

key.

EB16 blade (260-069) requires a G 5/8 bushing and a 3/16” X 1 3/8” key.
EB21VSF blade (260-071) requires a G 5/8 bushing and a 3/16” X 1 3/8”

key.

BLADE REMOVAL PROCEDURES

1. Remove the eight bolts holding the front grill in
place and remove the grill (Figure 4.1).

2. Remove the three bolts from blade. Remove the two bolts
from the bushing and hub. Put the two bolts in the
threaded part of the bushing and turn evenly until bushing
separates from hub.

Maintenance 5.8

Maintenance Procedures continued…

BLADE INSTALLATION PROCEDURES FOR DD16

1. Make sure that the shaft and keyway are clean and
smooth before installing the blade.

2. Insert the cap screws through the clearance holes
in the bushing and place loosely into the hub of
the blade. Do not press the bushing in. Hand start

3. Insert the cap screws, turning them just enough to
engage the threads in the tapped holes on the hub.
The bushing should be loose in the hub. Insert the
key into the keyway (Figure 4.9). Tighten two
bolts drawing the bushing and hub together.

Figure 4.9

Figure 4.10

4. Slide the blade onto the bushing/hub assembly
and insert the three screws through the blade and
turn evenly but do not tighten. Make sure blade is
in line with hub then tighten screws (Fig. 4.10).
Locate the blade and bushing so that the blade tips
do not hit the rear grill eyelets. On some models
the blade and bushing may be in beyond or out
away from the end of the shaft up to ¼” but no
further. This is necessary for proper blade
clearance.

5. Tighten the cap screws progressively with a
wrench. Tighten each cap screw partial turns
successively until both are tight. Final tightening
should be done with torque wrench with the
torque set at 7.5 ft./lbs. for each screw. Over
tightening will cause the cap screws to break or
crack the blade. (Figure 4.10)

Maintenance 5.9

Maintenance Procedures continued…

6. Carefully turn the blade and check for clearance
between the blade and shroud. Confirm that the
blade is free to rotate without hitting other parts.

7. Reinstall the front grill and test the blower.

8. If you have any trouble removing or installing the
blade on your blower, contact the factory for
assistance at 800-346-2143.

Maintenance Schedule

EACH

USE

CHECK ENGINE OIL
LEVEL
CHANGE ENGINE OIL

CLEAN AIR FILTER
TENSION BELT(S)
REPLACE BELT(S)
INSPECT & CLEAN

SPARK PLUG
INSPECT & CLEAN
ENGINE
HOUSING
INSPECT BLOWER
FOR DAMAGE, FIX IF
ANY
INSPECT BLOWER
FOR LOOSE OR
MISSING BOLTS,
NUTS, &
ATTACHMENTS.
TIGHTEN OR
REPLACE WHERE
REQUIRED

√

√

NEW
BLOWER
FIRST 3
HOURS

√

√

EVERY
MONTH
OR 10
HOURS

√

EVERY
MONTH
OR 25
HOURS

√

EVERY
MONTH
OR 50
HOURS

√

EVERY
MONTH
OR 100
HOURS

√
√

√

√

Maintenance 5.10

PPV Set-up Procedures

Single Blower Placement

When using one blower, it should be positioned so
that the cone of pressurized air just covers the
entrance opening (Figure 5.1). If the blower is
too close to the opening, the opening will not be
completely covered by pressurized air. If the
blower is too far from the opening, pressurized air
will strike the building around the opening and
reduce the amount of pressurized air being forced
inside the building. Therefore, optimum
placement is dependent on the size of the entrance
opening, the size of the blower, and the distance
between the blower and the entrance opening.

Figure 5.1

Due to the size of the "cone" of air issued from a
blower, small blowers need to be moved back
from entrance openings while larger blowers
should be placed closer to entrance openings to
properly cover the opening with pressurized air.

By tilting blowers back about 17° maximum, the
entrance opening may be more effectively
covered with the cone of air. All Tempest
Blowers have "tilt-back” features to facilitate
operation. However, if a blower cannot be tilted

PPV Set-Up Procedures 6.1

PPV Set-up Procedures continued…

back to achieve proper coverage of the entrance
opening with pressurized air, move it as far back
as possible from the entrance opening. This
technique can be used effectively on raised
porches to achieve a seal.

Multiple Blower Placement

The use of more than one blower can dramatically
increase airflow (volume) and reduce the time
necessary to complete a ventilation operation.

For standard entrance openings (that is, door
openings of three feet by six and one-half feet),
maximum effectiveness is achieved by placing
two blowers "in-line" with each other. As in
(Figure 5.2), blower A is positioned about two
feet from the entrance opening. This ensures that
all of the pressurized air from the blower enters
the building, yet allows sufficient room for
personnel to enter and exit the building. Blower
B is then positioned behind blower A. The proper
location for blower B is determined by the

Figure 5.2

distance necessary to cover the entrance opening
with pressurized air. Blower B covers the

PPV Set-Up Procedures 6.2

PPV Set-up Procedures continued…

entrance opening with pressurized air and
increases the capacity of blower A by
approximately ten percent.

For standard entrance openings, multiple blowers
in a parallel (side-by-side) configuration are less
effective than multiple blowers in an in-line
configuration. However, for large entrance
openings, multiple blowers in a parallel
configuration (Figure 5.3) should be used due to
their combined ability to cover the larger opening
with pressurized air. The size of the opening
dictates the numbers of blowers necessary to
cover the opening with combined cones of
pressurized air.

Remember that some openings (such as loading­dock doors) can be reduced in size by partially
closing the door to reduce the size of the entrance
opening that must be covered by pressurized air.
Depending on the number of blowers that are
available, large areas may be effectively
ventilated by using a combination of parallel
(proper coverage of the opening) and in-line
(increased volume) blowers.

Areas or locations that do not have openings that
can be used as exhaust openings (storage rooms,
offices, enclosed work areas, etc.) can be
effectively ventilated by using multiple blowers as
depicted below.

Use a blower to provide a flow of air past the
opening. This blower can be located outside the
building to provide pressurized air to the interior

PPV Set-Up Procedures 6.3

PPV Set-up Procedures continued…

of the building and past the area to be ventilated.
The blower should be placed in the bottom
portion of the opening and will provide
pressurized air that will create positive pressure
within the area to be ventilated and force the
contaminants out of the upper portion of the
entrance opening. The air flowing past the
entrance opening will force the exhausting
contaminants to follow its direction to the exterior
of the building.

Figure 5.3

Exhaust Opening

Positive pressure ventilation is most effective
when the exhaust opening (window, door, etc.) is
between three-fourths to twice the size of the
entrance opening (Figure 5.4). This variance is
due to the number and CFM’S of the blower(s)
utilized and can be summarized as follows:

PPV Set-Up Procedures 6.4

PPV Set-up Procedures continued…

Figure 5.4

1. A single blower powered by 1/3 HP to 4 HP
electric motor or gas engine is most effective
when utilized with exhaust openings that are
three-fourths or slightly less than the size of the
entrance opening.

2. A single blower powered by 5 HP, 5.5 HP, or 6.5
HP engine is most effective when utilized with
exhaust opening that is the same size or slightly
larger than the size of the entrance opening.

3. A single blower powered by 10 HP or 13 HP
engine is most effective when utilized with
exhaust opening that is about one and one-half the
size of the entrance opening.

4. Multiple blowers powered by 5 HP or larger
engines in parallel or series configurations are
most effective when utilized with exhaust
openings that are approximately twice the size of
the entrance opening.

PPV Set-Up Procedures 6.5

PPV Set-up Procedures continued…

Remember that these guidelines have been
generalized and that optimum efficiency is easily
obtained by a combination of training and
experience.

Exhaust

If a gasoline-powered blower is being utilized and
a gasoline-exhaust odor is noticeable inside the
building or area to be ventilated, this is an
indication that the building's exhaust opening is
not large enough. The gasoline-exhaust odor
should disappear by increasing the size of the
building's exhaust opening (opening another
window, door, etc.)

Weather

Temperature, humidity, snow, and rain do not
have any appreciable effect on positive pressure
ventilation. Although cold, damp weather
conditions may limit the ability of smoke to rise;
these atmospheric conditions will not limit the
ability of blowers to move contaminants
horizontally and, in most cases, vertically.

Wind can have an adverse effect on positive
pressure ventilation, but its effect is dependent on
direction and velocity. As in any ventilation
operation, maximum efficiency can be obtained
by using the prevailing wind direction to
advantage by pressurizing the structure on the
windward side and exhausting contaminants on
the leeward side of the building. If it is not
possible to utilize the prevailing wind as an
advantage, positive pressure has proven effective
against winds of up to 25 mph. As winds exceed
25 mph, efficiency reduces accordingly.

PPV Set-Up Procedures 6.6

Blower Troubleshooting

Many factors can contribute to or be the sole
cause of problems for gas and electric power
blowers. This section will identify some of these
problems and provide solutions to correct
them.

Blower fails to start

• CHECK FOR FUEL IN THE TANK; MAKE
SURE THE FUEL SHUT OFF VALVE IS
OPEN.

• CHECK THE FUEL LINE TO DETERMINE IF
THE CARBURETOR IS GETTING FUEL.

• CHECK THE OIL LEVEL, HONDA ENGINES
ARE EQUIPPED WITH AUTOMATIC OIL
ALERT SYSTEMS. THE ENGINE WILL NOT
START IF OIL IS LOW.

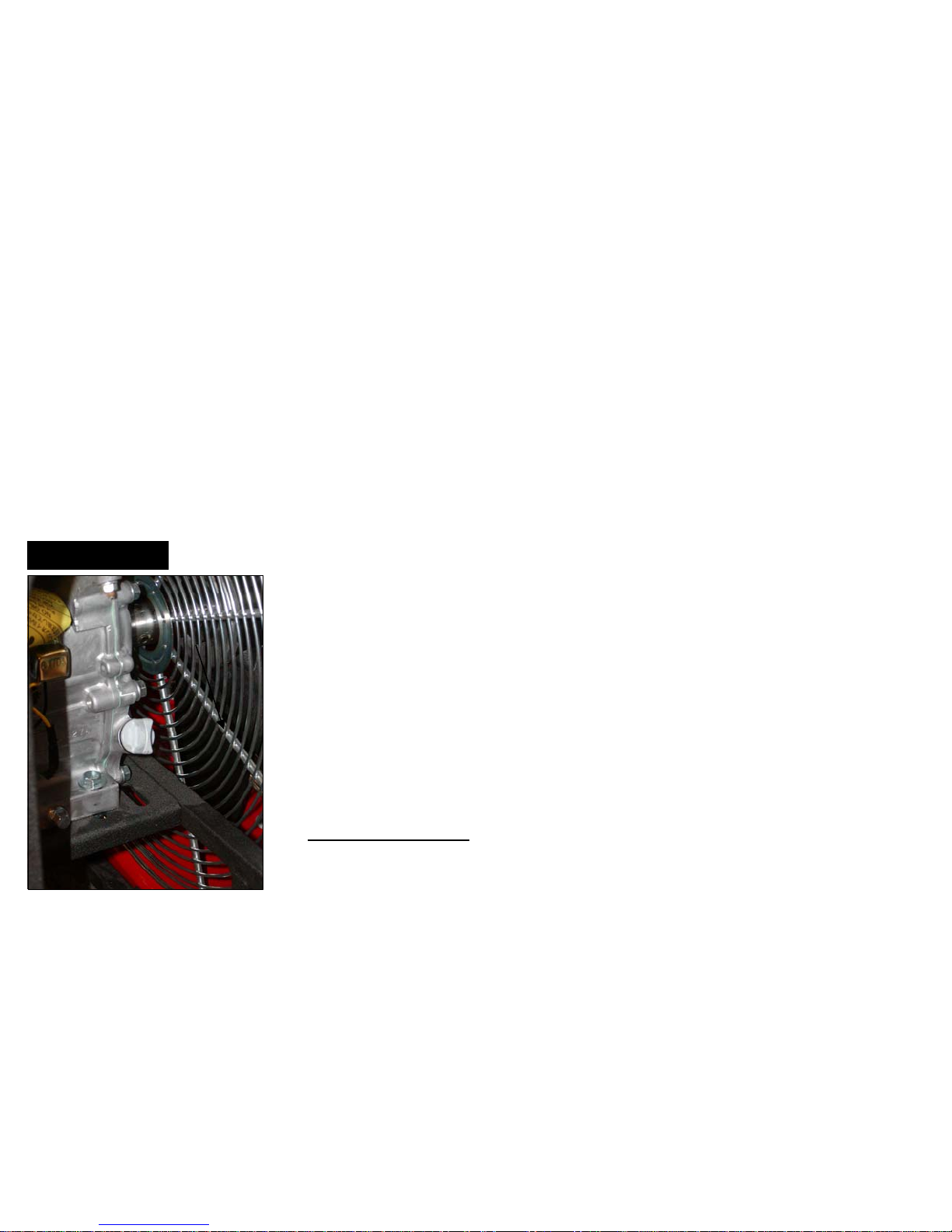

• CHECK THE SPARK PLUG FOR A SPARK:

1. Remove the spark plug wire, clean any dirt from
around the spark plug base and remove the plug.

2. Install the spark plug into the plug cap.

3. Ground the plug to the engine and pull the starter
to see if a spark jumps the gap. DO NOT HOLD
THE SPARK PLUG IN YOUR HANDS; hold
the spark plug cap or wire.

4. If a spark is present, replace the spark plug and
wire then try starting the engine.

5. If the blower still does not start contact the factory
or your local engine dealer.

Blower Troubleshooting 7.1

Troubleshooting continued…
Poor Blower Performance

• CHECK THE AIR FILTER FOR
CLEANLINESS, CLEAN IF DIRTY- REFER
TO PAGE 5.2.

• IF THE BLOWER IS A BELT-DRIVE, MAKE
SURE THE BELT(S) IS/ARE TIGHT. REFER
TO PAGE 5.4 FOR INSTRUCTIONS ON
CHECKING AND TIGHTENING THE
BELT(S).

• IF THE BLOWER IS A DIRECT-DRIVE,
MAKE SURE THE BLADE IS TIGHT. REFER
TO PAGE 5.6

• IF THE FUEL IS MORE THEN TWO MONTHS
OLD, REPLACE THE FUEL WITH FRESH
FUEL.

Blower Movement or “Walking”

• ADJUST THE RUBBER FOOTPADS ON THE
BACK OF THE BLOWER BY TURNING
THEM EITHER IN OR OUT. ADJUST THE
SIDE THAT IS WALKING. THIS WILL HELP
TO EVENLY DISTRIBUTE THE WEIGHT OF
THE BLOWER TO ALL FOUR POINTS OF
THE FRAME.

• MOST BLOWERS WILL WALK IF NOT
RUNNING AT FULL SPEED, MAKE SURE
THE BLOWER IS RUNNING AT FULL
SPEED.

• MAKE SURE THE BLOWER IS SITTING

FLAT AND NOT ON SMALL ROCKS OR
OTHER OBJECTS

Blower Troubleshooting 7.2

.

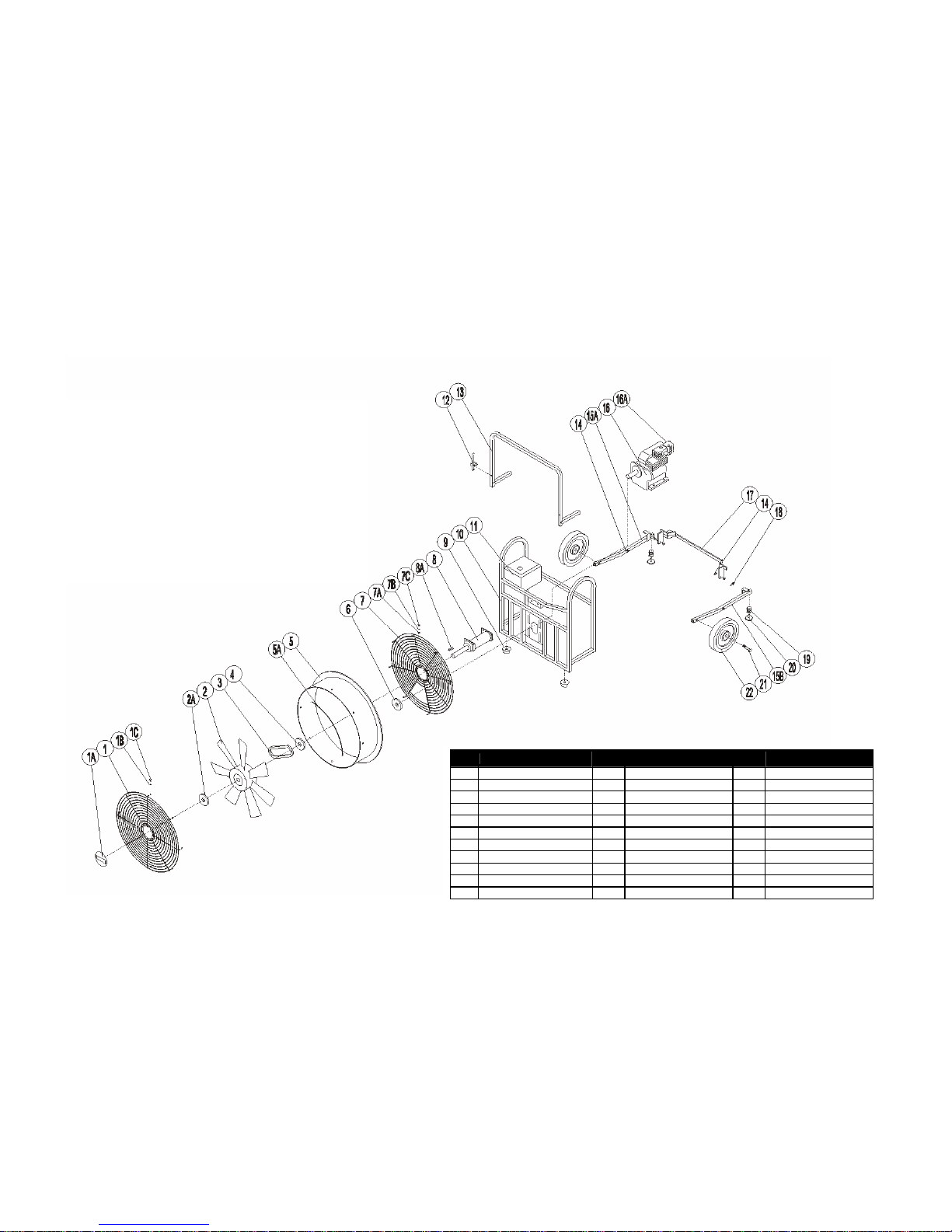

PARTS and PART NUMBERS

HONDA POWERED BELT DRIVE BLOWER PARTS

SCHEMATIC REFERENCE 2003

BD18-H-5.5 BD21-H-6.5 BD24-H-6.5 BD27-H-13

ITEM # DISCRIPTION PART # PART # PART # PART #

1 FRONT GRILL 230-032 230-029 230-030 230-031
1A GRILL EMBLEM 400-028 400-029 400-030 400-031
1B NEOWASHER 120-004 120-004 120-004 120-004
1C GRILL BOLT 100-002 100-002 100-002 100-002

2 BLADE 260-075 260-019 260-026 260-031
2A BUSHING 160-018 160-018 160-018 160-019

3 BELT 180-011 180-011 180-006 180-007

4 TOP PULLEY 160-030 160-030 160-002 160-003

5 SHROUD 705-001 705-002 705-003 705-004
5A FRONT TRIM 410-002 410-003 410-004 410-005

6 ENGINE PULLEY 160-030 160-029 160-029 160-004

7 REAR GRILL 230-023 230-021 230-022 230-024
7A NYLOCK 130-003 130-003 130-003 130-003
7B NEOWASHER 120-004 120-004 120-004 120-004
7C GRILL BOLT 100-002 100-002 100-002 100-002

8 BEARING ASSY 600-068D 600-068D 600-068D 600-070
8A SHAFT KEY 300-009 300-009 300-009 300-009

9 FRONT FOOT 580-006 580-006 580-006 580-006
10 FRAME 600-190 600-190 600-191 600-042
11 GAS TANK 200-003 600-022 200-022 200-001
12 ROCKER LTCH 600-159 600-159 600-159 600-159
13 HANDLE ASSY 600-200 600-200 600-201 600-188
14 NYLOCK BSHNG 120-002 120-002 120-002 120-002

15A LEFT LEG 600-166 600-155 600-164 600-029
15B RIGHT LEG 600-167 600-154 600-165 600-015

16 ENGINE 350-004 350-016 350-016 350-008

16A MUFFLER 190-012 190-028 190-028 190-010

17 STEP BAR 600-180 600-049 600-049 600-053
18 STEP SPRING 300-019 300-019 300-019 300-019
19 REAR SPR. ASSY 600-001 600-001 600-001 600-001
20 REAR FOOT PAD 580-001 580-001 580-001 580-001
21 WHEEL BOLT 100-002 100-002 100-002 100-002
22 WHEEL 240-003 240-003 240-003 240-003

5/13/2003

8.1

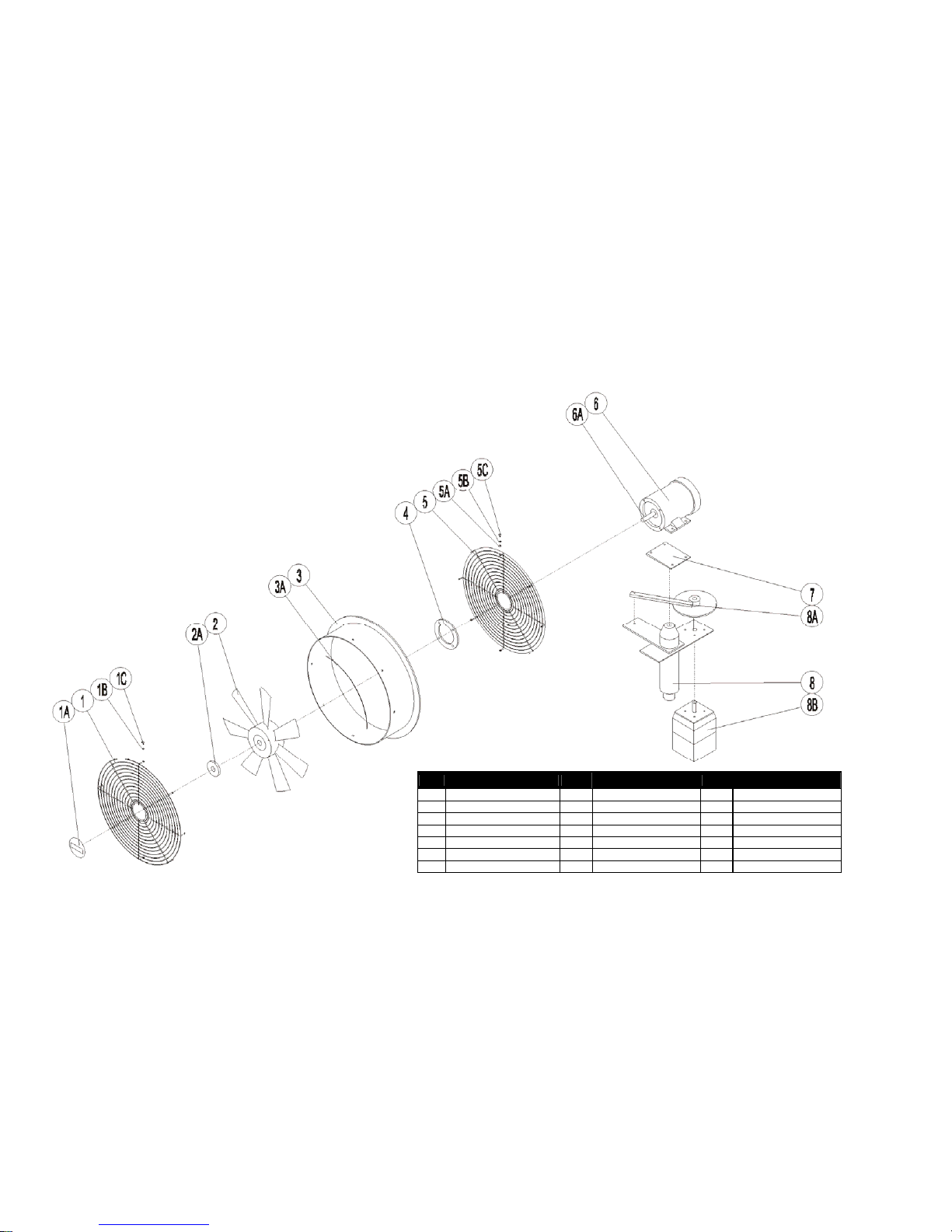

HONDA POWERED DIRECT DRIVE / ELECTRIC BLOWER P

A

SCHEMATIC REFERENCE 2003

DD16-H-5.5 DD18-H-5.5 DD21-H-6.5 DD 24-H6.5

ITEM # DISCRIPTION PART # PART # PART # PART #

1 FRONT GRILL 230-027 230-032 230-029 230-030
1A GRILL EMBLEM 400-040 400-028 400-029 400-030
1B NEOWASHER 120-004 120-004 120-004 120-004
1C GRILL BOLT 100-002 100-002 100-002 100-002

2 BLADE GAS 260-030 260-075 260-019 260-026

2 BLADE ELECT. 260-069 260-075 260-019 260-021

2 BLADE VSF 260-030 260-068 260-071 N/A

2 BLADE VSM 260-074 260-075 260-019 N/A
2A BUSHING
2B SHAFT EXT. KEY call call call call
2C SHAFT EXT. 170-004 170-004 170-004 170-004

3 SHROUD 725-024 705-001 705-002 705-003
3A FRONT TRIM 410-002 410-002 410-003 410-004

4 REAR GRILL 230-028 230-023 230-021 230-022
4A NYLOCK 130-003 130-003 130-003 130-003
4B NEOWASHER 120-004 120-004 120-004 120-004
4C GRILL BOLT 100-002 100-002 100-002 100-002

5 FRONT FOOT 580-006 580-006 580-006 580-006

6 FRAME GAS/ELEC

7 ROCKER LTCH 600-159 600-159 600-159 600-159

8 HANDLE GAS/ELEC

9 NYLOCK BSHNG 120-002 120-002 120-002 120-002

10A LEFT LEG 600-162 600-166 600-196 600-170
10B RIGHT LEG 600-163 600-167 600-195 600-171

MUFFLER 190-012 190-012 190-028 190-028

11 GAS ENGINE 350-004 350-004 350-016 350-016

11A SHFT KEY GAS 460-022 460-022 460-022 460-022

12 ELECT MOTOR *360-038 *360-027 *360-027 *360-027
12 VSF ELC MTR 360-036 360-036 360-036 N/A
12 VSM ELC MTR 360-041 360-042 360-042 N/A

12A SHFT KEY ELECT. call call call call
12B ELEC MTR SPCR 600-102 600-102 600-102 600-102

13 STEP BAR 600-138 600-181 600-182 600-183
14 STEP SPRING 300-019 300-019 300-019 300-019
15 REAR SPR. ASSY 600-001 600-001 600-001 600-001
16 REAR FOOT PAD 580-007 580-007 580-007 580-007
17 WHEEL BOLT 100-002 100-002 100-002 100-002
18 WHEEL 240-003 240-003 240-003 240-003

*Explosion proof, two speed or variable speed electric motor replacement, call customer service.
12" electric and 36" electric or direct drive please see Briggs schematic.

See page 8.6 See page 8.6 See page 8.6 See page 8.6

600-137/600-216 600-037 600-192 600-103

600-077/600-217 600-198 600-156 600-199

8.2

TECUMSEH POWERED BELT DRIVE BLOWER PARTS

SCHEMATIC REFERENCE 2003

BD18-T-5.5 BD21-T-5.5 BD24-T-5.5 BD 27-T-10

ITEM # DISCRIPTION PART # PART # PART # PART #

1 FRONT GRILL 230-032 230-029 230-030 230-031
1A GRILL EMBLEM 400-028 400-029 400-030 400-031
1B NEOWASHER 120-004 120-004 120-004 120-004
1C GRILL BOLT 100-002 100-002 100-002 100-002

2 BLADE 260-075 260-019 260-026 260-031
2A BUSHING 160-018 160-018 160-018 160-019

3 BELT 180-011 180-003 180-001 180-002

4 TOP PULLEY 160-030 160-030 160-002 160-003

5 SHROUD 705-001 705-002 705-003 705-004
5A FRONT TRIM 410-002 410-003 410-004 410-005

6 ENGINE PULLEY 160-030 160-029 160-029 160-004

7 REAR GRILL 230-023 230-021 230-022 230-024
7A NYLOCK 130-003 130-003 130-003 130-003
7B NEOWASHER 120-004 120-004 120-004 120-004
7C GRILL BOLT 100-002 100-002 100-002 100-002

8 BEARING ASSY 600-069C 600-069C 600-068D 600-071
8A SHAFT KEY 300-009 300-009 300-009 300-009

9 FRONT FOOT 580-006 580-006 580-006 580-006
10 FRAME 600-190 600-190 600-191 600-041
11 GAS TANK 200-002 200-002 200-002 200-002
12 ROCKER LTCH 600-159 600-159 600-159 600-159
13 HANDLE ASSY 600-200 600-200 600-201 600-188
14 NYLOCK BSHNG 120-002 120-002 120-002 120-002

15A LEFT LEG 600-166 600-155 600-164 600-031
15B RIGHT LEG 600-167 600-154 600-165 600-017

16 ENGINE 350-015 350-015 350-015 350-002

16A MUFFLER 190-035 190-035 190-035 190-001

17 STEP BAR 600-180 600-049 600-049 600-054
18 STEP SPRING 300-019 300-019 300-019 300-019
19 REAR SPR. ASSY 600-001 600-001 600-001 600-001
20 REAR FOOT PAD 580-001 580-001 580-001 580-001
21 WHEEL BOLT 100-002 100-002 100-002 100-002
22 WHEEL 240-003 240-003 240-003 240-003

5/30/2003

8.3

TECUMSEH POWERED DIRECT DRIVE / ELECTRIC BLOWER

SCHEMATIC REFERENCE 2003

DD16-T-5.5 DD18-T-5.5 DD21-T-5.5 DD 24-T-5.5

ITEM # DISCRIPTION PART # PART # PART # PART #

1 FRONT GRILL 230-027 230-032 230-029 230-030
1A GRILL EMBLEM 400-040 400-028 400-029 400-030
1B NEOWASHER 120-004 120-004 120-004 120-004
1C GRILL BOLT 100-002 100-002 100-002 100-002

2 BLADE GAS 260-030 260-023 260-019 260-026

2 BLADE ELECT. 260-069 260-024 260-019 260-021

2 BLADE VSF 260-030 260-068 260-071 N/A

2 BLADE VSM 260-074 260-075 260-019 N/A
2A BUSHING
2B SHAFT EXT. KEY call call call call
2C SHAFT EXT. 170-004 170-004 170-004 170-004

3 SHROUD 705-024 705-001 705-002 705-003
3A FRONT TRIM 410-002 410-002 410-003 410-004

4 REAR GRILL 230-028 230-023 230-021 230-022
4A NYLOCK 130-003 130-003 130-003 130-003
4B NEOWASHER 120-004 120-004 120-004 120-004
4C GRILL BOLT 100-002 100-002 100-002 100-002

5 FRONT FOOT 580-006 580-006 580-006 580-006

6 FRAME GAS/ELEC

7 ROCKER LTCH 600-159 600-159 600-159 600-159

8 HANDLE GAS/ELEC

9 NYLOCK BSHNG 120-002 120-002 120-002 120-002

10A LEFT LEG 600-162 600-166 600-196 600-170
10B RIGHT LEG 600-163 600-167 600-195 600-171

MUFFLER 190-035 190-035 190-035 190-035

11 GAS ENGINE 350-020 350-020 350-020 350-020

11A SHFT KEY GAS 460-022 460-022 460-022 460-022

12 ELECT MOTOR *360-038 *360-027 *360-027 *360-027
12 VSF ELC MTR 360-036 360-036 360-036 N/A
12 VSM ELC MTR 360-041 360-042 360-042 N/A

12A SHFT KEY ELECT. call call call call
12B ELEC MTR SPCR 600-102 600-102 600-102 600-102

13 STEP BAR 600-138 600-181 600-182 600-183
14 STEP SPRING 300-019 300-019 300-019 300-019
15 REAR SPR. ASSY 600-001 600-001 600-001 600-001
16 REAR FOOT PAD 580-007 580-007 580-007 580-007
17 WHEEL BOLT 100-002 100-002 100-002 100-002
18 WHEEL 240-003 240-003 240-003 240-003

*Explosion proof, two speed or variable speed motor replacement, call customer service.
12" electric and 36" electric or direct drive please see Briggs schematic.

See page 8.6 See page 8.6 See page 8.6 See page 8.6

600-137/600-216 600-037 600-192 600-103

600-077/600-217 600-198 600-156 600-199

5/30/2003

8.4

BRIGGS POWERED DIRECT DRIVE / ELECTRIC BLOWER PARTS

#

#

#

#

K

R

R

SCHEMATIC REFERENCE 2003

EB12 DD21-B-5.5 DD 24-B5.5 DD36-B-5.5

ITEM # DISCRIPTION PART

1 FRONT GRILL 230-015 230-029 230-030 230-017
1A GRILL EMBLEM 400-039 400-029 400-030 400-041
1B NEOWASHER 120-004 120-004 120-004 120-004

1C GRILL BOLT 100-002 100-002 100-002 100-002

2 BLADE GAS N/A 260-019 260-026 260-013

2 BLADE ELECT. 260-028 260-019 260-021 260-012

2 BLADE VSF 260-030 260-068 260-071 N/A

2 BLADE VSM 260-074 260-075 260-019 N/A
2A BUSHING N/A 160-019 160-019 160-036
2B SHAFT EXT. KEY call call call call

2C SHAFT EXT. 170-004 170-004 170-004 170-004

3 SHROUD call 705-002 705-003 call
3A FRONT TRIM 410-002 410-003 410-004 N/A

4 REAR GRILL 230-016 230-021 230-022 230-018
4A NYLOC

130-003 130-003 130-003 130-003

4B NEOWASHER 120-004 120-004 120-004 120-004

4C GRILL BOLT 100-002 100-002 100-002 100-002

5 FRONT FOOT 580-006 580-006 580-006 580-006

6 FRAME 600-117 600-192 600-103 600-034

7 ROCKER LTCH N/A 600-159 600-159 N/A

8 HANDLE ASSY 600-077 600-156 600-199 N/A

9 NYLOCK BSHNG 120-002 120-002 120-002 120-002

10A LEFT LEG 600-162 600-196 600-170 600-081
10B RIGHT LEG 600-163 600-195 600-171 600-082

* MUFFLE

N/A 190-039 190-039 190-039

11 GAS ENGINE N/A 350-024 350-024 350-024

11A SHFT KEY GAS N/A 460-022 460-022 460-022

12 ELECT MOTOR *360-018 *360-027 *360-027 *360-027
12 VSF ELC MTR 360-036 360-036 360-036 N/A
12 VSM ELC MT

360-041 360-042 360-042 N/A
12A SHFT KEY ELECT. call call call call
12B ELEC MTR SPCR 600-102 600-102 600-102 600-102

13 STEP BAR 600-138 600-182 600-183 600-138
14 STEP SPRING 300-019 300-019 300-019 300-019
15 REAR SPR. ASSY 600-001 600-001 600-001 600-001
16 REAR FOOT PAD 580-007 580-007 580-007 580-007
17 WHEEL BOLT 100-002 100-002 100-002 100-002
18 WHEEL 240-001 240-003 240-003 240-003

*Explosion proof, two speed, variable speed electric motor replacement, call customer service.

PART

PART

PART

3/24/2003

8.5

TEMPEST TECHNOLOGY CORPORATION

4708 N. BLYTHE AVENUE

FRESNO, CA 93722

800-346-2143

559-277-7577 FAX: [phone]

TEMPEST POSITIVE PRESSURE POWER BLOWER

PARTS LIST

DO NOT REMOVE PULLEYS, THIS WILL VOID WARRANTY

CONTACT FACTORY FOR PROPER PROCEDURE

BELT-DRIVE UNITS

ITEM DESCRIPTION ITEM DESCRIPTION ITEM DESCRIPTION

1 FRONT GRILL 7 REAR GRILL 14 NYLOCK B USHING
1A GRILL EMBLEM 7A NYLOCK 15A LEFT LEG
1B NEOWASHER 7B NEOWASHER 15B RIGHT LEG
1C GRILL BOLT 7C GRILL BOLT 16 ENGINE

2 FAN BLADE 8 BEARING ASSY 16A MUFFLER
2A BUSHING 8A SHAFT KEY 17 STEP BAR

3 BELT 9 FRONT FOOT 18 STEP SPRING

4 TOP PULLEY 10 FRAME 19 REAR SPRING ASSY.

5 SHROUD 11 GAS TANK 20 REAR FOOT PAD
5A FRONT TRIM 12 ROCKER SPR. LATCH 21 WHEEL BOLT

6 ENGINE PULLEY 13 HANDLE ASSY. 22 WHEEL

0

ITEM DESCRIPTION ITEM DESCRIPTION ITEM DESCRIPTION

1 FRONT GRILL 4A NYLOCK 11 GAS ENGINE
1A GRILL EMBLEM 4B NEOWASHER 11A SHAFT KEY / GAS ENG.
1B NEOWASHER 4C GRILL BOLT 12 ELECTRIC MOTOR
1C GRILL BOLT 5 FRONT FOOT 12A ELEC. MOTOR SPACER

2 FAN BLADE 6 FRAME 12B SHAFT KEY ELEC. MTR
2A BUSHING 7 ROCKER SPR. LATCH 13 STEP BAR
2B SHAFT EXTENSION KEY 8 HANDLE 14 STEP SPRING
2C SHAFT EXTENSION 9 NYLON BUSHING 15 REAR SPRING ASSY.

3 SHROUD 10A RIGHT WHEEL LEG 16 REAR FOOT PAD
3A FRONT TRIM 10B LEFT WHEEL LEG 17 WHEEL SCREW

4 REAR GRILL * MUFFLER 18 WHEEL

TEMPEST TECHNOLOGY CORPORATION

4708 N. BLYTHE AVENUE

FRESNO, CA 93722

800-346-2143

559-277-7577 FAX: [phone]

TEMPEST POSITIVE PRESSURE POWER BLOWER

PARTS LIST

DIRECT-DRIVE UNITS

(GAS OR ELECTRIC)

TEMPEST TECHNOLOGY CORPORATION

4708 N. BLYTHE AVENUE

FRESNO, CA 93722

800-346-2143

559-277-7577 FAX: [phone]

TEMPEST POSITIVE PRESSURE POWER BLOWER

PARTS LIST

POLE MOUNT (GOLF)

ELECTRIC UNIT

ITEM DESCRIPTION ITEM DESCRIPTION ITEM DESCRIPTION

1 FRONT GRILL 3A FRONT TRIM 6 ELECTRIC MOTOR
1A GRILL EMBLEM 4 RING GRILL 6A SHAFT KEY
1B NEOWASHER 5 REAR GRILL 7 MOTOR MOUNT
1C GRILL BOLT 5A NYLOCK 8 OSCILLATOR ASS’Y.

2 FAN BLADE 5B NEOWASHER 8A MAC GEAR SAVER
2A BUSHING 5C GRILL BOLT 8B OSCILLATOR MOTOR

3 SHROUD
