Tempest Cyclone G4 User Manual

Cyclone G4 User Manual 1

User Manual

Cyclone G4

Revision 01.5

May 2017

© Tempest Lighting, Inc.

Cyclone G4 User Manual 2

Table of Contents

Table of Contents ........................................................................................................................................................................................ 2

Approvals – North America .................................................................................................................................................................... 5

Approvals – Europe ................................................................................................................................................................................ 6

Approvals – China ................................................................................................................................................................................... 7

Introduction ................................................................................................................................................................................................ 8

IMPORTANT: Safety Advisories .............................................................................................................................................................. 8

Installation ................................................................................................................................................................................................... 9

Dimensions, Rigging Points, and Maximum Projector Dimensions/Power ......................................................................................... 9

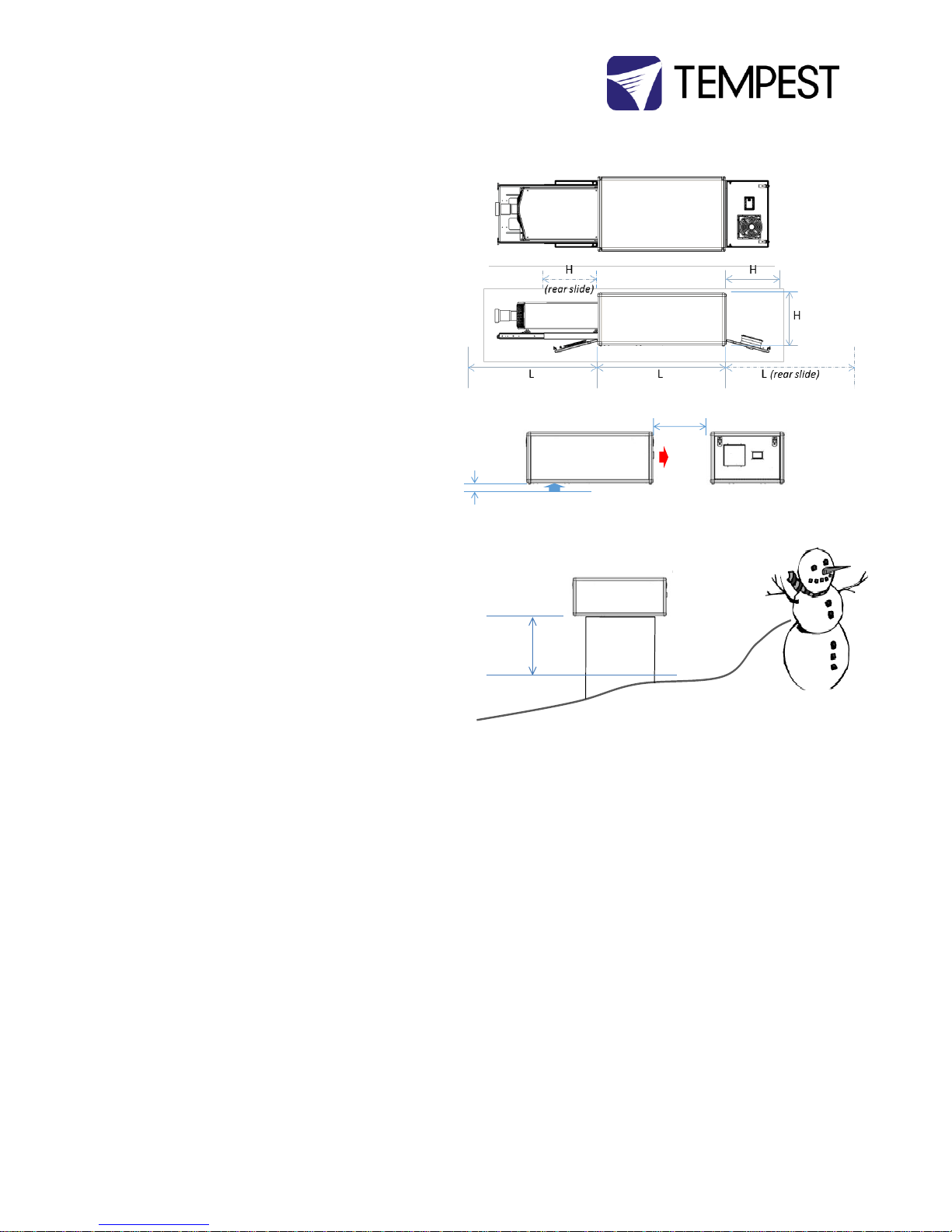

Access Clearance .............................................................................................................................................................................. 10

Airflow Clearance ............................................................................................................................................................................. 10

Snow Clearance ................................................................................................................................................................................ 10

Mounting Hardware Options ............................................................................................................................................................... 11

Mounting Bolts ................................................................................................................................................................................. 11

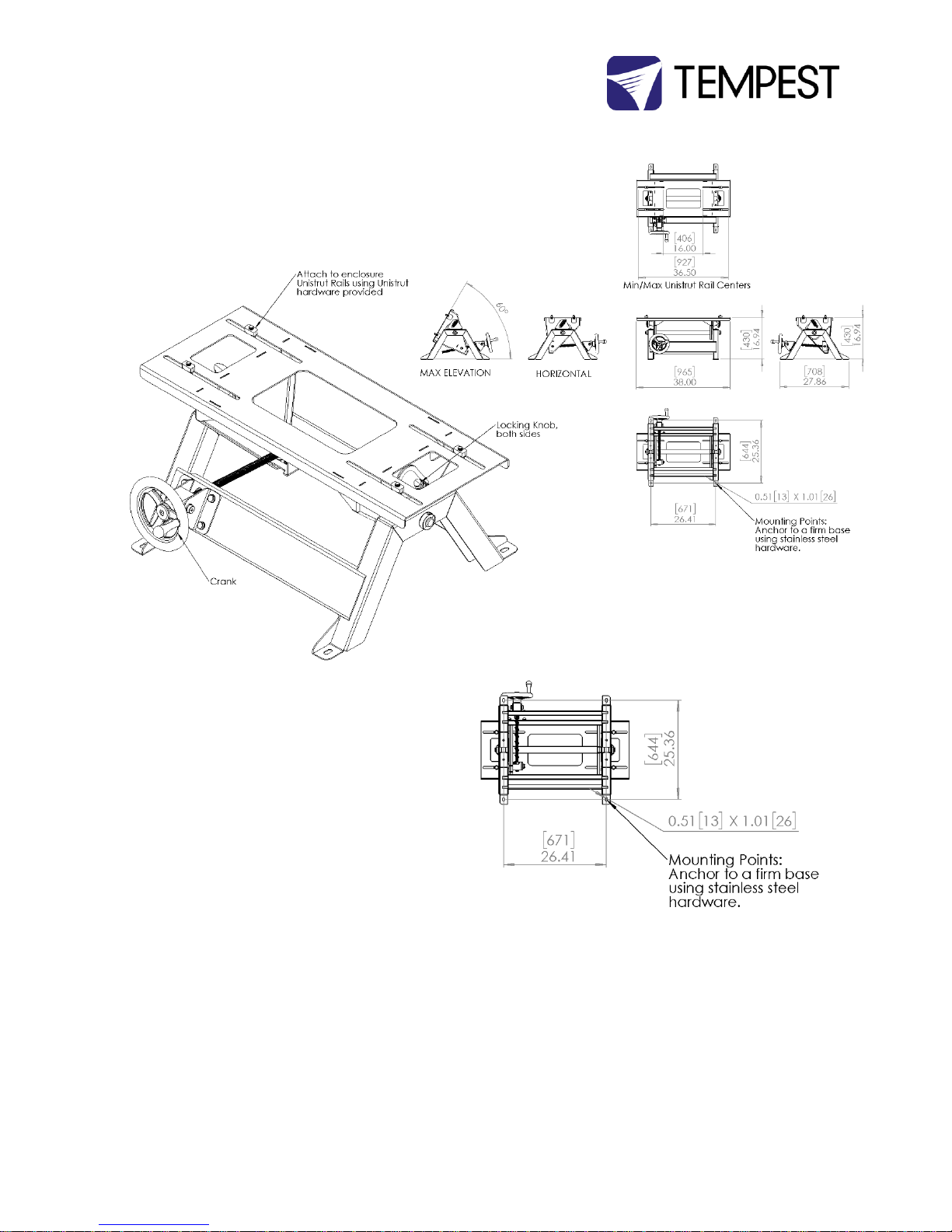

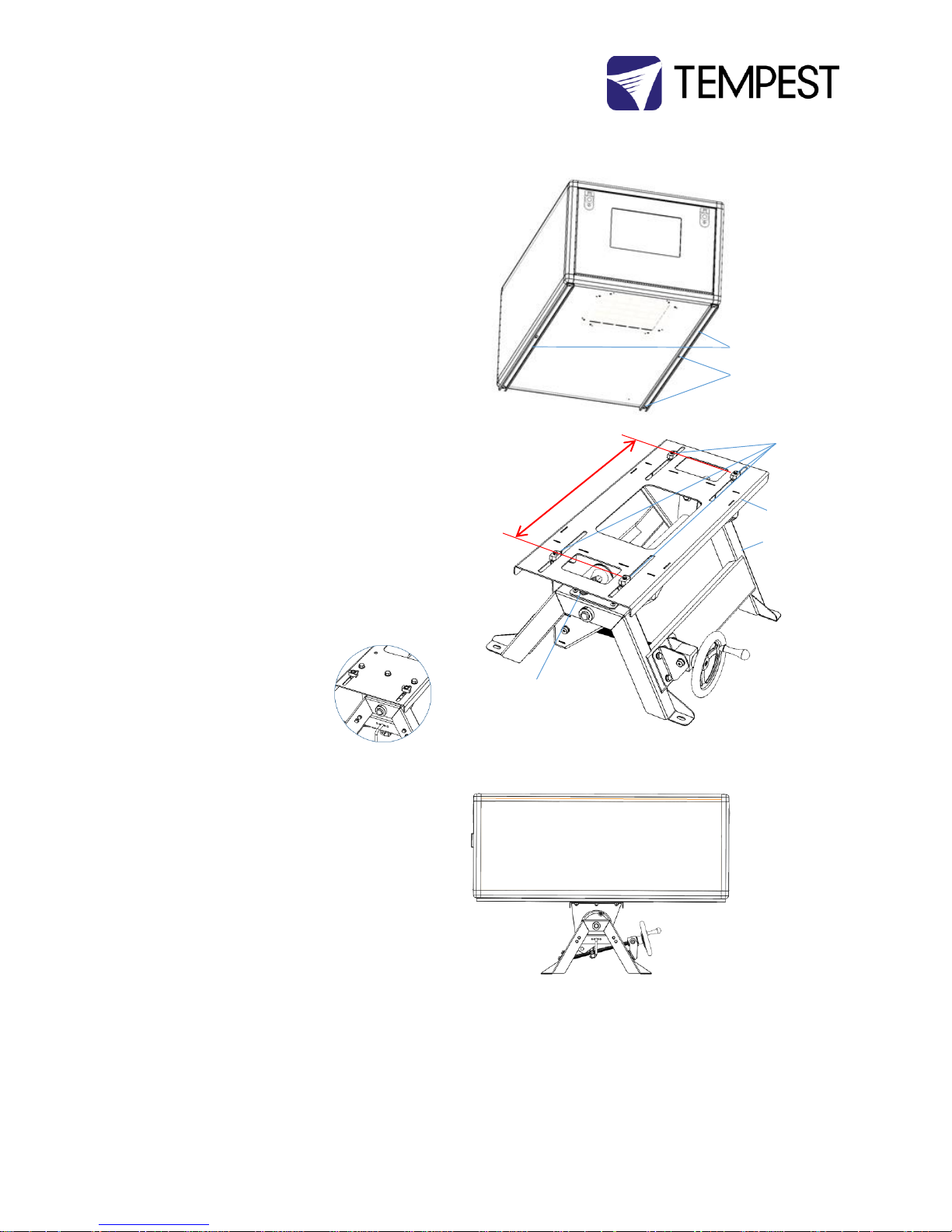

Mounting Options – Unistrut Kit ..................................................................................................................................................... 11

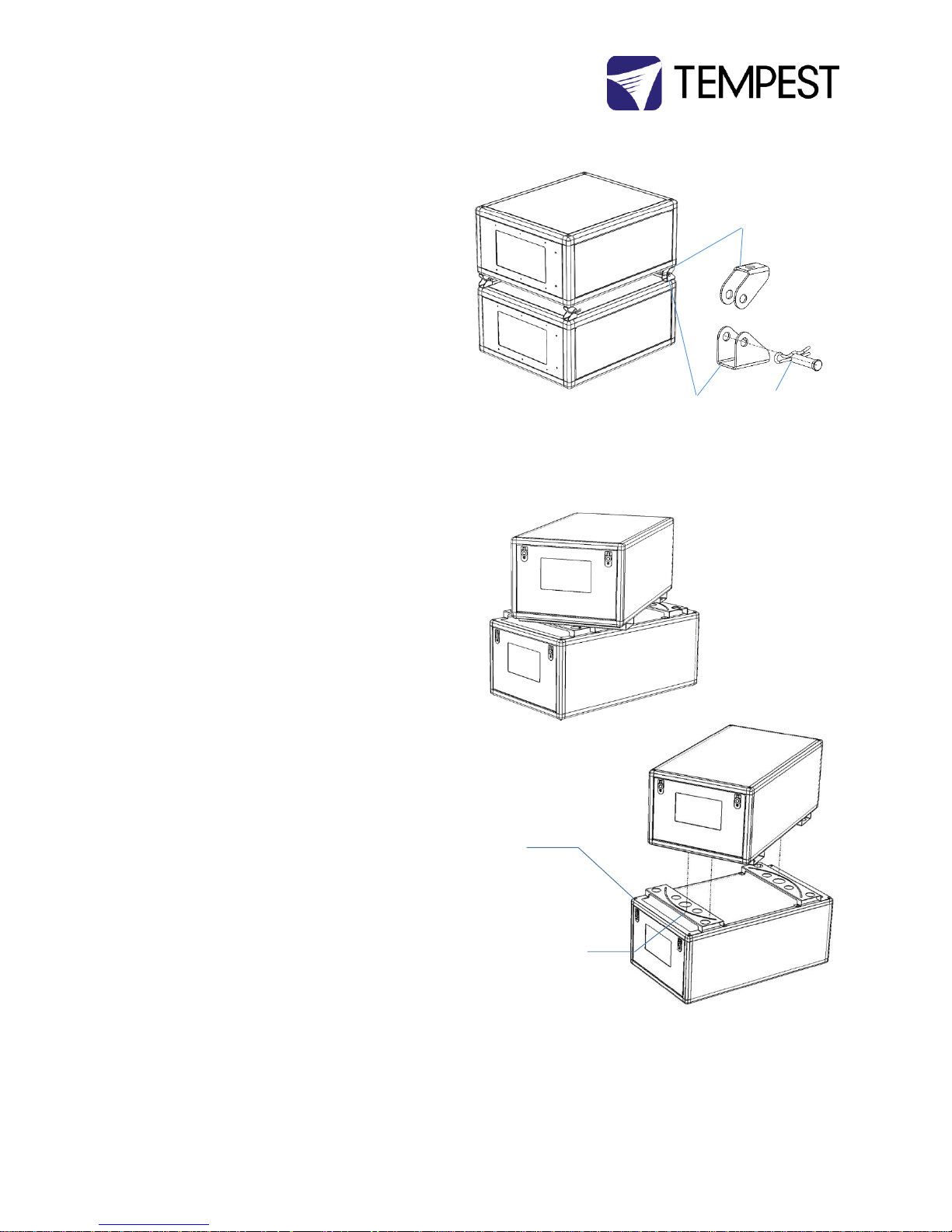

Mounting Options – Stacking Kit ..................................................................................................................................................... 12

Mounting Options – Swivel Stacking Kit .......................................................................................................................................... 12

Cyclovator 2 Tilt Kit ............................................................................................................................................................................... 13

SAFETY WARNING ............................................................................................................................................................................. 13

Cyclovator – Unistrut Mounting Rails .............................................................................................................................................. 13

Cyclovator – Inlet Cowl .................................................................................................................................................................... 13

Fixing the Cyclovator in Place .......................................................................................................................................................... 14

Mounting the Enclosure ................................................................................................................................................................... 15

Setting the Show Position Stop ........................................................................................................................................................ 16

Wiring the Enclosure ................................................................................................................................................................................ 17

Power Wiring ........................................................................................................................................................................................ 17

SAFETY NOTICE ................................................................................................................................................................................. 17

Electrical Standards .......................................................................................................................................................................... 17

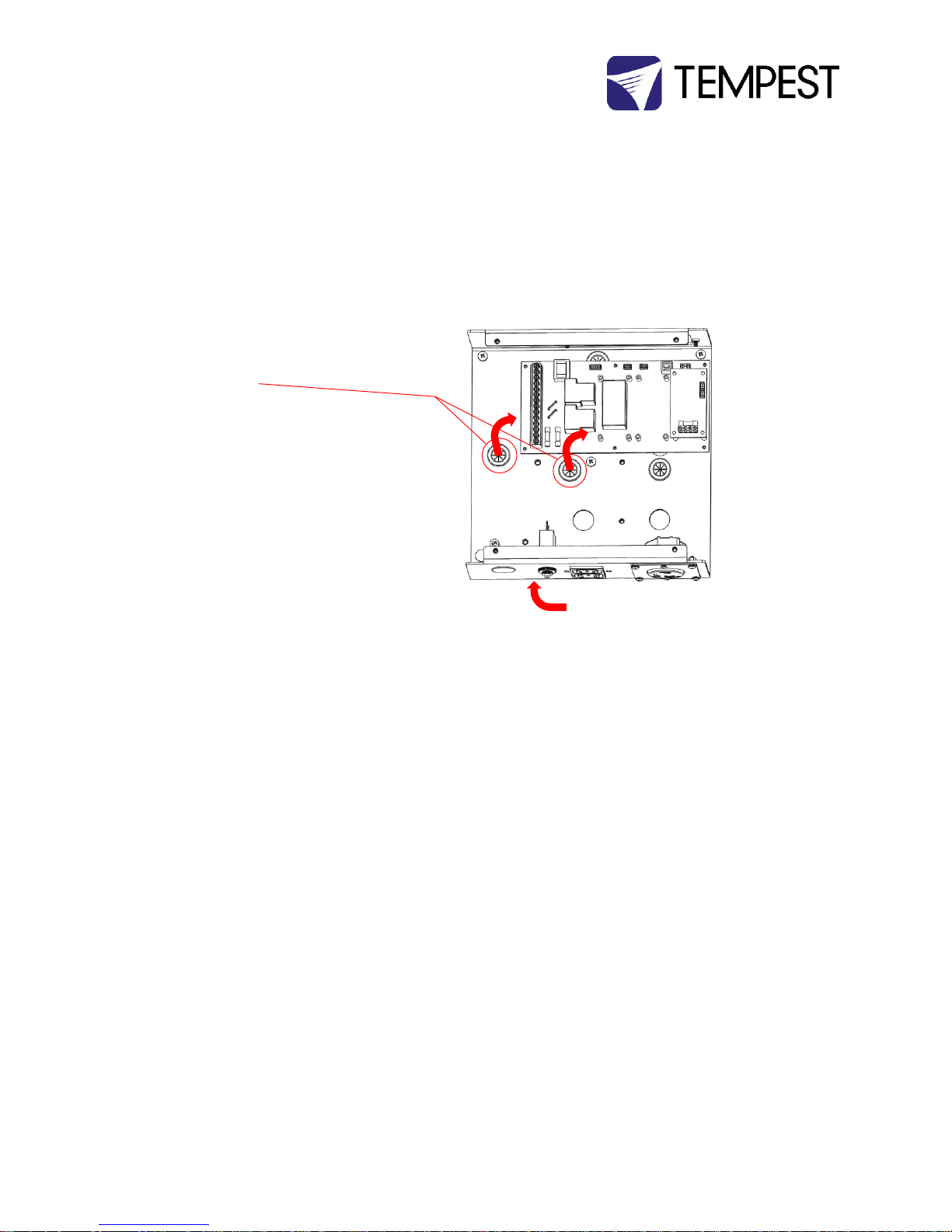

Wiring Access .................................................................................................................................................................................... 18

One or Two Power Circuits? ............................................................................................................................................................ 19

Single Feed Power Termination ....................................................................................................................................................... 20

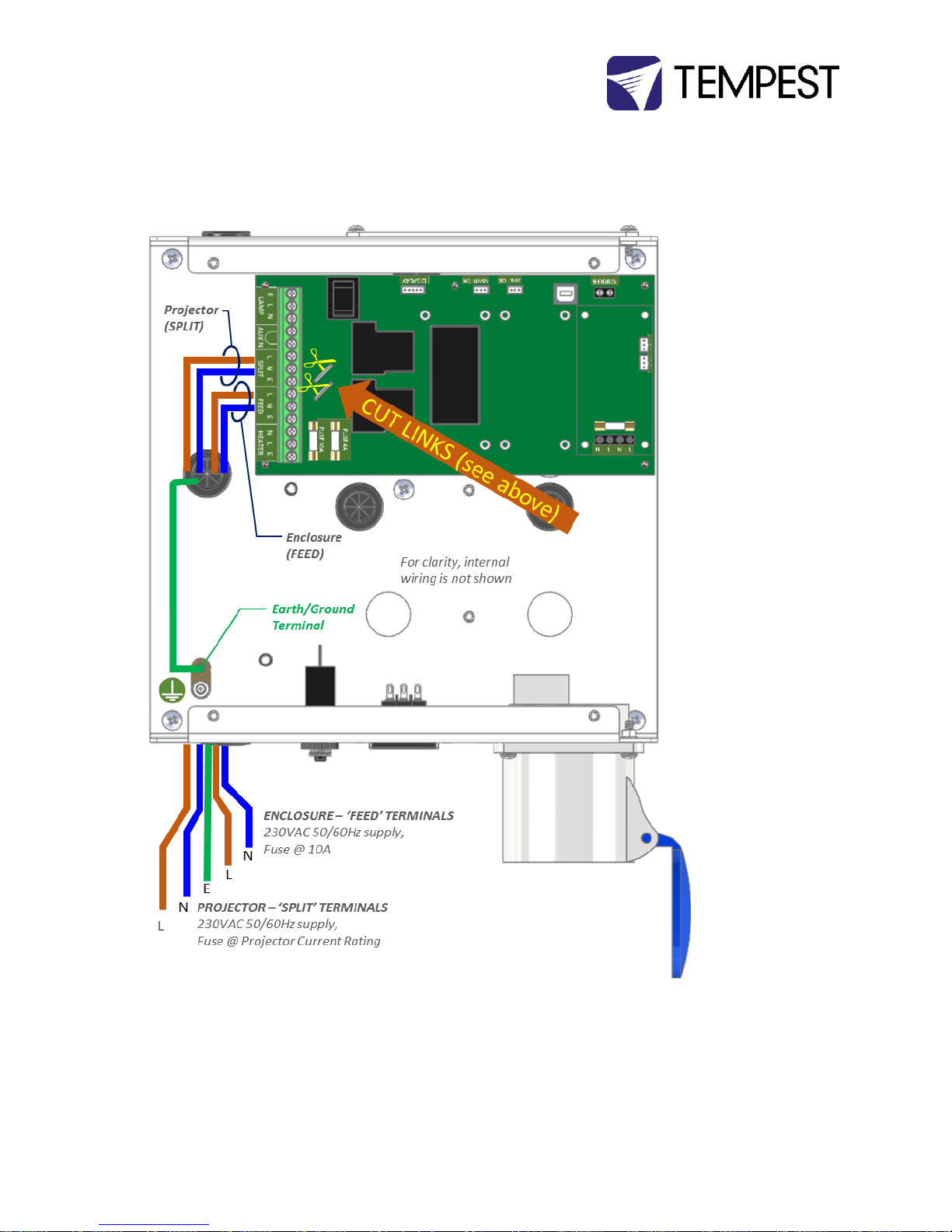

Split Feed Power Termination ......................................................................................................................................................... 20

Wire Path .......................................................................................................................................................................................... 20

Single or Three-Phase? ..................................................................................................................................................................... 20

Three phase Split Feed ..................................................................................................................................................................... 20

AC Supply Voltage............................................................................................................................................................................. 20

North America, 208V Single Feed .................................................................................................................................................... 21

Cyclone G4 User Manual 3

North America, 208V Split Feed ...................................................................................................................................................... 22

North America – 120/208V Three Phase, Single Feed ................................................................................................................... 23

North America – 120/208V Three Phase, Split Feed ...................................................................................................................... 24

International, 230V Single Feed ....................................................................................................................................................... 25

International, 230V Split Feed ......................................................................................................................................................... 26

International, 230/400V Three-Phase, Single Feed ........................................................................................................................ 27

International, 230/400V Three-Phase, Split Feed .......................................................................................................................... 28

Remote Monitoring Connections ........................................................................................................................................................ 29

RS485 (DMX/RDM) Cable Terminations .......................................................................................................................................... 30

Projector Power Control using DMX512 ......................................................................................................................................... 30

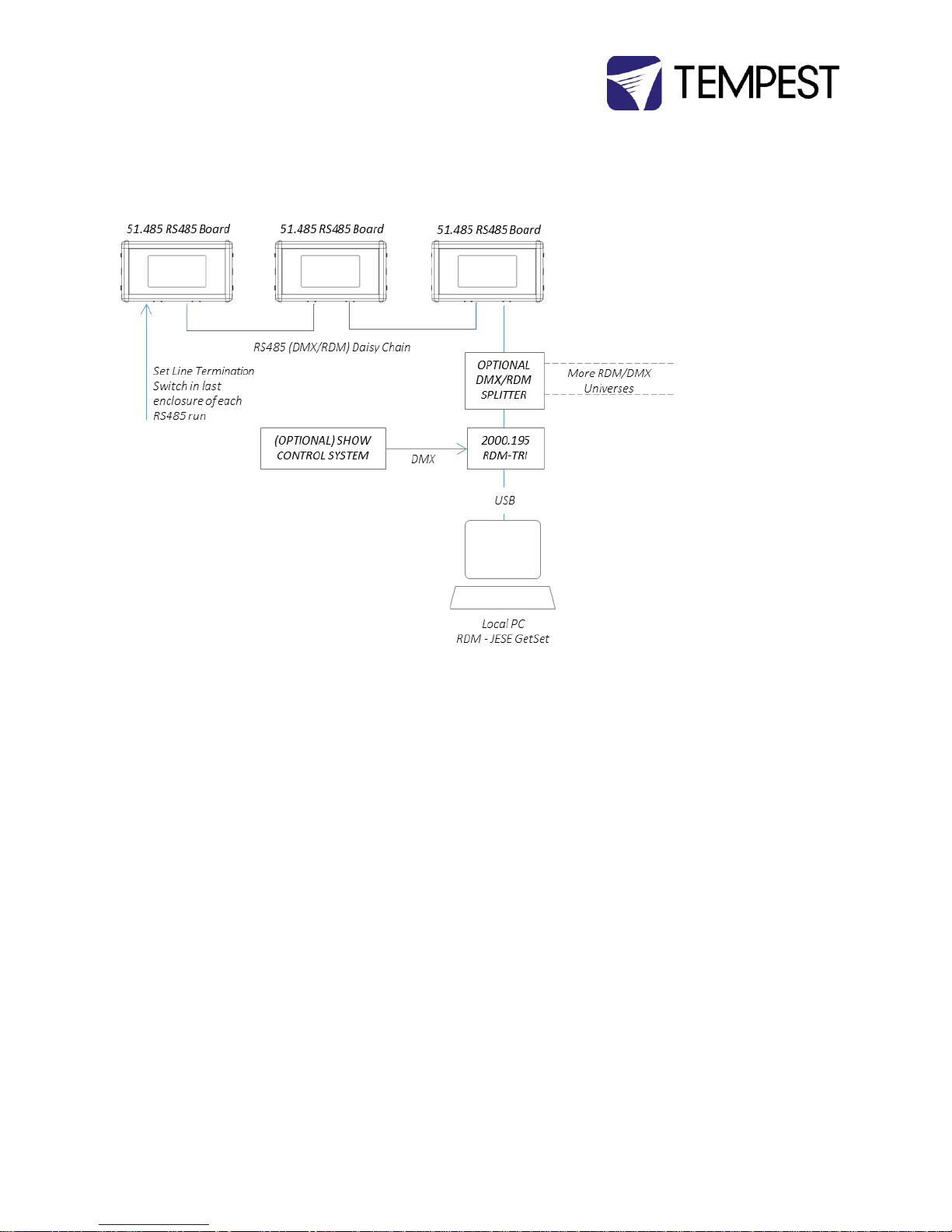

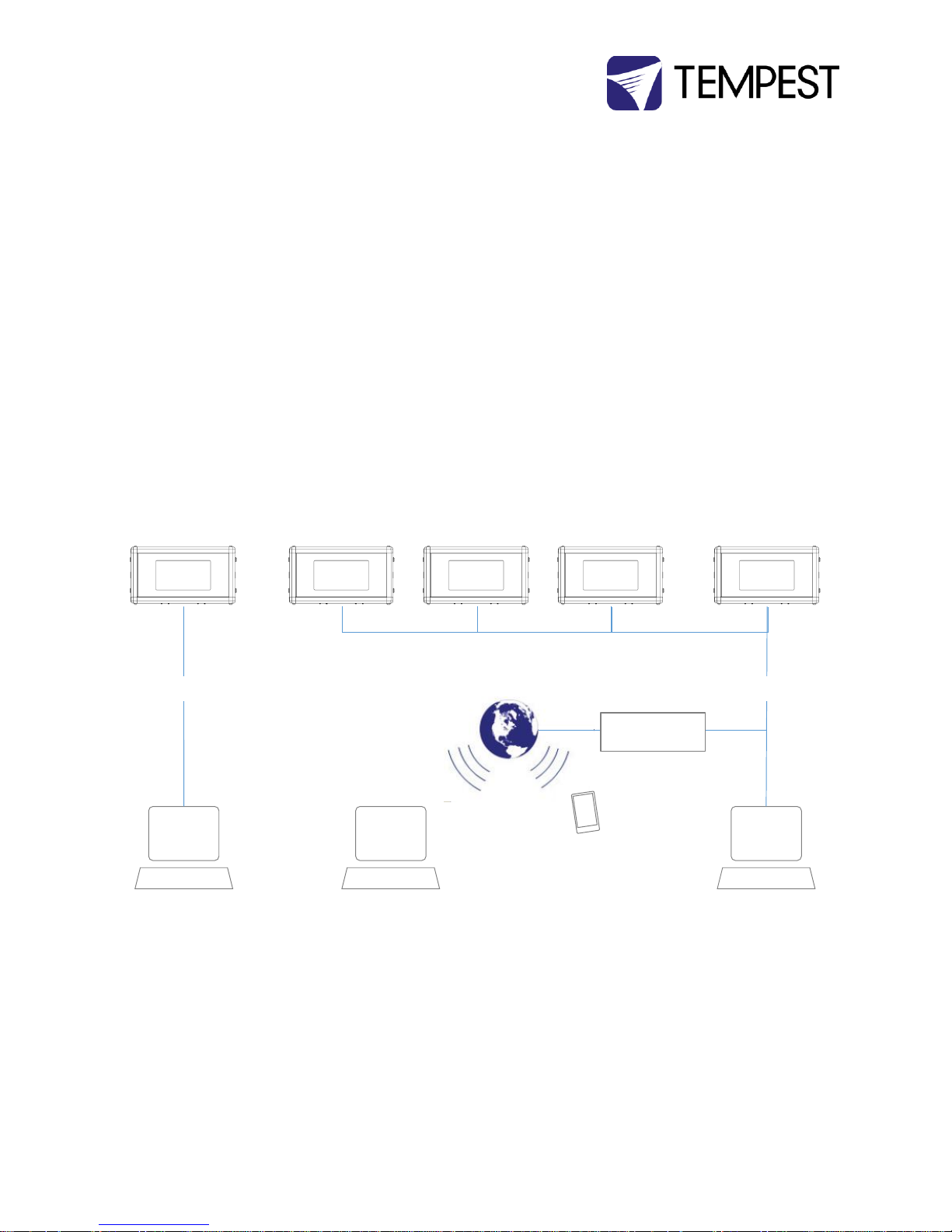

DMX/RDM Network, using JESE RDM-TRI ....................................................................................................................................... 31

Digital Enclosure Control .......................................................................................................................................................................... 32

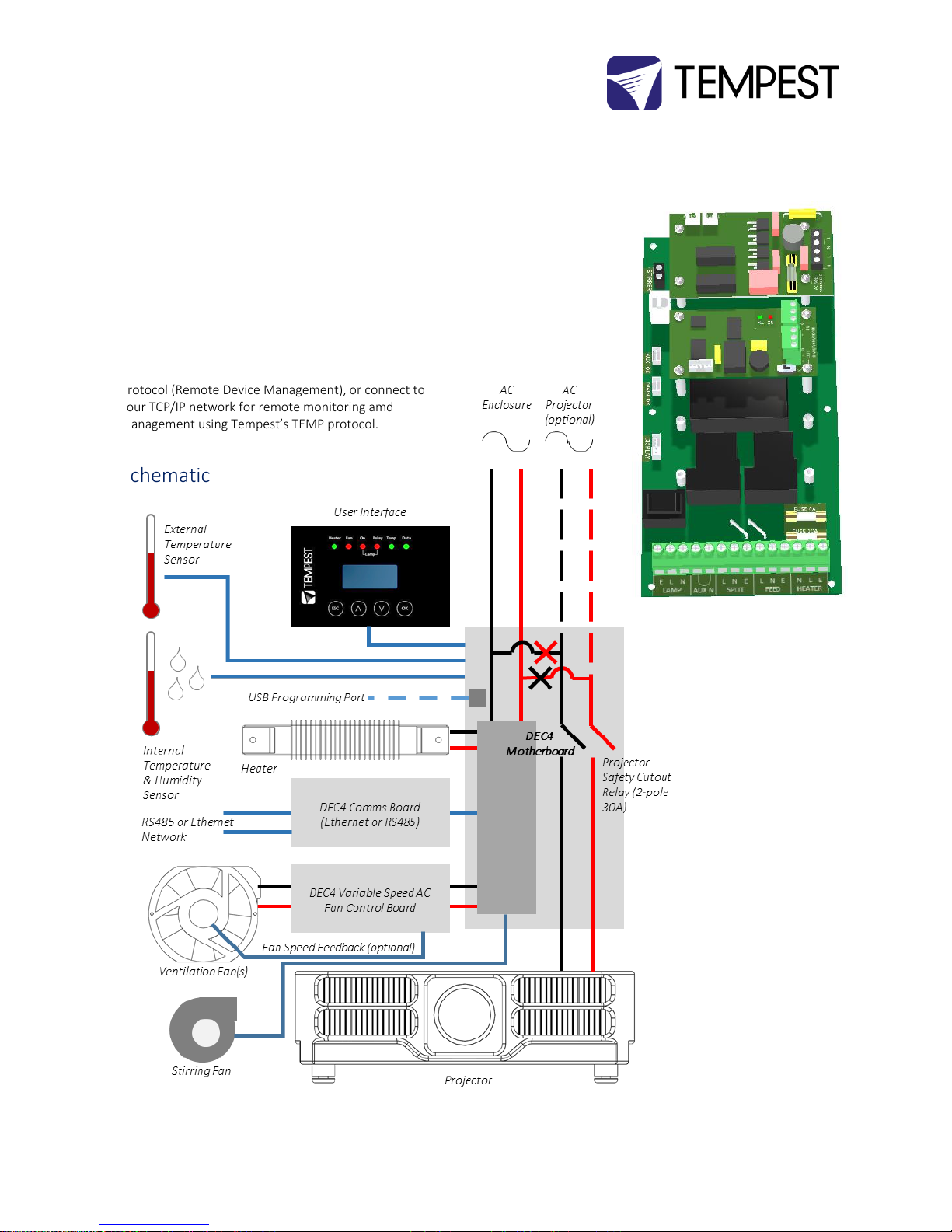

Schematic .............................................................................................................................................................................................. 32

DEC4 Main Functions ........................................................................................................................................................................... 33

Factory Settings – Data Modes ............................................................................................................................................................ 33

Other Operating Modes ....................................................................................................................................................................... 34

TEMP Mode ...................................................................................................................................................................................... 34

Monitor Mode .................................................................................................................................................................................. 34

Control Mode.................................................................................................................................................................................... 34

Service Mode .................................................................................................................................................................................... 34

DEC4 Control Parameters .................................................................................................................................................................... 35

Control Interface .............................................................................................................................................................................. 36

User Interface LCD Display ............................................................................................................................................................... 37

Control Interface Operation ............................................................................................................................................................ 37

Control Menu ........................................................................................................................................................................................ 38

Set DMX Options .............................................................................................................................................................................. 38

Set Temp Units ................................................................................................................................................................................. 39

Set Temp Ranges .............................................................................................................................................................................. 39

Set Lamp On Point ............................................................................................................................................................................ 39

Reset Lamp Hours............................................................................................................................................................................. 39

Status Display .................................................................................................................................................................................... 40

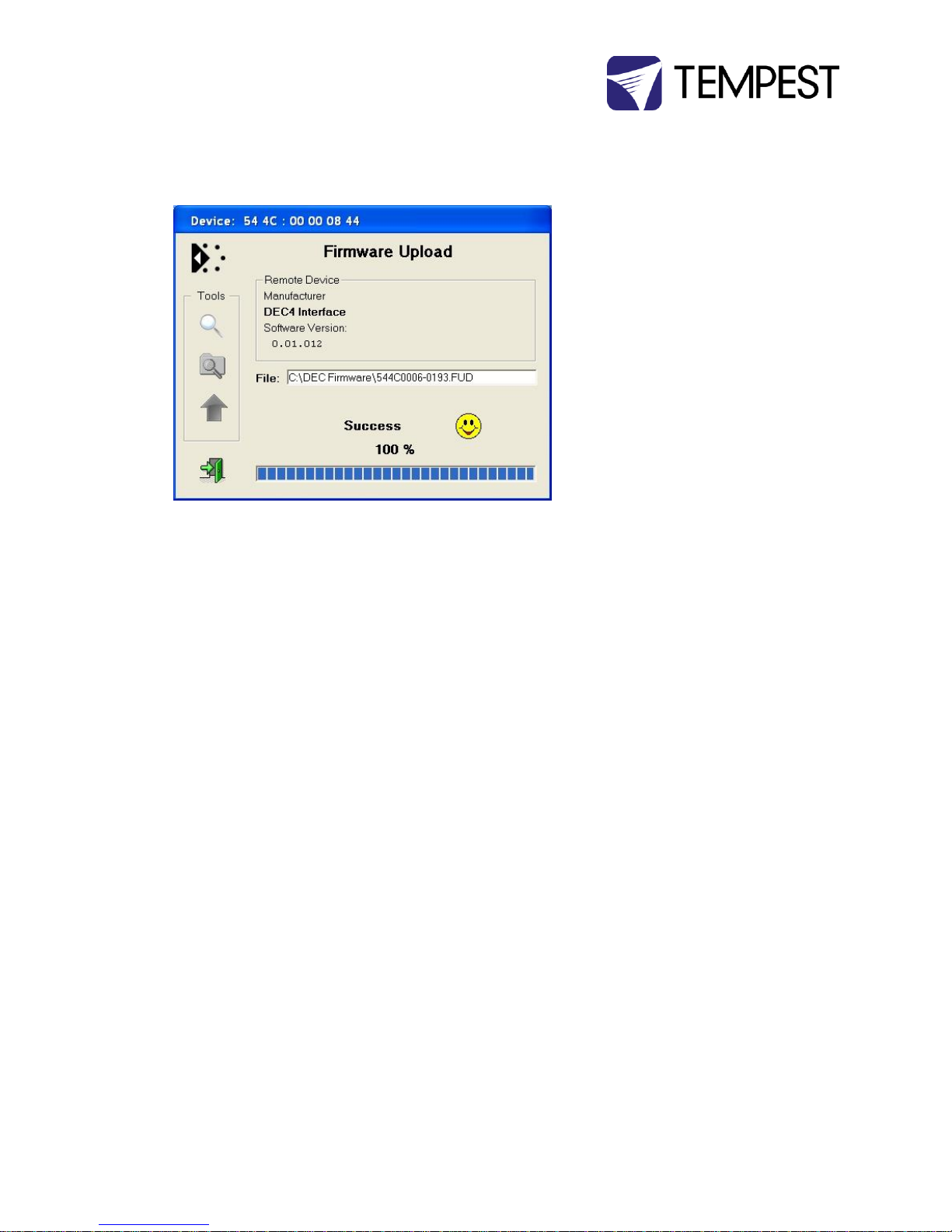

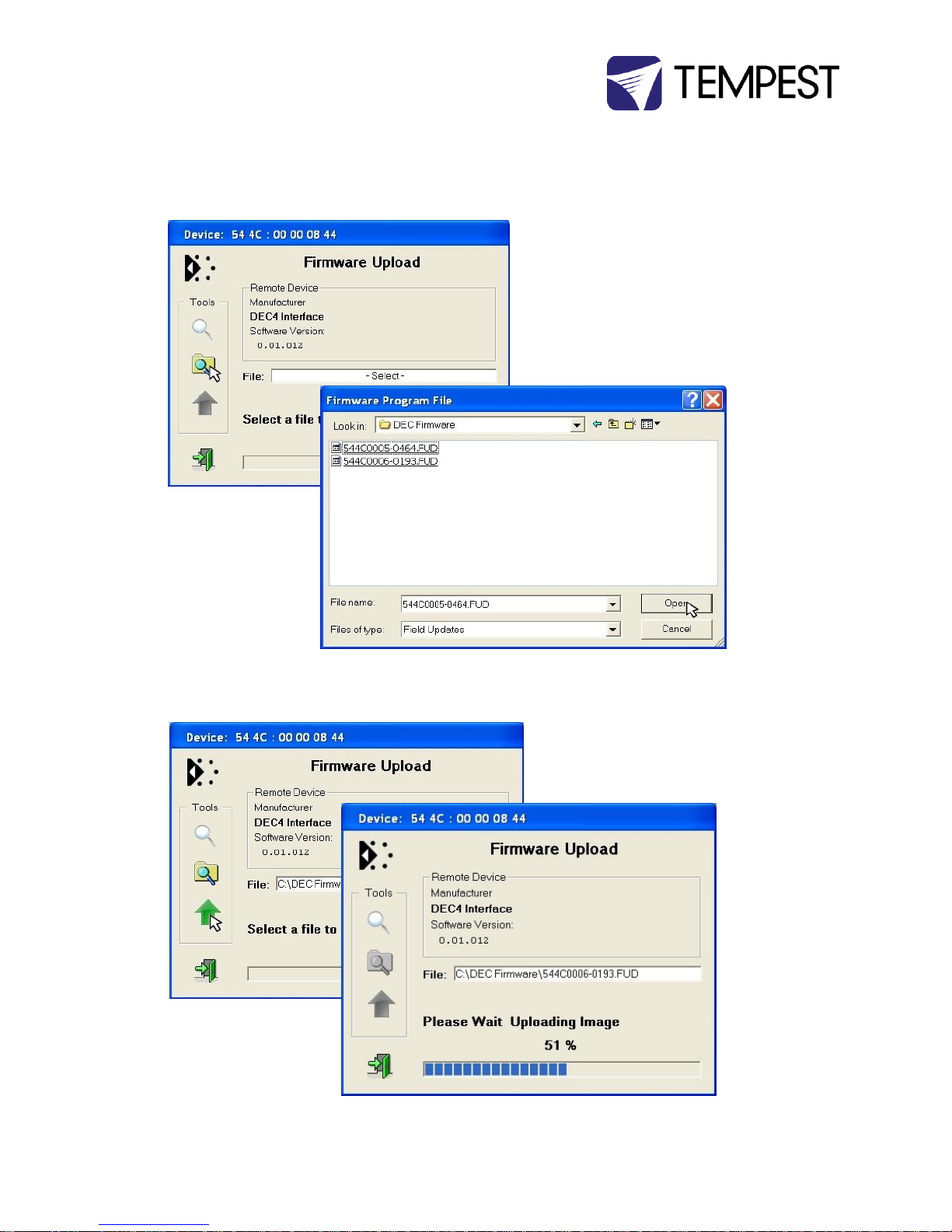

DEC4 Firmware Updates .......................................................................................................................................................................... 41

Indirect Firmware Updates .................................................................................................................................................................. 41

Requirements ................................................................................................................................................................................... 41

Installation Procedure ...................................................................................................................................................................... 41

Mounting the Projector ............................................................................................................................................................................ 46

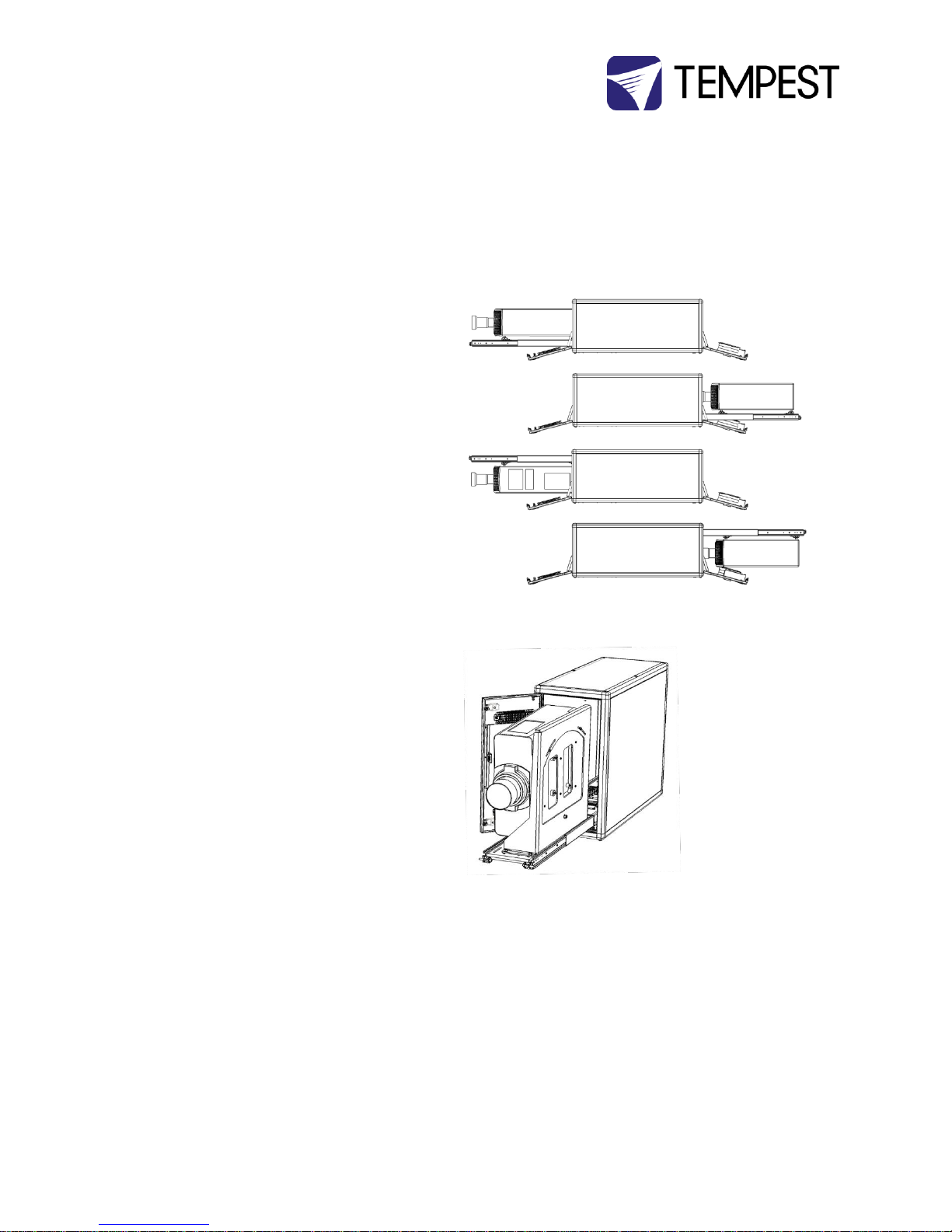

Enclosure Configuration ....................................................................................................................................................................... 46

Landscape Configurations ................................................................................................................................................................ 46

Cyclone G4 User Manual 4

Portrait Configurations ..................................................................................................................................................................... 46

Projector-specific Mounting ................................................................................................................................................................ 47

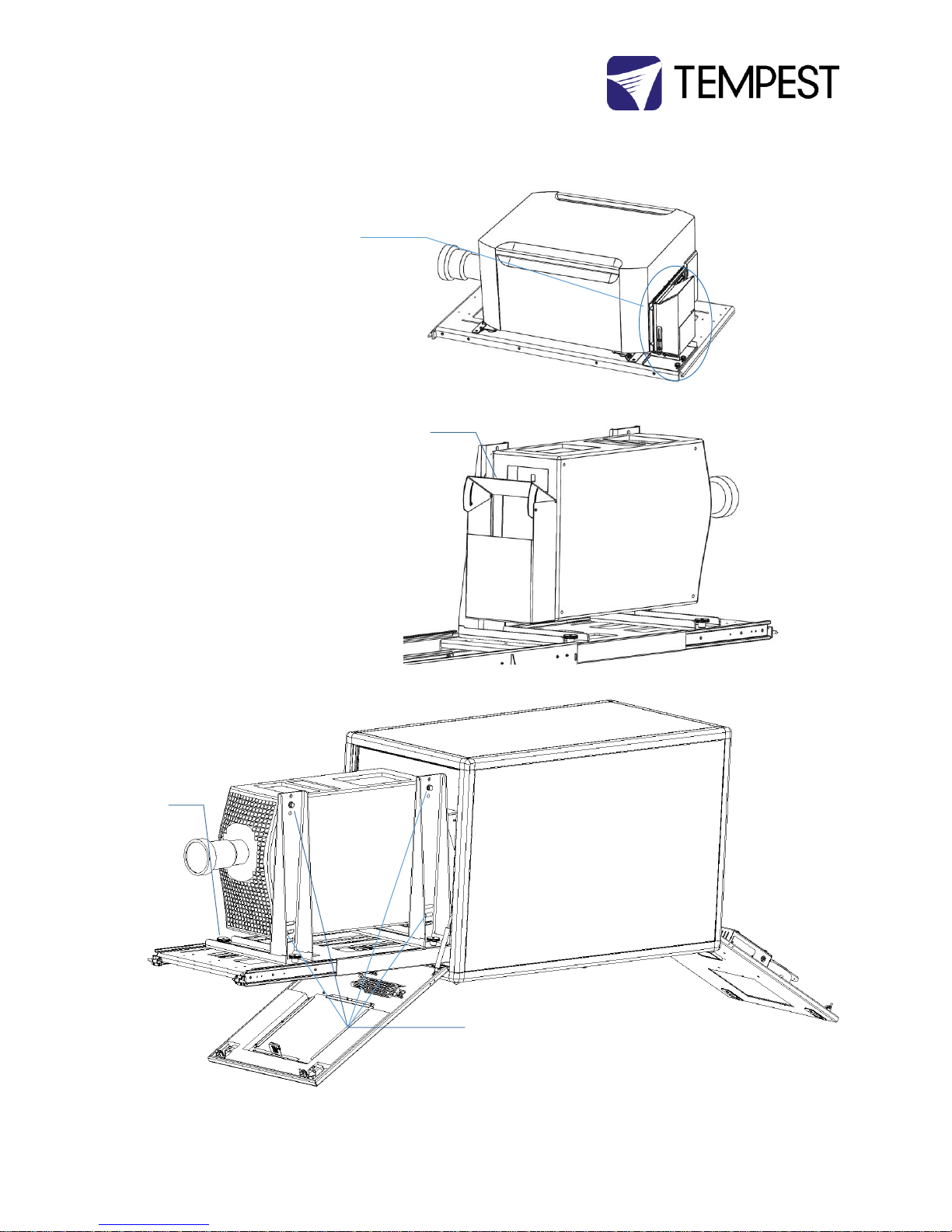

Mount the Projector – Tabletop ...................................................................................................................................................... 47

Mount the Projector – Ceiling ......................................................................................................................................................... 47

Mount the Projector – Portrait ........................................................................................................................................................ 47

Connect Projector and Aux Equipment ........................................................................................................................................... 48

Projector-specific Mounting ................................................................................................................................................................ 48

Panasonic PT-DZ21K Family ............................................................................................................................................................. 48

Christie J-Series/Roadster Family .................................................................................................................................................... 49

Christie Boxer – Portrait Mode ........................................................................................................................................................ 49

Barco HDQ ........................................................................................................................................................................................ 50

These projectors (mounted in Cyclone 8500 enclosures), require some modification prior to installation................................... 50

Routine Maintenance ............................................................................................................................................................................... 51

Clean Port Glass ................................................................................................................................................................................ 51

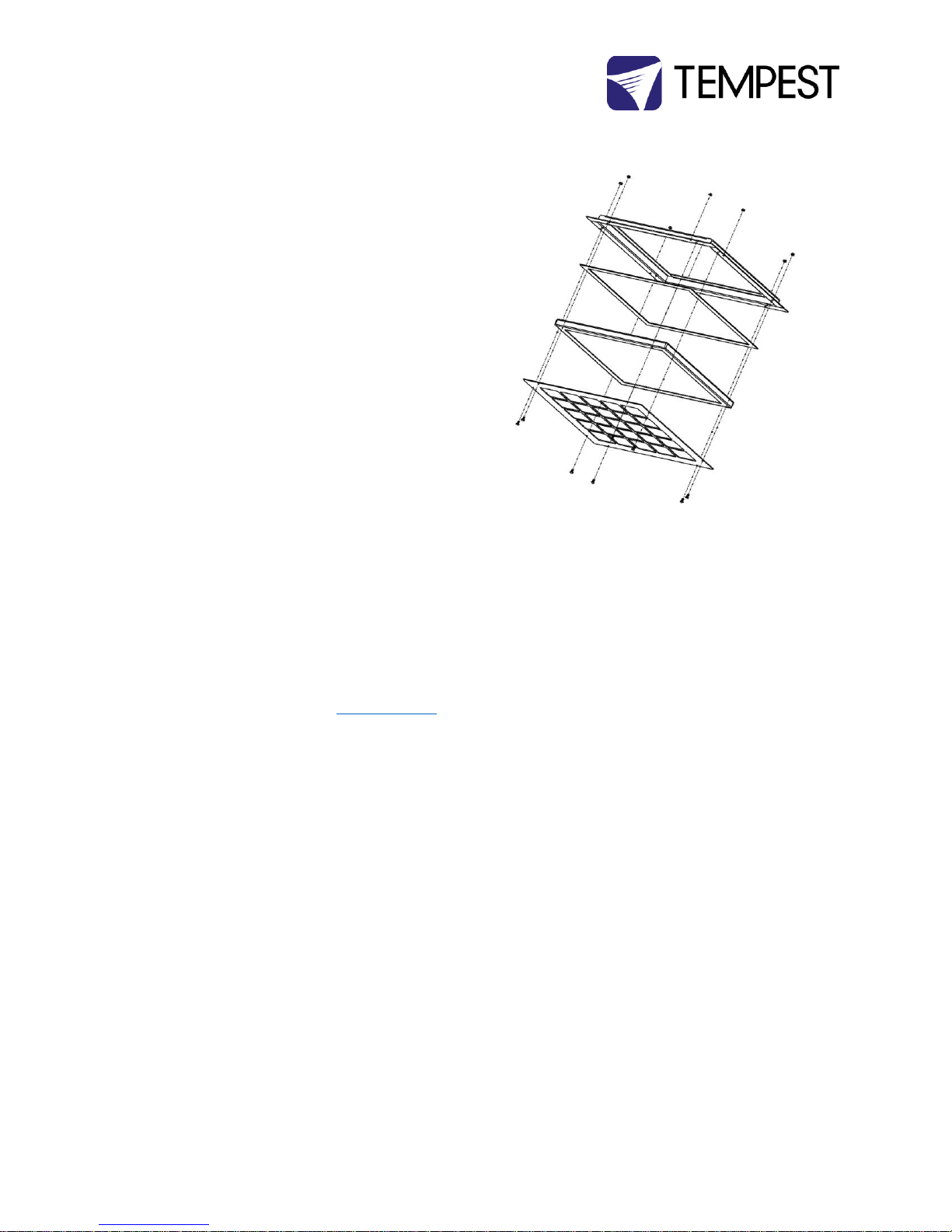

Check Filter ....................................................................................................................................................................................... 51

Check Temperature/Humidity Sensor ............................................................................................................................................. 52

For After Sales Support .................................................................................................................................................................... 52

Troubleshooting ........................................................................................................................................................................................ 53

Warranty ................................................................................................................................................................................................... 55

Appendix – TEMP Protocol ....................................................................................................................................................................... 56

Physical Layer ........................................................................................................................................................................................ 56

Developer’s Guide ................................................................................................................................................................................ 56

Cyclone G4 User Manual 5

Approvals – North America

This is to certify that the following products:

55.xxx.US Series Cyclone G4 Projector Enclosures

Have been tested and approved to standards UL 508 (electrical) and UL 50 (environmental), as NEMA 3R enclosures,
for use in the United States and Canada.

This declaration is made by the manufacturer

Tempest Lighting, Inc.

11845 Wicks Street, Sun Valley, CA 91352, USA

This declaration is based on tests that were conducted on the submitted samples of the above mentioned products.

Listing Report No. 3198609LAX-001a refers.

Dated: July 1st , 2016

Signature . . . . . . . . . . . . . .

Tempest Lighting Inc

Cyclone G4 User Manual 6

Approvals – Europe

CERTIFICATE AND D E CLARATION OF CONFO R M ITY

FOR CE MARKING

Tempest Lightin g , Inc.

11845 Wicks St r e e t, Sun Valley, C A 91352 , USA

t: [phone] f: [phone] e: info@te m pe st.biz

www.tempest.biz

Tempest Lightin g , Inc. declares t h a t t heir

Cyclone G4 P rojector Enclos u r e Series 55.xxx.xx

complies with t h e Essential Req u i r e ments of t h e following EU Dir e c t ives:

Low Voltage D i r e ctive 2006/95 / EC Test R e po rt G4.51 . L V D

Electromagnetic C o mpatibility D i r e c tive 2004/108 / EC Test Report G4.51.EMC

and further confo r m s with the f o llowing EU Ha r m onized Standards :

EN 60065 : 2 0 02 Test Report 6 0 065.G4.51. 01
EN 60529:200 1 -2002 Tes t Report 60529 .G4.51.02
EN 61000-6 - 3 :2007+A1:2011 Test R e po rt 61000 . G 4 .51.03
EN61000-6 - 1 :2007 Test Report 6 1 000.G4.51 . 03
EN55015:2006 + A2 :2009 Test Repo r t 61000.G4.51.0 3

Dated: 1

s t

July 2016

Position of s i g n a t ory: President

Na me of Signatory : Tim Burnham

Signed below:

on behalf of Te m p e st Lighting, I nc.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cyclone G4 User Manual 7

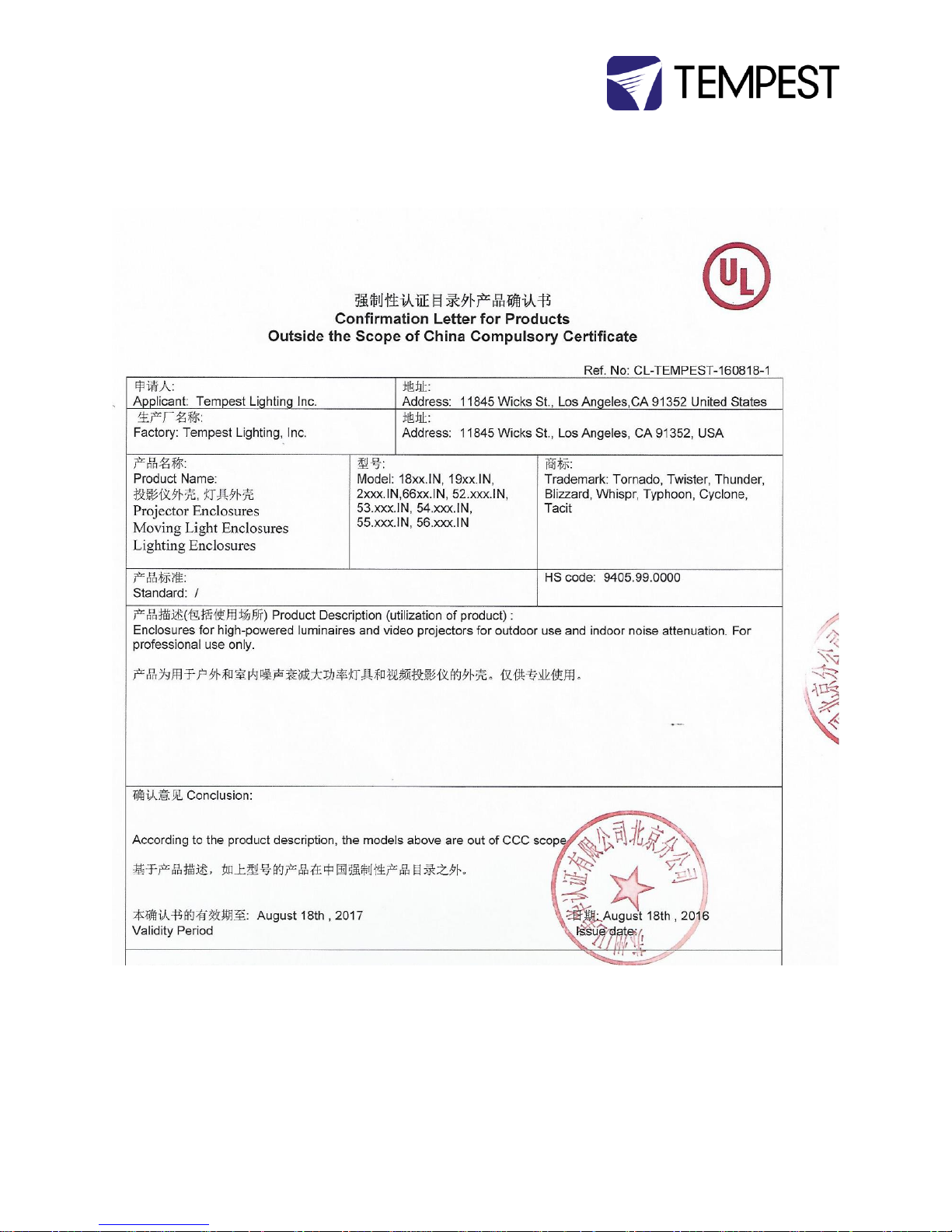

Approvals – China

Cyclone G4 User Manual 8

Introduction

Thank you for purchasing a Tempest enclosure! We have worked hard to provide you with the very
best product available for its purpose, and we shall continue to do everything possible to ensure
that it works well for you for many years to come.

Please read this manual before starting work!

In the event of difficulty, please contact your Tempest reseller or Tempest direct:

[email protected]

[phone]

We will do everything we can to help you get the very best results from your Tempest enclosure.

IMPORTANT: Safety Advisories

 All installation and rigging work done must where applicable be designed and built in

accordance with norms and standards of the local authority having jurisdiction of the
installation site. It is the responsibility of the installer to obtain such approvals as may be
required to achieve full compliance.

 All electrical work must be carried out by a suitably licensed electrical contractor in full

compliance with local electrical standards.

 Lifting: some enclosures and the equipment inside them may be heavy. Use properly

rated lifting equipment where appropriate and never attempt to carry out work with
fewer than the number of workers needed to lift safely.

 It is the responsibility of the installer to ensure that all local building, safety and electrical

codes are strictly adhered to in the installation of this enclosure. Tempest Lighting, Inc.,
its employees and agents are in no way responsible for damage arising from failure to
follow either the instructions in this manual or building, safety and electrical codes
prevailing at the installation location.

 Do not attempt to install or operate the enclosure before fully reading and understanding

this manual

 Never allow anyone who has not read this manual to open the enclosure or perform

maintenance on the projector within.

 Never leave the enclosure unattended when open.

 Always make sure all bolts and latches are tight and safety locks are in place after

performing any form of maintenance on the unit.

 Do not open any electrical boxes until power has been shut off to all supply lines to the

enclosure (including the one powering the projector).

 Do not open the enclosure in wet weather.

Cyclone G4 User Manual 9

Installation

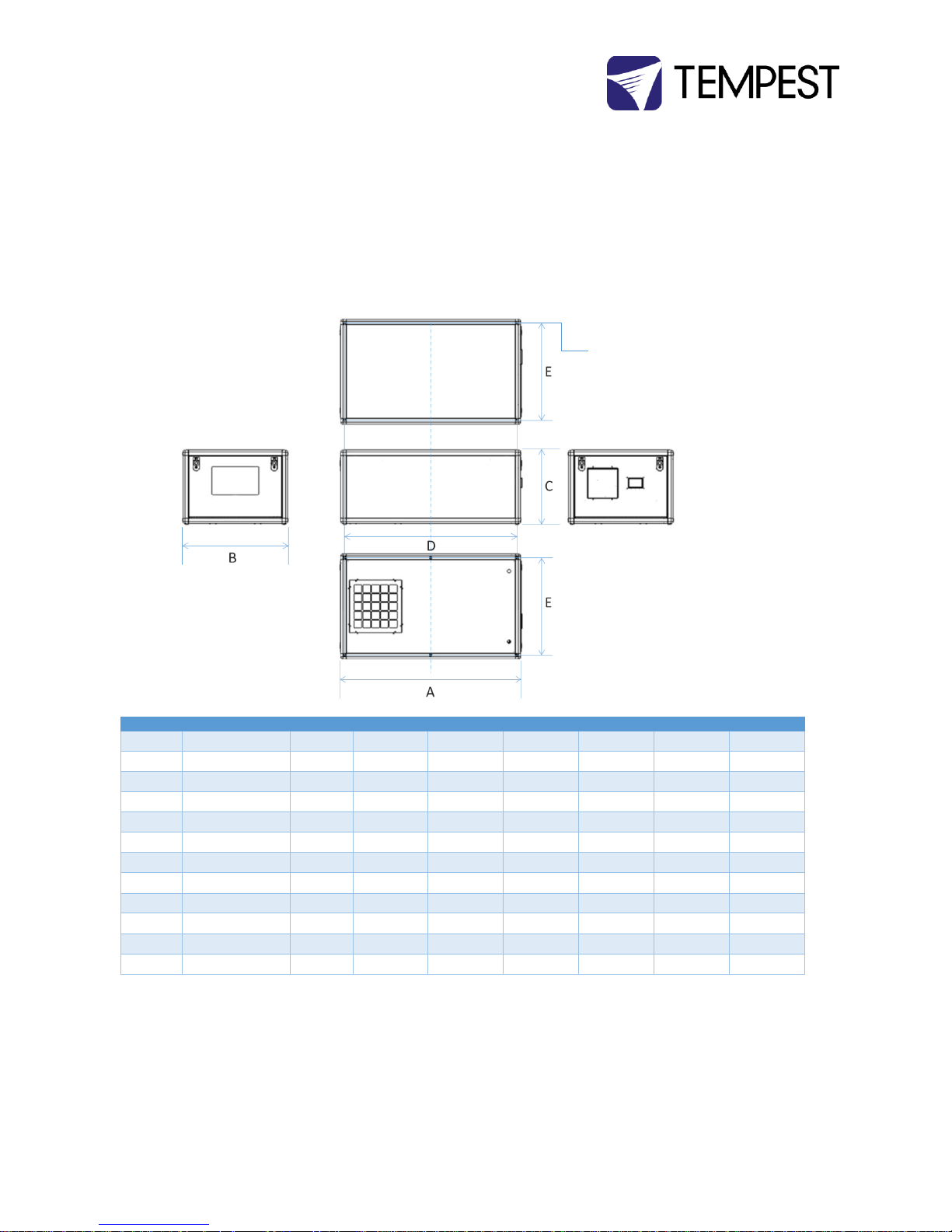

Dimensions, Rigging Points, and Maximum Projector Dimensions/Power

Model

Projector Type

Format

DIM A

DIM B

DIM C

DIM D

DIM E

Weight

55.200
Panasonic Pt-DZ21K

Landscape

49.4”/1254

33.4”/848

19.4/493

47”/1194

31”/787

140lb/64kg

55.200P
Panasonic Pt-DZ21K

Portrait

49.4”/1254

19.4/493

33.4”/848

47”/1194

17”/432

150lb/68kg

55.220

Barco HDX

Landscape

49.4”/1254

29.4”/747

23.4”/594

47”/1194

27”/659

160lb/73kg

55.230
Christie CP2215

Landscape

49.4”/1254

29.4”/747

27.4”/696

47”/1194

27”/659

170lb/77kg

55.240
Christie Roadster (J)

Landscape

53.4”/1356

33.4”/848

25.4/646

51”/1295

31”/787

190lb/86kg

55.300

Christie Boxer

Landscape

57.4”/1457

33.4”/848

23.4”/594

55”/1397

31”/787

162lb/74kg

55.300P
Christie Boxer

Portrait

57.4”/1457

23.4”/594

33.4/848

55”/1397

21”/533

175lb/80kg

55.350
Barco HDF

Landscape

53.4”/1356

35.4”/900

29.4”/747

51”/1295

33”/838

200lb/91kg

55.400
Christie Roadie 45K

Landscape

69.4”/1763

41.4”/1053

32.4”/823

67”/1702

39”/991

240lb/109kg

55.450

Christie CP2230

Landscape

69.4”/1763

37.4”/951

35.4”/899

67”/1702

35”/889

245lb/111kg

55.45B
Christie Ballast

Landscape

31.4”/790

24.4”/610

26.4”/660

29”/737

22”/559

65lb/30kg

55.500
Barco HDQ

Landscape

69.4”/1763

37.4”/951

35.4”/899

67”/1702

35”/889

245lb/111kg

We are adding models all the time – check our web site for submittal drawings or consult factory for models not shown here

Rigging Points:
M12-1.75 x 38 (bolts supplied)
Cyclone 55.200-3xx 4 points top and bottom.
Cyclone 55.4xx and up 6 points top and
bottom.

Cyclone G4 User Manual 10

Access Clearance

Observe these minimum access clearances shown around
your enclosure

Airflow Clearance

Observe the minimum clearances shown around your
enclosure

Snow Clearance

In areas where snow is likely, make sure the base of the
enclosure is at least 24” [60cm] above highest potential
snow drift level.

H

3”/75mm

60cm/24in

Cyclone G4 User Manual 11

Mounting Hardware Options

Mounting Bolts

 Each Enclosure must be mounted with FOUR points.
 All mountings must be made using the four M12

threaded holes on the top or bottom of the
enclosure.

 Use an 8mm hex key to secure the M12 socket cap

screws provided.

 Tempest recommends the use of stainless steel

mounting hardware.

 Make sure the inlet filter has at least 75mm/3in

clearance below.

 IMPORTANT SAFETY NOTICE
Installer must ensure that all mounting points are secure
and conform to local safety regulations. Tempest Lighting
Inc. accepts no responsibility for damage or injury arising
from inappropriate or unsafe installation.

Mounting Options – Unistrut Kit

If mounting positions for the corner bolts are not
convenient, use the Unistrut Kit (55.UR.xxx) to add two
Unistrut rails and Unistrut spring nuts to the top or
bottom of the enclosure.

Using the spring nuts, the enclosure may now be
attached at any point along the Unistrut rails.

8mm

Mounted from Above:

M12-1.75 bolts
Use 8mm hex key

Plastic plugs

Mounted from Below:

Plastic plugs

M12-1.75 bolts
Use 8mm hex key

Unistrut Rails may be
mounted above or
below

Cyclone G4 User Manual 12

Mounting Options – Stacking Kit

Cyclone G4 may be stacked up to four units high, using
the 51.SK stacking Kit. You will need the total number of
Cyclones to be stacked, minus one stacking kit(s).

So for a stack of three enclosures, order 3-1=2 stacking
kits.

Note: Cyclone enclosures must be of the same model to
stack in this way.

51.SK Stacking Kit (set of four, for one enclosure)

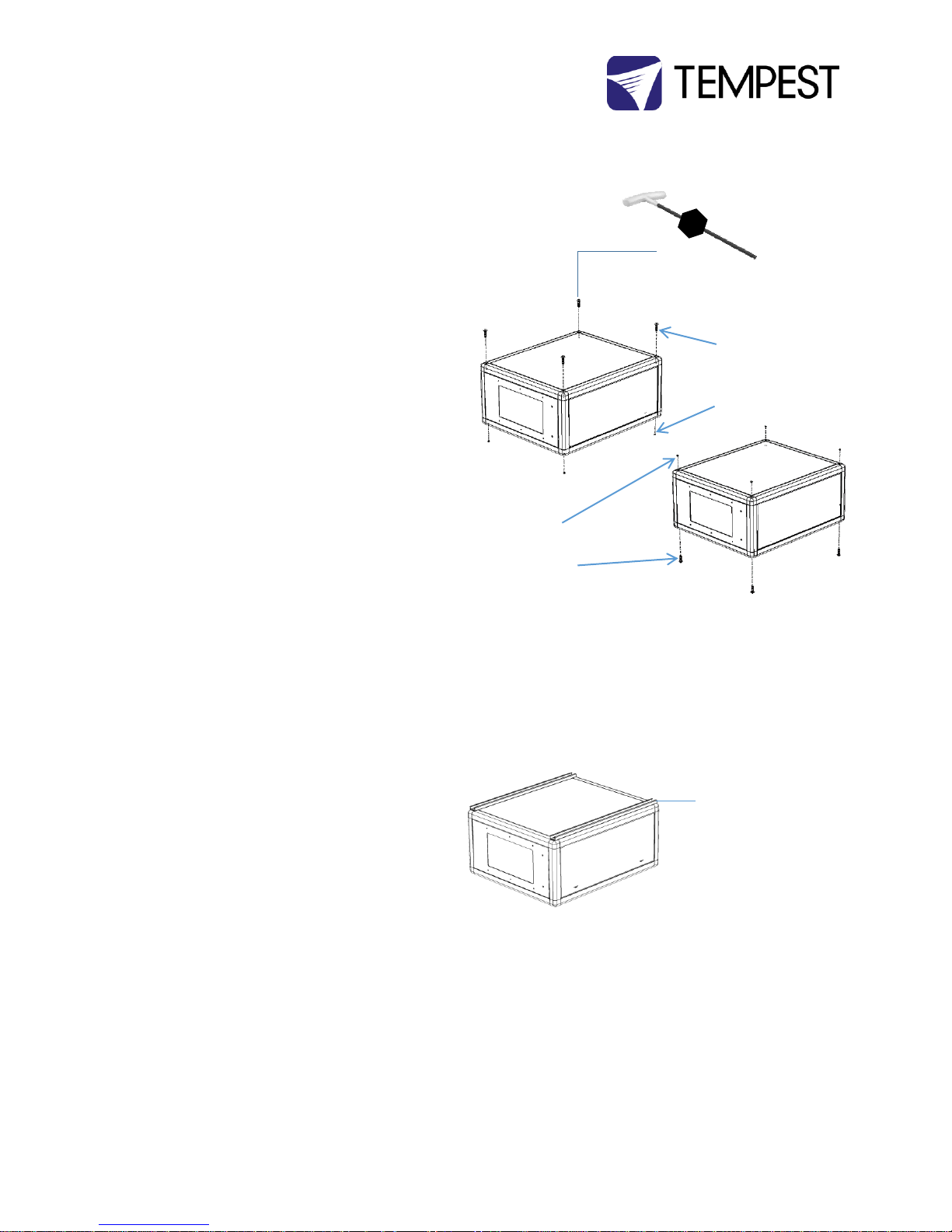

Mounting Options – Swivel Stacking Kit

Cyclone G4 may be stacked two units high, with beams up
to 60° apart, using the Swivel Stacking Kit. Enclosures
must be the same model.

This is very useful for edge-blending across a wide area
with a limited number of rigging positions.

51.SS.xxx (where xxx is the Cyclone model number) Swivel
stacking kit for two G4 Cyclone enclosures

The Swivel Stacking Kit must be ordered with the Cyclone
enclosures it will be used with. Tempest will add more
fixing points to the enclosure frame required to attach the
Swivel Stacking Kit hardware.

Bolt top leg to M12
socket each corner

Bolt bottom leg to M12
socket each corner

Join top and bottom
sections together with
Clevis pins

Mount Swivel Brackets to
M12 threaded inserts in
enclosure frames with
the M12 bolts provided.
All four brackets are
identical

Join the radiused slots
using the Carriage
bolts and lock nuts
provided.
Adjust desired angle
and tighten nuts

Cyclone G4 User Manual 13

Cyclovator 2 Tilt Kit

SAFETY WARNING

IT IS A SAFETY REQUIREMENT that Cyclone enclosures be
horizontal any time you slide the projector out for
service. IT IS DANGEROUS to do this if the enclosure is not
horizontal, and MAY CAUSE DAMAGE TO THE PROJECTOR
OR INFLICT SERIOUS INJURY TO PERSONNEL. Tempest
Lighting Inc., its agents and employees, will not be liable
for consequences of failure to heed this safety warning.

Cyclovator 2 may be used for any G3 or G4 Cyclone
enclosure.

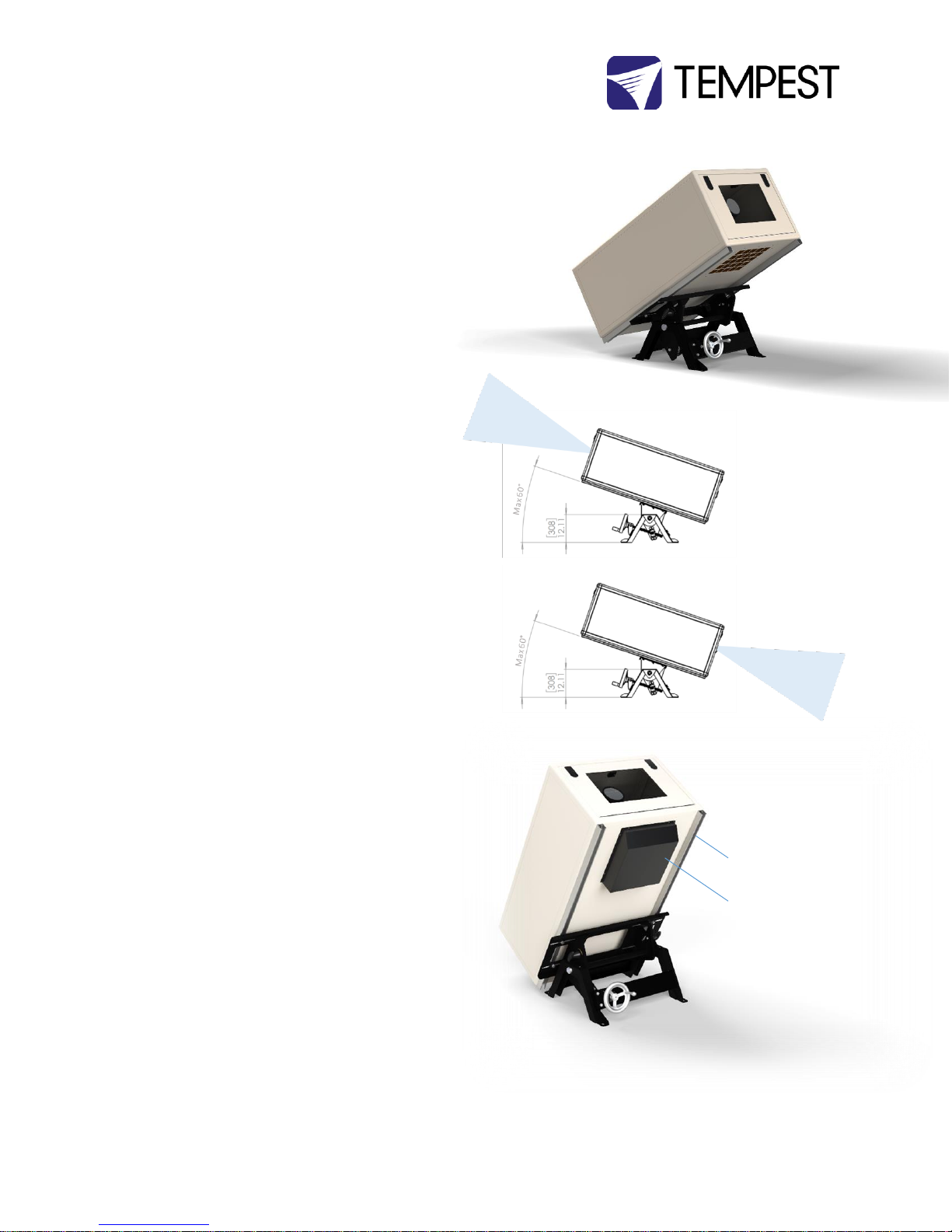

The enclosure may be installed at ground level, projecting
up (up onto a building, for example)…

…or, on a rooftop, projecting downwards.

In either case, the maximum tilt angle is 60°.

Cyclovator – Unistrut Mounting Rails

When Cyclone G4 is used with the Cyclovator Tilt Kit, the
Unistrut Kit (55.UR.xxx) is required to attach the
enclosure to the Cyclovator.

‘xxx’ is the Cyclone model number.

Cyclovator – Inlet Cowl

When Cyclone G4 is used with the Cyclovator Tilt Kit, with
a tilt angle greater than 40°, use the inlet cowl 55.IC.xx to
protect the inlet filter from weather.

‘xx’ is the filter size in inches – 15 for 55.200-350, 22 for

55.400 and up.

Stainless Steel Unistrut
Rail Kit 55.UR.xxx

Inlet Cowl 55.IC.xx

Cyclone G4 User Manual 14

Fixing the Cyclovator in Place

The Cyclovator MUST be firmly attached to the ground, or
a suitable mounting structure, using four stainless steel
M12 (or US ½” size) bolts or anchors (not supplied).

Suitable substrates include concrete pads, steel
frameworks, roof beams. All mountings must comply with
all relevant building and safety norms in the jurisdiction
of the final installation. It is the responsibility of the
installer to obtain approval from a structural engineer or
other competent person for all such installations, and to
adhere strictly to local building and safety codes at all
times.

Cyclone G4 User Manual 15

Mounting the Enclosure

Make sure that the Unistrut rails are attached securely to
the 4 (or 6) M12 threaded sockets on the bottom of the
enclosure frame.

Set the Cyclovator to its horizontal position:

1. Loosen the two locking knobs (a)

2. Turn the crank handle (b) until the Cyclovator

saddle is horizontal

3. Tighten the two locking knobs (a)

Align the channel spring nuts (c):

4. The distance (d) between the channel nuts

should be the same as dimension E in the
installation page (the distance between centers
of the Unistrut channels)

5. Loosen the channel nut

bolts and align the
channel nuts with their
long sides parallel with
the end of the
Cyclovator saddle:

6. Carefully set the Cyclone enclosure on the

Cyclovator saddle, so that the channel nuts are
INSIDE the Unistrut rails.

7. PUSH UP and tighten the four M12 channel nut

bolts, so that the channel nuts lock in the
Unistrut channels.

8. Loosen the locking knobs and turn the crank

handle to test movement.

Unistrut Rails

Fixing Bolts (4 or 6)

(a)

(b)

(a)

(c)

(d)

Cyclovator Saddle

Cyclovator Base

Cyclone G4 User Manual 16

Steep Angles:

For steep projection angles, loosen the four channel nut
bolts and carefully slide the enclosure in the direction
that will be ‘down’.

The center of gravity will still be roughly centered in show
position, but you will have to work a bit harder to crank
the enclosure up to its show trim!

It is important to use the Inlet Cowl accessory for angles
above 40°.

Setting the Show Position Stop

Cyclovator gives you a locator for your show position, for
accurate show positioning.

With the Cyclovator in Show position:

1. Loosen the Locking Collar set screw (a)

2. Slide the Locking Collar firmly against the Acme

Nut Plate (b)

3. Tighten the Locking Collar nut (a)

4. You now have two reference locations:

 Horizontal
 Show

ALWAYS MAKE SURE THAT BOTH LOCKING KNOBS (c) ARE
LOOSE WHEN RAISING/LOWERING THE CYCLOVATOR,
AND TIGHT WHEN IN SHOW OR SERVICE POSITION.

(a)

(b)

(c)

Cyclone G4 User Manual 17

Wiring the Enclosure

Power Wiring

SAFETY NOTICE

All power wiring must be performed by a competent electrician, appropriately licensed in the jurisdiction where the installation takes
place. All electrical work must be done in full compliance with all electrical and safety norms applicable to the installation site. Isolate
all power feeds before opening the enclosure.

Tempest Lighting, Inc., its employees and agents will not be held responsible for damage or injury caused by disregarding this notice.

Electrical Standards

Important:

Enclosure model numbers including .US are for use in countries using US and Japanese style electrical systems:

200-208VAC 50/60Hz

Enclosure model numbers including .IN are for use in countries using European style electrical systems:

220-250VAC 50/60Hz

Note:

(1) Fans and Heaters are rated 200-250V
(2) Electronics are autosensing for any voltage 90-265VAC, 50/60Hz

Cyclone G4 User Manual 18

Wiring Access

Locate the two Conduit entry holes on the underside of
the enclosure:

Conduit openings accept PG21 (International) and ¾” NPT
(North America) conduit fittings.

Use permanent or flexible, outdoor rated, conduit to
connect power and signal cables to your Cyclone
enclosure.

ALWAYS RUN POWER AND SIGNAL CABLES IN SEPARATE
CONDUITS.

NOTE: Layout of Cyclone models may differ slightly

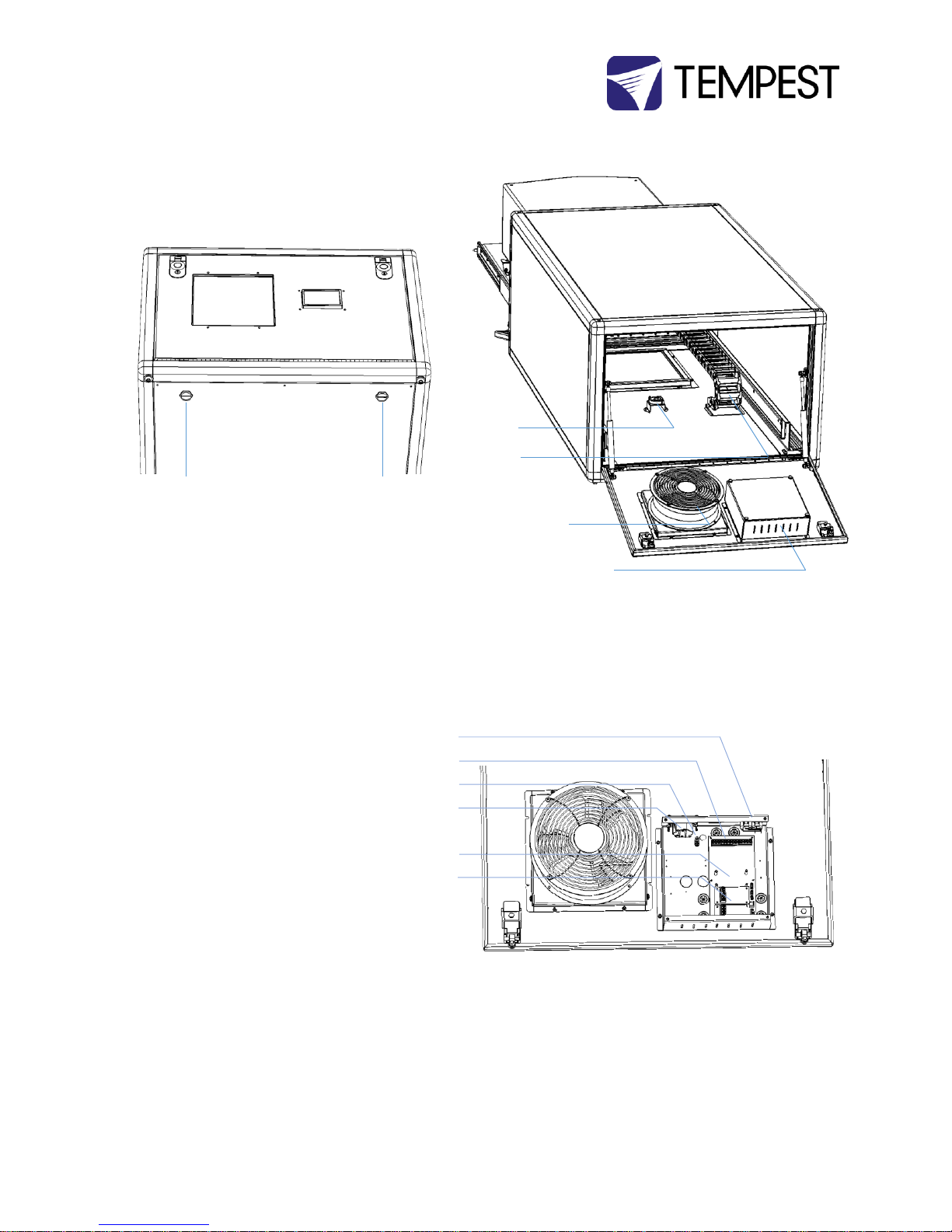

Open the back door, and remove the DEC4 Controller
cover. Identify the following parts:

Aux Equipment Power Outlet (dual C13)

AC Terminal Block

Earth/Ground Terminal

Projector Power Outlet (types vary)

DEC4 Motherboard

DEC4 Daughter Board(s)

Up to 3 daughter boards: types include Fan Control,

RS485 Comms, Ethernet, AC Assist Relay

DEC4 Controller
Cover

Exhaust Fan

Internal

Homogenizing

Blower

Cable

Management

Track

Conduit Entry:
SIGNAL

Conduit Entry:

AC POWER

Cyclone G4 User Manual 19

One or Two Power Circuits?

Tempest enclosures may be wired on single or double
circuit supplies. On a single feed, both enclosure and
projector are permanently on. With a split (double) feed
supply, you can switch off the projector when not in use,
while the enclosure continues to protect it 24/7.

Tip: most people use single feed.

Single Feed

 Enclosure and projector are permanently on.
 Enclosure and Projector must be rated for the

same voltage.

 Supply must be rated for projector current plus

150 watts.

 Supply must be permanently ON.

Split feed

 Enclosure power must be permanently ON.
 Projector power may be switched off.
 Enclosure power must be rated for 650 watts.
 Projector power must be rated for the projector (see

projector manual).

Projector and enclosure power must be same voltage.

For single feed wiring, no modification to the DEC4
Controller motherboard is needed.

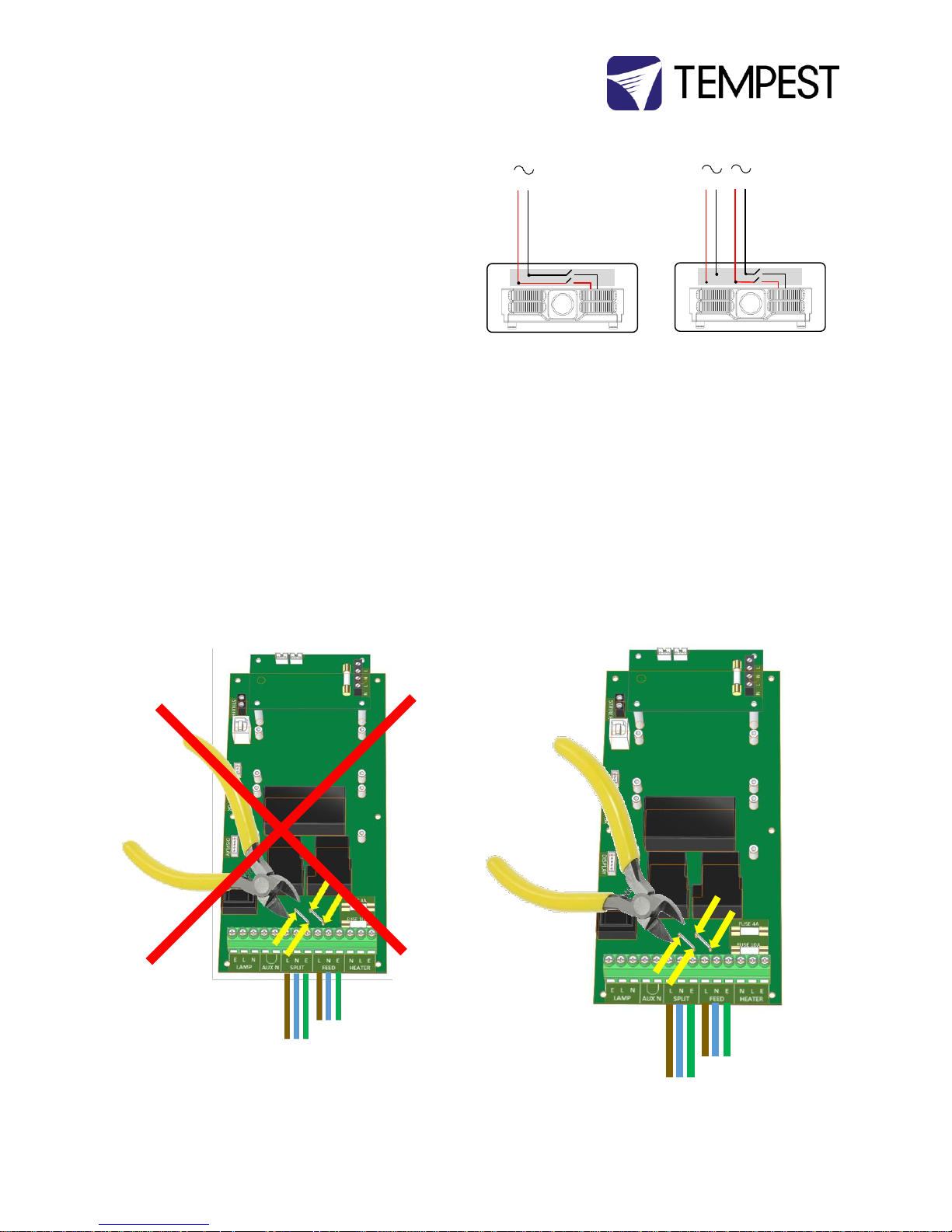

IMPORTANT:
For split feed wiring, use a side cutter to cut both AC links at both
ends:

1

1

2

Single Feed

Split Feed

Cyclone G4 User Manual 20

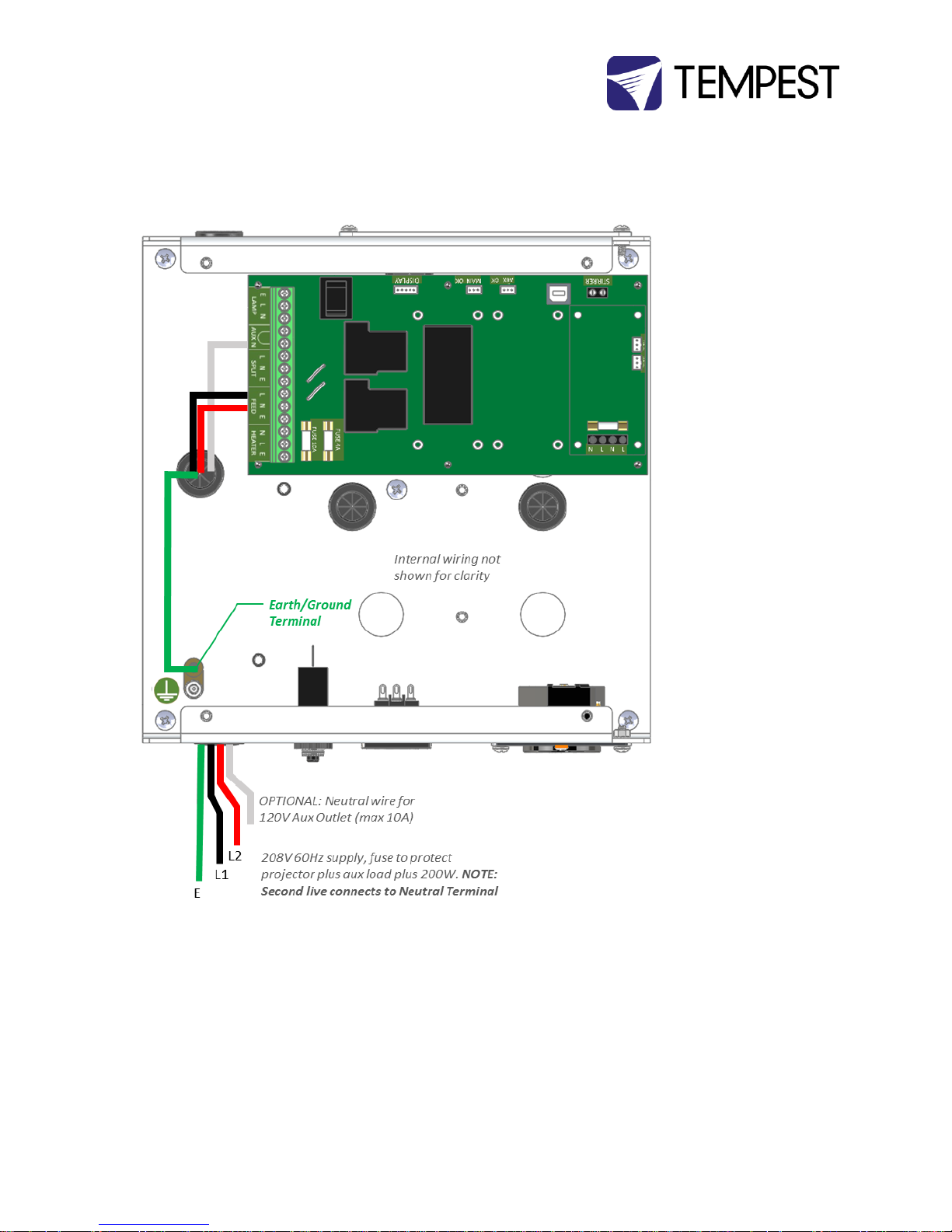

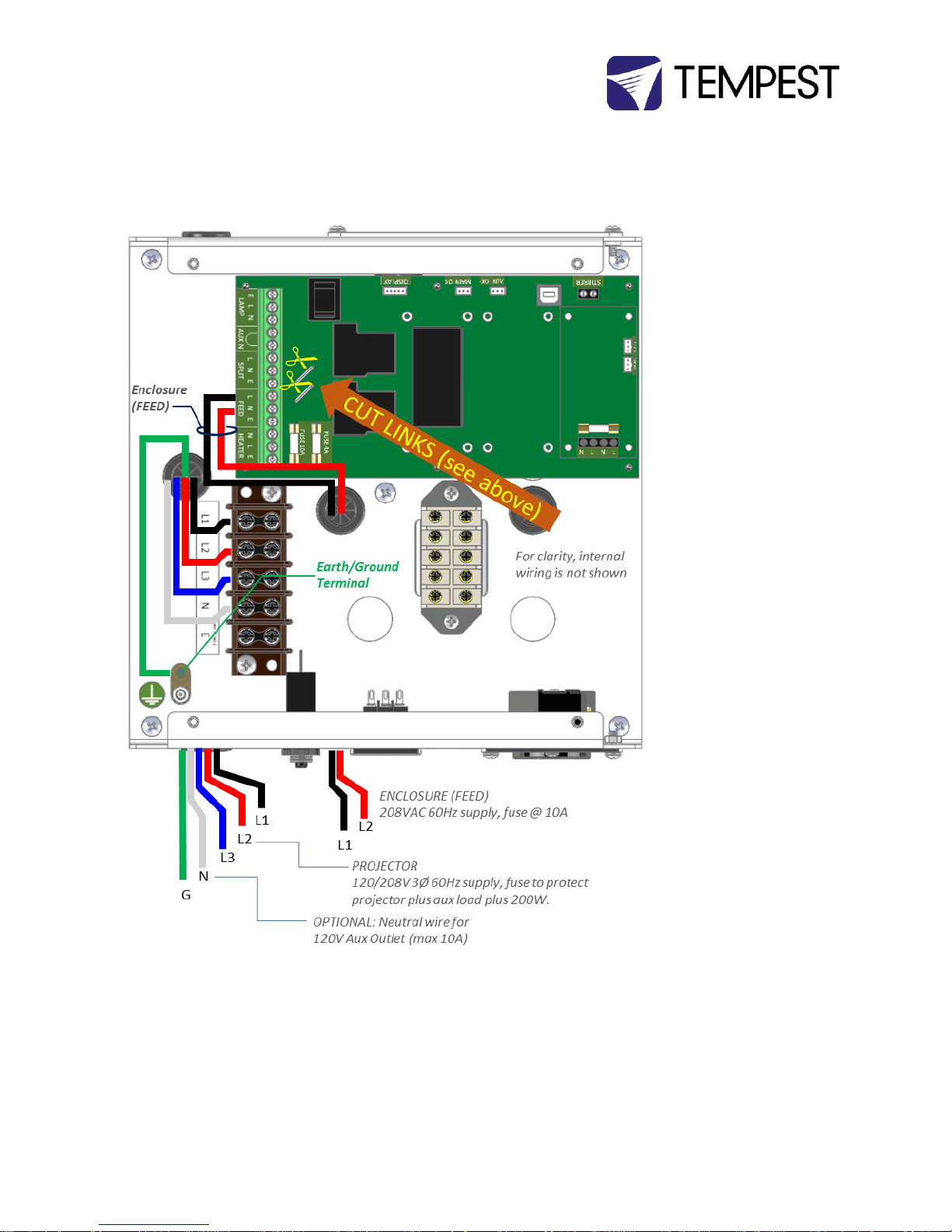

Single Feed Power Termination

 Connect Earth/Ground wire to Ground Terminal
 Connect Live and Neutral to the terminals marked

FEED

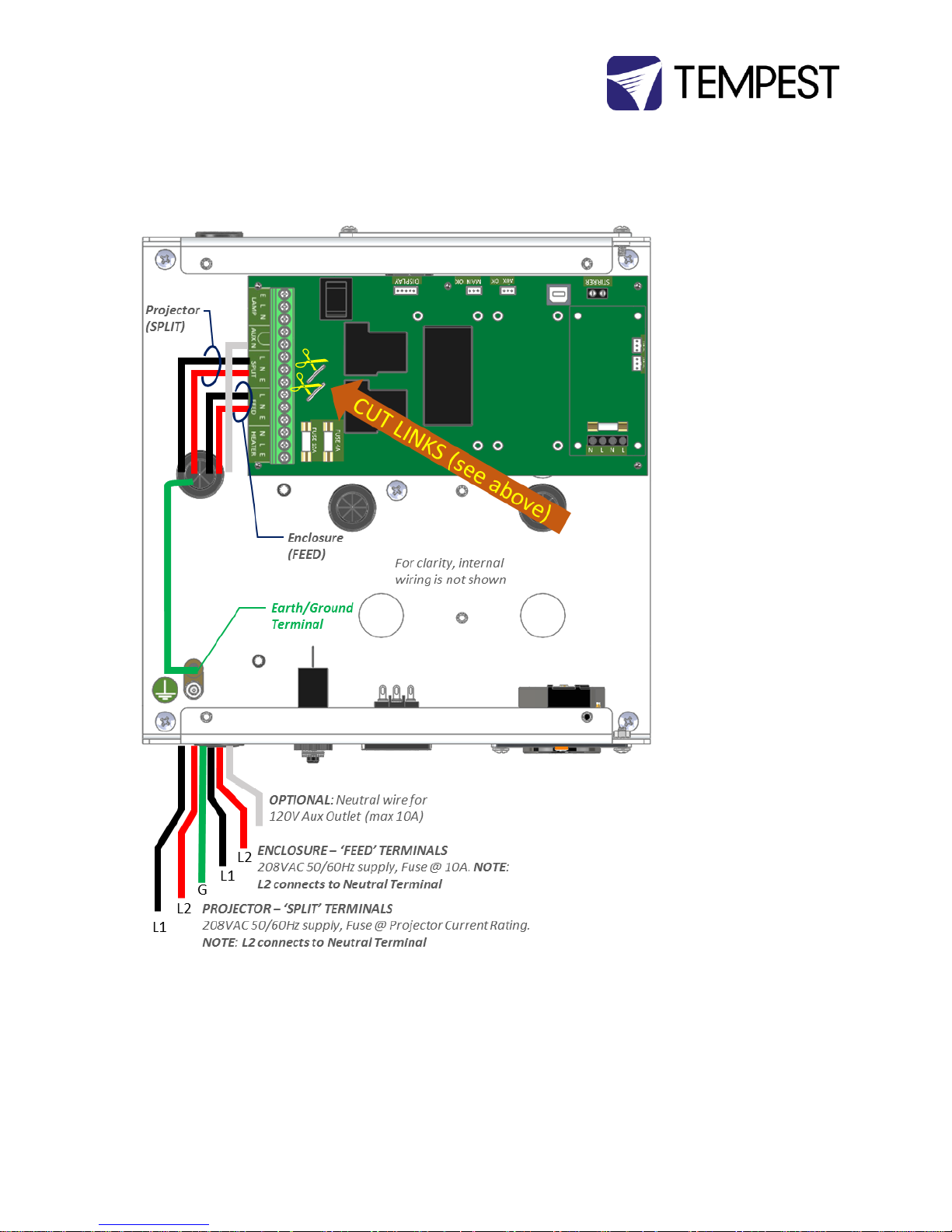

Split Feed Power Termination

 STOP! Did you cut the power links? See above.
 Connect Earth/Ground wire to Ground Terminal
 Connect Enclosure feed to the terminals marked FEED
 Connect Projector feed to the terminals marked SPLIT

Wire Path

Pull incoming AC supply wires through the plastic
grommets shown here.

For clarity, the following diagrams do not show factory
wiring.

Single or Three-Phase?

Most Cyclone enclosures require a single phase 200­240VAC AC supply (208V – 2 hots @120V in US).

In just a few cases, presently:

 Some high-output Barco projectors, eg HDQ
 Some Christie projectors with external ballast,

eg Roadie 45K, CP4230

…a 3-phase AC supply is required.

Three phase Split Feed

IMPORTANT: Three-phase systems with split feed MUST be factory

configured. You CANNOT change a 3-phase Cyclone between single and
split feed in the field.

AC Supply Voltage

Tempest Cyclone enclosures require supply voltage in the
nominal range 200-250VAC, 50/60Hz.

Tempest G4 enclosures are very tolerant of supply
voltage variations:

 DEC4 controller has a universal power supply

and operates on 90-265VAC

 Enclosure fans and heaters are rated 200-

250VAC. Fans are over-dimensioned to cool
adequately down to 200V, and heaters
compensate thermostatically by increasing duty
cycle on lower supply voltages.

Cyclone G4 User Manual 21

North America, 208V Single Feed

Cyclone G4 User Manual 22

North America, 208V Split Feed

Cyclone G4 User Manual 23

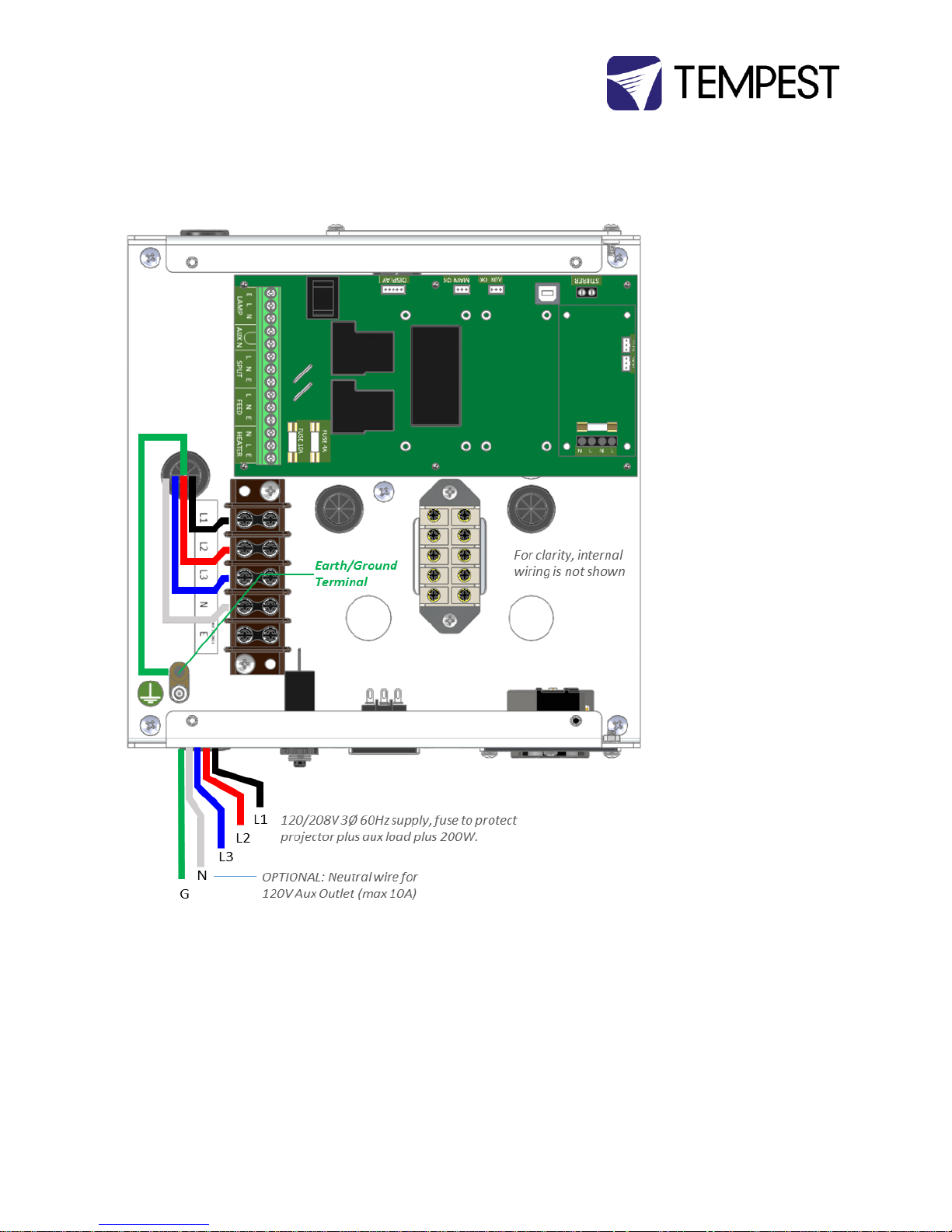

North America – 120/208V Three Phase, Single Feed

Cyclone G4 User Manual 24

North America – 120/208V Three Phase, Split Feed

Cyclone G4 User Manual 25

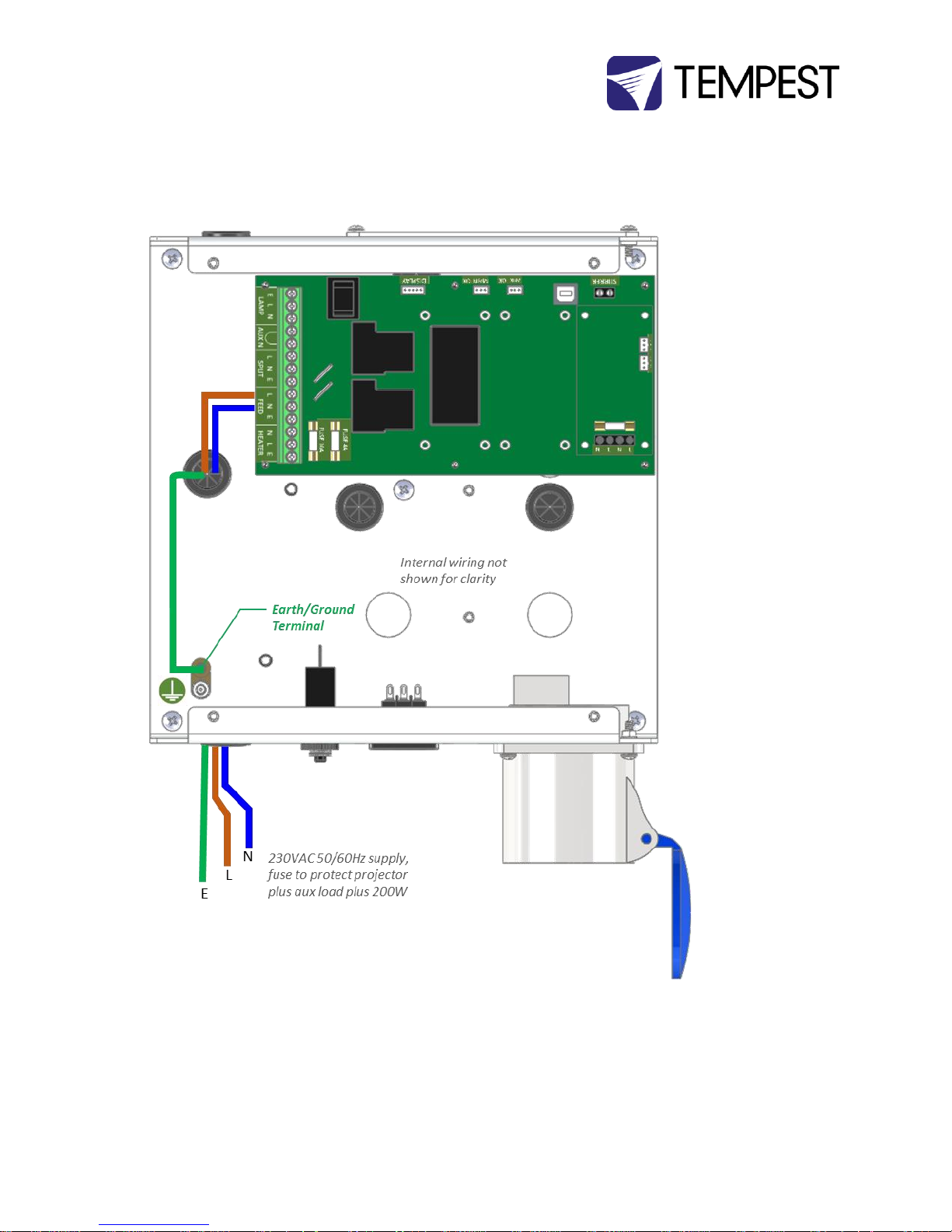

International, 230V Single Feed

Cyclone G4 User Manual 26

International, 230V Split Feed

Cyclone G4 User Manual 27

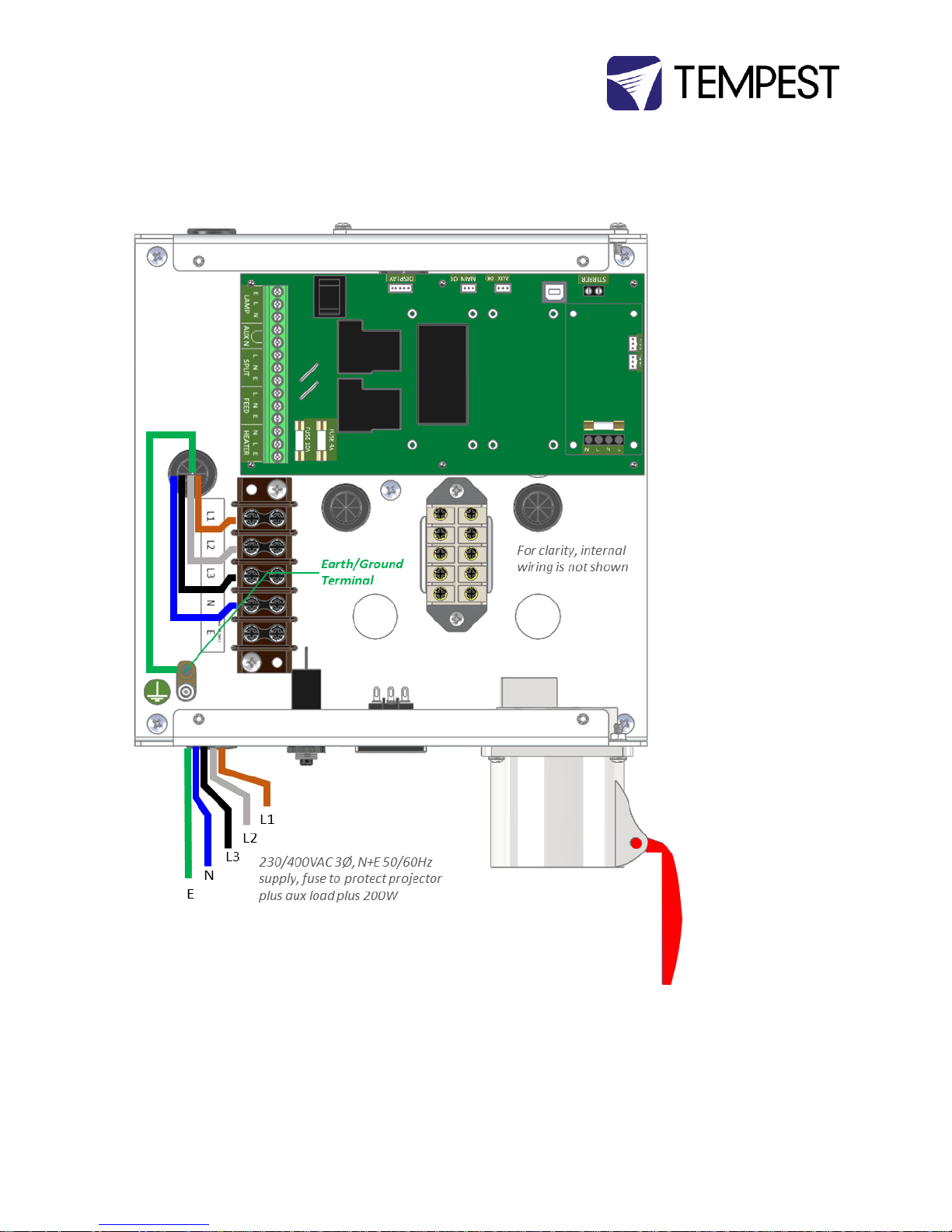

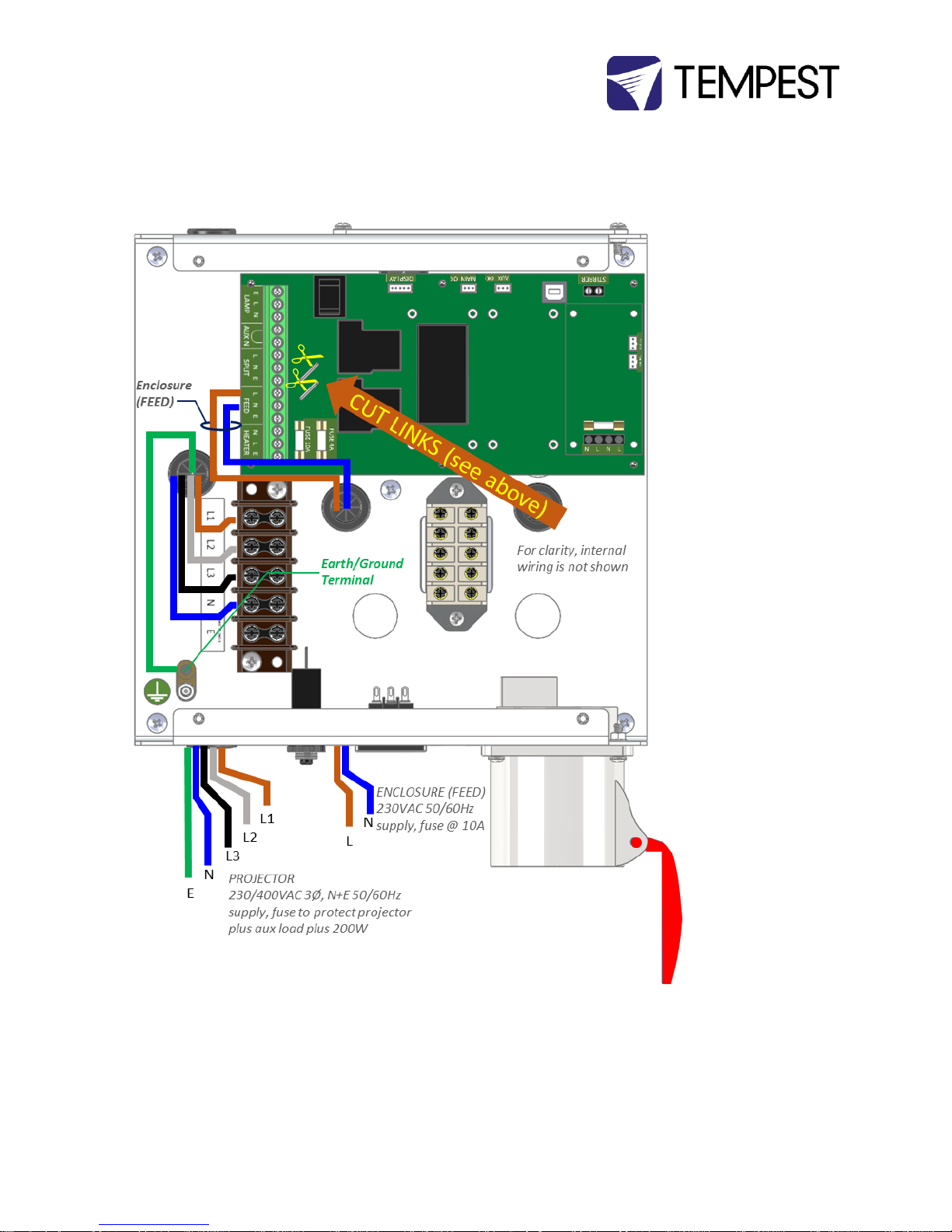

International, 230/400V Three-Phase, Single Feed

Cyclone G4 User Manual 28

International, 230/400V Three-Phase, Split Feed

Cyclone G4 User Manual 29

Remote Monitoring Connections

Tempest G4 enclosures optionally support three types of
remote monitoring:

1. Direct via Ethernet, using Tempest TEMP

protocol (see Appendix – TEMP Protocol)

Requires 51.EN Ethernet board

2. Grouped via RS485, using an Ethernet bridge and

Tempest TEMP protocol (see Appendix – TEMP
Protocol)

3. Grouped via RS485, using DMX/RDM – see next

page

Requires one 51.485 RS485 board per enclosure

Requires one 51.485 RS485 board per enclosure
and one 51.EN Ethernet board per bridge

Note: Tempest System Manager and web-based monitoring will be available early 2017

51.EN Ethernet

51.485 RS485

51.485 RS485

51.485 RS485

51.485 RS485

51.EN Ethernet Board

RS485 Daisy Chain

(use CAT5 Cable)

Ethernet LAN

Ethernet LAN

Local PC

Local PC

Remote PC

Smartphone

Tempest System

Manager

Cyclone G4 User Manual 30

RS485 (DMX/RDM) Cable Terminations

Loop a shielded twisted pair cable (eg Belden 9841, though
many people now use a CAT5e cable) from the
control/monitoring point, around all enclosures.

Maximum total cable length is 1,200M (4,000ft). For longer
runs and wildly distributed systems, use a DMX/RDM
splitter (make sure that it supports RDM) and multiple
cable runs.

Use the termination switch to terminate each RS485 cable
run at the last enclosure on each run.

Projector Power Control using DMX512

The DEC4 controller includes a 30A 2-pole relay that
protects the enclosed equipment in the event of a serious
high temperature event by cutting off power. In 3-phase
enclosures this is augmented by a 4-pole contactor.

You may use DMX512 (a popular entertainment industry
protocol running on RS485, originally intended to control
lighting system dimmers) to control power to the projector
inside the enclosure. This is very useful in hot locations,
where the projector may be stressed by being held in
standby mode all day under hot sun. By powering the
projector down it will tolerate much higher temperatures
without harm.

Tempest recommends the JESE RDM-TRI interface to
monitor enclosure status in any installation and control the
enclosure power relay in smaller systems.

More complex installations are very likely to include some
kind of show control system that will certainly include DMX
control. This is the preferred method of controlling power
to the projectors.

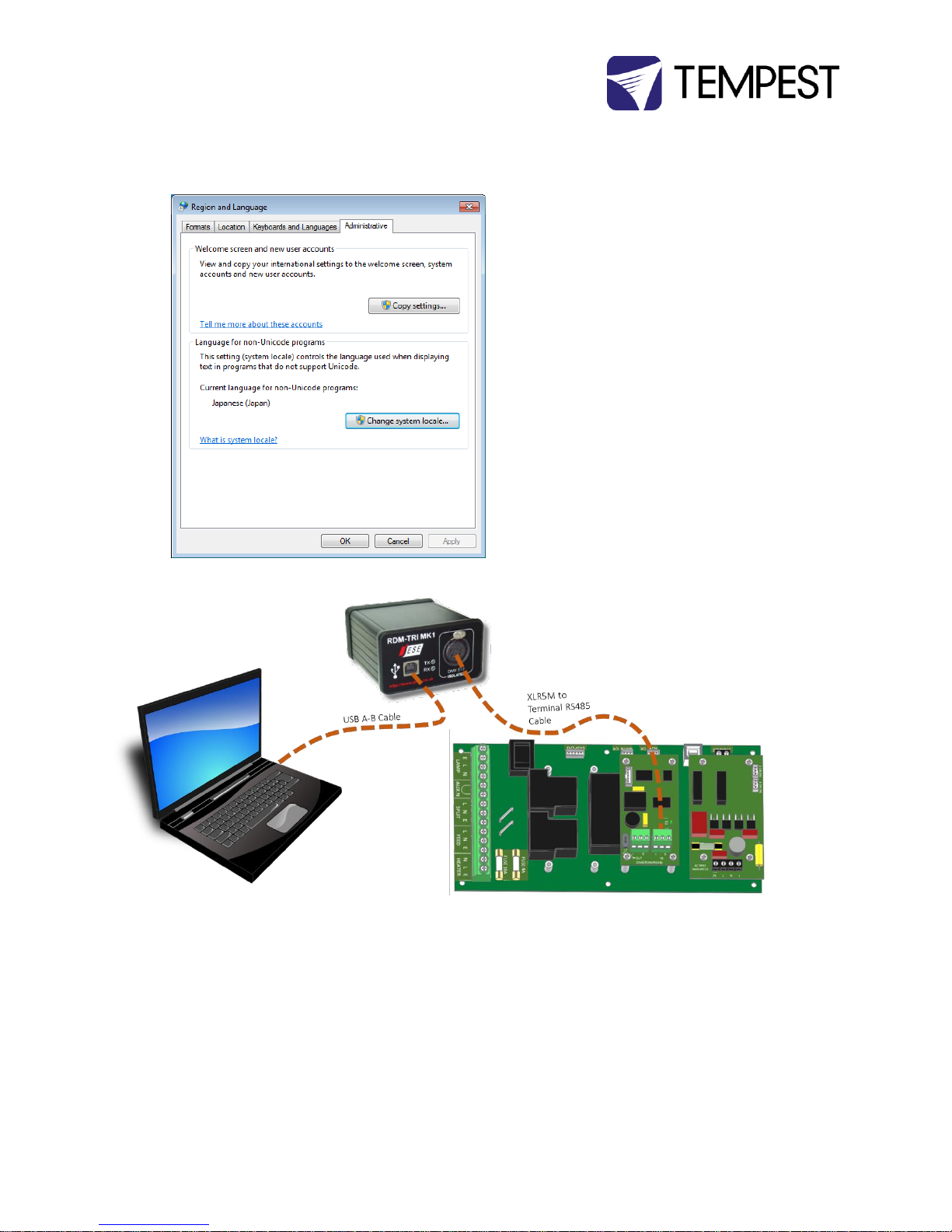

JESE RDM-TRI interface connects to

a PC via USB to monitor and control

a network of Tempest enclosures.

Tempest Item # 2000.195

RS485 Line
Termination
(LT) Switch:

TERMINATED

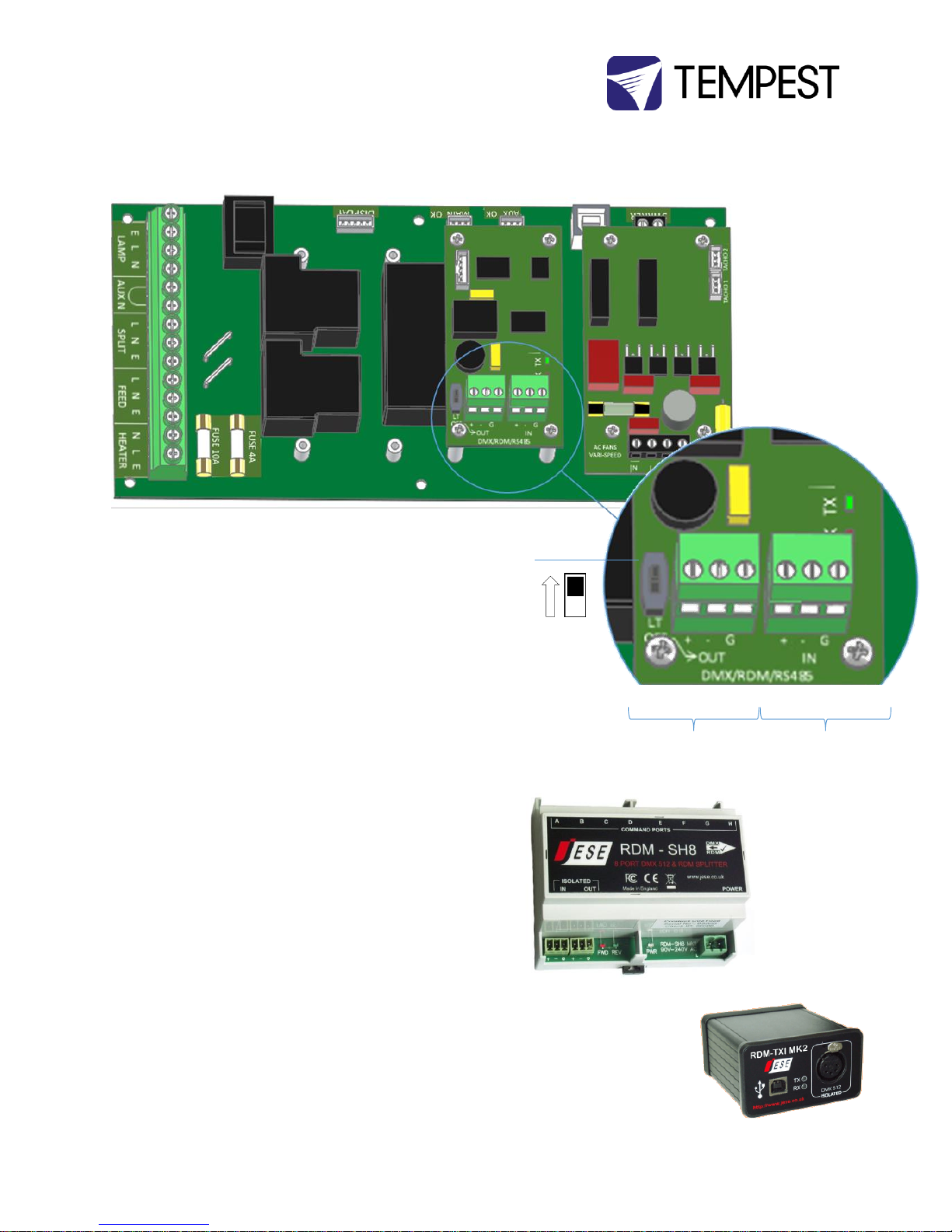

Data + Data - Common Data + Data - Common

DATA OUT DATA IN

Tempest recommends

the JESE SH8 DMX/RDM

Splitter for large or

complex RS485

networks.

Cyclone G4 User Manual 31

DMX/RDM Network, using JESE RDM-TRI

The 2000.195 JESE RDM-TRI MK2 passes
DMX information from a show control
system to each DEC4 controller.

Set a DMX address for each controller in the
range 1-510. See DEC4 section below for
more information.

Cyclone G4 User Manual 32

Digital Enclosure Control

DEC4TM – that’s Digital Enclosure Control, fourth
Generation – is the brain of your Tempest enclosure. It will
maintain the internal environment in a comfortable
temperature and humidity range, and prevent
condensation – the real killer of outdoor equipment. DEC4
monitors internal and external temperature, humidity and
lamp current at all times, and uses this information to
control the enclosure’s lamp relay, fan(s) and heater(s). It
can report back over an RS485 network, using the RDM
protocol (Remote Device Management), or connect to
your TCP/IP network for remote monitoring amd
management using Tempest’s TEMP protocol.

Schematic

Typical DEC4
configuration, with
Motherboard, fan
control board and
RS485 comms
board

Cyclone G4 User Manual 33

DEC4 Main Functions

1. Sense current to projector (lamp on/off)

2. Record lamp hours

3. Monitor temperature and relative humidity

inside Enclosure

4. Monitor temperature outside enclosure

5. Maintain internal temperature at safe operating

level

6. Maintain relative humidity within safe limits to

prevent condensation

7. Isolate projector in case of unsafe temperature

8. Report status over RS485, RDM, TCP/IP

9. Maintain positive pressure (optional) 24/7 to

prevent ingress of salt air and other
contaminants through the exhaust path

10. Circulates air internally to prevent hot and cold

spots when projector is idle

DEC4 constantly monitors the following parameters:

 Projector/Luminaire current
 Line Voltage
 External Temperature
 Internal Temperature
 Internal Relative Humidity

DEC 3.3’s patented GoldilocksTM algorithm uses a combination

of sensors, heaters and fans to maintain a safe operating
temperature and a safe relative humidity level that will not
allow condensation to take place.

As air is heated it is able to support more moisture without
condensing, so Goldilocks uses heat to raise the air temperature
inside the enclosure in the event that relative humidity
approaches dewpoint.

Factory Settings – Data Modes

In most applications, DEC4 will operate correctly with its
factory default settings, in Basic operating mode.

You do not need to do anything. Please skip to the Power
Connections section below.

 Standard default temperature and humidity settings
 DMX, RDM and Remote Monitoring disabled
 Best for standalone operation

If your needs are more complex, read on.

Cyclone G4 User Manual 34

Other Operating Modes

TEMP Mode

TEMP Operation is now supported with DMX Mode set to BASIC

Monitor Mode

As Basic mode, plus:

• RDM status reporting over RS485

• RDM configuration – settings may be changed remotely or at

the enclosure control panel

Control Mode

As Basic mode, plus:

 Enclosure functions as a 1-channel DMX device, with

remote control of the lamp relay

o DMX level > 75% enables normal relay operation

(normally ON)

o DMX level < 25% disables normal relay operation

(relay turns OFF)

o This allows you to force a hard reset of the lamp relay

in the event of a projector malfunction

 Control mode is recommended for show control

applications, but can be risky in live show operation, since
the DMX slot used for the enclosure MUST be kept high to
prevent the lamp relay from opening.

Service Mode

For trained service personnel only

 Normal operation is suspended and the enclosure

functions as a 3-channel DMX device:

o Lamp Relay (Slot 1)
o Fans (Slot 2)
o Heater (Slot 3)

 Service mode is ONLY for troubleshooting – DO NOT use

Service mode for normal operation.

Cyclone G4 User Manual 35

DEC4 Control Parameters

Temperature and Humidity Ranges

Notes:

1 In moving light enclosures the temperature sensor is located in the exhaust airflow. Temperatures

shown may be higher than those around the projector.

2 We recommend using the factory default settings for several weeks or months before making any

changes. In most cases they will not be necessary.

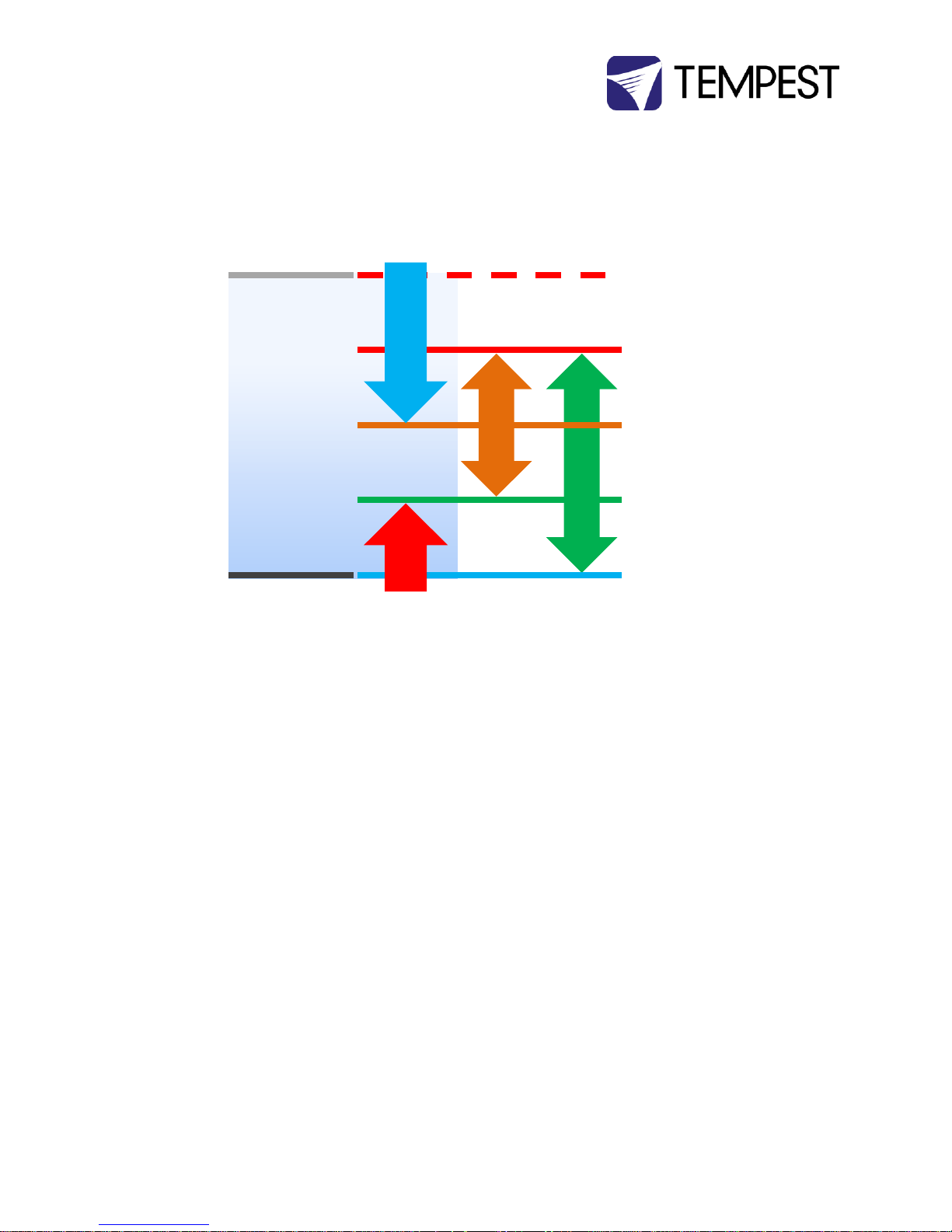

Trip Temp
(55-70˚C, Default 60 ˚C)

Upper Temp
(35-50˚C, Default 40 ˚C)

Trend Temp
(Dynamic)

IdealTemp (Dynamic, based
on Relative Humidity)

LowerTemp
(0-10˚C, Default 0 ˚C)

Cooling Fan(s)

Heater(s)

Relative Humidity

(50-90%,

Default 80%)

Low

High

Cyclone G4 User Manual 36

Control Interface

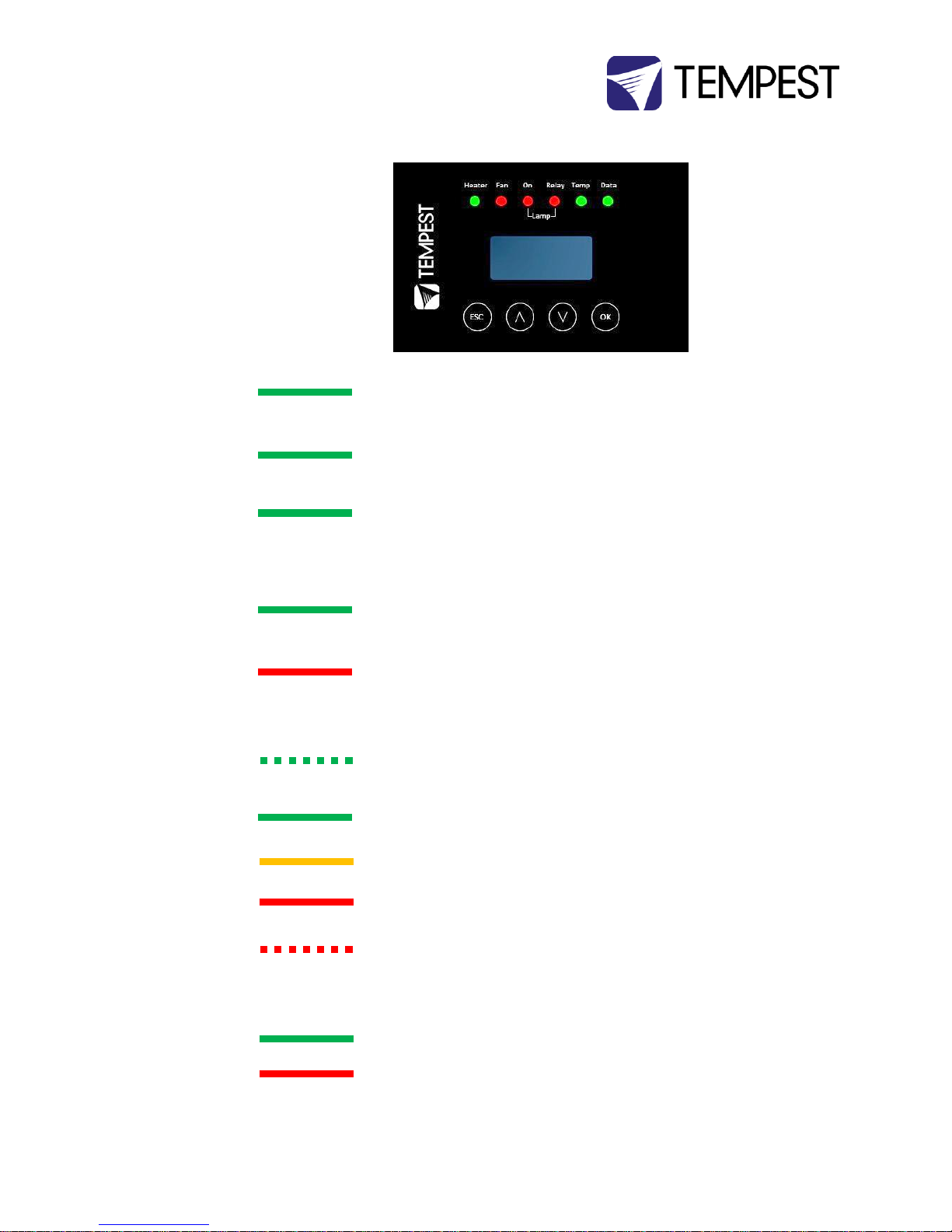

LED Indicators

Heater

ON (Green)

Heater is ON, to maintain lower temperature level or to prevent
condensation

Fan

ON (Green)

Lamp is ON, or Temperature is HIGH and

Fan is cooling enclosure. Short burst when lamp off indicates fan moving air
to stabilize temp/humidity

Lamp On

ON (Green)

Current sensing shows lamp is ON

Lamp hour counter is running

OFF

Current sensing shows lamp is OFF

Lamp hour counter is not running

Lamp Relay

ON (Green)

Lamp relay is closed (normal)

Projector power receptacle is energized

ON (Red)

Lamp relay is open due to over-temperature event. Projector power
receptacle is isolated.

Temp

FLASHING

(Green)

Temperature is below lower temp setting

ON (Green)

Temperature is in normal range

ON (Amber)

Humidity is above target limit

ON (Red)

Temperature is above top setting

FLASHING (Red)

Temperature is above Trip level

Projector power is isolated

Data

OFF

DEC4 is in BASIC Mode – Data not used. OR DEC4 is in TEMP, Monitor or
Control Mode and no valid data packet has been detected.

ON (GREEN)

Good data packet received.

ON (RED)

Control Mode: Data Fail. A previously good data signal has failed.

Monitor Mode: No RDM information being received (this is normal)

Cyclone G4 User Manual 37

User Interface LCD Display

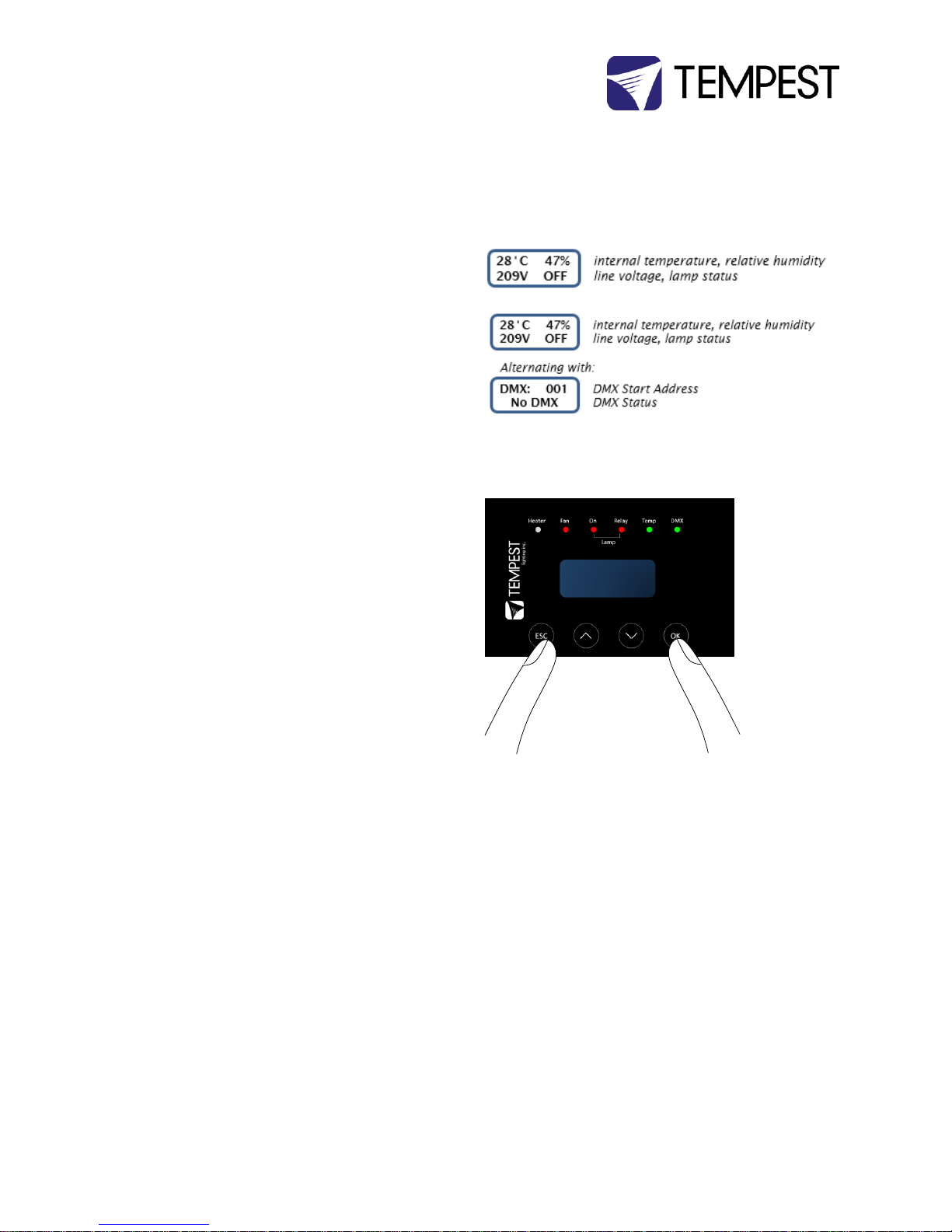

The display on the Control display provides additional status
information, depending on the operating mode:

Basic Mode & Monitor Mode

DMX Mode & Service Mode

Control Interface Operation

The Control Interface is normally LOCKED.

 To UNLOCK, hold ESC and OK together for 5 seconds.
 You are now in the CONTROL MENU
 Use  to scroll up and down the menu.
 Press OK to enter a menu item
 Use  to set the item parameter, or to scroll to the

next menu level.

 Use ESC to go BACK, or OK to confirm settings ( ).
 To LOCK, hold ESC for 5 seconds.

Menu will time out after ten minutes.

Cyclone G4 User Manual 38

Control Menu

Set DMX Options

SET DMX MODE

From the Front Panel, this menu item allows the user to check (and if necessary change) the RDM mode.

BASIC Standalone operation, no DMX/RDM (factory default)

MONITOR Standalone, plus support for RDM remote configuration and monitoring

CONTROL Monitor, plus use of a single DMX slot to control Lamp relay

TEMP Same as Basic, but supports remote monitoring over RS485 with Ethernet adapter and Tempest

TEMP protocol

SERVICE Monitor, plus use of three DMX slots to control Lamp, Heater and Fan

Important: Please ensure that the DEC4 is NOT left in Service Mode.

SET DMX ADDRESS (in Monitor, Control or Service modes)

Select a DMX starting address in the range 001 to 510

1 – Lamp Relay

In Service Mode an addition two slots are available

2 – Fan Duty Control

3 – Heater Duty Control

Note that the DMX control is designed using a SAFETY pile-on Logic. So the DMX input can only override automatic
settings within safe limits.

SET DMX CURVE

DMX Curves affect the way the fixture relay is controlled in Control Mode.

DMX levels are shown as %.

Response Curve 1 (default)

DMX level 0-25 Relay disabled (open)

DMX level 26-75 No change to relay status

DMX level 76-100 Relay enabled (normally closed)

Response Curve 2

DMX level 0-19 No change to relay status

DMX level 20-40 Relay disabled (open)

Cyclone G4 User Manual 39

DMX level 41-59 No change to relay status

DMX level 60-80 Relay enabled (normally closed)

DMX level 81-100 No change to relay status

SET DMX RESPONSE

DMX Response sets a delay time before DMX Control Mode settings are acted on. Setting a response delay of a few
seconds would prevent unintended fixture relay state changes in the event of a short accidental change in DMX
level.

NOTE: from firmware revision 0.00.100, DEC holds last valid DMX level if DMX is interrupted.

Response Delay Values are:

No Delay (default), 1, 2, 5, 10, 15, 20, 30, 60 seconds.

Set Temp Units

Choose to display temperature values in Celsius or Fahrenheit (default Celsius)

Note that temperature settings must be entered in Celsius.

Set Temp Ranges

Set three temperature trigger points for Bottom, Top and Trip temperatures, in °C.

SET TEMP LOWER (minimum temperature to be maintained)

(default 0°C, permissible range 0-10°C).

SET TEMP UPPER (maximum desired temperature)

(default 40°C, permissible range 35-50°C).

SET TEMP TRIP (temperature at which load will be isolated – see note)

(default 60°C, permissible range 55-70°C).

SET DELTA T (target difference between outside and inside temperature – drives fan speed)

(default ON (constant 100% fan speed), permissible range 2-10°C).

Note: A thermal emergency is when enclosure ventilation fails with the lamp on, in which case the temperature will
rise very quickly. To avoid nuisance tripping we recommend setting a higher Trip temperature, 60°C or above.

Set Lamp On Point

The lamp current at which DEC detects the projector/luminaire lamp is running. Default is 1 Amp, which allows for
equipment fans and power supplies to run without changing the air in the enclosure. Lamp on point may be set in

0.2 Amp increments between 0.2 Amps and 2.0 Amps.

Reset Lamp Hours

Reset each time you change the lamp in the projector.

Make this a part of your maintenance instructions.

Cyclone G4 User Manual 40

Status Display

View current status information, using the arrow keys to scroll through:

a) Humidity – relative humidity in %

b) Air temperature, in degrees C or F

c) PCB temperature (this will usually be significantly higher than air temperature)

d) Voltage – line Voltage reaching the DEC

e) Current being drawn by projector/light, in Amps

f) Lamp Hours elapsed since last reset

g) Firmware version

Cyclone G4 User Manual 41

DEC4 Firmware Updates

From time to time Tempest may introduce new DEC4 firmware for feature enhancements and bug fixes. Please note that the

main System Control Board (SCB) and the various optional daughter boards each have their own firmware, and it will be good

practice to update all firmware in an enclosure for optimal performance and interoperability.

 System Control Board firmware may be updated DIRECTLY using JESE JUST software and a USB cable, or INDIRECTLY,

over an RDM network, using JESE GETSET software and a JESE RDM-TRI interface.

 Fan board firmware is extremely simple and is unlikely to require updating.
 RS485 Board (51.485) firmware may be updated over an RDM network, using JESE GETSET software and a JESE RDM-

TRI interface, or

Indirect Firmware Updates

Requirements

Windows Laptop / PC, Windows XP through Windows 10

A JESE RDM-TRI or RDM-TXI interface and USB connection (available from Tempest).

An installed version of the JESE GetSet RDM configuration utility.

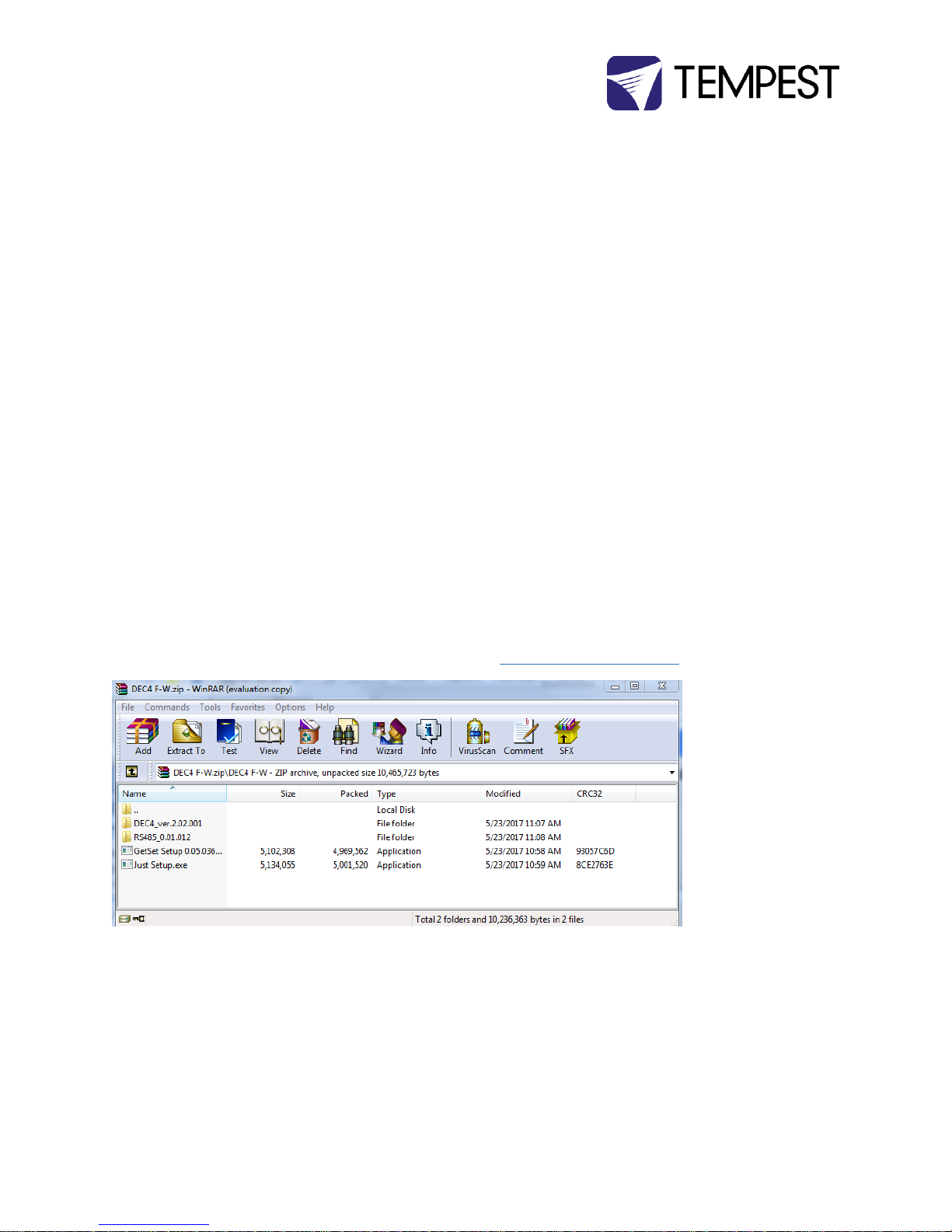

A copy of the firmware file(s) to upload, available for download from www.tempest.biz/tech_support.

Powered Target DEC4 with 51.485 RS485 communication interface card.

Installation Procedure

1. If not already installed, install a copy of GetSet. To ensure that the correct USB drivers are loaded, the software should

be installed and the PC/Laptop re-started before connection to an RDM-TRI.

2. In Windows 7, go to control panel and select Region and Language. Ensure input locale for non Unicode programs is set

to a non Asian language

Cyclone G4 User Manual 42

3. Plug you RDM-TRI in to your PC

4. Power up the target SCB, ideally with mains power, or alternatively, with a USB power adaptor connected to the USB

Port on the SCB.

5. Connect the RDM-TRI to the RS485 connection on the DEC4 communications board with the fly lead.

Cyclone G4 User Manual 43

6. If the DEC ‘DATA MODE’ is set to ‘RS485 TEMP’, select an alternative mode with an RDM option. Select the data mode

from the DEC user display.

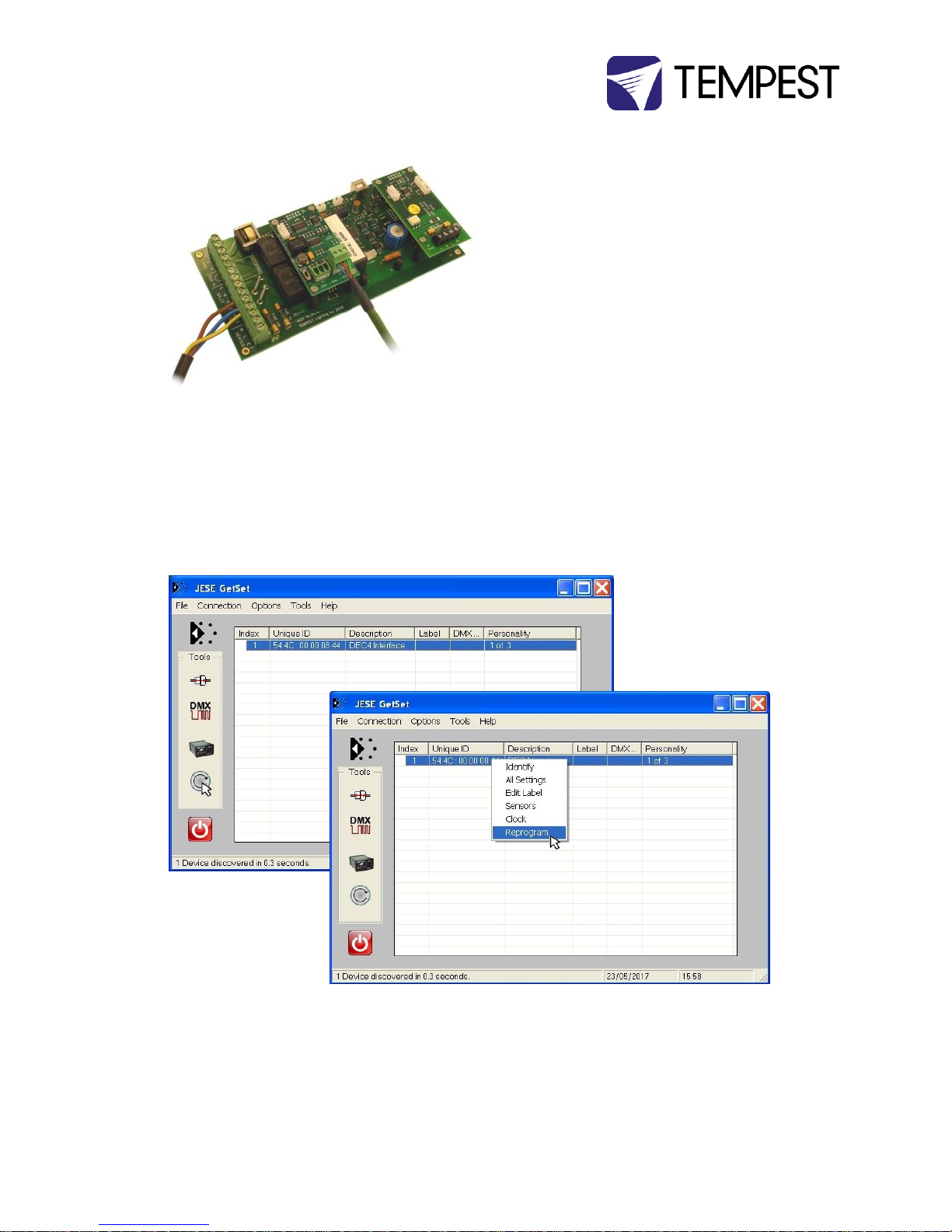

7. Open the GetSet application, connect to the RDM-TRI and discover the DEC. To run discovery, click the Icon indicated

below

8. Right click on the highlighted item in the list view and select ‘Reprogram’ from the popup menu. This will open the

firmware upload tool.

Cyclone G4 User Manual 44

9. In the Firmware upload handler, search for a file to upload by clicking the file icon. Find and select the file to load and

click the Open button.

10. On returning to the File upload tool window, select the green upload arrow to initiate the upload process. The upload

will the start.

Cyclone G4 User Manual 45

11. On successful completion of upload and restart, the firmware upload is complete.

Repeat from stage 8 to 11 for each additional file to upload.

On completion of the upload, dismiss the upload window and return to the main window.

Close the application and disconnect the USB Cable from the SCB

Important:

If the Tempest enclosures are connected to an RDM interface or controller, set the DATA MODE for each enclosure as follows:

RDM MONITOR ONLY To view status information over RDM

RDM + CONTROL To monitor and over RDM and control the Lamp/Projector relays via DMX

If the enclosures are connected to an Ethernet network for monitoring using the Tempest TEMP protocol, set the DATA MODE

for each enclosure to RS485 TEMP.

Cyclone G4 User Manual 46

Mounting the Projector

Enclosure Configuration

Landscape Configurations

Cyclone’s projector slide may be factory configured as

follows:

 Tabletop – tray down – projector sits on its feet
 Ceiling – Tray up – projector hangs from the

tray, feet up

 Front Slide – projector slides out of the

enclosure front door

 Rear Slide – projector slides out of the back

door

This configuration can be changed on site, but it’s a lot of
work!

We recommend making sure the system is ordered with
the desired configuration set up in the factory.

Portrait Configurations

Most Cyclone enclosures may be specified in portrait
format (this depends on the desired projector being
approved for portrait orientation).

Most projectors that are approved for portrait operation
may only be used in one orientation (feet left or feet
right). Your Cyclone enclosure will be factory configured
to suit the specified projector orientation.

Cyclone Portrait enclosures may be manufactured with
front or rear slide, just like landscape enclosures.

Tabletop, Front Slide

Tabletop, Rear Slide

Ceiling, Front Slide

Ceiling, Rear Slide

Portrait enclosures may
be front or rear slide.
The projector must be
mounted to comply
with manufacturer
specification for portrait
operation.

Cyclone G4 User Manual 47

Projector-specific Mounting

All Cyclone enclosures are projector-specific.
Some projectors require special mounts and/or
exhaust baffles.

Be sure to check for your projector in the
Projector-specific information below.

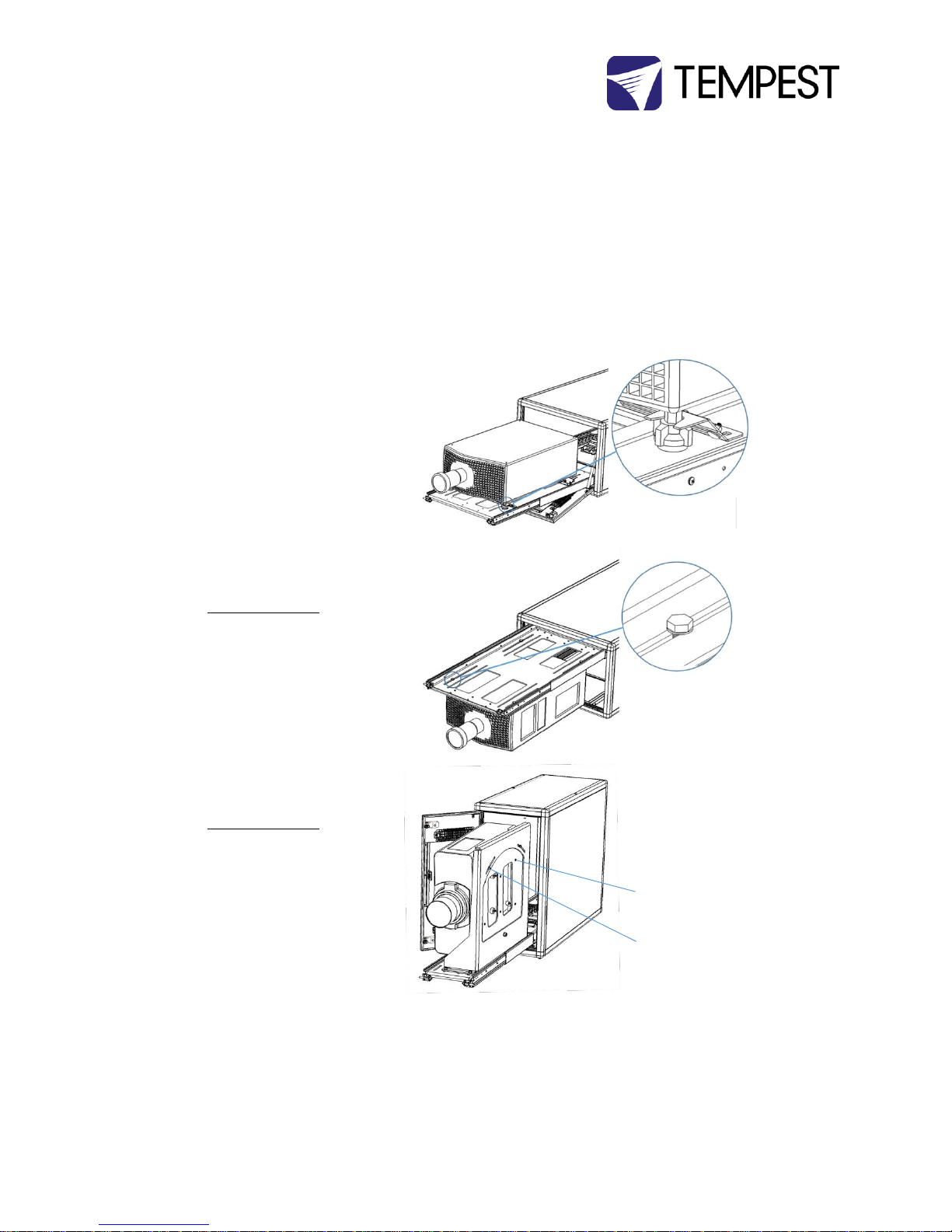

Mount the Projector – Tabletop

(1) Slide out the projector tray and set

the projector in place

(2) Slide the projector clamps up to the

projector feet, adjust and tighten all
nuts and bolts

Mount the Projector – Ceiling

(1) Slide out the projector tray
(2) Have two or more people hold the

projector in place, and secure with
the screws provided through the tray
slots into the threaded holes in the
projector base (these vary by
projector type)

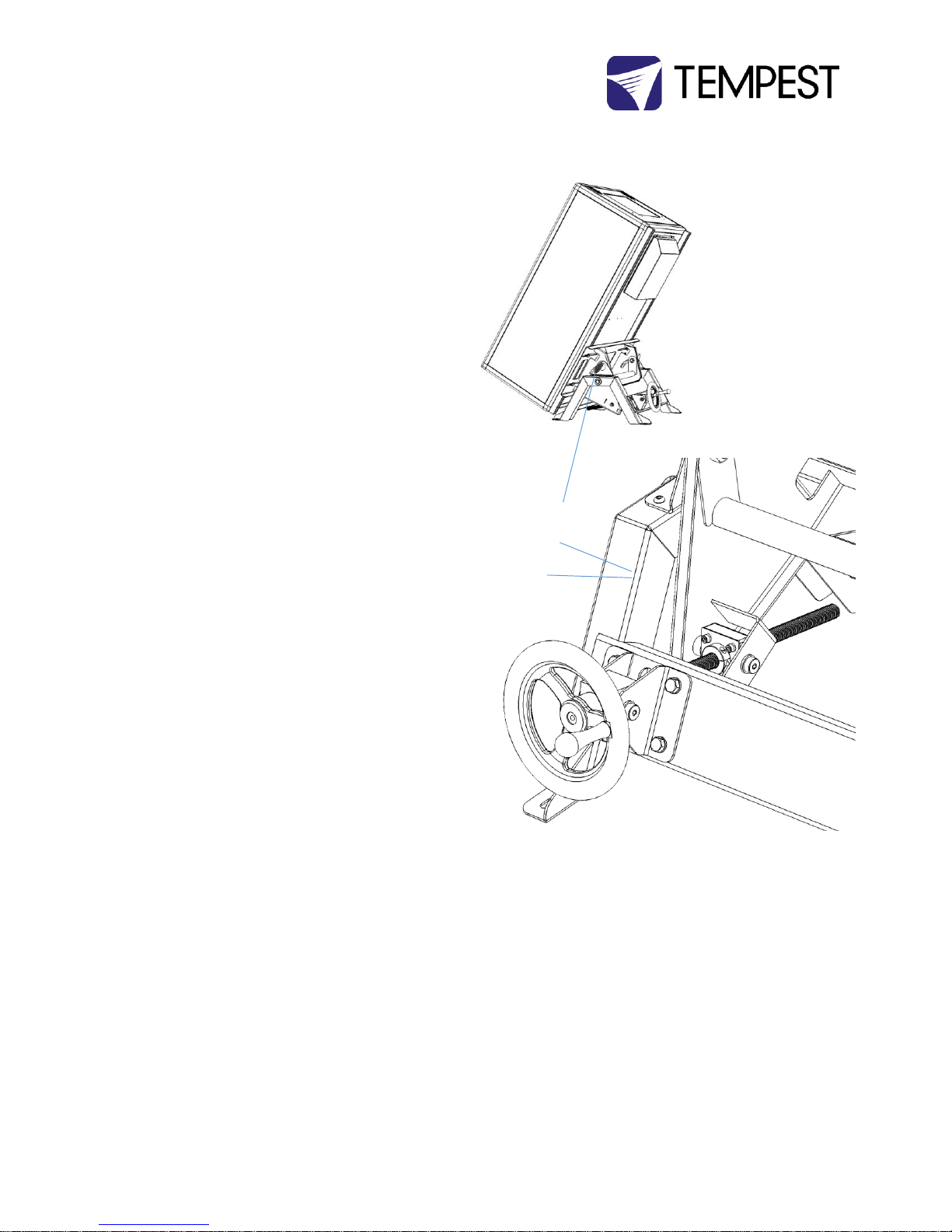

Mount the Projector – Portrait

(1) Slide out the projector tray
(2) Have two or more people hold the

projector in place, and secure with
the screws provided through the
adjustable mounting plate into the
threaded holes in the projector base

Projector attaches to
mounting plate with
screws supplied.

Mounting plate allows
+/- 7.5° tilt adjustment.
Use lens shift for pan
adjustment.

Cyclone G4 User Manual 48

Connect Projector and Aux
Equipment

(1) Feed the projector power and signal

cables through the cable
management track

(2) Connect the projector power cable

into the

(3) Connect all cables and test projector
(4) Install any auxiliary equipment –

there is usually plenty of room under
the projector tray

(5) Connect aux equipment power

supplies to one of the C13 outlets on
the DEC box. Use the supplied
rewireable C14 plugs if necessary.

YOU MUST CONNECT THE PROJECTOR TO THE
PROJECTOR OUTLET. IF THE PROJECTOR FEED
BYPASSES THE DEC CONTROLLER, THE
VENTILATION SYSTEM WILL NOT WORK AND
THE PROJECTOR WILL OVERHEAT.

Projector-specific Mounting

All Cyclone enclosures are projector-specific.
Some projectors require special mounts and/or
exhaust baffles. Be sure to check for your

projector in the Projector-specific information
below.

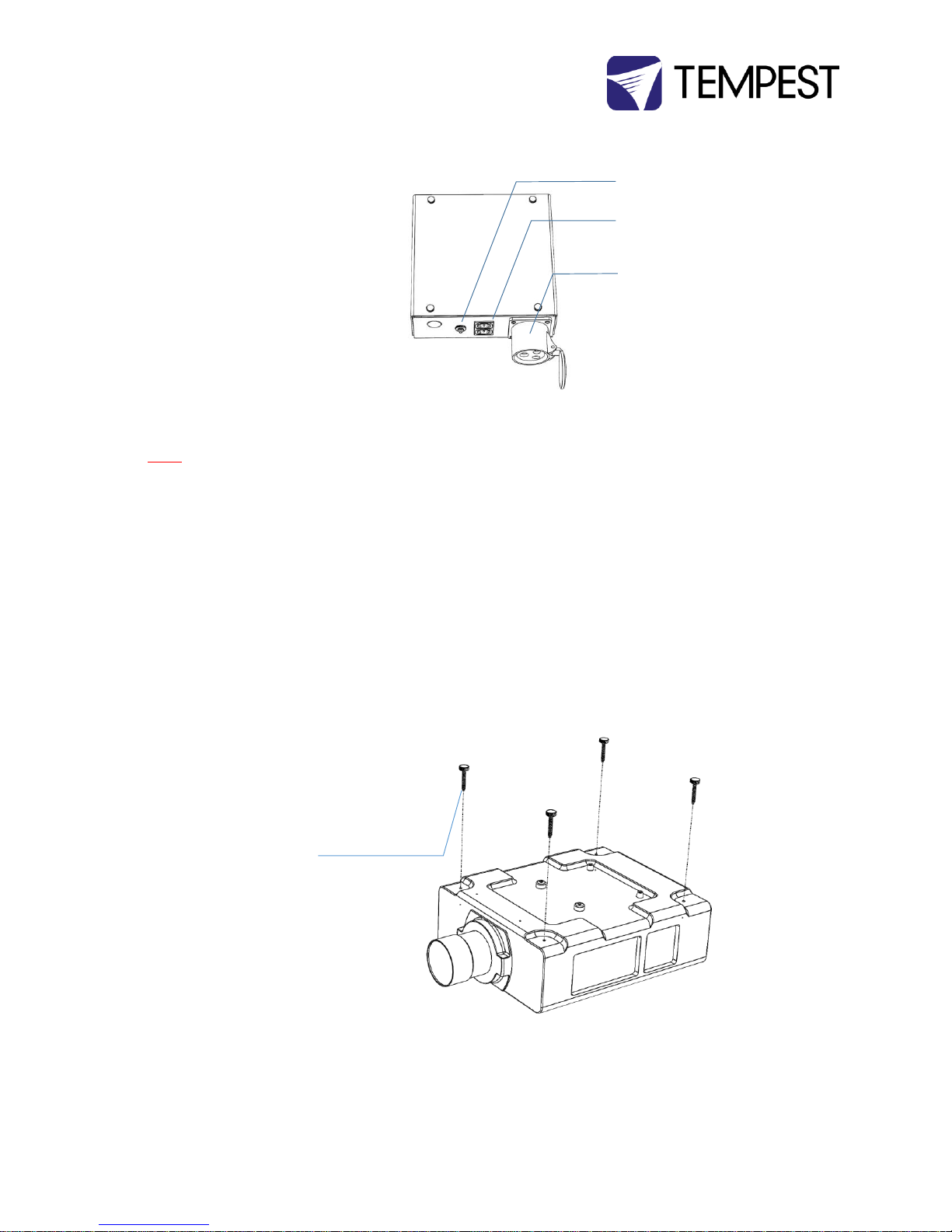

Panasonic PT-DZ21K Family

(1) Flip the projector onto its back and

remove the four adjustable feet –
the Tacit projector clamps cannot
grip them

(2) Replace with the four M10

Thumbscrews provided

10A current trip for Aux
Outlets

Aux Outlets:
US Models: 120V, 10A
IN Models: 230V, 10A

Projector Outlet –
connector types vary.

Cyclone G4 User Manual 49

Christie J-Series/Roadster Family

The lamp exhaust from these projectors
requires a special chimney (provided) to direct
the hot air into the enclosure exhaust fan.

Adjust so that the rubber bulb seal around the
chimney is seated snugly to the projector lamp
door.

Failure to follow this step will very likely lead to
hot air recirculating and serious overheating.

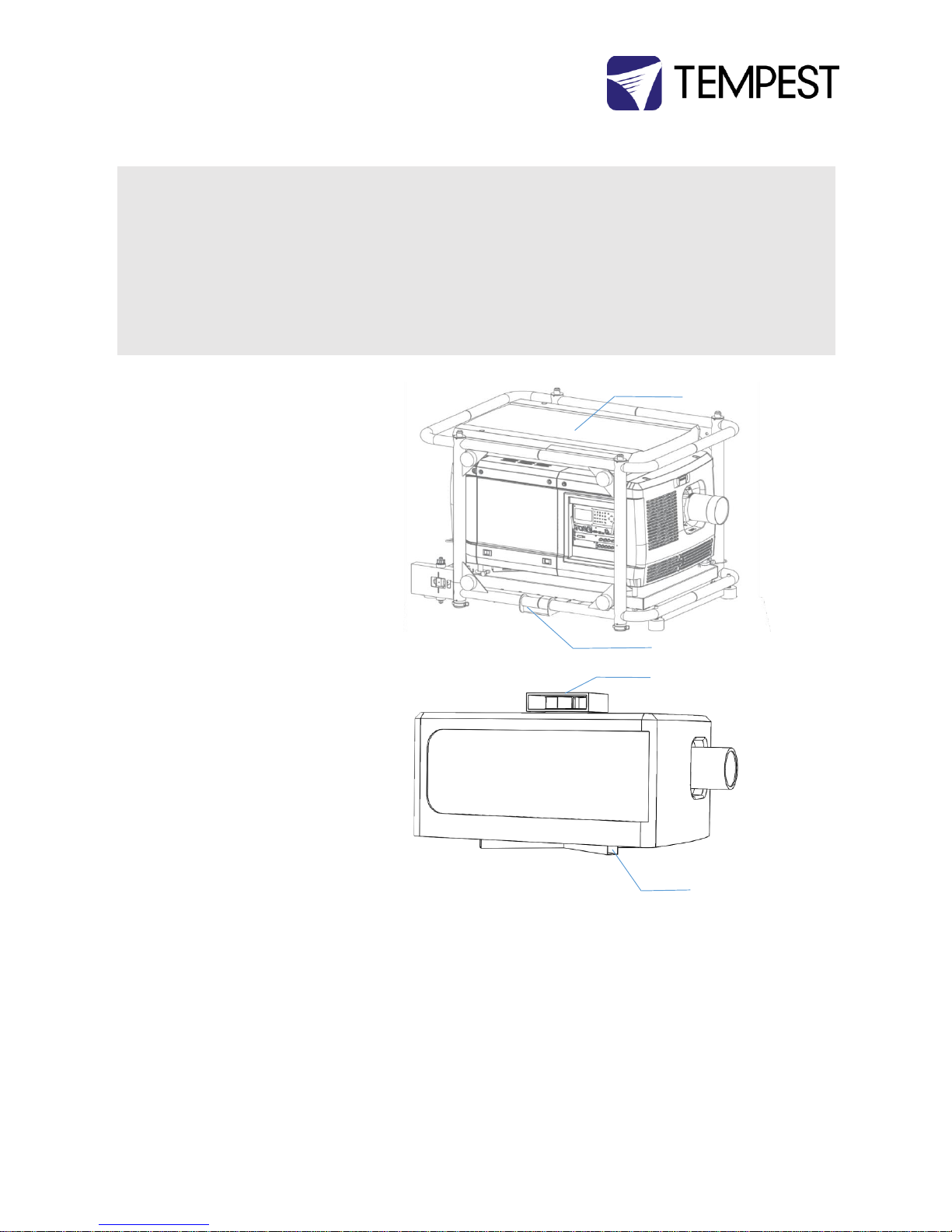

Christie Boxer – Portrait Mode

The Boxer frame is actually quite similar to the
Cyclone enclosure frame – it has a M12-1.75
socket at each corner, top and bottom.

The portrait Cyclone 55.300.P includes a pair of
mounting brackets to mount the projector,
using four M12 bolts (supplied) to attach to the
threaded holes in the projector frame (below).

The projector exhaust fans blow into the
exhaust baffle (right), attached to the rear
projector mount, Adjust the baffle flap so that
the exhaust air is directed into the exhaust fan
on the back door.

Locking knobs to adjust

front-to-back

positioning

M12 mounting bolts –

note that the three sets
of holes and slots allow
height and some tilt
adjustment

Exhaust Baffle

Flap

Cyclone G4 User Manual 50

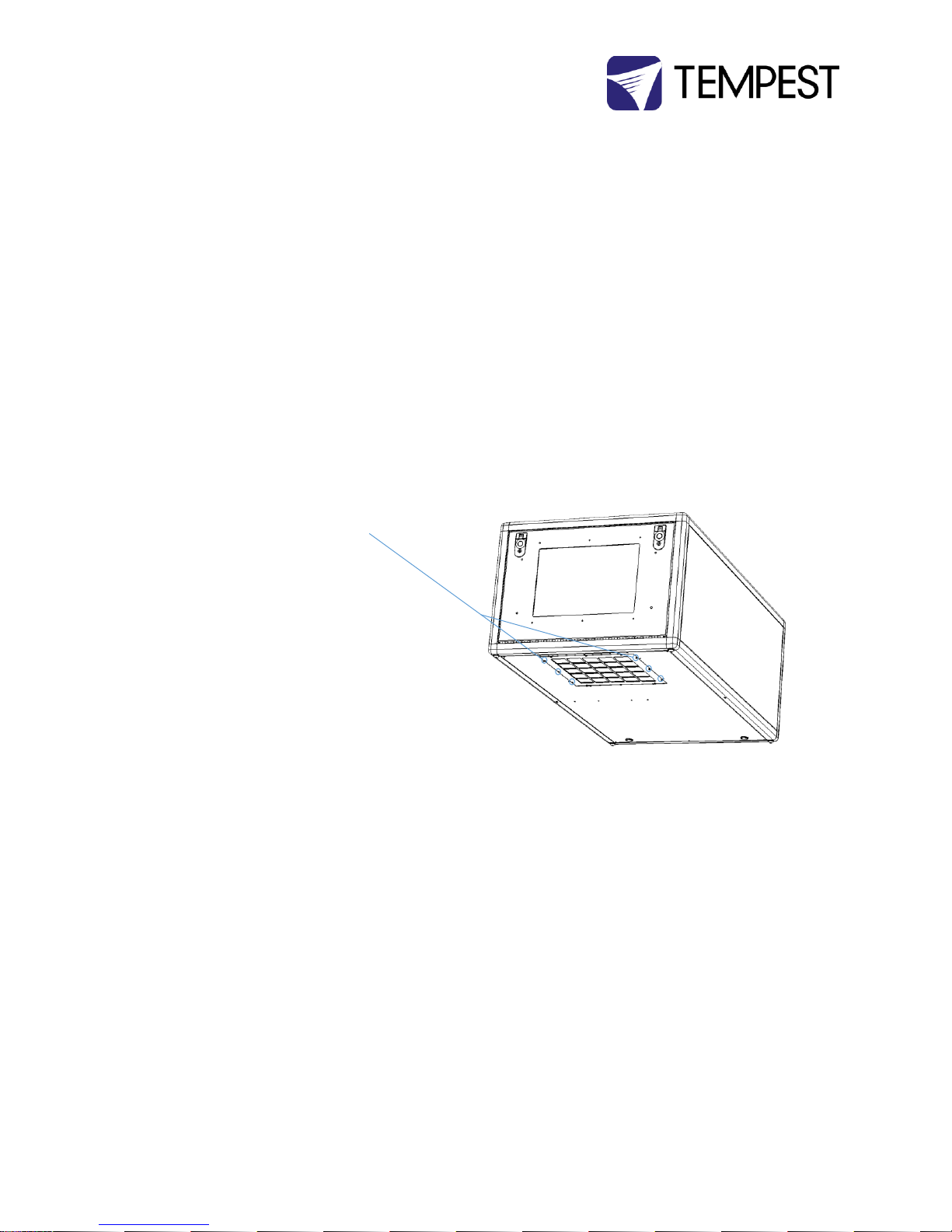

Barco HDX

The lamp exhaust from this projector requires
a special chimney (provided) to direct the hot
air into the enclosure exhaust fan.

Adjust so that the rubber bulb seal around the
chimney is seated snugly around the projector
lamp exhaust (a vertical slot in the back of the
projector).

Failure to follow this step will very likely lead to
hot air recirculating and serious overheating.

Barco HDQ

These projectors (mounted in Cyclone 8500
enclosures), require some modification prior to
installation.

1. Remove projector from Rigging

Frame, following manufacturer’s
service instructions

2. Remove air diffuser cover, following

manufacturer’s service instructions

What remains is the projector, with a
tangential blower fan on the top of the lamp
chimney.

Set the projector on the Cyclone enclosure
tray, and secure in place using the clamps
provided, locating into the X-frame on the
projector base.

Note that pan adjustment may be achieved by
moving the projector right or left on the
enclosure tray. Tilt adjustment must be
achieved using projector lens shift.

Barco HDQ projectors require a three-phase
electrical supply – see three-phase wiring
instructions

Air Diffuser Cover

Assembly

Rigging Frame
Tangential Fan

X-Frame

Cyclone G4 User Manual 51

Routine Maintenance

Check the following every six months:

Clean Port Glass

Clean port glass using a window cleaning fluid or detergent.
Use a soft, lint free cloth.

Check Filter

In most cases the filter will be good for 1-2 years. If the
filter becomes clogged the temperature inside the
enclosure will start to rise. This is an indication that the
filter must be changed.

Part Numbers:

51.HF.15 Cyclone 55.200-350 Replacement Filter

51.HF.22 Cyclone 55.400 and up Replacement Filter

To replace filter from below

1. Remove the filter clamp screws.

2. The filter will drop out.

3. Replace filter and filter clamp.

To replace the filter from inside the enclosure

1. Remove both side panels

2. Slide the projector tray out

3. Remove the eight M4 nuts holding the filter

assembly

Cyclone G4 User Manual 52

4. Remove the filter clamp screws

5. Replace the filter and filter clamp

6. Replace the filter assembly

Check Temperature/Humidity Sensor

If the sensor above the port glass is defective, the
controller may not operate correctly. A defective sensor
will result in one of three messages appearing on the DEC
user interface.

If you see any of these messages, contact Tempest for a
replacement sensor.

RH: 5%

RH: 100%

RH: ####

For After Sales Support

Contact your Tempest dealer or email [email protected]

Filter Assembly

Filter Clamp

Filter

Filter Gasket

Filter Frame

Filter Nuts

Filter Clamp Screws

Cyclone G4 User Manual 53

Troubleshooting

Projector does not have power:

1. Check Projector power switch

2. Check projector is plugged into DEC4 projector

outlet

3. Check that enclosure feed circuit is on

4. Check DEC4 User Interface leds are on. If feed

circuit is on and UI leds are off, check feed wiring
to DEC terminals and meter DEC4 projector outlet
for power

5. If UI lamp led is on and DEC4 projector outlet is

live, there is a projector fault.

Enclosure overheats:

1. Is the projector connected to the DEC4 projector

receptacle? If the projector is powered
independently the controller has no way to know
when to turn on the exhaust fans!

2. Is the filter clogged or obstructed?

3. Check that the Fan led on the UI is on when the

projector is running. If not, then the projector is
probably not connected to the DEC (see 1).

4. If the fan led is on, check that the fan is running. If

not, check fan wiring. If wiring is ok, fan may be
faulty.

5. Check the UI display for RH (relative humidity)

message. If display reads RH 5%, RH 100%, or
RH###, there is a sensor fault. Contact Tempest
for a replacement sensor.

Dirt/Debris inside enclosure

1. Filter is either missing or damaged?

2. Filter is not properly seated

3. Side panels or back door is not firmly latched

Water in enclosure

1. Check the drain holes in the bottom of the

enclosure. If they become blocked, and water
that gets in cannot escape.

2. Check seals around side panels and back door

Fan LED is on but fans do not operate

The exhaust fan is protected by a 20mm 4A slow-blow
fuse on the DEC4 motherboard, and a secondary fuse
on the fan board. In very exceptional cases it is
possible that either fuse could fail. Check visually.

The fuse is protected with a clear resin sealant and
soldered to the circuit board. With care, you can de­solder the fuse and replace it, but we recommend
replacing the DEC4 motherboard to maintain the
integrity of the board’s conformal coating.

Heater LED is on but heater does not operate

The heater is protected by a 20mm 10A slow-blow
fuse on the DEC4 motherboard. In very exceptional
cases it is possible that it could fail. Check visually.

The fuse is protected with a clear resin sealant and
soldered to the circuit board. With care, you can de­solder the fuse and replace it, but we recommend

Cyclone G4 User Manual 54

replacing the DEC4 motherboard to maintain the
integrity of the board’s conformal coating.

None of the above?

Contact [email protected]

Cyclone G4 User Manual 55

Warranty

INSPECTION/WARRANTY/RETURNS.

A. Customer, at its sole expense, shall inspect all Goods promptly upon receipt and accept all Goods that conform to the
specifications or catalog. All claims for any alleged defect in or failure of the Goods or Seller's performance to conform to the
Contract, capable of discovery upon reasonable inspection, must be set forth in a written rejection notice detailing the alleged
non-conformity, and be received by Seller within thirty (30) calendar days of Customer's receipt of the Goods. Failure by
Customer to notify Seller of the alleged non-conformity within thirty (30) days will be conclusive proof that the Goods have
been received by Customer without defects or damage, and in the quantities specified on the bill of lading and shall constitute
an irrevocable acceptance of the Goods and a waiver of any such claim in connection with the Goods.

B. Seller warrants to Customer only that the Goods will be free from defects in material and workmanship at the time of
delivery and, subject to the exceptions and conditions set forth below, for the following period (the "Warranty Period"):
twelve (12) months from the date of shipment by Seller. Seller may provide additional years of warranty coverage beyond 12
months, at the rate of 2.5% of the net sale price per year, up to a total of four additional years’ coverage beyond the standard
12 month warranty period. Seller will remedy a defect as set forth in paragraph 7 D, below, (the "Warranty"). The Warranty is
subject to each of the following exceptions and conditions:

1. Customer must promptly (and in all events within the Warranty Period) notify Seller of any alleged defect in a written notice
(the "Notice") which shall set forth the quantity, catalog number, finish, original purchase order number, Seller's invoice
number on which Goods were originally billed and a statement of the alleged defect, along with digital photographs showing
such defects where feasible.

2. The Warranty shall not apply: (i) to any claimed defect that was capable of discovery upon reasonable inspection and
deemed to be waived under paragraph A, above; (ii) to any Goods that have been subject to misuse, abnormal service or
handling, or altered or modified in design or construction; (iii) to any Goods repaired or serviced by any person other than
Seller's authorized service personnel or to Goods installed other than according to installation instructions, or (iv) with respect
to normal wear and tear.

3. Seller makes no Warranty with respect to parts or components that are not the product of Seller, and specifically makes no
warranty whatsoever for equipment housed inside enclosure products manufactured by Seller.

4. The Warranty is Seller's exclusive warranty with respect to the Goods. Seller makes no warranties, guarantees or
representations, express or implied, to Customer except as set forth in this section. ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING, WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR USE OR FOR
A PARTICULAR PURPOSE, ARE HEREBY EXCLUDED AND DISCLAIMED.

C. Seller will accept the return of Goods properly rejected under paragraph A, above, or as to which Notice of an alleged
breach of Warranty has been timely given and such Goods may be returned to Seller, freight prepaid, but only upon
Customer's receipt of Seller's written return material authorization ("RMA") and shipping instructions. The RMA shall be void if
the Goods are not received within 45 days after issuance of the RMA. No deduction or credit in respect of any rejected or
returned Goods shall be taken until Customer has received Seller's further written deduction or credit/authorization following
Seller's inspection to confirm nonconformity or defect. Seller will charge to Customer any and all costs incurred by Seller in
connection with the handling, shipping, inspection and disposition of any returned Goods that are determined by Seller not to
have been nonconforming upon Delivery or as to which the warranty hereunder is not applicable.

D. UPON ANY PROPER RETURN PURSUANT TO PARAGRAPH C, ABOVE, WHETHER IN CONNECTION WITH A REJECTION OF
GOODS OR AN ALLEGED BREACH OF WARRANTY AND BASED UPON THE CONDITIONS SET FORTH IN THIS PARAGRAPH 7,
SELLER AGREES THAT IT WILL, AS THE SOLE AND EXCLUSIVE REMEDY UNDER THE CONTRACT OR OTHERWISE, FOR ANY
NONCONFORMITY OR BREACH OF WARRANTY, AND AT SELLER'S SOLE ELECTION: (i) REPAIR SUCH GOODS; OR (ii) REPLACE
SUCH GOODS.

Cyclone G4 User Manual 56

Appendix – TEMP Protocol

AVAILABLE TO SPECIAL ORDER

Tempest can optionally provide a firmware load that facilitates TEMP over RS485, suitable for interfacing to an Ethernet

adapter. TEMP is a lightweight proprietary ASCII based protocol, intended for rapid integration into management systems.

With TEMP and a suitable RS485 to Ethernet adaptor connected to the DEC DMX connectors, your DEC may be configured and

monitored over an IP network.

Please contact factory for ordering information.

Physical Layer

1. EITHER: Use a 51.EN Ethernet daughter board plugged directly to the DEC4 motherboard, connected to your TCP/IP

network.

2. OR: Use a 51.485 RS485 daughter board on each of a number of DEC4 motherboards, and use one of the convertors

listed below to bridge to your TCP/IP network.

Suitable Converters include:

http://gridconnect.com/rs485-ethernet.html

http://www.audon.co.uk/lan232/ENET485-POE.html

http://uk.rs-online.com/web/generalDisplay.html?id=brainboxes

Developer’s Guide

Download the Developer Guide from www.tempest.biz/tech-support.
