ISD 570
Technical Data Manual
22 pgs609.87 Kb0

TemperZone ISD 380, ISD 670KB-P, ISD 840KB, ISD 950KB, ISD 465 Technical Data Manual

...
Download
Ducted Split System Air Conditioners
Technical Data
ISD 380, 465, 570, 670, 840, 950
Cooling Capacity
37.6kW - 9 4.9kW
Heating Capacity
35. 9kW - 90.1kW
Contents
ISD 380–950
General 3
Applications 4
Air Flow Selection 4
Features
Refrigerant R410A 4
Economical 4
Efficient 4
Quiet 4
Performance 4
Durable 4
Low Maintenance 4
Soft Starting 4
Control Option 5
Insulation 5
Self Diagnostics 5
Optional Equipment
Outdoor Unit 5
Indoor Unit 5
Safety Features 5
Compressor 5
Refrigeration Piping 5
Wiring 5
Plug Fan Advantages 6
Digital Version
Digital Scroll Compressor 6
Extended Capability 6
PERFORMANCE DATA
Cooling Capacity (kW) 7
Indoor Air Flow Correction Factors @ nominal conditions
Pipe Length Capacity Loss 8
Heating Capacity (kW) 9

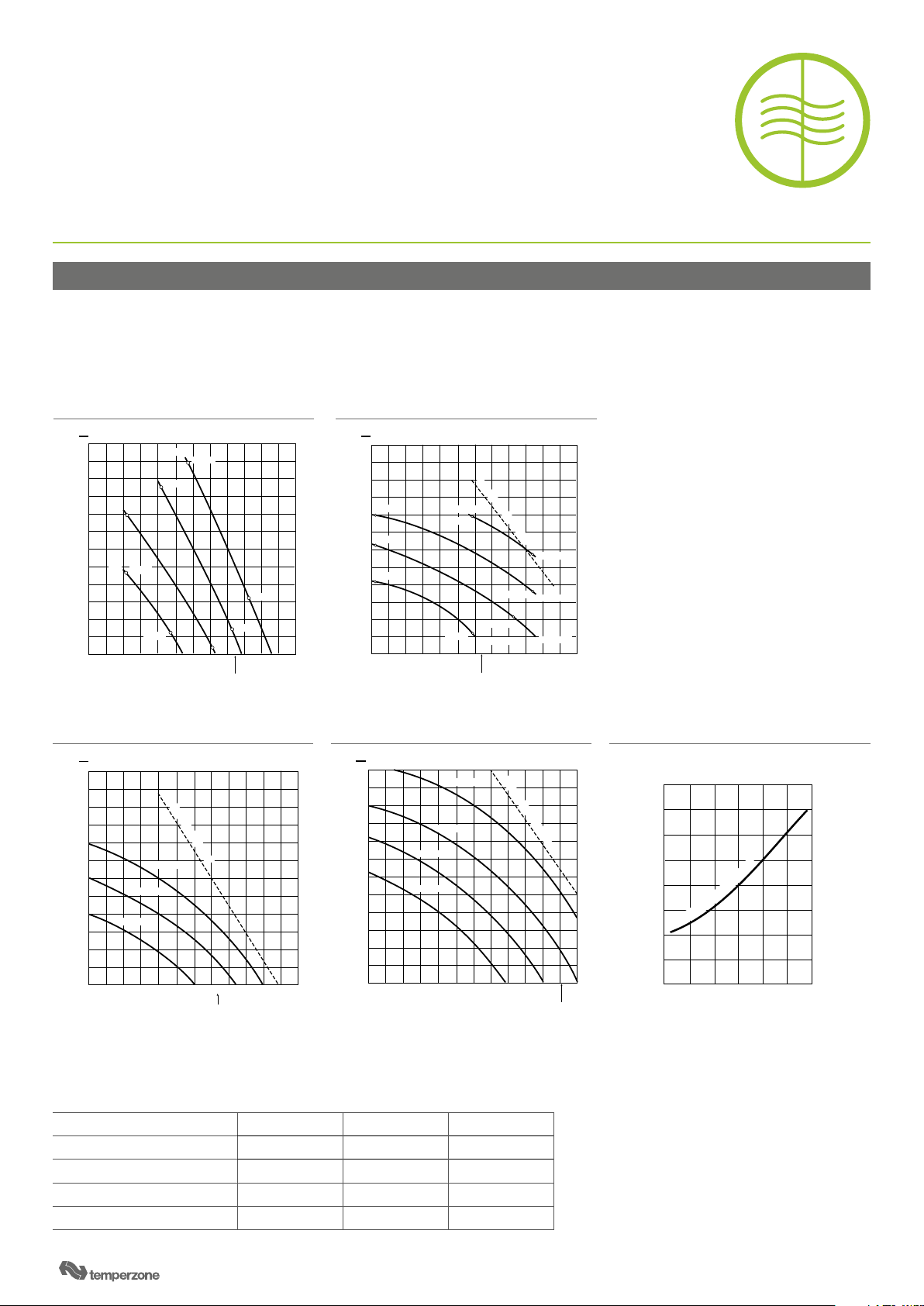

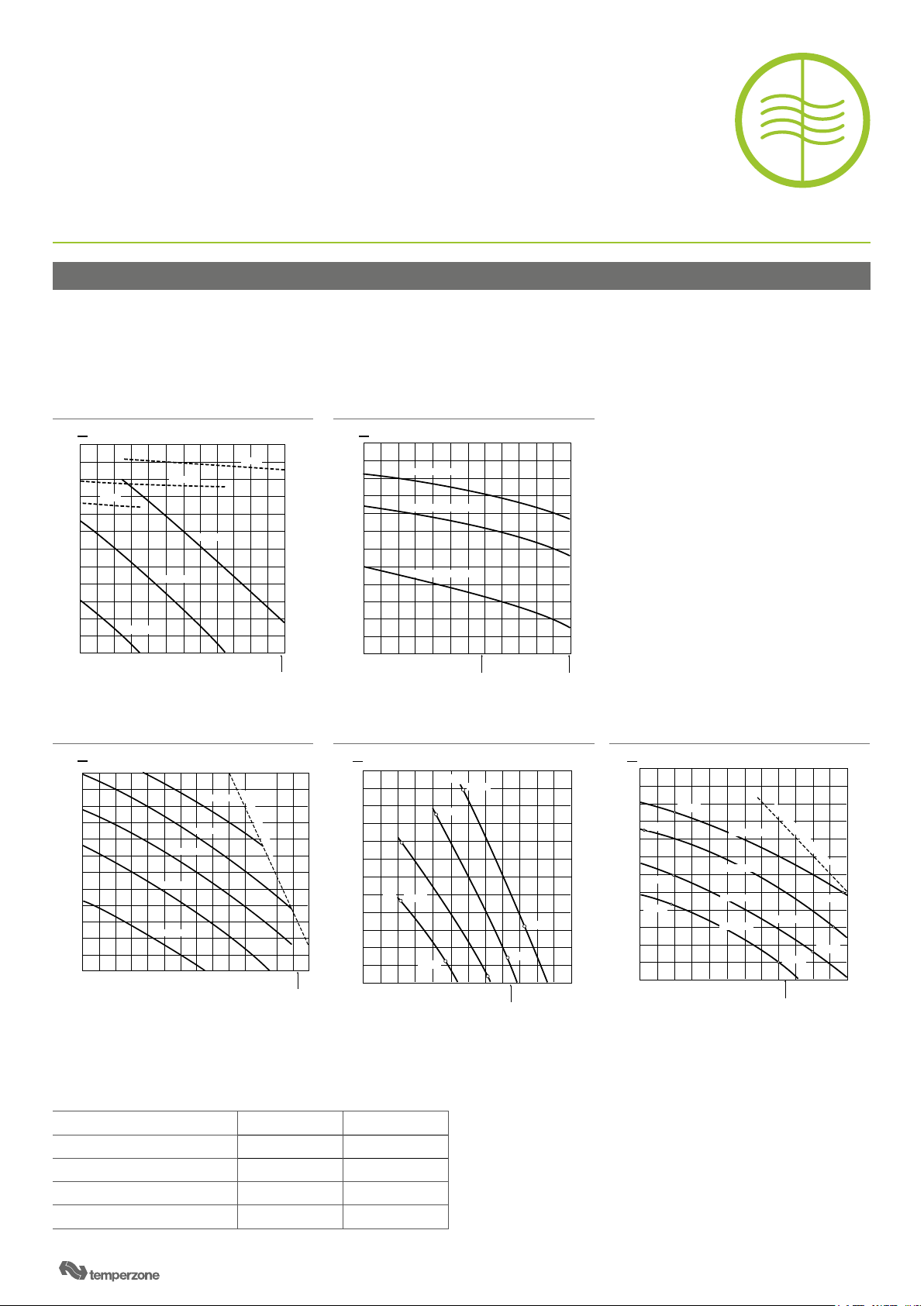

Air Handling 10
Sound Levels 12

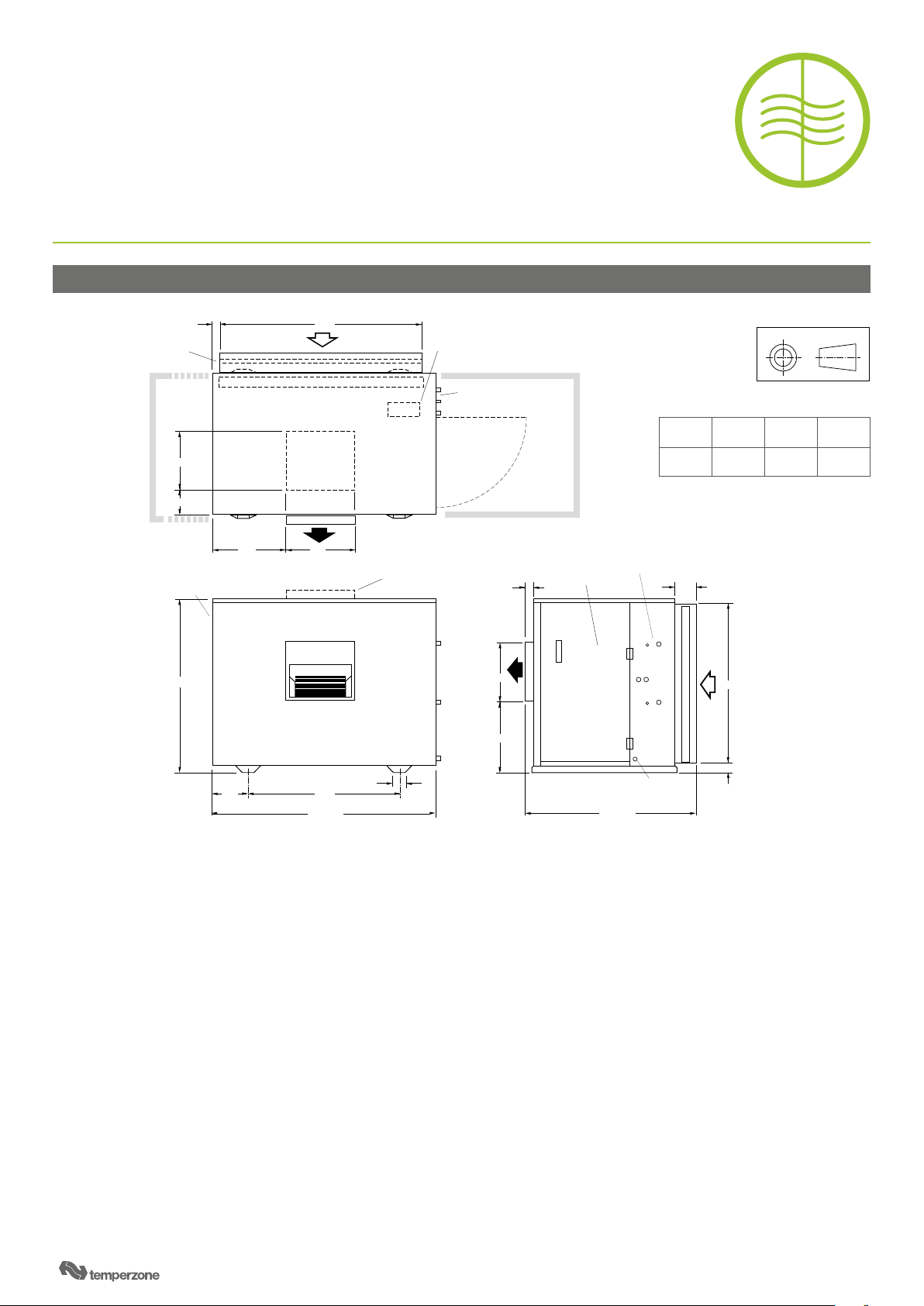

DIMENSIONS (mm)

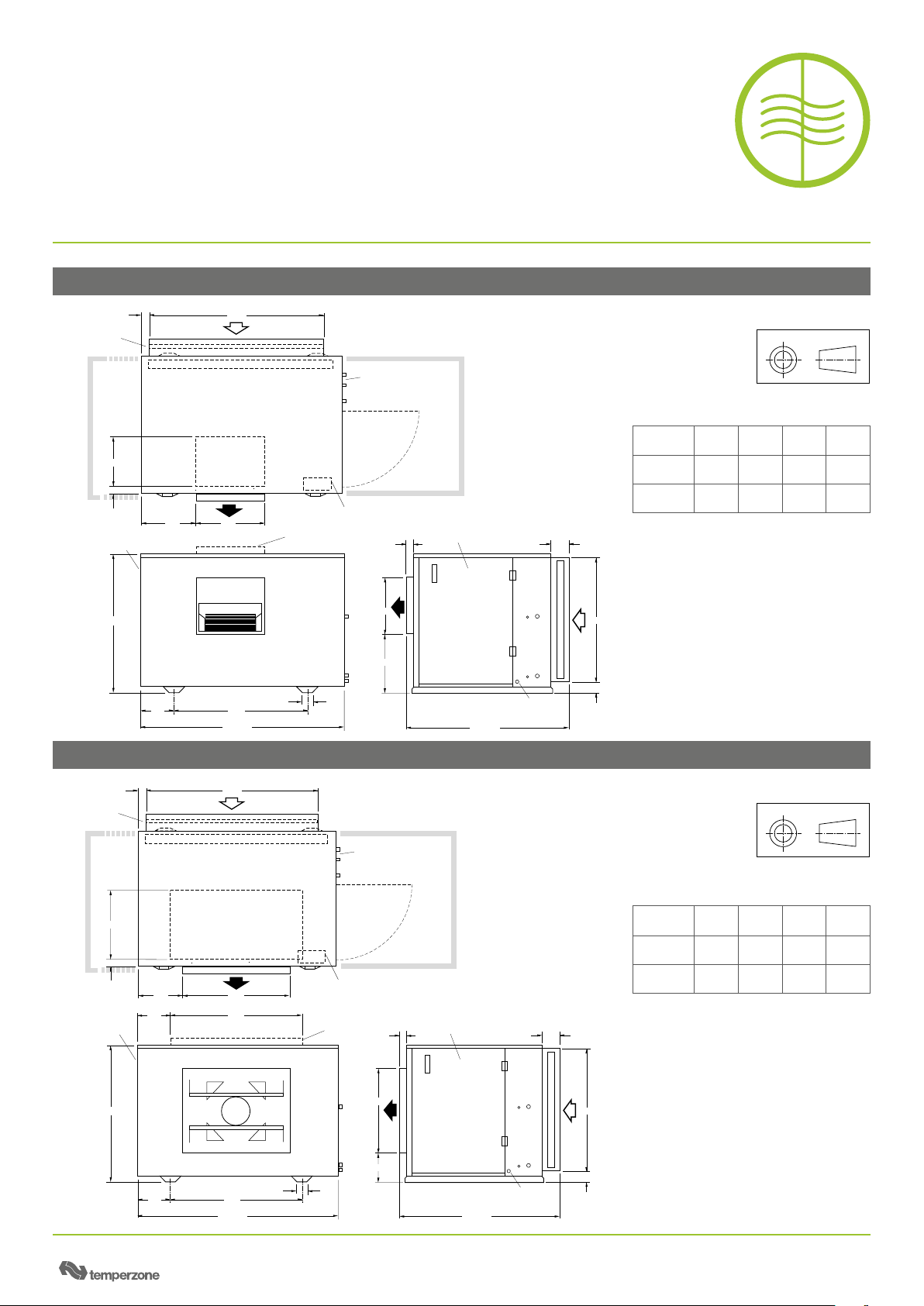

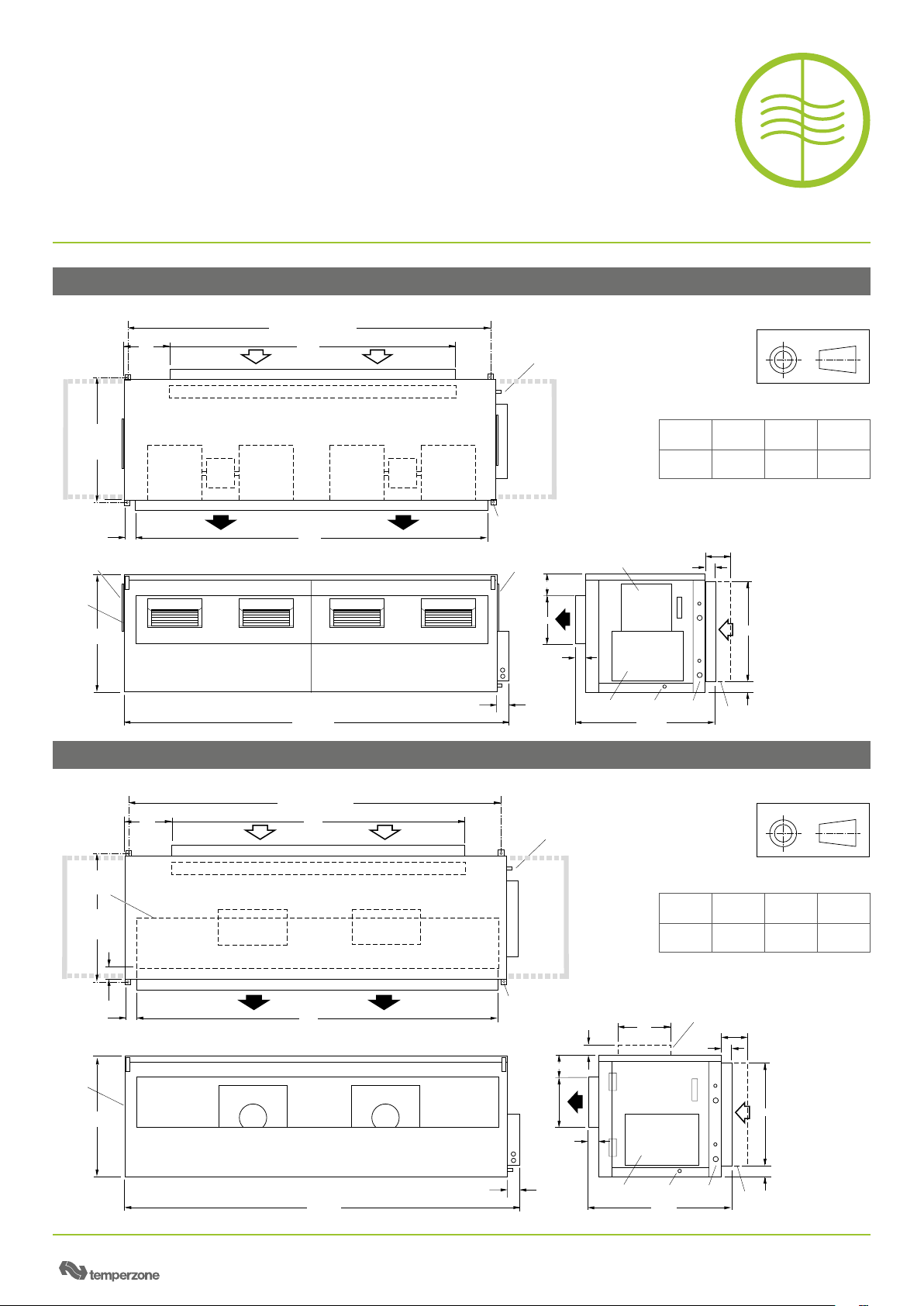

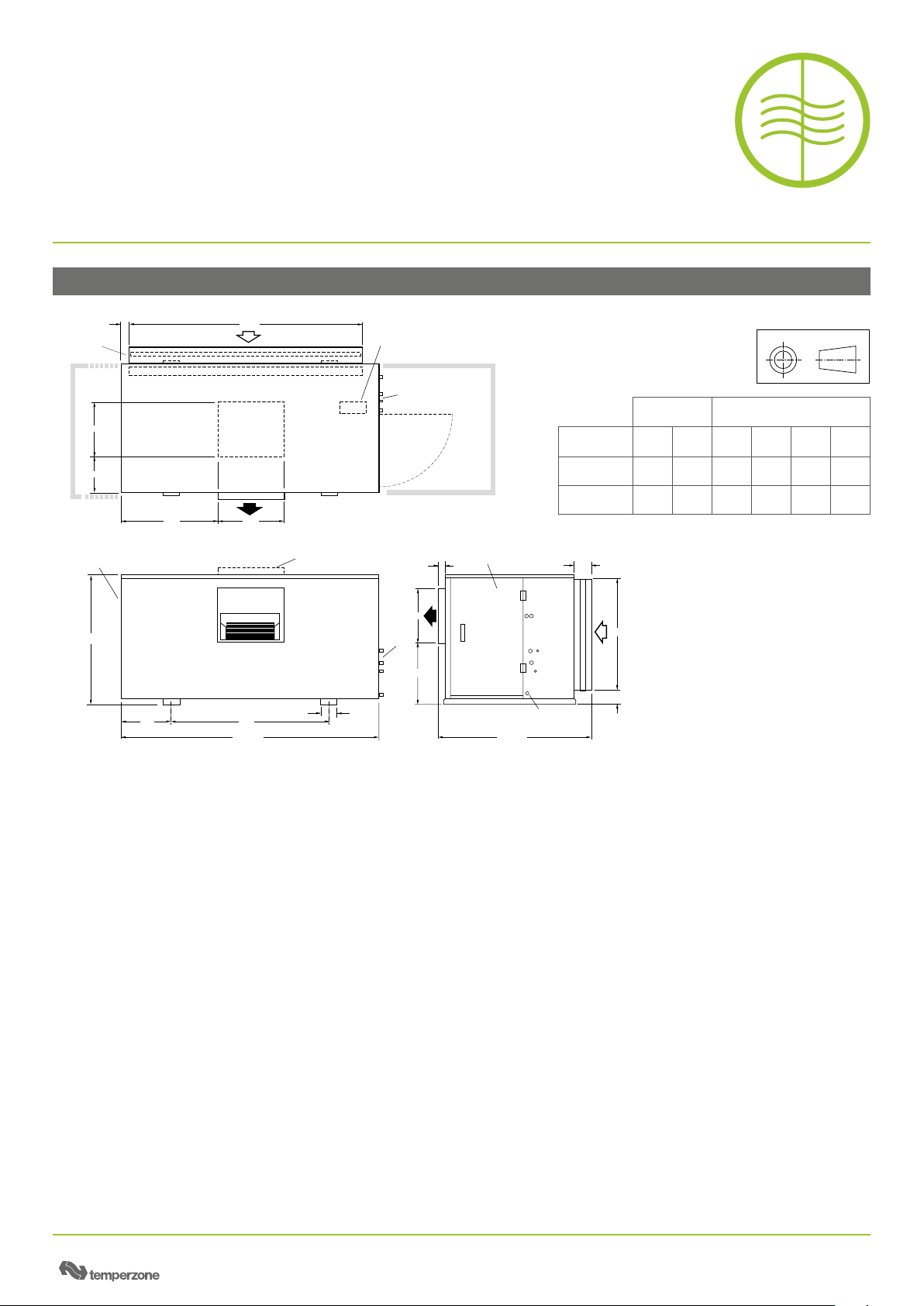

ISD Indoor Units 14

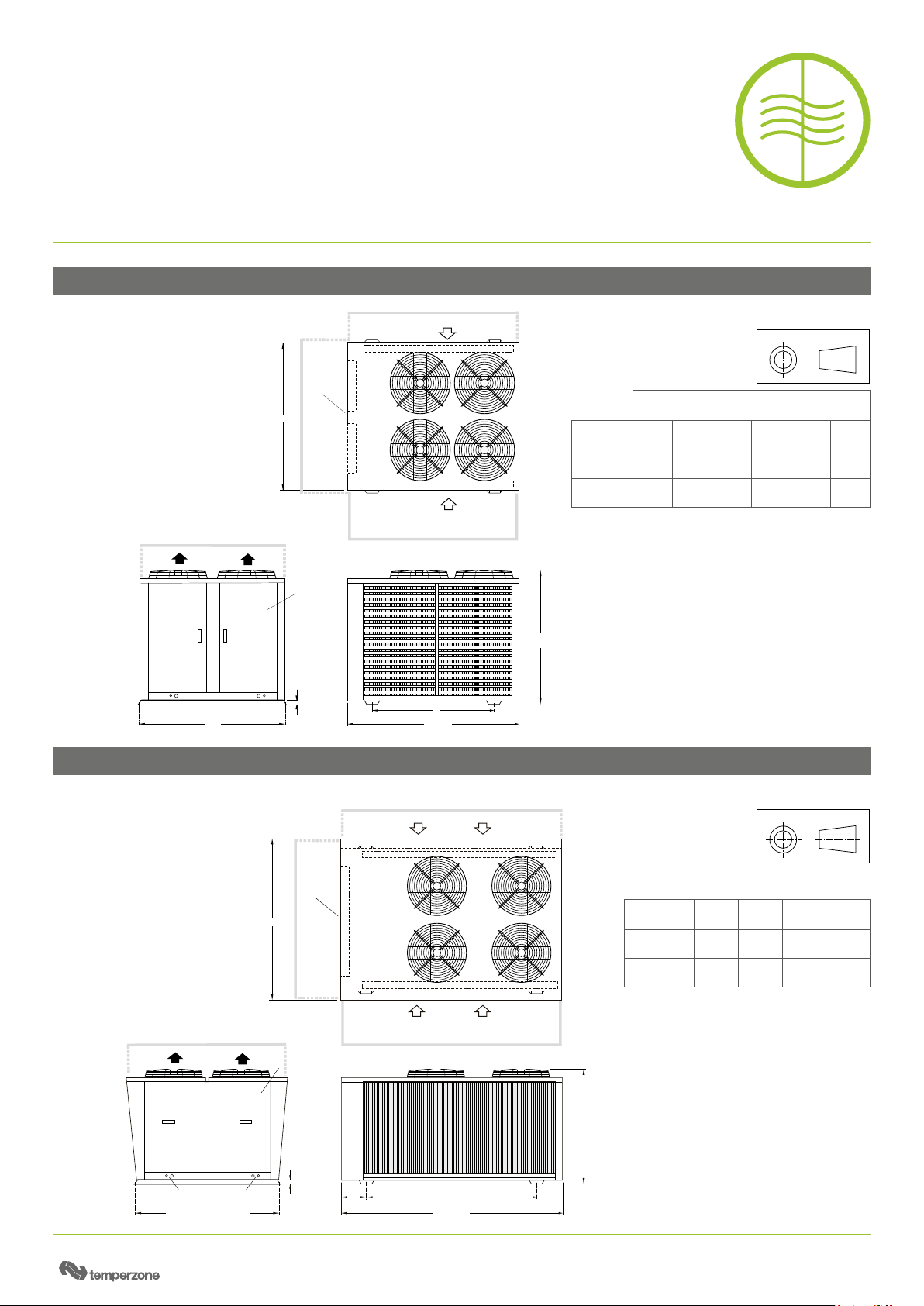

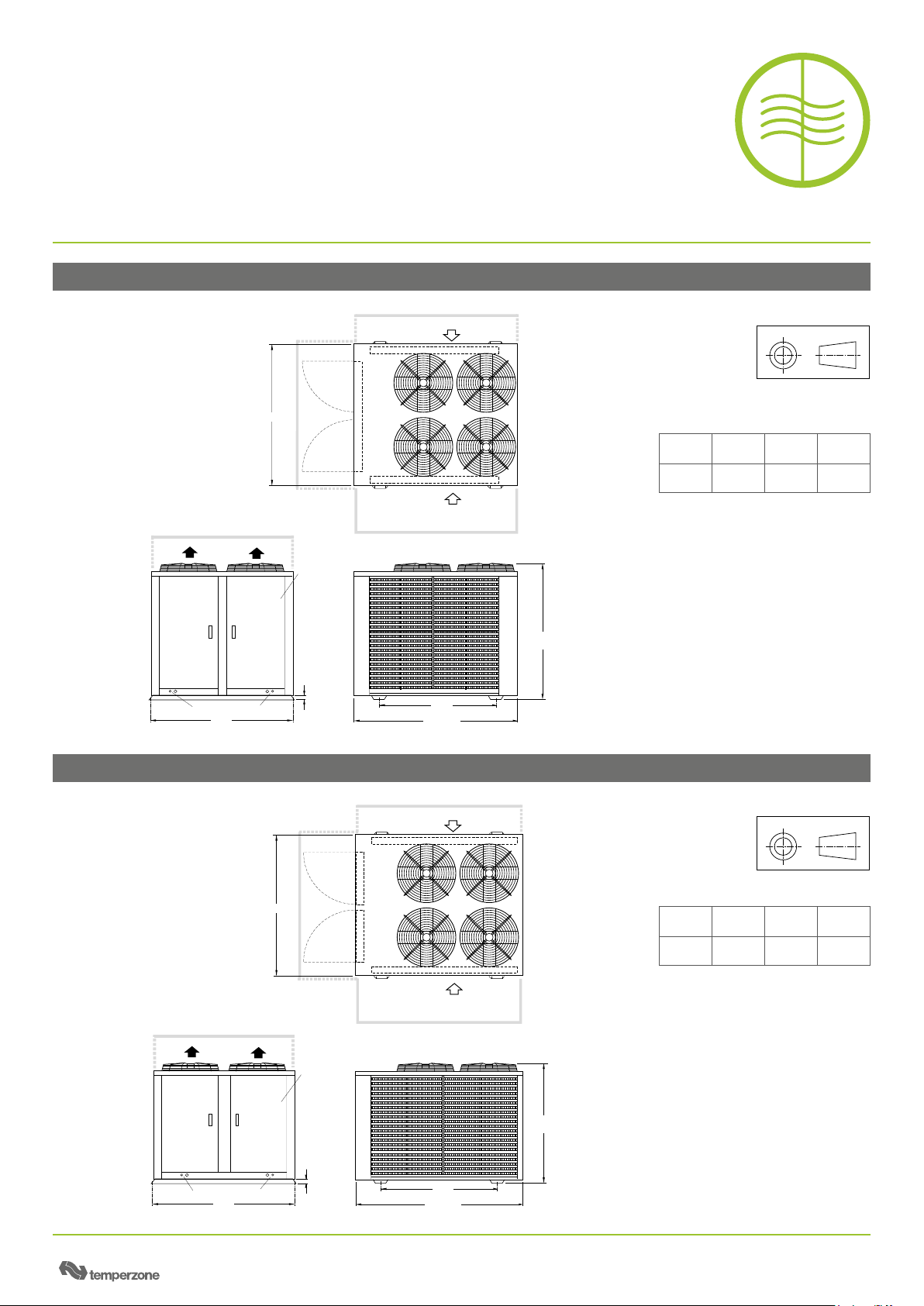

OSA Outdoor Units 18
SPECI FI CAT IO NS 21
8
Page 2

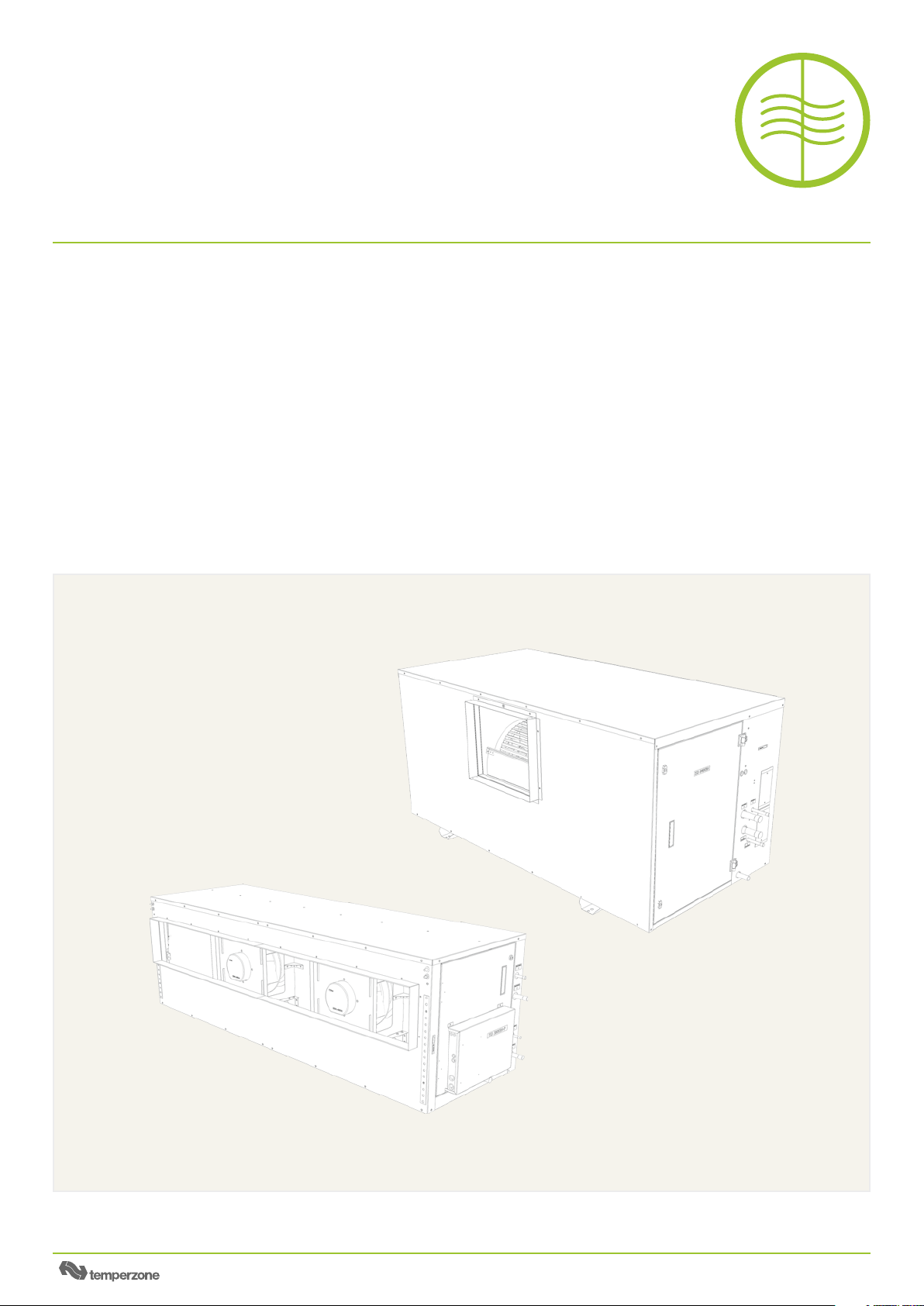

ISD 380–950 Series
The ISD indoor unit, together with its associated OSA outdoor unit, provides a reverse cycle (heat pump) split system air conditioner designed and developed to comply with and exceed AS/NZS 3823 specified conditions.
Page 3
ISD 380–950 Series
Applications
These units have been specifically developed for air conditioning of commercial premises, e.g. offices, motels, shops and restaurants
AIR FLOW SELECTION
If the air returning to the indoor coil is regularly expected to be above
50%RH, then the coil face velocity should be limited to be
2.5 m/s or less.
High humidity levels can occur in tropical or subtropical conditions,
and/or when heavily moisture laden fresh air is introduced.
FEATURES
Refrigerant R410A
Each complete system uses refrigerant
R410A which has a zero ozone depletion
potential.
Economical
These ISD/OSA systems have two
independent refrigeration circuits to provide
the flexibility and economy of two stage
operation, i.e. utilising one or two circuits as
conditions vary, plus the advantage of
staggered starting.
Efficient
Each outdoor unit incorporates a high
efficiency scroll compressor. ISD 380 indoor
units include high efficiency EC motors.
Heat exchange coils incorporate inner
grooved (rifled) tube for better heat transfer.
Quiet
ISD 380 models: Each integral high
efficiency electronically commutated (EC)
motor can vary from zero to full speed. This
allows slow ramp up with no sudden noise
change. The motor can be controlled to
have the best air flow for the ducting and
requirements as well as used for
de-humidifying the space.
Outdoor noise is a function of how hard the unit
needs to work. When the outdoor unit is not
running at maximum capacity in mid- season
the outdoor fan speed and noise reduces.
The compressor is isolated in a built-in, insulated
compartment to minimise noise. The indoor unit
is also insulated for noise attenuation.
Performance
Use of forward curved fan enables fine
tuning of the indoor unit to match the supply
air requirements.
ISD 380KB-P models: Use of backward
curved plug fan enables fine tuning of the
indoor unit to match higher static pressure
supply air requirements.
EC motor fans have a fully integrated speed
control that enables soft starting. Fan speed
can be stepped to your own requirements
or continuously variable using a 0–10V DC
control signal.
The system includes a temperature sensing
head pressure control which enables the
system to compensate for outdoor ambient
temperatures below 20°C on cooling cycle,
and above 15°C on heating cycle.
Consideration must always be given to selecting an air flow and face
velocity that avoids water carry-over problems.
Applications using full or high proportions of fresh air should be
referred to your nearest temperzone sales office to establish the
correct selection of units.
Durable
The indoor and outdoor coil fins are epoxy
coated for extra protection in corrosive
environments, e.g. salt laden sea air. The
outdoor unit’s cabinet is constructed from
high grade galvanised steel - polyester
powder coated (grey) for all weather
protection (IP 44). External fasteners are
stainless steel. Heat exchange coils
comprise aluminium plate fins on
mechanically expanded rifled copper tube.
Coil protection guards are supplied. The
indoor unit’s cabinet is constructed from
high grade galvanised steel and also includes
a polyester powder coated drain tray.
Low Maintenance
EC motor models* - commissioning and
maintenance costs are reduced through use
of a fan that requires no pulley and belt
adjustments or changes like traditional fans.
Page 4
ISD 380–950 Series
Soft Starting
EC motor models* - EC motors are soft
starting therefore have none of the
problems associated with high in rush
current.
Control Option
EC motor models* - Fixed and stable air
flows can be achieved through use of a
differential pressure transducer and
controller (supplied by others) to
compensate for varying duct static
pressures caused by dirty filters or
modulating dampers. Commissioning is also
made easier. The system is set up for the EC
motor to be controlled variably by a 0–10
volt DC signal that can be supplied either by
a BMS system, a sophisticated controller or
temperzone’s optional TZT-100 Controller;
the optional Signal Isolator will be required in
this instance for ISD 380KBY models.
Systems’ using UC6 controller* are BMS
compatible with multi-unit control possible
– either via digital and analogue signals or via
Modbus. Refer to temperzone for protocols
available.
Insulation
Closed cell foam insulation has been used in
the indoor unit ’s cabinet to ensure no
particles are introduced into the air stream.
The insulation is foil faced and meets fire
test standards AS 1530.3 (1999) and BS 476
parts 6 & 7.
OPTIONAL EQUIPMENT
Outdoor Unit:
UC6 Service Interface tool (OSA 310–670 only)
Indoor Unit:
1. Vertical supply air configuration.
2. Filters - EU4/G4 rated.
3. temperzone TZT-100 Room T/stat, or SAT-2 (24V) Controller kit
(for non-digitals).
4. Signal isolator (Item no. 201-000-129) for using EC motors
in a 0–10V DC continuously variable speed mode on
ISD 380KBY models.
SAFETY FEATURES
1. HP and loss of refrigerant protection.
2. Anti-rapid cycle timer and internal overload for compressor
protection.
3. Circuit breaker control circuits.
4. Time-and-temperature controlled electronic de-ice switch
prevents icing up of the outdoor coil during heating cycle.
5. Frost protection on cooling cycle.
6. Sensor fault indication.
7. Compressor minimum run time to ensure oil return.
8. Crankcase heater prevents liquid refrigerant condensing in the
compressors during the 'off' cycle.
9. Phase rotation protection device.
10. 24V control circuit
Self Diagnostics
Systems that includes a controller (UC6)
have a 7 segment LED display to indicate
faults and running conditions. Many
operating status conditions (including
history) can be determined, without gauges,
simply by using the optional UC6 Service
Interface graphical display tool.
Note: OSA 870/950 use OUC4 controller.
*
Refer Specification tables ( p.19/20) to identif y
applicable models
COMPRESSOR
Each high efficiency scroll type compressor is hermetically sealed,
quiet running and supported on rubber mounts to minimise
vibration.
REFRIGERATION PIPING
The standard unit allows for a line length up to 60 m or more ; refer
specifications table pages 19 & 20.
Max. height separations between units are:
Outdoor unit above indoor unit: 20m
Outdoor unit below indoor unit: 20m.
Each OSA is shipped from the factory with a charge of R410A
refrigerant sufficient for a 10m line length. Liquid and suction service
valves are provided. Accurator expansion devices control the flow of
refrigerant. The matched indoor unit is shipped with a holding charge
of nitrogen. Both units have brazed pipe connections.
WIRING
The electrical supply required is:
3 phase 380 –415 V a.c. 50 Hz with neutral and earth.
The compressor crankcase heater requires a 24 hour power supply.
A control panel, located in each outdoor unit, is fully wired ready to
accept the main power supply. Each system complies with the
requirements of the Regulatory Compliance Mark (RCM) for
electrical safety (AS/NZS 60335.2.40) and EMC (AS/NZS CISPR.14).
Page 5
ISD 380–950 Series
Plug Fan Advantages
The ISD 380/570/670 KB-P models with EC motor and backward
curved plug fan design have the following advantages:
- higher static pressure performance (refer page 4)
- quieter than conventional fan (refer page 3); a large aperture
supply air spigot reduces exit velocities and therefore less noise
down ductwork. Each EC motor can vary from zero to full speed.
This allows slow ramp up with no sudden noise change.
- lower installation cost due to a large supply air spigot which
lessens the need for duct transitions.
- EC motors are soft starting therefore have none of the problems
associated with high in-rush current.
- commissioning and maintenance costs are reduced through
use of a fan that requires no pulley and belt adjustments or
changes like traditional fans.
- fixed and stable air flows can be achieved through use of a
differential pressure transducer and controller (supplied by
others) to compensate for varying duct static pressures caused
by dirty filters or modulating dampers. Commissioning is also
made easier.
Digital Version
Digital Scroll Compressor
A digital version of the some outdoor units (OSA 380) is available
that includes one fixed and one digital compressor. This provides
an enhanced variable capacity ability that enables closer control
of room temperature. Digital compressors have proven very
reliable because of their design simplicity. Electrical harmonic
noise is very low.
Extended Capability
Digitals are particularly suitable for applications requiring full or
high proportions of fresh air, VAV, close control and supply air
temperature control.
- the system is set up for the EC motor to be controlled variably by
a 0–10 volt DC signal that can be supplied either by a BMS
system, a sophisticated controller or temperzone's optional
TZT-100 Controller.
- significant power savings are possible by slowing the fan during
low occupancy or after hours (75% airflow ≈ 55% power use).
Page 6
Performance Data
COOLING CAPACITY (KW)
Total = Total Capacity (kW).
Sens. = Sensible Capacity (kW).
E.A .T. = Entering Air Temperature .
= Nominal Capacity (kW).
Models Indoor Fan
Indoor Unit
Outdoor Unit
ISD 380KB-P *
OSA 380
ISD 380KBY
OSA 380
ISD 465KB
OSA 465
ISD 570KB-P *
OSA 570
ISD 570KB
OSA 570
ISD 670KB-P *
OSA 670
ISD 670KB
OSA 670
ISD 840KB
OSA 840
ISD 950KB
OSA 950
Air
l/s
2100
2100
2550
3100
3100
3600
3600
4500
5000
Note: Capacities are gross and do not include allowance for fan motor heat loss. Capacities
are for close coupled systems. Interconnecting pipework will reduce capacity.
An optional Outdoor Unit fan speed controller is available and is recommended where cooling
is required in below 20°C ambient conditions for long periods of time.
See over for Indoor Air Flow Correction factors >
Indoor coil
E.A.T. Outdoor coil entering air temperature °C D.B.
W.B .°CD.B.
°C
15 21 36.4 28.5 35.9 28.7 34.9 28.2 33.2 27. 3 31.1 25.8 28.3 23.8 17 23 38.3 28.1 37.9 28.1 36.8 2 7.7 35.2 26.8 33.0 25.4 30.3 23.6 19 27 40.3 32.2 39.8 32.2 38.7 31.8 3 7.1 30.8 34.9 29.3 32.2 27.4 21 31 42.2 38.1 41.7 38.2 40.7 37. 7 39.1 36.6 36.8 35.0 34.1 32.8 15 21 36.8 29.1 36.4 2 9.1 35.3 28.6 33.7 2 7.6 31.5 26.1 28.7 24.1 17 23 38.8 28.5 38.4 28.5 37. 3 28.0 35.7 27. 1 33.5 25.8 30.7 23.9 19 27 40.8 32.6 40.3 32.7 39.3 32.2 3 7.6 31.2 35 .4 29.7 32.6 2 7.7 21 31 42.8 38.6 42.3 38.7 41. 2 38.2 39.6 37.1 37.4 35.5 34.6 32.2 15 21 43.7 34.6 43.2 34.5 41.9 33.9 40.0 32.8 3 7.4 31.0 34.0 28.6 17 23 46.1 33.8 45.5 33.8 44.2 33.2 42.3 32.2 39.7 30.5 36.4 28.3 19 27 48.4 38.7 47.8 38.7 46.5 38.2 44.6 3 7.0 42.0 35.3 38.7 32.9 21 31 50.7 45.8 50.1 45.9 48.9 45.3 46.9 44.0 44.3 42.0 41.0 39.4 15 21 55.5 43.9 54.8 43.8 53.2 43.1 50.8 41.6 47. 4 39.3 43.2 36.3 17 23 58.5 42.9 5 7.8 42.9 56.2 42.2 5 3.7 40.8 50.4 38.8 46.2 36.0 19 27 61.4 49.1 60.7 49.2 59.1 48.5 56.6 4 7.0 53.3 44.8 49.1 41.7 21 31 64.4 58.2 63.6 58.3 62.0 5 7.5 59.6 55.9 56.3 5 3.4 52.1 50.0 15 21 55.1 43.5 54.4 43.5 52.8 42.7 50.4 41.3 47. 0 39.0 42.9 36.0 17 23 58.0 42.5 5 7.3 42.5 55.7 41.8 53.2 40.5 50.0 38.5 45.8 35 .7 19 27 60.9 48.8 60.2 48.8 58.6 4 8.1 56.1 46.6 52.9 4 4.4 48.7 41.4 21 31 63.9 57.7 63.1 5 7.8 61.6 5 7.0 59.1 55.4 55.8 53.0 51.6 49.6 15 21 64.3 50.8 64.4 50.7 61.6 49.8 5 8.7 48.1 54.9 45.5 50.0 42.0 17 23 67.7 49.6 66.8 49.6 65.0 48.8 62.1 4 7.3 58.3 44.9 53.4 41.6 19 27 71.1 56.9 70.2 56.9 68.4 56.1 65.5 54.4 61.7 51.8 56.8 48.3 21 31 74. 5 6 7.3 73.6 6 7.4 71.8 66.5 68.9 64.6 65.1 61.8 60.2 5 7.8 15 21 17 23 6 8.1 50.0 6 7.3 50.0 65.4 49.2 62.6 47. 6 58.7 45.2 53.8 41. 9 19 27 71.6 57.3 70.7 5 7. 3 68.9 56.5 65.9 54.8 62.1 52.2 5 7.2 48.6 21 31 75.0 67.8 74. 2 67. 9 72.3 6 7.0 69.4 65.1 65.5 62.2 60.7 58.2 15 21 84.9 58.6 83.3 5 7. 5 80.6 55.9 7 7.9 54.8 75.4 53.7 71.7 52.6 17 23 8 9.4 63.0 8 7.0 61.8 80.6 60.6 81.3 59.4 78.9 58.2 74. 8 5 7.6 19 27 93.6 70.0 90.8 68.6 87. 7 67.3 84.7 66.0 82.1 65.3 7 7. 9 64.7 21 31 98.2 76 .2 95.1 74.8 91.6 74.1 88.9 72.6 86.3 71.9 82.7 71.2 15 21 95.1 67.4 93.4 66.1 90.3 64.2 87.3 63.0 84.4 61.7 80.3 60.5 17 23 100. 2 72.4 97. 4 71.0 90.3 69.7 91.1 68.3 88.3 66.9 83.8 66.2 19 27 104.8 80.4 101.7 78.9 98.2 7 7.4 94.9 75.9 92.0 75 .1 87. 3 74.4 21 31 110.0 87.6 106.6 86.0 102.6 85.1 99.6 83.5 96.6 82.6 92.6 81.8
23 27 31 35 39 43
Tot al Sens. Tot al Sens. Tot al Sens. Tot al Sens. Tot al Sens. Tot al Sens.
64.7 51.1 63.9 51.1 62.0 50.2 59.1 48.5 55.3 45.8 50.4 42.3
* EC Plug fan version
Page 7
Performance Data
INDOOR AIR FLOW CORRECTION FACTORS @ NOMINAL CONDITIONS
Indoor Air Flow (%)
-20 -10. Rated +1 0
Total Capacity 0.95 0.975 1.0 1.025
Sensible Capacity 0.89 0.950 1.0 1.050
PIPE LENGTH CAPACITY LOSS
On Cooling Cycle due to Pressure Drop
Note: Loss percentage is approximate only. No allowance made for vertical piping.
Performance Loss per additional 10m
System
ISD 380 / OSA 380 2.1 % 22 0.50 m
ISD 465 / OSA 465 2 .1 % 22 0.50 m
ISD 570 / OSA 570
ISD 670 / OSA 670
ISD 840 / OSA 840
ISD950 / OSA 950
beyond first 5m.
1.5 % 28 0.61 m
0.7 % 35 0.76 m
1.5 % 28 0.61 m
0.7 % 35 0.76 m
1.0 % 35 0.76 m
0.8 % 41 0.80 m
1.0 % 35 0.76 m
0.8 % 41 0.80 m
Suction
Pipe Size OD
Additional Pipe Length to allow per Bend
Long 90° Radius (2 x pipe dia.)
Page 8
Performance Data
HEATING CAPACITY (KW)
G = Gross Heating Capacity kW, based on nominal air flow.
N = Net Heating Capacity kW allowing for average defrost.
= Nominal Capacity (kW).
Indoor
Entering Air
Models
Temp. °C Outdoor coil entering air temperature °C D.B.
Indoor Unit
Outdoor Unit
ISD 380KB-P *
OSA 380
ISD 380KBY
OSA 380
ISD 465KB
OSA 465
ISD 570KB-P *
OSA 570
ISD 570KB
OSA 570
ISD 670KB-P *
OSA 670
ISD 670KB
OSA 670
ISD 840KB
OSA 840
ISD 950KB
OSA 950
D.B.
15 26.3 23.7 28.5 25.6 30.4 2 7.1 32 .4 2 7.9 34.4 29.4 36.9 35 .1 39. 3 39.3 41. 2 41.2
20 25.8 23.2 2 7.9 25.1 29.8 26.6 31.8 2 7.3 33.7 28.8 36.2 34.4 38.5 38.5 40.4 40.4
25 24 .8 2 2.4 26.9 24. 2 28.7 25.6 30.6 26.3 32.4 27.7 34.9 32.8 37. 1 3 7.1 38.9 38.9
15 26.5 23.8 28.7 25.8 30.6 27.3 32.6 28.0 34.6 29.6 3 7.2 35.3 39.5 39.5 41. 5 41. 5
20 26.0 2 3.4 28.1 25.3 30.0 26.7 32.0 27.5 33.9 29.0 36.4 34.6 38.8 38.8 40.7 40.7
25 25.0 22.5 2 7.1 24.4 28.9 25.7 30.8 26.5 32.7 2 7.9 35.1 33.0 37.3 3 7.3 38.2 38.2
15 30.0 27.0 32.5 29.3 34.8 30.9 37.0 31.8 39. 2 33.6 42.2 40.1 44.9 44.9 47.1 47. 1
20 29.5 26.5 31.9 28.7 34.1 30.3 36.3 31.2 38.5 32.9 41.3 39.3 44.0 44.0 46.2 46.2
25 28.4 25.5 30.7 27.6 32.8 29.2 34.9 30.0 3 7.1 31.7 39.8 3 7.4 42.3 42.3 44.5 44.5
15 40.2 38.4 42.5 38.0 44.8 38.5 47. 1 47.1 49.4 49.4 51.7 51.7 54.0 54.0 56.3 56.3
20 39.6 37. 9 41.9 37. 5 44.2 44.2 46.5 46.5 48.8 48.8 51.1 51.1 53.4 5 3.4 55.7 55.7
25
15 41.5 39.6 43.8 39.2 46.2 39.7 48.6 48.6 50.9 50.9 53.3 53.3 55.7 55.7 58.0 58.0
20 40.8 39.1 43.2 38.7 45.6 45.6 47. 9 47.9 50.3 50. 3 52.7 52.7 55.0 55.0 57.4 5 7.4
25 39.5 38.1 41.9 3 7.7 44.3 41.9 46.6 46.6 49.0 49.0 51.4 51.4 53.7 53 .7 56.1 56.1
15 46.7 44.7 49.4 44.2 52.1 44.8 54.7 4 7.5 5 7.4 5 7.4 60.1 60.1 62.7 62.7 65.4 65 .4
20 46.0 44.1 48.7 43.6 51.4 44.2 54.0 54.0 56.7 56.7 59.4 59.4 62.0 62.0 64.7 64.7
25 44.6 43.0 4 7.2 42.4 49.9 49.9 52.6 52.6 55.2 55.2 5 7.9 57.9 60.6 60.6 63.2 63.2
15 47. 3 45.2 50.0 44.7 52.7 45.3 55.4 48.0 58.1 5 8.1 60.8 60.8 63.5 63.5 66.2 66.2
20 46.6 44.7 49.3 4 4.1 52.0 44.8 54.7 54.7 5 7.4 5 7.4 60.1 60.1 62.8 62.8 65.5 65.5
25 45.1 43.5 47. 8
15 54.5 4 7.7 59.0 50.8 6 3.1 52.0 6 7.2 53.1 71.2 53.8 76.5 59.4 81.4 63.5 85.5 85.5
20 53.5 46.8 57.9 49.8 61.9 51.0 65.8 52.0 69.8 52.7 75.0 54.8 79.8 62.2 83.8 83.8
25 51.5 45.1 55 .7 47. 9 59.6 49.1 63.4 50.1 6 7.2 50.8 72.2 52.7 76.9 59.9 80.7 80.7
15 61.6 53.9 66.6 5 7.3 71.2 58.8 75.8 59.9 80.4 60.7 86.4 6 7.1 91.9 71.7 96.5 96.5
20 60.4 52.8 65.3 56.2 69.8 5 7.6 74 .3 58.7 78.8 59.5 84.7 61.8 90.1 70.3 94.6 94.6
25 58.1 50.8 62.9 54.1 67.2 55.5 71.6 56.6 75.9 5 7.3 81.6 59.5 86.8 6 7.7 91.1 91.1
-5 -3 -1 1 3 5 7 9
G N. G N. G N. G N. G N. G N. G N. G N.
38.4 37.0 40.6 36.5 42.9 40.6 45.2 45.2 47.5 4 7.5 49.8 49.8 52.1 5 2.1 54.4 54.4
43.0 50.5 50.5 53.2 53.2 55.9 55.9 58.6 58.6 61.3 61.3 64.0 64.0
* EC Plug fan version
Page 9
1400
1600
1800 2000 2200
2400
0
50
100
150
AIR FLOW (l/s)
AVAILABLE EXTERNAL PRESSURE (Pa)
Face Velocity 2.0 m/s
200
250
800 RPM (5.3V)
1000 RPM (6.7V)
1100 RPM (7.3V)
ISD 380KBY
2.5 m/s
1500
2000
2500 3000
3500
4000
0
100
200
300
AIR FLOW (l/s)
AVAILABLE EXTERNAL PRESSURE (Pa)
2.5 m/s Face Velocity
400
500
700 RPM
800 RPM
5.5 kW MOTOR LIMIT
900 RPM
1.3kW
1.7kW
2.3kW
2.2kW
4.5kW
3.5kW
5.5kW
3.5kW
600 RPM
AILABLE EXTERNA
INPUT (kW)
AIR FLOW (l/s)
AILABLE EXTERNAL
2.5 m/s Face Velocity
AILABLE EXTERNA
Performance Data
AIR HANDLING
Airflows are for a dry coil. Reduce airflow by 10% in high moisture removal conditions. In a free blow or low resistance application, beware of
exceeding indoor fan motor’s full load amp limit.. Refer page 11 for Filter Pressure Drop.
ISD 380KB-P (c/w Plug fans)
500
400
300
L PRESSURE (Pa)
200
100
AV
l/s - Pa
8.2V DC
0
2000
AIR FLOW (l/s)
8.2V DC
2200 2300 2400
2100
9.2V DC
10.0V DC
9.2V DC
2.5 m/s Face Velocity
l/s - W
----
10.0V DC
2500
ISD 465KB
250
200
150
L PRESSURE (Pa)
100
AV
50
0 1800
l/s - Pa
2000
AIR FLOW (l/s)
850 RPM
800 RPM
750 RPM
700 RPM
600 RPM
2200 2400 2600
----
3 kW MOTOR LIMIT
2800
3000
2.3 m/s Face Velocity
3.0
2.5
2.0
1.5
1.0
l/s - W
ISD 380KBY
l/s - Pa
ISD 570KB-P (c/w Pl ug fans)
l/s - Pa
10V
3.7kW
500
8V
400
300
PRESSURE (Pa)
7V
200
100
AV
0
2000
1500
9V
1.2kW
1.1kW
2500 3000
2.8kW
3500
3.3kW
2.4kW
4000
ISD 570KB
l/s - Pa
----
l/s - W
Model :
Std Motor Size kW 3 5.5
Max. D.O.L. Motor kW 3 7. 5
Max. Fan Speed RPM 850 1000
Std Pulley Range RPM 600–800 600–800
Factory Setting RPM 700 700
ISD 465KB ISD 570KB
Page 10
AIR FLOW (l/s)
AILABLE EXTERNAL
Rating 2.5 m/s Face Velocity
1500
2000
2500 3000
3500
0
100
200
300
AIR FLOW (l/s)
AVAILABLE EXTERNAL PRESSURE (Pa)
2.5 m/s Face Velocity
7V
400
9V
10V
4000
8V
500
3.3kW
3.7kW
1.1kW
2.4kW
2.8kW
1.2kW
1.5 2.0 2.5
3.0
0
25
50
75
PRESSURE DROP (Pa)
100
Based on Koch Multi-Pleat HC filter. Max. final pressure drop 250 Pa.
IN
I
T
I
A
L
(
C
l
e
a
n
F
i
l
te
r)
AILABLE EXTERNA
AILABLE EXTERNAL
Performance Data
AIR HANDLING
Airflows are for a dry coil. Reduce airflow by 10% in high moisture removal conditions. In a free blow or low resistance application, beware of
exceeding indoor fan motor’s full load amp limit..
ISD 670KB-P (c/w Pl ug fans)
l/s - Pa
ISD 840KB
l/s - Pa
5.5 kW MOTOR LIMIT
500
400
300
L PRESSURE (Pa)
200
800 RPM
700 RPM
600 RPM
----
l/s - W
ISD 670KB
l/s - Pa
500
2.4kW
400
1.8kW
300
PRESSURE (Pa)
1.3kW
200
100
AV
0 2000
2500
ISD 950KB
l/s - Pa
500
400
300
PRESSURE (Pa)
200
700 RPM
3000 3500
900 RPM
800 RPM
900 RPM
4.4kW
2.2kW
1000 RPM
----
5.5 kW MOTOR LIMIT
4.5kW
3.6kW
600 RPM
4000
----
7.5 kW MOTOR LIMIT
l/s - W
5.6kW
800 RPM
700 RPM
4500
Optional Filters - Pressure Drop
l/s - W
100
AV
0 3000
AIR FLOW (l/s)
Model :
Std Motor Size kW 5.5 5.5 7. 5
Max. D.O.L. Motor kW 7. 5 7. 5 7.5
Max. Fan Speed RPM 1000 950 1000
Std Pulley Range RPM 600–800 61 5–755 685–840
Factory Setting RPM 700 685 765
4000 4500 5000
3500
100
AV
0
5500
2.5 m/s Face Velocity
3000
AIR FLOW (l/s)
4000 4500 5000
3500
ISD 670KB ISD 840KB ISD 950KB
2.5 m/s Face Velocity
5500
Page 11
Performance Data
SOUND LEVELS
Sound Power Levels (SWL)
Test Conditions: BS 848 PT2 1985.
Installation Type A (free inlet and outlet).
Direct method of measurement (reverberant room).
Measured in decibels re 1 picowatt, at nominal air flow.
INDOOR UNIT - SUPPLY AIR OUTLET
OCTAVE BAND FREQUENCY Hz
Models FAN SPEED SW L dB(A)
750 RPM (5V) 73 72 68 70 67 66 63
ISD 380KBY
ISD 380KB-P
ISD 465KB 810 RPM 81 79 76 79 76 74 72
ISD 570KB
ISD 570KB-P
ISD 670KB
ISD 670KB-P
ISD 840KB
ISD 950KB
950 RPM (6. 3V) 80 78 73 76 75 74 70 1150 RPM (7.6V) 85 82 78 80 80 79 74
LOW (7V) 71 72 70 68 67 60 54 MED (8V) 74 74 73 71 71 65 59
HIGH (9V) 78 75 79 74 74 69 63
600 RPM 81 80 81 78 76 76 73
800 RPM 86 87 85 82 80 80 77 LOW (7V) 63 69 62 61 60 51 50 MED (8V) 72 81 72 71 66 62 57
HIGH (9V) 80 86 79 79 74 69 66
600 RPM 81 80 81 78 76 76 73
800 RPM 86 87 85 82 80 80 77 LOW ( 5V) 63 69 62 61 60 51 50 MED (7V) 72 81 72 71 66 62 57
HIGH (9V) 80 86 79 79 74 69 66
600 RPM 81 80 81 78 76 76 73
800 RPM 86 87 85 82 80 80 77
700 RPM 80 81 79 75 73 74 72
900 RPM 86 86 84 82 81 80 77
1000 RPM 88 89 87 84 82 82 79
125 250 500 1K 2K 4K
SOUND POWER LEVELS (SWL) dB
SOUND PRESSURE LEVELS (SPL) WITHIN A ROOM
Deduct the room absorption effect below from the Sound Power Levels (SWL) above to obtain Sound Pressure Levels within a room.
Note: Occupant at least 1.5 m from sound source.
125 250 500 1K 2K 4K
Room type
Soft 4 8 11 11 11 11
Medium 3 7 8 9 9 9
Hard 0 1 3 4 4 5
OCTAVE BAND FREQUENCY Hz
ROOM ABSORPTION EFFECT
Page 12
Performance Data
OUTDOOR UNIT
OCTAVE BAND FREQUENCY Hz
125 250 500 1K 2K 4K
Models FAN SPEED SWL dB (A) SOUND POWER LEVELS dB
OSA 380
OSA 465
OSA 570
OSA 670
OSA 840 HIGH 82 85 80 79 78 73 66
OSA 950 HIGH 82 85 80 79 78 73 66
Models FAN SPEED SPL @ 3 m dB(A) SOUND PRESSURE LEVELS dB
LOW 79 84 82 77 73 64 58
HIGH 80 84 83 78 75 67 61
LOW 79 84 82 77 73 64 58
HIGH 80 84 83 78 75 67 61
LOW 79 84 82 77 73 64 58
HIGH 80 84 83 78 75 67 61
LOW 79 84 82 77 73 64 58
HIGH 80 84 83 78 75 67 61
Sound Pressure Level (SPL) in decibels re 20 µPa.
OSA 380
OSA 465
OSA 570
OSA 670
OSA 840 HIGH 66 69 64 63 62 57 50
OSA 950 HIGH 66 69 64 63 62 57 50
LOW 63 68 66 61 57 48 42
HIGH 64 68 67 62 59 51 45
LOW 63 68 66 61 57 48 42
HIGH 64 68 67 62 59 51 45
LOW 63 68 66 61 57 48 42
HIGH 64 68 67 62 59 51 45
LOW 63 68 66 61 57 48 42
HIGH 64 68 67 62 59 51 45
Page 13
600 MIN. CLEARANCE
600 MIN. CLEARANCE
PROJECTION
PROJECTION
Dimensions (mm)
ISD 380KBY INDOOR UNIT
2183
MOUNTING STRAP &
OPTIONAL SPRING MOUNTING CENTRES
1706
2100
2315
OVERALL
806
OPTIONAL
SPRING
MTG CTRS
EC MOTOR
CONTROL BOX
ACCESS
PANEL
705
OVERALL
275
W
Z
70
ISD 380KB-P INDOOR UNIT (C/W PLUG FANS
X
EC MOTOR
CONTROL BOX
)
REFRIGERANT CONNECTIONS
Y
HOLES
17 ID
70
600 MIN. CLEARANCE
120
290
60
ELECTRICAL
EC MOTOR
CONTROL BOX
DRAIN
BOX
28 OD
830 OA
Not to Scale
CORNER LOADS (kg)
W X Y Z
44 48 58 53
Refer matched Outdoor Unit for
recommended pipe sizes
150
60
585
65
REFRIG.
OPTIONAL
CONN’S
FILTER BOX
DISCHARGE
OPTIONAL
MTG CTRS
ACCESS
PANEL
VERTICAL
VERSION
806
SPRING
705
OVERALL
275
W
OPTIONAL SPRING MOUNTING CENTRES
1706
X
REFRIGERANT CONNECTIONS
2183
MOUNTING STRAP &
Not to Scale
CORNER LOADS (kg)
W X Y Z
600 MIN. CLEARANCE
70
Z
70
2100
OVERALL
2315
Y
HOLES
17 ID
70
60
120
290
60
ELECTRICAL
BOX
42 49 42 36
Refer matched Outdoor Unit for
recommended pipe sizes
VERTICAL
DISCHARGE
VERSION
290
DRAIN 28 OD
830 OA
REFRIG. CONN’S
150
60
OPTIONAL FILTER BOX
585
65
Materials and specifications are subject to change without notice due to the manufacturer’s ongoing research and development programme.
Page 14
1055
MOUNTING CENTRES
80
255
477
505
412
245
FILTER ACCESS EITHER SIDE
VERTICAL
DISCHARGE
MODEL
1110
500 MIN. CLEARANCE
REFRIGERANT CONNECTIONS
ELECTRICAL BOX
PROJECTION
Dimensions (mm)
ISD 465KB INDOOR UNIT
ACCESS PANEL
1210 OA
45
W
1405
X
Not to Scale
CORNER LOADS (kg)
W X Y Z
57 74 82 64
1000 MIN. CLEARANCE
Z
Y
REFRIGERANT CONNECTIONS
410
500
60
ELECTRICAL
ACCESS
PANEL
Refer matched Outdoor Unit for
recommended pipe sizes
150
1565 OA
75
DRAIN 28 OD
1200 OA
Materials and specifications are subject to change without notice due to the manufacturer’s ongoing research and development programme.
Page 15
1650 OA
70
1345 OA
1650 OA
70
1345 OA
1100
MOUNTING CENTRES
80
265
565
445
465
55
FILTER ACCESS EITHER SIDE
VERTICAL
DISCHARGE
MODEL
1020
500 MIN. CLEARANCE
REFRIGERANT CONNECTIONS
ELECTRICAL BOX
PROJECTION
PROJECTION
Dimensions (mm)
ISD 570/670 KB INDOOR UNIT
1435
W
Z
ACCESS PANEL
1150 OA
X
1000 MIN. CLEARANCE
Y
ELECTRICAL
ACCESS
PANEL
60
465
485
ISD 570/670 KB-P INDOOR UNIT (C/W PLUG FANS
DRAIN 28 OD
)
150
Not to Scale
CORNER LOADS (kg)
Model W X Y Z
ISD 570 75 92 119 47
ISD 670 81 100 121 48
Refer matched Outdoor Unit for
recommended pipe sizes
90
FILTER ACCESS EITHER SIDE
500 MIN. CLEARANCE
ACCESS
575
75
PANEL
1150 OA
W
Z
235
265
1435
900370
1100
1100
MOUNTING CENTRES
X
Y
VERTICAL
DISCHARGE
MODEL
80
REFRIGERANT CONNECTIONS
ELECTRICAL BOX
700
250
60
ELECTRICAL
ACCESS
PANEL
1000 MIN. CLEARANCE
DRAIN 28 OD
150
Not to Scale
CORNER LOADS (kg)
Model W X Y Z
ISD 570 81 81 52 52
ISD 670 87 87 54 54
Refer matched Outdoor Unit for
recommended pipe sizes
1020
90
Materials and specifications are subject to change without notice due to the manufacturer’s ongoing research and development programme.
Page 16
75
1360
MOUNTING CENTRES
105
430
500 MIN. CLEARANCE
REFRIGERANT CONNECTIONS
ELECTRICAL BOX
ACCESS PANEL
FILTER ACCESS EITHER SIDE
VERTICAL
DISCHARGE
MODEL
ELECTRICAL
ACCESS
PANEL
A
B
470
565830
305
470
535
PROJECTION
Dimensions (mm)
ISD 840/950 KB INDOOR UNIT
2005
W
X
Not to Scale
DIM. CORNER LOADS (kg)
Model A B W X Y Z
1000 MIN. CLEARANCE
Z
2220 OA
Y
60
REFRIG. CONN’S
1320 OA
ISD 840KB 1070 955 70 116 116 70
ISD 950KB 1280 1165 66 137 125 55
Refer matched Outdoor Unit for
150
75
DRAIN 28 OD
recommended pipe sizes
Materials and specifications are subject to change without notice due to the manufacturer’s ongoing research and development programme.
Page 17
MOUNTING CENTRES
500 MIN. CLEARANCE
PROJECTION
PROJECTION
MOUNTING CENTRES
500 MIN. CLEARANCE
Dimensions (mm)
OSA 380RKTB(G) OUTDOOR UNIT
OUTDOOR
AIR FLOW
X
1480
ACCESS PANELS
W
Not to Scale
CORNER LOADS (kg)
1000 MIN. CLEARANCE
2000 MIN. CLEARANCE
ACCESS
PANEL
REFRIG. CONN’S
1504
50
OSA 465RKTB OUTDOOR UNIT
ACCESS
1480
DOORS
1000 MIN. CLEARANCE
W X Y Z
Z
W
OUTDOOR
AIR FLOW
500 MIN. CLEARANCE
1217
MOUNTING CENTRES
1710 O/A
OUTDOOR
AIR FLOW
Y
1420
O/A
X
154 77 79 144
Recommended Pipe Sizes
Suction: 22 mm OD (x2)
Liquid: 13 mm OD (x2)
Not to Scale
CORNER LOADS (kg)
W X Y Z
146 77 77 145
Z
2000 MIN. CLEARANCE
ACCESS
DOOR
REFRIG. CONN’S
1504
Materials and specifications are subject to change without notice due to the manufacturer’s ongoing research and development programme.
55
OUTDOOR
AIR FLOW
500 MIN. CLEARANCE
1276
MOUNTING CENTRES
1790 O/A
Y
Recommended Pipe Sizes
Suction: 22 mm OD (x2)
Liquid: 13 mm OD (x2)
1270
O/A
Page 18
B
MOUNTING CENTRES
1506
MOUNTING CENTRES
55
A
OVERALL
OUTDOOR
AIR FLOW
OUTDOOR
AIR FLOW
1000 MIN. CLEARANCE
500 MIN. CLEARANCE
ACCESS
PANEL
W
X
Y
Z
500 MIN. CLEARANCE
1755 O/A
ACCESS
PANEL
1480
2000 MIN. CLEARANCE
PROJECTION
PROJECTION
Dimensions (mm)
OSA 570/670 RKTB OUTDOOR UNIT
DIM. CORNER LOADS (kg)
Model A B W X Y Z
OSA 570 1345 1263 174 81 81 175
OSA 670 1390 1231 182 88 88 183
Recommended Pipe Sizes
Suction: 28 mm or 35 mm OD (x2)
Liquid: 13 mm OD (x2)
Not to Scale
OSA 840/950 RKTB OUTDOOR UNIT
W
ACCESS
PANEL
1000 MIN. CLEARANCE
Z
ACCESS
P
ANEL
55
262
2000 MIN. CLEARANCE
REFRIG. CONN’S
1502
MOUNTING CENTRES
1680
500 MIN. CLEARANCE
OUTDOOR AIR FLOW
OUTDOOR AIR FLOW
500 MIN. CLEARANCE
1771
MOUNTING CENTRES
2300 O/A
Not to Scale
X
CORNER LOADS (kg)
Model W X Y Z
OSA 840 193 92 92 194
OSA 950 185 109 109 186
Y
1210
O/A
Recommended Pipe Sizes
Suction: 35 mm OD (x2)
Liquid: 16 mm OD (x2)
Materials and specifications are subject to change without notice due to the manufacturer’s ongoing research and development programme.
Page 19
Specifications
System
Indoor Unit ISD 380KBY ISD 380KB-P ISD 465KB
Out door Unit OSA 380 RKTB OSA 380 RKTB OSA 465RKT VB
Nominal Cooling Capacity *
Net Cooling Capacity kW 36.4 3 5.9 42 .6
Heating Capacity *
EER / AEER (Cooling) 3.26 / 3 .25 3.2 0 / 3.19 2.98 / 2.95
COP / ACOP (Heating) 3.46 / 3.44 3.43 / 3.41 3. 53 / 3.51
Controller C6
1
2
kW 3 7.6 3 7.1 44.6
38.8 (35.9) 38.5 ( 35.7) 44.0
Indoor air fan type forward curved
Indoor air fan motor EC EC plug AC induction
3
Air Flow *
Power Source *
Indoor Fan Full Load Amps A/ph. 6 (x 2) 2. 5 (x2 ) 6.2
Running A mps (Total System) A /ph. 2 2 / 17 / 16 2 2 / 17 / 17 31 / 26 / 2 5
Max. Ru nning Amps (Total Sys .) A/ph. 2 1 / 25 / 25 2 2 / 27 / 22 43 / 37 / 37
Refrigerant R410A
Maximum Vertical Separation m 20 20
Maximum Standard Line Length m 60 30 o r 60*
Pipe Sizes (Suction/Liquid) mm OD 22 / 13 22 / 13
Operating Range (outdoor ambient)
Finish
Weight
4
Cooling -10°C to 52 °C
Heating -15°C to 25°C
Indoor Unit zinc galvanised steel
Outdoor Unit grey polyes ter powder coat
l/s 2100 2550
backward curved
3 phase 4 00 V a.c. 50 Hz
forward curved
5
Net Weight (indoor/outdoor) kg 203 / 458 169 / 45 8 2 77 / 445
Shipping Weight (ind./out.) (approx.) kg 2 26 / 474 195 / 474 300 / 490
Notes:
*1 N ominal Cooling Cap acity at AS/NZS 382 3 conditions:
- Indoor Ente ring Air Temperatu re 27°C D.B., 19°C W. B.;
- Outdoor E ntering Air Temperature 35°C D.B .
Net C ooling Capacit y at AS/NZS 3823 incl udes an allowance for ind oor fan
motor heat los s. ( ) Bracketed fig ure is performance wh en matched to digital ou tdoor unit, ie OSA 380 RKTBG.
2
*
H eating Capacity (reverse cycle u nits only) at AS/NZS 382 3 conditions:
- Indoor Ente ring Air Temperatu re 21°C D.B.;
- Outdoor E ntering Air Temperature 7°C D.B ., 6°C W.B.
Materials and specifications are subject to change without notice due to the manufacturer’s ongoing research and development programme.
*3 Supply air flow at N ominal Cooling Ca pacity conditio ns stated above.
4
*
Power sou rce includes voltage li mits.
5
*
Extra suction accumation required.
Page 20
Specifications
System
Indoor Unit ISD 570KB ISD 570KB-P ISD 670KB ISD 670KB-P ISD 840KB ISD 950KB
Out door Unit OSA 570RKTB OSA 570RKTB OSA 670RKTB OSA 670RK TB OSA 840RKTB OSA 950RKTB
Nominal Cooling Capacity *
Net Cooling Capacity kW 5 4.0 5 5.0 62.8 63 .0 79.4 90.0
Heating Capacity *
EER / AEER (Cooling) 3.10 / 3 .09 3.27 / 3 .26 2.97 / 2.96 3.07 / 3. 06 2.70 / 2.68 2.70 / 2.68
COP / ACOP (Heating) 3.37 / 3. 35 3 .48 / 3.46 3.47 / 3 .45 3.43 / 3.41 3. 21 / 3.19 3.30 / 2 .28
Controller UC6 OUC
1
2
kW 5 6.1 56 .6 65.9 65.5 84.7 94.9
55.9 53.4 62.8 6 2.0 79.8 9 0.1
Indoor air fan type forward curved
Indoor air fan motor AC induction EC plug AC induction EC plug AC induction AC induction
3
Air Flow *
Power Source *
Indoor Fan Full Load Amps A/ph. 11.0 5 .7 11.0 5 .7 11.0 14.3
Running A mps (Total System) A /ph. 3 8 / 33 / 32 34 / 28 / 27 3 8 / 43 / 38 34 / 39 / 33 59 / 5 0/ 50 6 8 / 59 / 59
Max. Ru nning Amps (Total Sys .) A/ph . 47 / 42 / 41 44 / 38 / 37 50 / 54 / 48 45 / 50 / 44 84 / 73 / 73 93 / 82 / 8 2
Refrigerant R410A
Maximum Vertical Separation m 20 20 20 20
Maximum Standard Line Length m 60 / 90 6 0 / 90 50 / 90 50 / 90
Pipe Sizes (Suction/Liquid) m m OD (28 or 35 )*
Operating Range (outdoor ambient)
Finish
Weight
4
Cooling -10°C to 52 °C -10°C to 46° C
Heating -15°C to 25°C -15°C to 25°C
Indoor Unit zinc galvanised steel
Outdoor Unit grey polyes ter powder coat
l/s 3100 3600 4500 5000
backward curved
5
/ 13 (28 or 35 )*5 / 13 35 / 16 3 5 / 16
forward curved
3 phase 4 00 V a.c. 50 Hz
backward curved
forward curved forward curved
Net Weight (indoor/outdoor) kg 333 / 5 11 333 / 511 350 / 541 282 / 541 372 / 546 383 / 56 0
Shipping Weight (ind/out) (approx.) kg 380 / 565 3 80 / 565 397 / 5 80 329 / 58 0 410 / 63 8 423 / 6 51
Notes:
*1 N ominal Cooling Cap acity at AS/NZS 382 3 conditions:
- Indoor Ente ring Air Temperatu re 27°C D.B., 19°C W. B.;
- Outdoor E ntering Air Temperature 35°C D.B .
Net C ooling Capacit y at AS/NZS 3823 incl udes an allowance for ind oor fan
motor heat los s. ( ) Bracketed fig ure is performance wh en matched to digital ou tdoor unit, ie OSA 380 RKTBG.
2
*
H eating Capacity (reverse cycle u nits only) at AS/NZS 382 3 conditions:
- Indoor Ente ring Air Temperatu re 21°C D.B.;
- Outdoor E ntering Air Temperature 7°C D.B ., 6°C W.B.
Materials and specifications are subject to change without notice due to the manufacturer’s ongoing research and development programme.
*3 Supply air flow at N ominal Cooling Ca pacity conditio ns stated above.
4
*
Power sou rce includes voltage li mits.
5
*
Longer line le ngth require greater size suctio n line.
Page 21
www.temperzone.biz
AUCKLAND
Head Office
38 Tidal Rd, Mangere, N.Z. Private Bag 93303, Otahuhu, NEW ZEALAND.
Email sales@temperzone.co.nz Phone (09) 279 5250 Fax (09) 275 5637
WELLINGTON
Phone (04) 569 3262 Fax (04) 566 6249
CHRISTCHURCH
Phone (03) 379 3216 Fax (03) 379 5956
SYDNEY
Head Office
14 Carnegie Place, Blacktown, NSW 2148 PO Box 8064, Seven Hills West, NSW 2147, AUSTRALIA.
Email sales@temperzone.com.au Phone (02) 8822 - 5700 Fax (02) 8822 - 5711
ADELAIDE
Phone (08) 8115 - 2111 Fax (08) 8115 - 2118
MELBOURNE
Phone (03) 8769 - 7600 Fax (03) 8769 - 7601
NEWCASTLE
Phone (02) 4962 - 1155 Fax (02) 4961 - 5101
LAUNCESTON
Phone (03) 6331 - 4209 Fax (03) 6333 - 0224
JAKARTA
Phone +62 (21) 2963 4983 Fax +62 (21) 2963 4984
SINGAPORE
Phone +65 6733 4292 Fax +65 6235 7180
BRISBANE
SHANGHAI
Phone (07) 3308 - 8333 or 1800 - 897 - 253 Fax (07) 3308 - 8330
Phone +86 (21) 5648 2078
PERTH
T
E
S
I
R
G
E
E
D
R
AS/NZS
ISO 9001:
2015
S
R
U
E
P
I
P
L
Available from
© temperzone limited 2016 Pamphlet No. 4075 08/16
Phone (08) 6399 - 5900
Fax (08) 6399 - 5932
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
