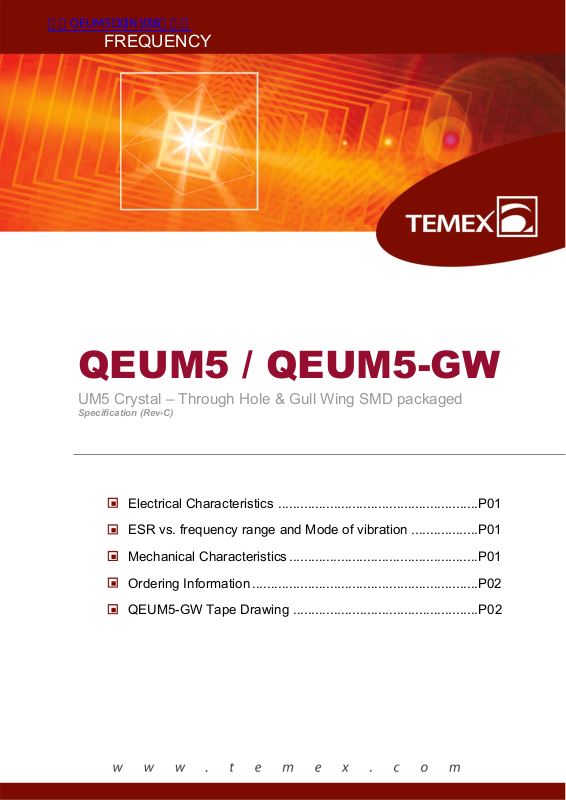

FREQUENCY
QEUM5 / QEUM5-GW
UM5 Crystal – Through Hole & Gull Wing SMD packaged
Specification (Rev-C)
Electrical Characteristics ......................................................P01
ESR vs. frequency range and Mode of vibration ..................P01
Mechanical Characteristics ...................................................P01
Ordering Information .............................................................P02
QEUM5-GW Tape Drawing ..................................................P02
Page 2
Frequency
QEUM5 / QEUM5-GW
UM5 Crystal – Through Hole & Gull Wing SMD packaged
Specification (rev-C) October 03
Electrical Characteristics
Electrical Parameters Unit Minimum Typical Maximum Test conditions
Frequency range
Frequency Tolerance (at 25°C) ± ppm 10 30 50 Refer to Ordering Information
Temperature Stability
Operating Temperature Range
Storage temperature range
Shunt capacitance C0
Load capacitance
Drive level
Aging (First Year)
Insulator resistance
ESR vs. frequency range and Mode of vibration
Frequency range (MHz) Mode of vibration Max ESR (Ω) Frequency range (MHz) Mode of vibration Max ESR (Ω)
10.000 to 19.999 Fund. 60 80.000 to 105.000 3rd 80
20.000 to 40.000 Fund. 40 60.000 to 129.999 5th 200
30.000 to 79.999 3rd 100 130.000 to 200.000 7th 180
Mechanical Characteristics
Ø 0.35 ±
0.05mm
QEUM5
H L
6 max
[0.236]
MHz 10 200
± ppm 10 30 50 Refer to Ordering Information
°C -20/+70 -40/+85 Refer to Ordering Information
°C -40 +85
pF 7.0
pF 10pF ~ 32pF or series Refer to Ordering Information
µW 100 500
± ppm 3 Ref at 25°C
MΩ 500 At 100VDC
3.2 max
[0.125]
Customized specification upon request
QEUM5-GW
rd
, 2006
1
TEMEX reserves the right to modify herein specifications and informations at any time when necessary to provide optimum performance and cost.
Page 3
Frequency
QEUM5 / QEUM5-GW
UM5 Crystal – Through Hole & Gull Wing SMD packaged
Specification (rev-C) October 03
QEUM5 : UM5
Through Hole
packaged
QEUM5-GW : UM5
Gull Wing SMD
packaged
Marking for QEUM5 Marking for QEUM5-GW
Line 1 VRDxxx (Temex code) VRSxxx (Temex code)
Line 2 Frequency in MHz
(6 digits)
Line 3 YYWW – production code YYWW – production code
Frequency in MHz
(6 digits)
Vibration 10g, 10Hz to 2KHz
Shocks 100g, 6ms according to
Mechanical conditions
according to standard CEI
68-2-63
standard CEI 68-2-27
Note : QEUM5 & QEUM5-GW are
fully RoHS compliant.
Ordering Information
Part numbering system
QEUM5 1 30 HQ 50 16 25.000MHZ
Package type Vibration
mode
1 = Fundamental
rd
Overtone
3 = 3
th
Overtone
5 = 5
th
Overtone
7 = 7
Frequency
tolerance
10=±10ppm
30=±30ppm
50=±30ppm
Operating
temperature
range
D=-40°C
F= -30°C
H=-20°C
J=-10°C
Frequency
stability
10=±10ppm
30=±20ppm
50=±30ppm
Load
Capacitance
16=16pF
Please, enter the
value of load
capacitance
Frequency
Please enter the
L=0°C
M=+50°C
N=+55°C
O=+60°C
Q=+70°C
T=+85°C
QEUM5-GW Tape Drawing
Item Symbol Dimensions
Pitch of components P
Pitch of sprocket hole PO
Length from hole to
component center
Width of carrier tape W
Width of adhesive tape W1
Gap of hold down tape W2
Diameter of feed hole DO Ø 1.5 min
Diameter of sprocket hole D1
P1
rd
Nominal
(MHz)
nominal
frequency
12 ± 0.1
4 ± 0.1
2 ± 0.1
24 ± 0.3
11.5 ± 0.1
1.75 ± 0.1
Ø 1.5 ± 0.1
, 2006
Note 1 : Metal Clips are opposed to the
the sprocket holes.
Note 2 : Multiple is 1Kpcs per reel.
2
TEMEX reserves the right to modify herein specifications and informations at any time when necessary to provide optimum performance and cost.
