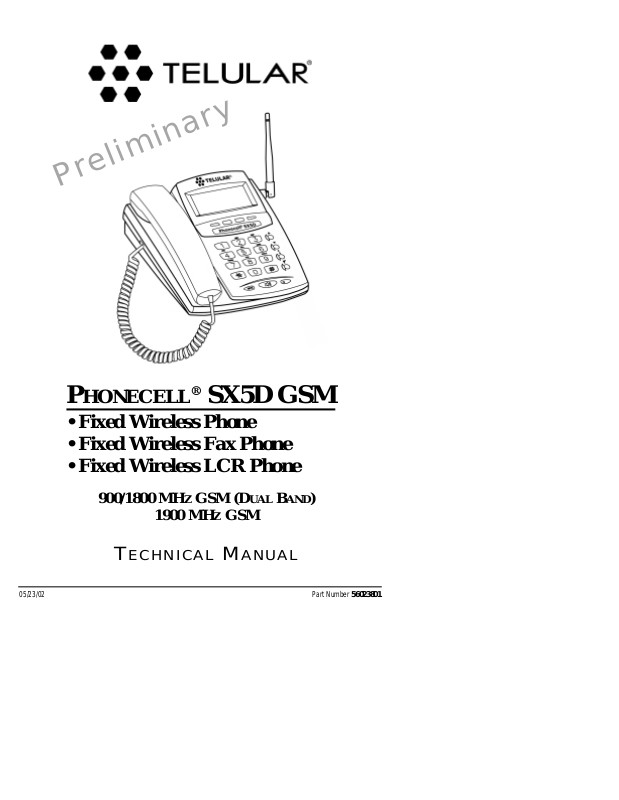

Telular SX5D GSM User Manual
05/23/02 Part Number 56023801
PHONECELL
®
SX5D GSM
• Fixed Wireless Phone
• Fixed Wireless Fax Phone
• Fixed Wireless LCR Phone
900/1800 MHZGSM (D
UALBAND
)
1900 MHZGSM
TECHNICAL MANUAL
Preliminary
QUICK CONNECTION GUIDE
Fixed Wireless Phone
Phonecell®SX5D GSM 2 Technical Manual
Fixed Wireless FAX Phone
Fixed Wireless Personal Least Cost Routing (LCR) Phone
Phonecell®SX5D GSM 3 Technical Manual
SX5D MENU STRUCTURE
Phonecell®SX5D GSM 4 Technical Manual
MAIN MENU
CALL LOG
All Calls
Missed Calls
Received Calls
Dialed Numbers
Clear Logs
Times & Costs
CALL DIVERT
All Calls
When Busy
No Answer
Not Found
Cancel All Diverts
SETTINGS
Phone Settings
Audio Settings
Call Settings
Fax Settings
Extension Settings
Dial Settings
Network Settings
Security Settings
Restore Defaults
PHONEBOOK
View Names
Add Name
Settings
MESSAGES
Received Messages
Saved Messages
New Messages
Message Settings
Voicemail
Info Messages
CLOCK
Set Alarm
Clock Settings
Set Time
Set Date
Set Time Zone
Phonecell®SX5D 5 Technical Manual
Before installing your Phonecell®SX5D, carefully remove the contents from the shipping carton
and check for evidence of shipping damage. If damage is found, contact your Authorized
Telular Distributor or shipping agent immediately.
SAFE OPERATION INSTRUCTIONS
IMPORTANT! Before installing or operating this product, read the SAFETY INFORMATION
section of this manual.
••
Install unit indoors.
••
Install unit on hard, flat surface for proper ventilation.
••
Do not expose unit to rain or moisture.
••
Do not place unit on or close to sources of heat
IMPORTANT NOTICES
TERMS AND CONDITIONS FOR USE OF PHONECELL®PRODUCTS ("Product")
These Terms and Conditions are a legal contract between you and Telular Corporation for the title to and use of the Product.
BY RETAINING AND USING THE PRODUCTAFTER RECEIPT OF IT, YOU AGREE TO THE TERMS AND CONDITIONS
INCLUDING WARRANTY DISCLAIMERS, LIMITATIONS OF LIABILITYAND INDEMNIFICATION PROVISIONS BELOW. IF
YOU DO NOT AGREE TO THE TERMS AND CONDITIONS, DO NOTUSE THE PRODUCTAND IMMEDIATELY RETURN
THE UNUSED PRODUCTFOR ACOMPLETE REFUND. You agree to accept sole responsibility for any misuse of the Product
by you; and, in addition, any negligent or illegal act or omission of your or your agents, contractors, servants, employees, or
other users of the Product so long as the Product was obtained from you, in the use and operation of the Product.
INDEMNIFICATION OF TELULAR CORPORATION ("TELULAR")
YOU SHALL INDEMNIFY, DEFEND AND HOLD HARMLESS TELULAR FOR ANY OF THE COST, INCLUDING REASONABLE ATTORNEYS' FEES, AND FROM CLAIMS ARISING OUT OF YOU, YOUR CLIENTS' OR OTHER THIRD PARTIES'
USE OR OPERATION OF THE PRODUCT: (i) FOR MISUSE OR IN A MANNER NOT CONTEMPLATED BY YOU AND
TELULAR OR INCONSISTENT WITH THE PROVISIONS OF THIS MANUAL; (ii) IN AN ILLEGAL MANNER OR AGAINST
PUBLIC POLICY; (iii) IN A MANNER SPECIFICALLY UNAUTHORIZED IN THIS MANUAL; (iv) IN A MANNER HARMFUL
OR DANGEROUS TO THIRD PARTIES; (v) FROM CLAIMS BY ANYONE RESPECTING PROBLEMS, ERRORS OR MISTAKES OF THE PRODUCT; OR (vi) COMBINATION OF THE PRODUCT WITH MATERIAL, MODIFICATION OF THE
PRODUCT OR USE OF THE PRODUCT IN AN ENVIRONMENT NOT PROVIDED, OR PERMITTED, BY TELULAR IN WRITING. THE PARTIES SHALL GIVE EACH OTHER PROMPT NOTICE OF ANY SUCH COST OR CLAIMS AND COOPERATE, EACH WITH THE OTHER, TO EFFECTUATE THIS INDEMNIFICATION, DEFENSE AND HOLD HARMLESS.
TELULAR CORPORATION
Corporate Headquarters
647 North Lakeview Parkway
Vernon Hills, Illinois 60061, USA
Technical Support
Tel: 847-247-9400 · Fax: 847-247-0021
E-mail: mainoffice@telular.com · http://www.telular.com
Power Supply
Phonecell®SX5D GSM Desktop Phone
Spike Antenna
PLEASE SEE THE IMPORT ANT NOTICES SECTION OF THIS MANUAL FOR
IMPORT ANT INFORMATION ON USE, WARRANTY AND INDEMNIFICATION
CONTENTS
AC Power Cord
Part Number 56023801 ©2002 Telular Corporation, All Rights Reserved
Phonecell®SX5D GSM 6 Technical Manual
TABLE OF CONTENTS
IMPORTANT NOTICES..................................................................................................5
Technical Support.......................................................................................................5
SETUP............................................................................................................................8
SIM Card Installation..................................................................................................8
Emergency Batteries ..................................................................................................8
SX5D Location and Setup..........................................................................................9
Connect the Handset.................................................................................................9
Optional Wedge .......................................................................................................10
Attach the Optional Wedge......................................................................................10
Wall Mounting...........................................................................................................11
Connect the SX5D to AC Power..............................................................................12
GETTING TO KNOW YOUR PHONECELL
®
SX5D.....................................................13
Function Keys ..........................................................................................................13
LCD Display Icons ...................................................................................................13
Service Indication.....................................................................................................14
CALL FUNCTIONS ......................................................................................................15
Making Calls.............................................................................................................15
Receiving Calls ........................................................................................................15
Ending Calls.............................................................................................................15
In-Call Functions......................................................................................................15
SX5D BASIC FEATURES............................................................................................16
Date and Time Settings............................................................................................16
Audio Settings..........................................................................................................16
Speakerphone..........................................................................................................17
Phonebook...............................................................................................................17
Speed Dialing...........................................................................................................18
SX5D ADDITIONAL FEATURES.................................................................................19
Call Logs..................................................................................................................19
Alarm Settings ..........................................................................................................20
Personalization Options...........................................................................................20
Network Settings......................................................................................................21
SIM PIN Setup .........................................................................................................22
Call Barring ..............................................................................................................22
Restricted Dialing.....................................................................................................24
Dial Delay .................................................................................................................24
Auto Dial...................................................................................................................25
In-Call DTMF ............................................................................................................25
Phone Security.........................................................................................................25
Restore Factory Defaults .........................................................................................25
Phonecell®SX5D GSM 7 Technical Manual
SUPPLEMENTARY SERVICES (NETWORK DEPENDENT) .....................................26
Call Divert (Forwarding)...........................................................................................26
Call Waiting..............................................................................................................26
Multiparty Calling......................................................................................................26
Caller ID Settings.....................................................................................................27
Voicemail..................................................................................................................27
Short Message Service (SMS).................................................................................28
Information Messages..............................................................................................30
In-Call Options .........................................................................................................30
DIGITAL DATA SERVICE ............................................................................................31
Standard Modem Setting.........................................................................................31
PC Data Connection................................................................................................31
Sending and Receiving Digital Fax ..........................................................................31
PERSONAL LEAST COST ROUTING OPTION .........................................................32
ANALOG FAX OPTION...............................................................................................34
TECHNICIAN COMMANDS.........................................................................................35
SAFETY INFORMATION .............................................................................................36
WARRANTY.................................................................................................................38
APPENDIX A: Set PC Serial Ports for Phonecell
Digital Fax/Data...........................................................................................................40
Phonecell®SX5D GSM 8 Technical Manual
SETUP
SIM Card Installation
The SX5D requires a Subscriber Identification Module (SIM) for normal operation. The service
provider supplies the SIM card, which carries the account information needed to operate the
SX5D. The SIM compartment is on the back of the SX5D.
NOTE: If you don’t have a SIM card, contact your network service provider.
1) Remove the power supply if you have already connected it. You must remove the power supply whenever you install or remove a SIM Card.
2) Remove the SIM compartment cover by removing the screw - see Figure 1.
3) Open the SIM compartment holder.
4) Line up the SIM card with the arrow on the SIM card holder - see Figure 2.
5) Gently insert the SIM card in the slot of the SIM card holder.
6) Close the SIM card holder.
NOTE: Do not force the SIM card holder shut. Make sure the SIM card is aligned properly
with the directional arrow on the holder.
7) Reattach the SIM compartment cover with the screw.
Emergency Batteries
Install Batteries
1) Remove the battery access door screw located on the bottom of the unit - see Figure 3.
2) Press the battery access door tabs and remove the battery access door.
3) Install 4 AAbatteries.
4) Reinstall the battery access door using the screw - see Figure 4.
SIM Compartment
Cover
SIM Card
Holder
SIM Card
Figure 1 - SIM compartment cover.
Cover Screw
Figure 3 –
Battery access door.
Battery Access
Door Screw
Battery Access Door Tabs
Battery Access
Door
4 AABatteries
Figure 4 - Battery installation.
Figure 2 - SIM card installation.
Phonecell®SX5D GSM 9 Technical Manual
Battery Operation
The unit will not automatically switch from AC to battery upon loss of AC power. You must manually change the AC/Battery switch to battery operation. Battery power will provide up to two hours
of talk time and 72 hours of standby.
SX5D Location and Setup
The SX5D comes with a standard spike antenna (TNC).
1) Select a location that is above ground and as close to windows (or exterior walls) as possible
to get the best signal - see Figure 5.
2) Attach and finger-tighten the antenna; do not over-tighten - see Figure 6.
Connect the Handset
Before you can use the SX5D, you must connect the handset cable.
1) Connect the handset cable to the phone jack - see Figure 7.
2) Connect the handset cable to the handset.
Figure 7 – SX5D handset connection.
Phone jack
Handset cable
Figure 5 - Attach the antenna.
Figure 6 - SX5D location.
Handset
Phonecell®SX5D GSM 10 Technical Manual
Optional Wedge
The wedge is used to position the SX5D for easy viewing of the LCD and keypad for wall
mounting and desktop mounting - see Figures 8 and 9.
Attach the Optional Wedge
1) Slide the wedge tabs on one end of the wedge into the top wedge tab slots - see Figure 10.
2) Snap the wedge tabs on the other end of the wedge into the bottom wedge tab slots - see
Figure 11.
Top wedge tab
slots
Bottom wedge
tab slots
Wedge tabs
Wedge tabs
Attach thick end of
wedge at bottom
of the SX5D.
Attach thick end
of wedge at top
of the SX5D.
Figure 10 - Wedge tab slots.
Figure 11 - Wedge tabs.
Figure 8 - Wedge attached for wall mounting.
Figure 9 - Wedge attached for desk mounting.
Phonecell®SX5D GSM 11 Technical Manual
Wall-Mounting
1) Remove the mounting clip from the cradle and re-insert it with the tab pointing up - see
Figures 12 and 13.
2) Mark two hole locations 83 mm (3-1/4 inches) vertically apart and drill two holes into the wall.
3) Install the screws (not supplied) into the wall, leaving a gap of approximately 3 mm
(1/8 inches) between the screw head and the wall.
4) Align the mounting holes with the screws and mount the SX5D onto the screws - see
Figures 14 and 15.
Figure 15 – Mount the SX5D onto the screws.
83 mm (3-1/4 inches)
Figure 14 – SX5D mounting hooks.
Mounting
Holes
Insert
Mounting
Clip into
the Cradle
(tab up)
Mounting Clip in
Cradle (tab up)
Figure 13 –
Handset mounting clip for wall-mount.
Remove
Mounting Clip
from the Cradle
(tab down)
Figure 12 –
Handset mounting clip assembly.
Phonecell®SX5D GSM 12 Technical Manual
Connect the SX5D to AC Power
1) Connect the barrel connector of the power supply to the AC power input on the rear panel of
the SX5D - see Figure 16.
2) Plug the AC power cord into the power supply.
3) Plug the AC power cord into the wall socket. The SX5D will power up automatically.
4) Check the cellular signal strength and move the unit until you achieve the best signal
possible - see the Service Indication section of this manual.
Figure 16 –
SX5D AC power connection.
AC Power Cord
Wall Socket
Power Supply
AC Power Input
Barrel Connector
Phonecell®SX5D GSM 13 Technical Manual
GETTING TO KNOW YOUR SX5D
Function Keys
Operation of the SX5D is accomplished though the function keys on the keypad of the unit - see
Figure -17.
LCD Display Icons
Icons displayed on the LCD display indicate the features in use, the status of the phone, signal
strength and battery status - see Figure 18.
Figure 18 – SX5D LCD display icons.
Figure 17 – SX5D keypad and function keys.
Received Signal
Strength - Indicates the
strength of the current
signal. The more bars,
the stronger the signal.
Message - Displays when
a new text or voicemail
message has been received.
Speaker - Indicates speaker
phone is activated.
Battery - Indicates the level of
battery power. The more bars,
the more power.
Clock - Displays the
current time.
LCD Soft Key Labels - Provide access to features within
the sub-menus of the SX5D. Labels change according to
the selected submenu.
Alarm - Indicates that
the alarm feature has
been set.
Call - Indicates that the handset
is off-hook.
LCD Screen - Displays
icons, information, and
menu options necessary
to operate the SX5D.
LCD Soft Keys - Provide
access to the SX5D menu
options and features.
Mute - Prevents the party on the
other end of a call from hearing
any sound from your end.
Volume - Controls the speaker
volume level for handset and
speakerphone when the
SX5D is off-hook.
Redial - Dials the last number
called from the SX5D.
Flash - Allows you to end a call
and revert to the dial tone without
hanging up. Also allows switching
between calls if call waiting or
multiparty calling is activated.
Speakerphone - Engages the
speakerphone feature.
LED - Indicates power on, hook
status, call alert, and call on hold.
Phonecell®SX5D GSM 14 Technical Manual
Service Indication
Full Service
When the power cord is connected properly, the SX5D will display the Telular logo, emit a power-on tone, and the LED will light
up. After a few seconds, the greeting and mobile number will display. If service is available, the antenna icon will display indicator
lines to display the signal strength.
No Service
When no service is available, the antenna icon will not display
indicator lines. Contact your service provider to verify cellular
service is activated. No calls can be made in this condition.
Limited Service
If there is a signal, but full service with the system is blocked,
only emergency calls will be allowed. Contact your service
provider for more information.
Network Registration
If the home network is unavailable, but there is another network available (either another frequency or system), the SX5D will attempt to register to that system. If there is more than one
system, a list of available systems will display.
1) Use the arrow keys to highlight a network from the list.
2) Press SELECT. If the selected network cannot be accessed, the list of available networks will
be updated and you will have to select a different one.
No Service.
Full Service.
Loading...
