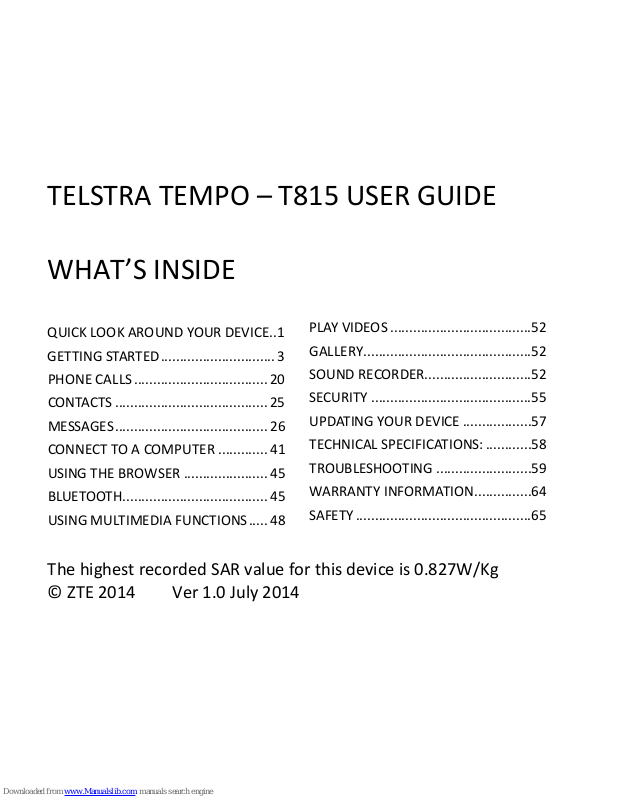

TELSTRA TEMPO – T815 USER GUIDE

WHAT’S INSIDE

QUICK LOOK AROUND YOUR DEVICE..1

GETTING STARTED .............................. 3

PHONE CALLS ................................... 20

CON TACT S ........................................ 25

MESSAGES ........................................ 26

CONNECT TO A COMPUTER ............. 41

USING THE BROWSER ...................... 45

BLUETOOTH ...................................... 45

USING MULTIMEDIA FUNCTIONS ..... 48

PLAY VIDEOS .....................................52

GALLERY ............................................52

SOUND RECORDER............................52

SECURITY ..........................................55

UPDATING YOUR DEVICE ..................57

TECHNICAL SPECIFICATIONS: ............58

TROUBLESHOOTING .........................59

WARRANTY INFORMATION ...............64

SAFETY ..............................................65

The highest recorded SAR value for this device is 0.827W/Kg
© ZTE 2014 Ver 1.0 July 2014

2

A QUICK LOOK AROUND YOUR DEVICE

3

GETTING STARTED

INSERT YOUR SIM CARD

1. Open the back cover using the thumb notch in the bottom left

corner:

4

2. Insert your SIM card carefully into the SIM slot as shown:

This handset accepts the Standard sized (2FF) SIM card. Do not use
micro-SIM or SIM card adaptors which can damage your device.

3. Expand the device memory with a microSD(HC) up to 32GB

(optional):

5

4. The battery will only fit one way, just check the gold pads on the

battery line up with the gold springs in the phone.

5. Replace the battery cover and press to click into place.

6

SWITCH YOUR DEVICE ON OR OFF, CHARGE YOUR BATTERY

• Press and hold the Power Key to turn on your phone.

• To turn it off, press and hold the Power Key to

open the options menu.

CHARGE THE BATTERY

• Check the correct orientation of the lead, then insert the charger lead

carefully.

• Do not force the connector into the charger jack.

• Connect the charger to a standard AC wall outlet.

• Disconnect the charger when the battery is fully charged.

• If the phone is on, you’ll see the charging icon / on the status bar.

• If the battery is low, there will be a pop-up message on the screen. As

you charge your phone, the lock screen will tell you the battery level
each time you wake up your phone.

• On first use please charge the battery for 3-4 hours. It is better to keep

your battery topped up than to let it fully discharge.

7

Important Notes:

• Only use the AC charger and USB lead supplied.

• Insert the charger lead carefully.

• Check the plug and socket are aligned correctly.

• Do NOT use excessive force which may damage the USB port.

• Be careful to avoid tripping on the lead whilst it is plugged in.

• Physical damage to the USB port is NOT covered by warranty.

• Normal charge time is 3-4 hours.

• Do not leave on charge for more than 24hrs.

• To maximise battery life limit multimedia functions.

• Charge the battery between 0°C~45°C. Charge the battery

promptly when flat.

• With poor network conditions (less than 2 bars) battery life is

reduced.

• When not using the phone for long periods remove the battery.

8

TIPS TO MAXIMISE BATTERY LIFE

• After 2-3 charge / discharge cycles the battery life will improve.

• Use regular top up charging rather than letting the battery fully

discharge.

• Always charge promptly when flat.

• To avoid the battery entering a deep discharged state charge the

battery promptly when flat.

• If the battery is deeply discharged it can take 30 minutes to start

charging. Leave it on charge to recover the battery.

• Keep your handset and battery cool. High temperatures degrade the

battery more quickly.

• Normal charge time is 3-4 hours. Do not charge more than 24hrs.

• When not using the phone for long periods charge to approx 40% and

remove the battery.

• With low network signal conditions battery life is reduced.

• Turn off Bluetooth and Wi-Fi when not in use, and set the screen

brightness to automatic to maximise battery life.

9

GOOGLE ACTIVATION WIZARD: CREATE OR LOG IN TO A GOOGLE ACCOUNT

We recommend you log in or create a Google account to enable on line
services.

Follow the on screen wizard to create or log in to an existing Google
account.

TIPS

If you set a lock code on your device and then forget the pattern or PIN
number it can be reset using your Google Account.

If you have not set a Google account then you need to do a factory
reset. From the lock screen condition, press the Emergency Call button,
then enter *983*987# into the dialler. Follow the prompts to reset
your phone.

10

WAKE UP FROM SLEEP MODE

• Press the Power key to activate the display.

• Long press on the screen to unlock.

•

You can pinch out on the lock icon to get
quick access to Phone, Email, Messages,
Audio, Camera and Calendar apps.

SWITCH YOUR HANDSET TO SLEEP MODE

Press the Power key to activate sleep mode.

Sleep Mode activates automatically with
the timeout set from Options > System
settings > Display > Sleep.

TIP

If you set an unlock pattern, PIN or password you need to enter it to
unlock the screen. If you forget your pattern or PIN use your Google
Account password to reset the phone. This will only work if you
register a Google account with this handset.

11

Keys Function

Power Key

Hold down to power on your phone.
Press to switch to sleep mode.
Press to wake up.
Hold down for Silent mode, Vibrate, Flight mode, Power.

Back

Press to go to the previous screen.
Press to exit applications.

Home

Press to return to the Home Screen from any screen.
Hold down to access Google Search

Options

Press to get the options on the current screen.
Hold down to see the recently used applications.

Volume Keys Use to control the volume Up and Down

Phone icon – Open the dialler for Calls

Contacts – Open your Phonebook for all your Contacts

Apps – Open the Applications menu

Messages – go to the Messages app, for SMS and MMS

12

THE HOME SCREEN

Slide the Home Screen left or right to view
additional pages.
Long press on the screen to change your
wallpaper.
Tap the Google Search bar to search the web,
or touch the mic icon to speak your search.

OPTIONS

Press the Options Key for
Wallpaper, set background image for the Homescreen or Lock screen

Manage Apps, view Downloaded, Running and All apps

System settings, shortcut to device Settings

13

ADD OR REMOVE ICONS & WIDGETS

Press to go to Apps then long press any icon to add it to the
desktop.

• Hold the icon to move it and release to place it on the home screen.

• Drag and drop the item in the trash to delete it.

• Eg, Add the Analogue Clock Widget:

Press > Select the Widgets tab at the top of the screen
Press and hold on the Analogue Clock
Drag the Clock to the required location on your Homescreen
Release to place the clock in the desired location.

TIP

Touching the Analogue Clock presents the Alarm menu

THE NOTIFICATIONS PANEL

The Notifications Panel at the top of the Home Screen shows useful
device and status information. Pull your finger down from the top of
the display to open the Notifications Panel.

14

PHONE STATUS AND NOTIFICATION ICONS

Signal strength

Flight mode

Blue – account attached

Data transfer

No signal

Emergency Calls only

Battery is very low

Battery is full

Battery is low

Battery is charging

Speaker mode is on

Speaker is muted

Vibrate mode enabled

Microphone is muted

Bluetooth is on

FM Radio

GPS is on

USB connected

Alarm is set

Connected to a Wi-Fi network

15

NOTIFICATION ICONS

New Email

New instant message

New SMS/MMS

Upcoming event

New voicemail

Song is playing

Missed call

Downloading data

Call in progress

Content downloaded

Call on hold

Uploading data

Call forwarding on

More notifications

Problem with SMS/MMS

Headset connected

ACCESS THE QUICK SETTINGS PANEL

Swipe down from the top of the home screen and touch the Quick
Setting icon. Tap to enable or disable the features. Some icons can be
configured with a long press (press and hold).

16

APPLICATIONS AND SETTINGS

Tap to access Applications. Flick the screen left or right to scroll
through in alphabetical order.
You can install additional applications by going to Play Store

INSTALL APPLICATIONS FROM GOOGLE PLAY STORE

Tap Play Store from the Home Screen to download and install
applications from the Google. Select the item and tap Install.

• You need a Google account to access Play Store

• Follow the wizard to sign in to an existing account or to create a new

account.

UNINSTALL APPLICATIONS

• From the Home screen tap Options > Manage applications

• Select the application to remove

• Tap Uninstall, tap OK to confirm.

17

MULTI-TASKI N G

Run multiple applications simultaneously. Press the Home key from
any application to launch, open or view something else. The original
application will be suspended until you return to it.

TIPS

If you are finished with an application use the Back key to exit the
application. If you leave applications running in the background the
system memory will be depleted and the device will be slow to
respond. Return to the app and close it, or from the Home screen press
Options > Manage Apps > Running and select tasks to close them
down.

OPEN RECENTLY USED APPLICATIONS

Press and hold the Options Key from any screen to view recently

used applications.

18

Tap Options > System Settings from the Home Screen:

SETTINGS MENU

Wi-Fi Connect to Wi-Fi devices and Networks

Bluetooth Connect to Bluetooth devices and Networks

Data usage View your data usage, and control Mobile Data

More… Flight mode, Default SMS app, Tethering and portable

hotspot, VPN, Mobile networks, USB internet

Sound Sound levels, ringtones, notifications, vibrate.

Display Brightness, screen timeout, auto rotate screen etc.

Storage Check memory status. Mount or unmount the SD card.

Battery See what has been consuming your battery power.

Apps Manage applications, set Quick Launch shortcuts, see

running services and battery usage.

Location Configure Location modes and services

19

SETTINGS MENU

Security Set screen locks, enable SIM PIN etc

Language &
input

Set the language and keyboard options.

Backup & reset Backup your data on Google servers, and perform a

factory reset to remove your default account.

Accounts Add and remove accounts.

Date & time Set the date, time, time zone, and formats. Enable

automatic time update.

Scheduled
power on&off

Set automatic power on and off times.

Accessibility Download a screen reader application and make other

Accessibility settings

Printing Interfaces your handset to Google Cloud Print

About Phone Storage card updates, Status, software version, etc

20

PHONE CALLS

MAKE A CALL FROM THE DIALER

• Unlock the phone and press the Call Key

• Tap numbers on the dial pad or select from Call Logs or Favourites

using the tabs at the top of the screen.

• Tap the call key to make the call.

• Press End to end the call.

FUNCTIONS DURING A CALL, PRESS OPTIONS:

21

During a call when you move the handset away from your ear the
screen lights up. Use the buttons for the features described:

Dial Pad – enter DTMF tones
Speaker – Use Handsfree, Speaker mode
Mute – Mute the microphone
Hold – Place the caller on Hold
Conference – Dial in another party, the first call is put on hold.

MAKE A CALL FROM CONTACTS

• Tap from the Home Screen. Contacts are displayed in alphabetical

order.

• Slide up or down to scroll through your Contacts list.

• Tap to select the Contact then tap to call.

TIP
Tap to search for a Contact.

22

MAKE A CALL FROM CALL LOGS

• Unlock the phone and press the Call Key

• Tap the Call log tab at the top

• Scroll and tap the required number to start the call, tap the arrow

button to view the call details if required

MAKE A CALL FROM A TEXT MESSAGE

• Unlock the phone and press for messages. Tap the thread that

contains the phone number to call.

• Tap the number then tap to call

• Press End to end the call.

TURN THE SPEAKER ON/OFF (HANDSFREE)

Tap Speaker during a call.

MUTE A CALL

During a call tap Mute to mute your microphone.

23

MAKE A CONFERENCE CALL

A conference call can be made between yourself and two or more
other parties.

• Call the first number.

• While you are connected, tap Add call.

• Call the second number.

• While you are connected to the second number, tap Merge

• To add the third party, tap Add call.

• Dial the number, and when connected, tap Merge

24

MAKING AN INTERNATIONAL CALL

• Press the Call Key on the home screen to open the dialer.

• Hold down the 0 key to enter the ‘+’ symbol for International Dialling

• Enter the full phone number.

• Tap to make the call.

• Press End to end the call.

ANSWER AN INCOMING CALL

An incoming call presents three options:

Drag right to answer the call

Drag left to reject the call.

Drag to Messages to send an SMS.

The default return SMS can be set at Dialler > Settings > Other settings >
Quick responses.

25

INSERT A PAUSE OR WAIT SYMBOL INTO A PHONE NUMBER

• Enter the phone number on the Dial pad.

• Press Options > Add 2-sec pause to add a Pause

• Press Options > Add Wait to wait for the next key press.

CALL SETTINGS

From within the Dialler, press Options > Settings:

Voice Call

• Voicemail

• IP prefix number

• Call forwarding

• Call barring

•

Additional settings

Other Settings

• Fixed Dialling Numbers

• Minute reminder

• Quick responses

• TTY mode

• International dialing assist

26

CONTACTS (PEOPLE)

Add contacts to your phone and synchronise them with your Google
account or other accounts that support contact syncing.

To see your contacts, touch Home > . From there, touch the tabs on
the top of the screen to quickly switch to contact groups or
favourites .

• Touch Home > and touch the all contacts tab to access your

contact list.

• Scroll through the list to view all your contacts.

• Touch a contact to view its details.

TIP: There is a slider shown when you touch the right side of the screen.
To go directly to a letter, press and hold the slider and drag it to a
letter.

Adding a New Contact

• Touch Home > and touch the all contacts tab .

• Touch to add a new contact.

• Touch the account field on the top of the screen to choose where to

27

save the contact. If a sync account is selected, the contacts will be
synced automatically with your account online.

• Enter the contact name, phone numbers, email addresses, and other

information.

• Touch DONE to save the contact.

Setting Up Your Own Profile

You can create your own name card in your phone.

• Touch Home > and touch the all contacts tab .

• Scroll to the top of the screen and touch Set up my profile.

• Edit your profile information and touch DONE.

Import, Export, and Share Contacts

You can import/export contacts from/to your SIM or Storage (microSD
card). This is useful when transferring contacts between different
devices.

Import your SIM card Contacts to add more features such as dedicated
Ringtone, Photos etc.

28

Import Contacts From the SIM Card

• Touch Home > > Options > Import/export

• Select Import from ‘Telstra Mobile’ (SIM card)

• Tap Next to continue

• Select the destination to copy your contact to, this can be your Google

account or saved on the phone only. Tap Next to continue.

• Tap to select individual contacts, or use the box in the top right to

Select All. Tap OK when done.

Import Contacts From the microSD Card

• Touch Home > > Options >

• Touch Import/export > Import from S

• Select an account to save the contacts.

• Select the vCard file(s) in the microSD card and touch OK.

Export Contacts to the SIM Card

• Touch Home > > Options > Import/export

• Select to Copy Contacts From, press Next to continue

• Select Copy Contact To ‘Telstra Mobile’, press Next,

• Tap individual contacts, or the box to Select All and then touch OK.

29

Share Contacts

• Touch Home > , touch the all contacts tab .

• Locate and touch the Contact

• Touch Options > Share

• Choose to share via Bluetooth, Email, Gmail, Messaging, etc

• To share Multiple contacts touch Options > Share visible contacts,

select the Contacts > OK, then select the Share path.

Add a Contact to Favourites

You can add the contacts used frequently to Favourites, so you can find
them quickly.

• Touch Home > and touch the all contacts tab .

• Touch a contact and then touch to add to favourites.

• Contacts must be saved in Phone Storage, or your Google account to

add to Favorites.

Remove a Contact From Favourites

• Touch Home > > touch the favourites tab .

• Touch a favourite contact and then touch .

30

Using Groups

• Touch Home > and touch the contact groups tab .

• Touch to create a new group.

• Touch the account field on the top of the screen to choose an account

for the group.

• Enter the group name and touch DONE.

Add Members to a Group

• Touch Home > and touch the contact groups tab .

• Touch a group and then touch .

• Touch to select the contacts to add as group members.

• Touch .

Delete a Group

• Touch Home > > touch the contact groups tab .

• Touch a group and then touch Options > Delete group.

• Touch OK to delete the group. The contacts in the group will not be

deleted.

31

Edit a Group

• Touch Home > > touch the contact groups tab .

• Touch a group and then touch Options.

• Touch Edit group to edit the group name. Or touch Select item(s) to

select the members you don’t need and remove them.

Searching for a Contact

• Touch Home > .

• Touch on the bottom of the screen.

• Input the contact name to search. The contacts matched will be listed.

Edit Contact Details

• Touch Home > .

• Touch a contact to edit and then touch Options > Edit.

• Edit the contact and touch DONE when finished

Set a Ringtone for a Contact

• Touch Home > Touch a contact to set a ringtone and then touch

Options > Set ringtone (Contact must be saved on the phone)

• Select a ringtone and touch OK.

32

Delete a Contact

• Touch Home > .

• Touch a contact to delete and touch Options > Delete.

• Touch OK to confirm.

To delete several contacts:

• Touch Home >

• Touch Options > Delete contact

• Touch to select the Contacts, then touch OK to confirm.

Join Contacts

Your phone can synchronise with multiple accounts containing your
contact information (such as Google, Microsoft Exchange ActiveSync,
Facebook and Twitter). When you synchronise your phone with those
accounts, each account adds a separate contact entry in the Contacts
list.

The Join and Separate feature is only

available in the menu after

synchronising multiple contact sources.

You can merge all the separate information of multiple accounts into

33

one record in the Contacts list.

• Touch Home > .

• Touch a contact to set as the prime contact. This is the contact you will

see in the list after the joining.

• Touch Options > Edit> Options > Join. The phone will list the suggested

contacts to join.

• Touch the contact whose information you want to join with the first

contact.
The information from the second contact is added to the first contact,

and the second contact is no longer displayed in the Contacts list.

Separate Contact Information

If contact information from different sources was joined in error, you
can separate the information back into individual contacts on your
phone.

• Touch Home > .

• Touch a contact you want to separate, to view its details.

• Touch Options > Edit > Options > Separate.

• Touch OK to confirm.

34

MESSAGES

SMS AND MMS MESSAGES

From the Home screen tap the messages icon to access SMS and
MMS messages.
Unread message(s) display the messaging icon in the Notifications bar.
Open new messages from the Notifications bar or the Messaging
Screen. Tap the message to read it.

COMPOSING AN SMS

• If the Messages app opens into an existing thread press the Back key to

return to the SMS main menu.

• Tap the messages icon > to Compose a new message.

• Enter the recipient’s name or number. As you enter letters, matching

Contacts are shown. Touch a Contact to select a recipient from the list
or tap the Contacts icon to see all Contacts.

• Tap ‘Type text message’ to enter your message.

• Tap to Send when done.

35

COMPOSING AN MMS

• Tap the messages icon > to Compose a new message.

• Enter the first letters of a contact to display matching names or tap

123 to enter numbers manually.

• Tap to see your Contacts list.

• Tap + to add an attachment.

• Choose your attachment type

• Tap Send when done.

TIPS

Adding or removing the Subject or Attachments will convert the
message from SMS to MMS and vice-versa. An MMS allows for more
text space without being charged for multiple SMS messages.
Tap Options > Add subject to enter the subject if required.

FORWARDING A MESSAGE

Long press the individual message to get further options such as
Forward, Delete, View message details etc.

36

MANAGING MESSAGES AND MESSAGES THREADS

SMS and MMS messages sent and received are grouped into message
threads in the Messaging screen. Message threads show you the
history of messages from the specific contact. Threads are sorted by
received time, with the latest one at the bottom.

REPLY TO A MESSAGE

• Tap the message (or thread) you want to reply to from the Messaging

Screen.

• Tap Type to compose and enter the contents of your message.

• Tap Send when done.

ACCESS DRAFT MESSAGES

Draft messages are automatically saved when you exit the message
application without having sent the message. If you have any messages
in Draft status they are marked in red with Draft

37

DELETE A MESSAGE (THREAD)

• Tap the Messages icon then press and hold a message to delete.

• Tap Delete to confirm.

• To delete an individual message (not a thread) tap and hold the

message and select Delete from the available options.

MESSAGE SETTINGS

Tap Messages > Options > Settings to configure message settings such
as Font size, Storage settings, SMS Settings, MMS Settings,
Notifications settings and Signature settings.

MULTIPLE SMS MESSAGE CHARGING:

A standard SMS message can contain up to 160 characters. If you
exceed this length the message will be sent as more than 1 SMS. You
will be charged for multiple SMS messages depending on the length.

38

SET YOUR EMAIL ACCOUNT

Create an Email account to receive Emails on your phone.

• Tap Apps > Email to set up your email account

• Enter your Email address and Password

• Follow the prompts. You may need to refer to your email service

provider to complete the settings.

• Set your required options choosing from the Account options screen.

You can also use web based email accounts or download specific email
clients for your email provider.

COMPOSE AN EMAIL

• Tap Apps > Email > to write a new email

• Tap the To field and enter the recipient’s address. Tap Options > Add

Cc/Bc to add more recipients if required.

• When you enter the address, the matching addresses saved in your

Contacts will be displayed. You can tap the recipient from the list.

• Enter the subject and the content of your Email. Tap to send.

39

RE PLY, REPLY TO ALL, FORWARD AN EMAIL

• Tap Apps > Email to see your Inbox.

• Touch the email

• Select the icons to Delete, Reply, Add to Favorites or view next unread.

• Enter the contents / recipients of your Email. Tap Send.

• Tap Options for Reply All, Forward, Move, and Settings.

EMAIL SETTINGS

Tap Apps > Email > Options > Settings

ACCOUNT SETTINGS

• Account name: Set your account name.

• Your name: Set the name displayed on the outgoing message.

• Signature: Edit your signature.

• Quick responses, you can add some default text to append to your

emails

• Default account: Send email from this account by default.

• Inbox check frequency: Set the email checking frequency.

• Sync email

40

• Download attachments

• Email notifications: Status bar notification for new Email

• Choose ringtone: Incoming Email notification

• Vibrate: Enable vibrate with ringtones when Email arrives.

SERVER SETTINGS

• Incoming settings: Set the incoming server settings.

• Outgoing settings: Set the outgoing server settings.

• REMOVE ACCOUNT

41

CONNECT TO A COMPUTER

Transfer audio, video and picture files between your handset and your
computer.

PC

Connect your handset using the USB data lead supplied.
First time, select Install driver on the handset notifications window.
On your PC, open CD Drive USB_Driver from Windows Explorer, then
double click Setup to install the handset.
Subsequently, select Media Device (MTP) from the notifications
window, which will open the handset in Windows Explorer.

MAC

On your MAC, download and install Android File Transfer.
Connect your handset using the USB data lead supplied.
Select Media Device (MTP) from the notifications window, which will
open the handset on your MAC.

42

CONNECT TO THE INTERNET

You can access the internet through the mobile network or via Wi-Fi.
When logged on to a Wi-Fi connection, all data will be sent via your
Wi-Fi network.

To disable mobile network data slide down from the top of the
handset screen to open the quick settings panel, then switch off data
connectivity using the Data conn. button.

WI-FI

Wi-Fi provides wireless Internet access over distances of up to 100
meters.

• Tap Home > Options > Settings > Wireless & networks.

• Touch the Wi-Fi switch to turn Wi-Fi on.

43

CONNECT TO A WI-FI NETWORK

• Tap Home > Options > System settings > Wi-Fi

• The available Wi-Fi network names and security settings (open or

secured) are displayed.

• Tap a network to connect.

• An open network will automatically connect,

• If you select a secured network you need to enter a password.

CHECK THE WI-FI NETWORK STATUS

• Check the Wi-Fi icon in the status bar.

• Tap Home > Options > System settings > Wi-Fi, tap the current wireless

network to view the network status.

• Tap Options > Advanced > Wi-Fi sleep policy to leave Wi-Fi always on,

or set other options.

44

SET UP A WI-FI HOTSPOT

A Wi-Fi hotspot shares your network internet connection with other
devices nearby. For example, if you are travelling you can connect your
laptop wirelessly to your handset to use the internet.
Tap Home > Options > System settings > more > Tethering & portable
hotspot > Wi-Fi hotspot

Touch Wi-Fi hotspot > Set up Wi-Fi hotspot to change the SSID and
password if required.

USING USB MODEM TETHERING

Use USB tethering to connect a computer to the internet using your
device network connection.
Plug your handset to a computer using the USB lead supplied.
Tap Home > Options > System settings > more > Tethering & portable
hotspot > USB tethering.
Settings > More > USB Internet allows you to share a PC based internet
connection onto your phone. Selecting this will disable your mobile data.
On your PC you need to ‘share’ your internet connection to your phone.

45

USING THE BROWSER

Use the Google Search bar on the Home Screen or use Google Chrome.

• Tap the Google Search box on the Home Screen.

• Enter your search request using the keypad.

• Press the arrow when done.

• Tap the microphone icon to use speech recognition. Speak your

request clearly into the handset microphone.

The first time you open Chrome you are guided through how to use by
on screen instructions and demos. Enter any search directly in the top
bar. Press Options for new Tabs, Incognito browsing, Bookmarks and
other Settings options.

46

BLUETOOTH

Bluetooth enabled devices can exchange information within a distance
of about 10 meters without any physical connection. The Bluetooth
devices must be paired to share information.

TURNING BLUETOOTH ON OR OFF

• Switch Bluetooth on or off from the quick settings panel or

• Tap Options > System settings > Bluetooth

• Tap the switch to turn Bluetooth on.

• The icon is displayed in the status bar.

•

Tap the switch to turn Bluetooth Off when required.

MAKE YOUR DEVICE VISIBLE TO OTHER DEVICES

• Tap Options > System settings> Bluetooth settings.

• Tap the switch to turn Bluetooth on.

• Touch the check box to make your device visible to other devices.

47

CHANGE YOUR DEVICE NAME

• Tap Options > System settings > Bluetooth

• Select the Bluetooth check box to turn on.

• Tap Options > Rename phone

• Enter the name and tap OK.

PAIR WITH ANOTHER BLUETOOTH DEVICE

• Both devices must have Bluetooth turned on.

• Tap Options > System settings > Bluetooth

• Tap Search for devices to display available devices in your vicinity.

• Tap the device to pair with and enter your PIN if required. The same

PIN should be used on both devices.

48

USING MULTIMEDIA FUNCTIONS

APPS > CAMERA

Line up your shot and tap the shutter button to take the picture.

• Tap the thumbnail in the bottom corner of your screen to view the

picture.

• Tap the Settings button to review the camera settings

APPS > CAMERA > VIDEO RECORDER

• Slide the switch to select Video camera switch from the camera app.

• Tap the shutter button to start shooting.

• Long press, or press and hold the shutter to pause

• Tap the shutter button to stop shooting

• Tap the icon in the right corner to view the last video clip.

• Tap the Settings button to review the video settings

49

FM RADIO

To use the FM radio you must insert the headphones as the antenna.

OPEN THE FM RADIO

• Insert the headphones

• Tap Home > Apps > FM Radio

• Touch the arrow controls to scan for available channels

• Press the star to add to favourites

• Press Options to view your Channel list where you can long press on

the channel to rename or delete it.

• Press the Power symbol to close the radio, otherwise it will continue to

run in the background.

50

MUSIC

You need to have audio files stored on your memory card. Use
downloads, Bluetooth or PC Connectivity to save files onto your
memory card.

• Tap Home > Apps > Music

• Select from Songs, Playlists, Folders, Albums, Artists or Genre

• To play continuous tracks, select Songs > Options > Play All

• To play an album select Album then click the first track

CREATING PLAYLISTS

• Select a music file to add to a new playlist.

• Tap and hold on the file until a shortcut menu pops up.

• Tap Add to playlist.

• Tap New.

• Enter the playlist name and tap Save.

• The playlist is created and the selected file is added to the playlist.

51

MANAGING YOUR PLAYLISTS

• Tap Playlist from the Music Screen to view all playlists.

• Hold on the playlist you want to play or edit until a shortcut menu pops

up.

• Tap Play to play the playlist.

• Tap Delete to delete the playlist.

• Tap Rename to edit the playlist name.

SETTING A SONG AS RINGTONE

• Open the folder where the song you want to set as ringtone is.

• Hold on the song until a shortcut menu pops up.

• Select Use as ringtone.

TIPs

You can also set a song as a ringtone when you are playing it by
tapping Options > Use as ringtone.

The play controls are also available on the Control panel

52

PLAY VIDEOS

Use Gallery or Video Player to view videos.

GALLERY

Use Gallery to view pictures and play back videos. You can also set
pictures as wallpaper, contact icons and share them with your friends.

SOUND RECORDER

Sound Recorder enables you to record voice memos that you can also
set as a ringtone.

Tap Home > Apps > Sound Recorder.

53

GOOGLE APPLICATIONS

SIGN IN OR CREATE YOUR GOOGLE ACCOUNT

Sign in to your Google Account to synchronise Gmail, Calendar, and
Contacts between your phone and the web.

• Tap a Google application, such as Gmail or Play Store.

• Follow the instructions in the wizard and tap Next.

• Tap Sign in if you have a Google account.

Enter your user name and password, and then tap Sign in.

• Tap Create if you do not have a Google account.

USING GMAIL

Gmail is Google’s web-based email service. Gmail is configured when
you sign in to your Google account. Depending on your synchronisation
settings, Gmail on your phone is automatically synchronised with your
Gmail account on the web.

Tap Apps > Gmail to open.

54

CREATE AND SEND AN EMAIL

• In the Inbox, press Menu and then tap

• Enter email address in the To field. If you are sending an email to

several recipients, separate the email addresses with a comma. You
can add as many message recipients as you want.

• Enter the email subject, and then compose your email.

• After composing your email, tap to Send.

USING GOOGLE CALENDAR

Tap Home > Apps > Calendar to use Google Calendar. You can use
the calendar to schedule appointments, meetings and other events.
Your appointments are displayed on the screen as they are scheduled.
All appointments are synchronised to your Google account, which
enables you to share your schedule, get your entire calendar on the go,
and receive Email reminders for your upcoming events.

55

SECURITY

SET A SCREEN UNLOCK PATTERN, PIN, OR PASSWORD

Protect your phone from unauthorised use by creating a personal
unlock pattern, Voice Unlock, PIN, or password. Use a pattern, PIN or
password you can easily remember. Adding a Voice Command can
unlock the phone and launch a particular application such as
Messaging, Phone or Camera.

• Tap Home > Options > System settings > Security > Screen lock

• Choose from Long press, Voice Unlock, Pattern, PIN or Password.

• Example for Pattern:

• Watch the demo and tap Next

• Draw a pattern of your choice, tap Continue

• Draw the pattern again and tap Confirm.

• We recommend you register a Google account before setting your

unlock pattern, PIN or Password. After five incorrect entries press
Forgot Pattern to enter your Google account password to reset the
screen lock.

56

UNLOCK THE SCREEN WITH A PAT TERN

• Press Power Key.

• Draw your pattern to unlock the screen. If you make a mistake you can

try again up to five times.

If you forget the unlock pattern then after five attempts you can enter
your Google account details to unlock your device.

SET A SIM CARD PIN LOCK

• Set a PIN code on your SIM card to prevent others from using your

account.

• The initial PIN code is provided by your service operator.

• Tap Options > System settings > Security > Set up SIM card lock.

• Select Lock SIM card. Enter the PIN and tap OK.

CHANGE SIM PIN

Before changing the SIM PIN, you need to enable it.

57

UPDATING YOUR DEVICE

Your phone can download and install Software updates.

Apps > System updates

The software update service checks an online server to see if any
updates are available for your phone. If an update is available you can
choose whether to download and install the update.

Downloading via Wi-Fi is highly recommended. Data usage charges will
apply if downloading via mobile networks. International roaming data
charges will apply for customers downloading the upgrade on a mobile
network whilst travelling outside of Australia.

A firmware update will require a restart of your device.

58

TECHNICAL SPECIFICATIONS:

Size and Weight 125 × 64 × 9.8 mm. 110g with battery

Networks 3G UMTS 850, 2100 MHz. HSPA+ 21Mbps data

2G 900, 1800, 1900 MHz.

Display TFT 4.0”, 480 x 800, Capacitive touch

Back camera 2.0M Pixels

CPU and memory 1GHz dual core with 512MB RAM, 4GB with expandable

external storage microSD(HC)™ up to 32GB

Operating system Android 4.4.2

Battery

Capacity 1200mAh Li-ion

Charge Time 3-4 hrs with AC Charger

Standby time 200 hours (subject to network)

Voice talk time 5 hours (subject to network)

Connectivity Bluetooth 3 Wi-Fi 802.11b/g/n 3.5mm jack

Supported file types jpg, gif, png, amr, mid, mp3, mp4, 3gpp, h263

59

TROUBLESHOOTING

PLEASE CHECK THE MANUAL THOROUGHLY BEFORE CONTACTING YOUR
SERVICE PROVIDER.

Symptom Solution

How do I check the
software version?

Menu > Settings > About phone > Build

number
How do I reset to
factory defaults?

Menu > Settings > Backup & reset > Factory

data reset
How do I check the
SMS service centre
number?

Menu > Messages > Options > Settings > Text

Message Settings (SMS)

How do I configure
the MMS Settings?

Menu > Messages > Options > Settings >

Multimedia Message (MMS)

How do I configure

Email settings?

Apps > Email, or Menu > Settings > Accounts

How do I copy
Contacts to or
from my SIM card?

Contacts > Options > Import/Export > Follow

the directions on screen

60

Symptom Solution

How do I select
Network mode?

Menu > Settings > More > Mobile Networks >

Network Mode
How do I manually
select a carrier?

Menu > Settings > More > Mobile Networks >

Network operators > Search networks

How do I enable
USB tethering?

Menu > Settings > More > Tethering and

Portable hotspot > USB tethering.

(Connect as CDROM to install drivers)
How do I configure

APN’s

Menu > Settings > More > Mobile Networks >

Access Point Names >Options > New APN
How do I enable
Flight Mode?

Long press on the power key > Flight Mode

How do I clear my

Browser?

Chrome > Options > Settings > Privacy > Clear

Browsing Data
How do I check
Call forwarding etc

Calls > Options > Settings >Voice Call > Call

forwarding

How do I check for
Software Updates?

Menu > System updates

61

Symptom Solution

How do I get more
technical support?

Visit zte.com.au or call 1300 789 475 during

office house AEST.
How do I change
the Ringtone?

Menu > Settings > Sound > Phone Ringtone

The battery
discharges quickly

Possible network coverage issue. Check the

signal level. With only 1 or 2 bars, the battery

has to work harder to maintain network

contact. Limit multi-media to save power. The

battery may be worn out.

The handset
switches on by
itself.

An alarm or calendar event switches the

handset on automatically.

No incoming ring
or alarm tone

Hold the power key to check the phone is not

in silent mode.

Check the ringtone and ring volume settings.

62

Symptom Solution

I cannot charge
the phone

Confirm the charger is properly inserted.

Remove the battery, clean the contacts and

check it is inserted correctly. The battery may

be worn out.

Tip: Charge the phone using the supplied USB

cable.
The handset
switches off after
charging.

The handset is charging in the off state. Press

and hold the Red key to switch the handset

ON.

I cannot connect
to other Bluetooth
devices

Turn Bluetooth on. Set visibility to Show. Make

sure the pass-code is correct. Possible

compatibility issues. Not all functionality is

supported between different Bluetooth

devices and standards.

63

ERROR MESSAGES

Message Solution

No SIM Card

Check a valid SIM card is inserted.

See the Getting Started section

Enter PIN code

You have set a SIM PIN. Please enter your SIM

PIN code.

Enter PUK code

Contact your Service Provider to get the PUK
code

Enter Unlock Code

Contact your Service Provider to obtain the
network unlocking code.

64

WARRANTY INFORMATION

The warranty does not apply to defects or errors caused by:

(a) Normal wear and tear, mishandling, physical damage, improper

installation.
(b) Water, exposure to solvents or any other liquid damage.
(c) Any unauthorised disassembly, repair or modification.
(d) Power surges, lightning, fire, flood or other natural events.
(e) Use of the product with unauthorised third party products such as

generic chargers.
(f) Any other cause beyond the range of normal usage for products.

The End User shall have no right to reject, return, or receive a refund
for any product under the above-mentioned situations. The End User’s
statutory rights are not excluded by these terms and conditions.

Note: Consult the warranty card for full information.

65

SAFETY

GENERAL STATEMENT ON RF ENERGY

The phone is a low-power radio transmitter and receiver. When switched on it
intermittently transmits radio frequency (RF) energy (radio waves). The
transmit power level is optimised for best performance and automatically
reduces when there is good quality reception. Maximum power is only used at
the edge of network coverage so under most circumstances the power output
is very low. Under poor network conditions the phone transmits at a higher
power, may get hot and have a shorter battery life.

SPECIFIC ABSORPTION RATE (SAR)
The phone is designed not to exceed the limits for exposure to radio waves
recommended by the ICNIRP. The limits include safety margins designed to
assure the protection of all persons, regardless of age and health.
The guidelines measure the Specific Absorption Rate, or SAR. The SAR limit for
mobile devices is 2W/Kg. This device has been tested and approved to be
lower than the maximum allowed SAR value and the result is published on
http://www.zte.com.au/telstra/T815.htm

66

PRODUCT SAFETY INFORMATION

Please read all instructions
before use

This device may produce
bright or flashing lights

Do not use while driving

Do not dispose of in fire

Do not use while re-fuelling

Avoid contact with
magnetic media

Small parts may be a choking
hazard

Avoid Extreme
Temperatures

This device may produce loud
sounds

Avoid any contact with
liquid, keep it dry

Keep away from pacemakers
and other personal medical
devices

Only use approved
accessories

67

Obey warning signs in hospitals
and medical facilities

Do not attempt to
disassemble

Switch off when flying

Do not rely on this device
for emergency
communications

Switch off in explosive
environments

This device is certified by the Wi-Fi Alliance.

microSD™ is a trademark of SD Card Association
