Telstra ELITE Pre-Paid, ELITE User Manual

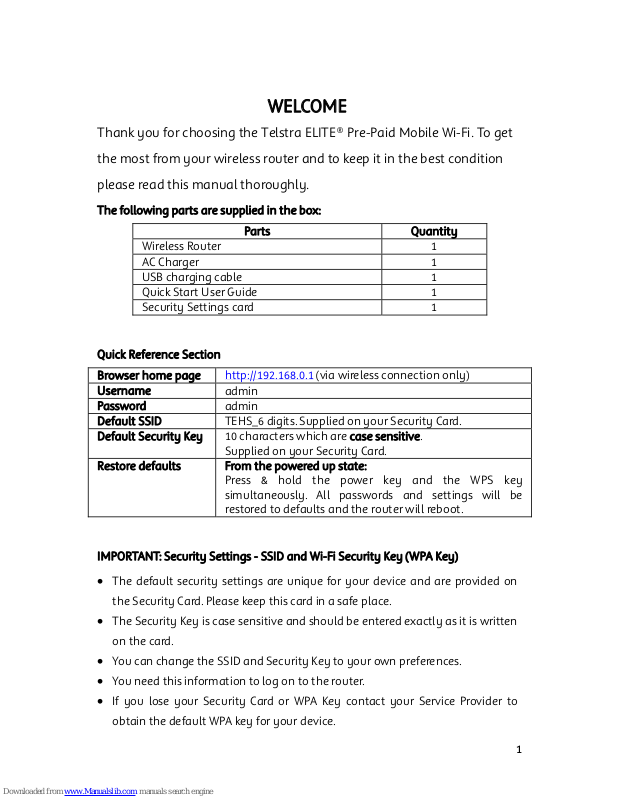

WELCOME

Thank you for choosing the Telstra ELITE® Pre-Paid Mobile Wi-Fi. To get

the most from your wireless router and to keep it in the best condition

please read this manual thoroughly.

The following parts are supplied in the box:

Parts Quantity
Wireless Router 1
AC Charger 1
USB charging cable 1
Quick Start User Guide 1
Security Settings card 1

Quick Reference Section

Browser home page http://192.168.0.1

(via wireless connection only)
Username admin
Password admin
Default SSID TEHS_6 digits. Supplied on your Security Card.
Default Security Key 10 characters which are case sensitive.

Supplied on your Security Card.

Restore defaults From the powered up state:

Press & hold the power key and the WPS key
simultaneously. All passwords and settings will be
restored to defaults and the router will reboot.

IMPORTANT: Security Settings - SSID and Wi-Fi Security Key (WPA Key)

 The default security settings are unique for your device and are provided on

the Security Card. Please keep this card in a safe place.

 The Security Key is case sensitive and should be entered exactly as it is written

on the card.

 You can change the SSID and Security Key to your own preferences.

 You need this information to log on to the router.

 If you lose your Security Card or WPA Key contact your Service Provider to

obtain the default WPA key for your device.

1

2

Contents

1 General Information ........................................................... 3

2 Getting started ................................................................... 5

2.1 Insert your USIM.............................................................................. 6

2.2 Charge your Wireless Router.............................................................. 7

2.3 Insert a microSD™ memory card (Optional Accessory) ........................... 7

2.4 Low Power Mode (Standby Mode) ...................................................... 8

2.5 Network Lock .................................................................................. 8

2.6 Connecting an External Antenna ....................................................... 8

3 Using the Wireless Router ................................................... 9

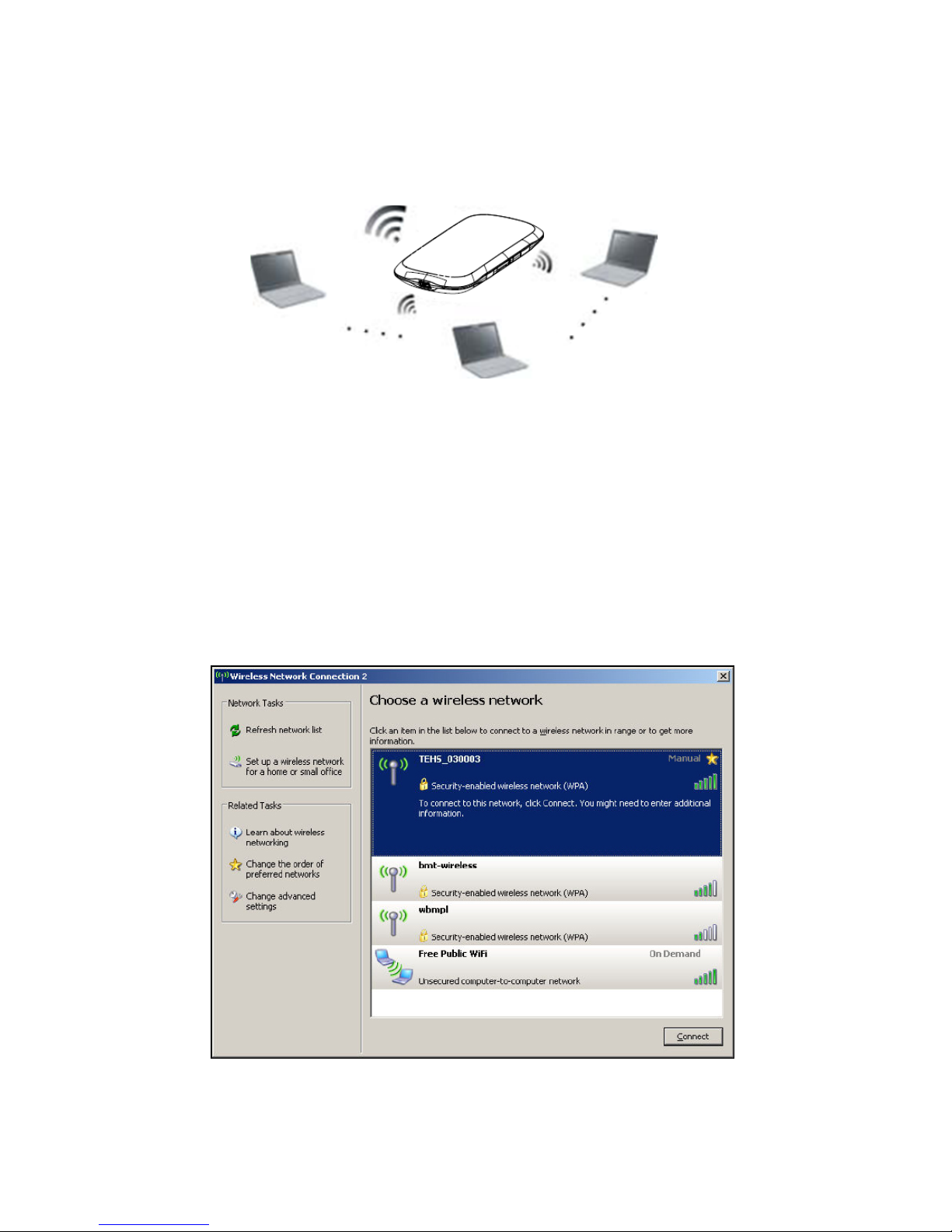

3.1 Preparation..................................................................................... 9

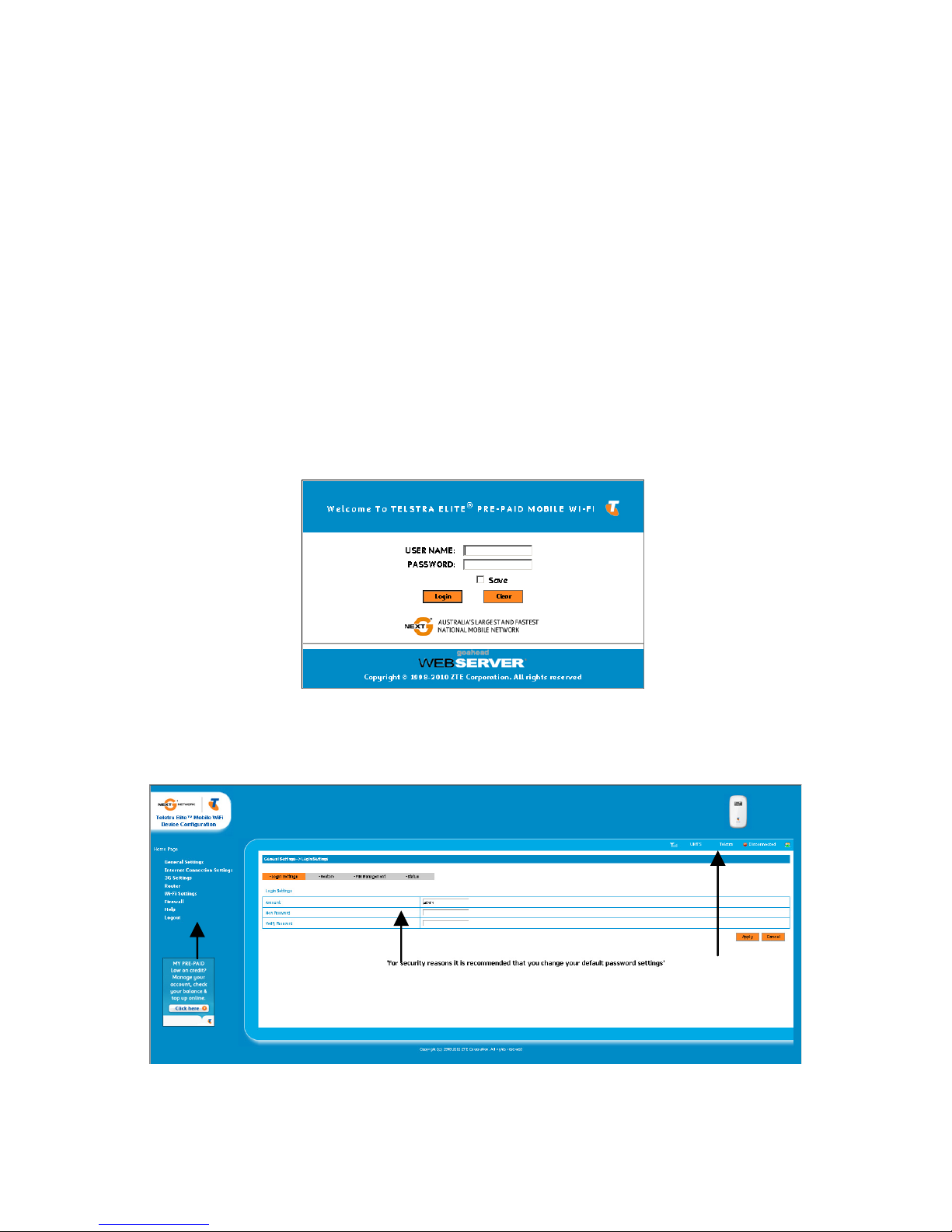

3.2 Login to the Web based User Interface .............................................. 10

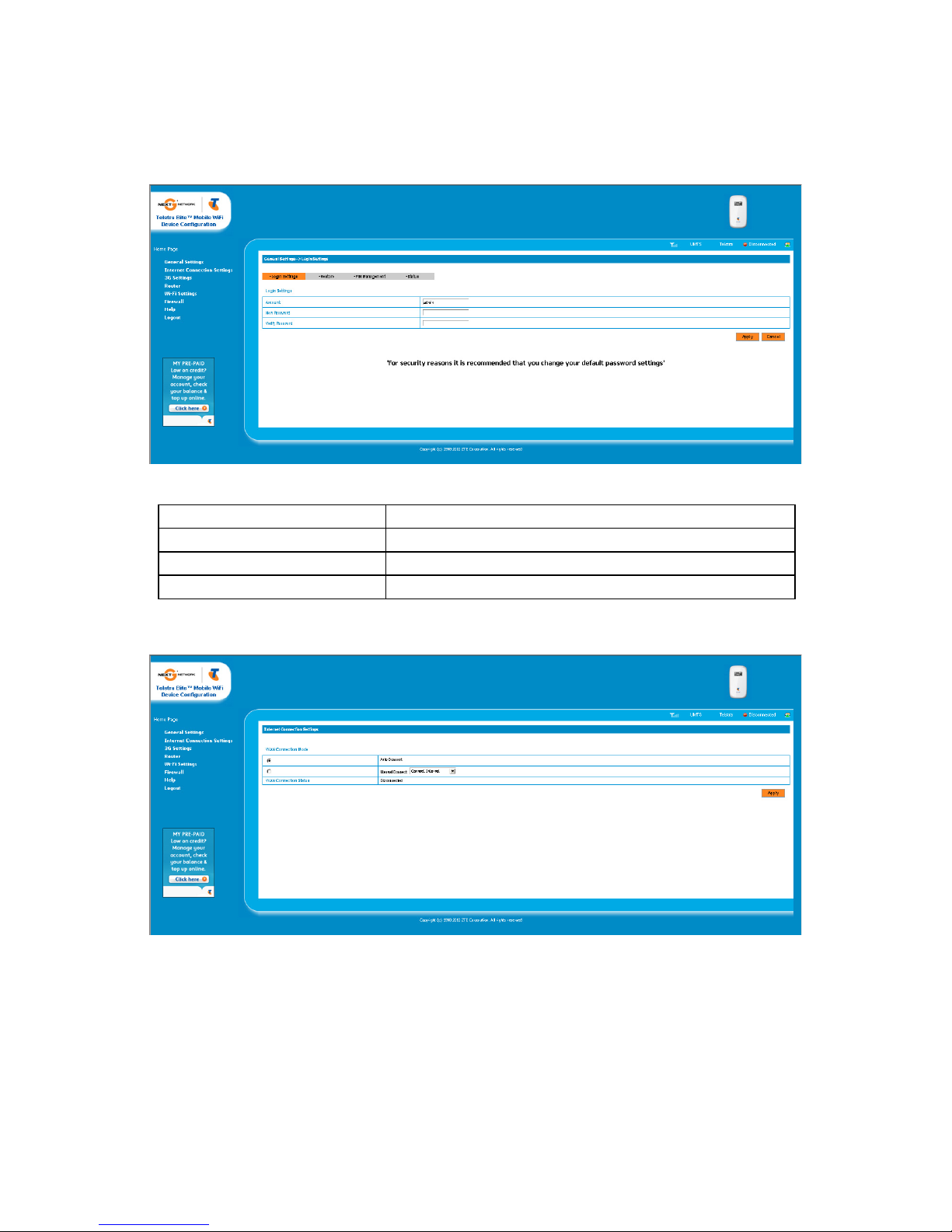

3.3 General Settings .............................................................................11

3.4 Internet Connection Settings ............................................................11

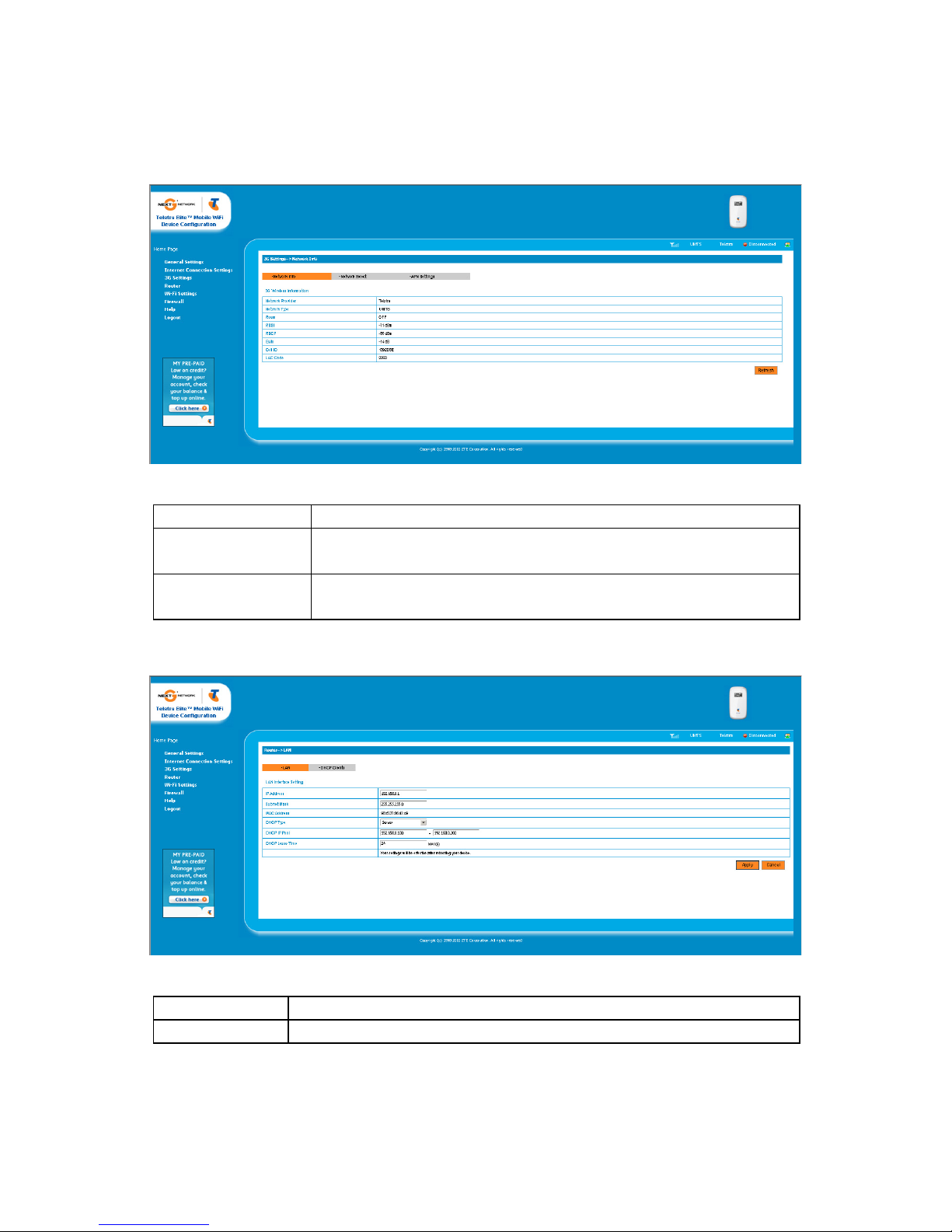

3.5 3G Settings ................................................................................... 12

3.6 Router.......................................................................................... 12

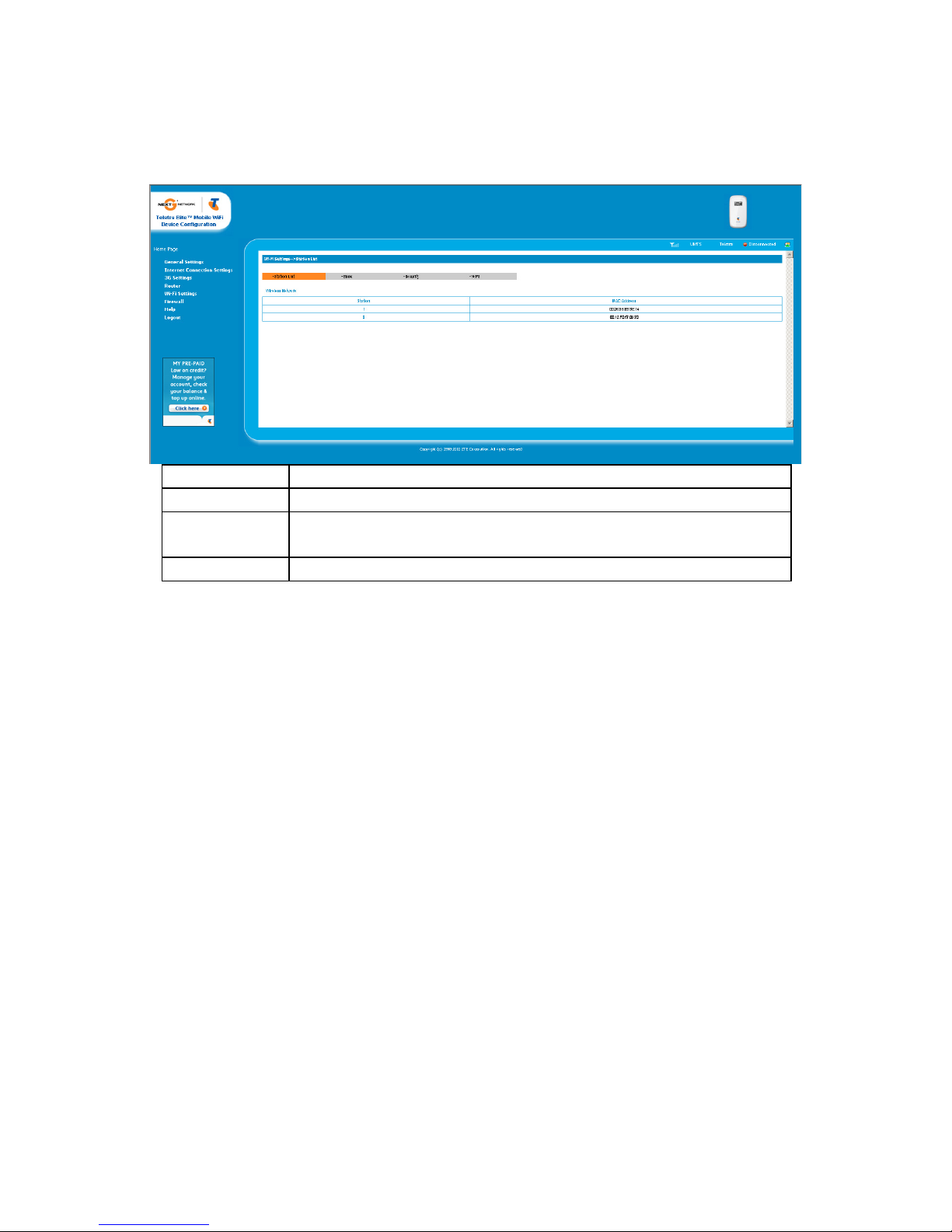

3.7 Wi-Fi Setting................................................................................. 13

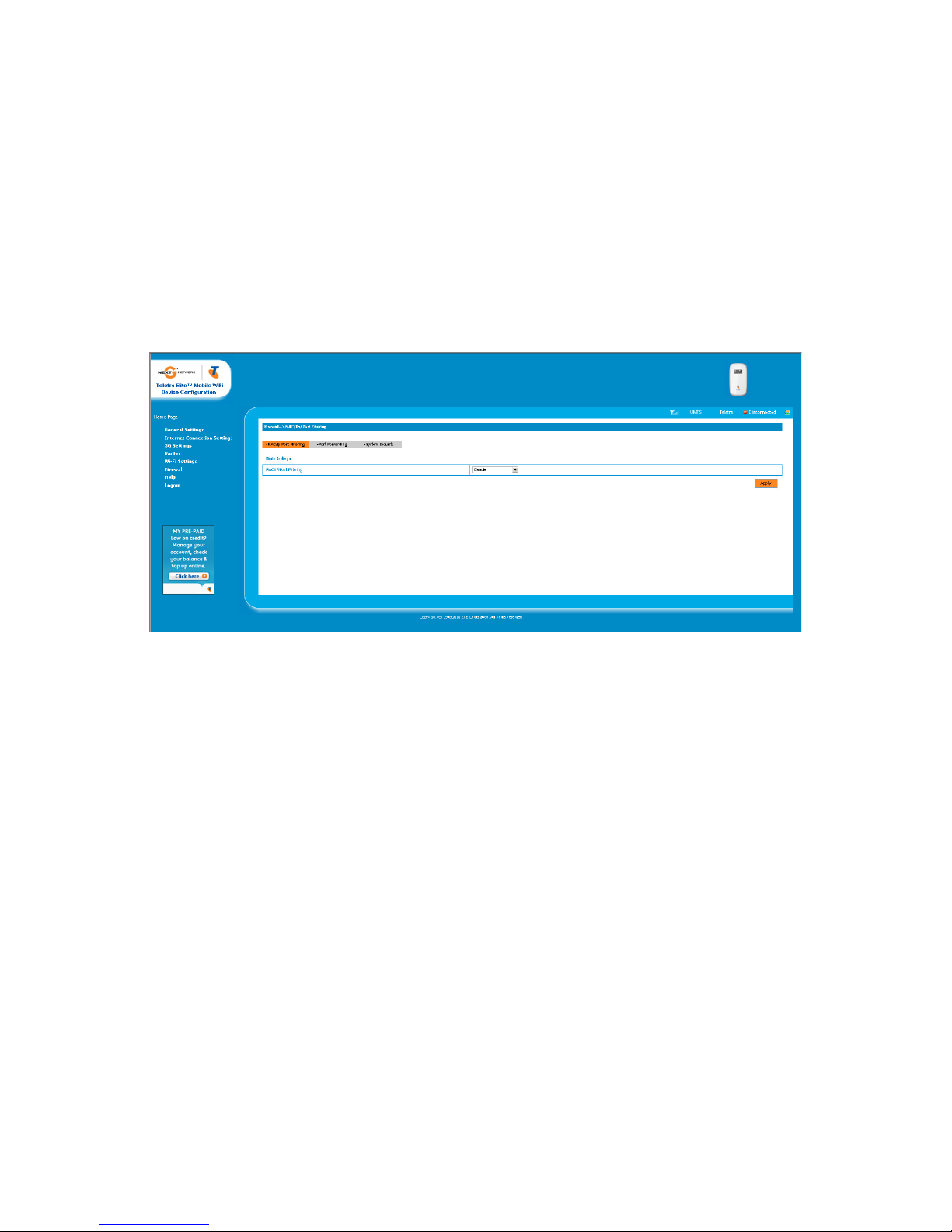

3.8 Firewall ........................................................................................ 15

3.8.1 MAC / IP / Port filter items.............................................................. 15

3.8.2 Port Forwarding .......................................................................... 16

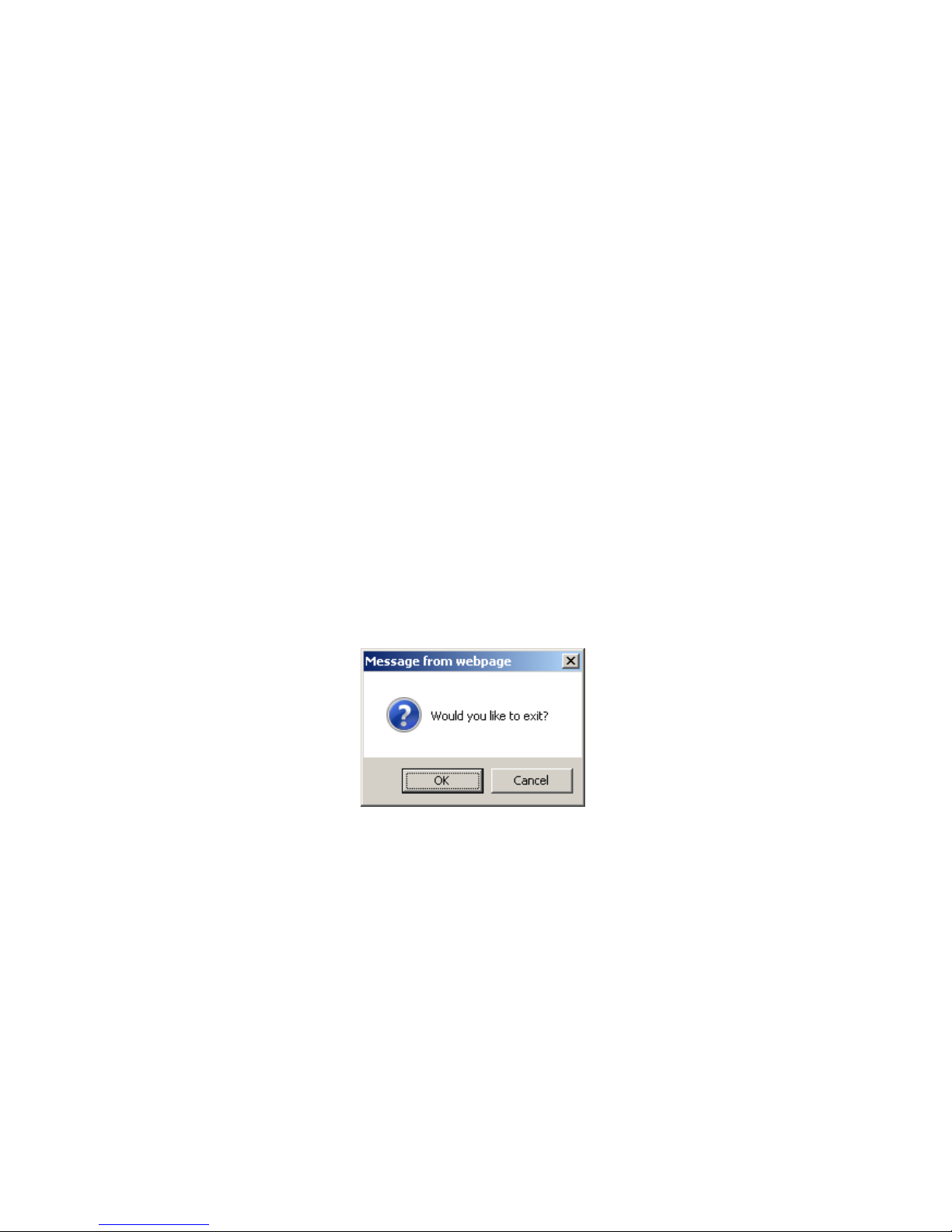

3.9 Logout ......................................................................................... 16

4 Troubleshooting and Warranty Information ..................... 17

5 Technical Specifications.................................................... 18

6 Safety Precautions............................................................ 19

1 General Information

Computer Requirements

The router will operate with any PC, MAC or other device that supports Wi-Fi and has a

standard internet browser installed.

ZTE cannot guarantee that third party hardware or software is compatible with this product.

Warnings and Safety Notices

Please read all the safety notices before using this device. This device is designed to be used

at least 20 cm from your body.

Do not use the router near fuel or chemicals or in any prescribed area such as service

stations, refineries, hospitals and aircraft. Obey all warning signs where posted.

Copyright © 2011 ZTE Corporation All Rights Reserved.

1st Edition March 2011

No part of this publication may be excerpted, reproduced, translated or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without

the prior written permission of ZTE Corporation.

The pictures, symbols and contents in this manual are for reference only. They might not be

completely identical with your product.

ZTE Corporation operates a policy of continuous development. ZTE Corporation reserves the

right to make changes and improvements to the products described in this document

without prior notice.

Limitation of Liability

ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential

damages resulting from or arising out of or in connection with using this product, whether

or not ZTE had been advised, knew or should have known the possibility of such damages.

The user should refer to the enclosed warranty card for full warranty and service

information.

RF Safety Information

The router has an internal antenna. For optimum performance with minimum power

consumption do not shield the device or cover with any object. Covering the antenna affects

signal quality, may cause the router to operate at a higher power level than needed, and

may shorten battery life.

3

Radio Frequency Energy

Your wireless router is a low-power radio transmitter and receiver. When switched on it

intermittently transmits radio frequency (RF) energy (radio waves). The transmit power level

is optimized for best performance and automatically reduces when there is good quality

reception. Maximum power is only used at the edge of network coverage so under most

circumstances the power output is very low. Under poor network conditions the router

transmits at a higher power, may get hot and have a significantly shorter battery life.

Declaration of Conformity – Specific Absorption Rate (SAR)

We declare that the product detailed in this manual, and in combination with our

accessories, conform with the essential requirements of The Radio Communications

Standard (Electro-magnetic Radiation Human Exposure) 2003 and the Australian

Communications and Media Authority Section 376 of the Telecommunications Act 1997.

The highest value SAR result is 0.743 W/Kg at GSM 850MHz.

N14945

RoHS Declaration (Restriction of Hazardous Substances)

ZTE declares that the Wireless Router is free from hazardous materials and complies with EU

directive 2002/95/EC (commonly known as the RoHS Directive) and the amendments.

Wi-Fi Alliance Interoperability Certification

The Wireless Router has successfully completed the Wi-Fi Alliance interoperability testing

and is compatible with any wireless device bearing the logo as shown.

The model number is MF60.

Additional information is available at http://www.wi-fi.org/certif

ication_programs.php

is a registered trademark of SD Card Association.

4

2 Getting started

1. Power Key - Press and hold the for three seconds to switch the router on or off.

2. microSD™ slot for expandable memory up to 32GB

3. WPS – Press to enable Wi-Fi Protected Setup authentication process.

4. USB charging port - Connect to your PC or AC charger for battery charging.

5. Antenna port – Connect an external antenna to boost your signal.

6. LCD Display Panel:

M = Manual Connect mode

A = Automatic Connect mode

R = Roaming

5

2.1 Insert your USIM

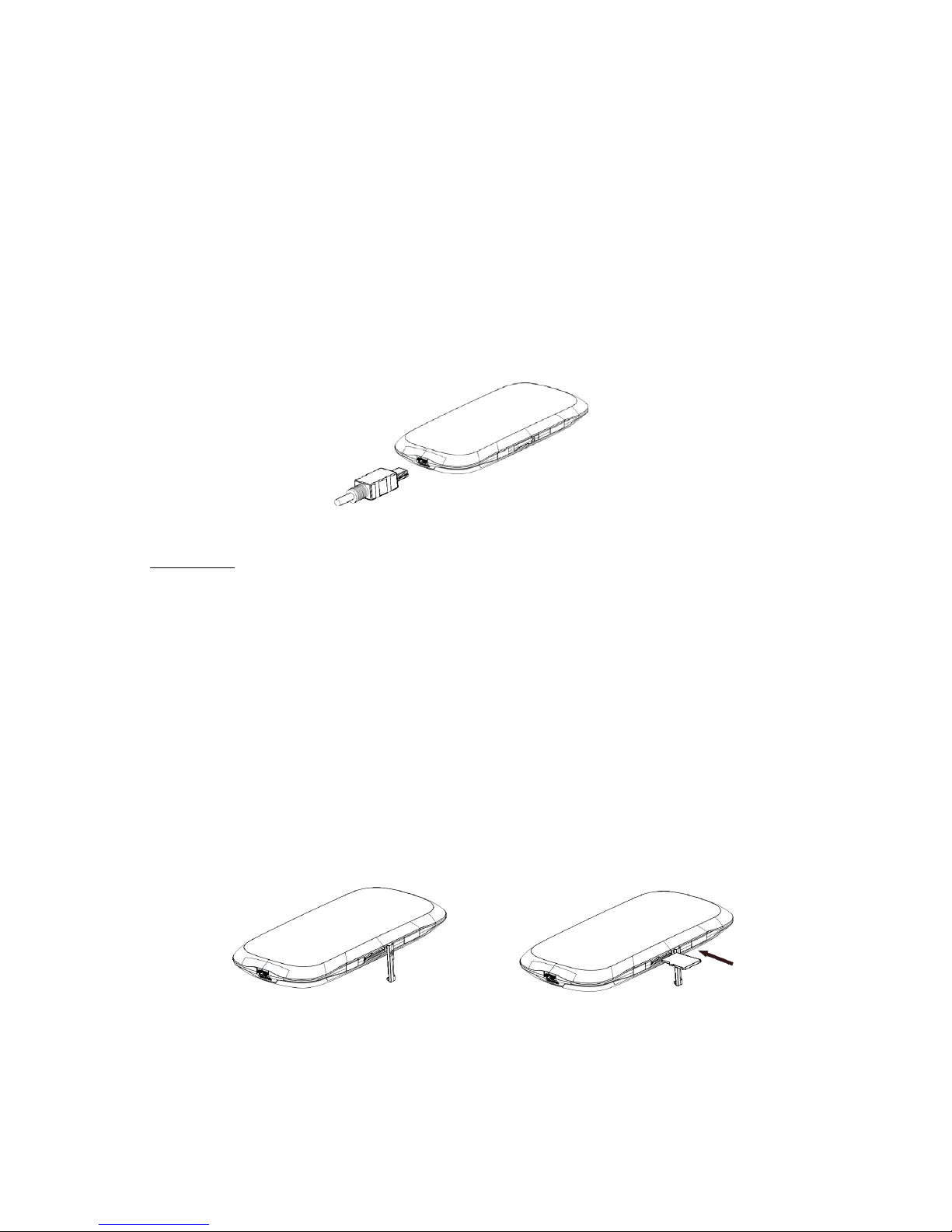

1. Open the back cover using the thumb catch at the base of the device.

2.

Insert the (U)SIM card with the gold contacts facing down and the beveled

edge on the left hand side as shown:

3. Insert the battery with the contacts located against the gold springs:

4

.

Line up the back cover and press gently to snap back into place.

5. Press and hold the power key for 3 seconds to switch the router on.
