Telstra EasyCall® 2 Mobile Phone

User Guide

LEGAL INFORMATION

No part of this publication may be excerpted, reproduced, translated or utilized in any form or

by any means, electronic or mechanical, including photocopying and microfilm, without the

prior written permission of ZTE Corporation.

The manual is published by ZTE Corporation. We reserve the right to make modifications on

print errors or update specifications without prior notice.

Index

1 Introduction........................................................................................................ 4

1.1 General Precautions........................................................................................4

1.2 Precautions While Driving ................................................................................5

1.3 Aircraft Safety................................................................................................5

1.4 Precautio ns for Medical De vices and Facilities ......................................................5

1.5 Precautions for Potentially Explosive Atmospheres ...............................................6

1.6 Battery Saf ety ...............................................................................................6

1.7 Limitation of Liability ......................................................................................7

1.8 RF Safety (SAR) ..............................................................................................7

2 Getting Started....................................................................................................8

2.1 Insert the SIM Card .........................................................................................8

2.2 Insert the battery ...........................................................................................9

2.3 Charging the battery .....................................................................................10

2.4 Battery level indicator ................................................................................... 11

2.5 Switch your phone On................................................................................... 11

3 Get to know your phone .....................................................................................12

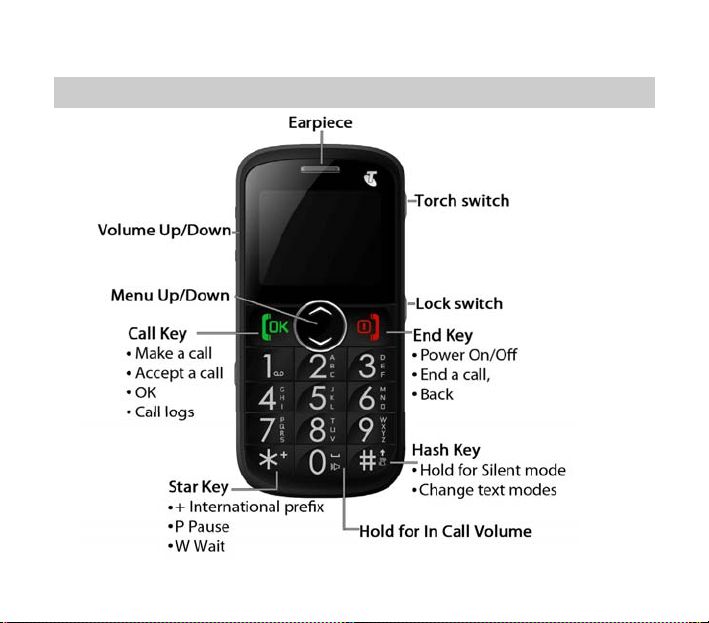

3.1 You r ph on e..................................................................................................12

3.2 Main Display ...............................................................................................13

3.3 Display Icons ...............................................................................................13

3.4 Key funct ions...............................................................................................14

3.5 Menu Map ..................................................................................................16

4 Step by step guide..............................................................................................17

4.1 Switch Setting..............................................................................................17

4.2 Make and receive a call..................................................................................18

4.3 Add a Contact to your Phone Book ..................................................................19

4.4 Make a call from the Phone Book ....................................................................19

4.5 Messages ....................................................................................................20

4.6 Text Input methods ......................................................................................21

4.7 Phone Book .................................................................................................22

4.8 Speed Dial ...................................................................................................23

4.9 Call History.................................................................................................. 23

4.10 Settings > Audio Settings ...............................................................................24

4.11 Settings > Phone Settings...............................................................................25

4.12 Settings > Call Settings ..................................................................................26

4.13 Settings > Network Settings............................................................................27

4.14 Settings > Security Code ................................................................................27

4.15 Organiser > Alarms / Reminders.......................................................................27

4.16 Organiser > Calendar.....................................................................................29

4.17 Organiser > Calculator ...................................................................................29

4.18 Tor ch ..........................................................................................................29

4.19 Keylock Switch............................................................................................. 29

4.20 FM Radio Switch...........................................................................................30

Technical Reference .....................................................................................................31

4.21 Technical Specifications.................................................................................31

4.22 Service Information ......................................................................................31

4.23 Warrant y Info rmation ...................................................................................32

4.24 Network Locked Device..................................................................................32

1 Introduction

This section includes some important information on safety and efficient operation.

Please read this section before using the phone.

1.1 General Precautions

 The antenna is located in the top portion of the handset, behind the display. When you

are using the handset try to avoid shielding the antenna area with your hand. Hold the handset between your thumb and fingers towards the base of the handset. This will leave the antenna area clear to transmit and receive signals. Touching the antenna area affects call quality and may cause the phone to operate at a higher power level than needed.

 Keep the phone out of the reach of small children. The phone may cause injury or be

damaged.

 Protect the handset from liquids. Only use a soft dry cloth to clean the handset.  The handset will be damaged by liquid ingress. The handset contains a liquid detection

sticker which changes colour when exposed to liquids. Liquid ingress is not covered by warranty under any circumstances.

 Do not expose the handset to solvents, chemicals or abrasive cleaning products.  Do not expose the handset or battery to prolonged direct sunlight or temperatures

exceeding 50˚ C. This may damage the battery and high temperatures can shorten the life of electronic devices.

 Please use original accessories only. Damage caused by non-genuine accessories may not

be covered by your warranty terms and conditions.

 As your mobile phone can produce electromagnetic field, do not place it near magnetic

items such as computer disks or bank cards. Do not expose to metal filings which can stick to the speaker area.



Using the phone near electrical appliances such as TV, telephone, radio and personal computer may cause interference.

 Do not drop or throw your handset. Rough handling can cause physical damage.  Do not attempt to disassemble the handset or battery.

1.2 Precautions While Driving

 Obey all safety regulations and do not use your phone while driving.  Do not place your phone on an airbag or in the airbag deployment area. If a phone is in

the airbag deployment area it may be propelled with great force and cause injury to occupants of the vehicle.

 Please turn off your mobile phone at service stations as recommended.

1.3 Aircraft Safety

 Please turn off your mobile phone before boarding as instructed by the airline personnel.  Disable your alarms to make sure that the phone does not turn on during the flight.

1.4 Precautions for Medical Devices and Facilities

 If you use a pacemaker please keep the phone at least twenty centimetres from the

pacemaker when the phone is switched on. Do not carry the phone in your breast pocket. Use the ear opposite the pacemaker to minimize the potential for interference. Switch off the phone immediately if necessary.

 Some phones may interfere with hearing aids. In the event of such interference consult

your hearing aid manufacturer to discuss alternatives.

 If you use any other personal medical device, please consult the manufacturer of your

device to determine if it is adequately shielded from RF energy.



Obey the restrictions on the use of mobile phones at prescribed places such as hospitals, airports, service stations, refineries, chemical works etc. Switch off your phone as required.

1.5 Precautions for Potentially Explosive Atmospheres

 Switch off your phone prior to entering any area with potentially explosive atmospheres,

such as fuel or chemical transfer or storage facilities.

 Do not remove, install, or charge batteries in such areas. Spark in a potentially explosive

atmosphere can cause explosion or fire.

 To avoid possible interference with blasting operations switch off your phone when you

are near electrical blasting caps, in a blasting area, or in areas posted “Turn off electronic devices.” Obey all signs and instructions.

 Do not store the phone with flammable or explosive articles.

1.6 Battery Safety

 Do not short-circuit the battery terminals. Do not carry the battery in your pocket in case

of accidental short circuits.

 Do not store battery in hot areas or dispose of the battery in a fire.  Do not disassemble, pierce or modify the battery in any way.  Please store the battery in a cool dry place if you are not using it.  The battery is rechargeable but eventually it will wear out. When the operating time (talk

time and standby time) is reduced you should replace your battery.

 Please stop using the charger and battery if they are damaged.  Return the worn-out battery to your service provider or dispose of it in accordance with

environmental regulations. Do not dispose of it in household rubbish.

1.7 Limitation of Liability

ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with using this product, whether or not ZTE had been advised, knew or should have known the possibility of such damages. The user should refer to the enclosed warranty card for full warranty and service information.

1.8 RF Safety (SAR)

SAR tests have been completed as per the Radiocommunications Standard 2003 (Human Exposure). The limit defined by this standard is 2.0W/Kg. The highest value SAR recorded for the device is 1.13W/Kg at 850Mhz UMTS.

Notes The pictures and icons shown in the manual are for reference only. The manufacturer reserves the right to update the product at any time.

Your handset is locked to the Telstra network. If you wish to use your handset with another service provider you need to contact Telstra to obtain the unlocking code. An unlocking fee may apply for this service.

Warning:

If the battery is damaged do not recharge it. In the unlikely event of battery leakage avoid contact with your skin and wash the affected area thoroughly in water.

2 Getting Started

2.1 Insert the SIM Card

Remove the battery cover by pressing down on the back cover and sliding the cover

down. Insert the SIM card with the metal contacts facing down and the notch on the

bottom left corner as shown:

2.2 Insert the battery

1. Insert the battery carefully with the contacts located against the gold springs - the

battery will only fit one way.

2. Re

place the battery cover. Make sure that the cover closes completely.

2.3 Charging the battery

The phone can

be charged in the On or Off state. Make sure that the battery is

inserted before charging.

The charger lead is keyed and will only

fit one way. Insert the lead carefully

observing the correct alignment of the

plug and socket.
