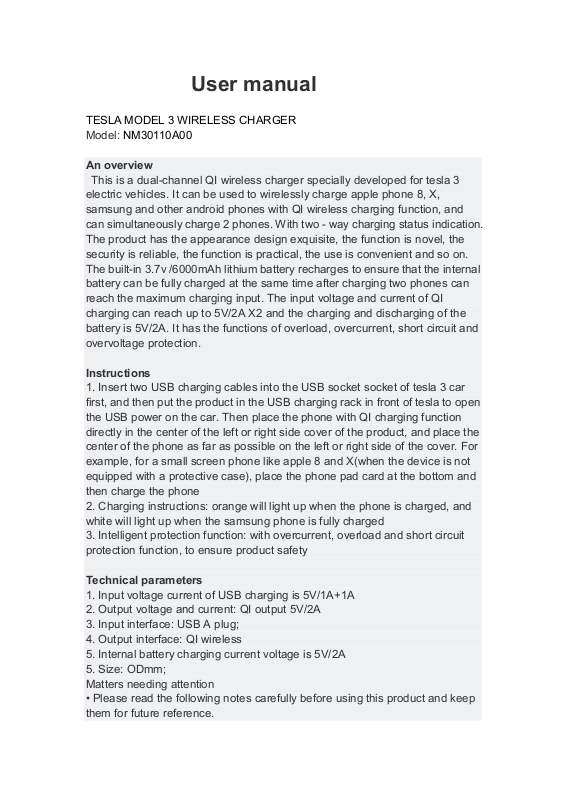

User manual

TESLA MODEL 3 WIRELESS CHARGER

Model: NM30110A00

An overview

This is a dual-channel QI wireless charger specially developed for tesla 3
electric vehicles. It can be used to wirelessly charge apple phone 8, X,
samsung and other android phones with QI wireless charging function, and
can simultaneously charge 2 phones. With two - way charging status indication.
The product has the appearance design exquisite, the function is novel, the
security is reliable, the function is practical, the use is convenient and so on.
The built-in 3.7v /6000mAh lithium battery recharges to ensure that the internal
battery can be fully charged at the same time after charging two phones can
reach the maximum charging input. The input voltage and current of QI
charging can reach up to 5V/2A X2 and the charging and discharging of the
battery is 5V/2A. It has the functions of overload, overcurrent, short circuit and
overvoltage protection.

Instructions

1. Insert two USB charging cables into the USB socket socket of tesla 3 car
first, and then put the product in the USB charging rack in front of tesla to open
the USB power on the car. Then place the phone with QI charging function
directly in the center of the left or right side cover of the product, and place the
center of the phone as far as possible on the left or right side of the cover. For
example, for a small screen phone like apple 8 and X(when the device is not
equipped with a protective case), place the phone pad card at the bottom and
then charge the phone

2. Charging instructions: orange will light up when the phone is charged, and
white will light up when the samsung phone is fully charged

3. Intelligent protection function: with overcurrent, overload and short circuit
protection function, to ensure product safety

Technical parameters

1. Input voltage current of USB charging is 5V/1A+1A

2. Output voltage and current: QI output 5V/2A

3. Input interface: USB A plug;

4. Output interface: QI wireless

5. Internal battery charging current voltage is 5V/2A

5. Size: ODmm;
Matters needing attention

• Please read the following notes carefully before using this product and keep
them for future reference.

1. Please read the instructions of this product in detail before using it for the
first time

2. When using this product, please turn on the screen of digital products such
as mobile phones to confirm that the charging connection sign has been
displayed correctly, so as to ensure the product has been working normally.

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.

Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.

FCC ID: 2AOA2-NM30110A00
