Telrad Networks COMPACT3X User Manual

Download
We’re on your wavelength.
BreezeCOMPACT
Release Version: 5.0
r
August 2014
DN115004
SYSTEM
MANUAL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Legal Rights
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Legal Rights
© Copyright 2015. Telrad Networks Ltd. All rights reserved. The material contained herein is proprietary, privileged, and confidential and owned by Telrad Networks or its third-party
licensors. No disclosure thereof shall be made to third parties without the express written permission of Telrad Networks Ltd.
Telrad Networks Ltd. reserves the right to alter the equipment specifications and descriptions in this publication without prior notice. No part of this publication shall be deemed to be part of any contract or warranty unless specifically incorporated by reference into such contract or warranty.
Trade Names
4Motion® and/or other products and Telrad Networks/or services referenced herein are either registered trademarks, trademarks or service marks of Telrad Networks Ltd.
All other names are or may be the trademarks of their respective owners.
Statement of Conditions
The information contained in this manual is subject to change without notice. Telrad Networks Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this manual or equipment supplied with it.
Warranties and Disclaimers
All Telrad Networks Ltd. (“Telrad Networks“) products purchased from Telrad Networks or through any of Telrad Networks's authorized resellers are subject to the following warranty and product liability terms and conditions.
Exclusive Warranty
(a) Telrad Networks warrants that the Product hardware it supplies and the tangible media on which any software is installed, under normal use and conditions, will be free from significant defects in materials and workmanship for a period of fourteen (14) months from the date of shipment of a given Product to Purchaser (the "Warranty Period"). Telrad Networks will, at its sole option and as Purchaser's sole remedy, repair or replace any defective Product in accordance with Telrad Networks' standard R&R procedure.
(b) With respect to the Firmware, Telrad Networks warrants the correct functionality according to the attached documentation, for a period of fourteen (14) months from invoice date (the "Warranty Period"). During the Warranty Period, Telrad Networks may release to its Customers firmware updates, which include additional performance improvements and/or bug fixes, upon availability (the "Warranty"). Bug fixes, temporary patches and/or workarounds may be supplied as Firmware updates.
Additional hardware, if required, to install or use Firmware updates must be purchased by the Customer. Telrad will be obligated to support solely the two (2) most recent Software major releases.
TELRAD NETWORKS SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY PURCHASER'S OR ANY THIRD PERSON'S MISUSE, NEGLIGENCE, IMPROPER INSTALLATION OR IMPROPER TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER HAZARD.
3
Legal Rights
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disclaimer
(a) The Software is sold on an "AS IS" basis. Telrad Networks, its affiliates or its licensors MAKE NO WARRANTIES, WHATSOEVER, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THE SOFTWARE AND THE ACCOMPANYING DOCUMENTATION. TELRAD NETWORKS SPECIFICALLY DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT WITH RESPECT TO THE SOFTWARE. UNITS OF PRODUCT (INCLUDING ALL THE SOFTWARE) DELIVERED TO PURCHASER HEREUNDER ARE NOT FAULT-TOLERANT AND ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE IN APPLICATIONS WHERE THE FAILURE, MALFUNCTION OR INACCURACY OF PRODUCTS CARRIES A RISK OF DEATH OR BODILY INJURY OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE ("HIGH-RISK ACTIVITIES"). HIGH-RISK ACTIVITIES MAY INCLUDE, BUT ARE NOT LIMITED TO, USE AS PART OF ON-LINE CONTROL SYSTEMS IN HAZARDOUS ENVIRONMENTS REQUIRING FAIL-SAFE PERFORMANCE, SUCH AS IN THE OPERATION OF NUCLEAR FACILITIES, AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR TRAFFIC CONTROL, LIFE SUPPORT MACHINES, WEAPONS SYSTEMS OR OTHER APPLICATIONS REPRESENTING A SIMILAR DEGREE OF POTENTIAL HAZARD. TELRAD NETWORKS SPECIFICALLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR HIGH-RISK ACTIVITIES.
(b) PURCHASER'S SOLE REMEDY FOR BREACH OF THE EXPRESS WARRANTIES ABOVE SHALL BE REPLACEMENT OR REFUND OF THE PURCHASE PRICE AS SPECIFIED ABOVE, AT TELRAD NETWORKS'S OPTION. TO THE FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES AND REMEDIES SET FORTH IN THIS AGREEMENT ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING BUT NOT LIMITED TO WARRANTIES, TERMS OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY, CORRESPONDENCE WITH DESCRIPTION, NON-INFRINGEMENT, AND ACCURACY OF INFORMATION GENERATED, ALL OF WHICH ARE EXPRESSLY DISCLAIMED. TELRAD NETWORKS' WARRANTIES HEREIN RUN ONLY TO PURCHASER, AND ARE NOT EXTENDED TO ANY THIRD PARTIES. TELRAD NETWORKS NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS.
Limitation of Liability
(a) TELRAD NETWORKS SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY THIRD PARTY, FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS OR FOR ANY INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER ARISING UNDER BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE AND WHETHER BASED ON THIS AGREEMENT OR OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
(b) TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE LIABILITY FOR DAMAGES HEREUNDER OF TELRAD NETWORKS OR ITS EMPLOYEES OR AGENTS EXCEED THE PURCHASE PRICE PAID FOR THE PRODUCT BY PURCHASER, NOR SHALL THE AGGREGATE LIABILITY FOR DAMAGES TO ALL PARTIES REGARDING ANY PRODUCT EXCEED THE PURCHASE PRICE PAID FOR THAT PRODUCT BY THAT PARTY (EXCEPT IN THE CASE OF A BREACH OF A PARTY'S CONFIDENTIALITY OBLIGATIONS).
Radio Frequency Interference Statement
The Base Transceiver Station (BTS) equipment has been tested and found to comply with the limits for a class A digital device, pursuant to ETSI EN 301 489-1 rules and Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in commercial, business and industrial environments. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at the user's own expense.
FCC and Industry Canada Radiation Hazard Warning
4
Legal Rights
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To comply with Industry Canada exposure requirements, and FCC RF exposure requirements in Section 1.1307 and 2.1091 of the FCC Rules, the antenna used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 390 cm from all persons.
Pour se conformer aux exigences d’exposition d'Industrie Canada, et aux exigences FCC dans les sections 1,1307 et 2,1091 de la réglementation FCC, l'antenne utilisée pour cet émetteur doit être montée d’une manière fixe sur des structures permanentes de plein air avec une distance de séparation d'au moins 390 cm de toutes personnes.
Industry Canada Statement
Users can obtain Canadian information on RF exposure and compliance from the Canadian Representative: Nick Dewar Nick.Dewar@Telrad.com
Canadian Radio Standards Specifications (RSS) Compliance Statement
This device has been designed to operate with the antennas listed in “Antennas” on page 28, and having a maximum gain of 18 dBi. Antennas not included in this list or having a gain greater than 18 dBi are strictly prohibited for High-density areas of use with this device. Low-density areas can use a higher-gain Antenna.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the Equivalent Isotropically Radiated Power (EIRP) is not more than that permitted for successful communication.
R&TTE Compliance Statement
This equipment complies with the appropriate essential requirements of Article 3 of the R&TTE Directive 1999/5/EC.
Safety Considerations – General
For the following safety considerations, “Instrument” means the BreezeCOMPACT units' components and their cables.
Grounding
The BTS chassis is required to be bonded to protective grounding using the bonding stud or screw provided with each unit.
Safety Considerations – DC-powered Equipment
CAUTION ATTENTION
Risk of electric shock and energy hazard. Risque de décharge électrique et d'electrocution.
Restricted Access Area: The DC-powered equipment should only be installed in a Restricted Access Area.
Installation Codes: The equipment must be installed according to the latest edition of the country’s national electrical codes. For North America, equipment must be installed in accordance with the US National Electrical Code and the Canadian Electrical Code.
Zone d’Accès Limité: L’alimentation en courant continue doit être installée dans une zone a accès limité
Normes d’installation: les équipements doivent être installes d’après les dernières normes en vigueur. Pour l’Amérique du nord les équipements doivent être installés d’après les normes électriques nationales US et les normes électriques Canadiennes.
Overcurrent Protection: A readily accessible Listed branch circuit overcurrent protective device, rated 10A, must be incorporated in the building wiring.
Protection de surintensité: Une protection de surintensité de 10A doit être installée sur le circuit d’alimentation.
5
Legal Rights
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Caution
CAUTION: This equipment is designed to permit
connection between the earthed conductor of the DC supply circuit and the grounding conductor at the equipment. See installation instructions.
The equipment must be connected directly to the DC
Supply System grounding electrode conductor.
All equipment in the immediate vicinity must be
grounded in the same way, and not be grounded elsewhere.
The DC supply system is to be local, meaning within
the same premises as the equipment.
There shall be no disconnect device between the
grounded circuit conductor of the DC source (return) and the point of connection of the grounding electrode conductor.
To avoid electrical shock, do not perform any servicing unless you are qualified to do so. Pour éviter tout choque électrique ne pas intervenir sur les circuits électriques si vous n’êtes pas qualifié pour
ATTENTION: Cet équipement est prévu pour permettre une mise a la terre entre le courant continu et le reste de l’installation. Voir les instructions d’installation.
L’appareil doit être connecté a la terre de
l’allimentation en courant continu.
Tout appareil dans la proximité immédiate doit être
connecté a la terre de la même manière et pas autrement.
L’alimentation du système en courant continu doit être
local et remplir les mêmes conditions que le matériel.
Le circuit de terre doit être ininterrompu entre la source
et les différents appareils
Line Voltage
Laser
Before connecting this instrument to the power line, make sure that the voltage of the power source matches the requirements of the instrument.
CLASS 1 LASER PRODUCT
The system can be equipped with Class 1 laser products, which comply with IEC 60825-1, IEC 60825-2 and a UL recognized laser or CDRH CFR Title 21, part 1040.
The system does not emit hazardous light, and the beam is totally enclosed during normal operation, as long as the equipment is operated in accordance with the applicable safety instructions.
Laser Safety Statutory Warning
All personnel involved in equipment installation, operation and maintenance must be aware that laser radiation is invisible. Therefore, although protective devices generally prevent direct exposure to the beam, personnel must strictly observe the applicable safety precautions, and in particular, must avoid staring into optical connectors, either directly or using optical instruments.
Remember that observing safety precautions is not a matter of personal choice; ignoring safety puts all people within the line-of-sight in danger.
APPAREIL A` LASER DE CLASSE 1
Classe du Laser Le système peut être équipe d’un laser de classe 1 selon la norme
IEC 60825-1, IEC 60825-2 et reconnu comme UL laser ou CDRH CFR titre 21, partie 1040.
Le système n’émet pas de lumière apparente et le rayon est entièrement protégé pendant l’utilisation normal du système par l’utilisateur tant que les appareils sont utilisés en suivant les instructions de sécurité.
Précautions de sécurité réglementaire pour laser
6
Legal Rights
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tout personnel impliqué dans l’installation, le fonctionnement et la maintenance de l’installation doivent savoir que les radiations laser sont invisibles. Donc, bien que généralement les protections évitent tout contact direct avec les rayons émis, le personnel doit observer strictement les précautions de sécurité et en particulier, les connecteurs optiques, aussi bien directement ou avec des instruments d’optique.
Souvenez vous que remplir les précautions de sécurité n’est en aucun cas un choix personnel; ignorer les règles de sécurité mets toutes les personnes en présence en danger.
Radio
The instrument transmits radio energy during normal operation. To avoid possible harmful exposure to this energy, do not stand or work for extended periods of time in front of its antenna. The long-term characteristics or the possible physiological effects of radio frequency electromagnetic fields have not yet been fully investigated.
Outdoor Units and Antennas Installation and Grounding
Ensure that outdoor units, antennas and supporting structures are properly installed to eliminate any physical hazard to either people or property. Make sure that the installation of the outdoor unit, antenna and cables is performed in accordance with all relevant national and local building and safety codes. Even where grounding is not mandatory according to applicable regulation and national codes, it is highly recommended to ensure that the outdoor unit and the antenna mast are grounded and suitable lightning protection devices are used so as to provide protection against voltage surges and static charges. In any event, Telrad Networks is not liable for any injury, damage or regulation violations associated with or caused by installation, grounding or lightning protection.
Transmitter Antenna
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. This radio transmitter IC:899A-COMPACT3X has been approved by Industry Canada to operate with the antenna types
listed in Section 1.4.7 below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio IC:899A-COMPACT3X a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans la Section 1.4.7 ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste,
ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
7
Legal Rights
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disposal of Electronic and Electrical Waste
Disposal of Electronic and Electrical Waste
Pursuant to the WEEE EU Directive, electronic and electrical waste must not be disposed of with unsorted waste. Please contact your local recycling authority for disposal of this product.
8
Important Notice
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Important Notice
This manual is delivered subject to the following conditions and restrictions:
This manual contains proprietary information belonging to Telrad Networks Ltd. Such information is supplied solely for
the purpose of assisting properly authorized users of the respective Telrad Networks products.
No part of its contents may be used for any other purpose, disclosed to any person or firm or reproduced by any means,
electronic and mechanical, without the express prior written permission of Telrad Networks Ltd.
The text and graphics are for the purpose of illustration and reference only. The specifications on which they are based
are subject to change without notice.
The software described in this document is furnished under a license. The software may be used or copied only in
accordance with the terms of that license.
Information in this document is subject to change without notice. Corporate and individual names and data used in
examples herein are fictitious unless otherwise noted.
Telrad Networks reserves the right to alter the equipment specifications and descriptions in this publication without
prior notice. No part of this publication shall be deemed to be part of any contract or warranty unless specifically incorporated by reference into such contract or warranty.
The information contained herein is merely descriptive in nature, and does not constitute an offer for the sale of the
product described herein.
Any changes or modifications of equipment, including opening of the equipment not expressly approved by Telrad
Networks Ltd.,will void equipment warranty and any repair thereafter shall be charged for. It may also void the user's authority to operate the equipment.
Some of the equipment provided by Telrad Networks and specified in this manual is manufactured and warranted by third parties. All such equipment must be installed and handled in full compliance with the instructions provided by such manufacturers as attached to this manual or provided thereafter by Telrad Networks or the manufacturers. Non-compliance with such instructions may result in serious damage and/or bodily harm and/or void the user's authority to operate the equipment and/or revoke the warranty provided by such manufacturer.
9

About This Manual

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
About This Manual
This manual describes the BreezeCOMPACT solution, and details how to install, operate and manage the BTS equipment.
This manual is intended for technicians responsible for installing, setting and operating the BreezeCOMPACT BTS equipment, and for system administrators responsible for managing the system.
This manual contains the following chapters:
Chapter 1: System Description, page 16, describes the BreezeCOMPACT system.Chapter 2: Commissioning, page 34, describes how to configure basic parameters and validate units' operation.Chapter 3: Operation and Administration, page 44, describes how to use the Monitor program for configuring
parameters, checking system status and monitoring performance.
10
10
10

Contents

Contents
Chapter 1: System Description..................................................................................................................16
1.1 The BreezeCOMPACT Solution................................................................................................................17
1.1.1 The BreezeCOMPACT Family.....................................................................................................17
1.1.2 BreezeCOMPACT Models...........................................................................................................18
1.1.3 BreezeCOMPACT Product Topologies........................................................................................18
1.1.4 Antennas........................................................................................................................................20
1.1.5 GPS ...............................................................................................................................................21
1.2 Telrad Overall Solution..............................................................................................................................22
1.2.1 TelCore..........................................................................................................................................22
1.2.2 Telrad StarSuite NMS Solution ....................................................................................................24
1.3 Specifications.............................................................................................................................................25
1.3.1 Modem and Radio.........................................................................................................................25
1.3.2 Data Communication (Ethernet Interfaces) ..................................................................................26
1.3.3 Configuration and Management....................................................................................................26
1.3.4 Standards Compliance, General....................................................................................................26
1.3.5 Environmental...............................................................................................................................27
1.3.6 Mechanical and Electrical.............................................................................................................27
1.3.7 Antennas........................................................................................................................................28
1.3.8 BMAX-4M-GPS Receiver Specifications....................................................................................33
Chapter 2: Commissioning.........................................................................................................................34
2.1 Introduction................................................................................................................................................35
2.2 BreezeCOMPACT Installation ..................................................................................................................35
2.3 System Initial Verification.........................................................................................................................36
2.4 Configuring Parameters Required for Management Connectivity.............................................................37
2.4.1 Configuring the BTS Number.......................................................................................................37
2.4.2 Configuring the Management and IP Interfaces Connectivity Mode Parameter
.......................................................................................................................................................37
2.4.3 Configuring the L1 and L2 Parameters (If Necessary).................................................................38
2.4.4 Configuring the SNMP Authorized Manager and Traps Manager...............................................38
11
Contents
2.4.5 Applying the Configuration..........................................................................................................39
2.5 Activating the Unit.....................................................................................................................................40
2.5.1 Creating the BS.............................................................................................................................40
2.5.2 Configuring Radio Cluster Parameters.........................................................................................42
2.5.3 Configuring Antenna Associations...............................................................................................42
2.5.4 Applying the Configuration..........................................................................................................43
Chapter 3: Operation and Administration ..............................................................................................44
3.1 BTS System Management..........................................................................................................................45
3.2 Monitor Program........................................................................................................................................46
3.2.1 Accessing the Monitor Program ...................................................................................................46
3.2.2 Using the Monitor Program ..........................................................................................................47
3.3 IP Address Configuration...........................................................................................................................49
3.3.1 IP Address Configuration Restrictions .........................................................................................49
3.3.2 IP Subnets .....................................................................................................................................49
3.4 Main Menu.................................................................................................................................................50
3.5 BTS Menu..................................................................................................................................................51
3.5.1 General..........................................................................................................................................51
3.5.2 Connectivity..................................................................................................................................52
3.5.3 Unit Control ..................................................................................................................................59
3.5.4 Management..................................................................................................................................63
3.6 Sector Menu...............................................................................................................................................67
3.6.1 Sector Definition...........................................................................................................................67
3.6.2 Radio Cluster.................................................................................................................................68
3.7 BS Menu.....................................................................................................................................................69
3.7.1 Add................................................................................................................................................69
3.7.2 Select.............................................................................................................................................71
3.8 Chassis Menu.............................................................................................................................................91
3.8.1 General..........................................................................................................................................91
3.8.2 Ports Control.................................................................................................................................92
3.9 GPS Menu..................................................................................................................................................93
3.9.1 General Configuration...................................................................................................................93
3.9.2 Inventory & Statuses.....................................................................................................................96
12
Contents
3.10 RH Menu....................................................................................................................................................98
3.10.1 General..........................................................................................................................................98
3.10.2 Ports ..............................................................................................................................................98
3.11 Spectrum Analyzer.....................................................................................................................................99
3.11.1 Enable/Disable..............................................................................................................................99
3.11.2 Configuration..............................................................................................................................100
3.11.3 Show Current State .....................................................................................................................100
3.11.4 Start Scanning.............................................................................................................................100
3.11.5 Abort Scanning ...........................................................................................................................100
3.11.6 Show Results...............................................................................................................................101
3.12 Dual Carrier Load Balancing...................................................................................................................102
13
Figure 1: BreezeCOMPACT Product Topologies 18 Figure 2: Single Sector, Single Carrier 19 Figure 3: Single Sector, Dual Carrier 19 Figure 4: Two Sectors, Two Carriers 20 Figure 5: GPS 21 Figure 6: Telrad Solution 22 Figure 7: Mini-centralized ASN-GW 23 Figure 8: AAA Solution 23 Figure 9: StarSuite NMS Solution 24 Figure 10: GPS Chaining Mode Connectivity 94 Figure 11: Spectrum Analyzer Results 101

Figures

Figures
14
Table 1: BreezeCOMPACT Part Numbers, Frequencies and Tx Power 18 Table 2: General Modem and Radio Specifications 25 Table 3: Data Communication (Ethernet Interfaces) 26 Table 4: Configuration and Management 26 Table 5: Standards Compliance, General 26 Table 6: Environmental Specifications 27 Table 7: Mechanical and Electrical Specifications, BreezeCOMPACT1000 Units 27 Table 8: Mechanical and Electrical Specifications, BreezeCOMPACT2000 Units 28 Table 9: Mechanical and Electrical Specifications, BreezeCOMPACT3000 Units 28 Table 10: Attached Antenna 3.3-3.8 DDS 65º (P.N. 300726) Specifications 28 Table 11: ANT, BS, 3.3-3.8 GHz, DS, Sec.65°, 16.5dBi Minimum (P.N. 300644) Specifications 30 Table 12: ANT, BS, 3.3–3.8 GHz, DS, Sec.90°, 15.5dBi Minimum (P.N. 300645) Specifications 30 Table 13: ANT-DDP-65°-3.3-3.8 GHz (P.N. 300736) Specifications 32 Table 14: ANT-DDP-90°-3.3-3.8 GHz (P.N. 300719) Specifications 32 Table 15: BMAX-4M-GPS Receiver, Mechanical and Electrical Specifications 33 Table 16: BreezeCOMPACT LEDs 36 Table 17: First Zone Minimum Size Recommended Value Range 76 Table 18: Calculating the Upper Limit Value (Y) for Minimum and Maximum Size 77 Table 19: DL:UL Ratios 79 Table 20: Functionality of Allowed Ducting Mitigation Modes, 5/10 MHz BS Bandwidth 82 Table 21: Functionality of Allowed Ducting Mitigation Modes, 7 MHz BS Bandwidth 83

Tables

Tables
15

Chapter 1: System Description

In This Chapter:
“The BreezeCOMPACT Solution” on page 17“Telrad Overall Solution” on page 22“Specifications” on page 25
Chapter 1: System Description
Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
The BreezeCOMPACT Solution
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.1 The BreezeCOMPACT Solution

1.1.1 The BreezeCOMPACT Family

Telrad’s BreezeCOMPACT family of products includes the BreezeCOMPACT base stations, (models 1000, 2000 and 3000.) For more information, please visit the BreezeCOMPACT website.
1.1.1.1 BreezeCOMPACT 1000 – Small Cell, High Performance
• Band 42, 43; 3.3–3.5 GHz, 3.4–3.7 GHz, 3.6–3.8 GHz; 30dBm per port
• WiMAX/TD-LTE-Advanced SW-upgradable
• For Line-of-Sight and Near Line-of-Sight coverage areas
• Double capacity with dual-sector/carrier
• 4RX x 4TX and modem in a single, all-outdoor form factor
• Ultimate alternative to small cells in dense urban areas
• Highest capacity using Indoor and Outdoor CPEs and 4x4 fourth-order diversity
section of the Telrad
1.1.1.2 BreezeCOMPACT 2000 – Coverage and Capacity
• Band 42; 3.5 GHz; 37 dBm per port
• WiMAX/TD-LTE-Advanced SW-upgradable
• Ideal for urban environments with a mix of CPEs
• High power for areas with Non-Line-of-Sight
• All-in-one, outdoor Radio 4RX x 2TX and Modem
• High coverage and capacity for Indoor CPE
1.1.1.3 BreezeCOMPACT 3000 – Unmatched Performance
• Band 40*, 41; 2.3, 2.5 GHz; 4 x 40dBm per port
• WiMAX/TD-LTE-Advanced SW-upgradable
• For Fixed, High-mobility and Dense environments
• Double capacity with dual-sector/carrier
• High power for areas with Non-Line-of-Sight
• All-in-one, outdoor Radio 4RX x 4TX and Modem
• Highest coverage and capacity using Indoor and Outdoor CPEs
• 4x4 4th order diversity
*Road map item
17
Chapter 1: System Description
N
Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
The BreezeCOMPACT Solution
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.1.2 BreezeCOMPACT Models

Table 1: BreezeCOMPACT Part Numbers, Frequencies and Tx Power
Platform P/N Telrad Part Number (PN) LTE Band Frequencies
Band 42 (Full Support)
Compact1000 735270 CMP.XT-BS-3.4-3.7
Compact1000 735272 CMP.XT-BS-3.3-3.5 3300–3500 MHz 30 4x4 Compact1000 735273 CMP.XT-BS-3.6-3.8 Band 43 3600–3800 MHz 30 4x4 Compact1000 750270 CMP1000-5470-5950MHz 5470–5950 MHz 20 4x4 Compact2000 735271 CMP.HP-BS-3.5 Band 42 3400–3600 MHz 37 4x2 Compact3000 725270 CMP3000-B41-2496-2690MHz Band 41 2496–2690 MHz 40 4x4
+ Band 43 (Low Support)
3400–3700 MHz Band 42: 3400–3600 Band 43: 3600–3700 Band 43 3700–3800 is not
supported.
Tx Power per Port
30 4x4
Ports Rx/Tx

1.1.3 BreezeCOMPACT Product Topologies

BreezeCOMPACT R5.0 and above supports three deployment topologies:
Single Sector, Single Carrier Single Sector, Single CarrierTwo Sectors, Two Carriers (One Carrier per Sector)
INFORMATIO
The following sections describe each of these topologies.
Figure 1: BreezeCOMPACT Product Topologies
In the current release, BreezeCOMPACT1000 and 3000 support all three topologies. Note that BreezeCOMPACT2000 supports only the first topology (Single Sector, Single Carrier).
18
Chapter 1: System Description
Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1.3.1 Single Sector, Single Carrier
This is the basic configuration based on a single BS that supports a single sector 4 Tx/4 Rx with bandwidth of 5, 7, 10 & 20MHz (LTE). This configuration is recommended for achieving the aggregated power of 4 Tx ports as well as improved diversity in Tx and Rx. This configuration is common for three-sector sites with a frequency reuse of 3.
The BreezeCOMPACT Solution
Figure 2: Single Sector, Single Carrier
1.1.3.2 Single Sector, Dual Carrier
Two BSs support a single sector using two different carriers with a total bandwidth of 20 (10+10), 14 (7+7) or 10 (5+5) MHz. The BreezeCOMPACT is connected to one 4x4 antenna. Each carrier can be configured for a different frequency. Upon setting this mode, the load-balancing function balances according to the number of subscribers.
Figure 3: Single Sector, Dual Carrier
1.1.3.3 Two Sectors, Two Carriers (One Carrier per Sector)
Two BSs support two sectors, each with a bandwidth of 5, 7 or 10 MHz. Each sector is connected to a different 2x2 antenna directed to two sectors.
This configuration is commonly used with frequency reuse 2, where the two antennas connected to the BreezeCOMPACT
19
Chapter 1: System Description
Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
are located back to back. This configuration is not applicable for BreezeCOMPACT2000.
Figure 4: Two Sectors, Two Carriers
The BreezeCOMPACT Solution

1.1.4 Antennas

In the system architecture, the antenna is approached as an independent element. This provides the operator with the flexibility to select the antenna’s source according to its supplier policy. To ensure the availability of antennas that complement the solution, Telrad works closely with several antenna suppliers to ensure availability of antennas that comply with its requirements.
In cases where the operator prefers other antenna vendors, Telrad can provide a recommended antenna specification based on the required antenna types.
Antennas may support mechanical down-tilt (MDT) using a suitable mounting kit, or electrical down-tilt (EDT) that may be either fixed or adjustable using a special adjustment screw.
In addition to a range of standard commercial antennas, Telrad also offers a special attached antenna designed for convenient installation on top of the BreezeCOMPACT unit. For the BreezeCOMPACT unit, a special mounting kit allows installation of a standard antenna on top of the unit to minimize the space required for installation.
For details about the antennas offered by Telrad, refer to “Antennas” on page 28.

1.1.5 GPS

GPS is used to synchronize the air link frames of Intra-site and Inter-site located BTSs, in order to ensure that in all Base Stations, the air frame will start at the same time, and that all Base Stations switch from transmit (downlink) to receive (uplink) at the same time. This synchronization is necessary to prevent Intra-site and Inter-site interference and Base Station saturation (assuming that all Base Stations are operating with the same frame size and with the same downlink/uplink ratio). The all-outdoor GPS Receiver is a pole-mountable GPS receiver and antenna in a single environmentally protected enclosure that is powered from the unit.

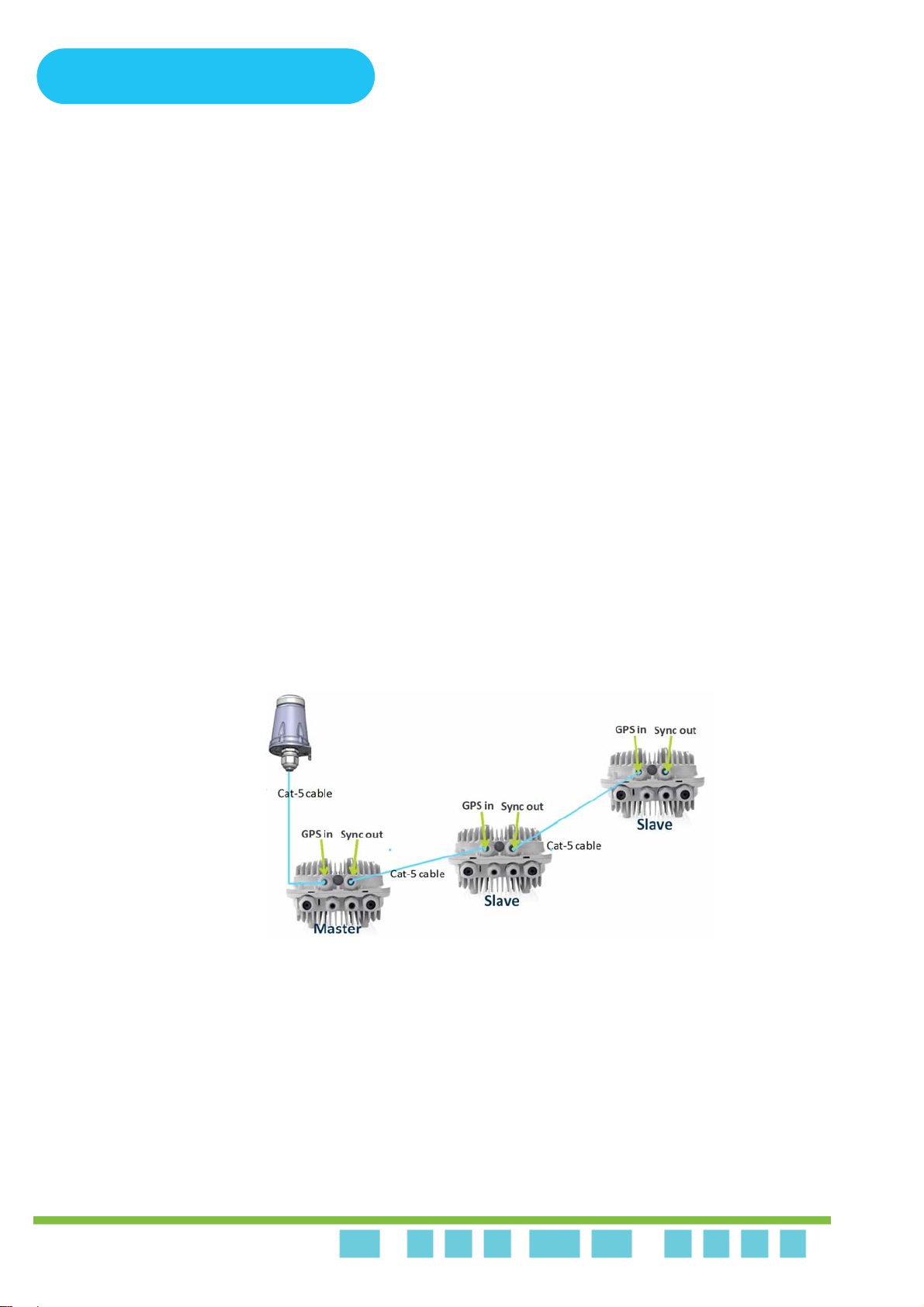

From R5.0 and up, GPS Chaining is supported, where the chaining enables use of a single GPS receiver for several collocated units. The figure below describes the GPS chaining connectivity.
20
Chapter 1: System Description
Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 5: GPS
The BreezeCOMPACT Solution
21
Chapter 1: System Description
Chapter 1 - System DescriptionTelrad Overall Solution
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2 Telrad Overall Solution

Telrad Overall Solution

1.2.1 TelCore

The TelCore solution is based on MC-ASN-GW for WiMAX and MC-EPC for LTE. TelCore includes a AAA solution for WiMAX and LTE.
1.2.1.1 Mini-centralized ASN-GW
The MC-ASN-GW is a separate entity (centralized architecture) that communicates with the BTS over an R6 interface. The MC-ASN-GW is a highly scalable solution that can be deployed as a standalone solution or as Cluster, including load balancing and geo-redundancy that has MC-ASN-GW clusters in different locations. The unique architecture accommodates a pay-as-you-grow solution that enables you to start with a minimal number of MC-ASN-GW units and increase them as subscriptions grow.
Figure 6: Telrad Solution
22
Chapter 1: System Description
Chapter 1 - System DescriptionTelrad Overall Solution
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service components (Service Profiles and Service Flows) are configured in the external ASN-GW. MS authentication and services provisioning are managed by a centralized AAA server, based on user credentials (user name and password).
Figure 7: Mini-centralized ASN-GW
1.2.1.2 AAA Solution
Telrad Overall Solution
Figure 8: AAA Solution
23
Chapter 1: System Description
Chapter 1 - System DescriptionTelrad Overall Solution
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2.2 Telrad StarSuite NMS Solution

Telrad provides a full suite of Network Management systems, which includes:
StarManager: A network management system for configuration, alarms and monitoringStarQuality: A network performance monitoring system for Radio and Network optimizationStarACS: A CPE management solution
Telrad Overall Solution
Figure 9: StarSuite NMS Solution
24
Chapter 1: System Description
Chapter 1 - System DescriptionSpecifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3 Specifications

1.3.1 Modem and Radio

Table 2: General Modem and Radio Specifications
Item Description
Specifications
BreezeCOMPACT Family: List of products supported by frequency band, maximum Tx power and ports configuration
BreezeCOMPACT1000: 3,300–3,500 MHz, 30 dBm per port, 4Rx by 4Tx3,400–3,700 MHz, 30 dBm per port, 4Rx by 4Tx3,600–3,800 MHz, 30 dBm per port , 4Rx by 4Tx
BreezeCOMAPCT2000:
3,400–3,600 MHz, 37dBm per port, 4Rx by 2Tx (Tx RF
ports 1, 2)
BreezeCOMAPCT3000:
2,496–2,696 MHz, 40 dBm per port, 4Rx by 4 Tx
Central Frequency Resolution 0.125 MHz Operation Mode TDD Channel Bandwidth
5 MHz7 MHz10 MHz20 MHz
Tx Power Control Range 10 dB, in 1dB steps Tx Power Accuracy +/- 1 dB Maximum Input Power @ Antenna
Port
-45 dBm before saturation; -35 dBm before damage
Noise Figure 5 dB Modulation OFDM modulation, 1024/512 FFT points; QPSK, QAM16, QAM64 Access Method OFDMA FEC Convolutional Turbo Coding:
1/2, 3/4 for QPSK and QAM161/2, 2/3, 3/4, 5/6 for QAM64
25
Chapter 1: System Description
Chapter 1 - System DescriptionSpecifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3.2 Data Communication (Ethernet Interfaces)

Table 3: Data Communication (Ethernet Interfaces)
Item Description
Standard Compliance IEEE 802.3 CSMA/CD DAT 1 (optional, if an SFP is installed) 1000 Mbps Base-X optical fiber interface, Half/Full Duplex with Auto
Negotiation
DAT 2 100/1000 Mbps Base-T twisted-pair electrical interface, Half/Full
Duplex with Auto Negotiation
DAT 3 10/100 Mbps Base-T twisted-pair electrical interface, Half/Full Duplex
with Auto Negotiation

1.3.3 Configuration and Management

Table 4: Configuration and Management
Specifications
Item Description
Management (Out-of-Band, In-Band)
SNMP Agents SNMP Ver. 2 client
Software Upgrade Using TFTP Configuration Upload/Download Using TFTP
SNMPTelnet
MIB II (RFC 1213), Private MIBs

1.3.4 Standards Compliance, General

Table 5: Standards Compliance, General
Type Standard
EMC
Safety
Environmental ETS 300 019:
ETSI EN 301 489-1/4FCC Part 15
EN60950-1 (CE)UL 60950-1 (US/C)
Part 2-1 T 1.2 and part 2-2 T 2.3 for indoor and outdoorPart 2-3 T 3.2 for indoorPart 2-4 T 4.1E for outdoor
26
Chapter 1: System Description
Chapter 1 - System DescriptionSpecifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table 5: Standards Compliance, General (Continued)
Type Standard
Specifications
Radio
ETSI EN 302 326FCC Part 90 Subpart Z*IC RSS-192 issue1*IC RSS-197 issue 3*
* In the current release, FCC and IC standards are not applicable for BreezeCOMPACT2000 units.

1.3.5 Environmental

Table 6: Environmental Specifications
Type Details
Operating Temperature -40°C to 55°C Operating Humidity 5%–95%, weather protected

1.3.6 Mechanical and Electrical

1.3.6.1 BreezeCOMPACT1000
Table 7: Mechanical and Electrical Specifications, BreezeCOMPACT1000 Units
Item Description
Dimensions 242.7 x 343 x 166.9 mm Weight 8.2 Kg Power Input -40 to -60 VDC Power Consumption 27dBm units: 105W maximum (at 70% Tx/Rx duty cycle), 125W peak
30dBm units: 118W maximum (at 70% Tx/Rx duty cycle), 142W peak
Tx Ports/Rx Ports Ports 1–4 (Tx), Ports 1-4 (Rx)
27
Chapter 1: System Description
Chapter 1 - System DescriptionSpecifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3.6.2 BreezeCOMPACT2000
Table 8: Mechanical and Electrical Specifications, BreezeCOMPACT2000 Units
Item Description
Dimensions 280 x 510 x 220 mm Weight 19.5 Kg Power Input -40 to -60 VDC Power Consumption 186W maximum (at 70% Tx/Rx duty cycle), 225W peak Tx Ports/Rx Ports Ports 1, 2 (Tx), Ports 1–4 (Rx)
1.3.6.3 BreezeCOMPACT3000
Table 9: Mechanical and Electrical Specifications, BreezeCOMPACT3000 Units
Item Description
Specifications
Dimensions 260 x 400 x 330 mm Weight 19 Kg Power Input -40 to -60 VDC Power Consumption 230W maximum (at 70% Tx/Rx duty cycle), TBDW peak Tx Ports/Rx Ports Ports 1–4 (Tx), Ports 1–4 (Rx)

1.3.7 Antennas

1.3.7.1 Attached, 3.3–3.8 GHz, 4 Ports 65º Double Dual Slant (4x4)
Applicable only for COMPACT installations.
Table 10: Attached Antenna 3.3-3.8 DDS 65º (P.N. 300726) Specifications
Item Description
Frequency Band (MHz) 3,300–3,800 Number of Elements 4 Polarization Linear, +/-45° Gain (dB) 18 Azimuth Beamwidth (degrees) 65 Elevation Beamwidth (degrees) 6.5 Maximum Power (W) 150 Cross-polarization Discrimination (dB) >15 Front-to-Back Ratio (dB) >30
28
Chapter 1: System Description
Chapter 1 - System DescriptionSpecifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table 10: Attached Antenna 3.3-3.8 DDS 65º (P.N. 300726) Specifications (Continued)
Item Description
Electrical Downtilt Range (degrees) 0 Isolation Between Ports (dB) >30 Return Loss (dB) >15 RF Interface Impedance (Ohm) 50 RF Connectors 4 x N-type jacks with RF cable tails Dimensions (mm) 720 x 266 x 52 Weight (Kg) 4 Regulatory Compliance RoHS Compliance
Specifications
29
Chapter 1: System Description
Chapter 1 - System DescriptionSpecifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3.7.2 3.3-3.8 GHz, 2 Ports 65º Dual Slant (2x2)
Table 11: ANT, BS, 3.3-3.8 GHz, DS, Sec.65°, 16.5dBi Minimum (P.N. 300644) Specifications
Item Description
Frequency Band (MHz) 3,300–3,800 Number of Elements 2 Polarization Linear, +/-45° Gain 16.5dBi +/- 0.5dB VSWR 1.5:1 (max) Azimuth Beamwidth (degrees) 65 +/-5 Elevation Beamwidth (degrees) 6 +/-1 Maximum Power (W) 50 Cross-polarization Discrimination (dB) -15
Specifications
Front-to-Back Ratio (dB) >25 Isolation Between Ports (dB) >25 RF Interface Impedance (Ohm) 50 Lightning Protection DC grounded RF Connectors 2 x N-type jacks Mounting Fully adjustable pipe mount (1.63” to 4.5” pipe)
with 0–15° down tilt Dimensions (mm) 711 x 171 x 90 Weight (Kg) 2.6 (excluding mounting kit) Regulatory Compliance RoHS Compliance
1.3.7.3 3.3-3.8 GHz, 2 Ports 90º Dual Slant (2x2)
Table 12: ANT, BS, 3.3–3.8 GHz, DS, Sec.90°, 15.5dBi Minimum (P.N. 300645) Specifications
Item Description
Frequency Band (MHz) 3,300–3,800 Number of Elements 2 Polarization Linear, +/-45° Gain 15.5 dBi +/- 0.5 dB VSWR 1.5:1 (maximum) Azimuth Beamwidth (degrees) 85 +/-5 Elevation Beamwidth (degrees) 6 +/-1 Maximum Power (W) 50
30
