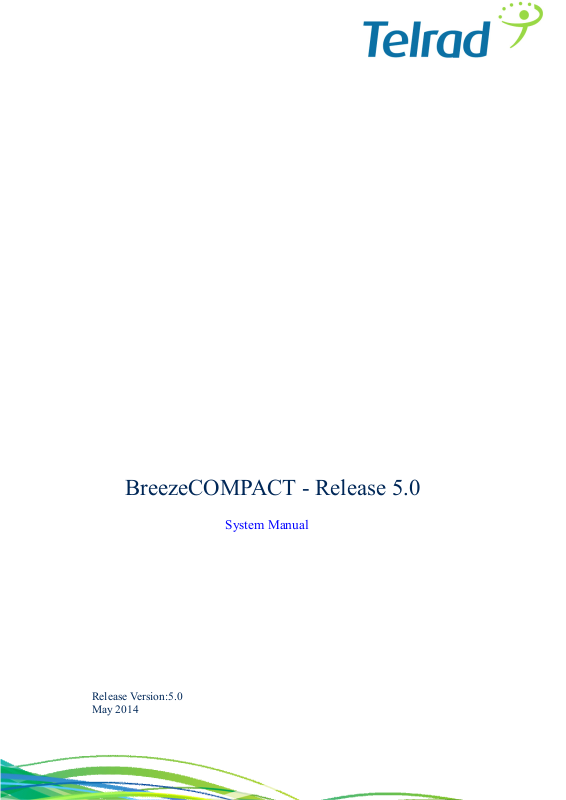

BreezeCOMPACT - Release 5.0
Release Version:5.0
May 2014
System Manual
Legal Rights
BreezeCOMPACT System Manual
Legal Rights
© Copyright 2014 Telrad Networks Ltd. All rights reserved.
The material contained herein is proprietary, privileged, and confidential and owned by Telrad Networks or its
third party licensors. No disclosure thereof shall be made to third parties without the express written
permission of Telrad Networks Ltd.
Telrad Networks Ltd. reserves the right to alter the equipment specifications and descriptions in this
publication without prior notice. No part of this publication shall be deemed to be part of any contract or
warranty unless specifically incorporated by reference into such contract or warranty.
Trade Names
BreezeCOM®, WALKair®, WALKnet®, BreezeMAX®, BreezeLITE®, BreezePHONE®, 4Motion®, and/or
other products andTelrad Networks/or services referenced here in are either registered trademarks, trademarks
or service marks of Telrad Networks Ltd.
All other names are or may be the trademarks of their respective owners.
“WiMAX Forum” is a registered trademark of the WiMAX Forum. “WiMAX,” the WiMAX Forum logo,
“WiMAX Forum Certified”, and the WiMAX Forum Certified logo are trademarks of the WiMAX Forum.
Statement of Conditions
The information contained in this manual is subject to change without notice. Telrad Networks Ltd. shall not be
liable for errors contained herein or for incidental or consequential damages in connection with the furnishing,
performance, or use of this manual or equipment supplied with it.
Warranties and Disclaimers
All Telrad Networks Ltd. (“Telrad Networks“) products purchased from Telrad Networks or through any of
Telrad Networks's authorized resellers are subject to the following warranty and product liability terms and
conditions.
Exclusive Warranty
(a) Telrad Networks warrants that the Product hardware it supplies and the tangible media on which any
software is installed, under normal use and conditions, will be free from significant defects in materials and
workmanship for a period of fourteen (14) months from the date of shipment of a given Product to Purchaser
(the "Warranty Period"). Telrad Networks will, at its sole option and as Purchaser's sole remedy, repair or
replace any defective Product in accordance with Telrad Networks' standard R&R procedure.
(b) With respect to the Firmware, Telrad Networks warrants the correct functionality according to the attached
documentation, for a period of fourteen (14) month from invoice date (the "Warranty Period")". During the
Warranty Period, Telrad Networks may release to its Customers firmware updates, which include additional
performance improvements and/or bug fixes, upon availability (the "Warranty"). Bug fixes, temporary patches
and/or workarounds may be supplied as Firmware updates.
Additional hardware, if required, to install or use Firmware updates must be purchased by the Customer. Telrad
will be obligated to support solely the two (2) most recent Software major releases.
TELRAD NETWORKS SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR
WAS CAUSED BY PURCHASER'S OR ANY THIRD PERSON'S MISUSE, NEGLIGENCE, IMPROPER
INSTALLATION OR IMPROPER TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY
OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE,
LIGHTNING OR OTHER HAZARD.
i
Legal Rights
BreezeCOMPACT System Manual
Disclaimer
(a) The Software is sold on an "AS IS" basis. Telrad Networks, its affiliates or its licensors MAKE NO
WARRANTIES, WHATSOEVER, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THE
SOFTWARE AND THE ACCOMPANYING DOCUMENTATION. TELRAD NETWORKS SPECIFICALLY
DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE AND NON-INFRINGEMENT WITH RESPECT TO THE SOFTWARE. UNITS
OF PRODUCT (INCLUDING ALL THE SOFTWARE) DELIVERED TO PURCHASER HEREUNDER
ARE NOT FAULT-TOLERANT AND ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR
USE OR RESALE IN APPLICATIONS WHERE THE FAILURE, MALFUNCTION OR INACCURACY OF
PRODUCTS CARRIES A RISK OF DEATH OR BODILY INJURY OR SEVERE PHYSICAL OR
ENVIRONMENTAL DAMAGE ("HIGH RISK ACTIVITIES"). HIGH RISK ACTIVITIES MAY INCLUDE,
BUT ARE NOT LIMITED TO, USE AS PART OF ON-LINE CONTROL SYSTEMS IN HAZARDOUS
ENVIRONMENTS REQUIRING FAIL-SAFE PERFORMANCE, SUCH AS IN THE OPERATION OF
NUCLEAR FACILITIES, AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR TRAFFIC
CONTROL, LIFE SUPPORT MACHINES, WEAPONS SYSTEMS OR OTHER APPLICATIONS
REPRESENTING A SIMILAR DEGREE OF POTENTIAL HAZARD. TELRAD NETWORKS
SPECIFICALLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR HIGH RISK
ACTIVITIES.
(b) PURCHASER'S SOLE REMEDY FOR BREACH OF THE EXPRESS WARRANTIES ABOVE SHALL
BE REPLACEMENT OR REFUND OF THE PURCHASE PRICE AS SPECIFIED ABOVE, AT TELRAD
NETWORKS'S OPTION. TO THE FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES AND
REMEDIES SET FORTH IN THIS AGREEMENT ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF
LAW, STATUTORY OR OTHERWISE, INCLUDING BUT NOT LIMITED TO WARRANTIES, TERMS
OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
SATISFACTORY QUALITY, CORRESPONDENCE WITH DESCRIPTION, NON-INFRINGEMENT, AND
ACCURACY OF INFORMATION GENERATED. ALL OF WHICH ARE EXPRESSLY DISCLAIMED.
TELRAD NETWORKS' WARRANTIES HEREIN RUN ONLY TO PURCHASER, AND ARE NOT
EXTENDED TO ANY THIRD PARTIES. TELRAD NETWORKS NEITHER ASSUMES NOR
AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN
CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS.
Limitation of Liability
(a) TELRAD NETWORKS SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY THIRD PARTY,
FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS OR FOR ANY
INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES OF ANY KIND,
WHETHER ARISING UNDER BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT
LIABILITY OR OTHERWISE AND WHETHER BASED ON THIS AGREEMENT OR OTHERWISE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
(b) TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE LIABILITY
FOR DAMAGES HEREUNDER OF TELRAD NETWORKS OR ITS EMPLOYEES OR AGENTS
EXCEED THE PURCHASE PRICE PAID FOR THE PRODUCT BY PURCHASER, NOR SHALL THE
AGGREGATE LIABILITY FOR DAMAGES TO ALL PARTIES REGARDING ANY PRODUCT EXCEED
THE PURCHASE PRICE PAID FOR THAT PRODUCT BY THAT PARTY (EXCEPT IN THE CASE OF A
BREACH OF A PARTY'S CONFIDENTIALITY OBLIGATIONS).
Radio Frequency Interference Statement
The Base Transceiver Station (BTS) equipment has been tested and found to comply with the limits for a class
A digital device, pursuant to ETSI EN 301 489-1 rules and Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is operated in commercial,
business and industrial environments. This equipment generates, uses, and can radiate radio frequency energy
ii
Legal Rights
BreezeCOMPACT System Manual
and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at the user's own expense.
iii
Legal Rights
BreezeCOMPACT System Manual
FCC and Industry Canada Radiation Hazard Warning
To comply with Industry Canada exposure requirements, and FCC RF exposure requirements in Section
1.1307 and 2.1091 of FCC Rules, the antenna used for this transmitter must be fixed-mounted on outdoor
permanent structures with a separation distance of at least 390 cm from all persons.
Pour se conformer aux exigences d’exposition d'Industrie Canada, et aux exigences FCC dans les sections
1,1307 et 2,1091 de la réglementation FCC, l'antenne utilisée pour cet émetteur doit être montée d’une manière
fixe sur des structures permanentes de plein air avec une distance de séparation d'au moins 390 cm de toutes
personnes.
Industry Canada Statement
Users can obtain Canadian information on RF exposure and compliance from the Canadian Representative:
Nick Dewar
Nick.Dewar@Telrad.com
Canadian Radio Standards Specifications (RSS) Compliance Statement
This device has been designed to operate with the antennas listed in Section 1.2.7, and having a maximum gain
of 18 dBi. Antennas not included in this list or having a gain greater than 18 dBi are strictly prohibited for use
with this device.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the
Equivalent Isotropically Radiated Power (EIRP) is not more than that permitted for successful communication.
R&TTE Compliance Statement
This equipment complies with the appropriate essential requirements of Article 3 of the R&TTE Directive
1999/5/EC.
Safety Considerations - General
For the following safety considerations, “Instrument” means the BreezeCOMPACT units' components and
their cables.
Grounding
BTS chassis is required to be bonded to protective grounding using the bonding stud or screw provided with
each unit.
Safety Considerations - DC Powered Equipment
CAUTION ATTENTION
Risk of electric shock and energy hazard. Risque de décharge électrique et d'electrocution.
Restricted Access Area: The DC powered
equipment should only be installed in a Restricted
Access Area.
Zone d’Accès Limité: L’alimentation en courant
continue doit être installée dans une zone a accès
limité
iv
Legal Rights
BreezeCOMPACT System Manual
Installation Codes: The equipment must be installed
according to the latest edition of the country national
electrical codes. For North America, equipment must
be installed in accordance with the US National
Electrical Code and the Canadian Electrical Code.
Normes d’installation: les équipements doivent être
installes d’après les dernières normes en vigueur.
Pour l’Amérique du nord les équipements doivent
être installés d’après les normes électriques
nationales US et les normes électriques Canadiennes.
Caution
Overcurrent Protection: A readily accessible Listed
branch circuit overcurrent protective device, rated
10A must be incorporated in the building wiring.
CAUTION: This equipment is designed to permit
connection between the earthed conductor of the DC
supply circuit and the grounding conductor at the
equipment. See installation instructions.
The equipment must be connected directly to the DC
Supply System grounding electrode conductor.
All equipment in the immediate vicinity must be
grounded in the same way, and not be grounded
elsewhere.
The DC supply system is to be local, i.e. within the
same premises as the equipment.
There shall be no disconnect device between the
grounded circuit conductor of the DC source (return)
and the point of connection of the grounding electrode
conductor.
Protection de surintensité: Une protection de
surintensité de 10A doit être installée sur le circuit
d’alimentation.
ATTENTION: Cet équipement est prévu pour
permettre une mise a la terre entre le courant continu
et le reste de l’installation. Voir les instructions
d’installation.
L’appareil doit être connecté a la terre de l’allimentation
en courant continu.
Tout appareil dans la proximité immédiate doit être
connecté a la terre de la même manière et pas
autrement.
L’alimentation du système en courant continu doit être
local et remplir les mêmes conditions que le matériel.
Le circuit de terre doit être ininterrompu entre la source
et les différents appareils
Line Voltage
Laser
To avoid electrical shock, do not perform any servicing unless you are qualified to do so.
Pour éviter tout choque électrique ne pas intervenir sur les circuits électriques si vous n’êtes pas qualifié pour
Before connecting this instrument to the power line, make sure that the voltage of the power source matches
the requirements of the instrument.
v
Legal Rights
BreezeCOMPACT System Manual
CLASS 1 LASER PRODUCT
The system can be equipped with Class 1 laser
products, which comply with IEC 60825-1,
IEC 60825-2 and UL recognized laser or
CDRH CFR Title 21, part 1040.
The system does not emit hazardous light, and
the beam is totally enclosed during normal
operation, as long as the equipment is
operated in accordance with the applicable
safety instructions
APPAREIL A` LASER DE CLASSE 1
Classe du Laser
Le système peut être équipe d’un laser de classe 1 selon la norme
IEC 60825-1, IEC 60825-2 et reconnu comme UL laser ou CDRH
CFR titre 21 ,partie 1040.
Le système n’émet pas de lumière apparente et le rayon est
entièrement protégé pendant l’utilisation normal du système par
l’utilisateur tant que les appareils sont utilisés en suivant les
instructions de sécurité.
vi
Legal Rights
BreezeCOMPACT System Manual
Radio
Laser Safety Statutory Warning
All personnel involved in equipment installation, operation, and maintenance must be aware that laser
radiation is invisible. Therefore, although protective devices generally prevent directly exposure to the beam,
personnel must strictly observe the applicable safety precautions, and in particular, must avoid staring into
optical connectors, either directly or using optical instruments.
Remember that observing safety precautions is not a matter of personal choice; ignoring safety puts all people
within the line-of-sight in danger.
Précautions de sécurité réglementaire pour laser
Tout personnel impliqué dans l’installation, le fonctionnement et la maintenance de l’installation doivent
savoir que les radiations laser sont invisibles . Donc , bien que généralement les protections évitent tout contact
direct avec les rayons émis, le personnel doit observer strictement les précautions de sécurité et en particulier ,
les connecteurs optiques , aussi bien directement ou avec des instruments d’optique.
Souvenez vous que remplir les précautions de sécurité n’est en aucun cas un choix personnel; ignorer les règles
de sécurité mets toutes les personnes en présence en danger.
The instrument transmits radio energy during normal operation. To avoid possible harmful exposure to this
energy, do not stand or work for extended periods of time in front of its antenna. The long-term characteristics
or the possible physiological effects of radio frequency electromagnetic fields have not been yet fully
investigated.
Outdoor Units and Antennas Installation and Grounding
Ensure that outdoor units, antennas and supporting structures are properly installed to eliminate any physical
hazard to either people or property. Make sure that the installation of the outdoor unit, antenna and cables is
performed in accordance with all relevant national and local building and safety codes. Even where grounding
is not mandatory according to applicable regulation and national codes, it is highly recommended to ensure that
the outdoor unit and the antenna mast are grounded and suitable lightning protection devices are used so as to
provide protection against voltage surges and static charges. In any event, Telrad Networks is not liable for any
injury, damage or regulation violations associated with or caused by installation, grounding or lightning
protection.
Transmitter Antenna
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique
à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la
puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à
l'établissement d'une communication satisfaisante.
vii
Legal Rights
BreezeCOMPACT System Manual
This radio transmitter IC:899A-COMPACT3X has been approved by Industry Canada to operate with the
antenna types listed in Section 1.4.7 below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than
the maximum gain indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio IC:899A-COMPACT3X a été approuvé par Industrie Canada pour fonctionner avec
les types d'antenne énumérés dans la Section 1.4.7 ci-dessous et ayant un gain admissible maximal et
l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste,
ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour
l'exploitation de l'émetteur.
Disposal of Electronic and Electrical Waste
Disposal of Electronic and Electrical Waste
Pursuant to the WEEE EU Directive electronic and electrical waste must not be disposed of with unsorted waste. Please
contact your local recycling authority for disposal of this product.
vii
Important Notice
BreezeCOMPACT System Manual
Important Notice
This user manual is delivered subject to the following conditions and restrictions:
This manual contains proprietary information belonging to Telrad Networks Ltd. Such information is
supplied solely for the purpose of assisting properly authorized users of the respective Telrad Networks
products.
No part of its contents may be used for any other purpose, disclosed to any person or firm or reproduced by
any means, electronic and mechanical, without the express prior written permission of Telrad Networks Ltd.
The text and graphics are for the purpose of illustration and reference only. The specifications on which they
are based are subject to change without notice.
The software described in this document is furnished under a license. The software may be used or copied
only in accordance with the terms of that license.
Information in this document is subject to change without notice. Corporate and individual names and data
used in examples herein are fictitious unless otherwise noted.
Telrad Networks reserves the right to alter the equipment specifications and descriptions in this publication
without prior notice. No part of this publication shall be deemed to be part of any contract or warranty
unless specifically incorporated by reference into such contract or warranty.
The information contained herein is merely descriptive in nature, and does not constitute an offer for the
sale of the product described herein.
Any changes or modifications of equipment, including opening of the equipment not expressly approved by
Telrad Networks Ltd. will void equipment warranty and any repair thereafter shall be charged for. It could
also void the user's authority to operate the equipment.
Some of the equipment provided by Telrad Networks and specified in this manual, is manufactured and
warranted by third parties. All such equipment must be installed and handled in full compliance with the
instructions provided by such manufacturers as attached to this manual or provided thereafter by Telrad
Networks or the manufacturers. Non-compliance with such instructions may result in serious damage and/or
bodily harm and/or void the user's authority to operate the equipment and/or revoke the warranty provided by
such manufacturer.
ix
About This Manual
BreezeCOMPACT System Manual
About This Manual
This manual describes the BreezeCOMPACT solution, and details how to install, operate and manage the
BTS equipment.
This manual is intended for technicians responsible for installing, setting and operating the
BreezeCOMPACT BTS equipment, and for system administrators responsible for managing the system.
This manual contains the following chapters and appendices:
Chapter 1 - System description: Describes the BreezeCOMPACT system.
Chapter 2 - Installation: Describes how to install the BTS equipment.
Chapter 3 - Commissioning: Describes how to configure basic parameters and validate units'
operation.
Chapter 4 - Operation and Administration: Describes how to use the Monitor program for
configuring parameters, checking system status and monitoring performance.
i
Contents
BreezeCOMPACT System Manual
Contents
Chapter 1 - System Description ............................................................................. 1
1.1 The BreezeCOMPACT Solution...............................................................................2
1.1.1 The BreezeCOMPACT Family.................................................................................. 2
1.1.2 BreezeCOMPACT Models ....................................................................................... 3
1.1.3 BreezeCOMPACT Product Topologies .................................................................... 3
1.1.4 Antennas .............................................................................................................. 6
1.1.5 GPS........................................................................................................................6
1.1.6 Telrad Overall Solution.......................................................................................... 7
1.2 Specifications ....................................................................................................10
1.2.1 Modem & Radio .................................................................................................. 10
1.2.2 Data Communication (Ethernet Interfaces) ........................................................ 10
1.2.3 Configuration and Management ......................................................................... 12
1.2.4 Standards Compliance, General .......................................................................... 12
1.2.5 Environmental..................................................................................................... 13
1.2.6 Mechanical and Electrical .................................................................................... 13
1.2.7 Antennas ............................................................................................................ 15
1.2.8 BMAX-4M-GPS Receiver Specifications ............................................................... 20
Chapter 2 - Commissioning .................................................................................. 21
2.1 Introduction.......................................................................................................22
2.2 BreezeCOMPACT Installation...............................................................................23
2.3 System Initial Verification ..................................................................................24
2.4 Configuring Parameters Required for Management Connectivity..........................25
2.4.1 Configuring the BTS Number............................................................................... 25
2.4.2 Configuring the Management Interface Connectivity Mode Parameter ..............25
2.4.3 Configuring the IP Interfaces Parameters ........................................................... 25
2.4.4 Configuring the L1 and L2 Parameters (if necessary) ......................................... 26
2.4.5 Configuring the SNMP Authorized Manager and Traps Manager ........................ 26
2.4.6 Applying the Configuration ................................................................................. 27
2.5 Activating the Unit .............................................................................................28
2.5.1 Creating the BS ................................................................................................... 28
ii
Contents
BreezeCOMPACT System Manual
2.5.2 Defining the Antenna(s) ..................................................................................... 30
2.5.3 Configuring Radio Cluster Parameters ................................................................ 30
2.5.4 Configuring Antenna Associations ...................................................................... 31
2.5.5 Applying the Configuration ................................................................................. 31
Chapter 3 - Operation and Administration .......................................................... 32
3.1 BTS System Management ...................................................................................33
3.2 The Monitor Program..........................................................................................34
3.2.1 Accessing the Monitor Program .......................................................................... 34
3.2.2 Using the Monitor Program................................................................................. 35
3.3 IP Addresses Configuration.................................................................................37
3.3.1 IP Address Configuration Restrictions ................................................................ 37
3.3.2 IP Subnets........................................................................................................... 37
3.4 The Main Menu...................................................................................................38
3.5 BTS Menu...........................................................................................................39
3.5.1 General ............................................................................................................... 39
3.5.2 Connectivity ........................................................................................................ 40
3.5.3 Unit Control ........................................................................................................ 46
3.5.4 Management ....................................................................................................... 50
3.6 Sector Menu ......................................................................................................54
3.6.1 Sector Definition................................................................................................. 54
3.6.2 Radio Cluster....................................................................................................... 54
3.6.3 Antenna Association........................................................................................... 55
3.7 BS Menu ............................................................................................................56
3.7.1 Add ..................................................................................................................... 56
3.7.2 Select .................................................................................................................. 58
3.8 Chassis Menu .....................................................................................................78
3.8.1 General ............................................................................................................... 78
3.8.2 Ports Control....................................................................................................... 78
3.9 GPS Menu ..........................................................................................................80
3.9.1 General Configuration......................................................................................... 80
3.9.2 Inventory & Statuses .......................................................................................... 83
3.10 RH Menu...........................................................................................................85
3.10.1 General ............................................................................................................... 85
iii
Contents
BreezeCOMPACT System Manual
3.10.2 Ports ................................................................................................................... 85
3.11 Spectrum analyzer ............................................................................................87
3.11.1 Enable / Disable .................................................................................................. 87
3.11.2 Configuration ...................................................................................................... 87
3.11.3 Show Current State............................................................................................. 87
3.11.4 Start Scanning ....................................................................................................87
3.11.5 Abort Scanning ................................................................................................... 88
3.11.6 Show Results ...................................................................................................... 88
3.12 Load Balancing..................................................................................................89
3.13 Antenna Menu ..................................................................................................92
3.13.1 Antenna Number................................................................................................. 92
3.13.2 Antenna Product Type ........................................................................................ 92
3.13.3 Mechanical Down Tilt .......................................................................................... 92
3.13.4 Electrical Down Tilt ............................................................................................. 92
3.13.5 Longitude............................................................................................................ 93
3.13.6 Latitude .............................................................................................................. 93
3.13.7 Tower Height ...................................................................................................... 93
3.13.8 Heading............................................................................................................... 93
3.13.9 Cable Loss........................................................................................................... 93
iv
Figures
BreezeCOMPACT System Manual
Figures
Figure 1-1: One Sector, One Carrier ............................................................................................... 4
Figure 1-2: One Sector, Dual Carrier............................................................................................... 5
Figure 1-3: Two Sectors, Two Carriers (One Carrier per Sector).....................................................5
v
Tables
BreezeCOMPACT System Manual
Tables
Table 1-1: General Modem & Radio Specifications....................................................................... 10
Table 1-2: Data Communication (Ethernet Interfaces) ................................................................. 10
Table 1-3: Configuration and Management .................................................................................. 12
Table 1-4: Standards Compliance, General ................................................................................... 12
Table 1-5: Environmental Specifications....................................................................................... 13
Table 1-6: Mechanical & Electrical Specifications, BreezeCOMPACT1000 units ............................ 13
Table 1-7: Mechanical & Electrical Specifications, BreezeCOMPACT2000 units ............................ 13
Table 1-8: Mechanical & Electrical Specifications, BreezeCOMPACT3000 units ............................ 14
Table 1-9: Attached Antenna 3.3-3.8 DDS 65º (P.N. 300726) Specifications...............................15
Table 1-10: ANT,BS,3.3-3.8GHz, DS,Sec.65°,16.5dBi min. (P.N. 300644) Specifications ..............16
Table 1-11: ANT,BS,3.3-3.8GHz, DS,Sec.90°,15.5dBi min. (P.N. 300645) Specifications ..............17
Table 1-12: ANT-DDP-65°-3.3-3.8GHz (P.N. 300736) Specifications ............................................18
Table 1-13: ANT-DDP-90°-3.3-3.8GHz (P.N. 300719) Specifications ............................................19
Table 1-14: BMAX-4M-GPS Receiver, Mechanical & Electrical Specifications................................ 20
Table 2-1: BreezeCOMPACT LEDs .................................................................................................. 24
Table 3-1: First Zone Minimum Size Recommended Value Range................................................. 63
Table 3-2: Calculating the Upper Limit Value (Y) for Minimum and Maximum Size ....................... 64
Table 3-3: DL:UL Ratios ................................................................................................................66
Table 3-4: Functionality of Allowed Ducting Mitigation Modes, 5/10 MHz BS Bandwidth ............69
Table 3-5: Functionality of Allowed Ducting Mitigation Modes, 7 MHz BS Bandwidth ................. 70
vi
Chapter 1 - System Description
In This Chapter:
“The BreezeCOMPACT Solution” on page 2
“The BreezeCOMPACT Family” on page 2
“Telrad Overall Solution” on page 7
“Specifications” on page 10
BreezeCOMPACT System Manual
Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
Chapter 1 - System Description The BreezeCOMPACT Solution
1.1 The BreezeCOMPACT Solution
1.1.1 The BreezeCOMPACT Family
Telrad’sBreezeCOMPACTfamilyofproductsincludestheBreezeCOMPACTbase stations,(models1000,2000and
3000.)Formoreinformation,pleasevisittheBreezeCOMPACTsection
1.1.1.1 BreezeCOMPACT 1000 - Small Cell, High performance
•Band42,43;3.3‐3.5GHz,3.4‐3.7GHz,3.6‐3.8GHz;30dBmperPort
• WiMAX/TD‐LTE‐AdvancedSWupgradable
•ForLineofSight&NearLineofSightcoverageareas
•Doublecapacitywithdual‐sector/carrier
oftheTelradwebsite.
•4RXx4TX&modeminsingle,all‐outdoorformfactor
• Ultimatealternativetosmallcellsindense
•HighestcapacityusingIndoor&OutdoorCPEsand4x44thorderdiversity
urbanareas
1.1.1.2 BreezeCOMPACT 2000 - Coverage & Capacity
•Band42;3.5GHz;37dBmperport
• WiMAX/TD‐LTE‐AdvancedSWupgradable
•IdealforurbanenvironmentswithamixofCPE
• HighpowerforareaswithNonLineofSight
•All‐in‐one,outdoorRadio4RXx2TX&Modem
• Highcoverage&capacityforIndoorCPE
1.1.1.3 BreezeCOMPACT 3000
Unmatched Performance
•Band40*,41;2.3,2.5GHz;4x40dBmperPort
• WiMAX/TD‐LTE‐AdvancedSWupgradable
•ForFixed,HighMobility&Denseenvironments
•Doublecapacitywithdual‐sector/carrier
• HighpowerforareaswithNonLineofSight
•All‐in‐one,outdoorRadio4RXx4TX&Modem
•Highestcoverage&capacityusingIndoor&OutdoorCPEs
•4x44thorderdiversity
*Roadmapitem
2
BreezeCOMPACT System Manual
Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
Chapter 1 - System Description The BreezeCOMPACT Solution
1.1.2 BreezeCOMPACT Models
BreezeCOMPACT Part numbers, Frequencies and Tx power
P/N Product LTEBand Frequencies TxPower
perport
735270 CMP.XT‐BS‐3.4‐3.7 Band42+43(Low) 3400‐3700MHz 30 4x4
735272 CMP.XT‐BS‐3.3‐3.5 3300‐3500MHz 30 4x4
735273 CMP.XT‐BS‐3.6‐3.8 Band43 3600‐3800MHz 30 4x4
735271 CMP.HP‐BS‐3.5 Band42 3400‐3600MHz 37 4x2
725270 CMP3000‐B41‐2496‐2690MHz Band41 2496‐2690MHz 40 4x4
1.1.3 BreezeCOMPACT Product Topologies
BreezeCOMPACT starting from R5.0 supports 3 deployment topologies:
Single Sector, Single Carrier
Single Sector, Dual Carrier
Two Sector, Two Carriers (One Carrier per Sector)
Ports
Rx/Tx
3
BreezeCOMPACT System Manual
Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
Chapter 1 - System Description The BreezeCOMPACT Solution
INFORMATION
In the current release BreezeCOMPACT1000 & 3000 supports all 3 topologies.
Note that BreezeCOMPACT2000 supports only the first topology (Single Sector, Single Carrier)
Following is a description of each of these topologies:
1.1.3.1 Single Sector, Single Carrier
This is the basic configuration based on a single BS, supporting a single sector 4Tx/4Rx with a bandwidth
of 5, 7, or 10 MHz. This Configuration is recommended for achiving agregated power of 4Tx ports as
well as imporved diversity in Tx and Rx
This configuraion is common for sites of 3 sectors with frequency reuse 3
Figure 1-1: One Sector, One Carrier
1.1.3.2 Single Sector, Dual Carrier
Two BSs support a single sector using two different carriers with a total bandwidth of 20 (10+10), 14
(7+7), or 10 (5+5) MHz. The BreezeCOMPACT is connected to one 4x4 Antenna serving, each carrier
could be configured for different frequency. Upon setting this mode, the loadbalancing function will
balance acourding to the number of subscribers.
4
BreezeCOMPACT System Manual
Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
Chapter 1 - System Description The BreezeCOMPACT Solution
Figure 1-2: One Sector, Dual Carrier
1.1.3.3 Two Sector, Two Carriers (One Carrier per Sector)
Two BSs support two sectors, each with a bandwidth of 5, 7, or 10 MHz. Each Sector is connected to
different 2x2 Antenna directed to two sectors.
This configuration is common using frequency reuse 2, where the two antennas connected to the
BreezeCOMPACT are located back to back.Not applicable for BreezeCOMPACT2000
Figure 1-3: Two Sectors, Two Carriers (One Carrier per Sector)
5
BreezeCOMPACT System Manual
Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
Chapter 1 - System Description The BreezeCOMPACT Solution

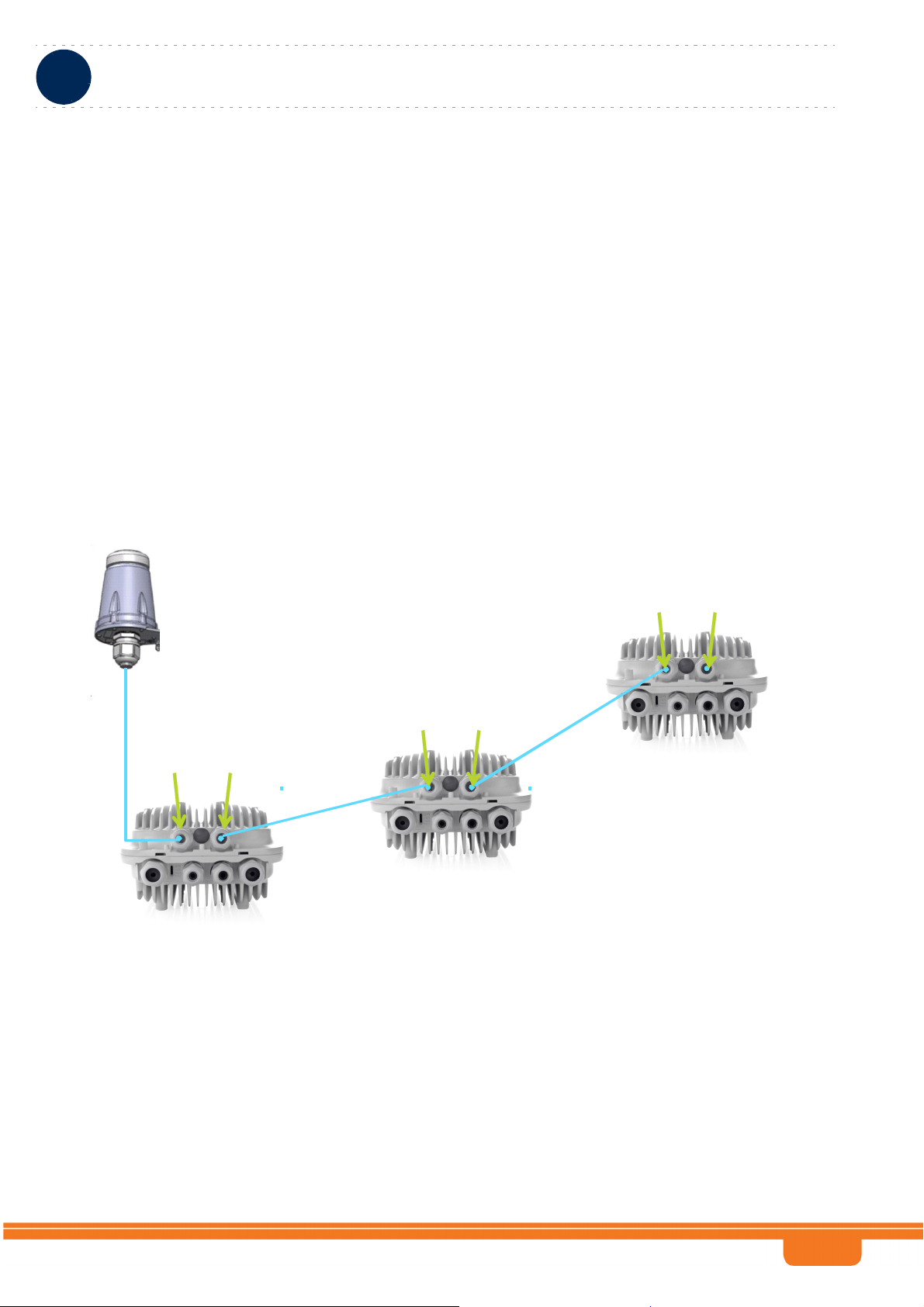

Syncout
GPSin
Master
Slave
Master
Cat‐5cable
Cat‐5cable
Slave
Syncout
GPSin
Syncout
GPSin
GPS
1.1.4 Antennas
In the system architecture, the antenna is approached as an independent element. This provides the
operator with the flexibility to select the antennas source according to its supplier policy. To ensure the
availability of antennas that complement the solution, Telrad works closely with several antenna
suppliers to ensure availability of antennas that comply with its requirements.
In cases where the operator prefers other antenna vendors, Telrad can provide a recommended antenna
specification based on the required antennas types.
Antennas may support mechanical down-tilt (MDT) using a suitable mounting kit, or electrical down-tilt
(EDT) that may be either fixed or adjustable using a special adjustment screw.
In addition to a range of standard commercial antennas, Telrad offers also a special attached antenna
designed for convenient installation on top of the BreezeCOMPACT unit. For the BreezeCOMPACT unit,
a special mounting kit allows installation of a standard antenna on top of the unit to minimize the space
required for installation.
For details on antennas offered by Telrad refer to “Antennas” on page 15.
1.1.5 GPS
GPS is used to synchronize the air link frames of Intra-site and Inter-site located Base Transceiver Stations
to ensure that in all Base Stations the air frame will start at the same time, and that all Base Stations will
switch from transmit (downlink) to receive (uplink) at the same time. This synchronization is necessary to
prevent Intra-site and Inter-site interference and Base Stations saturation (assuming that all Base Stations
are operating with the same frame size and with the same DL/UL ratio).The all-outdoor GPS Receiver is a
pole mountable GPS receiver and antenna in a single environmentally protected enclosure that is
powered from the unit.
Starting from R5.0 GPS Chaning is supported, where the chaining enables using a single GPS
receiver for several collocated units, below diagram which explain the GPS chaining connectivity:
6
BreezeCOMPACT System Manual
Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
Chapter 1 - System Description The BreezeCOMPACT Solution
Stand‐ alone Cluster
1.1.6 Telrad Overall Solution
1.1.6.1 TelCore
TelCore solution is based on MC-ASN-GW for WiMAX and MC-EPC for LTE, TelCOre includes AAA
solution for WiMAX and LTE.
1.1.6.1.1 Mini-Centralized ASN-GW
The MC-ASN-GW is a separate entity (centralized architecture) that communicates with the BTS over R6
interface. The MC-ASN-GW is highly scalable solution which can be deployed as stand-alone solution
or as Cluster. The unique architecture allows pay-as-you grows starting with minimal numer of
MC-ASN-GW units and increase as subscription grows.
Service components (Service Profiles and Service Flows) are configured in the external ASN-GW. MS
authentication and services provisioning are managed by a centralized AAA server, based on user
credentials (user name and password).
7
BreezeCOMPACT System Manual
Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
Chapter 1 - System Description The BreezeCOMPACT Solution
ARD
PCRF
ARD
Converged
Billing
System
AAA
platform
y High performance, fully-featured RADIUS/
DIAMETER server infrastructure
y Multithread and multi-process architecture –
scalable up to 1.5M sessions
y Stand-alone and High-availability/ redundant
configurations
y Web-based interface for easy management and
connectivity from anywhere
y Compatible with Radius/ Diameter, WiMAX, 3GPP
standards and BreezeMAX service implementation
y Flexible APIs for integration with Operator’s OSS/
BSS sub-systems
Enforcer &
Spot-n-Go
AAA
ARCB
Enforcer/ Spotngo
• A comprehensive AAA,
Prepaid and Postpaid
Billing system
• Advanced customer,
Business Partners and
Resellers management
• Cards and vouchers
management
• Acc ount receiv ables &
payments
• Support of technology -
and vendor-spec ific
attributes
• Extensive support of
TelCORE GW services
• Advanced user
management
• AAA with integrated
Prepaid functionality
• G eneration of prepaid
users/ cards
• Duration & traffic quota
• Customer Web Portal -
point of sale support
(price plans, refillable
vouchers and c redit
card proc essing)
• Fast def inition of polic y
rules, actions and steps
• Advanced dynamic
policies for activ e users
• Customer c are
additions – v iew and
modif y user policies
PCRF
TLRD
portfolio
ARD
complimentary
1.1.6.1.2 AAA Solution
8
BreezeCOMPACT System Manual
Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
Chapter 1 - System Description The BreezeCOMPACT Solution
Star-Suite
Network
Management
Solution
StarManager
Network
Management
StarQuality
Network
Performance
StarACS
CPE
Management
1.1.6.2 Telrad StarSuite NMS solution
Telrad provide a full suite of Network Managment system, the Suite includes:
StarManager a - Network managment system for Configuration, Alrams and monitoring
StarQuality - a Network performance monitoring system for Radio and Network optimization
StarACS - a CPE Manament solution
9
BreezeCOMPACT System Manual
Chapter 1 - System DescriptionSpecifications
Chapter 1 - System Description Specifications
1.2 Specifications
1.2.1 Modem & Radio
Table 1-1: General Modem & Radio Specifications
Item Description
BreezeCOMPACT Family - List of
Products supported by
frequency band, maximum Tx
Power and Ports Configuration
Central Frequency Resolution 0.125 MHz
Operation Mode TDD
Channel Bandwidth 5 MHz
Tx Power Control Range 10 dB, in 1 dB steps
Tx Power Accuracy +/- 1 dB
Maximum Input Power @
antenna port
BreezeCOMPACT1000: 3300-3500 MHz, 30 dBm per port, 4Rx
by 4Tx
3400-3700 MHz, 30 dBm per port, 4Rx by 4Tx
3600-3800 MHz, 30 dBm per port , 4Rx by 4Tx
BreezeCOMAPCT2000:
3400-3600 MHz, 37dBm per port, 4Rx by 2Tx (Tx RF Ports 1,2)
BreezeCOMAPCT3000
2496-2696 MHz, 40dBm per port, 4Rx by 4 Tx,
7 MHz
10 MHz
-45 dBm before saturation, -35 dBm before damage
Noise Figure 5 dB
Modulation OFDM modulation, 1024/512 FFT points; QPSK, QAM16, QAM64
Access Method OFDMA
FEC Convolutional Turbo Coding:
1/2, 3/4 for QPSK and QAM16.
1/2, 2/3, 3/4, 5/6 for QAM64
1.2.2 Data Communication (Ethernet Interfaces)
Table 1-2: Data Communication (Ethernet Interfaces)
Item Description
Standard Compliance IEEE 802.3 CSMA/CD
10
BreezeCOMPACT System Manual
Chapter 1 - System DescriptionSpecifications
Chapter 1 - System Description Specifications
Table 1-2: Data Communication (Ethernet Interfaces)
Item Description
DAT 1 (optional, if an SFP is installed) 1000 Mbps Base-X optical fiber interface, Half/Full Duplex
with Auto Negotiation.
DAT 2 100/1000 Mbps Base-T twisted-pair electrical interface,
Half/Full Duplex with Auto Negotiation.
DAT 3 10/100 Mbps Base-T twisted-pair electrical interface, Half/Full
Duplex with Auto Negotiation.
This port is capable for POE In and POE Out
11
BreezeCOMPACT System Manual
Chapter 1 - System DescriptionSpecifications
Chapter 1 - System Description Specifications
1.2.3 Configuration and Management
Table 1-3: Configuration and Management
Item Description
Management (Out Of Band, In Band) SNMP
Te ln et
SNMP Agents SNMP Ver. 2 client
MIB II (RFC 1213), Private MIBs
Software Upgrade Using TFTP
Configuration Upload/Download Using TFTP
1.2.4 Standards Compliance, General
Table 1-4: Standards Compliance, General
Ty pe Standard
EMC ETSI EN 301 489-1/4
FCC Part 15
Safety EN60950-1 (CE)
UL 60950-1 (US/C)
Environmental ETS 300 019:
Part 2-1 T 1.2 & part 2-2 T 2.3 for indoor & outdoor
Part 2-3 T 3.2 for indoor
Part 2-4 T 4.1E for outdoor
Radio ETSI EN 302 326
FCC Part 90 Subpart Z*
IC RSS-192 issue1*
IC RSS-197 issue 3*
In the current release FCC and IC standards are not applicable for
BreezeCOMPACT2000 units
12
BreezeCOMPACT System Manual
Chapter 1 - System DescriptionSpecifications
Chapter 1 - System Description Specifications
1.2.5 Environmental
Table 1-5: Environmental Specifications
Ty pe Details
Operating Temperature -40°C to 55°C
Operating Humidity 5%-95%, weather protected
1.2.6 Mechanical and Electrical
1.2.6.1 BreezeCOMPACT1000
Table 1-6: Mechanical & Electrical Specifications, BreezeCOMPACT1000 units
Item Description
Dimensions 242.7 x 343 x 166.9 mm
Weight 8.2 Kg
Power Input -40 to -60 VDC
Power Consumption 27 dBm units: 105W maximum (at 70% Tx/Rx duty cycle),
TX Ports / RX Ports Ports 1-4 (TX), Ports 1-4 (RX)
1.2.6.2 BreezeCOMPACT2000
Table 1-7: Mechanical & Electrical Specifications, BreezeCOMPACT2000 units
Item Description
Dimensions 280 x 510 x 220 mm
Weight 19.5 Kg
Power Input -40 to -60 VDC
125W peak.
30 dBm units: 118W maximum (at 70% Tx/Rx duty cycle),
142W peak.
Power Consumption 186W maximum (at 70% Tx/Rx duty cycle), 225W peak
TX Ports / RX Ports Ports 1, 2 (TX), Ports 1-4 (RX)
13
BreezeCOMPACT System Manual
Chapter 1 - System DescriptionSpecifications
Chapter 1 - System Description Specifications
1.2.6.3 BreezeCOMPACT3000
Table 1-8: Mechanical & Electrical Specifications, BreezeCOMPACT3000 units
Item Description
Dimensions 260 x 400 x 330 mm
Weight 19 Kg
Power Input -40 to -60 VDC
Power Consumption 230W maximum (at 70% Tx/Rx duty cycle), TBDW peak
TX Ports / RX Ports Ports 1-4 (TX), Ports 1-4 (RX)
14
