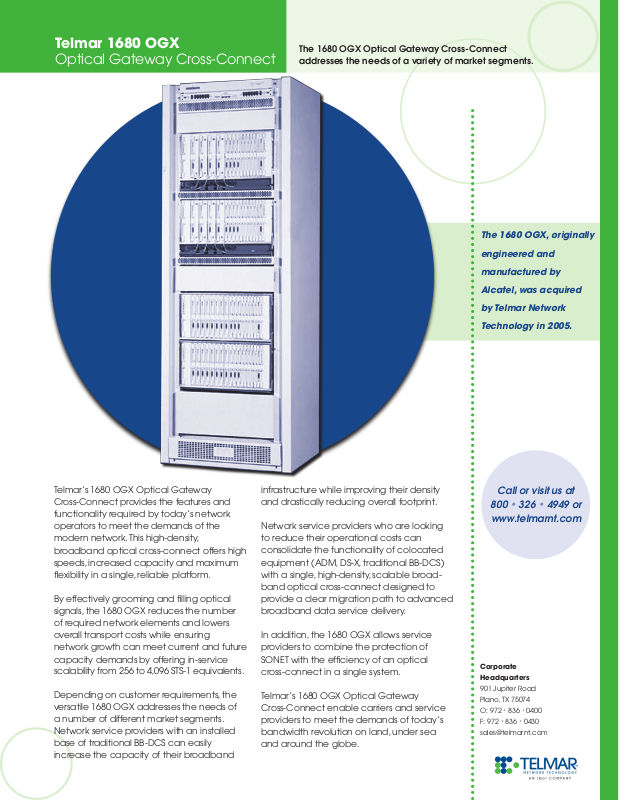

Telmar 1680 OGX
Optical Gateway Cross-Connect

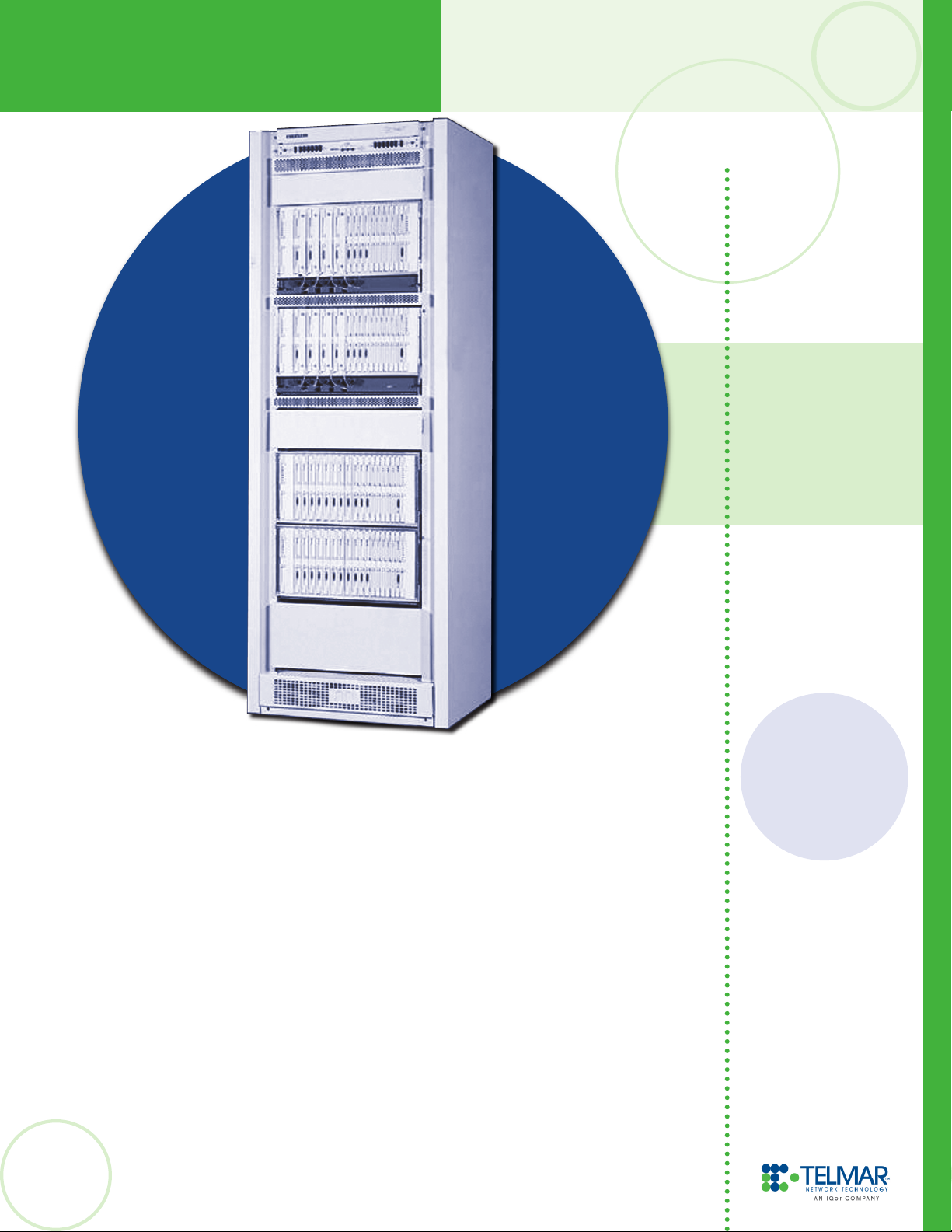

The 1680 OGX Optical Gateway Cross-Connect
addresses the needs of a variety of market segments.
The 1680 OGX, originally
engineered and
manufactured by
Alcatel, was acquired
by Telmar Network
Technology in 2005.
Telmar’s 1680 OGX Optical Gateway
Cross-Connect provides the features and
functionality required by today’s network
operators to meet the demands of the
modern network. This high-density,
broadband optical cross-connect offers high
speeds, increased capacity and maximum
flexibility in a single, reliable platform.
By effectively grooming and filling optical
signals, the 1680 OGX reduces the number
of required network elements and lowers
overall transport costs while ensuring
network growth can meet current and future
capacity demands by offering in-service
scalability from 256 to 4,096 STS-1 equivalents.
Depending on customer requirements, the
versatile 1680 OGX addresses the needs of
a number of different market segments.
Network service providers with an installed
base of traditional BB-DCS can easily
increase the capacity of their broadband
infrastructure while improving their density
and drastically reducing overall footprint.
Network service providers who are looking
to reduce their operational costs can
consolidate the functionality of colocated
equipment (ADM, DS-X, traditional BB-DCS)
with a single, high-density, scalable broadband optical cross-connect designed to
provide a clear migration path to advanced
broadband data service delivery.
In addition, the 1680 OGX allows service
providers to combine the protection of
SONET with the efficiency of an optical
cross-connect in a single system.
Telmar’s 1680 OGX Optical Gateway
Cross-Connect enable carriers and service
providers to meet the demands of today’s
bandwidth revolution on land, under sea
and around the globe.
Call or visit us at
800 • 326 • 4949 or
www.telmarnt.com
Corporate
Headquarters
901 Jupiter Road
Plano, TX 75074
•
O: 972
836 • 0400
•
F: 972
836 • 0430
Page 2
Telmar 1680 OGX
Optical Gateway Cross-Connect
Key Features
• Meets today’s transport infrastructure
needs
> Increases network efficiency by grooming
and filling optical signals
> Redundant, robust switching, interface
and control planes
> Sophisticated diagnostics accelerate
installation testing and service provision
ing times
> Replaces back-to-back add/drop
multiplexers (ADMs)
> Bridges DS3 asynchronous signals to the
SONET backbone to support legacy
networks
> Multiplexes SDH signals from STM-16 to
VC-3
> Provides localized and remote test access
> Software user partitioning
> Remote in-service software upgrade
> Remote database backup and restore
> Architected to support gateway network
element functionality
> Provides the link from the access to optical
core network for customers
• An international optical gateway
> Serves as an international optical gateway
between SONET and SDH
> Bridges DS3 into SONET and SDH signals
down to VC-3 for efficient optical
backbone networks
• Flexible, scalable and a high-density
architecture
>
Scales from 155.2 Mb/s to 2.488 Gb/s
> Inter-rack optics provides flexible floor
planning and configuration options
> Future support of remote nodes (180 km)
from host NE
• Ensure optimum performance and ease
of use
> Near and far-end SONET performance
monitoring
> Automatic in-service signals
> Embedded DS3 performance monitoring
> Facility and equipment protection
schemes, flexible rolling, fast facility
protection and alternate image storage
> Network management interfaces utilize
EMS, GUI craft interface and TL1
• Network services
> DS3, OC-3, OC-12, OC-48 private line
services
> Optimal transport of ATM and IP mixed
with private lines, OC-3c and OC-12c
Technical Specifications
General
• Communication Ports: RS-232, RS-449,
802.3 LAN
• Protocols supported: ASCII, X.25, TL1, TCP/IP
• LAN Port rates: 10/100 Mb/s
• Interoperability tested
• Three-year hardware warranty
Power Requirements
• Input power: -48 VDC
• FCC Part 15 Subpart B Compliant
Interface Specifications
• SONET: DS3, STS-1, OC-3c, OC-12c,
OC-48c, STS-48c
• SDH: STM-1e, STM-1o, STM-4, STM-16 with
VC-3, VC4-4c and VC4-16c grooming
Environmental
• Operating temperatures: 0ºC to 50ºC
• Humidity: 5% to 95%
Physical Dimensions
• Shelf width: 23 in. (9 cm)
• Bay and spacing — H x W x D: 84 in. x 26 in.
x 12 in. (HDS is 15 in. deep)
• STS-1 capacity per I/O Bay: 256-384 STS-1
signals
• NEBS 3 (TR-NWT-000063): Compliant
• Remote interrack optics: 500 m
• Electrical I/O rack: 256 DS3s or STS-1s or
40 STM-1e
• Optical I/O rack: 80/1+1 OC-3s, 20/1+
1 OC-12s or 8/1+1 OC-48s
• Matrix rack: 1536 equivalent DS3/STS-1
cross-connects per shelf
