tell GSM Pager3 Z6 Installation And User Manual

GSM Pager3 Z6

INSTALLATION AND USER MANUAL

for module version v3.20 and up

Document version: 1.3 05.12.2013

2

Table of contents

1 Main functions of GSM Pager3 Z6 ..............................................................................3

2 Installer settings ..........................................................................................................3

2.1 Setting parameters through USB serial connection ............................................3

2.2 Setting parameters through modem connection .................................................4

2.3 Module status monitoring ....................................................................................4

2.4 Setting parameters..............................................................................................7

2.5 Customization of parameters ..............................................................................7

2.5.1 Zone settings..............................................................................................7

2.5.2 Event settings.............................................................................................8

2.5.3 Relay output settings ..................................................................................9

2.5.4 Phone number settings.............................................................................10

2.5.4.1 Setting phone numbers through SMS....................................................11

2.5.5 Alarm settings...........................................................................................12

2.6 Changing the module’s password .....................................................................13

2.7 Event log...........................................................................................................14

2.8 Reading the module’s version...........................................................................15

2.9 Remote control and status query through phone ..............................................15

2.10 Remote control and status query through SMS ................................................16

3 External elements and functions ...............................................................................18

3.1 SIM card case ...................................................................................................18

3.2 LED signals.......................................................................................................18

3.3 Wiring................................................................................................................18

4 Installation guide .......................................................................................................19

4.1 Mounting ...........................................................................................................19

4.2 Putting into operation ........................................................................................19

5 Technical details........................................................................................................20

5.1 Technical specification......................................................................................20

5.2 Contents of the package ...................................................................................20

5.3 The manufacturer’s contact...............................................................................20

3

1 Main functions of GSM Pager3 Z6

Possibility of using as alarm control panel accessory, GSM transmitter, or as a 6 zone
GSM control panel armed/disarmed independently.
Further functions:

 Sending SMS with adjustable message for each event
 Reports events and restorations in SMS, voice call to users and monitoring station
 Arming / disarming, status query and relay control through phone call

2 Installer settings

Settings can be edited using the “GSM Pager3 Z6 Remoter” software. Do not open the
software after installation, connect the module to USB first and let the OS install the
necessary drivers! The desired program language can be selected using the flag icons
in the lower right corner of the software window. If necessary, the version of the
programming software can be updated by clicking on the “Search for program
updates” link on the “Connection” page. The update procedure requires internet
connection. Here it can be also configured, if the program should search for updates
automatically upon each opening, or this is performed manually by clicking on the
search link.

2.1 Setting parameters through USB serial connection

 Start the „GSM Pager3 Z6 Remoter” software and select Connection page
 Select the option of connecting the module via USB cable
 Power up the module. Powering from USB is not sufficient!
 Connect the USB cable in case you have not connected the module to PC yet
 As soon as the program has recognized the USB port used by the module, it will

request the module password, establish connection and then a green tick icon
appears next to the USB icon in the upper right corner of the main window, then
the module version is displayed. (The program does not request the module
password if the default password is set in the module: 1111)

 Thereafter settings, module status monitoring etc. become available
 When configuration of the settings is finished, disconnect the module from USB.

4

2.2 Setting parameters through modem connection

For this a GSM modem is required (TELL GT64 recommended). GSM data call (CSD)
service must be activated on the SIM cards placed in the modem and in the module.

 Start the „GSM Pager3 Z6 Remoter” software and select Connection page
 Select the option of connecting the module via modem connection
 Select the port where you have connected the modem
 Enter the phone number of the SIM card placed in the Pager3 module
 Press „Establish modem connection” button
 As soon as the program has connected to the module, it will request the module

password, establish connection and then a green tick icon appears next to the USB
icon in the upper right corner of the main window, then the module version is
displayed. (The program does not request the module password if the default
password is set in the module: 1111)

 When configuration of the settings is finished, close the connection by pressing the

“Close modem connection” button.

2.3 Module status monitoring

To monitor the module, select “Module status” tab.

 Z1, Z2, Z3, Z4, Z5 and Z6: the current state of the six inputs is displayed here:

opened or closed, respectively if this is default state or not (depending on the setting).

 RELAY 1: the current state of the relay output is displayed here. Activation of the

relay can be performed using „Start” button (the relay remains activated for the period
adjusted at relay settings), then active state will restore, or can be immediately
restored by pressing „Stop” button.

5

 GSM signal: exact value of GSM signal strength (and graphic level display)

 Arm / Disarm: the module can be armed/disarmed through the software using these

buttons, if arming/disarming mode 3, 4 or 5 is set. This function is available from
module version v3.10.

 Module clock: the current time of the module clock is displayed here

 Module state: displays the current state (armed or disarmed)

 Columns of the event table:

o Date / Time: date and time of the event
o Event: event specification
o CID: Contact-ID code of the event
o T1-T4: reports to user phone numbers via voice call
o S1-S4: SMS messages to user phone numbers
o C1-C2: reports to monitoring station
o State: event status (Processing, Delayed, Stopped, Finished, Timeout)

Marks displayed in T1-T4, S1-S4 and C1-C2 columns:

o ? - report processing in progress
o * - reporting successful
o R - reporting already performed in other way, therefore reporting is not needed
o ! - reporting failed
o S - alarm has been cancelled, therefore reporting is not necessary
o T - reporting timeout, reporting was unsuccessful during the alarming time

By keeping the mouse pointer above any cell of the table, details of the specific event
will be displayed. If you wish to copy this content, hold down CTRL button on
keyboard and the details will remain displayed therefore the content can be selected
and copied as usual.

 Refresh List: the event list can be refreshed at anytime with this button, however the

list is automatically refreshed after each new event

 Stop Alarm: reports being in progress can be stopped with this button

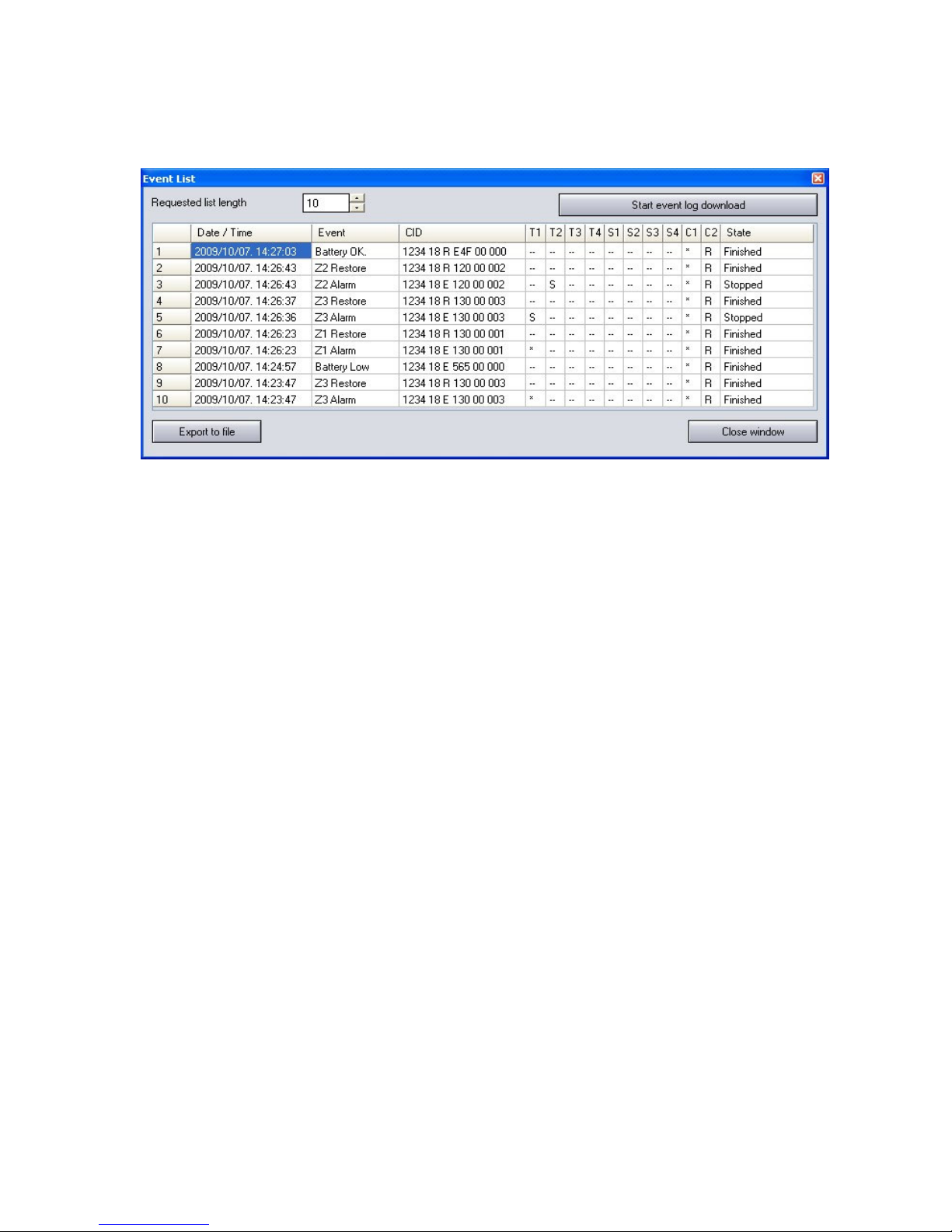

 Event List >>>: opens a detailed report of module events

 Time synchronization: the module’s clock can be set using this button. The

module’s clock must be set in order that the module can record events in its event list
and report alarms. By pressing this button, the module’s clock will be synchronized to
the PC’s clock.
Attention! The module does not include daylight saving feature, therefore in this
period it is necessary to adjust its clock.
The module’s clock can also be set by SMS message. For this, the following message
has to be sent to the module’s phone number: #dt

 In "State messages from the module" field recent messages of the module with

time of occurrence can be traced. The message window can be cleared with "Clear
message window" button.

6

 Communication details>>>: pressing this button opens a window showing detailed

information about the procedures running in the module (only for troubleshooting)

 Message flow can be started and stopped by pressing Start/Stop button
 Messages can be saved to text file using the “Save to File” button
