1 Overview

The GM862 family consist of the following modules: the GM862-GPS, GM862-QUAD-PY and GM862-QUAD, which combine the access to digital communication services in GSM 850, 900, DCS 1800, PCS1900 MHz networks with an additional key feature of the integrated GPS receiver (GM862-GPS only).

The Telit GM862-GPS includes a 20 channels GPS receiver. It provides all the features of the GM862-

QUAD version such as Voice, Circuit Switched Data transfer, Phonebook, SMS, four bands GSM

capability, hot removal sensing on board SIM Reader, GPRS Class 10 and battery charger circuitry. Moreover, the GM862-GPS and GM862-QUAD-PY models, integrate the “EASY SCRIPT “ functionality. This is a PYTHON engine script interpreter allowing self-controlled operations. With the EASY SCRIPT feature the GM862-GPS and GM862-QUAD-PY become a finite product, they just need your script to be run.

The GM862 is specifically designed and developed by Telit for OEM usage and dedicated to portable data, voice and telematic applications, such as:

Moreover, for the GM862-GPS:

All three models supports the following functionalities:

• Telemetry and Telecontrol

• Security systems

• Vending Machines

• POS terminals

• Phones and Payphones

• Return channel for digital broadcasting

• Applications, where the external application processor can be replaced by the

PYTHON engine provide by GM862-GPS or GM862-QUAD-PY

• Automotive and Fleet Management applications

• Position reporting and tracking

• EASY GPRS (AT driven embedded TCP/IP protocol stack)

• EASY SCAN (full GSM frequency scanning)

• JAMMING DETECT & REPORT (detect the presence of disturbing devices

• CMUX

• SAP (SIM Access Profile)

• Multisocket

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008 From the interface point of view, the GM862-GPS, GM862-QUAD-PY and GM862-QUAD provide the following features:

• Full RS232 UART, CMOS level (ASC0) interface for AT commands:

- Auto-bauding from 2.4 up to 57.6 Kbps

- Fixed baud rate up to 115.2 Kbps

• Two wires RS232, CMOS level (ASC1) for PYTHON debug

• SIM card interface, 3 volts and 1.8 volts

• 13 x GPIO ports (max)

• 1 x A/D converters

• 1 x buzzer output

• 1 x led status output indicator

In order to meet the competitive OEM and vertical market stringent requirements, Telit supports its customers with a dedicated Technical Support Policy with:

• Telit Evaluation Kit EVK2 to help you to develop your application;

• a Website with all updated information available;

• a high level technical support to assist you in your development;

For more updated information concerning product Roadmap and availability, technical characteristics, commercial and other issues, please check on the Telit website www.telit.com

> Products > Modules.

NOTE: Some of the performances of the Telit GM862 modules depend on the SW version installed on the module itself.

The Telit GM862 SW group is continuously working in order to add new features and improve the overall performances. The Telit GM862 modules are easily upgradeable by the developer using the Telit GM862 module Flash Programmer. Furthermore, all the Telit GM862 products have the full conformity assessment against R&TTE. Telit

GM862 Module Pin-to-Pin Upgrade Policy will enable you to include in your application the new and

future products of the GM862 family, allowing you to save your investments and to successfully penetrate new markets.

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

2 General Product Description

2.1 Dimensions

The Telit GM862-QUAD-PY and GM862-QUAD modules overall dimension are:

• Length: 43.9 mm

• Width: 43.9 mm

• Thickness: 6.9 mm

• Volume: ≅ 13 cm

The layout is shown in the following figure:

80272ST10019a Rev. 10 – 18/09/2008 The layout of Telit GM862 GPS module is shown in the following figure:

GM862 Product Description

2.2 Weight

The Telit GM862 Family modules weight is:

product weight (gr)

GM862-QUAD/QUAD-PY 18

GM862-GPS 19

GPS antenna connecto

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

2.3 Environmental requirements

The Telit GM862 modules are compliant with the applicable ETSI reference documentation GSM 05.05 Release1999 ETSI EN300910 V8.4.1

2.3.1 Temperature range

Operation

temperature range

Storage and non

Operating

Temperature Range

(*) Functional: the module is able to make and receive voice calls, data calls, SMS and make GPRS traffic

GM862-QUAD /

GM862-QUAD-PY

GM862-GPS Note

–20°C ÷ +55°C –20°C ÷ +55°C

–40°C ÷ +85°C –40°C ÷ +85°C

The module is fully functional (*) in

all the temperature range, and it

fully meets the ETSI specifications.

The module is fully functional (*) in

all the temperature range.

Temperatures outside the range -

20°C ÷ +55°C, might slightly

deviate from ETSI specifications.

2.3.2 Vibration Test (non functional)

• 10 ÷12Hz ASD = 1.92m 2 /s 3

• 12 ÷ 150Hz –3dB/oct

2.3.3 RoHS compliance

The GM862-QUAD /QUAD-PY and GM862-GPS are fully RoHS compliant to EU regulation.

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

2.4 Operating Frequency

The operating frequencies in GSM, DCS, PCS modes are conform to the GSM specifications.

Mode Freq. TX (MHz) Freq. RX (MHz) Channels

(ARFC)

890.0 - 914.8 935.0 - 959.8 0 – 124 45 MHz E-GSM-900

880.2 - 889.8 925.2 - 934.8 975 - 1023 45 MHz GSM-850 824.2 – 848.8 969.2 – 893.8 128 - 251 45 MHz DCS-1800 1710.2 - 1784.8 1805.2 – 1879.8 512 – 885 95 MHz

PCS-1900 1850.2 - 1909.8 1930.2 – 1989.8 512 - 810 80 MHz

TX - RX offset

2.5 Transmitter output power

GSM–850 / 900

The Telit GM862 modules in GSM–850 / 900 operating mode are of class 4 in accordance with the specification which determine the nominal 2W peak RF power (+33dBm) on 50 Ohm.

DCS–1800 / PCS–1900

The Telit GM862 modules in DCS–1800/PCS–1900 operating mode are of class 1 in accordance with the specifications, which determine the nominal 1W peak RF power (+30dBm) on 50 Ohm.

2.6 Reference sensitivity

GSM–850 / 900 The sensitivity of the Telit GM862 modules according to the specifications for the class 4 GSM–850/900 portable terminals is –107 dBm typical in normal operating conditions.

DCS–1800 / PCS-1900

The sensitivity of the Telit GM862 modules according to the specifications for the class 1 portable terminals DCS-1800 / PCS-1900 is –106 dBm typical in normal operating conditions.

2.7 Antennas

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

2.7.1 GSM Antenna

The antenna that the customer chooses to use, should fulfill the following requirements:

Frequency range

Bandwidth

For further information please refer to the GM862 Hardware User Guide.

Depending by frequency band(s) provided by the network operator, the customer shall use the most suitable antenna for that/those band(s) 80 MHz in EGSM 900, 70 MHz if GSM 850, 170 MHz in DCS, 140 MHz PCS band

2.7.2 GPS Antenna1

The Telit GM862-GPS Transceiver module includes a 50 Ohm MMCX connector for the GPS antenna.

Frequency range Bandwidth

For further information please refer to the GM862 Hardware User Guide.

GPS L1 (1575.42 MHz) +-1.023 MHz

GM862-GPS only

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

2.8 GPS Module features

The GM862-GPS includes a SiRFstarIII™ single chip GPS receiver, that supports real-time location in urban area and wherever a high sensitivity acquisition is needed. As main features of such GPS receiver, we can mention:

• High sensitivity for indoor reception, up to -159dBm (with active antenna)

• Extremely fast TTFF’s at low signal levels

• Hot starts < 3 seconds

• 200,000+ effective correlators

• Supports 20-Channel GPS L1 1575.42 MHz

• Accuracy < 2.5m

• Extremely fast TTFF’s at low signal levels

• GPS NMEA 0183 output format

• Date WGS-84

• Dedicated GPS AT commands

• SBAS (WAAS and EGNOS) support

• Low power consumption

2.8.1 GPS Specifications

2.8.1.1 GPS Sensitivity

Time to first fix Hot start Warm start Cold start

Tracking

2.8.1.2 GPS Average Power Consumption

The typical current consumption of the GPS part of the Telit GM862-GPS modules is:

Available for the P/N: 3 990 250 689

NOTE: sensitivity is affected by the type of active GPS antenna used in the application.

Autonomous <3s Autonomous <35s Autonomous <35s

Sensitivity3

up to -159 dBm

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

GM862-GPS (3990250657) GM862-GPS4 (3990250689)

Operating current

70 mA ±20%, including 50 mA

for the GPS hardware and 20

mA for the antenna LNA

55mA, including 35mA GPS for

the GPS hardware and 20 mA

for the antenna LNA

2.8.1.3 GPS Driving

The GPS functions are driven from the GSM BB processor trough a dedicated AT command set available in a separately specification.

2.8.1.4 GPS NMEA

The GPS data stream (NMEA 0183 format) is also available on the connector (pins 35 and 41 : TX_GPS and RX_GPS) in RS232 format 8N1, 4800 bps (9600, 19200, 38400, and 57600 bps are available too).

2.8.1.5 NMEA sentences

The following GPS sentences are available:

GGA - Global positioning system fix data (provides 3D location and accuracy data)

– Course over ground and ground speed

VTG

GSA

- GPS DOP and active satellites

RMC

- Recommended Minimum Specific GPS Data

GLL

- Geographic Latitude and Longitude

2.9 Supply voltage

The external power supply must be connected to VBATT signal (see Hardware User Guide) and must fulfil the following requirements:

POWER SUPPLY

Nominal Supply Voltage 3.8 V 3.8 V Max Supply Voltage 4.2 V 4.5 V Supply voltage range 3.4 V - 4.2 V 3.22 V – 4.5 V

Operating current consumption has decreased for 30%

SW rel. 7.02.xx4 or

older

SW rel. 7.03.x00 or

newer

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

NOTE: Operating voltage range must never be exceeded; min/max voltage requirements and peak current supply should be fulfilled.

2.10 GSM Power consumption

The typical current consumption of the Telit GM862 Family modules are:

Power off current (typical)

< 26 μA;

Stand–by current (GSM Idle)

Operating current in voice channel

Operating current in GPRS class 10

The total power consumption of GM862-GPS is the sum of the consumptions of GSM and GPS part.

< 17 mA (< 4 mA using command AT+CFUN)

< 200 mA @ worst network conditions

< 370 mA @ worst network conditions

2.11 Embodied Battery Charger

The battery charger is suited for 3.7V Li-Ion rechargeable battery (suggested capacity 500-1000mAH). The Charger needs only a CURRENT LIMITED power source input and charges the battery directly through VBATT connector pins.

Battery charger input pin Battery pins Battery charger input voltage min Battery charger input voltage typical Battery charger input voltage max Battery charger input current max Battery type

NOTE: If embodied battery charger is used, then a LOW ESR capacitor of at least 100μF must be

mounted in parallel to VBATT pin.

NOTE: when power is supplied to the CHARGE pin, a battery must always be connected to the VBATT pins.

CHARGE VBATT, GND

5.0 V

5.5 V

7.0 V 400mA Li-Ion rechargeable

2.12 User Interface

The user interface is managed by AT commands specified on the ITU-T V.250, GSM 07.07 and 07.05 specification.

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

2.12.1 Speech Coding

The Telit GM862 voice codec supports the following rates:

• Half Rate.

• Full rate,

• Enhanced Full Rate

• Adaptive Multi Rate

2.12.2 SIM Reader

The Telit GM862-QUAD, GM862-QUAD-PY and GM862-GPS support phase 2 GSM11.14 - SIM 1.8V and 3V. For 5V SIM operation an external level translator can be added.

The Telit GM862-QUAD,QUAD-PY and GPS have an internal built-in SIM card reader that allows also hot removal of the SIM sensing. Therefore, the SIM can be extracted and reinserted while the module is still on, so there's no need for an external SIM housing.

NOTE: the hot removal of the SIM sensing is not supported during power saving mode (+CFUN: 5).

2.12.3 SMS

The Telit GM862 Family modules supports the following SMS types:

• Mobile Terminated (MT) class 0 – 3 with signalling of new incoming SMS, SIM full, SMS read

• Mobile Originated class 0 – 3 with writing, memorize in SIM and sending

• Cell Broadcast compatible with CB DRX with signalling of new incoming SMS.

2.12.4 Real Time Clock and Alarm

The Telit GM862 Family modules supports the Real Time Clock and Alarm functions through AT commands, furthermore an alarm output pin (GPIO6) can be configured to indicate the alarm with a hardware line output.

2.12.5 Data/fax transmission

As for the data and fax capabilities, the GM862-QUAD,QUAD-PY and GPS support the following:

GPRS Class 8, MS Class 8 GPRS Class 10, MS Class 8. CSD up to 14.4 Kbps Fax service, Class 1 Group 3

GM862-QUAD GM862-QUAD-PY GM862-GPS

• • •

2.12.6 Local security management

With lock of Subscriber Identity module (SIM), and security code request at power–up.

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

2.12.7 Call control

Call cost control function.

2.12.8 Phonebook

Function available to store the telephone numbers in SIM memory. Capability depends on SIM version/memory

2.12.9 Characters management

The GM862 supports the IRA characters set (International Reference Alphabet), in TEXT and PDU mode.

2.12.10 SIM related functions

The activation and deactivation of the numbers stored in phone book are supported, FDN, ADN and PINs too. The extension at the PIN2 for the PUK2 insertion capability for lock condition is supported too.

2.12.11 Call status indication

The call status indication by AT commands is supported.

2.12.12 Automatic answer (Voice, Data or FAX)

After a specified number of rings, the module will automatically answer. The user can set the number of rings by means of the command ATS0=<n>.

2.12.13 Supplementary services (SS)

• Call Barring,

• Call Forwarding,

• Calling Line Identification Presentation (CLIP),

• Calling Line Identification Restriction (CLIR),

• Call Waiting, other party call Waiting Indication,

• Call Hold, other party Hold / Retrieved Indication,

• Closed User Group supplementary service (CUG),

• Advice of Charge,

• Unstructured SS Mobile Originated (MO)

2.12.14 Acoustic signaling

The acoustic signalling of the GM862 on the selected acoustic device are the following:

• Call waiting;

• Ringing tone;

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

• SMS received tone;

• Busy tone;

• Power on/off tone;

• Off Hook dial tone;

• Congestion tone;

• Connected tone;

• Call dropped;

• No service tone;

• Alarm tone.

2.12.15 Buzzer Output

The General Purpose I/O pin GPIO7 can be configured to output the BUZZER output signal, with only an external Mosfet/transistor and a diode a Buzzer can be directly driven. The ringing tone and the other signalling tones can be redirected to this Buzzer output with a specific AT command.

2.12.16 RF Transmission Monitor

As alternate function of the GPIO5, the GM862-GPS, QUAD-PY and QUAD provide the RF transmission monitor. When the alternate function is activated, the pin of GPIO5 changes to HIGH every time the module transmits an RF signal and remains HIGH for the duration of the transmission sequence, i.e. it does not change with every GSM signal burst.

2.13 EMC

Compliant to EN301-489-1 and EN301-489-7 and all applicable GSM Specifications. Compliant to Directive 1999/05/CE.

2.14 Logic level specifications

Where not specified, all the interface circuits work at 2.8V CMOS logic levels. To get more detailed information about the logica level specifications used in the Telit GM862 interface circuits please consult the Hardware User Guide.

2.14.1 Reset signal

RESET is used to reset the GM862 modules. Whenever this signal is pulled low, the GM862 is reset. When the device is reset it stops any operation. After the release of the reset GM862-QUAD and GM862-QUAD-PY are unconditionally rebooted, while GM862-GPS is unconditionally shut down, without doing any detach operation from the network where it is registered to. This behaviour is not a proper shut down because any GSM device is requested to issue a detach request on turn off. For this reason the Reset signal must not be used to normally shutting down the device, but only as an emergency exit in the rare case the device remains stuck waiting for some network response.

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

NOTE: do not use this signal to power off the GM862. Use the ON/OFF signal (Pin 17 of SO301) to perform this function or the AT#SHDN command.

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

2.15 Audio levels specifications

The audio path of the Telit GM862 module is organized into two main paths:

• internal path (called also MT)

• external path (called also HF)

These two paths are meant respectively for handset and headset/hands free use. The Telit GM862

Family modules has a built in echo canceller and a noise suppressor, tuned separately for the two audio

paths; for the internal path the echo canceller parameters are suited to cancel the echo generated by a handset, while for the external audio path they are suited for a hands free use. For more information on the audio refer to the Hardware User Guide.

2.16 ADC Converter

The on board ADCs are 11-bit converter. They are able to read a voltage level in the range of 0÷2 volts applied on the ADC pin input, and convert it into 11 bit word.

Min Max Units Voltage range AD conversion Resolution Sampling rate

1 (idle) 60 (on traffic) secs

0 2 Volt

11 11 bits

1 1 mV

(

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

2.17 Interface connectors on GM862 modules

The Telit GM862 Family modules has the following interfaces:

• GSM antenna connector

• Board To Board Interface connector

• SIM Card Reader

• GPS antenna connector (GM862-GPS only)

The Telit GM862 Family modules board to board connector is a CSTP 50 pin vertical SMD Molex 52991– 0508 (male). Its pin-out (down view) is:

NOTE: For detailed information please refer to Hardware User Guide

GPS Antenna connector position

on the vertical side; GM862 GPS onl

1 2

SIM CARD reader position (on the vertical side)

Connector Position

and PIN-OUT order

GSM Antenna connector position (on the vertical side)

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

3 Evaluation Kit

In order to assist you in the development of your Telit GM862 Family modules based application, Telit can supply an Evaluation Kit that interfaces the Telit GM862 Family modules directly with appropriate power supply, SIM card housing, RS 232 serial port level translator and USB, direct UART connection, Handset, Earphone and Hands-free (car kit) audio, antenna and all General Purpose I/O ports of Telit

GM862 Family modules suppported in a dedicated connector.

The EVK provides a fully functional solution for a complete data/phone application. The standard serial RS232 9 pin connector placed on the Evaluation Kit allows the connection of the EVK system with a PC or other DTE. The development of the applications utilizing the Telit GM862 Family modules must present a proper design of all the interfaces towards and from the module (e.g. power supply, audio paths, level translators), otherwise a decrease in the performances will be introduced or, in the worst case, a wrong design can even lead to an operating failure of the module.

In order to assist the hardware designer in his project phase, the EVK board presents a series of different solutions, which will cover the most common design requirements on the market, and which can be easily integrated in the OEM design as building blocks or can be taken as a starting points in developing a specific one. On the Board there are three different power supply inputs, that embrace a wide range of applications, from the automotive +12V / +24V nominal input to the stand alone battery powered device.

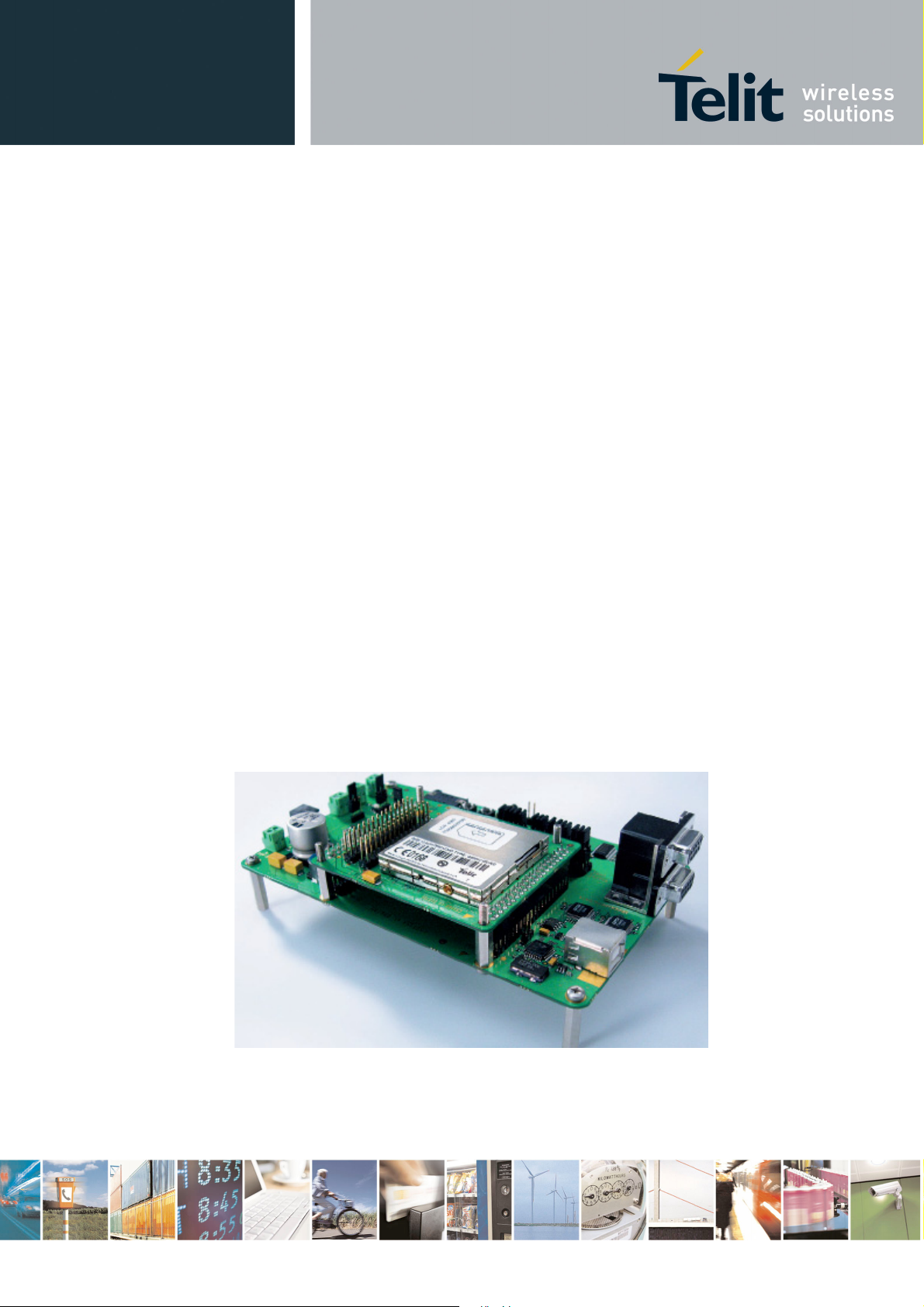

GM862-Evaluation Kit

For a detailed description of the Telit GM862 Evaluation Kit refer to the documentation provided with the Telit GM862 Hardware User Guide and EVK2 User Manual.

App

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

4 Software Features

4.1 Enhanced Easy GPRS Extension

4.1.1 Overview

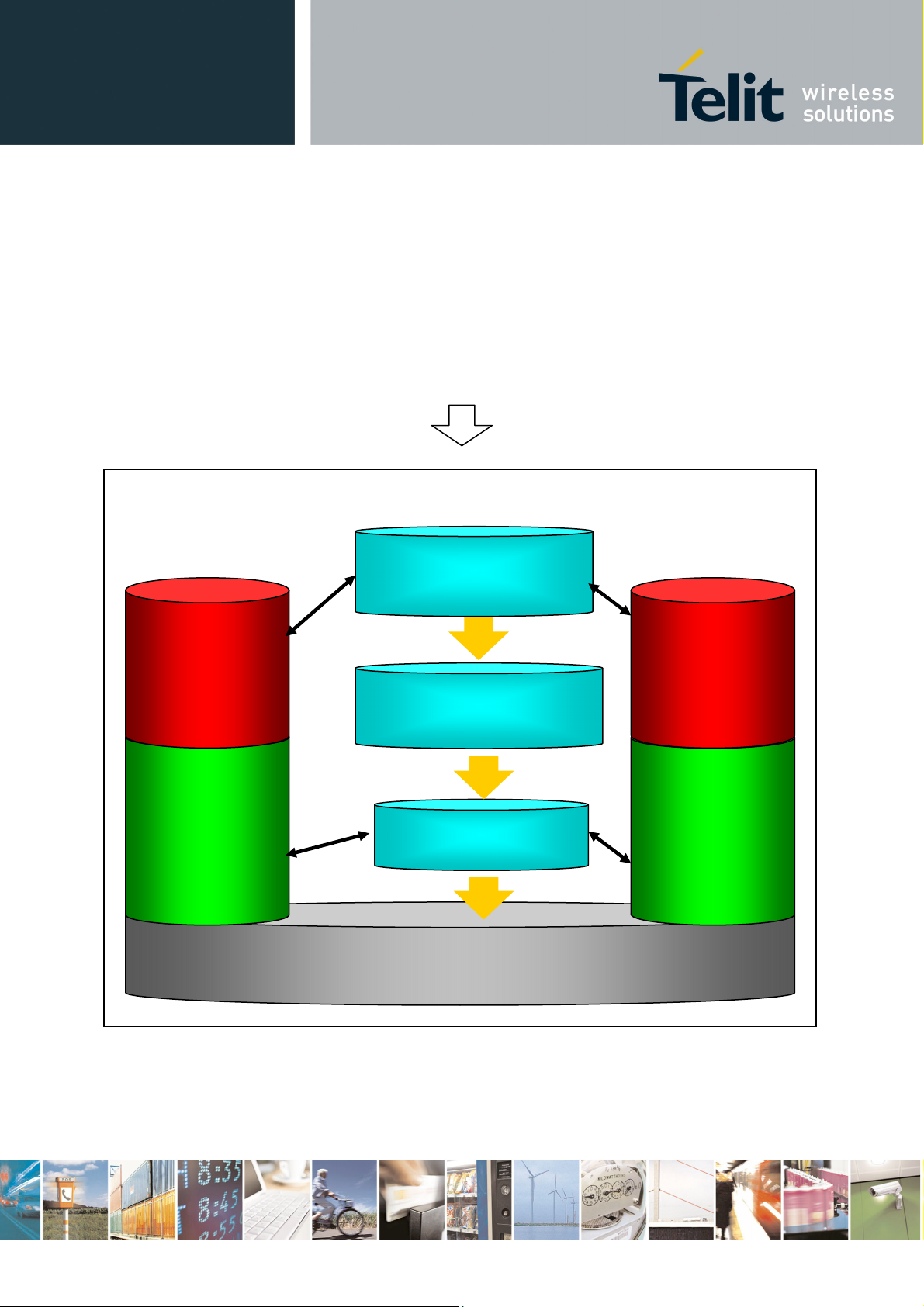

The Easy GPRS feature allows the models Telit GM862-QUAD,QUAD-PY and GPS user to contact a device in internet and establish with it a raw data flow over the GPRS and Internet networks. This feature can be seen as a way to obtain a "virtual" serial connection between the Application Software on the Internet machine involved and the controller of the Telit GM862 module, regardless of all the software stacks underlying. An example of the protocol stack involved in the devices is reported:

Local

lication

EASY

GPRS

Serial Line

Driver

V. 24

Controller

Device

This particular implementation allows to the devices interfacing to the Telit GM862 module the use of the GPRS and Internet packet service without the need to have an internal TCP/IP stack since this function is embedded inside the module. The Easy GPRS overcomes some of the known limitations of the previous implementation and implements some new features such as:

EASY GPRS

Data on

Board

V. 24

Telit‘s

Module

TCP/UDP

VViirrttuuaall SSeerriiaall LLiinnkk

NNeettwwoorrkk IInntteerrwwoorrkkiinngg

GPRS Network and Internet

Remote

lication

TCP/UDP

Remote

Device

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

• Keep the GPRS context active even after the closing of a socket, allowing the application to keep the same IP address;

• Also Mobile terminated (incoming) connections can be made, now it is possible to receive incoming TCP connection requests;

• A new internal firewall has been implemented in order to guarantee a certain level of security on internet applications.

4.1.2 Easy GPRS definition

The Easy GPRS feature provides a way to replace the need of an Internet TCP/IP stack at the terminal equipment side. The steps that will be required to obtain a virtual serial connection (that is actually a socket) to the Internet peer are:

• configuring the GPRS Access

• configuring the embedded TCP/IP stack behaviour

• defining the Internet Peer to be contacted

• request the GPRS and socket connections to be opened (host is connected)

• exchange raw data

• close the socket and GPRS context

All these steps are achieved through AT commands. As for common modem interface, two logical status are involved: command mode and data traffic mode.

• In Command Mode (CM), some AT commands are provided to configure the Data Module

Internet stack and to start up the data traffic.

• In data traffic mode (Socket Mode, SKTM), the client can send/receive a raw data stream

which will be encapsulated in the previously configured TCP / IP packets which will be sent to the other side of the network and vice versa. Control plane of ongoing socket connection is deployed internally to the module.

For more detailed information regarding GPRS please consult Easy GPRS User Guide and AT Commands Reference Guide.

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

4.2 Multisocket

New functionality of the Telit modules, multisocket is an extension of Telit Easy GPRS feature, which allows the user to have two contexts activated (that means two different IP address), more than one socket connection (with a maximum of 6) and simultaneous FTP client service.

The basic idea of multisocket is the possibility of suspend a socket connection with the escape sequence +++.

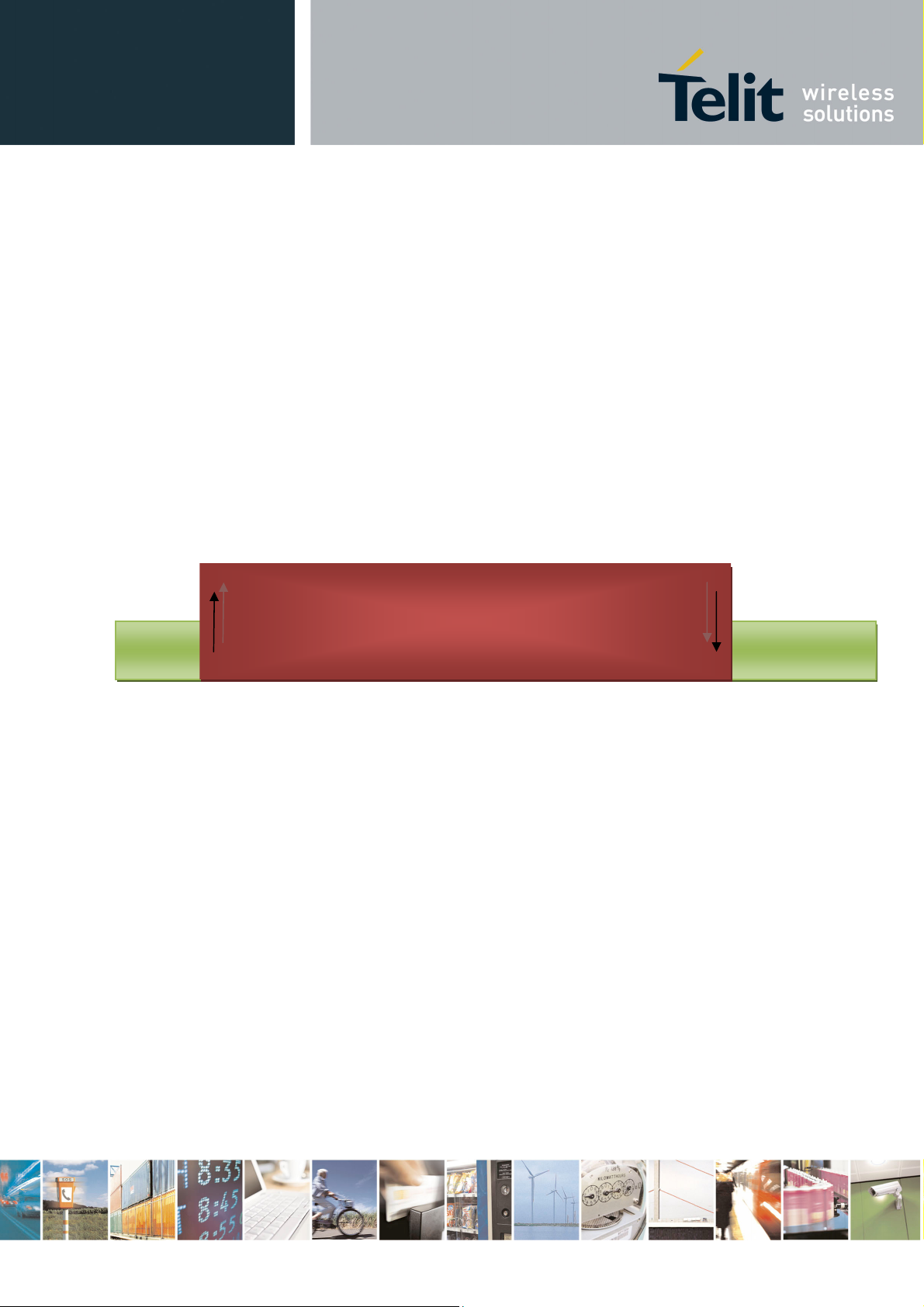

With IP Easy we can use a SKTD to open a socket connection and go online. After online activities we use +++ sequence to close the connection (see the figure below).

OOnnlliinnee mmooddee

DDaattaa TTrraaffffiicc

Where the green part represents the module command mode while the red part is the online mode.

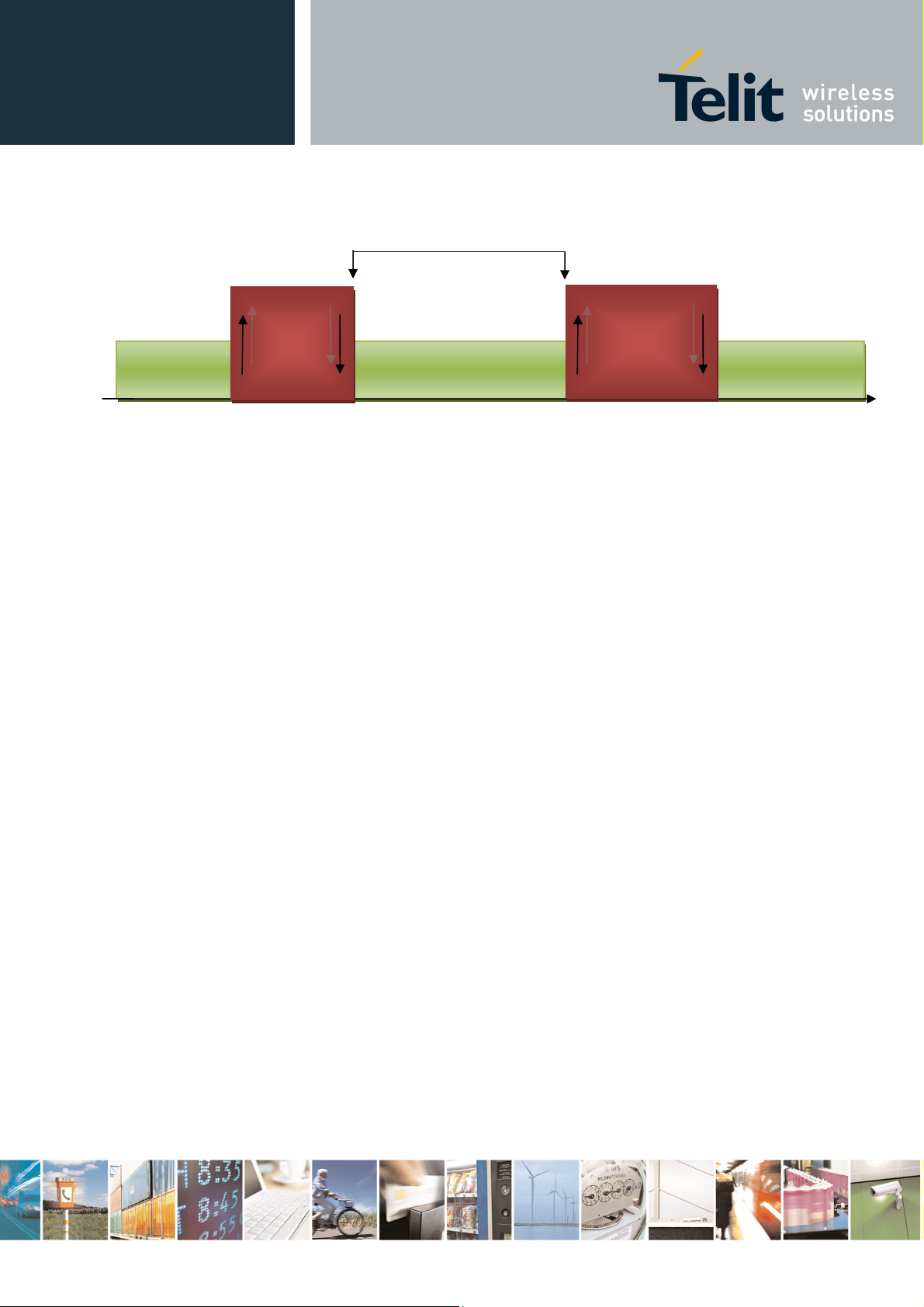

Now, the online mode can be suspended with the escape sequence by using the multisocket feature. During suspend mode the data received by the socket will be buffered. These data will be displayed after socket resumption, as shown in the figure below:

OOnn LLiinnee

++++++

SSooc

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

ckkeettiissssttiillllaalliivvee

DDaattaa

OOnn LLiinnee

This new feature allows the user to switch between online mode and command mode without closing the connection and eventually opening another socket (or resuming the suspended one) or FTP connection.

Another feature is the possibility to associate any socket connection to a specific context, this means that we can use different IP addresses for the connections (max 2). Socket identifier is called Connection Id (selects which socket we want to use from 1 up to 6) and every Connection Id is associated to a context.

For more detailed information please consult Easy GPRS User Guide.

SSuus

sppeenndd

OOnn LLiinne

DDaattaa

sppeenndd

SSuus

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

4.3 Jammed Detect & Report Extension

4.3.1 Overview

The Jammed Detect & Report feature allows a Telit GM862-QUAD,QUAD-PY and GPS modules to detect the presence of a disturbing device such as a Communication Jammer and give indication to the user and/or send a report of that to the network.

This feature can be very important in alarm, security and safety applications that rely on the module for the communications. In these applications, the presence of a Jammer device can compromise the whole system reliability and functionality and therefore shall be recognized and reported either to the local system for countermeasure actions or to the network providing remote actions. An example scenario could be an intrusion detection system that uses the module for sending the alarm indication for example with an SMS to the system owner, and a thief incomes using a Jammer to prevent any communication between the GSM module and the network.

In such a case, the module detects the Jammer presence even before the break in and can trigger an alarm siren, other communication devices (PSTN modem) or directly report this condition to the network that can provide further security services for example sending SMS to the owner or police. Obviously this last service depends also from network infrastructure support and it may not be supported by some networks.

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

4.4 CMUX

CMUX ( Converter-Multiplexer) is a multiplexing protocol implemented in the Telit module that can be used to send any data, SMS, fax, TCP data.

4.4.1.1 Product architecture

The Multiplexer mode enables one serial interface to transmit data to four different customer applications. This is achieved by providing four virtual channels using a Multiplexer (Mux).

This is especially advantageous when a fax/data/GPRS call is ongoing. Using the Multiplexer features, e.g. controlling the module or using the SMS service can be done via the additional channels without disturbing the data flow; access to the second UART is not necessary.

Furthermore, several accesses to the module can be created with the Multiplexer. This is of great advantage when several independent electronic devices or interfaces are used. To access the three virtual interfaces, both the GSM engine and the customer application must contain Mux components, which communicate over the multiplexer protocol.

In Multiplexer mode, AT commands and data are encapsulated into packets. Each packet has channel identification and may vary in length.

4.4.1.2 Implementation feature and limitation

• 7.10 CMUX Basic Option used

• CMUX implementation support four full DLCI (Serial Port)

• Every CMUX instance has its own user profile storage in NVM

• Independent setting of unsolicited message.

• In case of GPS product one serial port can be dedicated to NMEA output.

• Every CMUX instance has its own independent flow control

NOTE: More details about the Multiplexer mode are available in the Cmux Product Specification

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

4.5 Easy Script Extension - Python interpreter

4.5.1 Overview

NOTE: This feature is available only on models GM862-QUAD-PY and GM862-GPS.

The Easy Script Extension is a feature that allows driving the modem "internally", writing the controlling application directly in a nice high level language: Python. The Easy Script Extension is aimed at low complexity applications where the application was usually done by a small microcontroller that managed some I/O pins and the GM862-QUAD-PY and GM862GPS through the AT command interface. A schematic of such a configuration can be:

FFLLAASSHH RROOMM

GGSSMM--GGPPRRSS

PPrroottooccooll SSttaacckk

FFLLAASSHH

mmeemmoorryy

RROOMM

EEXXTTEERRNNAALL

CCOONNTTRROOLLLLEERR

GGMM886622--QQUUAADD--PPYY//GGMM886622--GGPPSS

PPHHYYSSIICCAALL AATT SSEERRIIAALL

PPOORRTT

AATT ccoommmmaannddss

GGPPRRSS MMOODDEEMM

EENNGGIINNEE

HHAARRDDWWAARREE RREESSOOUURRCCEESS

RRAAMM

RRAAMM ffoorr

GGSSMM--GGPPRRSS

mmooddeemm

PPrroottooccooll SSttaacck

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008 In order to eliminate this external controller, and further simplify the programming of the sequence of operations, inside the GM862-QUAD-PY / GM862-GPS it is included:

• Python script interpreter engine v. 1.5.2+

• around 3MB of Non Volatile Memory room for the user scripts and data

• 1.2 MB RAM reserved for Python engine usage

A schematic of this approach is:

FFLLAASSHH RROOMM

AAvvaaiillaabbllee UUsseerr

NNVVMM FFLLAASSHH

MMeemmoorryy

((33MMbbyytte

GGSSMM--GGPPRRSS

PPrroottooccooll SSttaacckk

FFLLAASSHH

RROOMM

mmeemmoorryy

PPYYTTHHOONN

IINNTTEERRPPRREETTEERR EENNGGIINNEE

RRAAMM

MMDDMM mmoodduullee

))

VVIIRRTTUUAALL IINNTTEERRNNAALL AATT

SSEERRIIAALL PPOORRTT

AATT ccoommmmaannddss

GGPPRRSS MMOODDEEMM

EENNGGIINNEE

AAvvaaiillaabbllee RRAAMM

ffoorr PPyytthhoonn IInntteerrpprreetteerr

((11..55MMbbyytte

RRAAMM ffoorr

GGSSMM--GGPPRRSS

mmooddeemm

PPrroottooccooll SSttaacck

))

HHAARRDDWWAARREE RREESSOOUURRCCEESS

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

4.5.2 Python 1.5.2+ Copyright Notice

The Python code implemented into the Telit module is copyrighted by Stichting Mathematisch Centrum, this is the license: Copyright © 1991-1995 by Stichting Mathematisch Centrum, Amsterdam, The Netherlands. All Rights Reserved Copyright (c) 1995-2001 Corporation for National Research Initiatives; All Rights Reserved. Copyright (c) 2001, 2002, 2003, 2004 Python Software Foundation; All Rights Reserved. Copyright (c) 2001-2008 Python Software Foundation; All Rights Reserved. All Rights Reserved are retained in Python. Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the names of Stichting Mathematisch Centrum or CWI or Corporation for National Research Initiatives or CNRI not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. While CWI is the initial source for this software, a modified version is made available by the Corporation for National Research Initiatives (CNRI) at the Internet address ftp://ftp.python.org

STICHTING MATHEMATISCH CENTRUM AND CNRI DISCLAIM ALL WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS, IN NO EVENT SHALL STICHTING MATHEMATISCH CENTRUM OR CNRI BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

rry

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

4.5.3 Python implementation description

Python scripts are text files stored in NVM inside the Telit GM862-QUAD-PY and GM862-GPS. There's a file system inside the module that allows to write and read files with different names on one single level (no subdirectories are supported). Attention: it is possible to run only one Python script at the time.

The Python script is executed in a task inside the Telit module at the lowest priority, making sure this does not interfere with GSM/GPRS normal operations. This allows serial ports, protocol stack etc. to run independently from the Python script. The Python script interacts with the Telit module functionality through four build-in interfaces.

AAnntteennnnaa

GGPPSS

MMOODD LLiibbrraarryy

PPrriinntt

CCoommmmaanndd

GPS receiver

GGPPRRSS MMooddeemm EEnnggiinnee

Viirrttuuaall IInntteerrnnaall AATT SSeerriiaall PPoorrtt

MMDDMM LLiibbrraarryy

MMDDMM22LLiib

PPyytthhoonn EEnnggiinnee wwiitthh

UUPPGGRRAADDAABBLLEE

ssooffttwwaarree ssccrriipptt

SSEERR22 LLiibbrraarryy

rddwwaarree RReessoouurrcceess

HHa

AAnntteennnnaa

GGSSMM

GGPPSSLLiib

SSPPII LLiib

raarryy

IIIICCLLiib

GGPPIIOO

GGPPIIOO LLiibbrraarryy

SSEERR LLiibbrraarryy

•

SSeerriiaall ppoorrtt 11 ((AASSCC11)) eexx

CCEE

TTR

SSeerriiaall ppoorrtt 00 ((AASSCC00)) eexx

PPRROOG

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

NOTE: Antenna GPS, GPS receiver and GPS Library are available exclusively for GPS module

GM862-GPS. Moreover SER2 Library can not be used by the GPS modules since their TRACE port is

not available.

• The MDM interface is the most important one. It allows Python script to send AT commands, receive responses and unsolicited indications, send data to the network and receive data from the network during connections. It is quite the same as the usual serial port interface in the

Telit module. The difference is that this interface is not a real serial port but just an internal

software bridge between Python and mobile internal AT command handling engine. All AT commands working in the Telit module are working in this software interface as well. Some of them have no meaning on this interface, such as those regarding serial port settings. The usual concept of flow control keeps its meaning over this interface, but it's managed internally.

• The MDM2 interface is the second interface between Python and mobile internal AT command handling. It is used to send AT commands from Python script to mobile and receive AT responses from mobile to Python script when the classic MDM built-in module already in use.

• The SER interface allows Python script to read from and write to the real physical serial port ASC0, that is usually used to send the AT commands to the module, for example to read information from external device. When Python is running this serial port is free to be used by Python script because it is not used as AT command interface since the AT parser is mapped into the internal virtual serial port. No flow control is available from Python on this port.

• The SER2 interface allows Python script to read from and write to the real physical serial port ASC1, that is usually available for trace and debug.

• The GPIO interface allows Python script to handle general purpose input output faster than through AT commands, skipping the command parser and going directly to control the pins.

• The MOD interface is a collection of useful functions.

• The IIC interface is an implementation on the Python core of the IIC bus Master. It allows

Python to create one or more IIC bus on the available GPIO pins.

• The SPI interface is an implementation on the Python core of the SPI bus Master. It allows Python to create one or more SPI bus on the available GPIO pins.

• The GPS interface is the interface between Python and mobile internal GPS controller. It is used in order to handle GPS controller without dedicated AT commands through MDM built-in module.

For the debug, the print command is directly forwarded on the EMMI TX pin (second serial port) at baud rate115200bps 8N1.

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

4.5.4 Python core supported features

The Python core version is 1.5.2+ (string methods added to 1.5.2). You can use all Python statements and almost all Python built-in types and functions.

Built-in types and functions not

supported

complex marshal

float imp long _main_

docstring _builtin_

sys md5

Available modules

(all others are not supported)

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

4.5.5 Python Build-in Custom Modules

Several build in custom modules have been included in the python core, specifically aimed at the hardware environment of the module.

The build in modules included are:

MDM

MDM2

SER

SER2

GPIO

MOD

IIC

SPI

GPS

NOTE: More details about the Python modules are available in the Python Easy Script document.

interface between Python and mobile internal AT command handling second interface between Python and mobile internal AT command handling interface between Python and mobile internal serial port ASC0 direct handling interface between Python and mobile internal serial port ASC1 direct handling interface between Python and mobile internal general purpose input output direct handling interface between Python and mobile miscellaneous functions custom software Inter IC bus that can be mapped on creation over almost any GPIO pin available custom software Serial Protocol Interface bus that can be mapped on creation over almost any GPIO pin available interface between Python and mobile internal GPS controller

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

4.6 SAP: SIM Access Profile

4.6.1 Product architecture

The SAP feature allow the module to use the SIM of a remote SIM Server. This feature is implemented using special AT Command on a Virtual circuit of the CMUX interface.

4.6.2 Implementation feature

• SAP is based on 7.10 CMUX Basic Option used

• Only SAP Client features

• Logic HW flow control is recommended on the Virtual instance selected for the SAP command.

4.6.3 Remote SIM Message Command Description

The module sends request commands to the client application through a binary message that is crowned in the CMUX message. The client application shall extract the message and send it to the SAP server, through the appropriate protocols (e.g. by RFCOMM, that is the Bluetooth serial port emulation entity). The client application shall extract all the messages sent by SAP server and put them in the CMUX message, to sent to the module.

The module satisfies the following feature requirements:

• Connection management

• Transfer APDU

• Transfer ATR

• Power SIM on

• Report Status

• Error Handling

Every feature needs some procedures support:

Feature Procedure

Connect Connection Management Report Status

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008 Transfer ATR Disconnection Initiated by the Client Disconnection Initiated by the Server

Transfer APDU Transfer APDU Transfer ATR Transfer ATR

Power SIM on Power SIM on Transfer ATR

Report Status Report Status Error Handling Error Response

Report Status, Disconnection Initiated by the Server and Error Response are independent messages sent by server. The other procedures consist of couples of messages, started by client.

NOTE: More details about the SAP are available in the SAP User Guide.

4.7 TFUS (Telit Firmware Update Service)

Telit Firmware Update Service (TFUS) provides a cost-effective, fast, secure and reliable way for wirelessly reflashing the firmware on mobile devices, ensuring that embedded software is up-to-date with the latest enhancements and features.

Customers, who want to benefit from this service, must pass through the Telit certification program, where Telit will assist the customer in validating the correct implementation of FOTA.

4.7.1 FOTA (Firmware Over The Air)

Telit, which has signed a partnership agreement with the worldwide leader of Firmware OTA technology Red Bend, has integrated its unique vCurrent® Mobile client software for use in its m2m product portfolio. Telit is therefore able to upgrade its products by transmitting only a delta file, which represents the difference between one firmware version and another.

All Telit modules, starting from SW version 7.03.x00, support Over-the-Air firmware update. Note that this service will be enabled only after signing specific agreement with Telit.

See “TFUS Application Note” for details in www.telit.com

Application Notes

> Product > GSM/GPRS > Product Family >

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

5 AT Commands

The GM862 module can be driven via the serial interface using the standard AT commands5. The

GM862 module are compliant with:

1. Hayes standard AT command set, in order to maintain the compatibility with existing SW programs.

2. ETSI GSM 07.07 specific AT command and GPRS specific commands.

3. ETSI GSM 07.05 specific AT commands for SMS (Short Message Service) and CBS (Cell Broadcast Service)

4. FAX Class 1 compatible commands

Moreover the GM862 supports also Telit proprietary AT commands for special purposes. For a detailed description of GM862 modules AT Commands refer to document AT Commands Reference Guide, code 80000ST10025a.

The AT is an ATTENTION command and is used as a prefix to other parameters in a string. The AT command combined with other parameters can be set up in the communications package or typed in manually as a command line instruction.

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

6 Conformity Assessments

The Telit GM862 modules are assessed to be conform to the R&TTE Directive as stand-alone products, so if the module is installed in conformance with Telit Communications installation instructions require no further evaluation under Article 3.2 of the R&TTE Directive and do not require further involvement of a R&TTE Directive Notified Body for the final product. In all other cases, or if the manufacturer of the final product is in doubt then the equipment integrating the radio module must be assessed against Article 3.2 of the R&TTE Directive. In all cases assessment of the final product must be made against the Essential requirements of the R&TTE Directive Articles

3.1(a) and (b), safety and EMC respectively, and any relevant Article 3.3 requirements. The Telit

GM862 modules are conform with the following European Union Directives:

• R&TTE Directive 1999/5/EC (Radio Equipment & Telecommunications Terminal Equipments)

• Low Voltage Directive 73/23/EEC and product safety

• Directive 89/336/EEC for conformity for EMC

In order to satisfy the essential requisite of the R&TTE 99/5/EC directive, the GM862PCS module is compliant with the following standards:

• GSM (Radio Spectrum). Standard: EN 301 511 and 3GPP 51.010-1

• EMC (Electromagnetic Compatibility). Standards: EN 301 489-1 and EN 301 489-7

• LVD (Low Voltage Directive) Standards: EN 60 950

In this document and the Hardware User Guide, Software User Guide all the information you may need for developing a product meeting the R&TTE Directive is included.

Furthermore the Telit GM862-QUAD, GM862-QUAD-PY and GM862-GPS modules is FCC Approved as module to be installed in other devices. If the final product after integration is intended for portable use, a new application and FCC is required. The Telit GM862-QUAD, GM862-QUAD-PY and GM862-GPS modules are conform with the following US Directives:

• Use of RF Spectrum. Standards: FCC 47 Part 24 (GSM 1900)

• EMC (Electromagnetic Compatibility). Standards: FCC47 Part 15

To meet the FCC's RF exposure rules and regulations:

• The system antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all the persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

• The system antenna(s) used for this module must not exceed 3 dBi for mobile and fixed or mobile operating configurations.

• Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

• Manufacturers of mobile, fixed or portable devices incorporating this module are advised to clarify any regulatory questions and to have their complete product tested and approved for FCC compliance.

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

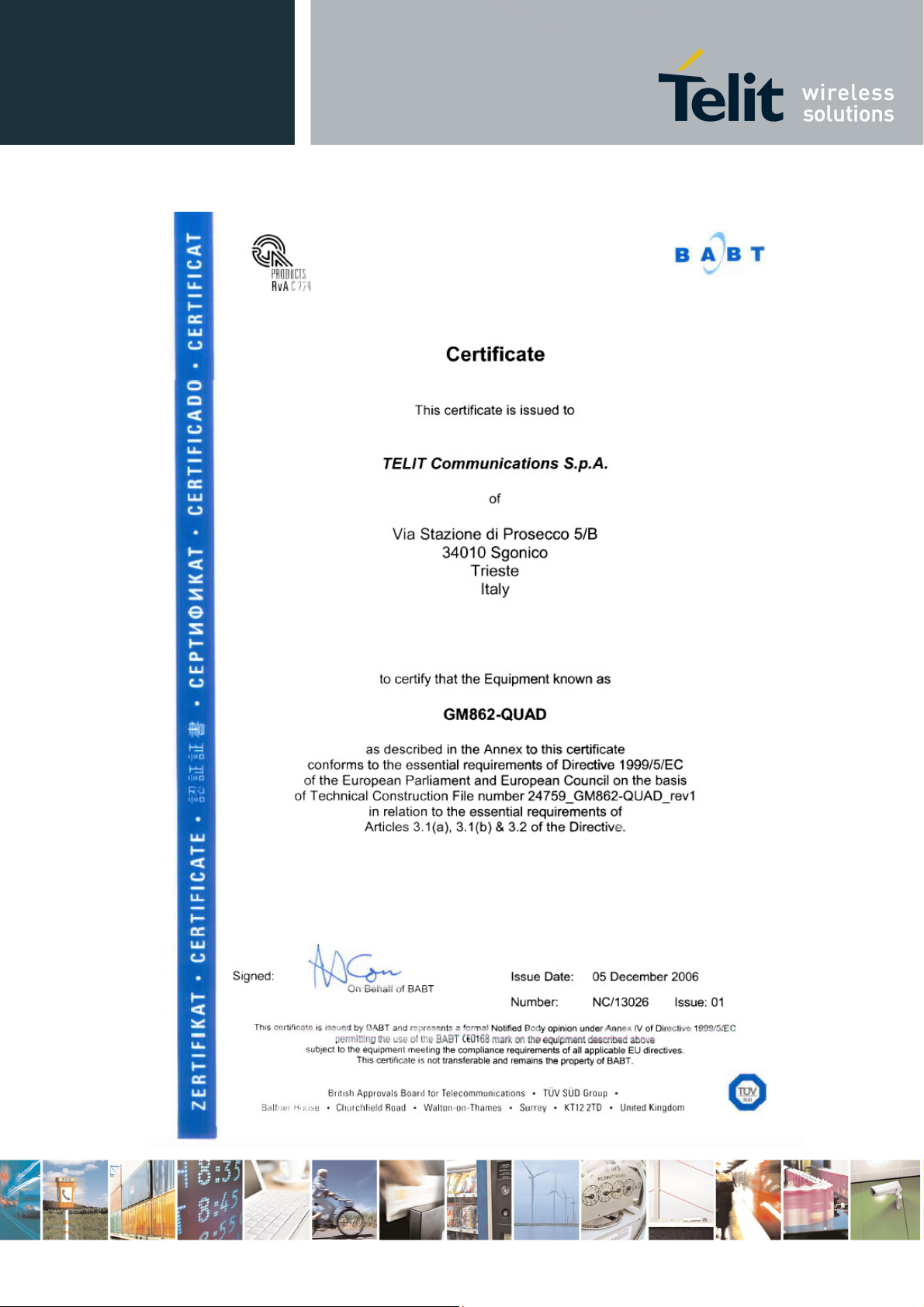

6.1 GM862-QUAD: Conformity Assessment

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

6.2 GM862-QUAD-PY: Conformity Assessment

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

6.3 GM862-QUAD/QUAD-PY/GPS: RoHS certificate

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

6.4 GM862-QUAD / QUAD-PY: FCC Equipment Authorization

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

6.5 GM862-QUAD / QUAD-PY: IC Equipment Authorization

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

6.6 GM862-GPS: Conformity Assessment

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

6.7 GM862-GPS FCC Equipment Authorization

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

6.8 GM862-GPS IC Equipment Authorization

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

7 SAFETY RECOMMENDATIONS

READ CAREFULLY

Be sure the use of this product is allowed in the country and in the environment required. The use of this product may be dangerous and has to be avoided in the following areas:

• Where it can interfere with other electronic devices in environments such as hospitals, airports, aircrafts, etc

• Where there is risk of explosion such as gasoline stations, oil refineries, etc

It is responsibility of the user to enforce the country regulation and the specific environment regulation.

Do not disassemble the product; any mark of tampering will compromise the warranty validity.

We recommend following the instructions of the hardware user guides for a correct wiring of the product. The product has to be supplied with a stabilized voltage source and the wiring has to be conforming to the security and fire prevention regulations.

The product has to be handled with care, avoiding any contact with the pins because electrostatic discharges may damage the product itself. The same cautions have to be taken for the SIM, checking carefully the instruction for its use. Do not insert or remove the SIM when the product is in power saving mode.

The system integrator is responsible of the functioning of the final product; therefore, care has to be taken to the external components of the module, as well as of any project or installation issue, because the risk of disturbing the GSM network or external devices or having impact on the security. Should there be any doubt, please refer to the technical documentation and the regulations in force.

Every module has to be equipped with a proper antenna with specific characteristics. The antenna has to be installed with care in order to avoid any interference with other electronic devices and has to guarantee a minimum distance from the people (20 cm). In case of this requirement cannot be satisfied, the system integrator has to assess the final product against the SAR regulation.

Electronic equipment to be introduced in the market has to be conforming to the related Directives of the European Community. All the relevant information is available on the European Community’s website, especially:

• The Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment …:

http://europa.eu.int/comm/enterprise/rtte/dir99-5.htm

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

• The Low Voltage Directive (LVD) 73/23/EEC and The Council Directive 89/336/EEC of 3 May 1989 on ... electromagnetic compatibility (EMC Directive) are available at:

http://europa.eu.int/comm/enterprise/electr_equipment/index_en.htm

• The DIRECTIVE 2002/96/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 January 2003 on waste electrical and electronic equipment (WEEE) and the DIRECTIVE 2002/95/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHS”) are available at:

http://europa.eu.int/scadplus/leg/en/lvb/l21210.htm

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

8 GM862 Family Technical Support

Telit’s technical support to GM862 wireless modem customers consists in:

• Technical documentation > selected model.

• Engineering support conditions.

: available for download on the Website www.telit.com >Products >Modules

: accessible via E-Mail service with 48 hr replies assured under normal

9 Acronyms

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

AAbbbbrreevviiaattiioonn DDeessccrriippttiioonn

ACM

ASCII

BGA

CBS CCM CLIP CLIR

CMOS

CSD

CTS

DAI

DCD

DCE

DRX

DSR

DTA

DTE

DTMF

DTR EMC ETSI

FTA FTP

GGA

GLL

GPS

GPRS

GSA GSM

GSV

HF IMEI IMSI

IRA

ITU

Accumulated Call Meter American Standard Code for Information Interchange Attention commands Ball Grid Array (of solder balls on surface mount devices) Cell Broadcast Cell Broadcasting Service Call Control Meter Calling Line Identification Presentation Calling Line Identification Restriction Complementary Metal-Oxide Semiconductor Carriage Return Circuit Switched Data Clear To Send Digital Audio Interface Data Carrier Detected Data Communications Equipment Data Receive Data Set Ready Data Terminal Adaptor Data Terminal Equipment Dual Tone Multi Frequency Data Terminal Ready Electromagnetic Compatibility European Telecommunications Equipment Institute Full Type Approval (ETSI) File Transfer Protocol Global Positioning System Fix Data Geographic Posotion – Latitude/Longitude Global Positioning System, based on reception of signals from orbiting satellites General Radio Packet Service GPS receiver operating mode, SVs used for navigation, and DOP values. Global System for Mobile communication Number of SVs in view, PRN numbers, elevation, azimuth & SNR values. Hands Free International Mobile Equipment Identity International Mobile Subscriber Identity International Reference Alphabet International Telecommunications Union

IWF

LCD

LED

MMI

MO MS

NMEA

OEM

PDU

PLMN

PPS

PUCT

PUK

RACH

RLP RMC RMS

RoHS

RTS

SCA

SIM SMD SMS

SMSC

SPS

TIA

TTFF

UDUB

USSD

VTG

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008 Inter-Working Function Liquid Crystal Display Light Emitting Diode Linefeed Mobile Equipment Man Machine Interface Mobile Originated Mobile Station Mobile Terminated National Marine Electronics Association Other Equipment Manufacturer Phone Book Protocol Data Unit Packet Handler Personal Identity Number Public Land Mobile Network Precision Positioning Service Price per Unit Currency Table PIN Unblocking Code Random Access Channel Radio Link Protocol Recommended Minimum Specific GPS/TRANSIT Data Root Mean Square Reduction of Hazardous Substances Ready To Send Ring Indicator Service Center Address Subscriber Identity Module Surface Mounted Device Short Message Service Short Message Service Center Standard Positioning Service Supplementary Service Telecommunications Industry Association Time To First Fix User Determined User Busy Unstructured Supplementary Service Data Actual track made good and speed over ground

80272ST10019a Rev. 10 – 18/09/2008

10 Document Change Log

Revision Date Changes

ISSUE#0 10/04/05

ISSUE#1 27/10/05 Paragraphs reviewed:

ISSUE#2 24/01/06 Added products order codes table on page 2 ISSUE#3 04/05/06 7.2 GM863-QUAD: RoHS certificate

ISSUE#4 04/08/06 2.7.2 GPS antenna power supply changed

initial release.

1 Overview

2.1 Dimensions (GPS antenna position frozen)

2.3.1 Temperature range

2.6 Reference sensitivity

2.7.1 GSM Antenna

2.8 GPS Module features

2.8.1.1 GPS Sensitivity

2.8.1.2 GPS Consumption

2.12.9 Character management

2.12.12 Indication of network service availability

2.17 ADC Converter (GM862-GPS only) 4 AT Commands (Camera cmds, FTP cmds, GPS cmds, #NITZ, #SKIPESC, etc)

5.1.5 FTP Client

7.3 GM862-QUAD-PY: RoHS certificate

2.14.1 Reset signal: unconditional reboot page 24

2.12.16 DTMF Tones: changed minimum duration of DTMF tone

2.14 Logical level specification: voltage on buffered pins

2.14.1 Reset signal: unconditional shut down for GM862-GPS

2.15 Audio level specification

2.18 Interface connectors on GM862 modules: Added size for the Molex male connector; Added NOTE after pin table (page 33); changed value of the maximum capacitor allowed for SIMVCC line

3.1.4.1 Telit GM862 Family modules interface connector: Added size for the Molex female connector

5.4 CMUX: new paragraph dedicated to the products with the following P/N: 3990250657, 3990250658 and 3990250659

5.4 SAP: new paragraph dedicated to the products with the following P/N: 3990250657, 3990250658 and 3990250659 6 AT Commands: updated AT command list (CMUX, SAP, GPS and others: see rows in yellow) and added columns for the new products

7.1 GM862-QUAD(P/N:3990250655): Conformity Assessment

7.2 GM862-QUAD-PY(P/N:3990250656): Conformity

GM862 Product Description

80272ST10019a Rev. 10 – 18/09/2008

Assessment

7.11 GM862-GPS: Conformity Assessment

ISSUE#5 08/01/07 added footnotes on the pages 7, 8 and 17

2.2 Weight: changed weight values

2.7.1 GSM Antenna: updated values of bandwidth

2.10 GSM Power Consumption: updated values of operating current

6.5 GM862-QUAD(P/N:3990250655) / GM862-QUADPY(P/N:3990250656): FCC Equipement Authorization

6.6 GM862-QUAD(P/N:3990250655) / GM862-QUADPY(P/N:3990250656): IC Equipement Authorization

6.7 GM862-QUAD(P/N:3990250659): Conformity Assessment

6.8 GM862-QUAD-PY(P/N:3990250658): Conformity Assessment

6.9 GM862-QUAD/QUAD-PY: RoHS Certificate

6.11 GM862-GPS: RoHS certificate

6.12 GM862-GPS FCC Equipment Authorization

6.13 GM862-GPS IC Equipment Authorization Removed Camera option Revision of the whole document; content is reduced and transferred to other documents related to the product

ISSUE#6 28/06/07 Introduced new disclaimer

Updated temperature range

2.12.12 Automatic Answer: modified

-Added Python’s new features

-Added Multisocket paragraph

-Introduced new GPS low power

ISSUE#7 12/11/07 updated RoHS declaration

Introduced FCC and IC certificates:

GM862 Product Description

6.10 GM862-QUAD(P/N:3990250659) / GM862-QUADPY(P/N:3990250658): FCC Equipment Authorization

6.11 GM862-QUAD(P/N:3990250659) / GM862-QUADPY(P/N:3990250658): IC Equipment Authorization

ISSUE#8 15/01/08 -Added CE mark

-Removed information regarding phased out models from the GM862 family. (Please refer to the previous version of this document if you need information for the products with the following P/N: 3990250655

& 3990250656) ISSUE#9 11/03/08 -Updated temperature specification ISSUE#10 18/09/08 Updated Temperature range description.

Updated operating voltage range

Updated P/N description

Updated RoHS compliance documentation

Added FOTA service description

Telit Wireless Solutions GM862PYT Series, GM862GPS Series, GM862QUD Series, GM862 Series, GM862-GPS Product Description

Specifications and Main Features

Frequently Asked Questions

User Manual

GM862 Product Description

Contents

1 Overview

2 General Product Description

2.1 Dimensions

2.2 Weight

2.3 Environmental requirements

2.3.1 Temperature range

2.3.2 Vibration Test (non functional)

2.3.3 RoHS compliance

2.4 Operating Frequency

2.5 Transmitter output power

2.6 Reference sensitivity

2.7 Antennas

2.7.1 GSM Antenna

2.8 GPS Module features

2.8.1 GPS Specifications

2.8.1.1 GPS Sensitivity

2.8.1.2 GPS Average Power Consumption

2.8.1.3 GPS Driving

2.8.1.4 GPS NMEA

2.8.1.5 NMEA sentences

2.9 Supply voltage

2.10 GSM Power consumption

2.11 Embodied Battery Charger

2.12 User Interface

2.12.1 Speech Coding

2.12.2 SIM Reader

2.12.3 SMS

2.12.4 Real Time Clock and Alarm

2.12.5 Data/fax transmission

2.12.6 Local security management

2.12.7 Call control

2.12.8 Phonebook

2.12.9 Characters management

2.12.10 SIM related functions

2.12.11 Call status indication

2.12.12 Automatic answer (Voice, Data or FAX)

2.12.13 Supplementary services (SS)

2.12.14 Acoustic signaling

2.12.15 Buzzer Output

2.12.16 RF Transmission Monitor

2.13 EMC

2.14 Logic level specifications

2.14.1 Reset signal

2.15 Audio levels specifications

2.16 ADC Converter

2.17 Interface connectors on GM862 modules

3 Evaluation Kit

4 Software Features

4.1 Enhanced Easy GPRS Extension

4.1.1 Overview

4.1.2 Easy GPRS definition

4.2 Multisocket

4.3 Jammed Detect & Report Extension

4.3.1 Overview

4.4 CMUX

4.4.1.1 Product architecture

4.4.1.2 Implementation feature and limitation

4.5 Easy Script Extension - Python interpreter

4.5.1 Overview

4.5.2 Python 1.5.2+ Copyright Notice

4.5.3 Python implementation description

4.5.4 Python core supported features

4.5.5 Python Build-in Custom Modules

4.6 SAP: SIM Access Profile

4.6.1 Product architecture

4.6.2 Implementation feature

4.6.3 Remote SIM Message Command Description

4.7 TFUS (Telit Firmware Update Service)

4.7.1 FOTA (Firmware Over The Air)

5 AT Commands

6 Conformity Assessments

6.1 GM862-QUAD: Conformity Assessment

6.2 GM862-QUAD-PY: Conformity Assessment

6.3 GM862-QUAD/QUAD-PY/GPS: RoHS certificate
