Telit Communications S p A UL865N3G User Manual

UL865-N3G V2 Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

PRODUCT

UL865-N3G V2

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

APPLICABILITY TABLE

Mod. 0805 2011-07 Rev.2

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Notice

While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Telit reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Telit does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others.

It is possible that this publication may contain references to, or information about Telit products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Telit intends to announce such Telit products, programming, or services in your country.

Copyrights

This instruction manual and the Telit products described in this instruction manual may be, include or describe copyrighted Telit material, such as computer programs stored in semiconductor memories or other media. Laws in the Italy and other countries preserve for Telit and its licensors certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted material of Telit and its licensors contained herein or in the Telit products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Telit. Furthermore, the purchase of Telit products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Telit, as arises by operation of law in the sale of a product.

Computer Software Copyrights

The Telit and 3rd Party supplied Software (SW) products described in this instruction manual may include copyrighted Telit and other 3rd Party supplied computer programs stored in semiconductor memories or other media. Laws in the Italy and other countries preserve for Telit and other 3rd Party supplied SW certain exclusive rights for copyrighted computer programs, including the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Telit or other 3rd Party supplied SW computer programs contained in the Telit products described in this instruction manual may not be copied (reverse engineered) or reproduced in any manner without the express written permission of Telit or the 3rd Party SW supplier. Furthermore, the purchase of Telit products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Telit or other 3rd Party supplied SW, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product.

Mod. 0805 2011-07 Rev.2

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

Usage and Disclosure Restrictions

License Agreements

The software described in this document is the property of Telit and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement.

Copyrighted Materials

Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Telit

High Risk Materials

Components, units, or third-party products used in the product described herein are NOT fault-tolerant and are NOT designed, manufactured, or intended for use as on-line control equipment in the following hazardous environments requiring fail-safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (High Risk Activities"). Telit and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities.

Trademarks

TELIT and the Stylized T Logo are registered in Trademark Office. All other product or service names are the property of their respective owners.

Mod. 0805 2011-07 Rev.2

Contents

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

1. Introduction ................................................. 8

1.1. Scope ..................................................... 8

1.2. Audience .................................................. 8

1.3. Contact Information, Support .............................. 8

1.4. Document Organization ..................................... 9

1.5. Text Conventions ......................................... 10

1.6. Related Documents ........................................ 10

1.7. Document History ......................................... 11

2. Overview .................................................... 12

3. UL865-N3G V2 Mechanical Dimensions .......................... 13

4. UL865-N3G V2 module connections ............................. 14

4.1. PIN-OUT .................................................. 14

4.2. Debug in Production ...................................... 16

4.3. Pin Layout ............................................... 17

5. Hardware Commands ........................................... 18

5.1. Auto-Turning ON the UL865-N3G V2 ......................... 18

5.2. Turning OFF the UL865-N3G V2 ............................. 21

5.3. Resetting the UL865-N3G V2 ............................... 22

5.3.1. Hardware Unconditional restart ............................. 22

6. Power Supply ................................................ 25

6.1. Power Supply Requirements ................................ 25

6.2. Power Consumption ........................................ 26

6.3. General Design Rules ..................................... 26

6.3.1. Electrical Design Guidelines ............................... 26

6.3.2. Thermal Design Guidelines .................................. 30

6.3.3. Power Supply PCB layout Guidelines ......................... 31

7. Radio Section ............................................... 33

7.5. TX Output Power .......................................... 33

7.6. Sensitivity .............................................. 33

Mod. 0805 2011-07 Rev.2

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

7.7. Antenna Requirements ..................................... 33

7.7.1. UL865-N3G V2 Antenna – PCB line Guidelines ................. 34

7.8. PCB Guidelines in case of FCC certification .............. 35

7.8.1. Transmission line design ................................... 35

7.8.2. Transmission line measurements ............................. 36

7.9. Antenna - Installation Guidelines ........................ 38

8. Logic level specifications .................................. 39

8.5. Reset signal ............................................. 40

9. USB Port .................................................... 41

9.1. USB 2.0 HS ............................................... 41

10. SPI Port .................................................... 42

10.5. SPI Connections ........................................ 42

11. Serial Ports ................................................ 43

11.1. MODEM SERIAL PORT 1 .................................... 43

11.2. MODEM SERIAL PORT 2 .................................... 45

11.3. RS232 level translation ................................ 46

12. Audio Section Overview ...................................... 48

13. General Purpose I/O ......................................... 48

13.1. GPIO Logic levels ...................................... 50

13.2. Using a GPIO Pad as INPUT .............................. 51

13.3. Using a GPIO Pad as OUTPUT ............................. 51

13.4. Indication of network service availability ............. 52

13.5. SIMIN detect function .................................. 53

13.6. RTC Bypass out ......................................... 53

13.7. SIM Holder Implementation .............................. 53

14. DAC and ADC section ......................................... 54

14.1. DAC Converter .......................................... 54

14.1.1. Description .............................................. 54

14.1.2. Enabling DAC ............................................. 55

14.1.3. Low Pass Filter Example .................................. 55

14.2. ADC Converter .......................................... 56

Mod. 0805 2011-07 Rev.2

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

14.2.1. Description .............................................. 56

14.2.2. Using ADC Converter ...................................... 56

14.3. VAUX Power Output ...................................... 57

15. Mounting the UL865-N3G V2 on your Board ..................... 58

15.1. General ................................................ 58

15.2. Module finishing & dimensions .......................... 58

15.3. Recommended foot print for the application ............. 59

15.4. Stencil ................................................ 60

15.5. PCB pad design ......................................... 60

15.6. Recommendations for PCB pad dimensions (mm): ........... 61

15.7. Solder paste ........................................... 62

15.8. UL865-N3G V2 Solder reflow ............................. 62

16. Packing system .............................................. 64

16.1. Packing on tray ........................................ 64

16.2. Packing in Reel ........................................ 66

16.3. Moisture sensitivity ................................... 67

17. SAFETY RECOMMANDATIONS ...................................... 68

18. FCC/IC REGULATORY NOTICES ................................... 69

Mod. 0805 2011-07 Rev.2

1. Introduction

1.1. Scope

The aim of this document is the description of some hardware solutions useful for developing a product with the Telit UL865-N3G V2 module.

1.2. Audience

This document is intended for Telit customers, who are integrators, about to implement their applications using our UL865-N3G V2 modules.

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

1.3. Contact Information, Support

For general contact, technical support, to report documentation errors and to order manuals, contact Telit Technical Support Center (TTSC) at:

TS-EMEA@telit.com TS-NORTHAMERICA@telit.com TS-LATINAMERICA@telit.com TS-APAC@telit.com

Alternatively, use:

http://www.telit.com/en/products/technical-support-center/contact.php

For detailed information about where you can buy the Telit modules or for recommendations on accessories and components visit:

http://www.telit.com

To register for product news and announcements or for product questions contact Telit Technical Support Center (TTSC).

Our aim is to make this guide as helpful as possible. Keep us informed of your comments and suggestions for improvements.

Telit appreciates feedback from the users of our information.

Mod. 0805 2011-07 Rev.2

1.4. Document Organization

This document contains the following chapters:

Chapter 1: “Introduction” provides a scope for this document, target audience, contact and support information, and text conventions.

Chapter 2: “Overview” provides an overview of the document.

Chapter 3: “UL865-N3G V2 Mechanical Dimensions”

Chapter 4: “UL865-N3G V2 Module Connections” deals with the pin out configuration and layout.

Chapter 5: “Hardware Commands” How to operate on the module via hardware.

Chapter 6: “Power supply” Power supply requirements and general design rules.

Chapter 7: “GSM/WCDMA Radio Section” The antenna connection and board layout design are the most important parts in the full product design.

Chapter 8: “Logic Level specifications” Specific values adopted in the implementation of logic levels for this module.

Chapter 9: “USB ports” The serial port on the Telit UL865-N3G V2 is the core of the interface between the module and OEM hardware

Chapter 10: “Serial ports” The serial port on the Telit UL865-N3G V2 is the core of the interface between the module and OEM hardware

Chapter 11: “Audio Section overview”

Chapter 12: “General Purpose I/O” How the general purpose I/O pads can be configured.

Chapter 13 “DAC and ADC Section” Deals with these two kind of converters.

Chapter 14: “Mounting the UL865-N3G V2 on the application board” Recommendations and specifics on how to mount the module on the user’s board.

Chapter 15: “Packaging system” Recommendations and specifics on how the system is packaged.

Chapter 16: “Conformity Assessment Issues”

Chapter 17: “Safety Recommendations”

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

Mod. 0805 2011-07 Rev.2

1.5. Text Conventions

Danger – This information MUST be followed or catastrophic equipment failure or bodily injury may occur.

Caution or Warning – Alerts the user to important points about integrating the module, if these points are not followed, the module and end user equipment may fail or malfunction.

Tip or Information – Provides advice and suggestions that may be useful when integrating the module.

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

All dates are in ISO 8601 format, i.e. YYYY-MM-DD.

1.6. Related Documents

 Digital Voice Interface Application Note 80000NT10050A  SPI Port Application Note 80000NT10053A  SIM Holder Design Guides 80000NT10001a  AT Commands Reference Guide 80378ST10091A  Telit EVK2 User Guide 1vv0300704

Mod. 0805 2011-07 Rev.2

1.7. Document History

Revision Date Changes

Rev 0 2014-10-13 Preliminary Version Rev.1 2015-04-01 Added par. 17/18 Rev.2 2015-04-20 Updated chapter 12

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

Mod. 0805 2011-07 Rev.2

UL865-N3G V2

2. Overview

The aim of this document is the description of some hardware solutions useful for developing a product with the Telit UL865-N3G V2 module.

In this document all the basic functions of a mobile phone will be taken into account; for each one of them a proper hardware solution will be suggested and eventually the wrong solutions and common errors to be avoided will be evidenced. Obviously this document cannot embrace all hardware solutions and products that may be designed. Avoiding the wrong solutions shall be considered as mandatory. While the suggested hardware configurations shall not be considered mandatory, the information given shall be used as a guide and a starting point for properly developing your product with the Telit UL865-N3G V2 module. For further hardware details that may not be explained in this document refer to the Telit UL865-N3G V2 Product Description document where all the hardware information is reported.

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

NOTICE:

(EN) The integration of the GSM/GPRS/WCDMA UL865-N3G V2 cellular module within user application shall be done according to the design rules described in this manual.

(IT) L’integrazione del modulo cellulare GSM/GPRS/WCDMA UL865-N3G V2 all’interno dell’applicazione dell’utente dovrà rispettare le indicazioni progettuali descritte in questo manuale.

(DE) Die Integration des UL865-N3G V2 GSM/GPRS/WCDMA Mobilfunk-Moduls in ein Gerät muß gemäß der in diesem Dokument beschriebenen Kunstruktionsregeln erfolgen.

(SL) Integracija GSM/GPRS/WCDMA UL865-N3G V2 modula v uporabniški aplikaciji bo morala upoštevati projektna navodila, opisana v tem priročniku.

(SP) La utilización del modulo GSM/GPRS/WCDMA UL865-N3G V2 debe ser conforme a los usos para los cuales ha sido deseñado descritos en este manual del usuario.

(FR) L’intégration du module cellulaire GSM/GPRS/WCDMA UL865-N3G V2 dans l’application de l’utilisateur sera faite selon les règles de conception décrites dans ce manuel.

(HE)

The information presented in this document is believed to be accurate and reliable. However, no responsibility is assumed by Telit Communications S.p.A. for its use, nor any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent rights of Telit Communications S.p.A. other than for circuitry embodied in Telit products. This document is subject to change without notice.

Mod. 0805 2011-07 Rev.2

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

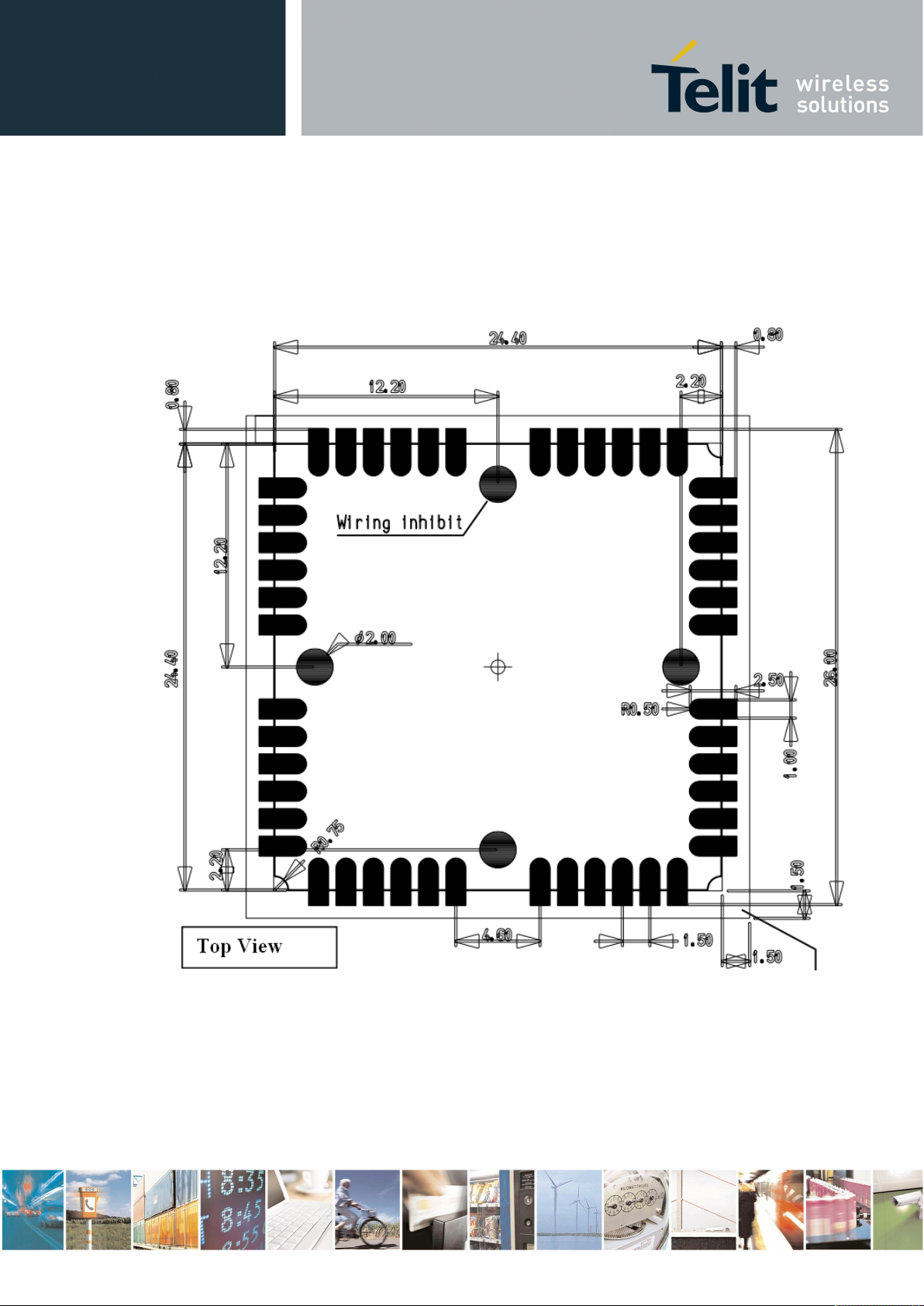

3. UL865-N3G V2 Mechanical Dimensions

The UL865-N3G V2 overall dimensions are:

Length: 24.4 mm Width: 24.4 mm Thickness: 2.6 mm Weight 4 g

Mod. 0805 2011-07 Rev.2

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

4. UL865-N3G V2 module connections

4.1. PIN-OUT

Pad Signal I/O

All GPI0

can be

program

med

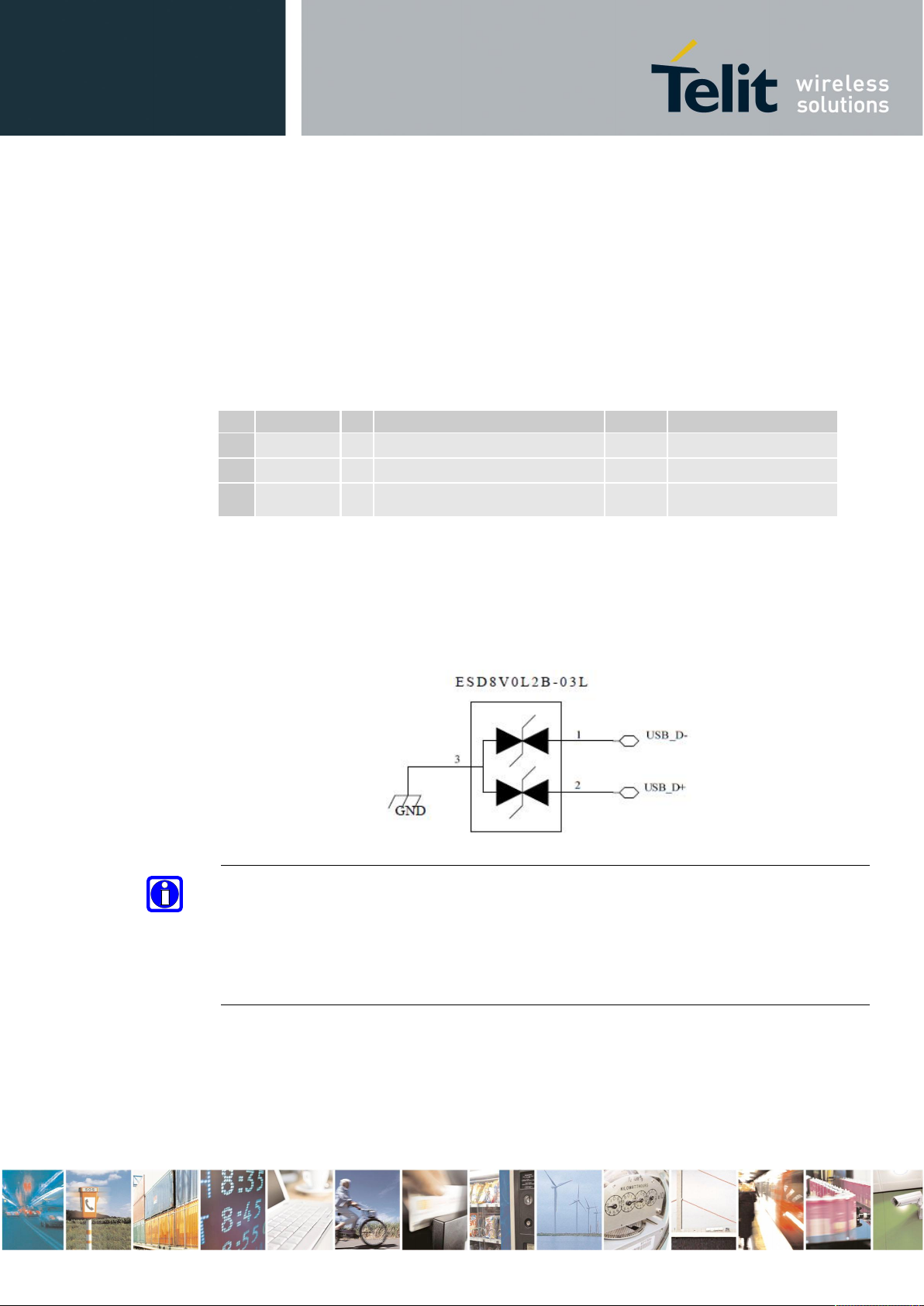

USB_D+ I/O USB differential Data (+)

USB_D- I/O USB differential Data (-)

USB_VBUS AI Power sense for the internal USB transceiver.

SIMVCC - External SIM signal – Power supply for the SIM 1,8 / 3V

SIMRST O External SIM signal – Reset 1,8 / 3V

SIMCLK O External SIM signal – Clock 1,8 / 3V

SIMIO I/O External SIM signal – Data I/O 4.7k Pull up

SIMIN I Presence SIM input CMOS 1.8V

RXD_AUX /SPI_MISO

TXD_AUX /

SPI_MOSI

C109/DCD/GPO O

C125/RING/GPO O

C107/DSR/GPO O

C108/DTR/GPI I

C105/RTS/GPI I

C106/CTS/GPO O

C103/TXD I Serial data input (TXD) from DTE CMOS 1.8V

C104/RXD O Serial data output to DTE CMOS 1.8V

ADC_IN1 AI Analog/Digital converter input

ADC_IN2 AI Analog/Digital converter input

DAC_OUT AO Digital/Analog converter output D/A

VRTC AO backup for the embedded RTC supply (1.8V) Power

RESET* I Reset Input CMOS 1.8V

V_AUX / PWRMON O

Function Note Type

Audio

SIM card interface

Auxiliary

I O Auxiliary UART (RX Data)

SPI_MISO

O I Auxiliary UART (TX Data)

SPI_MOSI

Prog. / Data + HW Flow Control

Output for Data carrier detect signal (DCD) to DTE / GP output Output for Ring indicator signal (RI) to DTE / GP output Output for Data set ready signal (DSR) to DTE / GP output Input for Data terminal ready signal (DTR) from DTE / GP input Input for Request to send signal (RTS) from DTE / GP input Output for Clear to send signal (CTS) to DTE / GP output

DAC and ADC

Miscellaneous Functions

1.8V stabilized output Imax=100mA / Power ON monitor

CMOS 1.8V

Accepted

values 0 to

1.2V DC Accepted

values 0 to

1.2V DC

Power Out 1.8V

1,8 / 3V

A/D

Mod. 0805 2011-07 Rev.2

Pad Signal I/O

Antenna I/O Antenna pad – 50 Ω RF

GPIO_01 / DVI_WA0 I/O

GPIO_02 / JDR /

DVI_RX

GPIO_03 / DVI_TX I/O

GPIO_04 / DVI_CLK I/O

GPIO_05 I/O GPIO05 Configurable GPIO CMOS 1.8V

GPIO_06 / SPI_SRDY I/O

GPIO_07 / SPI_MRDY I/O

GPIO_08 / STAT_LED I/O

SPI_CLK I/O SPI_CLK CMOS 1.8V

VBATT - Main power supply (Baseband) Power

VBATT_PA - Main power supply (Radio PA) Power

AGND - AF Signal Ground (see audio section) AF Signal

GND - Ground Power

GND - Ground -

GPIO01 Configurable GPIO / Digital Audio Interface (WA0) GPIO02 I/O pin

I/O

/ Jammer Detect Report / Digital Audio Interface (RX) GPIO03 GPIO I/O pin / Digital Audio Interface (TX) GPIO04 Configurable GPIO

Digital Audio Interface (CLK)

GPIO06 Configurable GPIO / ALARM / SPI_SRDY GPIO07 Configurable GPIO / Buzzer / SPI_MRDY GPIO08 Configurable GPIO / Digital Audio Interface (CLK)

Power Supply

RESERVED

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

Function Note Type

GPIO

CMOS 1.8V

WARNING:

Reserved pins must not be connected.

Mod. 0805 2011-07 Rev.2

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

NOTE:

If not used, almost all pins should be left disconnected. The only exceptions are the following pins:

Pin signal

38, 37 VBATT & VBATT_PA

32, 33, 35, 36, 46 GND

23 AGND

7 C103/TXD If not used should be connected to a Test Point 8 C104/RXD If not used should be connected to a Test Point 5 C105/RTS If not used should be connected to a Test Point

6 C106/CTS If not used should be connected to a Test Point 43 V_AUX / PWRMON 47 RESET* 45 TXD_AUX If not used should be connected to a Test Point 44 RXD_AUX If not used should be connected to a Test Point

18 USB D+

17 USB D-

16 USB_VBUS

If not used should be connected to a Test Point or

an USB connector

If not used should be connected to a Test Point or

an USB connector

If not used should be connected to a Test Point or

an USB connector

4.2. Debug in Production

To test and debug the assembled UL865-N3G V2, we strongly recommend foreseeing test pads on the host PCB, in order to check the connection between the UL865-N3G V2 itself and the application and to test the performance of the module connecting it with an external computer. Depending by the customer application, these pads include, but are not limited to the following signals:

TXD RXD RESET* GND VBATT VBATT_PA TX_AUX RX_AUX

PWRMON

Mod. 0805 2011-07 Rev.2

4.3. Pin Layout

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

TOP VIEW

NOTE:

The pins defined as NC/RFU shall be considered RESERVED and must not be connected to any pin in the application.

Mod. 0805 2011-07 Rev.2

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

5. Hardware Commands

5.1. Auto-Turning ON the UL865-N3G V2

The UL865-N3G V2 will automatically power on itself when VBATT & VBATT_PA are applied to the module.

V_AUX / PWRMON pin will be at the high logic level and the module can be considered fully operating after 5 seconds.

The following flow chart shows the proper turn on procedure:

Modem ON Proc.

PWR supply ON

and >3.22V?

PWMON = ON?

Delay 1s - 5s for Low

Voltage Operating

PWMON = ON?

Delay 300mS

Enter AT<CR>

AT answer in

1second ?

Modem Reset Proc.

AT init sequence.

Delay 1s

Mod. 0805 2011-07 Rev.2

Start AT CMD.

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

NOTE:

The power supply must be applied either at the same time on pins VBATT and VBATT_PA.

NOTE:

To guarantee a correct module’s start-up please check that the Power Supply is with a level >3.22V within 21mS.

NOTE:

In order to prevent a back powering effect it is recommended to avoid having any HIGH logic level signal applied to the digital pins of the UL865-N3G V2 when the module is powered OFF or during an ON/OFF transition.

Mod. 0805 2011-07 Rev.2

UL865-N3G Hardware User Guide

1VV0301177 Rev 2– 2015-04-20

A flow chart showing the AT commands managing procedure is displayed below:

Start AT CMD.

Delay 300mS

Enter AT<CR>

AT answer in

1second?

Disconnect PWR supply

Modem ON Proc.

AT init sequence.

Mod. 0805 2011-07 Rev.2

UL865-N3G Hardware User Guide

5.2. Turning OFF the UL865-N3G V2

The following flow chart shows the proper turnoff procedure:

Modem OFF Proc.

AT#SYSHALT

1VV0301177 Rev 2– 2015-04-20

10s timeout

Disconnect PWR supply

Delay 1.5s

Modem ON Proc.

NOTE:

In order to prevent a back powering effect it is recommended to avoid having any HIGH logic level signal applied to the digital pins of the UL865-N3G V2 when the module is powered off or during an ON/OFF transition.

Mod. 0805 2011-07 Rev.2

+ 49 hidden pages

Telit Communications S p A UL865N3G User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
