Telit Communications S p A LE910C1NA User Guide

Download

LE910Cx

Hardware User Guide

1VV0301298 Rev. 1.01 - 2016-02-16

Module Name

Description

LE910C1-NA

North America – AT&T with global roaming

LE910C1-NS

North America - Sprint variant

LE910C1-AP

APAC variant

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Applicability Table

This documentation applies to the following products:

Table 1: Applicability Table

Telit Confidential Information, provided under NDA Page 2 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Notice

While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Telit reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in the content hereof with no obligation to notify any person of revisions or changes. Telit does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey any license under its patent rights or the rights of others.

It is possible that this publication may contain references to, or information about Telit products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Telit intends to announce such Telit products, programming, or services in your country.

Copyrights

This instruction manual and the Telit products described in this instruction manual may be, include, or describe copyrighted Telit material, such as computer programs stored in semiconductor memories or other media. Laws in Italy and other countries preserve for Telit and its licensors certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute, and make derivative works of the copyrighted material. Accordingly, any copyrighted material of Telit and its licensors contained herein or in the Telit products described in this instruction manual may not be copied, reproduced, distributed, merged, or modified in any manner without the express written permission of Telit. Furthermore, the purchase of Telit products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Telit, as arises by operation of law in the sale of a product.

Computer Software Copyrights

Telit and third-party software (SW) products described in this instruction manual may include copyrighted Telit and other third-party computer programs stored in semiconductor memories or other media. Laws in Italy and other countries preserve for Telit and other third-party SW certain exclusive rights for copyrighted computer programs, including the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Telit or other third-party SW computer programs contained in the Telit products described in this instruction manual may not be copied (reverse engineered) or reproduced in any manner without the express written permission of Telit or the third-party SW supplier. Furthermore, the purchase of Telit products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Telit or other thirdparty SW, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product.

Telit Confidential Information, provided under NDA Page 3 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Usage and Disclosure Restrictions

License Agreements

The software described in this document is the property of Telit and its licensors. It is furnished by an express license agreement only and may be used only in accordance with the terms of such an agreement.

Copyrighted Materials

Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Telit.

High Risk Materials

Components, units, or third-party products used in the product described herein are NOT faulttolerant and are NOT designed, manufactured, or intended for use as on-line control equipment in the following hazardous environments requiring fail-safe controls: the operation of nuclear facilities, aircraft navigation or aircraft communication systems, air traffic control, life support, or weapons systems (“high risk activities"). Telit and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such high risk activities.

Trademarks

TELIT and the stylized T logo are trademarks and/or registered trademarks of Telit Communications S.p.A. in the Unites States and/or other countries. All other product or service names are the property of their respective owners.

Telit Confidential Information, provided under NDA Page 4 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Contents

1. Introduction ..................................................................................................... 13

1.1. Scope ................................................................................................................ 13

1.2. Audience .......................................................................................................... 13

1.3. Contact Information, Support .......................................................................... 13

1.4. Text Conventions ............................................................................................. 14

1.5. Related Documents .......................................................................................... 15

1.6. Abbreviations ................................................................................................... 16

2. General Product Description ............................................................................ 17

2.1. Overview .......................................................................................................... 17

2.2. Applications ..................................................................................................... 17

2.3. General Functionality and Main Features ....................................................... 18

2.4. Block Diagram .................................................................................................. 21

2.5. Environmental Requirements .......................................................................... 22

2.5.1. Temperature Range .............................................................................. 22

2.5.2. RoHS Compliance.................................................................................. 22

2.6. Frequency Bands .............................................................................................. 23

2.6.1. RF Bands per Regional Variant ............................................................. 23

2.6.2. Reference Table of RF Bands Characteristics ....................................... 24

2.7. Sensitivity ......................................................................................................... 26

2.8. LE910Cx Mechanical Specifications ................................................................. 27

2.8.1. Dimensions ........................................................................................... 27

2.8.2. Weight .................................................................................................. 27

3. LE910Cx Module Connections ........................................................................... 28

3.1. Pin-out .............................................................................................................. 28

3.2. LE910Cx - Signals That Must Be Connected ..................................................... 39

3.3. LGA Pads Layout ............................................................................................... 41

3.4. Backward Compatibility to xE910 Family ........................................................ 42

4. Electrical Specifications .................................................................................... 43

4.1. Absolute Maximum Ratings – Not Operational ............................................... 43

Telit Confidential Information, provided under NDA Page 5 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

4.2. Recommended Operating Conditions ............................................................. 43

4.3. Logic Level Specifications ................................................................................. 44

4.3.1. 1.8V Pads - Absolute Maximum Ratings ............................................... 44

4.3.2. 1.8V Standard GPIOs ............................................................................ 44

4.3.3. 1.8V SD Card Pads ................................................................................. 45

4.3.4. 1.8V SIM Card Pads ............................................................................... 45

4.3.5. Dual Voltage Pads - Absolute Maximum Ratings ................................. 46

4.3.6. SD Card Pads @ 2.95V .......................................................................... 46

4.3.7. SIM Card Pads @2.95V ......................................................................... 47

5. Hardware Commands ....................................................................................... 48

5.1. Turning on the LE910Cx Module ...................................................................... 48

5.2. Initialization and Activation State .................................................................... 48

5.3. Turning OFF the LE910Cx Module ................................................................... 50

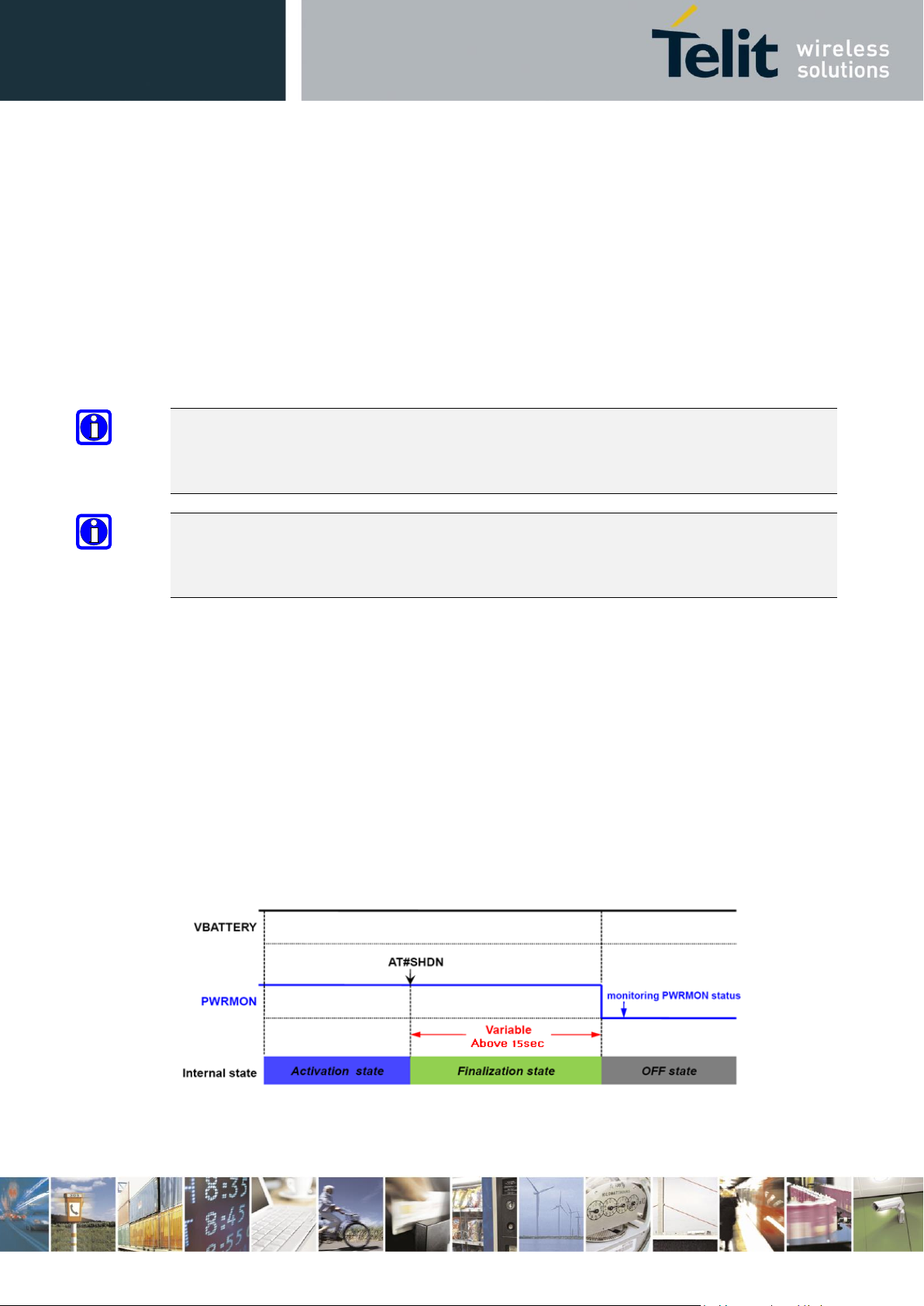

5.3.1. Shutdown by Software Command ....................................................... 50

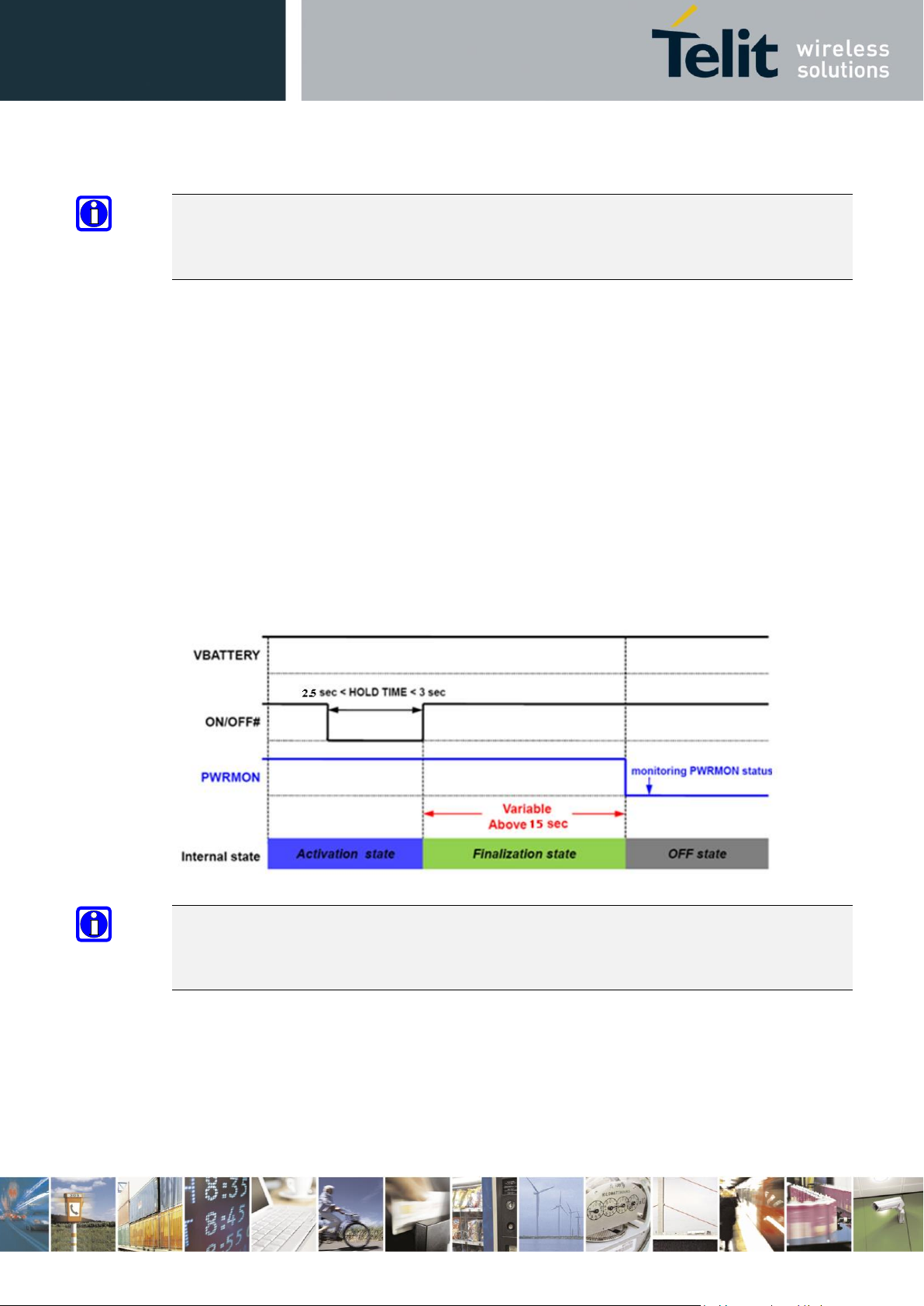

5.3.2. Hardware Shutdown ............................................................................. 51

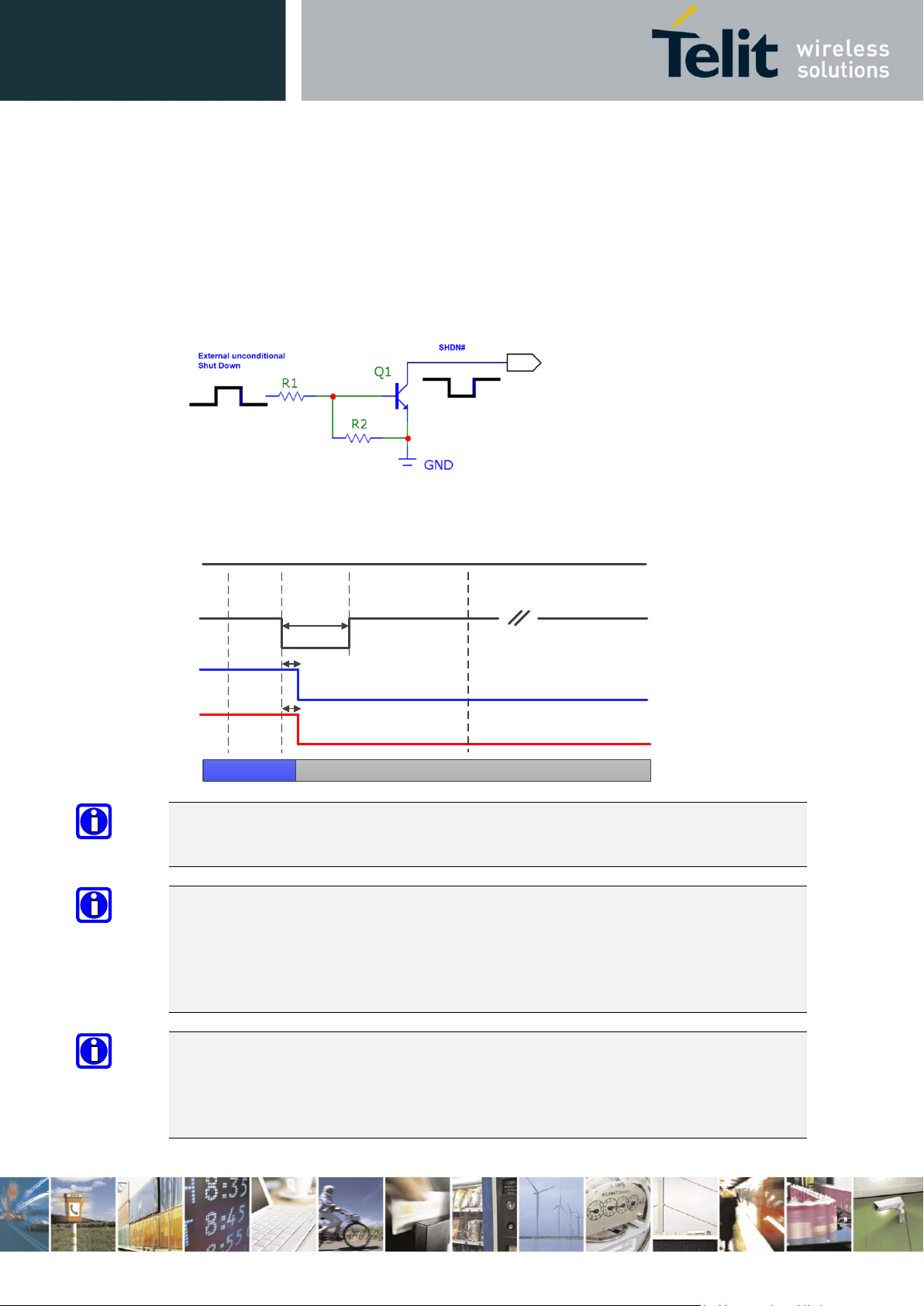

5.3.4. Unconditional Hardware Shutdown ..................................................... 52

6. Power Supply ................................................................................................... 53

6.1. Power Supply Requirements............................................................................ 53

6.2. General Design Rules ....................................................................................... 55

6.2.1. Electrical Design Guidelines .................................................................. 55

6.2.1.1. + 5V Input Source Power Supply – Design Guidelines ......... 55

6.2.1.2. + 12V Input Source Power Supply – Design Guidelines ....... 56

6.2.1.3. Battery Source Power Supply – Design Guidelines .............. 58

6.2.2. Thermal Design Guidelines ................................................................... 59

6.2.3. Power Supply PCB Layout Guidelines ................................................... 60

7. Antenna(s) ....................................................................................................... 61

7.1. GSM/WCDMA/LTE Antenna Requirements ..................................................... 61

7.2. GSM/WCDMA/LTE Antenna – PCB Line Guidelines ......................................... 62

7.3. GSM/WCDMA/LTE Antenna – Installation Guidelines .................................... 63

7.4. Antenna Diversity Requirements ..................................................................... 63

Telit Confidential Information, provided under NDA Page 6 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

7.5. GNSS Antenna Requirements .......................................................................... 64

7.5.1. Combined GNSS Antenna ..................................................................... 64

7.5.2. Linear and Patch GNSS Antenna ........................................................... 64

7.5.3. Front End Design Considerations ......................................................... 64

7.5.4. GNSS Antenna – PCB Line Guidelines ................................................... 65

7.5.5. GNSS Antenna – Installation Guidelines ............................................... 66

8. Hardware Interfaces......................................................................................... 67

8.1. USB Port ........................................................................................................... 68

8.2. HSIC Interface .................................................................................................. 69

8.3. SGMII Interface (optional) ............................................................................... 69

8.4. Serial Ports ....................................................................................................... 69

8.4.1. Modem Serial Port 1 Signals ................................................................. 70

8.4.2. Modem Serial Port 2 ............................................................................. 71

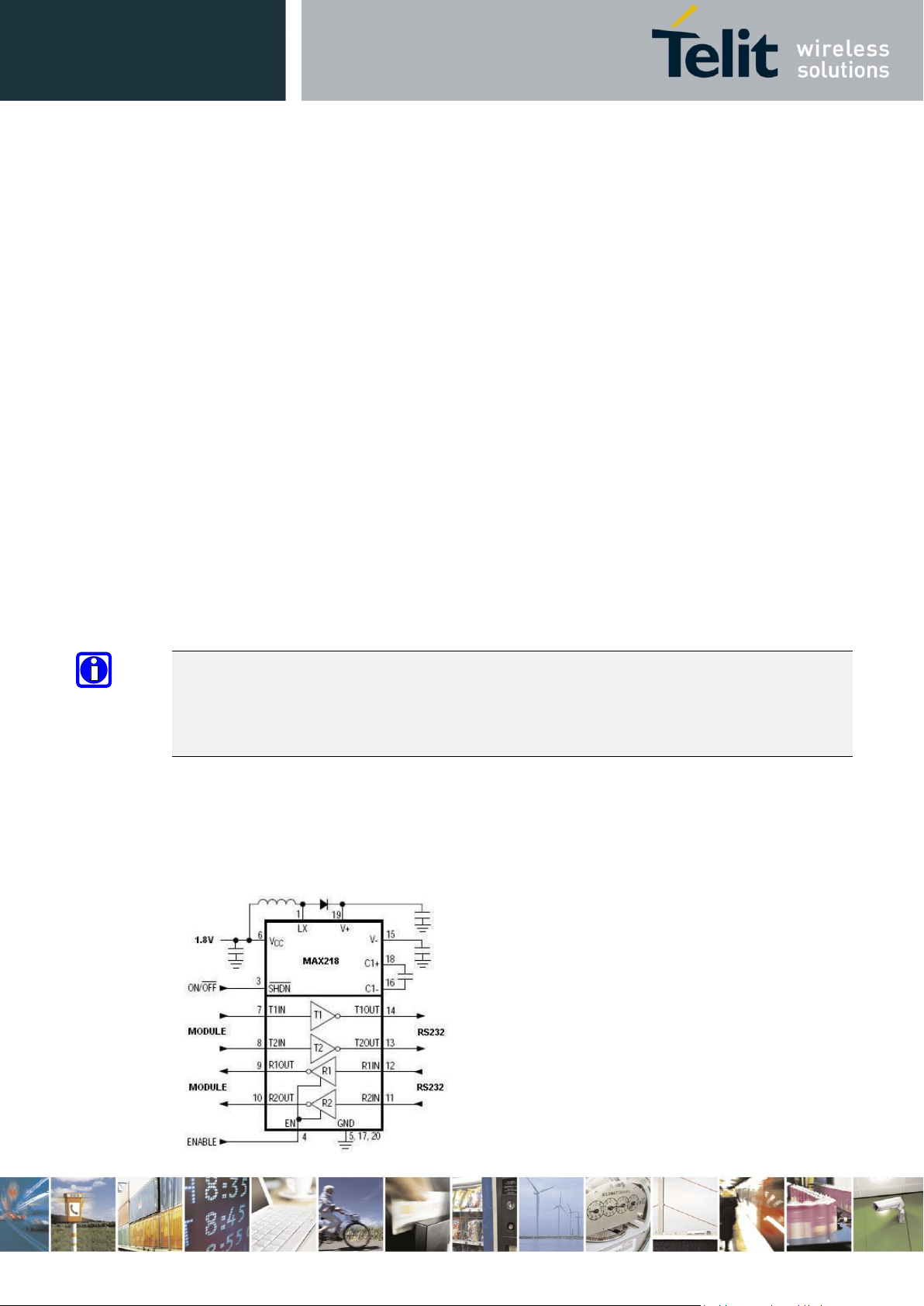

8.4.3. RS232 Level Translation ........................................................................ 72

8.5. Peripheral Ports ............................................................................................... 74

8.5.1. SPI – Serial Peripheral Interface ........................................................... 74

8.5.2. I2C - Inter-integrated Circuit ................................................................ 75

8.5.3. SD/MMC Card Interface ....................................................................... 75

8.5.4. WiFi SDIO Interface .............................................................................. 77

8.6. Audio Interface ................................................................................................ 78

8.6.1. Digital Audio ......................................................................................... 78

8.6.1.1. Short Frame Timing Diagrams .............................................. 79

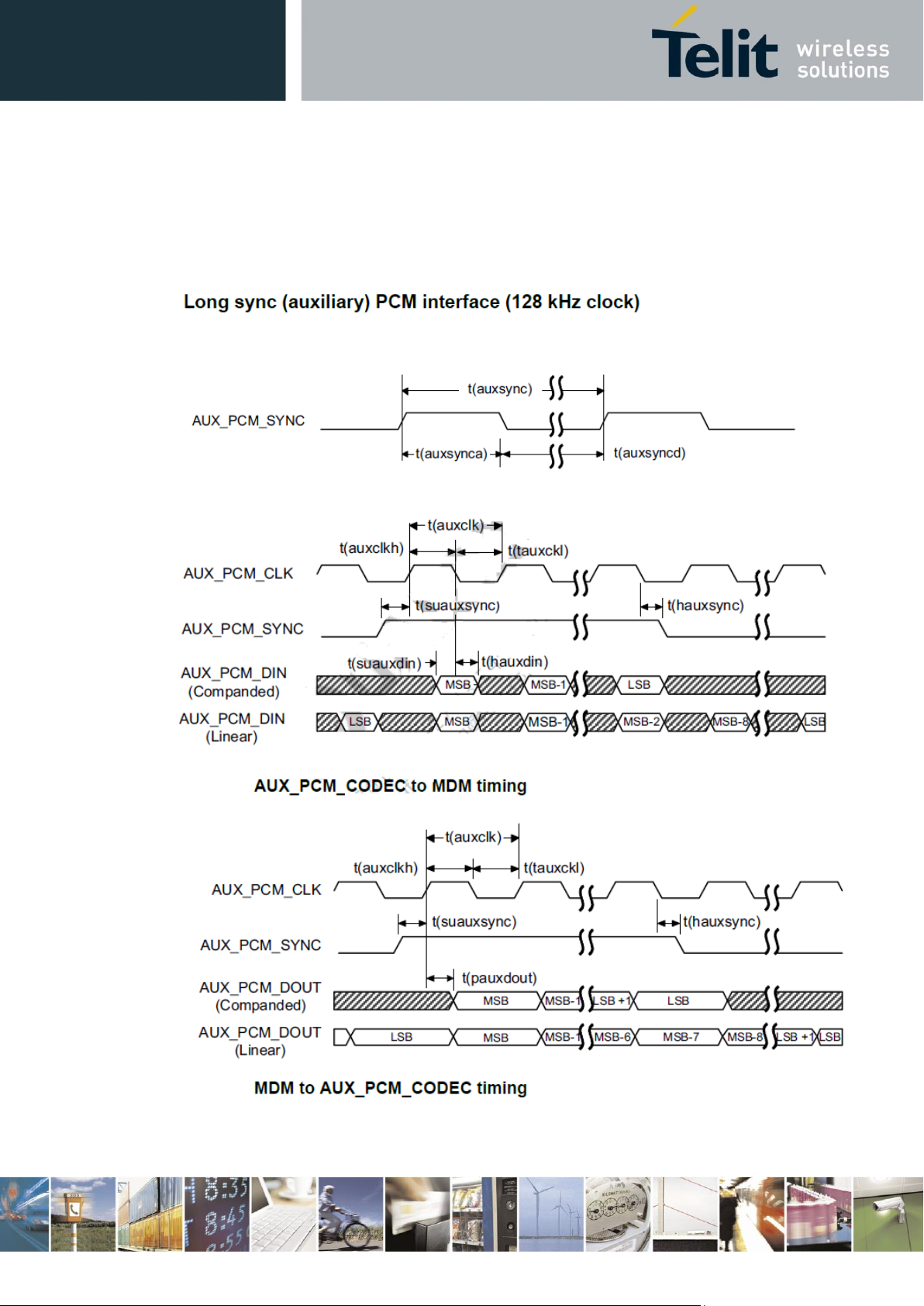

8.6.1.2. Long Frame Timing Diagrams ............................................... 81

8.7. General Purpose I/O ........................................................................................ 83

8.7.1. Using a GPIO Pad as Input .................................................................... 85

8.7.2. Using a GPIO Pad as an interrupt / Wakeup source ............................. 85

8.7.3. Using a GPIO Pad as Output ................................................................. 85

9. Miscellaneous Functions .................................................................................. 87

9.1. Indication of Network Service Availability ....................................................... 87

9.2. Indication of Software Ready ........................................................................... 88

Telit Confidential Information, provided under NDA Page 7 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

9.3. RTC – Real Time Clock ...................................................................................... 88

9.4. VAUX Power Output ........................................................................................ 88

9.5. ADC Converter ................................................................................................. 89

9.5.1. Description............................................................................................ 89

9.5.2. Using the ADC Converter ...................................................................... 89

9.6. Using the Temperature Monitor Function ...................................................... 89

9.7. GNSS Characteristics ........................................................................................ 90

10. Mounting the Module on your Board ............................................................... 91

10.1. General ............................................................................................................. 91

10.2. Finishing & Dimensions .................................................................................... 91

10.3. Recommended Footprint for the Application ................................................. 94

10.4. Stencil ............................................................................................................... 95

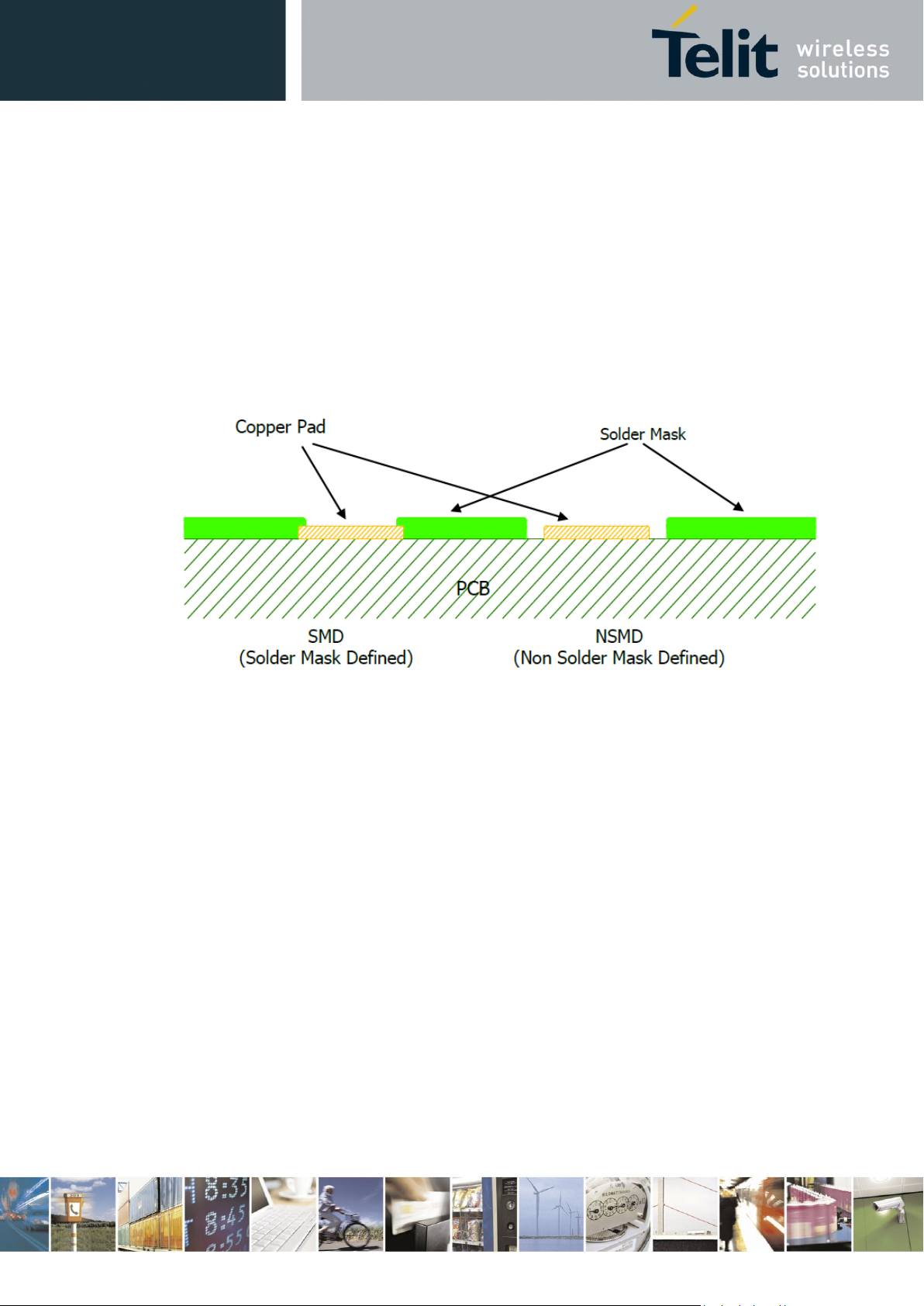

10.5. PCB Pad Design ................................................................................................ 95

10.6. Recommendations for PCB Pad Dimensions (mm) .......................................... 96

10.7. Solder Paste ..................................................................................................... 97

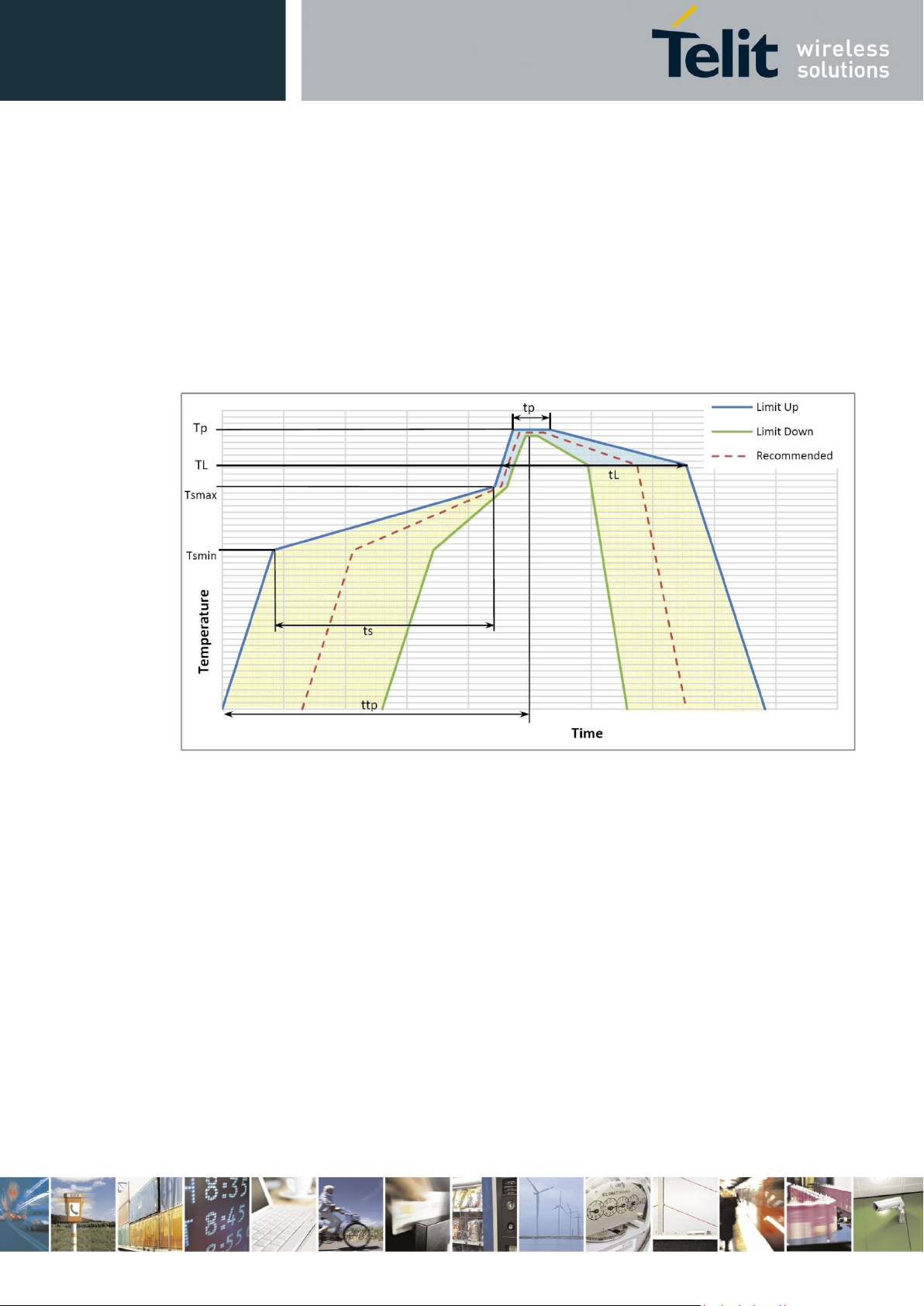

10.7.1. Solder Reflow ........................................................................................ 97

11. Application Guide ............................................................................................ 99

11.1. Debug of the LE910Cx Module in Production .................................................. 99

11.2. Bypass Capacitor on Power Supplies ............................................................. 100

11.3. SIM Interface .................................................................................................. 101

11.3.1. SIM Schematic Example ...................................................................... 101

11.4. EMC Recommendations ................................................................................. 102

11.5. Download and Debug Port ............................................................................. 103

11.5.1. Fast Boot mode................................................................................... 103

11.5.2. Recovery Boot Mode .......................................................................... 103

12. Packing System ............................................................................................... 104

12.1. Packing system – Tray .................................................................................... 104

12.2. Tape & Reel .................................................................................................... 106

12.3. Moisture Sensitivity ....................................................................................... 108

Telit Confidential Information, provided under NDA Page 8 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

13. Safety Recommendations ................................................................................ 109

14. Conformity assessment issues ......................................................................... 110

14.1. FCC/ISED Regulatory notices ........................................................................ 110

15. Document History ........................................................................................... 113

Telit Confidential Information, provided under NDA Page 9 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

List of Tables

Table 1: Applicability Table ................................................................................................................. 2

Table 2: Related Documents ............................................................................................................ 15

Table 3: RF Bands per Regional Variant ............................................................................................ 23

Table 4: RF Bands Characteristics ..................................................................................................... 24

Table 5: LE910Cx Pin-out .................................................................................................................. 28

Table 6: Mandatory Signals .............................................................................................................. 39

Table 7: Absolute Maximum Ratings – Not Operational .................................................................. 43

Table 8: Recommended Operating Conditions ................................................................................ 43

Table 9: Absolute Maximum Ratings - Not Functional ..................................................................... 44

Table 10: Operating Range – Interface Levels (1.8V CMOS) ............................................................ 44

Table 11: Operating Range – SD Card Pads Working at 1.8V ........................................................... 45

Table 12: Operating Range – SIM Pads Working at 1.8V.................................................................. 45

Table 13: Absolute Maximum Ratings - Not Functional ................................................................... 46

Table 14: Operating Range – For SD Card Pads Operating at 2.95V ................................................ 46

Table 15: Operating Range – For SIM Pads Operating at 2.95V ....................................................... 47

Table 16: Power Supply Requirements ............................................................................................ 53

Table 17: LE910Cx Current Consumption ......................................................................................... 53

Table 18: GSM / WCDMA/ LTE Antenna Requirements ................................................................... 61

Table 19: Antenna Line on PCB Requirements ................................................................................. 61

Table 20: Antenna Diversity Requirements ...................................................................................... 63

Table 21: Antenna Line on PCB Requirements ................................................................................. 65

Table 22: LE910Cx Hardware Interfaces ........................................................................................... 67

Table 23: USB Interface Signals ........................................................................................................ 68

Table 24: Modem Serial Port 1 Signals ............................................................................................. 70

Table 25 Modem Serial Port 2 Signals .............................................................................................. 71

Table 26: SPI Signals ......................................................................................................................... 74

Table 27: SD Card Signals .................................................................................................................. 75

Table 28: WiFi SDIO Interface Signals ............................................................................................... 77

Table 29: Digital Audio Interface (DVI) Signals ................................................................................. 78

Table 30: PCM_CODEC Timing Parameters ...................................................................................... 80

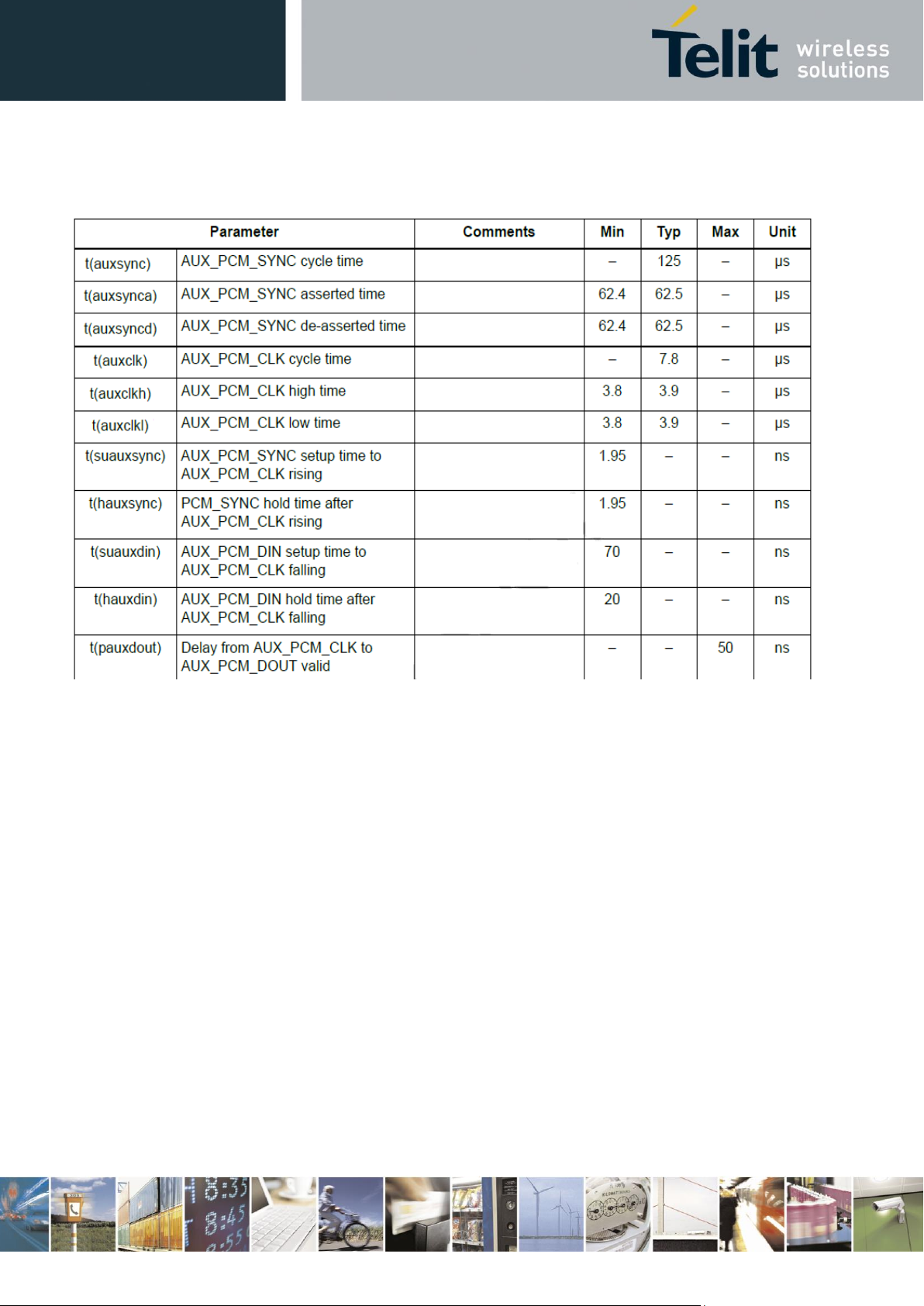

Table 31: AUX_PCM_CODEC Timing Parameters ............................................................................. 82

Table 32: Primary GPIOs ................................................................................................................... 83

Table 33: Network Service Availability Indication ............................................................................ 87

Table 34: Operating Range – VAUX Power Supply ........................................................................... 88

Table 35: ADC Parameters ................................................................................................................ 89

The values are related to typical environment and conditions Table 36 GNSS Characteristics....... 90

Table 37: Recommendations for PCB Pad Surfaces ......................................................................... 96

Table 38: Solder Profile Characteristics ............................................................................................ 98

Table 39: SIM Interface – C1 Range ................................................................................................ 101

Table 40: EMC Recommendations ................................................................................................. 102

Telit Confidential Information, provided under NDA Page 10 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Table 41: Document Revision History ............................................................................................ 113

Telit Confidential Information, provided under NDA Page 11 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

List of Figures

Figure 1: LE910Cx Block Diagram ..................................................................................................... 21

Figure 2: LGA Pads Layout ................................................................................................................ 41

Figure 3: LE910Cx vs. LE910 Pin-out Comparison (top view) ........................................................... 42

Figure 4: Power-on Circuit ................................................................................................................ 48

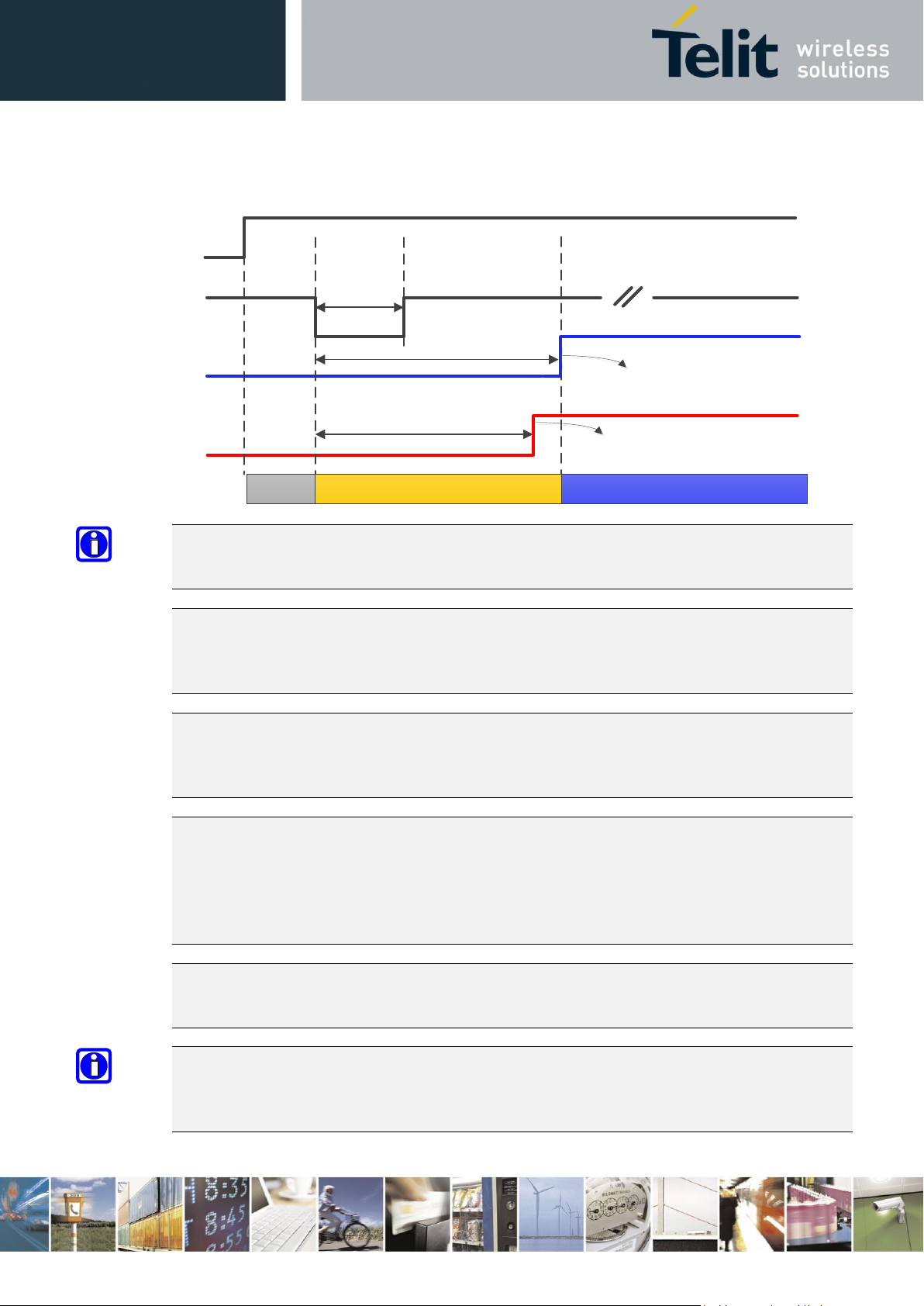

Figure 5: LE910Cx Initialization and Activation ................................................................................ 49

Figure 6: Shutdown by Software Command ..................................................................................... 50

Figure 7: Hardware Shutdown .......................................................................................................... 51

Figure 8: Circuit for Unconditional Hardware Shutdown ................................................................. 52

Figure 9 Power down timing using HW_SHUTDOWN_N ................................................................. 52

Figure 10: Example of Linear Regulator with 5V Input ..................................................................... 56

Figure 11: Example of Switching Regulator with 12V Input – Part 1 ................................................ 57

Figure 12: Example of Switching Regulator with 12V Input – Part 2 ................................................ 57

Figure 13: RS232 Level Adaption Circuitry Example ......................................................................... 72

Figure 14: RS232 Serial Port Lines Connection Layout ..................................................................... 73

Figure 15: SPI Signal Connectivity ..................................................................................................... 74

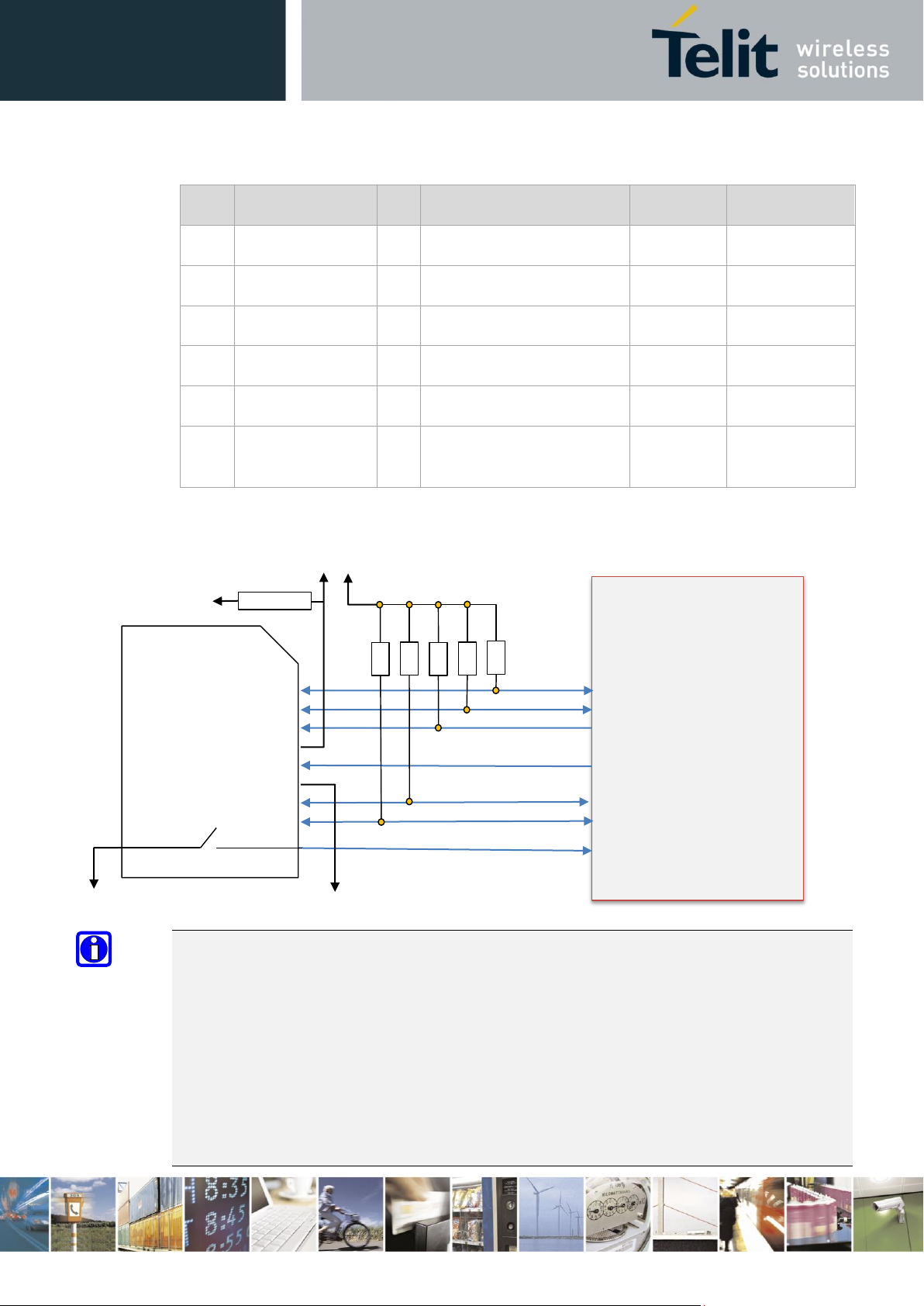

Figure 16: SD/MMC Interface Connectivity ...................................................................................... 76

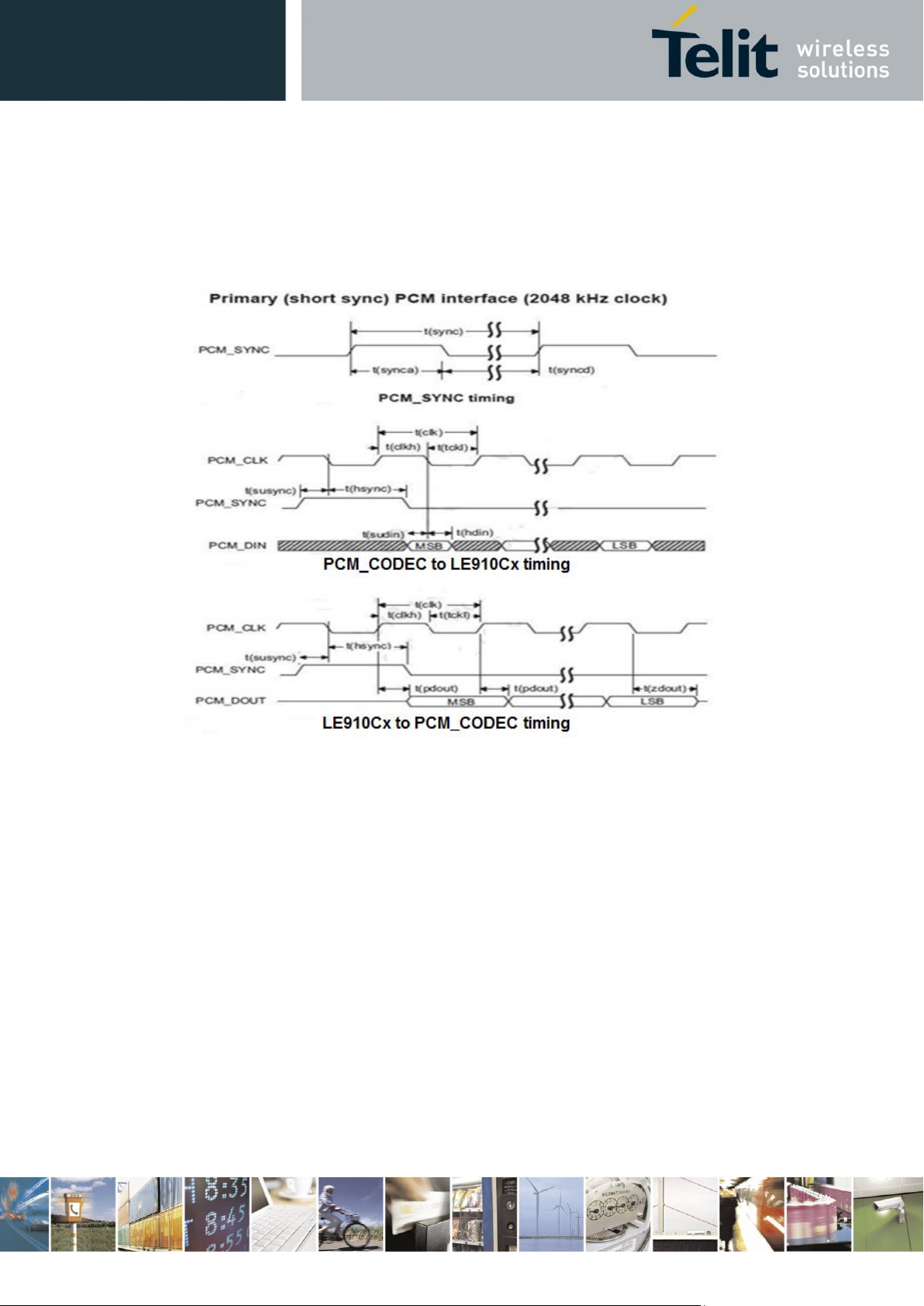

Figure 17: Primary PCM Timing ........................................................................................................ 79

Figure 18: Auxiliary PCM Timing ....................................................................................................... 81

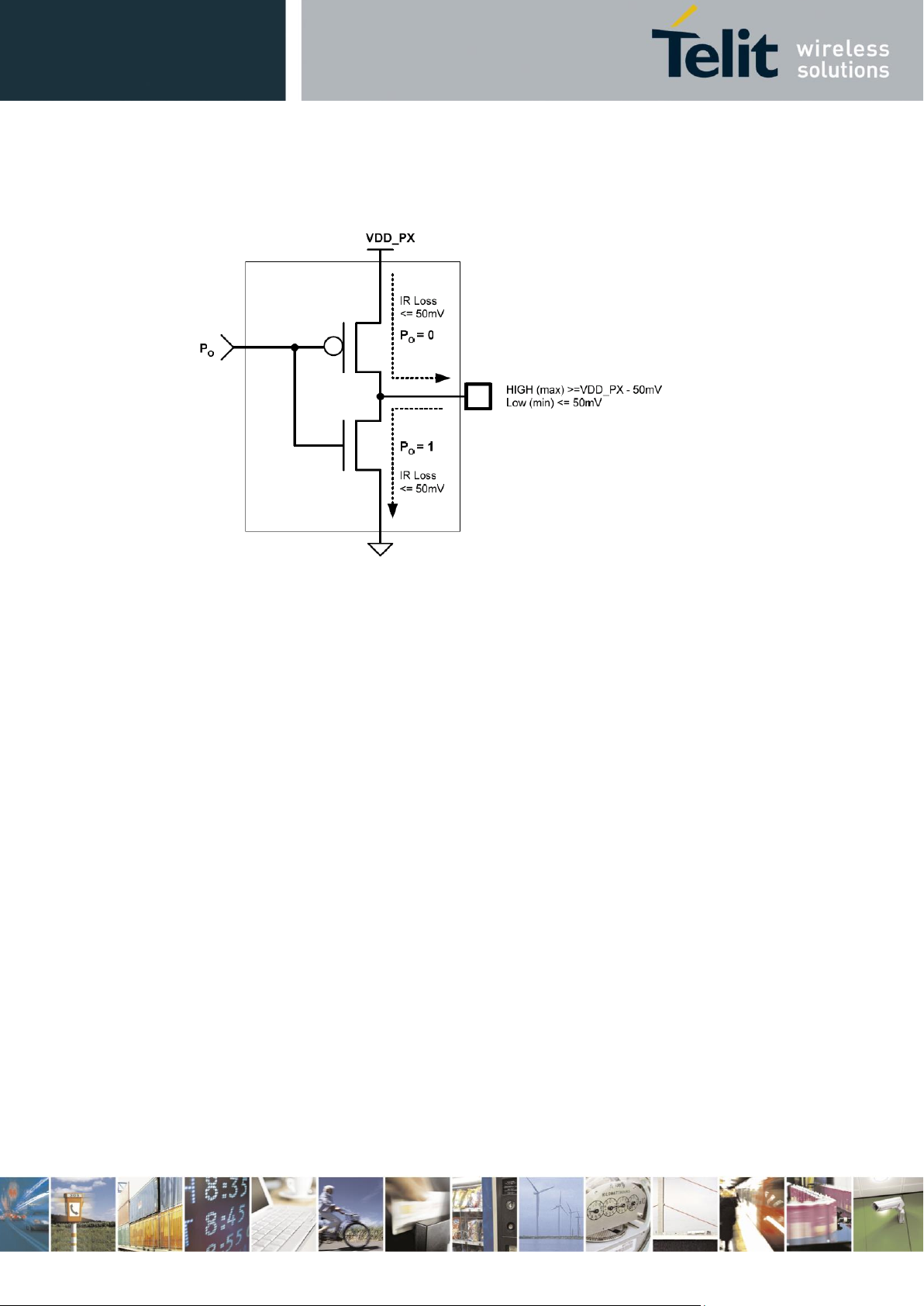

Figure 19: GPIO Output Pad Equivalent Circuit ................................................................................ 86

Figure 20: Status LED Reference Circuit ........................................................................................... 87

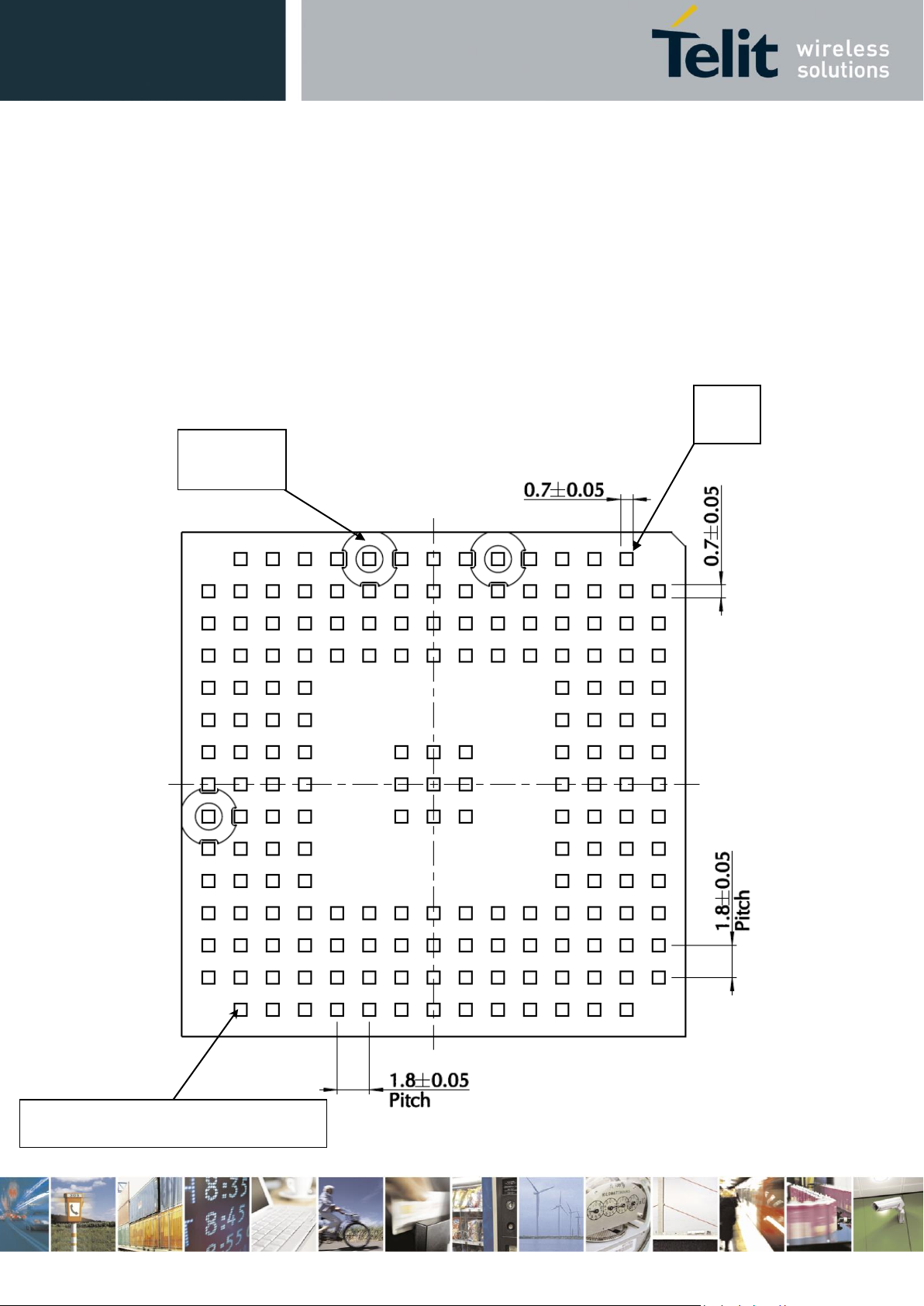

Figure 20: LE910Cx Mechanical Dimensions (bottom view) ............................................................ 91

Figure 21: LE910Cx Mechanical Dimensions (Top view) .................................................................. 92

Figure 22: LE910Cx Mechanical Dimensions (Side view) .................................................................. 93

Figure 22: Recommended Footprint - Top View, 181 pads (dimensions are in mm, top view). ...... 94

Figure 23: PCB Pad Design ................................................................................................................ 95

Figure 24: PCB Pad Dimensions ........................................................................................................ 96

Figure 25: Solder Reflow Profile ....................................................................................................... 97

Figure 26: SIM Schematics .............................................................................................................. 101

Figure 27: Packing ........................................................................................................................... 104

Figure 28: Tray Drawing .................................................................................................................. 105

Figure 29: Module Positioning into the Carrier .............................................................................. 106

Figure 30: Carrier Tape Detail ......................................................................................................... 106

Figure 31: Reel Detail ...................................................................................................................... 107

Figure 32: Reel Box Detail ............................................................................................................... 108

Telit Confidential Information, provided under NDA Page 12 of 114

NOTE:

LE910Cx refers to all modules listed in the Applicability Table.

NOTE:

The integration of the GSM/GPRS/EGPRS/WCDMA/HSPA+/LTE LE910Cx cellular module within a user application must be done according to the design rules described in this manual.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

1. Introduction

1.1. Scope

This document introduces the Telit LE910Cx module and presents possible and recommended hardware solutions for developing a product based on the LE910Cx module. All the features and solutions detailed in this document are applicable to all LE910Cx variants, where “LE910Cx” refers to the variants listed in the applicability table.

If a specific feature is applicable to a specific product only, it will be clearly marked.

This document takes into account all the basic functions of a wireless module; a valid hardware solution is suggested for each function, and incorrect solutions and common errors to be avoided are pointed out.

Obviously, this document cannot embrace every hardware solution or every product that can be designed. Obviously, avoiding invalid solutions must be considered mandatory. Where the suggested hardware configurations need not be considered mandatory, the information given should be used as a guide and a starting point for properly developing your product with the Telit LE910Cx module.

1.2. Audience

This document is intended for Telit customers, especially system integrators, about to implement their applications using the Telit LE910Cx module.

1.3. Contact Information, Support

For general contact, technical support, to report documentation errors and to order manuals, contact Telit’s Technical Support Center (TTSC) at:

 TS-EMEA@telit.com  TS-AMERICAS@telit.com  TS-APAC@telit.com

Telit Confidential Information, provided under NDA Page 13 of 114

Danger:

This information MUST be followed or catastrophic equipment failure or bodily injury may occur.

Caution or Warning:

Alerts the user to important points about integrating the module. If these points are not followed, the module and end user equipment may fail or malfunction.

NOTE:

Tip or Information – Provides advice and suggestions that may be useful when integrating the module.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Alternatively, use:

http://www.telit.com/en/products/technical-support-center/contact.php

For detailed information about where you can buy the Telit modules or for recommendations on accessories and components, visit:

http://www.telit.com

To register for product news and announcements or for product questions contact Telit’s

Technical Support Center (TTSC).

Our aim is to make this guide as helpful as possible. Keep us informed of your comments and suggestions for improvements.

Telit appreciates feedback from the users about the information provided.

1.4. Text Conventions

The following conventions are used to emphasize specific types of information:

All dates are in ISO 8601 format, that is, YYYY-MM-DD.

Telit Confidential Information, provided under NDA Page 14 of 114

Document Title

Document Number

Ref 1: LE9x0 AT Command User Guide

80407ST10116A

Ref 2: Telit EVB HW User Guide

1VV0301249

Ref 3: LE910Cx Interface Board HW User Guide

1VV0301323

Ref 4: LE910/LE920 Digital Voice Interface Application Note

80000NT11246A

Ref 5: SIM Integration Design Guide Application Note Rev10

80000NT10001A

Ref 6: Telit_LE920A4_LE910Cx_Wi-Fi_Interface_Application_Note_r1

80490NT11511A

Ref 7: Antenna Detection Application Note

80000NT10002A

Ref 8: High-Speed Inter-Chip USB Electrical Specification, version 1.0

(a supplement to the USB 2.0 specification, Section 3.8.2)

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

1.5. Related Documents

Table 2: Related Documents

Telit Confidential Information, provided under NDA Page 15 of 114

Term

Definition

ADC

Analog-to-digital converter

Application-enabled

DAC

Digital-to-analog converter

DTE

Data Terminal Equipment

FDD

Frequency division duplex

GLONASS

Global orbiting navigation satellite system

GNSS

Global navigation satellite system

GPIO

General-purpose input/output

GPRS

General packet radio services

GPS

Global positioning system

GSM

Global system for mobile communications

HSIC

High-speed inter-chip

I2C

Inter-integrated circuit

LTE

Long term evolution

Secure digital

SGMII

Serial Gigabit media-independent interface

SIM

Subscriber identity module

SOC

System-on-Chip

SPI

Serial peripheral interface

UART

Universal asynchronous receiver transmitter

UMTS

Universal mobile telecommunications system

USB

Universal serial bus

WCI

Wireless Coexistence Interface

WCDMA

Wideband code division multiple access

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

1.6. Abbreviations

Telit Confidential Information, provided under NDA Page 16 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

2. General Product Description

2.1. Overview

LE910Cx is Telit’s new LTE series for IoT applications.

In its most basic use case, LE910Cx can be applied as a wireless communication front-end for telematics products, offering GNSS and mobile communication features to an external host CPU through its rich interfaces.

LE910Cx is available in hardware variants as listed in Table 1: Applicability Table. For differences in the designated RF band sets – refer to Section 2.6.1, RF Bands per Regional Variant.

2.2. Applications

LE910Cx can be used for telematics applications where tamper-resistance, confidentiality, integrity, and authenticity of end-user information are required, for example:

 Emergency call  Telematics services  Road pricing  Pay-as-you-drive insurance  Stolen vehicles tracking  Internet connectivity

Telit Confidential Information, provided under NDA Page 17 of 114

Function

Features

Modem

 Multi-RAT cellular modem for voice and data communication

o LTE FDD Cat1 (Other variants) (10/5Mbps DL/UL). o Carrier aggregation is not supported o GSM/GPRS/EDGE o WCDMA up to DC HSPA+, Rel.9

 Support for European eCall , US E911, and ERA Glonass  Support for SIM profile switching  Regional variants with optimal choice of RF bands for worldwide

coverage of countries and MNOs

 State-of-the-art GNSS solution with

GPS/GLONASS/BeiDou/Galileo/QZSS receiver

Digital audio subsystem

 PCM/I2S digital audio interface  Up to 48 kHz sample rate, 16 bit words

Two USIM ports – dual voltage

 Class B and Class C support  Hot swap support  Clock rates up to 4 MHz

Application processor

Application processor to run customer application code

 32 bit ARM Cortex-A7 up to 1.3 GHz running the Linux operating

system

 Flash + DDR are large enough to allow for customer’s own

software applications

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

2.3. General Functionality and Main Features

The LE910Cx series of cellular modules features LTE and multi-RAT modem together with an onchip powerful application processor and a rich set of interfaces.

The major functions and features are listed below:

Telit Confidential Information, provided under NDA Page 18 of 114

Function

Features

Interfaces

Rich set of interfaces, including:

 SD/MMC Card Interface supporting SD3.0 standard  SDIO for external WiFi transceiver supporting SDIO3.0 standard  SGMII for external Ethernet transceiver (optional)

o Compliant with IEEE802.3 o Full duplex operation at 1 Gbps o Half/full duplex operation at 10/100 Mbps o Support for VLAN tagging o Support for IEEE1588, PTP (Precision Time Protocol)

 USB2.0 – USB port is typically used for:

o Flashing of firmware and module configuration o Production testing o Accessing the Application Processor’s file system o AT command access o High-speed WWAN access to external host o Diagnostic monitoring and debugging o Communication between Java application environment and an

external host CPU

o NMEA data to an external host CPU  HSIC o High-speed 480 Mbps (240 MHz DDR) USB transfers are 100% host

driver compatible with traditional USB cable connected topologies

o Bidirectional data strobe signal (STROBE) o Bidirectional data signal (DATA) o No power consumption unless a transfer is in progress o Maximum trace length 10 cm o Signals driven at 1.2V standard LVCMOS levels

 Peripheral Ports – SPI, I2C, UART  GPIOs  Antenna ports

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 19 of 114

Function

Features

Form factor

Form factor (28x28mm), accommodating the multiple RF bands in each region variant

Environment and quality requirements

The entire module is designed and qualified by Telit for satisfying the environment and quality requirements.

Single supply module

The module generates all its internal supply voltages. RTC

No dedicated RTC supply, RTC is supplied by VBATT

Operating temperature

Range -40 °C to +85 °C (conditions as defined in Section 2.5.1, Temperature

Range).

NOTE:

The following interfaces are unique for the LE910Cx and may not be supported on other (former or future) xE910 family. Special care must be taken when designing the application board if future compatibility is required:

- SGMII for Ethernet connectivity

- SDIO for WIFI connectivity

- SD/MMC for SD Card connectivity

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 20 of 114

ANT

DIAG

MEMORIES

FRONTEND

GNSS Antennna

GPIO

Cellular antenna 1

Cellular antenna 2

PCM In/out

SIM

GNSS_Sync

APPLICATION

PROCESSOR

MODEM

LOCATION

HSICI2C

ANT

DIAG

USB2.0SGMIISPI

UART

JTAG 2xSDIO

PMIC

VBATT ADC

VBATT_PA

RTC

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

2.4. Block Diagram

Figure 1 shows an overview of the internal architecture of the LE910Cx module.

It includes the following sub-functions:

 Application processor, Modem subsystem and Location processing with their external

interfaces. These three functions are contained in a single SOC.

 RF front end, including antenna diagnosis circuitry  Analog Audio codec for attaching external speaker amplifier and microphone  Rich IO interfaces. Depending on which LE910Cx software features are enabled, some of its

interfaces that are exported due to multiplexing may be used internally and thus may not be usable by the application.

 PMIC with the RTC function inside

Figure 1: LE910Cx Block Diagram

Telit Confidential Information, provided under NDA Page 21 of 114

Operating temperature range

-20 ~ +55°C.

This range is defined by 3GPP (the global standard for wireless mobile communication). Telit guarantees its modules to comply with all the 3GPP requirements and to have full functionality of the module with in this range.

-40 ~ +85°C.

Telit guarantees full functionality within this range as well. However, there may possibly be some performance deviations in this extended range relative to 3GPP requirements, which means that some RF parameters may deviate from the 3GPP specification in the order of a few dB. For example: receiver sensitivity or maximum output power may be slightly degraded.

Even so, all the functionalities, such as call connection, SMS, USB communication, UART activation etc., will be maintained, and the effect of such degradations will not lead to malfunction.

Storage and nonoperating temperature range

–40°C ~ +85°C

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

2.5. Environmental Requirements

2.5.1. Temperature Range

2.5.2. RoHS Compliance

As a part of the Telit corporate policy of environmental protection, the LE910Cx complies with the RoHS (Restriction of Hazardous Substances) directive of the European Union (EU directive 2011/65/EU).

Telit Confidential Information, provided under NDA Page 22 of 114

Region

Variant

LTE FDD

LTE TDD

HSPA+

TD-

SCDMA

LE910C1-NA

2, 4, 12

1, 2, 4, 5, 8

2, 3, 5, 8

LE910C1-NS

2, 4, 5, 12, 25, 26

- - - - LE910C1-AP

1, 3, 5, 8, 28

1, 5, 8

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

2.6. Frequency Bands

The operating frequencies in GSM850, EGSM900, DCS1800, PCS1900, WCDMA & LTE modes conform to the 3GPP specifications.

2.6.1. RF Bands per Regional Variant

Table 3 summarizes all region variants within the LE910Cx family, showing the supported band sets in each variant.

Table 3: RF Bands per Regional Variant

Telit Confidential Information, provided under NDA Page 23 of 114

Mode

Freq. Tx (MHz)

Freq. Rx (MHz)

Channels

Tx-Rx Offset

PCS 1900

1850.2 ~

1909.8

1930.2 ~ 1989.8

512 ~ 810

80 MHz DCS 1800

1710 ~ 1785

1805 ~ 1880

512 ~ 885

95 MHz

GSM 850

824.2 ~ 848.8

869.2 ~ 893.8

128 ~ 251

45 MHz

EGSM 900

890 ~ 915

935 ~ 960

0 ~ 124

45 MHz

880 ~ 890

925 ~ 935

975 ~ 1023

45 MHz

WCDMA 2100 – B1

1920 ~ 1980

2110 ~ 2170

Tx: 9612 ~ 9888

Rx: 10562 ~ 10838

190 MHz

WCDMA 1900 – B2

1850 ~ 1910

1930 ~ 1990

Tx: 9262 ~ 9538

Rx: 9662 ~ 9938

80 MHz

WCDMA 1800 – B3

1710 ~ 1785

1805 ~ 1880

Tx: 937 ~ 1288

Rx: 1162 ~ 1513

95 MHz

WCDMA AWS – B4

1710 ~ 1755

2110 ~ 2155

Tx: 1312 ~ 1513

Rx: 1537 ~ 1738

400 MHz

WCDMA 850 – B5

824 ~ 849

869 ~ 894

Tx: 4132 ~ 4233

Rx: 4357 ~ 4458

45 MHz

WCDMA 900 – B8

880 ~ 915

925 ~ 960

Tx: 2712 ~ 2863

Rx: 2937 ~ 3088

45 MHz

WCDMA 1800 – B9

1750 ~ 1784.8

1845 ~ 1879.8

Tx: 8762 ~ 8912

Rx: 9237 ~ 9387

95 MHz

WCDMA 800 – B19

830 ~ 845

875 ~ 890

Tx: 312 ~ 363

Rx: 712 ~ 763

45 MHz

TDSCDMA 2000 – B34

2010 ~ 2025

Tx: 10054 ~ 10121

Rx: 10054 ~ 10121

0 MHz

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

2.6.2. Reference Table of RF Bands Characteristics

Table 4: RF Bands Characteristics

Telit Confidential Information, provided under NDA Page 24 of 114

Mode

Freq. Tx (MHz)

Freq. Rx (MHz)

Channels

Tx-Rx Offset

TDSCDMA 1900 – B39

1880 ~ 1920

Tx: 9404 ~ 9596

Rx: 9404 ~ 9596

0 MHz

LTE 2100 – B1

1920 ~ 1980

2110 ~ 2170

Tx: 18000 ~ 18599

Rx: 0 ~ 599

190 MHz

LTE 1900 – B2

1850 ~ 1910

1930 ~ 1990

Tx: 18600 ~ 19199

Rx: 600 ~ 1199

80 MHz

LTE 1800 – B3

1710 ~ 1785

1805 ~ 1880

Tx: 19200 ~ 19949

Rx: 1200 ~ 1949

95 MHz

LTE AWS – B4

1710 ~ 1755

2110 ~ 2155

Tx: 19950 ~ 20399

Rx: 1950 ~ 2399

400 MHz

LTE 850 – B5

824 ~ 849

869 ~ 894

Tx: 20400 ~ 20649

Rx: 2400 ~ 2649

45 MHz

LTE 2600 – B7

2500 ~ 2570

2620 ~ 2690

Tx: 20750 ~ 21449

Rx: 2750 ~ 3449

120 MHz

LTE 900 – B8

880 ~ 915

925 ~ 960

Tx: 21450 ~ 21799

Rx: 3450 ~ 3799

45 MHz

LTE 1800 – B9

1749.9 ~

1784.9

1844.9 ~ 1879.9

Tx: 21800 ~ 2149

Rx: 3800 ~ 4149

95 MHz

LTE AWS+ – B10

1710 ~ 1770

2110 ~ 2170

Tx: 22150 ~ 22749

Rx: 4150 ~ 4749

400 MHz

LTE 700a – B12

699 ~ 716

729 ~ 746

Tx : 23010 ~ 23179

Rx : 5010 ~ 5179

30 MHz

LTE 700c – B13

777 ~ 787

746 ~ 756

Tx : 27210 ~ 27659

Rx : 9210 ~ 9659

-31 MHz

LTE 700b – B17

704 ~ 716

734 ~ 746

Tx: 23730 ~ 23849

Rx: 5730 ~ 5849

30 MHz

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 25 of 114

Mode

Freq. Tx (MHz)

Freq. Rx (MHz)

Channels

Tx-Rx Offset

LTE 800 – B19

830 ~ 845

875 ~ 890

Tx: 24000 ~ 24149

Rx: 6000 ~ 6149

45 MHz

LTE 800 – B20

832 ~ 862

791 ~ 821

Tx: 24150 ~ 24449

Rx: 6150 ~ 6449

-41 MHz

LTE 1500 – B21

1447.9 ~

1462.9

1495.9 ~ 1510.9

Tx: 24450 ~ 24599

Rx: 6450 ~ 6599

48 MHz

LTE 850+ – B26

814 ~ 849

859 ~ 894

Tx: 26690 ~ 27039

Rx: 8690 ~ 9039

45 MHz

LTE 700 – B28

703 ~ 748

758 ~ 803

Tx : 27210 ~ 27659

Rx : 9210 ~ 9659

45 MHz

LTE TDD 2600 – B38

2570 ~ 2620

Tx: 37750 ~ 38250

Rx: 37750 ~ 38250

0 MHz

LTE TDD 1900 – B39

1880 ~ 1920

Tx: 38250 ~ 38650

Rx: 38250 ~ 38650

0 MHz

LTE TDD 2300 – B40

2300 ~ 2400

Tx: 38650 ~ 39650

Rx: 38650 ~ 39650

0 MHz

LTE TDD 2500 – B41

2496 ~ 2690

Tx: 39650 ~ 41590

Rx: 39650 ~ 41590

0 MHz

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 26 of 114

2.7. Sensitivity

LE910Cx maximum sensitivity levels are as follow:

 -108 dBm (TBD) @ 2G  -111 dBm (TBD) @ 3G  -102 dBm (TBD) @ 4G FDD (BW=5 MHz)

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

2.8. LE910Cx Mechanical Specifications

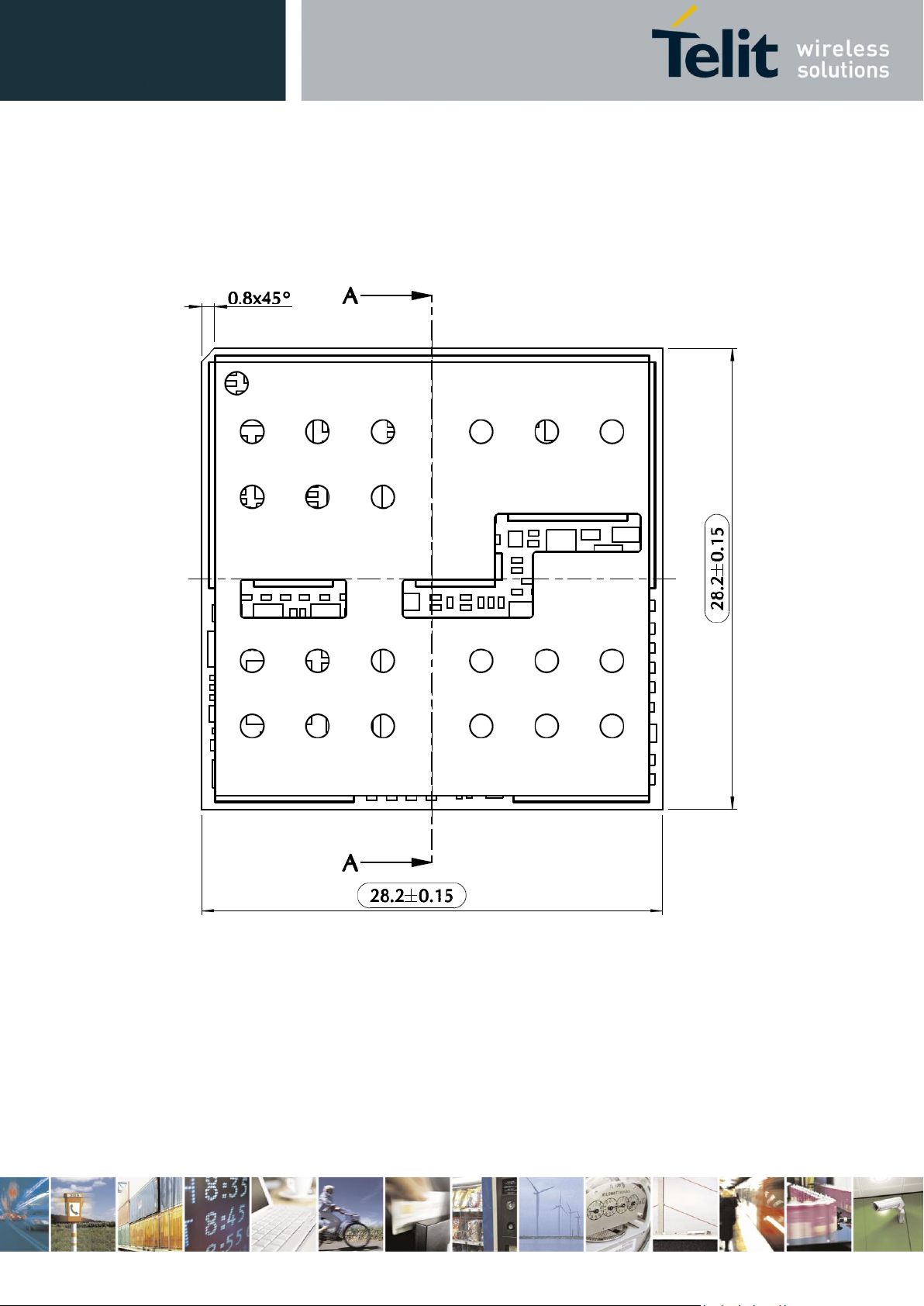

2.8.1. Dimensions

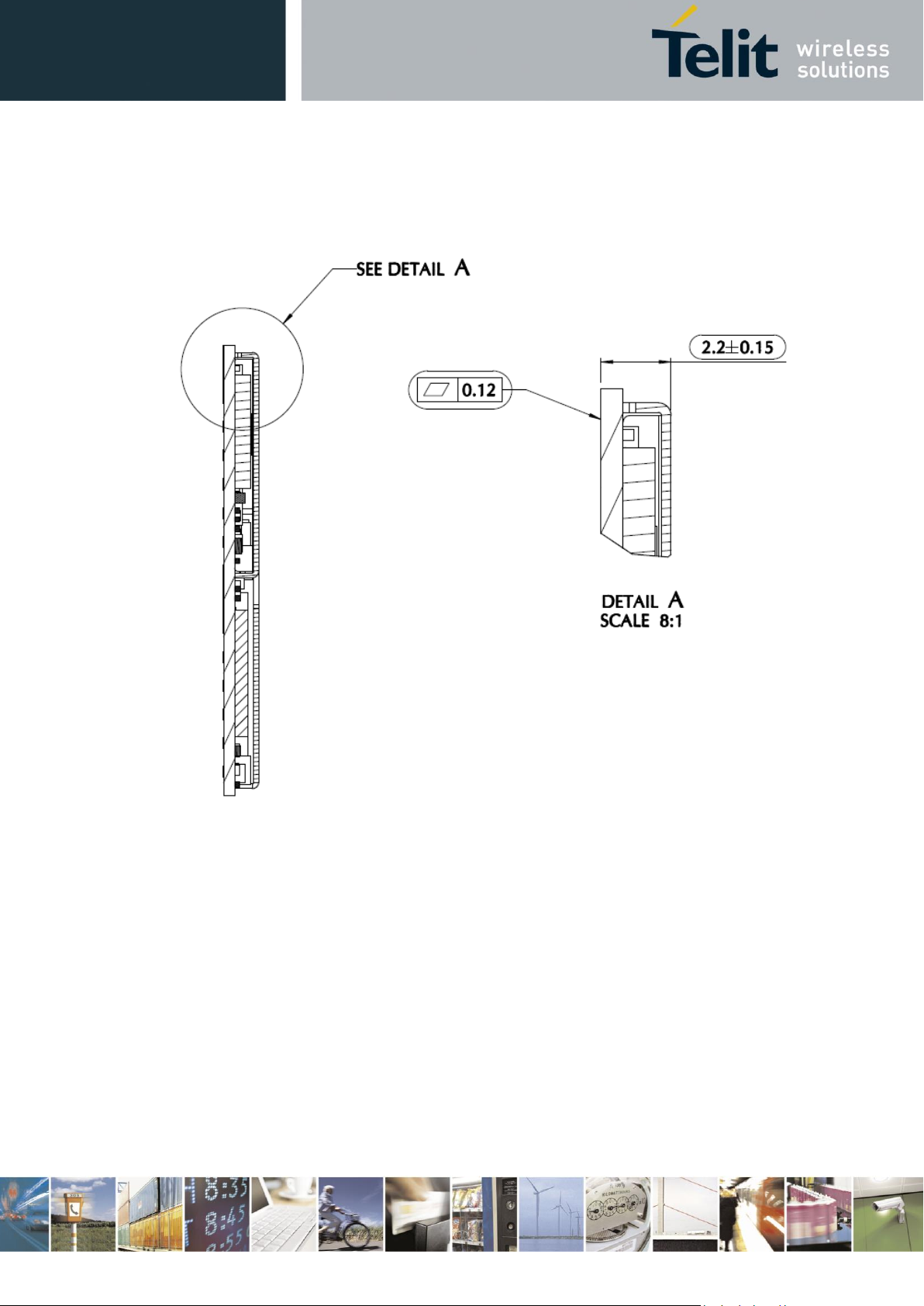

The LE910Cx module’s overall dimensions are:

 Length: 28.2 mm, +/- 0.15 mm Tolerance  Width: 28.2 mm, +/- 0.15 mm Tolerance  Thickness: 2.2 mm, +/- 0.22 mm Tolerance

2.8.2. Weight

The nominal weight of the LE910Cx module is 9.0 gram.

Telit Confidential Information, provided under NDA Page 27 of 114

PAD

Signal

I/O

Function

Type

Comment

USB HS 2.0 Communication Port

B15

USB_D+

I/O

USB differential Data(+)

C15

USB_D-

I/O

USB differential Data(-)

A13

USB_VBUS

Power sense for the internal USB transceiver

Power

2.5V – 5.5V A14

USB_ID

USB ID

See note below

Asynchronous UART

N15

C103/TXD

Serial data input (TXD) from DTE

1.8V

M15

C104/RXD

Serial data output to DTE

1.8V

L14

C105/RTS

Input for Request to send signal (RTS) from DTE

1.8V

P15

C106/CTS

Output for Clear to send signal (CTS) to DTE

1.8V P14

C107/DSR

Output for Data Set Ready (DSR) to DTE

1.8V

Alternate Fn GPIO_32

M14

C108/DTR

Input for Data Terminal Ready (DTR) from DTE

1.8V

Alternate Fn GPIO_34

N14

C109/DCD

Output for Data Carrier Detect (DCD) to DTE

1.8V

Alternate Fn GPIO_33 R14

C125/RING

Output for Ring Indication (RI) to DTE

1.8V

Alternate Fn GPIO_31

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

3. LE910Cx Module Connections

3.1. Pin-out

Table 5: LE910Cx Pin-out

Telit Confidential Information, provided under NDA Page 28 of 114

SPI – Serial Peripheral Interface / AUX UART

F15

SPI_CLK

SPI Clock output

1.8V

E15

SPI_MISO/ RX_AUX

SPI data Master Input Slave output / RX_AUX

1.8V

D15

SPI_MOSI/TX_AUX

SPI data Master Output Slave input/ TX_AUX

1.8V H14

SPI_CS/GPIO11

SPI Chip select output / GPIO11

1.8V

See note below

SD/MMC Card Digital I/O

J12

SD/MMC_CMD

SD Command

1.8/2.95V

F12

SD/MMC_CLK

SD Card Clock

1.8/2.95V

E12

SD/MMC_DATA0

I/O

SD Serial Data 0

1.8/2.95V

G12

SD/MMC_DATA1

I/O

SD Serial Data 1

1.8/2.95V

K12

SD/MMC_DATA2

I/O

SD Serial Data 2

1.8/2.95V

H12

SD/MMC_DATA3

I/O

SD Serial Data 3

1.8/2.95V

G13

SD/MMC_CD

SD card detect input

1.8V

Active Low

F13

VMMC

Power supply for MMC card pull-up resistors

1.8/2.95V

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 29 of 114

WiFi (SDIO) Interface

N13

WiFi_SD_CMD

Wi-Fi SD Command

1.8V

L13

WiFi_SD_CLK

Wi-Fi SD Clock

1.8V

J13

WiFi_SD_DATA0

I/O

Wi-Fi SD Serial Data 0

1.8V

M13

WiFi_SD_DATA1

I/O

Wi-Fi SD Serial Data 1

1.8V

K13

WiFi_SD_DATA2

I/O

Wi-Fi SD Serial Data 2

1.8V

H13

WiFi_SD_DATA3

I/O

Wi-Fi SD Serial Data 3

1.8V

L12

WiFi_SDRST

Wi-Fi Reset / Power enable control

1.8V

Active Low

M11

WLAN_SLEEP_CLK

Wi-Fi Sleep clock output

1.8V

M10

RFCLK2_QCA

Wi-Fi low noise RF clock output

1.8V

LTE-WiFi Coexistence

WCI_TX

Wireless coexistence interface TXD

1.8V

WCI_RX

Wireless coexistence interface RXD

1.8V

SIM Card Interface 1

SIMCLK1

External SIM 1 signal – Clock

1.8/2.85V

SIMRST1

External SIM 1 signal – Reset

1.8/2.85V

SIMIO1

I/O

External SIM 1 signal - Data I/O

1.8/2.85V

Internally PU 20 kΩ to SIMVCC1

SIMIN1

External SIM 1 signal - Presence

1.8V

Active low

SIMVCC1

External SIM 1 signal – Power supply for SIM 1

1.8/2.85V

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 30 of 114

SIM Card Interface 2

SIMCLK2

External SIM 2 signal – Clock

1.8/2.85V

SIMRST2

External SIM 2 signal – Reset

1.8/2.85V

SIMIO2

I/O

External SIM 2 signal – Data I/O

1.8/2.85V

Internally PU 20kΩ to SIMVCC2

SIMIN2

External SIM 2 signal – Presence

1.8V

Active low

SIMVCC2

External SIM 2 signal – Power supply for SIM 2

1.8/2.85V

Digital Voice Interface (DVI)

DVI_WAO

Digital Voice interface (WAO master output)

1.8V

DVI_RX

Digital Voice interface (Rx)

1.8V

DVI_TX

Digital Voice interface (Tx)

1.8V

DVI_CLK

Digital Voice interface (CLK master output)

1.8V

B12

REF_CLK

Reference clock for external Codec

1.8V

See Note below

General Purpose Digital I/O

GPIO_01

I/O

GPIO_01 / STAT_LED

1.8V

Alternate Fn I2C

GPIO_02

I/O

GPIO_02

1.8V

Alternate Fn I2C

C10

GPIO_03

I/O

GPIO_03

1.8V

Alternate Fn I2C

C11

GPIO_04

I/O

GPIO_04

1.8V

Alternate Fn I2C

B14

GPIO_05

I/O

GPIO_05

1.8V

Alternate Fn I2C

C12

GPIO_06

I/O

GPIO_06

1.8V

Alternate Fn I2C

C13

GPIO_07

I/O

GPIO_07

1.8V

Alternate Fn I2C

K15

GPIO_08

I/O

GPIO_08 / SW_RDY

1.8V

Alternate Fn I2C

L15

GPIO_09

I/O

GPIO_09

1.8V

Alternate Fn I2C

G15

GPIO_10

I/O

GPIO_10

1.8V

Alternate Fn I2C

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 31 of 114

RF Section

Antenna

I/O

GSM/EDGE/UMTS/LTE Main antenna (50 Ohm)

RF F1

ANT_DIV

UMTS/LTE antenna diversity input (50 Ohm)

RF GPS Section

ANT_GPS

GPS antenna (50 Ohm)

GPS_LNA_EN

Enables the external regulator for GPS LNA

1.8V

GPS_SYNC

GPS sync signal for Dead Reckoning

1.8V

Miscellaneous Functions

R12

ON_OFF_N

Power ON / Power OFF input

Active low

R13

HW_SHUTDOWN_N

Unconditional Shutdown input

Active low

R11

VAUX/PWRMON

Supply output for external accessories /

Power ON monitor

1.8V

ADC_IN1

Analog/Digital Converter Input 1

Analog

ADC_IN2

Analog/Digital Converter Input 2

Analog

ADC_IN3

Analog/Digital Converter Input 3

Analog

SGMII Interface

SGMII_RX_P

SGMII receive – plus

PHY

SGMII_RX_M

SGMII receive – minus

PHY

SGMII_TX_P

SGMII transmit – plus

PHY

SGMII_TX_M

SGMII transmit - minus

PHY

HSIC Interface

A12

HSIC_DATA

I/O

High-speed inter-chip interface - data

1.2V

A11

HSIC_STB

I/O

High-speed inter-chip interface - strobe

1.2V

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 32 of 114

I2C Interface

B11

I2C_SCL

I/O

I2C clock

1.8V

Internally PU

2.2kΩ to 1.8V

B10

I2C_SDA

I/O

I2C Data

1.8V

Internally PU

2.2kΩ to 1.8V

Power Supply

VBATT

Main Power Supply (Digital Section)

Power

VBATT

Main Power Supply (Digital Section)

Power

VBATT_PA

Main Power Supply (RF Section)

Power

VBATT_PA

Main Power Supply (RF Section)

Power

VBATT_PA

Main Power Supply (RF Section)

Power

VBATT_PA

Main Power Supply (RF Section)

Power

GND

Ground

B13

GND

Ground

GND

Ground

GND

Ground

GND

Ground

E14

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 33 of 114

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

M12

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 34 of 114

GND

Ground

P10

GND

Ground

P13

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

GND

Ground

R10

GND

Ground

Reserved

A10

Reserved

C14

Reserved

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 35 of 114

Reserved

D10

Reserved

D11

Reserved

D12

Reserved

D13

Reserved

D14

Reserved

E13

Reserved

F14

Reserved

G14

Reserved

H15

Reserved

J14

Reserved

J15

Reserved

K14

Reserved

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 36 of 114

Reserved

N10

Reserved

N11

Reserved

N12

Reserved

P11

Reserved

P12

Reserved

Reserved for future use

RFU

Reserved for future use. Not connected internally

Can be tied to GND

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 37 of 114

Caution:

GPIO_09 and WCI_RX are used as special HW flags during boot.

If they are used as GPIOs, they must be connected via a 3-state buffer to avoid any undesirable effect during the boot.

NOTE:

When the UART signals are used as the communication port between the Host and the Modem, RTS must be connected to GND (on the module side) if flow control is not used.

If the UART port is not used, UART signals can be left floating.

NOTE:

Unless otherwise specified, RESERVED pins must be left unconnected (Floating).

NOTE:

The following pins are unique for the LE910Cx and may not be supported on other (former or future) xE910 family. Special care must be taken when designing the application board if future compatibility is required

REF_CLK

SPI_CS

USB_ID

I2C_SCL

I2C_SDA

ADC_IN2

ADC_IN3

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 38 of 114

PAD

Signal

Notes

M1, M2, N1, N2, P1, P2

VBATT &

VBATT_PA

A2, B13, D4, E1, E2, E14, F2, G1, G2, G7, G8, G9, H1, H2, H7, H8, H9, J1, J2, J7, J8, J9, K2, L1, L2, M3, M4, M12, N3, N4, N5, N6, P3, P4, P5, P6, P8, P9, P10, P13, R2, R3, R5, R6, R8, R10

GND

R12

ON/OFF

Main power on off signal

R13

HW_SHUTDOWN_N

Emergency power off

B15

USB_D+

If not used, connect to a Test Point or an USB connector

C15

USB_D-

If not used, connect to a Test Point or an USB connector

A13

USB_VBUS

If not used, connect to a Test Point or an USB connector

N15

C103/TXD

If not used, connect to a Test Point

M15

C104/RXD

If not used, connect to a Test Point

L14

C105/RTS

If flow control is not used, connect to GND

P15

C106/CTS

If not used, connect to a Test Point

D15

TX_AUX

If not used, connect to a Test Point

E15

RX_AUX

If not used, connect to a Test Point

Antenna

MAIN antenna

ANT_DIV

DIV antenna

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

3.2. LE910Cx - Signals That Must Be Connected

Table 6 specifies the LE910Cx signals that must be connected even if not used by end application:

Table 6: Mandatory Signals

Telit Confidential Information, provided under NDA Page 39 of 114

PAD

Signal

Notes

ANT_GPS

GPS antenna

C4, C5, C6, C7, D3, E3, G3, K4, L4, P11

Reserved

Connect to a Test Point for Telit internal use

L15

GPIO_09

If not used, connect to a Test Point

WCI_RX

If not used, connect to a Test Point

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 40 of 114

A B C D E F G H J K L M N P R

1 ADC_IN1 SIMCLK2 SIMRST2 GND ANT_DIV GND GND GND A NT_MAIN GND VBATT VBATT_PA VBATT_PA

2 GND RES SIMIO2 SIMVCC2 GND GND GND GND GND GND GND VBATT VBATT_PA VBATT_PA GND

3 SIMVCC RES RES RES RES RES R ES RES RES RES RE S GND GND GND GND

4 SIMIN RES RES GND SGMII_RX_P SGMII_RX_M SIMIN2 ADC_IN2 RES RES RES GND GND GND RFU

5 SIMIO RES RES SGMII_TX_P RES GND GND GND

6 SIMCLK DVI_RX RES SGMII_TX_M RES GND GND GND

7 SIMRST DVI_TX RES ADC_IN3 GND GND GND RES R ES RES GPS_LNA_EN

8 RES DVI_CLK GPIO_01 RES GND GND GND WCI_TXD_TGPIO24 RES GND GND

9 RES DVI_WA0 GPIO_02 R ES GND GND GND WCI_RXD_TGPIO25 GPS_SYNC GND ANT_GPS

10 RES I2C_SDA GPIO_03 RES RFCLK2_QCA RES GND GND

11 HSIC_STB I2C_SCL GPIO_04 RES WLAN_SLEEP _CLK RES RES VAUX/PWRMON

12 HSIC_DATA REF_CLK GPIO_06 RES MMC_DAT0 MMC_CLK MMC_DAT1 MMC_DAT3 MMC_CMD MMC_DAT2 WIFI_SDRST GND RES R ES ON_OFF*

13 VUSB GND GPIO_07 RES RES VMMC MMC_CD W IFI_SD3 WIFI_SD0 WIFI_SD2 WIFI_SDCLK WIFI_SD1 WIFI_SDCMD GND HW_SHUTDOWN*

14 USB_ID GPIO_05 R ES RES GND RES RES SPI_CS / GPIO_11 RES RES C105/RTS C 108/DTR C109/DCD C107/DSR C125/RING

15 USB_D+ USB_D-

SPI_MOSI

/ TX_AUX

SPI_MISO

/RX_AUX

SPI_CLK GPIO_10 RES RES GPIO_8 GPIO_9 C104/RXD C103/TXD C106/CTS

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

3.3. LGA Pads Layout

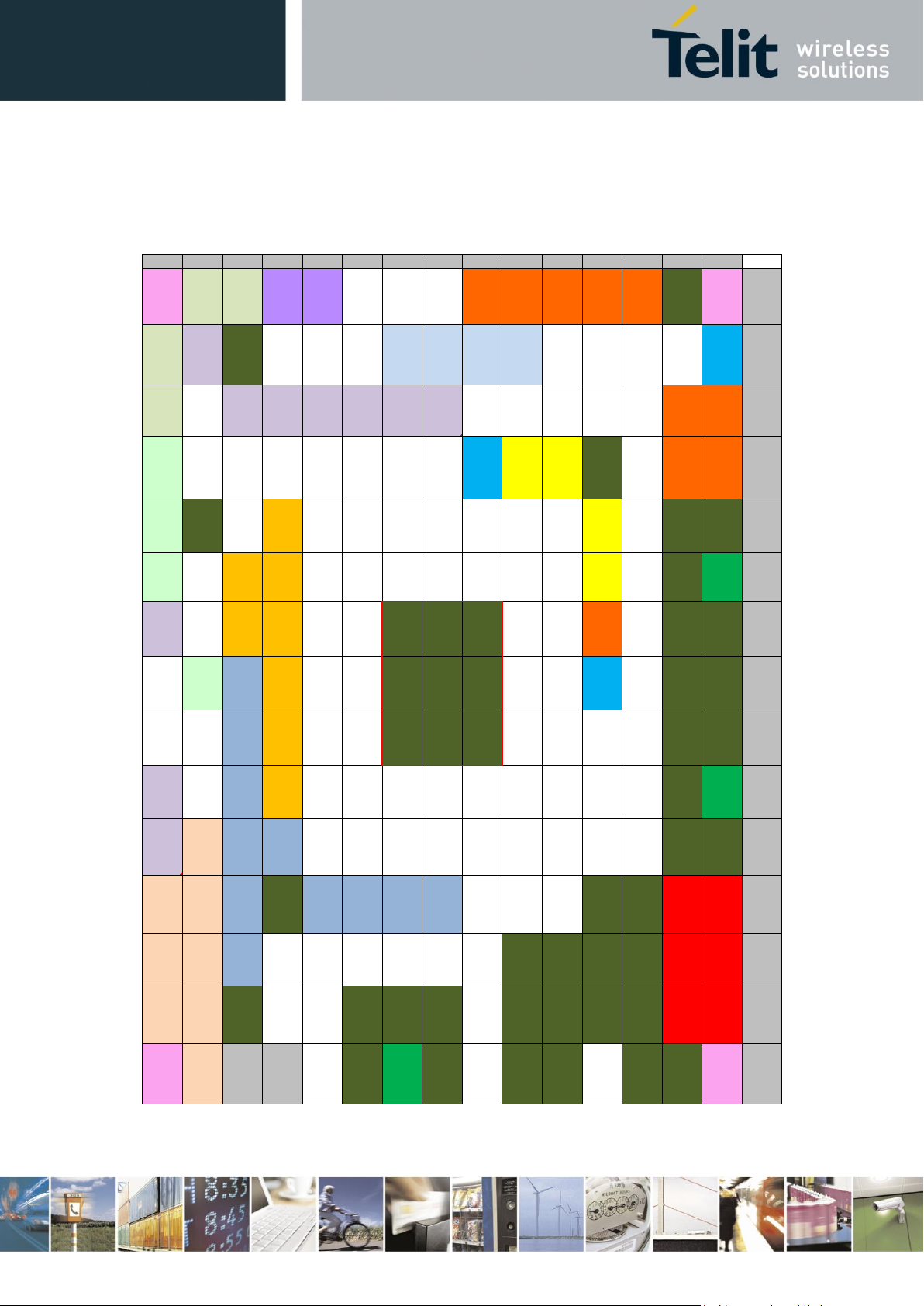

Figure 2: LGA Pads Layout

Telit Confidential Information, provided under NDA Page 41 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

3.4. Backward Compatibility to xE910 Family

The LE910Cx is a new series in the xE910 form factor

The LE910Cx is fully backward compatible to the previous xE910 in terms of:

 Mechanical dimensions  Package and pin-map

To support the extra features and additional interfaces, the LE910Cx introduces more pins compared to the xE910.

The extra pins of the LE910Cx can be considered as optional if not needed and can be left unconnected (floating) if not used.

In this case, the new LE910Cx can be safely mounted on existing carrier boards designed for the previous xE910.

The additional pins of the LE910Cx are shown in Figure 3 (marked as Green)

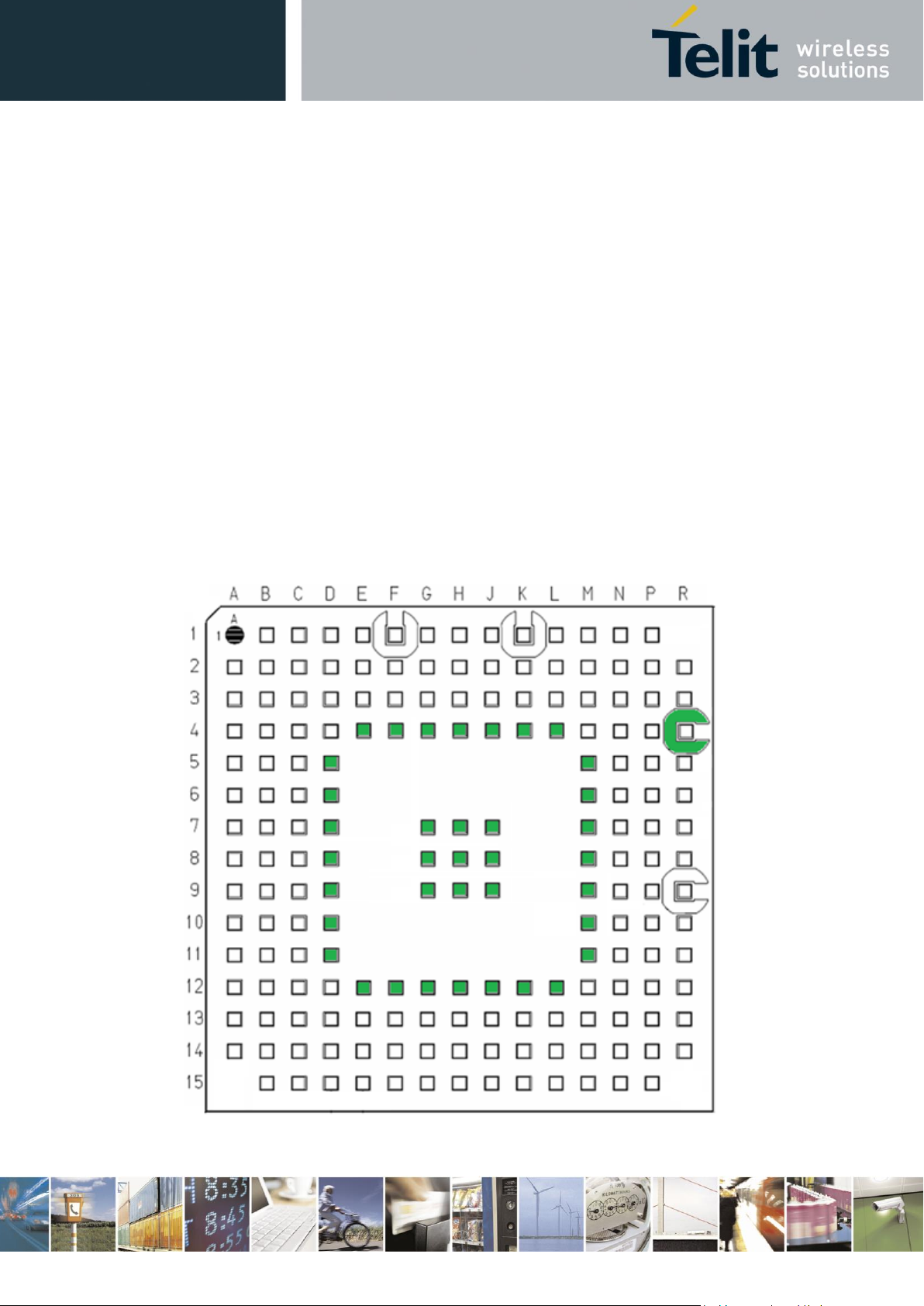

Figure 3: LE910Cx vs. LE910 Pin-out Comparison (top view)

Telit Confidential Information, provided under NDA Page 42 of 114

Symbol

Parameter

Min

Max

Unit

VBATT

Battery supply voltage on pin VBATT

-0.5

+6.0

[V]

VBATT TRANSIENT

Transient voltage on pin VBATT (< 10 ms)

-0.5

+7.0

[V]

VBATT_PA

Battery supply voltage on pin VBATT_PA

-0.3

+6.0

[V]

Symbol

Parameter

Min

Typ

Max

Unit

amb

Ambient temperature

-40

+25

+85

[°C]

VBATT

Battery supply voltage on pin VBATT

3.4

3.8

4.2

[V]

VBATT_PA

Battery supply voltage on pin VBATT_PA

3.4

3.8

4.2

[V]

BATT_PA + IBATT

Peak current to be used to dimension decoupling capacitors on pin VBATT_PA

2000

[mA]

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

4. Electrical Specifications

4.1. Absolute Maximum Ratings – Not Operational

A deviation from the value ranges listed below may harm the LE910Cx module.

Table 7: Absolute Maximum Ratings – Not Operational

4.2. Recommended Operating Conditions

Table 8: Recommended Operating Conditions

Telit Confidential Information, provided under NDA Page 43 of 114

NOTE:

Do not connect LE910Cx’s digital logic signal directly to OEM’s digital logic signal with a level higher than 2.7V for 1.8V CMOS signals.

Parameter

Min

Max

Input level on any digital pin when on

-0.3V

+2.16V

Input voltage on analog pins when on

-0.3V

+2.16 V

Pad

Parameter

Min

Max

Unit

Comment

VIH

Input high level

1.25V

[V] VIL

Input low level

0.6V

[V] VOH

Output high level

1.4V

[V]

VOL

Output low level

0.45V

[V] IIL

Low-level input leakage current

-1

[uA]

No pull-up

IIH

High-level input leakage current

[uA]

No pull-down

RPU

Pull-up resistance

390

[kΩ]

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

4.3. Logic Level Specifications

Unless otherwise specified, all the interface circuits of the LE910Cx are 1.8V CMOS logic.

Only few specific interfaces (such as USIM and SD Card) are capable of dual voltage I/O.

The following tables show the logic level specifications used in the LE910Cx interface circuits. The data specified in the tables below is valid throughout all drive strengths and the entire temperature ranges.

4.3.1. 1.8V Pads - Absolute Maximum Ratings

Table 9: Absolute Maximum Ratings - Not Functional

4.3.2. 1.8V Standard GPIOs

Table 10: Operating Range – Interface Levels (1.8V CMOS)

Telit Confidential Information, provided under NDA Page 44 of 114

Pad

Parameter

Min

Max

Unit

Comment

RPD

Pull-down resistance

390

[kΩ]

Input capacitance

-- 5 [pF]

NOTE:

Pull-Up and Pull-Down resistance of GPIO3, GPIO7 and GPIO8 is different than above mentioned

GPIO3 pull resistance is specified as 10KΩ to 50KΩ

Pad

Parameter

Min

Max

Unit

Comment

VIH

Input high level

1.27V

[V] VIL

Input low level

-0.3V

0.58V

[V] VOH

Output high level

1.4V

[V] VOL

Output low level

0.45V

[V] IIL

Low-level input leakage current

-2 - [uA]

No pull-up

IIH

High-level input leakage current

- 2 [uA]

No pull-down

RPU

Pull-up resistance

100

[kΩ]

RPD

Pull-down resistance

100

[kΩ]

Input capacitance

5 [pF]

Pad

Parameter

Min

Max

Unit

Comment

VIH

Input high level

1.35V

[V] VIL

Input low level

-0.3V

0.43V

[V]

VOH

Output high level

1.35V

1.875V

[V]

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

4.3.3. 1.8V SD Card Pads

Table 11: Operating Range – SD Card Pads Working at 1.8V

4.3.4. 1.8V SIM Card Pads

Table 12: Operating Range – SIM Pads Working at 1.8V

Telit Confidential Information, provided under NDA Page 45 of 114

Pad

Parameter

Min

Max

Unit

Comment

VOL

Output low level

0.4V

[V] IIL

Low-level input leakage current

-2 - [uA]

No pull-up

IIH

High-level input leakage current

- 2 [uA]

No pull-down

RPU

Pull-up resistance

100

[kΩ]

RPD

Pull-down resistance

100

[kΩ]

Input capacitance

5 [pF]

Parameter

Min

Max

Input level on any digital pin when on

-0.3V

+3.6V

Input voltage on analog pins when on

-0.3V

+3.6 V

Pad

Parameter

Min

Max

Unit

Comments

VIH

Input high level

1.9V

3.1V

[V] VIL

Input low level

-0.3V

0.7V

[V] VOH

Output high level

2.1V

3.05V

[V] VOL

Output low level

0.4V

[V]

IIL

Low-level input leakage current

-10 [uA]

No pull-up

IIH

High-level input leakage current

[uA]

No pull-down

RPU

Pull-up resistance

100

[kΩ]

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

4.3.5. Dual Voltage Pads - Absolute Maximum Ratings

Table 13: Absolute Maximum Ratings - Not Functional

4.3.6. SD Card Pads @ 2.95V

Table 14: Operating Range – For SD Card Pads Operating at 2.95V

Telit Confidential Information, provided under NDA Page 46 of 114

Pad

Parameter

Min

Max

Unit

Comments

RPD

Pull-down resistance

100

[kΩ]

Input capacitance

5 [pF]

Pad

Parameter

Min

Max

Unit

Comment

VIH

Input high level

2.1V

3.1V

[V] VIL

Input low level

-0.3V

0.55V

[V] VOH

Output high level

2.25V

3.1V

[V] VOL

Output low level

0.4V

[V] IIL

Low-level input leakage current

-10 [uA]

No pull-up

IIH

High-level input leakage current

[uA]

No pull-down

RPU

Pull-up resistance

100

[kΩ]

RPD

Pull-down resistance

100

[kΩ]

Input capacitance

5 [pF]

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

4.3.7. SIM Card Pads @2.95V

Table 15: Operating Range – For SIM Pads Operating at 2.95V

Telit Confidential Information, provided under NDA Page 47 of 114

NOTE:

Recommended values R2 = 47kΩ, R1 = 10kΩ.

NOTE:

During the Initialization state, AT commands are not available. The DTE host must wait for the Activation state prior to communicating with the LE910Cx.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

5. Hardware Commands

5.1. Turning on the LE910Cx Module

To turn on the LE910Cx module, the ON/OFF# pad must be asserted low for at least 1 second and then released.

The maximum current that can be drained from the ON/OFF # pad is 0.1 mA. This pin is internally pulled up; customers should expect to see ~ 800 mV on the output.

Figure 4 illustrates a simple circuit to power on the module using an inverted buffer output.

Figure 4: Power-on Circuit

5.2. Initialization and Activation State

After turning on the LE910Cx module, the LE910Cx is not yet activated because the SW initialization process of the LE910Cx module is still in process internally. It takes some time to fully complete the HW and SW initialization of the module.

For this reason, it is impossible to access LE910Cx during the Initialization state.

As shown in Figure 5, the LE910Cx becomes operational (in the Activation state) at least 20 seconds after the assertion of ON_OFF.

Telit Confidential Information, provided under NDA Page 48 of 114

NOTE:

SW_RDY signal is available on GPIO_08 (by default GPIO_08 functions as SW_RDY)

NOTE:

To check if the LE910Cx has completely powered on, monitor the SW_RDY signal. When SW_RDY goes high, the module has completely powered on and is ready to accept AT commands.

NOTE:

During SW initialization of the LE910Cx, the SW configures all pads and interfaces to their desired mode. When PWRMON goes high, this indicates that the initialization of all I/O pads is completed.

NOTE:

Do not use any pull-up resistor on the ON/OFF# line as it is internally pulled up. Using a pull-up resistor may cause latch-up problems on the LE910Cx power regulator and improper powering on/off of the module. The ON/OFF# line must be connected only in an open-collector configuration.

NOTE:

Active low signals are labeled with a name that ends with "#" or with “_N”

NOTE:

To avoid a back-powering effect, it is recommended to avoid having any HIGH logic level signal applied to the digital pins of the module when it is powered OFF or during an ON/OFF transition.

1 Sec < T_Hold < 2 Sec

VBATT

ON_OFF

SW_RDY

T_RDY < 20 Sec

V_AUX

PWRMON

18 Sec < T_PWRMON < 20 Sec

OFF State Initialization State Active State

OK to Send AT

commands

All interfaces and pins

configured

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Figure 5: LE910Cx Initialization and Activation

Telit Confidential Information, provided under NDA Page 49 of 114

NOTE:

To check if the device has powered off, monitor the PWRMON hardware line. When PWRMON goes low, this indicates that the device has powered off.

NOTE:

To avoid a back-powering effect, it is recommended to avoid having any HIGH logic level signal applied to the digital pins of the module when it is powered OFF or during an ON/OFF transition.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

5.3. Turning OFF the LE910Cx Module

Turning OFF the device can be done in four different ways:

 AT#SHDN software command  Hardware shutdown using ON/OFF# pad  Hardware Unconditional Shutdown using the HW_SHUTDOWN_N

When the device is shut down by a software command or a hardware shutdown, it issues a detach request to the network, informing the network that the device will not be reachable any more.

5.3.1. Shutdown by Software Command

The LE910Cx module can be shut down by a software command.

When a shutdown command is sent, LE910Cx goes into the Finalization state and at the end of the finalization process shuts down PWRMON.

The duration of the finalization state can differ according to the current situation of the module, so a value cannot be defined.

Usually, it will take more than 15 seconds from sending a shutdown command until reaching a complete shutdown. The DTE should monitor the status of PWRMON to observe the actual poweroff.

Figure 6: Shutdown by Software Command

Telit Confidential Information, provided under NDA Page 50 of 114

NOTE:

To check whether the device has powered OFF, monitor the PWRMON hardware line. When PWRMON goes low, the device has powered OFF.

NOTE:

To check whether the device has powered off, monitor the PWRMON hardware line. When PWRMON goes low, the device has powered off.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

5.3.2. Hardware Shutdown

To turn off LE910Cx module, the ON/OFF# pad must be asserted low for at least 2.5 seconds and then released. Use the same circuitry and timing for power-on.

When the hold time of ON/OFF# is above 2.5 seconds, LE910Cx goes into the Finalization state and in the end shuts down PWRMON.

The duration of the Finalization state can differ according to the current situation of the module, so a value cannot be defined.

Usually, it will take more than 15 seconds from sending a shutdown command until reaching a complete shutdown. DTE should monitor the status of PWRMON to observe the actual power-off.

Figure 7: Hardware Shutdown

Telit Confidential Information, provided under NDA Page 51 of 114

NOTE:

Recommended values R2 = 47kΩ, R1 = 10kΩ.

NOTE:

Do not use any pull-up resistor on the HW_SHUTDOWN_N line or any totem pole digital output. Using a pull-up resistor may cause latch-up problems on the LE910Cx power regulator and improper functioning of the module. The HW_SHUTDOWN_N line must be connected only in an open-collector configuration.

NOTE:

The Unconditional Hardware Shutdown must always be implemented on the boards, but the software must use it only as an emergency exit procedure, and not as a normal power-off operation.

200mS Sec < T_Hold

VBATT

SHDN_N

SW_RDY

T_RDY ~0 Sec

V_AUX

PWRMON

T_PWRMON ~0 Sec

OFF StateActive State

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

5.3.4. Unconditional Hardware Shutdown

To unconditionally shut down the LE910Cx module, the HW_SHUTDOWN_N pad must be tied low for at least 200 milliseconds and then released.

A simple circuit for applying unconditional shutdown is shown below:

Figure 8: Circuit for Unconditional Hardware Shutdown

The system power down timing for using HW_SHUTDOWN_N is shown below

Figure 9 Power down timing using HW_SHUTDOWN_N

Telit Confidential Information, provided under NDA Page 52 of 114

Nominal supply voltage

3.8V

Supply voltage range

3.4V – 4.2V

Max ripple on module input supply

30mV

Mode

Average [Typical]

Mode Description

1) Switched Off

Switched off

25µA

Module is powered but switched Off (RTC On)

2) IDLE Mode (Standby Mode; No Call in Progress)

AT+CFUN=4

1.0mA

Tx and Rx are disabled ; module is not registered on the network (Flight mode)

DRX

GSM

2.0mA

DRx2

1.4mA

DRx5

WCDMA

1.4mA

DRx7

1.2mA

DRx8

LTE

1.8mA

Paging cycle #128 frames (1.28 sec DRx cycle)

1.4mA

Paging cycle #256 frames (2.56 sec DRx cycle)

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

6. Power Supply

The power supply circuitry and board layout are very important parts of the full product design, with critical impact on the overall product performance. Read the following requirements and guidelines carefully to ensure a good and proper design.

6.1. Power Supply Requirements

The LE910Cx power requirements are as follows:

Table 16: Power Supply Requirements

Table 17 provides typical current consumption values of LE910Cx for various operation modes.

Table 17: LE910Cx Current Consumption

Telit Confidential Information, provided under NDA Page 53 of 114

Mode

Average [Typical]

Mode Description

3) Operative Mode (LTE)

LTE (0 dBm)

190mA

LTE CAT 4 channel BW 20 MHz, RB=1, Tx = 0 dBm

(Test case: BAND 1, Channel 300)

LTE (22 dBm)

500mA

LTE CAT 4 channel BW 20 MHz, RB=1, Tx = 22 dBm

(Test case: BAND 1, Channel 300)

4) Operative Mode (WCDMA)

WCDMA Voice

200mA

WCDMA voice call (Tx = 10 dBm)

WCDMA HSDPA (0 dBm)

150mA

WCDMA data call (Cat 14, Tx = 0 dBm, Max throughput)

WCDMA HSDPA (22 dBm)

310mA

WCDMA data call (Cat 14, Tx = 22 dBm, Max throughput)

5) Operative Mode (GSM)

GSM Tx and Rx mode

GSM900 PL5

250mA

GSM voice call DCS1800 PL0

170mA

GPRS 4 Tx + 1 Rx

GSM900 PL5

430mA

GPRS Sending Data mode (CS-4) DCS1800 PL0

340mA

NOTE:

The electrical design for the power supply must ensure a peak current output of at least 2A.

NOTE:

In GSM/GPRS mode, RF transmission is not continuous, but is packed into bursts at a base frequency of about 216 Hz with relative current peaks as high as about 2A. Therefore, the power supply must be designed to withstand these current peaks without big voltage drops. This means that both the electrical design and the board layout must be designed for this current flow.

If the layout of the PCB is not well designed, a strong noise floor is generated on the ground. This will reflect on all the audio paths producing an audible annoying noise at 216 Hz.

If the voltage drops during the peaks, current absorption is too high. The device may even shut down as a consequence of the supply voltage drop.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

* Worst/best case current values depend on network configuration - not under module control.

Telit Confidential Information, provided under NDA Page 54 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

6.2. General Design Rules

The principal guidelines for the Power Supply Design embrace three different design steps:

 Electrical design  Thermal design  PCB layout

6.2.1. Electrical Design Guidelines

The electrical design of the power supply depends strongly on the power source where this power is drained. Power sources can be distinguished by three categories:

 +5V input (typically PC internal regulator output)  +12V input  Battery

6.2.1.1. + 5V Input Source Power Supply – Design Guidelines

 The desired output for the power supply is 3.8V. So, the difference between the input

source and the desired output is not big, and therefore a linear regulator can be used. A switching power supply is preferred to reduce power consumption.

 When using a linear regulator, a proper heat sink must be provided to dissipate the power

generated.

 A bypass low ESR capacitor of adequate capacity must be provided to cut the current

absorption peaks close to the LE910Cx module. A 100 μF tantalum capacitor is usually suitable (on both VBATT and VBATT_PA together).

 Make sure that the low ESR capacitor on the power supply output (usually a tantalum one)

is rated at least 10V.

 A protection diode must be inserted close to the power input to protect the LE910Cx

module from power polarity inversion.

Telit Confidential Information, provided under NDA Page 55 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Figure 10 shows an example of linear regulator with 5V input.

Figure 10: Example of Linear Regulator with 5V Input

6.2.1.2. + 12V Input Source Power Supply – Design Guidelines

 The desired output for the power supply is 3.8V. Due to the big difference between the

input source and the desired output, a linear regulator is unsuitable and must not be used. A switching power supply is preferable because of its better efficiency, especially with the 2A peak current load which is expected during GSM Tx.

 When using a switching regulator, a 500-kHz or higher switching frequency regulator is

preferable because of its smaller inductor size and its faster transient response. This allows the regulator to respond quickly to the current peaks absorption.

 In any case, the selection of the frequency and switching design is related to the application

to be developed due to the fact that the switching frequency can also generate EMC interference.

 For car batteries (lead-acid accumulators) the input voltage can rise up to 15.8V. This must

be kept in mind when choosing components: all components in the power supply must withstand this voltage.

 A bypass low ESR capacitor of adequate capacity must be provided to cut the current

absorption peaks. A 100μF tantalum capacitor is usually suitable (on both VBATT and VBATT_PA together).

 Make sure that the low ESR capacitor on the power supply output (usually a tantalum one)

is rated at least 10V.

 For automotive applications, a spike protection diode must be inserted close to the power

input to clean the supply of spikes.

 A protection diode must be inserted close to the power input to protect the LE910Cx

module from power polarity inversion. This can be the same diode as for spike protection.

Telit Confidential Information, provided under NDA Page 56 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Figure 11 and Figure 12 show an example of switching regulator with 12V input.

Figure 11: Example of Switching Regulator with 12V Input – Part 1

Figure 12: Example of Switching Regulator with 12V Input – Part 2

Telit Confidential Information, provided under NDA Page 57 of 114

NOTE:

Do not use any Ni-Cd, Ni-MH, and Pb battery types directly connected to the LE910Cx module. Their use can lead to overvoltage on the LE910Cx and damage it. Use only Li-Ion battery types.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

6.2.1.3. Battery Source Power Supply – Design Guidelines

 The desired nominal output for the power supply is 3.8V, and the maximum allowed

voltage is 4.2V. Hence, a single 3.7V Li-Ion cell battery type is suitable for supplying the power to the LE910Cx module.

 A bypass low ESR capacitor of adequate capacity must be provided to cut the current

absorption peaks; a 100μF tantalum capacitor is usually suitable (on both VBATT and VBATT_PA together).

 Make sure that the low ESR capacitor (usually a tantalum one) is rated at least 10V.  A protection diode must be inserted close to the power input to protect the LE910Cx

module from power polarity inversion. Otherwise, the battery connector must be done in a way to avoid polarity inversions when connecting the battery.

 The battery capacity must be at least 900 mAh to withstand the current peaks of 2A.

Telit Confidential Information, provided under NDA Page 58 of 114

NOTE:

The average consumption during transmission depends on the power level at which the device is requested to transmit via the network. Therefore, the average current consumption varies significantly.

NOTE:

The thermal design for the power supply must be made keeping an average consumption at the max transmitting level during calls of (LTE/HSPA)/GPRS plus average consumption in GPS Tracking mode.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

6.2.2. Thermal Design Guidelines

The thermal design for the power supply heat sink must be done with the following specifications:

 Average current consumption during RF transmission @PWR level max in LE910Cx as

shown in Table 17

 Average current consumption during Class12 GPRS transmission @PWR level max as shown

in Table 17

 Average GPS current during GPS ON (Power Saving disabled) : mA (TBD)

Considering the very low current during Idle, especially if the Power Saving function is enabled, it is possible to consider from the thermal point of view that the device absorbs significant current only during an Active Call or Data session.

For the heat generated by the LE910Cx module, consider it to be 2W max during transmission at Class12 GPRS upload. The generated heat is mostly conducted to the ground plane under the LE910Cx module. Ensure that your application can dissipate heat.

In LTE/WCDMA/HSPA mode, the LE910Cx emits RF signals continuously during transmission. Therefore, you must pay special attention how to dissipate the heat generated.

Application board design needs to make sure the area under the LE910Cx module is as large as possible. Make sure that the LE910Cx is mounted on the large ground area of application board and provide many ground vias to dissipate the heat.

Even though peak current consumption in GSM mode is higher than in LTE/WCDMA/HSPA, considerations for the heat sink are more important in the case of WCDMA due to the continuous transmission conditions.

Telit Confidential Information, provided under NDA Page 59 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

6.2.3. Power Supply PCB Layout Guidelines

As seen in the electrical design guidelines, the power supply must have a low ESR capacitor on the output to cut the current peaks and a protection diode on the input to protect the supply from spikes and polarity inversion. The placement of these components is crucial for the correct operation of the circuitry. A misplaced component can be useless or can even decrease the power supply performances.

 The bypass low ESR capacitor must be placed close to the LE910Cx power input pads, or if

the power supply is of a switching type, it can be placed close to the inductor to cut the ripple, as long as the PCB trace from the capacitor to LE910Cx is wide enough to ensure a drop-less connection even during the 2A current peaks.

 The protection diode must be placed close to the input connector where the power source

is drained.

 The PCB traces from the input connector to the power regulator IC must be wide enough

to ensure that no voltage drops occur during the 2A current peaks.

Note that this is not done to save power loss but especially to avoid the voltage drops on the power line at the current peaks frequency of 216 Hz that will reflect on all the components connected to that supply (also introducing the noise floor at the burst base frequency.)

For this reason while a voltage drop of 300-400 mV may be acceptable from the power loss point of view, the same voltage drop may not be acceptable from the noise point of view. If your application does not have an audio interface but only uses the data feature of the LE910Cx, this noise is not so disturbing, and the power supply layout design can be more forgiving.

 The PCB traces to LE910Cx and the bypass capacitor must be wide enough to ensure that

no significant voltage drops occur when the 2A current peaks are absorbed. This is needed for the same above-mentioned reasons. Try to keep these traces as short as possible.

 The PCB traces connecting the switching output to the inductor and the switching diode

must be kept as short as possible by placing the inductor and the diode very close to the power switching IC (only for the switching power supply). This is done to reduce the radiated field (noise) at the switching frequency (usually 100-500 kHz).

 Use a good common ground plane.  Place the power supply on the board in a way to guarantee that the high current return

paths in the ground plane do not overlap any noise sensitive circuitry, such as the microphone amplifier/buffer or earphone amplifier.

 The power supply input cables must be kept separate from noise sensitive lines, such as

microphone/earphone cables.

Telit Confidential Information, provided under NDA Page 60 of 114

Frequency range

The customer must use the most suitable antenna band width for covering the frequency bands provided by the network operator and also supported by the car OEM while using the Telit module.

The bands supported by each variant of the LE910Cx module family are provided in Section 2.6.1, RF Bands per Regional Variant.

Gain

Gain < 3 dBi

Impedance

50 Ohm

Input power

> 33 dBm(2 W) peak power in GSM

> 24 dBm average power in WCDMA & LTE

VSWR absolute max

<= 10:1

VSWR recommended

<= 2:1

Characteristic impedance

50 Ohm

Max attenuation

0.3 dB

Avoid coupling with other signals.

Cold End (Ground Plane) of the antenna must be equipotential to the LE910Cx ground pads.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

7. Antenna(s)

Antenna connection and board layout design are the most important parts in the full product design, and they have a strong influence on the product’s overall performance. Read carefully and follow the requirements and guidelines for a good and proper design.

7.1. GSM/WCDMA/LTE Antenna Requirements

The antenna for the LE910Cx device must meet the following requirements:

Table 18: GSM / WCDMA/ LTE Antenna Requirements

Since there is no antenna connector on the LE910Cx module, the antenna must be connected to the LE910Cx antenna pad (K1) by a transmission line implemented on the PCB.

If the antenna is not directly connected to the antenna pad of the LE910Cx, a PCB line is required to connect to it or to its connector.

This transmission line must meet the following requirements:

Table 19: Antenna Line on PCB Requirements

Telit Confidential Information, provided under NDA Page 61 of 114

NOTE:

This device is to be used only for mobile and fixed application. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. OEM integrators must ensure that the end user has no manual instructions to remove or install the LE910Cx module. Antennas used for this OEM module must not exceed 3dBi gain for mobile and fixed operating configurations.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Furthermore, if the device is developed for the US and/or Canada market, it must comply with the FCC and/or IC approval requirements.

7.2. GSM/WCDMA/LTE Antenna – PCB Line Guidelines

 Make sure that the transmission line’s characteristic impedance is 50 Ohm.  Keep the line on the PCB as short as possible since the antenna line loss should be less than

around 0.3 dB.

 Line geometry should have uniform characteristics, constant cross sections, and avoid

meanders and abrupt curves.

 Any suitable geometry/structure can be used for implementing the printed transmission

line affecting the antenna.

 If a ground plane is required in the line geometry, this plane must be continuous and

sufficiently extended so the geometry can be as similar as possible to the related canonical model.

 Keep, if possible, at least one layer of the PCB used only for the ground plane. If possible,

use this layer as reference ground plane for the transmission line.

 Surround the PCB transmission line with ground (on both sides). Avoid having other signal

tracks facing the antenna line track directly.

 Avoid crossing any un-shielded transmission line footprint with other tracks on different

layers.

 The ground surrounding the antenna line on the PCB must be strictly connected to the main

Ground plane by means of via-holes (once per 2 mm at least) placed close to the ground edges facing the line track.

 Place EM-noisy devices as far as possible from LE910Cx antenna line.  Keep the antenna line far away from the LE910Cx power supply lines.  If EM-noisy devices are present on the PCB hosting the LE910Cx, such as fast switching ICs,

Telit Confidential Information, provided under NDA Page 62 of 114

take care to shield them with a metal frame cover.

Frequency range

The customer must use the most suitable antenna band width for covering the frequency bands provided by the network operator and also supported by the car OEM while using the Telit module.

The bands supported by each variant of the LE910Cx module family are provided in Section 2.6.1, RF Bands per Regional Variant

Impedance

50Ω

VSWR recommended

≤ 2:1

NOTE:

If Rx Diversity is not used/connected, disable the Diversity functionality using the AT#RXDIV command (refer to the AT User guide) and leave the Diversity pad F1 unconnected.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

 If EM-noisy devices are not present around the line, geometries like Micro strip or

Grounded Coplanar Waveguide are preferred because they typically ensure less attenuation compared to a Strip line having the same length.

7.3. GSM/WCDMA/LTE Antenna – Installation Guidelines

 Install the antenna in a location with access to the network radio signal.  The antenna must be installed such that it provides a separation distance of at least 20 cm

from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

 The antenna must not be installed inside metal cases.  The antenna must be installed according to the antenna manufacturer’s instructions.

7.4. Antenna Diversity Requirements

This product includes an input for a second Rx antenna to improve radio sensitivity. The function is called Antenna Diversity.

Table 20: Antenna Diversity Requirements

Since there is no antenna connector on the LE910Cx module, the antenna must be connected to the LE910Cx diversity antenna pad (F1) by means of a transmission line implemented on the PCB.

If the antenna is not directly connected at the antenna pad of the LE910Cx, a PCB line is required to connect to it or to its connector.

The second Rx antenna must not be located in close vicinity of the main antenna. To improve diversity gain and isolation and to reduce mutual interaction, the two antennas should be located at the maximum reciprocal distance possible, taking into consideration the available space within the application.

Telit Confidential Information, provided under NDA Page 63 of 114

NOTE:

The external GNSS pre-filter is required for the GLONASS application.

The GNSS pre-filter must meet the following requirements:

Source and load impedance = 50 Ohm

 Insertion loss (1575.42–1576.42 MHz) = 1.4 dB (Max)  Insertion loss (1565.42–1585.42 MHz) = 2.0 dB (Max)  Insertion loss (1597.5515–1605.886 MHz) = 2.0 dB (Max)

NOTE:

It is recommended to add a DC block to the customer’s GPS application to prevent damage to the

LE910Cx module due to unwanted DC voltage.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

7.5. GNSS Antenna Requirements

LE910Cx supports an active antenna.

It is recommended to use antennas as follow:

 An external active antenna (GPS only)  An external active antenna plus GNSS pre-filter

7.5.1. Combined GNSS Antenna

The use of a combined RF/GNSS antenna is NOT recommended. This solution can generate an extremely poor GNSS reception. In addition, the combination of antennas requires an additional diplexer, which adds significant power loss in the RF path.

7.5.2. Linear and Patch GNSS Antenna

Using this type of antenna introduces at least 3 dB of loss compared to a circularly polarized (CP) antenna. Having a spherical gain response instead of a hemispherical gain response can aggravate the multipath behavior and create poor position accuracy.

7.5.3. Front End Design Considerations

Since there is no antenna connector on the LE910Cx module, the antenna must be connected to the LE910Cx through the PCB to the antenna pad.

If the antenna is not directly connected at the antenna pad of the LE910Cx, a PCB line is required.

This line of transmission must meet the following requirements:

Telit Confidential Information, provided under NDA Page 64 of 114

Characteristic impedance

50 Ohm

Max attenuation

0.3 dB

Avoid coupling with other signals.

Cold End (Ground Plane) of the antenna must be equipotential to the LE910Cx ground pads.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Table 21: Antenna Line on PCB Requirements

Furthermore, if the device is developed for the US and/or Canada market, it must comply with the FCC and/or IC requirements.

This device is to be used only for mobile and fixed application.

7.5.4. GNSS Antenna – PCB Line Guidelines

 Ensure that the antenna line impedance is 50 Ohm.  Keep the line on the PCB as short as possible to reduce the loss.  The antenna line must have uniform characteristics, constant cross section, avoiding

meanders and abrupt curves.

 Keep one layer of the PCB used only for the Ground plane; if possible.  Surround (on the sides, over and under) the antenna line on the PCB with Ground. Avoid

having other signal tracks directly facing the antenna line track.

 The Ground around the antenna line on the PCB must be strictly connected to the main

Ground plane by placing vias at least once per 2mm.

 Place EM-noisy devices as far as possible from LE910Cx antenna line.  Keep the antenna line far away from the LE910Cx power supply lines.  If EM-noisy devices are around the PCB hosting the LE910Cx, such as fast switching ICs,

ensure shielding the antenna line by burying it inside the layers of PCB and surrounding it with Ground planes; or shield it with a metal frame cover.

 If you do not have EM-noisy devices around the PCB of LE910Cx, use a Micro strip line on

the surface copper layer for the antenna line. The line attenuation will be lower than a buried one.

Telit Confidential Information, provided under NDA Page 65 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

7.5.5. GNSS Antenna – Installation Guidelines

 The LE910Cx, due to its sensitivity characteristics, is capable of performing a fix inside

buildings. (In any case, the sensitivity could be affected by the building characteristics i.e. shielding.)

 The antenna must not be co-located or operating in conjunction with any other antenna or

transmitter.

 The antenna must not be installed inside metal cases.  The antenna must be installed according to the antenna manufacturer’s instructions.

Telit Confidential Information, provided under NDA Page 66 of 114

Interface

LE910Cx

SGMII

For Ethernet support

HSIC

SD/MMC

x1 dual voltage interface for supporting SD/MMC card

SDIO

For WIFI support (1.8V only)

USB

USB2.0, OTG support

SPI

Master only, up to 50 MHz

I2C

For sensors, audio control

UART

2 HS-UART (up to 4 Mbps)

Audio I/F

I2S/PCM, Analog I/O

GPIO

10 ~ 27 (10 dedicated + 17 multiplexed with other signals)

USIM

x2, dual voltage each (1.8V/2.85V)

ADC

Up to x3

Antenna ports

2 for Cellular, 1 for GNSS

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

8. Hardware Interfaces

Table 22 summarizes all the hardware interfaces of the LE910Cx module.

Table 22: LE910Cx Hardware Interfaces

Telit Confidential Information, provided under NDA Page 67 of 114

NOTE:

The USB_D+ and USB_D- signals have a clock rate of 480 MHz. The signal traces must be routed carefully. Minimize trace lengths, number of vias, and capacitive loading. The impedance value should be as close as possible to 90 Ohms differential.

Signal

Pad No

Usage

USB_VBUS

A13

Power and cable detection for the internal USB transceiver.

Acceptable input voltage range 2.5V – 5.5V @ max 5 mA consumption

USB_D-

C15

Minus (-) line of the differential, bi-directional USB signal to/from the peripheral device

USB_D+

B15

Plus (+) line of the differential, bi-directional USB signal to/from the peripheral device

USB_ID

A14

Used for USB OTG in order to determine host or client mode

NOTE:

USB_VBUS input power is internally used to detect the USB port and start the enumeration process. It is not used for supplying power to the internal LE910Cx USB HW block. Therefore, only a maximum of 5 mA is required.

NOTE:

Even if USB communication is not used, it is still highly recommended to place an optional USB connector on the application board.

At least test points of the USB signals are required since the USB physical communication is needed in the case of SW update.

NOTE

An external 5V power supply is required on the application board for supporting USB OTG

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

8.1. USB Port

The LE910Cx module includes a Universal Serial Bus (USB) transceiver, which operates at USB highspeed (480 Mbits/sec). It can also operate with USB full-speed hosts (12 Mbits/sec).

It is compliant with the USB 2.0 specification and can be used for control and data transfers as well as for diagnostic monitoring and firmware update.

The USB port is typically the main interface between the LE910Cx module and OEM hardware.

Table 23 lists the USB interface signals.

Table 23: USB Interface Signals

Telit Confidential Information, provided under NDA Page 68 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

8.2. HSIC Interface

The application processor exposes a High-Speed Inter-Chip (HSIC). HSIC eliminates the analog transceiver from a USB interface for lower voltage operation and reduced power dissipation.

 High-speed 480 Mbps (240 MHz DDR) USB transfers are 100% host driver compatible with

traditional USB cable connected topologies

 Bidirectional data strobe signal (STROBE)  Bidirectional data signal (DATA)  No power consumption unless a transfer is in progress

Further details will be provided in a future release of this document.

8.3. SGMII Interface (optional)

The SOC optionally includes an integrated Ethernet MAC with an SGMII interface, having the following key features:

 The SGMII interface can be used connect to an external Ethernet PHY, or an external switch.  When enabled, an additional network interface will be available to the Linux kernel’s

router.

Further details will be provided in a future release of this document.

8.4. Serial Ports

The serial port is typically a secondary interface between the LE910Cx module and OEM hardware. Two serial ports are available on the module:

 MODEM SERIAL PORT 1(Main)  MODEM SERIAL PORT 2 (Auxiliary)

Several configurations can be designed for the serial port on the OEM hardware. The most common are:

 RS232 PC com port  Microcontroller UART @ 1.8V (Universal Asynchronous Receive Transmit)  Microcontroller UART @ 3.3V/5V or other voltages different from 1.8V

Depending on the type of serial port on the OEM hardware, a level translator circuit may be needed to make the system operate. The only configuration that does not need level translation is the 1.8V UART.

The levels for LE910Cx UART are the CMOS levels as described in Section 4.3, Logic Level

Specifications.

Telit Confidential Information, provided under NDA Page 69 of 114

RS232

Pin No.

Signal

LE910Cx

Pad No.

Name

Usage

DCD DCD_UART

N14

Data Carrier Detect

Output from the LE910Cx that indicates carrier presence

RXD TX_UART

M15

Transmit line *see Note

Output transmit line of the LE910Cx UART

TXD RX_UART

N15

Receive line *see Note

Input receive line of the LE910Cx UART

DTR DTR_UART

M14

Data Terminal Ready

Input to LE910Cx that controls the DTE READY condition

GND

A2, B13, D4…

Ground

DSR DSR_UART

P14

Data Set Ready

Output from the LE910Cx that indicates that the module is ready

RTS RTS_UART

L14

Request to Send

Input to LE910Cx controlling the Hardware flow control

CTS CTS_UART

P15

Clear to Send

Output from LE910Cx controlling the Hardware flow control

RI - RI_UART

R14

Ring Indicator

Output from LE910Cx indicating the Incoming call condition

NOTE:

DCD, DTR, DSR, RI signals that are not used for UART functions can be configured as GPIO using AT commands.

NOTE:

To avoid a back-powering effect, it is recommended to avoid having any HIGH logic level signal applied to the digital pins of the module when it is powered OFF or during an ON/OFF transition.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

8.4.1. Modem Serial Port 1 Signals

Serial Port 1 on LE910Cx is a +1.8V UART with 7 RS232 signals. It differs from the PC-RS232 in signal polarity (RS232 is reversed) and levels.

Table 24 lists the signals of LE910Cx Serial Port 1.

Table 24: Modem Serial Port 1 Signals

Telit Confidential Information, provided under NDA Page 70 of 114

NOTE:

For minimum implementations, only the TXD and RXD lines need be connected. The other lines can be left open provided a software flow control is implemented.

NOTE:

According to V.24, Rx/Tx signal names refer to the application side; therefore, on the LE910Cx side, these signal are in the opposite direction: TXD on the application side will be connected to the receive line (here named TXD/ RX_UART) of the LE910Cx serial port and vice versa for Rx.

PAD

Signal

I/O

Function

Type

COMMENT

D15

TX_AUX

Auxiliary UART (Tx Data to DTE)

1.8V

Shared with SPI_MOSI

E15

RX_AUX

Auxiliary UART (Rx Data to DTE)

1.8V

Shared with SPI_MISO

NOTE:

To avoid a back-powering effect, it is recommended to avoid having any HIGH logic level signal applied to the digital pins of the module when it is powered OFF or during an ON/OFF transition.

NOTE:

The Auxiliary UART is used as the SW main debug console. It is required to place test points on this interface even if not used.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

8.4.2. Modem Serial Port 2

Serial Port 2 on the LE910Cx is a +1.8V UART with RX and TX signals only.

The UART functionality is shared with SPI thus simultaneous of SPI and UART is not supported.

The below table lists the signals of LE910Cx Serial Port 2.

Table 25 Modem Serial Port 2 Signals

Telit Confidential Information, provided under NDA Page 71 of 114

NOTE:

The digital input lines operating at 1.8V CMOS have an absolute maximum input voltage of 2.7V. Therefore, the level translator IC must not be powered by the +3.8V supply of the module. Instead, it must be powered from a dedicated +1.8V power supply.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

8.4.3. RS232 Level Translation

To interface the LE910Cx with a PC com port or a RS232 (EIA/TIA-232) application, a level translator is required. This level translator must:

 Invert the electrical signal in both directions  Change the level from 0/1.8V to +15/-15V

The RS232 UART 16450, 16550, 16650 & 16750 chipsets accept signals with lower levels on the RS232 side (EIA/TIA-562), allowing a lower voltage-multiplying ratio on the level translator. Note that the negative signal voltage must be less than 0V and hence some sort of level translation is always required.

The simplest way to translate the levels and invert the signal is by using a single chip-level translator. There are a multitude of them, differing in the number of drivers and receivers and in the levels (be sure to get a true RS232 level translator, not a RS485 or other standards).

By convention, the driver is the level translator from the 0-1.8V UART to the RS232 level. The receiver is the translator from the RS232 level to 0-1.8V UART.

To translate the whole set of control lines of the UART, the following is required:

 2 drivers  2 receivers

An example of RS232 level adaption circuitry could use a MAXIM transceiver (MAX218).

In this case, the chipset is capable of translating directly from 1.8V to the RS232 levels (Example on 4 signals only).

Figure 13: RS232 Level Adaption Circuitry Example

Telit Confidential Information, provided under NDA Page 72 of 114

NOTE:

In this case, the length of the lines on the application must be taken into account to avoid problems in the case of High-speed rates on RS232.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

The RS232 serial port lines are usually connected to a DB9 connector as shown in Figure 14. Signal names and directions are named and defined from the DTE point of view.

Figure 14: RS232 Serial Port Lines Connection Layout

Telit Confidential Information, provided under NDA Page 73 of 114

NOTE:

SPI is supported only on the Linux side.

The LE910Cx module supports Master mode only and cannot be configured as Slave mode.

NOTE:

Simultaneous / Concurrent usage of AUX UART and SPI is not supported.

PAD

Signal

I/O

Function

Type

Comment

F15

SPI_CLK

SPI clock output

1.8V

E15

SPI_MISO

SPI data Master input Slave output

1.8V

Shared with RX_AUX

D15

SPI_MOSI

SPI data Master output Slave input

1.8V

Shared with TX_AUX

H14

SPI_CS/GPIO11

SPI chip-select output

1.8V

LE910Cx

SPI_CS

SPI_CLK

SPI_MO

SPI_MISO

Host (Slave)

SPI_CS

SPI_CLK

SPI_MOSI

SPI_MISO

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

8.5. Peripheral Ports

In addition to the LE910Cx serial ports, the LE910Cx supports the following peripheral ports:

 SPI – Serial Peripheral Interface  I2C - Inter-integrated circuit  SD/MMC Card Interface  SDIO Interface

8.5.1. SPI – Serial Peripheral Interface

The LE910Cx SPI supports the following:

 Master Mode only  1.8V CMOS level  Up to 50 MHz clock rate

Table 26: SPI Signals

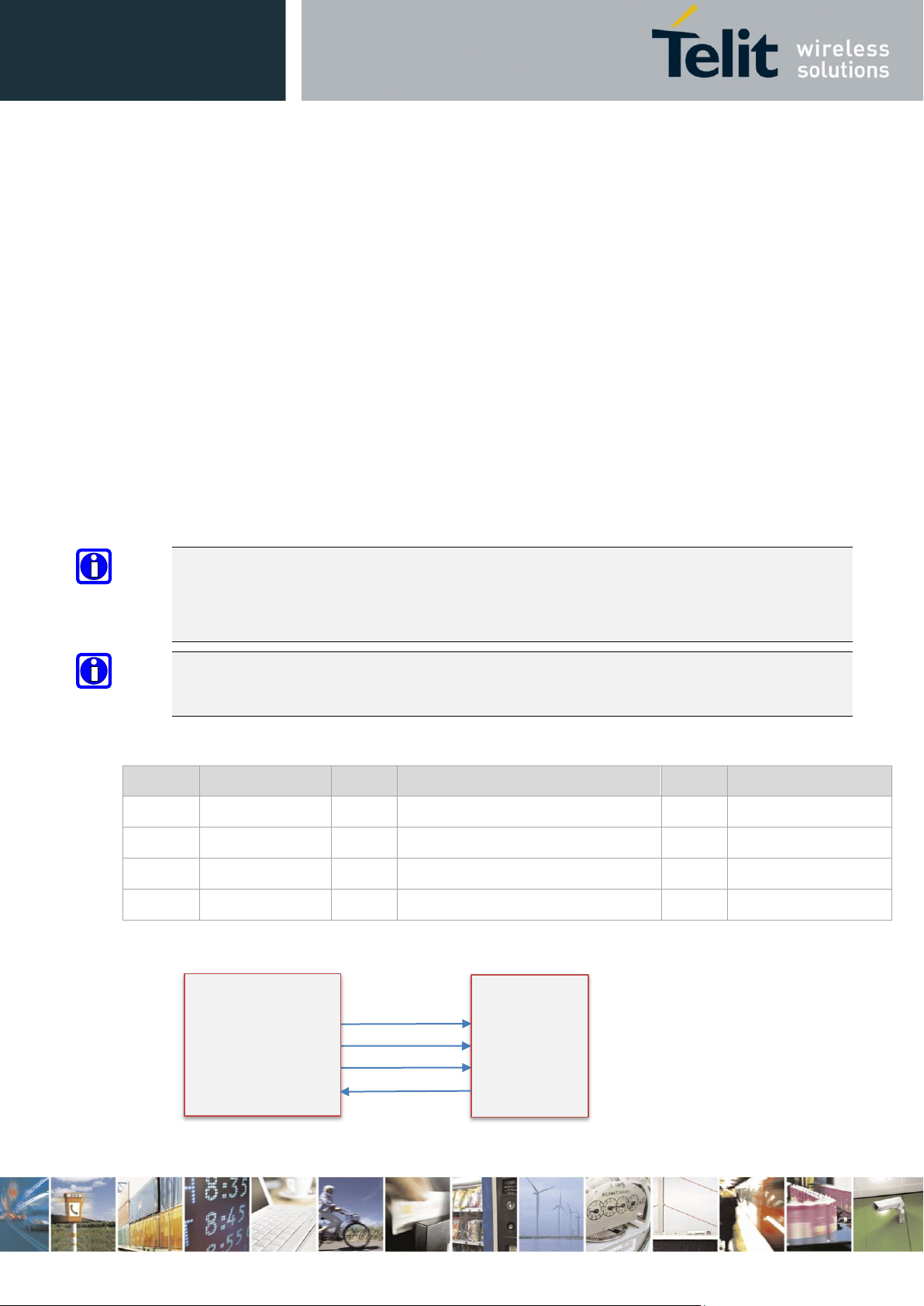

Figure 15: SPI Signal Connectivity

Telit Confidential Information, provided under NDA Page 74 of 114

NOTE:

SW emulated I2C on GPIO lines is supported only from the Modem side.

For more information, refer to the LE910Cx AT SW manual for command settings. PAD

Signal

I/O

Function

Type

Comments

J12

SD/MMC_CMD

SD command

1.8/2.95V

F12

SD/MMC_CLK

SD card clock

1.8/2.95V

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

8.5.2. I2C - Inter-integrated Circuit

The LE910Cx supports an I2C interface on the following pins:

 B11 - I2C_SCL  B10 - I2C_SDA

The I2C can also be used externally by the end customer application.

In addition, SW emulated I2C functionality can be used on GPIO 1-10 pins.

Any GPIO (among GPIO 1-10) can be configured as SCL or SDA.

LE910Cx supports I2C Master Mode only.

8.5.3. SD/MMC Card Interface

The LE910Cx provides an SD port supporting the SD3.0 specification, which can be used to support standard SD/MMC memory cards with the following features:

 Interface with SD/MMC memory cards up to 2 TB  Max clock @ 2.95V - 50 MHz SDR  Max Data: 25 MB/s  SD standard: HS-SDR25 at 2.95V  Max clock @ 1.8V - 200 MHz SDR  Max Data: 100 MB/s  SD standard: UHS-SDR104 at 1.8 V  Max clock @ 1.8V - 50 MHz DDR  Max Data: 50 MB/s  SD standard: UHS-DDR50 at 1.8 V

Table 27 lists the LE910Cx SD card signals.

Table 27: SD Card Signals

Telit Confidential Information, provided under NDA Page 75 of 114

PAD

Signal

I/O

Function

Type

Comments

E12

SD/MMC_DATA0

I/O

SD Serial Data 0

1.8/2.95V

G12

SD/MMC_DATA1

I/O

SD Serial Data 1

1.8/2.95V

K12

SD/MMC_DATA2

I/O

SD Serial Data 2

1.8/2.95V

H12

SD/MMC_DATA3

I/O

SD Serial Data 3

1.8/2.95V

G13

SD/MMC_CD

SD card detect input

1.8V

Active Low

F13

VMMC

Power supply for MMC card pull-up resistors

1.8/2.95V

Max Current is 50mA

NOTE:

SD/MMC is supported only on the Linux side.

The power supply to the SD/MMC card is to be provided by the Host application board. The LE910Cx does not provide a dedicated power supply for the SD/MMC card.

VMMC Supply is limited to 50mA thus can only supply the MMC card external pull-up resistors.

Pull-up resistors must be placed on the host application board.

The card detection input has an internal pull-up resistor.

VMMC can be used for enabling of the external power supply (LDO Enable signal)

SD/MMC_DATA2

SD/MMC_DATA3

SD/MMC_CMD

SD/MMC_CLK

SD/MMC_DATA0

SD/MMC_DATA1

LE910Cx

SD/MMC Interface

SD/MMC_CD

DATA2

DATA3

CMD

VDD

VSS

DATA0

DATA1

MicroSD

MMC_CD

GND

10K

C=100nF

GND

External PS 3V

VMMC

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Figure 16 shows the recommended connection diagram of the SD interface.

Figure 16: SD/MMC Interface Connectivity

Telit Confidential Information, provided under NDA Page 76 of 114

PAD

Signal

I/O

Function

Type

Comments

N13

WIFI_SD_CMD

WiFi SD Command

1.8V

L13

WIFI_SD_CLK

WiFi SD Clock

1.8V

200 MHz max.

J13

WIFI_SD_DATA0

I/O

WiFi SD Serial Data 0

1.8V

M13

WIFI_SD_DATA1

I/O

WiFi SD Serial Data 1

1.8V

K13

WIFI_SD_DATA2

I/O

WiFi SD Serial Data 2

1.8V

H13

WIFI_SD_DATA3

I/O

WiFi SD Serial Data 3

1.8V

L12

WIFI_SDRST

WiFi Reset / Power enable control

1.8V

Active Low

WCI_TX

Wireless coexistence interface TXD

1.8V

WCI_RX

Wireless coexistence interface RXD

1.8V

NOTE:

It is recommended that WiFi_SDRST be equipped with a pull-up resistor to 1.8V on the host application to disable WiFi reset function if needed.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

8.5.4. WiFi SDIO Interface

The LE910Cx provides an SDIO port supporting the SDIO3.0 specification, which can be used to interface with a WiFi chipset (Qualcomm QCA6574 chipset or other WiFi solutions)

The LE910Cx module includes an integrated SW driver for supporting the Qualcomm QCA6574 chipset

The LE910Cx SDIO port supports the SDIO 3.0 specification at 1.8V CMOS only, thus cannot be used as an external SD/MMC card connection.

The LE910Cx module supports an LTE/WiFi coexistence mechanism via the WCI (Wireless Coexistence Interface) port, which connects between the module and the external WiFi IC.

For a detailed explanation, refer to Ref 6:

Table 28: WiFi SDIO Interface Signals

Telit Confidential Information, provided under NDA Page 77 of 114

PAD

Signal

I/O

Function

Type

COMMENT

DVI_WAO

Digital Audio Interface (WAO)

B-PD 1.8V

PCM_SYNC

DVI_RX

Digital Audio Interface (RX)

B-PD 1.8V

PCM_DIN

DVI_TX

Digital Audio Interface (TX)

B-PD 1.8V

PCM_DOUT

DVI_CLK

Digital Audio Interface (CLK)

B-PD 1.8V

PCM_CLK

B12

REF_CLK

Audio Master Clock

B-PD 1.8V

I2S_MCLK

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

8.6. Audio Interface

The LE910Cx module support digital audio interface.

8.6.1. Digital Audio

The LE910Cx module can be connected to an external codec through the digital interface.

The product provides a single Digital Audio Interface (DVI) on the following pins:

Table 29: Digital Audio Interface (DVI) Signals

LE910Cx DVI has the following characteristics:

 PCM Master mode using short or long frame sync modes  16 bit linear PCM format  PCM clock rates of 256 kHz, 512 kHz, 1024 kHz and 2048 kHz (Default)  Frame size of 8, 16, 32, 64, 128 & 256 bits per frame  Sample rates of 8 kHz and 16 kHz

In addition to the DVI port, the LE910Cx module provides a master clock signal (REF_CLK on Pin B12) which can either provide a reference clock to an external codec or form an I2S interface together with the DVI port where the REF_CLK acts as the I2S_MCLK.

The REF_CLK default frequency is 12.288 MHz.

When using the DVI with REF_CLK as an I2S interface, 12.288 MHz is 256 x fs (where fs = 48 kHz)

Telit Confidential Information, provided under NDA Page 78 of 114

8.6.1.1. Short Frame Timing Diagrams

Figure 17: Primary PCM Timing

LE910Cx Hardware User Guide

1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 79 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

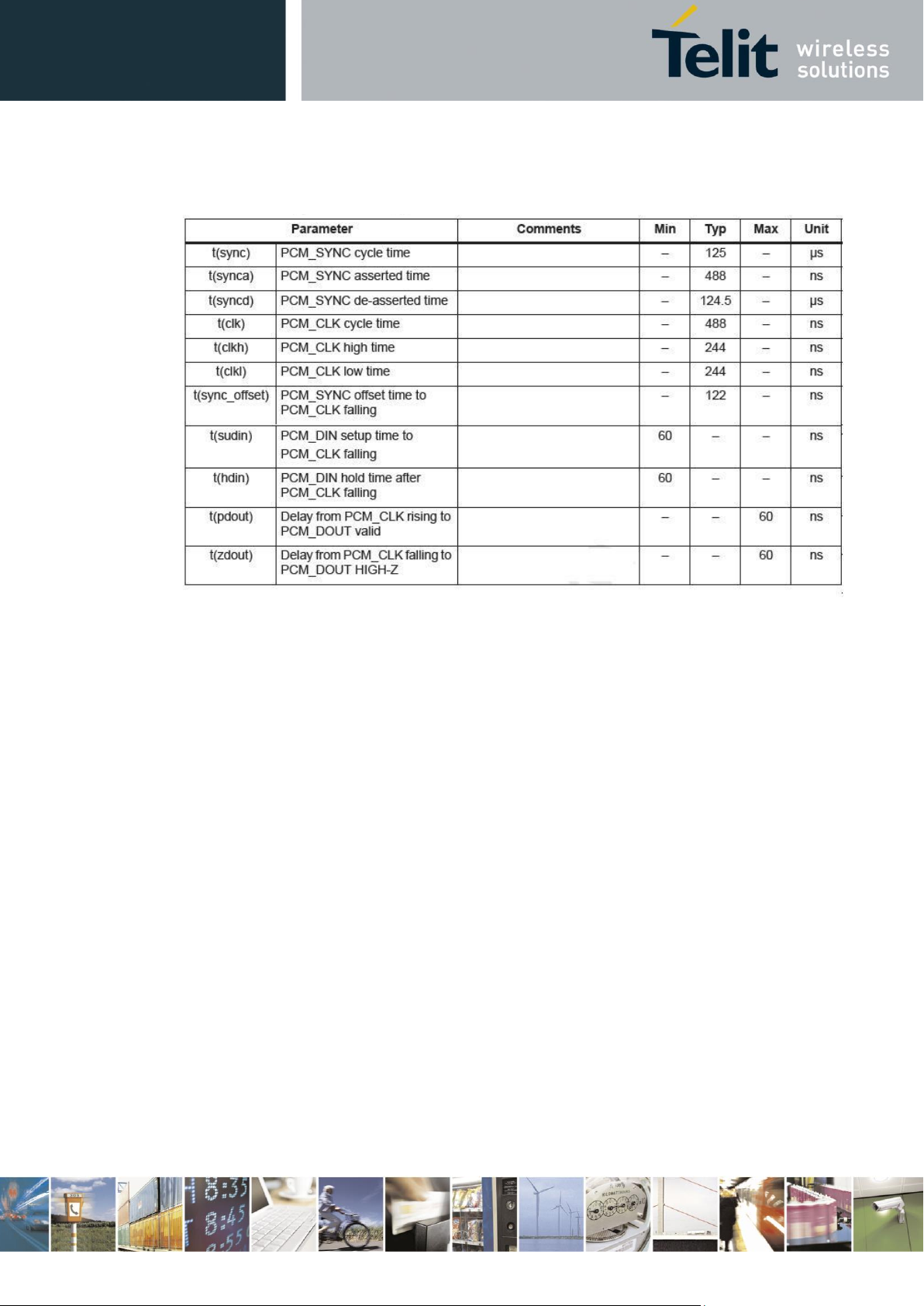

Table 30: PCM_CODEC Timing Parameters

Telit Confidential Information, provided under NDA Page 80 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

8.6.1.2. Long Frame Timing Diagrams

Figure 18: Auxiliary PCM Timing

Telit Confidential Information, provided under NDA Page 81 of 114

Table 31: AUX_PCM_CODEC Timing Parameters

LE910Cx Hardware User Guide

1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 82 of 114

LE910Cx Hardware User Guide

PAD

Signal

I/O

Function

Type

Drive Strength

GPIO_01

I/O

Configurable GPIO

CMOS 1.8V

2-16 mA

GPIO_02

I/O

Configurable GPIO

CMOS 1.8V

2-16 mA

C10

GPIO_03

I/O

Configurable GPIO

CMOS 1.8V

2-16 mA

C11

GPIO_04

I/O

Configurable GPIO

CMOS 1.8V

2-16 mA

B14

GPIO_05

I/O

Configurable GPIO

CMOS 1.8V

2-16 mA

C12

GPIO_06

I/O

Configurable GPIO

CMOS 1.8V

2-16 mA

C13

GPIO_07

I/O

Configurable GPIO

CMOS 1.8V

2-16 mA

K15

GPIO_08

I/O

Configurable GPIO

CMOS 1.8V

2-16 mA

L15

GPIO_09

I/O

Configurable GPIO

CMOS 1.8V

2-16 mA

G15

GPIO_10

I/O

Configurable GPIO

CMOS 1.8V

2-16 mA

1VV0301298 Rev. 1.01 - 2016-02-16

8.7. General Purpose I/O

The general-purpose I/O pads can be configured to act in three different ways:

 Input

 Output

 Alternate function (internally controlled)

Input pads can only be read and report digital values (high or low) present on the pad at the read time. Output pads can only be written or queried and set the value of the pad output. An alternate function pad is internally controlled by LE910Cx firmware and acts depending on the implemented function.

The following GPIOs are always available as a primary function on the LE910Cx.

Table 32: Primary GPIOs

Telit Confidential Information, provided under NDA Page 83 of 114

LE910Cx Hardware User Guide

PAD

Signal

I/O

Initial Function

Alternate Function

Type

Drive Strength

L12

GPIO_13

I/O

WIFI_SDRST

Configurable GPIO

CMOS 1.8V

2-16 mA

N13

GPIO_14

I/O

WIFI_SDIO_CMD

Configurable GPIO

CMOS 1.8V

2-16 mA

J13

GPIO_15

I/O

WIFI_SDIO_D0

Configurable GPIO

CMOS 1.8V

2-16 mA

M13

GPIO_16

I/O

WIFI_SDIO_D1

Configurable GPIO

CMOS 1.8V

2-16 mA

K13

GPIO_17

I/O

WIFI_SDIO_D2

Configurable GPIO

CMOS 1.8V

2-16 mA

H13

GPIO_18

I/O

WIFI_SDIO_D3

Configurable GPIO

CMOS 1.8V

2-16 mA

L13

GPIO_19

I/O

WIFI_SDIO_CLK

Configurable GPIO

CMOS 1.8V

2-16 mA

GPIO_24

I/O

WCI_TXD

Configurable GPIO

CMOS 1.8V

2-16 mA

GPIO_25

I/O

WCI_RXD

Configurable GPIO

CMOS 1.8V

2-16 mA

R14

GPIO_31

I/O

UART_RI

Configurable GPIO

CMOS 1.8V

2-16 mA

P14

GPIO_32

I/O

UART_DSR

Configurable GPIO

CMOS 1.8V

2-16 mA

N14

GPIO_33

I/O

UART_DCD

Configurable GPIO

CMOS 1.8V

2-16 mA

M14

GPIO_34

I/O

UART_DTR

Configurable GPIO

CMOS 1.8V

2-16 mA

F15

GPIO_35

I/O

SPI_CLK

Configurable GPIO

CMOS 1.8V

2-16 mA

E15

GPIO_36

I/O

SPI_MISO

Configurable GPIO

CMOS 1.8V

2-16 mA

D15

GPIO_37

I/O

SPI_MOSI

Configurable GPIO

CMOS 1.8V

2-16 mA

H14

GPIO_11

I/O

SPI_CS

Configurable GPIO

CMOS 1.8V

2-16 mA

NOTE:

To avoid a back-powering effect, it is recommended to avoid having any HIGH logic level signal applied to the digital pins of the module when it is powered OFF or during an ON/OFF transition.

NOTE:

LE910Cx GPIO 1~10 can also be used as alternate I2C function.

Refer to Section 0,

1VV0301298 Rev. 1.01 - 2016-02-16

The additional GPIOs below can be used in case their initial functionality is not used:

Telit Confidential Information, provided under NDA Page 84 of 114

I2C - Inter-integrated Circuit.

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

8.7.1. Using a GPIO Pad as Input

GPIO pads, when used as inputs, can be connected to a digital output of another device and report its status, provided this device has interface levels compatible with the 1.8V CMOS levels of the GPIO.

If the digital output of the device is connected with the GPIO input, the pad has interface levels different from the 1.8V CMOS. It can be buffered with an open collector transistor with a 47 kΩ pull-up resistor to 1.8V.

8.7.2. Using a GPIO Pad as an interrupt / Wakeup source

GPIO pads which are used as input can also be used as an interrupt source for the software.

In general all GPIO pads can be also used as interrupts.

However, not all GPIO’s can be used as a wakeup source of the module (wakeup from sleep)

Only the following GPIO’s can be used for waking up the system from sleep

 GPIO1  GPIO4  GPIO5  GPIO8

8.7.3. Using a GPIO Pad as Output

GPIO pads, when used as outputs, can drive 1.8V CMOS digital devices or compatible hardware. When set as outputs, the pads have a push-pull output, and therefore the pull-up resistor can be omitted.

Telit Confidential Information, provided under NDA Page 85 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Figure 19: GPIO Output Pad Equivalent Circuit

Telit Confidential Information, provided under NDA Page 86 of 114

LED Status

Device Status

Permanently off

Device off

Fast blinking (Period 1s, Ton 0,5s)

Net search / Not registered / Turning off

Slow blinking (Period 3s, Ton 0,3s)

Registered full service

Permanently on

A call is active

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

9. Miscellaneous Functions

9.1. Indication of Network Service Availability

The STAT_LED signal shows information on the network service availability and call status. In the LE910Cx modules, the STAT_LED usually needs an external transistor to drive an external LED.

The STAT_LED does not have a dedicated pin. The STAT_LED functionality is available on GPIO_01 pin (by default GPIO_01 functions as STAT_LED)

The table below shows the device status corresponding to the pin status:

Table 33: Network Service Availability Indication

Figure 20: Status LED Reference Circuit

Telit Confidential Information, provided under NDA Page 87 of 114

LE910Cx Hardware User Guide

Min

Typical

Max

Output voltage

1.75V

1.80V

1.85V

Output current

100 mA

Output bypass capacitor (inside the module)

1 μF

1VV0301298 Rev. 1.01 - 2016-02-16

9.2. Indication of Software Ready

The SW_RDY signal provides indication about the ability of the module to receive commands

As long as the SW_RDY is asserted low it indicates that the LE910Cx has not yet finished booting

Once the SW_RDY is asserted high, it indicates that the LE910Cx is ready to receive commands

The SW_RDY does not have a dedicated pin

The SW_RDY functionality is available on GPIO_08 pin (by default GPIO_08 functions as SW_RDY

9.3. RTC – Real Time Clock

The RTC within the LE910Cx module does not have a dedicated RTC supply pin.

The RTC block is supplied by the VBATT supply.

If the battery is removed, RTC is not maintained so if maintaining an internal RTC is needed, VBATT must be supplied continuously.

In Power OFF mode, the average current consumption is ~25uA.

9.4. VAUX Power Output

A regulated power supply output is provided to supply small devices from the module. This output is active when the module is ON and goes OFF when the module is shut down. The operating range characteristics of the supply are as follows:

Table 34: Operating Range – VAUX Power Supply

Telit Confidential Information, provided under NDA Page 88 of 114

Min

Max

Units

Input voltage range

0.1

1.7

Volt

AD conversion

- 8 bits

Resolution

< 6.6

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

9.5. ADC Converter

9.5.1. Description

The LE910Cx module provides three 8-bit Analog to Digital converters. Each ADC reads the voltage level applied on the relevant pin, converts it, and stores it into an 8-bit word.

Table 35 shows the ADC characteristics.

Table 35: ADC Parameters

9.5.2. Using the ADC Converter

An AT command is available to use the ADC function.

The command is AT#ADC=1,2. The read value is expressed in mV.

Refer to LE9x0 AT Command User Guide 0 for the full description of this function.

9.6. Using the Temperature Monitor Function

The Temperature Monitor permits to control the module’s internal temperature and, if properly set (see the #TEMPMON command in LE9x0 AT Command User Guide), raises a GPIO to High Logic level when the maximum temperature is reached.

Telit Confidential Information, provided under NDA Page 89 of 114

Parameters

Typical Measurement

Notes

Sensitivity

Standalone or MS Based Tracking Sensitivity

-162.3 dBm Acquisition

-162.3 dBm

Cold Start Sensitivity

-157.5 dBm

TTFF

Hot

1.1s

GPS+GLONASS Simulator test

Warm

22.1s

GPS+GLONASS Simulator test

Cold

29.94s

GPS+GLONASS Simulator test

Accuracy

0.8 m

GPS+GLONASS Simulator test

Min Navigation update rate

1Hz

Dynamics

A-GPS

Supported

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

9.7. GNSS Characteristics

The table below specifies the GNSS characteristics and expected performance

The values are related to typical environment and conditions Table 36 GNSS Characteristics

Telit Confidential Information, provided under NDA Page 90 of 114

Lead-free Alloy:

Surface finishing Ni/Au for all solder pads

4 x Route

Inhibit

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

10. Mounting the Module on your Board

10.1. General

The LE910Cx module was designed to be compliant with a standard lead-free SMT process.

10.2. Finishing & Dimensions

Figure 21 shows the mechanical dimensions of the LE910Cx module.

Figure 21: LE910Cx Mechanical Dimensions (bottom view)

Telit Confidential Information, provided under NDA Page 91 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Figure 22: LE910Cx Mechanical Dimensions (Top view)

Telit Confidential Information, provided under NDA Page 92 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

Figure 23: LE910Cx Mechanical Dimensions (Side view)

Telit Confidential Information, provided under NDA Page 93 of 114

LE910Cx Hardware User Guide

NOTE:

In the customer application, the region marked as INHIBIT in Figure 24 must be clear of any signal wiring or ground polygons.

4 x Route

Inhibit

1VV0301298 Rev. 1.01 - 2016-02-16

10.3. Recommended Footprint for the Application

Figure 24 shows the recommended footprint for the application board (dimensions are in mm).

To facilitate replacing the LE910Cx module if necessary, it is suggested to design the application with a 1.5 mm placement inhibit area around the module.

It is also suggested, as a common rule for an SMT component, to avoid having a mechanical part of the application in direct contact with the module.

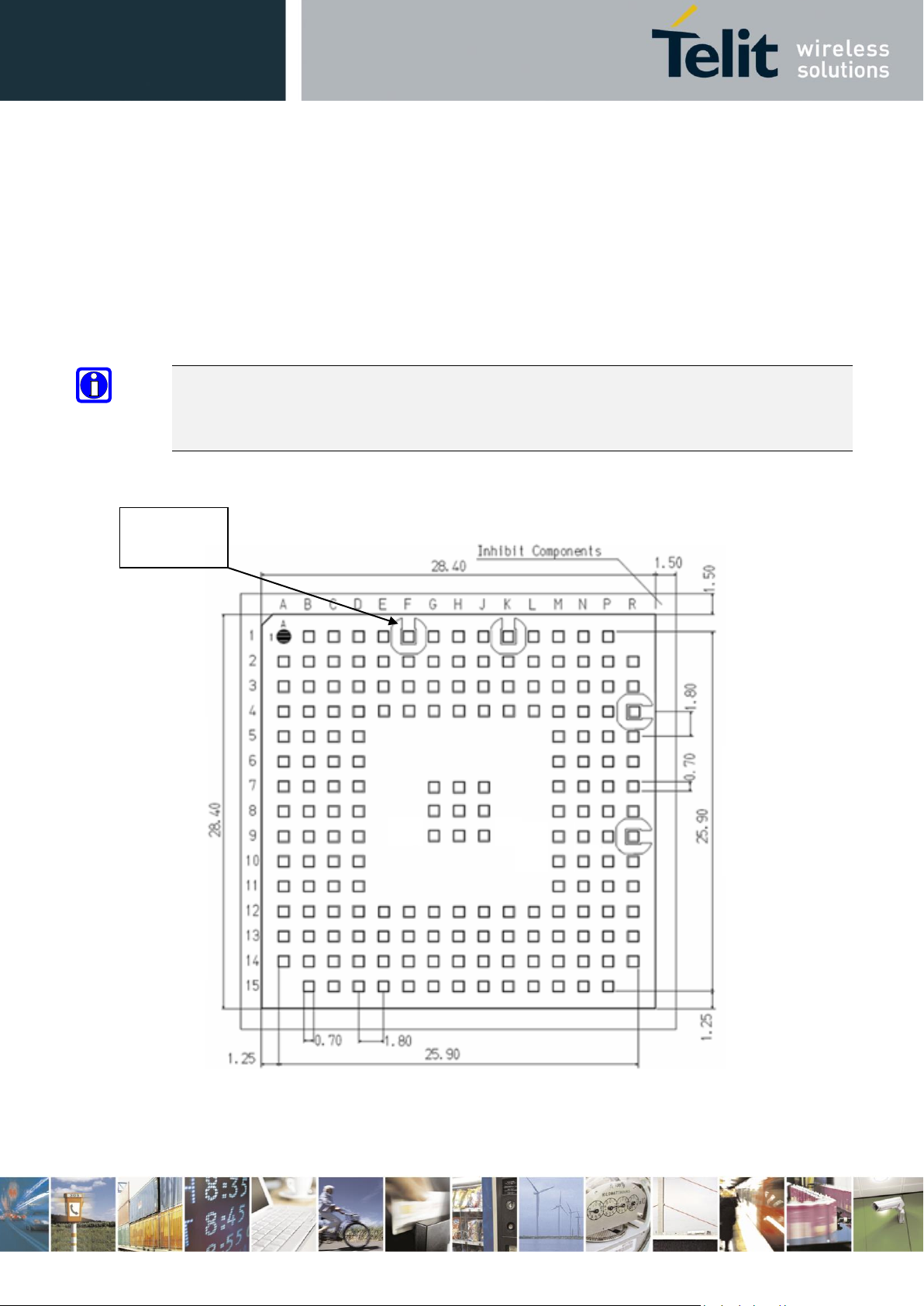

Figure 24: Recommended Footprint - Top View, 181 pads (dimensions are in mm, top view).

Telit Confidential Information, provided under NDA Page 94 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

10.4. Stencil

Stencil’s apertures layout can be the same as the recommended footprint (1:1). The suggested thickness of stencil foil is greater than 120 µm.

10.5. PCB Pad Design

The solder pads on the PCB are recommended to be of the Non Solder Mask Defined (NSMD) type.

Figure 25: PCB Pad Design

Telit Confidential Information, provided under NDA Page 95 of 114

LE910Cx Hardware User Guide

Finish

Layer Thickness (um)

Properties

Electro-less Ni / Immersion Au

3-7 / 0.05-0.15

Good solder ability protection, high shear force values

1VV0301298 Rev. 1.01 - 2016-02-16

10.6. Recommendations for PCB Pad Dimensions (mm)

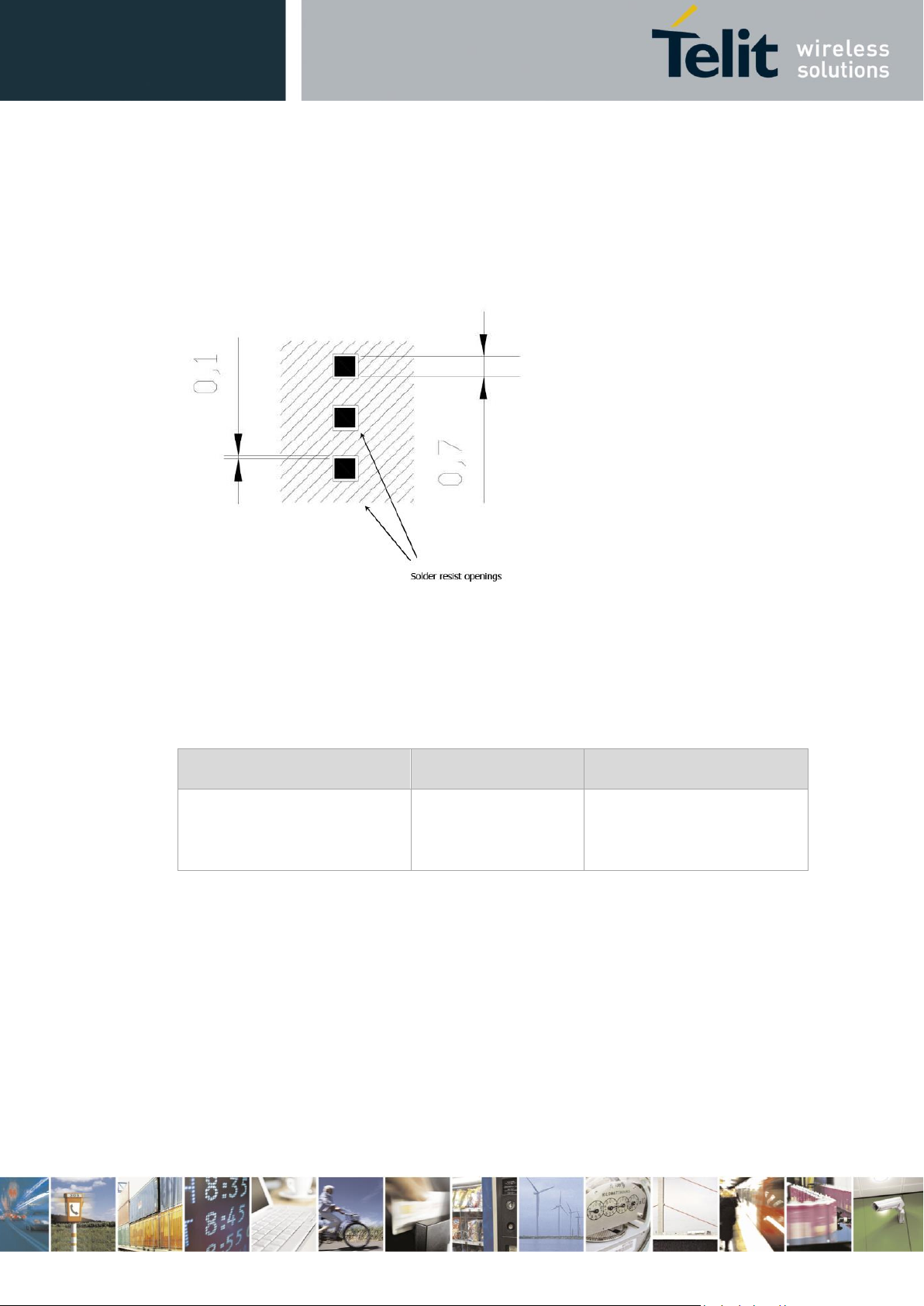

Figure 26: PCB Pad Dimensions

It is not recommended to place around the pads a via or micro-via that is not covered by solder resist in an area of 0.15 mm unless it carries the same signal as the pad itself. Micro via inside the pads are allowed.

Holes in pad are allowed only for blind holes and not for through holes.

Table 37: Recommendations for PCB Pad Surfaces

The PCB must be able to resist the higher temperatures, which occur during the lead-free process. This issue should be discussed with the PCB-supplier. Generally, the wettability of tin-lead solder paste on the described surface plating is better compared to lead-free solder paste.

Telit Confidential Information, provided under NDA Page 96 of 114

LE910Cx Hardware User Guide 1VV0301298 Rev. 1.01 - 2016-02-16

10.7. Solder Paste

We recommend using only “no clean” solder paste to avoid the cleaning of the modules after

assembly.

10.7.1. Solder Reflow

Figure 27 shows the recommended solder reflow profile.

Figure 27: Solder Reflow Profile

Telit Confidential Information, provided under NDA Page 97 of 114

Table 38: Solder Profile Characteristics

Profile Feature

Pb-Free Assembly

Average ramp-up rate (TL to TP)

3°C/second max

Preheat

– Temperature min (Tsmin)

– Temperature max (Tsmax)

– Time (min to max) (ts)

150°C

200°C

60-180 seconds

Tsmax to TL

– Ramp-up rate

3°C/second max

Time maintained above:

– Temperature (TL)

– Time (tL)

217°C

60-150 seconds

Peak temperature (Tp)

245 +0/-5°C

Time within 5°C of actual peak

Temperature (tp)

10-30 seconds

Ramp-down rate

6°C/second max

Time 25°C to peak temperature

8 minutes max

NOTE:

All temperatures refer to topside of the package, measured on the package body surface.

Warning:

The LE910Cx module withstands one reflow process only.

LE910Cx Hardware User Guide

1VV0301298 Rev. 1.01 - 2016-02-16

Telit Confidential Information, provided under NDA Page 98 of 114

11. Application Guide

11.1. Debug of the LE910Cx Module in Production

To test and debug the mounting of the LE910Cx module, we strongly recommend to add several test pads on the host PCB for the following purposes:

 Checking the connection between the LE910Cx itself and the application

 Testing the performance of the module by connecting it with an external computer

Depending on the customer application, these test pads include, but are not limited to the following signals:

 TXD

 RXD

 ON/OFF

 HW_SHUTDOWN_N

 GND

LE910Cx Hardware User Guide

1VV0301298 Rev. 1.01 - 2016-02-16

 VBATT

 TX_AUX

 RX_AUX

 USB_VBUS

 USB_D+

 USB_D-

 GPIO_09

 WCI_RX

In addition, the following signals are also recommended (but not mandatory):

 PWRMON

 GPIO_01 (STAT_LED)

 GPIO_08 (SW_RDY)

Telit Confidential Information, provided under NDA Page 99 of 114

LE910Cx Hardware User Guide

1VV0301298 Rev. 1.01 - 2016-02-16

11.2. Bypass Capacitor on Power Supplies

When a sudden voltage step is asserted to or a cut from the power supplies, the steep transition causes some reactions such as overshoot and undershoot. This abrupt voltage transition can affect the device causing it to not operate or to malfunction.

Bypass capacitors are needed to alleviate this behavior. The behavior can appear differently depending on the various applications. Customers must pay special attention to this issue when they design their application board.

The length and width of the power lines must be considered carefully and the capacitance of the capacitors must be selected accordingly.

The capacitor will also prevent ripple of the power supplies and the switching noise caused in TDMA systems such as GSM.

Especially, a suitable bypass capacitor must be mounted on the following lines on the application board:

 VBATT & VBATT_PA (M1, M2, N1, N2, P1, P2)

 USB_VBUS (Pad A13)

Recommended values are:

 100uF for both VBATT and VBATT_PA together

 4.7uF for USB_VBUS (including the 1uF capacitor inside the module)

Customers must still consider that the capacitance mainly depends on the conditions of their application board.

Generally, more capacitance is required when the power line is longer.

Telit Confidential Information, provided under NDA Page 100 of 114
