Telink Semiconductor 28M001 User Manual

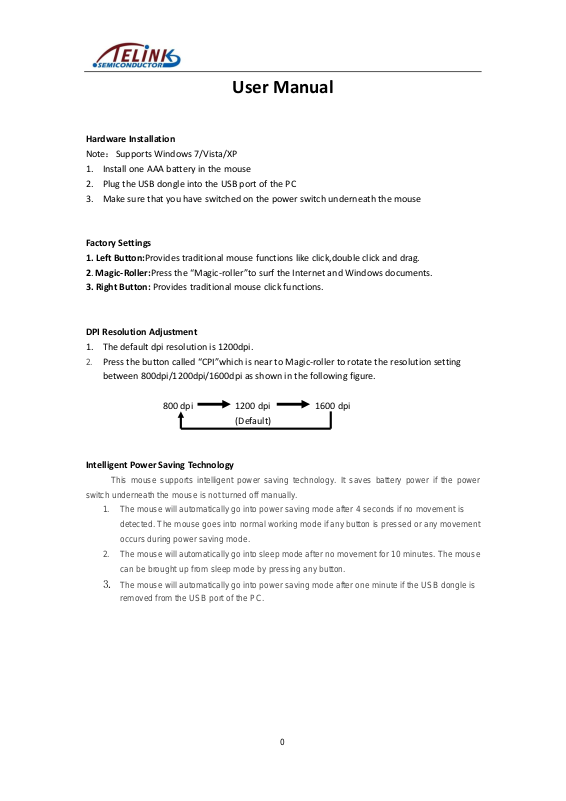

User Manual

Hardware Installation

Note：Supports Windows 7/Vista/XP

1. Install one AAA battery in the mouse

2. Plug the USB dongle into the USB port of the PC

3. Make sure that you have switched on the power switch underneath the mouse

Factory Settings

1. Left Button:Provides traditional mouse functions like click,double click and drag.

2. Magic-Roller:Press the “Magic-roller”to surf the Internet and Windows documents.

3. Right Button: Provides traditional mouse click functions.

DPI Resolution Adjustment

1. The default dpi resolution is 1200dpi.

2. Press the button called “CPI”which is near to Magic-roller to rotate the resolution setting

between 800dpi/1200dpi/1600dpi as shown in the following figure.

800 dpi 1200 dpi 1600 dpi

(Default)

Intelligent Power Saving Technology
This mouse supports intelligent power saving technology. It saves battery power if the power

switch underneath the mouse is not turned off manually.

1. The mouse will automatically go into power saving mode after 4 seconds if no movement is
detected. The mouse goes into normal working mode if any button is pressed or any movement
occurs during power saving mode.

2. The mouse will automatically go into sleep mode after no movement for 10 minutes. The mouse
can be brought up from sleep mode by pressing any button.

3. The mouse will automatically go into power saving mode after one minute if the USB dongle is

removed from the USB port of the PC.

0

Note: Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.(15.21)

This device complies with part 15 of the FCC Rules.Operation is subject to the following two

conditions:(1) This device may not cause harmful interference,and (2) this device must accept any

interference received,including interference that may cause undesired operation.(15.19(a)(3))
