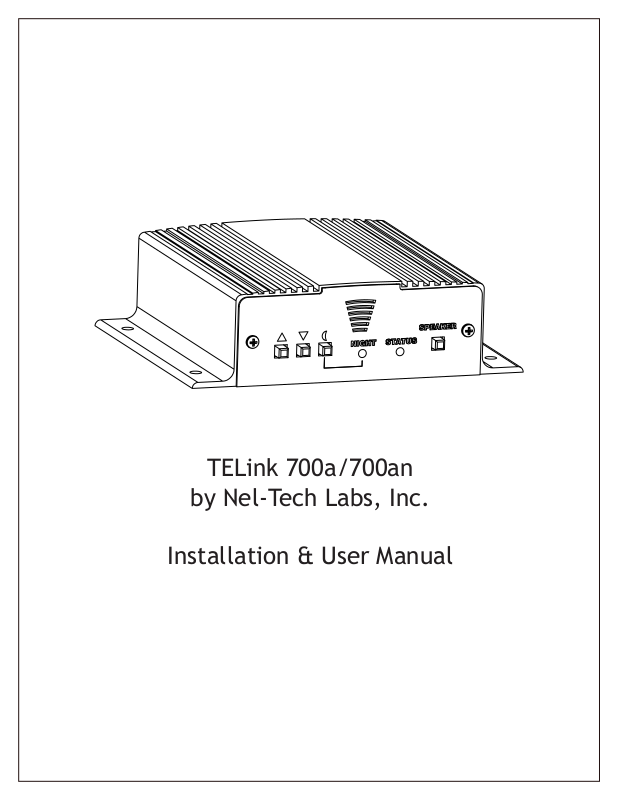

TELink 700a/700an
by Nel-Tech Labs, Inc.
Installation & User Manual
Index:
Introduction ........................................................................................................................
TELink Layout Summary..................................................................................................
Installation .......................................................................................................................
Operation..........................................................................................................................
Troubleshooting ................................................................................................................
Warranty & FCC ....................................................................................................................
2
3
4 - 5
6
6
7
Introduction:
The TELink is a professional-quality telephone-loadable digital audio playback device designed to
provide a continuous-play audio source for message-on-hold applications. The TELink comes standard
with 32 minutes of non-volatile high-density ash memory and offers a wealth of standard features
including fax-line sharing, voice-line sharing and distinctive ring compatibility. A night answer model
is also available to answer the phone after business hours and play a separate night message for callers.
Unpacking and Inspection:
Before you begin installation, unpack and verify you have all the correct parts.
(1) TELink
(1) 12VDC @ 500mA power supply
(1) Instruction manual
(1) RCA to RCA cable
(1) RJ-14 Cord
(1) Surge protector grounding cable
(1) 1/8˝ Adapter
(2) Wall mount screws
(4) Rubber feet
If you are missing any of these parts STOP and call your dealer.
Important Notes:
The grounding cable supplied must be connected from the SURGE GND terminal on the side of the unit to a
known good ground. Failure to do so will VOID the warranty of this product.
This unit MUST BE be installed directly to the incoming telephone line with no other telephone equipment
connected prior to the LINE IN connection on the rear of the unit. This includes phones, faxes, credit card
terminals, alarm systems, etc.
2
TELink Layout Summary:
Front of Unit
▲ ▼
NIGHT
STATUS
SPEAKER
VOLUME UP & DOWN SWITCH - Used to control the 8Ω and 600Ω output level of the stored messages.
NIGHT SWITCH - This switch manually turns the NIGHT MODE to either ON, OFF or Scheduled.
NIGHT LED - Indicates units NIGHT ANSWER status.
STATUS LED - Indicates units operational STATUS.
SPEAKER - The SPEAKER switch can be turned ON and OFF to monitor audio playback. The switch has no
effect on the audio output connections on the rear of the unit. Switch should normally be kept OFF.
Rear of Unit
MADE IN USA
12VDC
500mA
+
SURGE
GND
LINE
IN
LINE
OUT
OUTPUT
8Ω
600Ω
SURGE GND - Connects to the buildings electrical ground.
LINE IN - Connects to the incoming telephone line.
LINE OUT - Connects to phone or fax.
8Ω and 600Ω OUTPUT - This jack connects to the INPUT of the phone systems MOH port or PA system.
Depending upon the systems impedance use either the 8Ω or 600Ω jack - DO NOT USE BOTH!
12VDC - This is where the supplied 12VDC @ 500mA power pack is connected.
3
Installation:
The TELink should be installed using the following steps:
Step 1: Wall or shelf mount the unit. Screws and rubber feet are supplied in the accessory kit.
Step 2: If connecting to an amplier make sure it is turned OFF for this part of the installation.
Step 3: Connect the supplied grounding wire from the SURGE GND terminal to the buildings electrical ground.
Step 4: Connect a RCA cable (supplied in the accessory kit) to the OUTPUT jack on the rear of the unit. Depending
upon the required impedance use either the 8Ω or 600Ω output RCA jack. Connect the other side to the MOH port
on the phone system, PA system or speaker.
Step 5: Connect the incoming line to the LINE IN then connect the LINE OUT to a PHONE, FAX or KSU.
Step 6: Attach the included power pack to a wall or power strip receptacle, then attach the other end to the jack on
the rear of the unit labeled 12VDC.
Step 7: If any ampliers were turned OFF during installation then turn them back ON now.
Step 8: Adjust the volume level (while on hold) using up and down VOLUME buttons on the front of the unit.
Depending upon the application either call into the phone system and be placed on hold OR listen to the PA
systems speakers to ne tune volume. If volume controls are locked then the servicing dealer may need to assist
with this step.
MADE IN USA
12VDC
500mA
+
600Ω
SURGE
GND
LINE
IN
LINE
OUT
OUTPUT
8Ω
Wiring Diagram
Building Ground
Phone, Fax or KSU
Incoming Telco Line
(Use 8Ω or 600Ω)
To MOH or PA System
4
Installation (Optional Features):
Fax Share:
The Fax Share feature allows the TELink to share a phone line with a fax machine, saving the expense of having
to install a separate line. In a Fax Share installation, the TELink only answers calls from the servicing dealer and
does not interfere with incoming or outgoing fax transmissions. The fax machine MUST BE SET to answer on
two or more rings than what the TELink is set to answer on. Fax Share cannot be used together with Night Answer.
Night Answer:
The Night Answer feature provides the capability to store a separate night answer message in addition to the
standard MOH message. When the Night Answer feature is activated the TELink will answer incoming calls and
play the informational Night Answer message to the caller. After the night message has played then the caller will
be disconnected automatically and unit will be ready for next call.
Two Night Answer modes are available:
Scheduled - The Night Answer message can be scheduled by the servicing dealer to turn on and off automatically
once per day, on a seven-day calendar. Sample schedule: Night Answer turns OFF at 9am and ON at 5pm
Monday-Friday, with no ON or OFF time scheduled for Saturday and Sunday. Under this schedule, Night Answer
is active during non-business hours (5pm-9am) and all weekend long.
Manual (Not Recommended) - Night Answer can be turned ON or OFF on demand by pressing the NIGHT button
on the front panel. If a Night Answer schedule is present, this will override it. If you manually turn Night Answer
ON or OFF, it will remain in that state until you cancel it by pressing the NIGHT button again.
IMPORTANT: If Night Answer is turned ON manually, you must remember to turn it OFF when you want calls
to ring through normally. Until Night Answer is turned OFF, the TELink will continue to answer calls, play the
Night Answer message, then hang up. DO NOT forget to turn Night Answer OFF at the desired time.
When using Night Answer, it is extremely important that the TELink is installed on the rst phone number that
the phone system answers on. Because this line is likely to be the most heavily used, the servicing dealer may
encounter difculty (busy line) when trying to call the unit. Therefore, it is recommended that the initial installation
and subsequent downloads be scheduled during times when the line is not likely to be in use (during non-business
hours).
The NIGHT LED on the front of the TELink indicates the current ON/OFF status of the Night Answer feature:
NIGHT LED Indication
ON Night Answer ON (Manual Mode)
OFF Night Answer OFF (Manual Mode)
BLINKING SLOW Night Answer OFF (Scheduled Mode)
BLINKING FAST Night Answer ON (Scheduled Mode)
5
Operation:
After installation is complete, a download may be required. Check the STATUS LED on the front panel.
STATUS LED Indication
ON Normal Operation - Audio Playing
BLINKING SLOW No Audio
BLINKING FAST Communications Mode - Loading Audio
During communications sessions between the TELink and the servicing dealer, the STATUS LED will BLINK
FAST and the phone line becomes unavailable for incoming and outgoing calls (no dial tone will be present).
After a successful download the STATUS LED remains on SOLID.
If there is no on-hold audio, verify all connections against the installation procedure used and try again. If there
is still no on-hold audio, contact your servicing dealer.
Troubleshooting:
Problem Possible Reason
Status LED - OFF Power pack not plugged in or on a switched outlet
Status LED - BLINKING SLOW No audio on unit
Status LED - BLINKING FAST Unit in communication mode
New audio being downloaded
MOH message not playing Check volume output level by adjusting the VOLUME
Check OUTPUT connection from unit to phone or PA system
Try switching between the 8Ω and 600Ω OUTPUT connections
Popping audio File was encoded using too high of a bit-rate
File incompatible with unit
File audio starting too close to beginning of le
Distorted audio Check to make sure volume is not too high
Try switching between the 8Ω and 600Ω OUTPUT connections
File incompatible with unit
TELink does not answer/update Check to make sure telephone line is connected to LINE IN
Check to make sure line is operation with normal phone
Verify NO OTHER DEVICES are connected prior to the TELink
Line Connected to TELink not working The TELink may be in communication mode - Check STATUS
LED.
6
Limited Warranty
TERMS: Nel-Tech Labs warrants to the original purchaser (“Buyer”) that the Product sold is free from defects in material and
workmanship at the time of purchase. The warranty period begins at the time of Product’s original purchase by the rst end-user. The
warranty applies for ve (5) year from the original date of purchase, or as long as the product is owned by the original purchaser,
whichever comes rst. Included in the warranty are parts and labor. Buyer must provide written notice to Nel-Tech Labs of any
defective part or conditions within the warranty period. If the defect is not the result of improper use, service, maintenance or
installation, and if the equipment has not been otherwise damaged or modied after shipment, Nel-Tech Labs or its authorized
representative shall either replace or repair the defective Product at Nel-Tech Labs’s option. No credit shall be allowed for work
performed by Buyer or unauthorized parties. Out-of-warranty repairs are invoiced at the current Nel-Tech Labs hourly rate plus the
cost of parts, shipping and handling. In the event that the product serial number is missing or has been tampered with in any way,
the foregoing warranty is void and without effect and Nel-Tech Labs shall have no liability whatsoever on account of defects to such
product.
LIMITATIONS: Except as stated above, there are no warranties, express or implied, that extend beyond the specications for the
product. Nel-Tech Labs expressly disclaims any warranty, express or implied, that equipment sold hereunder is of merchantable
quality or that it can be used, or is t for any particular purpose. Buyer purchases and accepts equipment solely on the basis of the
warranty here in above expressed. Under no circumstances shall Nel-Tech Labs be liable by virtue of this warranty or otherwise
for any special indirect, secondary or consequential damages to any person or property arising out of the use or inability to use the
product.
REPAIRING OR REPLACING PRODUCT: Buyer may obtain the repair or replacement of any eligible part or equipment covered
under this warranty through a Nel-Tech Labs dealer only. Buyer is responsible for all shipping and handling charges in connection
with the performance of this warranty. Products returned to Nel-Tech Labs must be securely packaged to prevent damage in transit,
freight prepaid, and insured for replacement value. A return authorization number assigned by Nel-Tech Labs must be clearly marked
on the outside of the shipping container. Proof of purchase must accompany shipment. Items delivered to Nel-Tech Labs without a
return authorization clearly marked on the outside of the shipping container, and/or without proof of purchase is refused.
CONTACT: Please contact Nel-Tech Labs at the address and phone number below to receive a return authorization number and to
arrange for the repair or replacement of a awed part covered by this warranty. Please indicate the Product’s serial number in all
correspondence or a RMA authorization number in the absence of a serial number. Nel-Tech Labs, 4 Ash Street Extension, Derry,
NH 03038, Phone: 1.603.425.1096.
COPYRIGHT NOTICE: Unauthorized or unlicensed use of copyrighted audio content is illegal and Nel-Tech Labs, Inc. takes no
responsibility for such action by the user of this equipment.
FCC Part 15 : This equipment has been tested and found to comply within the limits for a Class A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of the
equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct interference at
his own expense. In order to maintain compliance with FCC regulations shielded cables must be used with this equipment. Operation
with non-approved equipment or unshielded cables is likely to result in interference to radio & television reception.
Changes or modications not expressly approved by Nel-Tech Labs could void the users’ authority to operate the equipment.
IC ES 003 : This Class A digital apparatus complies with Canadian ICES-003 C et appareil numérique de la classe A est conform e
à la norme NMB-003 du Canada.
CE CONFORMITY : The Nel-Tech Labs TELink conforms with the following standards, in accordance with the EU Safety, EMC
Emissions, & EMC Immunities : EN 60950-1:2001, EN 55022:1998 for Class A, EN 55024:1998 + A1:2001 + A2:2003, EN 610004-2:1995 + A1:1998, EN 61000-4-3:1995, EN 61000-4-4:1995, EN 61000-4-5:1995, EN 61000-4-6:1996, EN 61000-5-11:1994.
7
Nel-Tech Labs, Inc.
4 Ash Street Extension
Derry, NH 03038
1.603.425.1096
www.nel-techlabs.com
Rev. 01/11
Copyright © 1984 - 2011 by Nel-Tech Labs, Inc.
