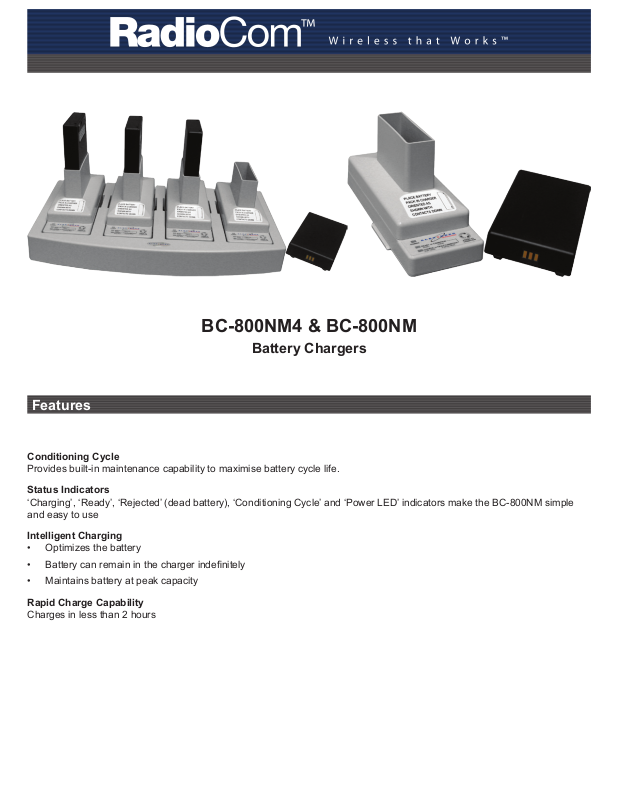

BC-800NM4 & BC-800NM
Battery Chargers
Features
Conditioning Cycle
Provides built-in maintenance capability to maximise battery cycle life.
Status Indicators
‘Charging’, ‘Ready’, ‘Rejected’ (dead battery), ‘Conditioning Cycle’ and ‘Power LED’ indicators make the BC-800NM simple
and easy to use
Intelligent Charging
Optimizes the battery
•
Battery can remain in the charger indenitely
•
Maintains battery at peak capacity
•
Rapid Charge Capability
Charges in less than 2 hours
BC-800NM4 & BC-800NM Specications
Contact Information
Telex Communications, Inc.
12000 Portland Avenue South
Burnsville, Minnesota 55337
Telephone: (800) 392-0498
Fax: (800) 323-0498
Form Number: LIT000151000
Date: August, 2007
Physical Characteristics
BC-800NM4
Product Dimensions: 13” (33cm) W x 1.7” (4.5cm)
H x 7” (17.8cm) D
Product Weight: 4lbs (1.5kg) without battery adapters
Shipping Dimensions: 11.5” (29.2cm)
W x 10.5” (26.7cm) H x 18.5” (47cm) D
Shipping Weight: 10lbs, 9oz (4.8kg) with battery
adapters, power supply, & rechargeable battery packs
BC-800NM
Product Dimensions: 3” (7.62cm) W x 3.5” (8.89cm)
H x 6” (15.24cm) D
Product Weight: 1lb, 6oz (0.62kg)
Shipping Dimensions: 7” (17.8cm) W x 4.5” (11.43cm)
H x 7” (17.8cm) D
Shipping Weight: 2lbs, 10oz (1.2kg) with rechargeable
battery pack & power supply
Material: ABS KJW re retardant plastic, textured
User Environment
ESD: 8KV continuous contact discharge; 15KV from air
to all surfaces without contact
Humidity: 95% relative humidity (non-condensing)
Drop: Unit functions normally after 4ft./1.2m drop to
concrete
Storage Temperature: -40° to 122°F/-40° to 50°C
Operating Temperature: 32° to 122°F/0° to 50°C
Power Supply:
BC-800NM4 (Universal): 90V-230VAC, 50/60 Hz
Output: 15 VDC, 5A or 24 VDC, 4.5A
BC-800NM (Universal): 90V-230VAC, 50/60 Hz
Output: 15 VDC, 1.5A or 24 VDC, 1.3A
Safety Standards: Charger & power supply UL listed
(UL 1950), CSA Certied (C 22.2 No. 223); Compliant to
FCC part 15 Class A and CE Marking (Electromagnetic
Compatibility) Directive 89/336/EEC and Low Voltage
Directive 73/23/EEC; C15PR-22 Class B
Performance Characteristics
Rapid Charging: Charges batteries to 90+% capacity in
2 hours or less
Complete Charge: Completes 100% capacity charge in 4
hours or less
Conditioning: Completely discharges a battery and
automatically switches to charging mode
Maintenance Charge: Maintains the battery at optimum
capacity indenitely
User Interface
Power LED: Indicates POWER to charging slot
Conditioning/Charging LED: Flashing indicates
discharging process
Reject LED: Flashing indicates faulty battery
Conditioning/Charging LED: Solid indicates battery pack
is being charged
Ready LED: Solid indicates battery charged
Ordering Information
BC-800NM
Single-Bay Charger for TR-1/700/800/825/RKP-4 with
USA power cord and BP-700NM
Catalog Number: PRD000070006
BC-800NME
Single-Bay Charger for TR-1/700/800/825/RKP-4 with
Euro power cord and BP-700NM
Catalog Number: PRD000070007
BC-800NM4
Four-Bay Charger for TR-1/700/800/825/RKP-4 with
USA power cord and BP-700NM
Catalog Number: PRD000070008
BC-800NM4E
Four-Bay Charger for TR-1/700/800/825/RKP-4 with
Euro power cord and BP-700NM
Catalog Number: PRD000070009
C800NM
Single-Bay Charger without Power Supply
Catalog Number: PRD000070000
CB800NM4
Docking Station, Four-Bay Charger
Catalog Number: PRD000070003
PS800NM4
Power Supply for Four-Bay Charger
Catalog Number: PRD000070004
PS-800NM
Power Supply for Single-Bay Charger
Catalog Number: PRD000070001
PC-UK
BC-800NM and BC-800NM4 UK Power Cord.
Catalog Number: 550024002
This specications information is preliminary and is subject to change without notication.
Brand names mentioned are the property of their respective companies.
