Telex Echelon 20 User Instructions

User Instructions

Echelon 20
Headset

Telex

®

Page 1

Volume Control

Flexible Boom Permits

Precise Mic Placement

Noise Canceling

Electret Microphone

Earcups Pivot on

Two Planes to

Conform to

Wearer

Patented

Tension

Adjust Knob

(Comfort

Camtm)

Replaceable

Head Pad

Detented Sliders

Adjust to

Any Size Head

Unique
Design

Ball and Socket

Jointed Boom

Rotates

Overhead for

Mic

Placement on

Either

Side of Head

Echelon 20 Reference View

Figure 1

Replaceable

Ear Cushions

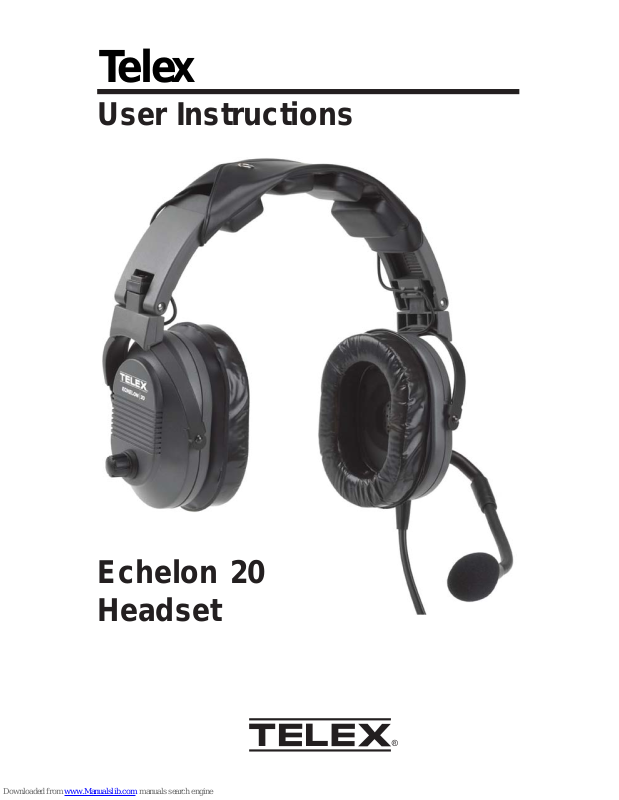

The Echelon 20 full cushion aviation headset offers comfort, excellent hearing
protection and value.

Page 2

GENERAL DESCRIPTION

The T elex Echelon 20 is a medium-weight noise-reduction headset with amplified,
noise-canceling, electret microphone.

DESIGN FEATURES

(See Figure 1)

Comfortable foam-filled headband pad and ear cushions. The headband pad evenly
distributes the headset weight with no pressure points, for maximum wearer
comfort. The lightweight ear cushions combine comfort with an excellent acoustic
seal. An outer urethane layer ensures long life. Gel-filled ear cushions are also
available for this headset for users who prefer this type. All cushions are field­replaceable.

Boom Microphone: The boom arm features a sealed ball-and-socket joint and
flexible boom for precise microphone placement on any head size. The boom
rotates overhead for microphone placement on either side of the head. The
microphone cartridge features a noise-canceling electret element. The cartridge
snaps on and off for easy replacement. The microphone amplifier is in the
microphone cartridge. It operates on current supplied by the aircraft radio via the
microphone jack.

Cordage: The microphone cordage is protected inside the boom arm. Shielded
wire throughout the headset protects against RFI and EMI. Strain-reliefs on all
cords provide maximum durability .

Page 3

OPERATION

Headband Pressure Adjustments

There are three pressure settings for headband comfort. Increasing the pressure
will improve the seal between the earcup and the head for greater noise reduction.
T o change the pressure setting, remove the headset and fold the earcup inward
as shown, then rotate the adjustment knob to the desired setting. Repeat for both
earcups. Both sides of the headband should be set to the same pressure setting
to keep the headband properly centered on the head.

Boom Microphone Placement

1. Rotate the entire boom overhead to
wear the microphone on either the
right or left side of the head.

2. For best noise cancelation, position
the microphone as close to the
mouth as possible and speak in a
normal voice. (See figure 3)

3. When the microphone is not in use,
it may be swung slightly away from
the mouth.

HIGH MEDIUM LOW

Figure 2

Figure 3

Page 4

Figure 4

MIC GAIN

ADJUSTMENT

ACCESS

Microphone Gain Adjustment

The microphone gain has been factory-adjusted to the nominal level required for aviation
use. It should normally not require readjustment. Readjustment by a qualified avionics
technician is recommended if adjustment is needed. To access the gain trimmer,
insert a small flat-blade screwdriver through the access hole in the mic assembly.
Clockwise rotation of the trimmer increases gain.

Page 5

SPECIFICATIONS

Receivers:

T ype: Dynamic
Frequency Response: 100 Hz - 3.5 kHz
Sensitivity: 95 dB SPL minimum (1 kHz, 1 mW input)
Impedance (at 1 kHz): 150 ohms (receivers wired in parallel)

Microphone and Amplifier:

Element T ype: Noise-canceling electret
Frequency Response: 100 Hz - 3.5 kHz
Sensitivity: -50 ±6 dB (ref:1 V/ µbar at 1 kHz with 12 Vdc supply voltage and 470-

ohm DC , 150ohm AC load).
Matching Impedance: 50-600 ohms
Gain Adjustment Range: ± 5 dB (clockwise rotation increases gain)
Operating V oltage (supplied by aircraft radio): 8-16 volts dc

Cordage:

S traight Y-cord, 5.5 ft (1.67 m)

Connectors:

PJ-068 equivalent plug for radio mic jack; PJ-055 equivalent plug for radio phone
jack

Weight:

Effective Head Weight: Approximately 14.2 oz. (403g)

Color: Medium Gray

ORDERING INFORMATION

Headset ................................................................Catalog no. PRD000012000

Thin-skin foam ear cushions (set of two)...................... Catalog no. 800456008

Gel-filled ear cushions (set of two)................................Catalog no. 800456009

Head pad ..................................................................... Catalog no. 800456004

Microphone cartridge.................................................... Catalog no. 800136100

Microphone windscreen................................................ Catalog no. 800456000

Model PT -300 Portable Push-T o-Talk Switch* ................ Catalog no. 63966000

Zipper Pouch............................................................... Catalog no. 590061003

* For aircraft without a push-to-talk switch, a portable push-to-talk switch must
be used.

Page 6

TELEX COMMUNICATIONS, INC. - LIMITED WARRANTY

Uniform Limited Warranty: Telex branded products are warranted by Telex Communications, Inc.

against malfunction due to defects in materials and workmanship for a specified period, as noted in the
individual product line statements below, beginning with the date of original purchase by the end-user.
If such malfunction occurs during the specified period, the product will be repaired with new or
remanufactured equivalent parts and products or replaced (at our option) without charge. The product
will be returned to the customer postage prepaid.

Exclusions and Limitations: The limited warranty does not apply to: (a) exterior finish or appearance;
(b) certain specific items described in the individual product line statements below, (c) malfunction
resulting from use or operation of the product other than as specified in the product data sheet or
owner’s manual; (d) malfunction resulting from misuse or abuse of the product, including accidents; (e)
defects resulting from excess moisture, lightning or power surges; or (f) malfunction occurring at any
time after repairs have been made to the product by anyone other than a Telex Service Department
employee or any of its authorized service representatives. The warranty is void if the label bearing the
product serial number (if applicable) has been removed or defaced.

Other Express or Implied W arranties Excluded: T O THE EXTENT PERMITTED BY APPLICABLE LAW ,
THE WARRANTIES SET FORTH HEREIN ARE IN LIEU OF, AND EXCLUSIVE OF, ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. SPECIFICALLY EXCLUDED, WITHOUT LIMITATION, ARE
THE WARRANTIES OF MERCHANT ABILITY, FITNESS FOR USE OR FOR A P ARTICULAR PURPOSE,
AND WARRANTIES ARISING FROM COURSE OF DEALING OR USAGE OF TRADE OR ANY
OTHER MATTER. IF, UNDER APPLICABLE LAW, IMPLIED WARRANTIES MAY NOT BE VALIDLY
EXCLUDED, THE DURATION OF SUCH IMPLIED WARRANTIES IS LIMITED TO THE WARRANTY
PERIOD.

Limitation of Remedies; Certain Damages Excluded: REPAIR OR REPLACEMENT OF DEFECTIVE
PRODUCTS ARE THE SOLE AND EXCLUSIVE REMEDIES PROVIDED BY TELEX TO THE CUSTOMER
OR TO ANY OTHER PERSON AND SHALL CONSTITUTE FULL SATISFACTION OF ALL CLAIMS,
WHETHER BASED ON CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE. TELEX’s
MAXIMUM LIABILITY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE P AID FOR THE PRODUCT
BY THE CUST OMER. TELEX AND ITS SUBSIDIARIES SHALL NOT BE LIABLE FOR AN Y INDIRECT,
INCIDENTAL, PUNITIVE, SPECIAL OR CONSEQUENTIAL DAMAGES INCLUDING, WITHOUT
LIMITATION, INJURY TO PERSONS OR PROPERTY OR LOSS OF USE. SOME STATES AND
COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CERTAIN DAMAGES, SO THE
ABOVE LIMITATION OR EXCLUSION MAY NOT APPL Y TO YOU. IN SUCH ST A TES AND COUNTRIES,
TELEX SHALL BE LIABLE FOR NO MORE THAN THE DIRECT DAMAGES FOR BODILY INJURY
AND/OR REAL OR PERSONAL PROPERTY ARISING FROM THE NEGLIGENCE OF TELEX.

Other Rights: This warranty gives you specific legal rights, and you may also have other rights,
depending upon where you live.

Obtaining Warranty Service: To obtain warranty service, a customer must deliver the product, prepaid,
to the appropriate Telex Service Department listed below or any of its authorized service representatives
together with proof of purchase of the product in the form of a bill of sale or invoice.

Applicable Law. The validity, performance and construction of this limited warranty shall be governed
by the laws of the State of Minnesota without reference to its choice of law principles. The Minnesota
federal courts and/or the state courts located in Hennepin County, Minnesota, shall have exclusive
personal and subject matter jurisdiction over, and the parties shall each submit to the jurisdiction of
such courts and to venue in Minnesota with respect to any dispute concerning the product or pursuant
to this limited warranty, and all objections to such jurisdiction or to such venue are hereby waived.

For additional warranty repair or service information, contact the T elex Service Department listed
below:

USA, Canada, & Latin America

1720 E 14

th

Street

Glencoe, MN 55336

T el: 320-864-3177

Fax: [phone]

CUSTOMER SER VICE

For information or technical assistance, call, write, or email Telex at:

Customer Service Department
T elex Communications, Inc.
12000 Portland Ave. So.
Burnsville, MN 55337 U.S.A.
[phone]
www.telex.com/aircraft

When returning equipment for repair , please enclose an explanation of the
problem. And, if the equipment is covered under warranty , please enclose a
copy of your proof of purchase. The equipment must be accompanied by
documentation stating your name, return address, and telephone number .

Return equipment for factory repair to:

Customer Service Department
T elex Communications, Inc.
1720 East 14th St.
Glencoe, MN 55336 U.S.A.
[phone]

Warranty Repairs - If in warranty, no charge will be made for the repairs.
Equipment being returned for warranty repair must be sent prepaid and will
be returned prepaid.

Non-warranty Repairs - Equipment that is not under warranty must be sent
postage prepaid to Telex. If requested, an estimate of repair costs will be
issued prior to service. Once you approve repair , and repair of equipment is
completed, the equipment will be returned on a collect on delivery basis.
Collect charges may be avoided by sending a signed check for payment in
full along with your signed estimate approval form (the estimate includes the
shipping charge).
