Telex 80 User Manual
Application Guide
Kenwood Radio
Series 80, 90 and 150/180
To IP-223
November 4, 2005 P/N AN-VEGA-1 Rev D
II IP-223 to Kenwood Radios
Table of Contents
1
General ...................................................................................1
2 Setup.......................................................................................1
2.1 TK-x150/180 Model Cable Assembly:...........................................................................1
2.2 TK-x80 Model Cable Assembly:....................................................................................1
2.2.1 IP223 Rev F or higher Board Configuration: ......................................................... 2
2.2.2 IP223 Rev A to Rev E Board Modifications: ......................................................... 2
2.3 TK-x90 Model Cable Assembly:....................................................................................2
2.3.1 IP223 Rev F or higher Board Configuration: ......................................................... 2
2.3.2 IP223 Rev A to Rev E Board Modifications: ......................................................... 3
2.4 IP223 Configuration: ...................................................................................................... 4
2.4.1 Per-line setup screen............................................................................................... 4
2.4.2 IP223 Jumper settings............................................................................................. 4
2.5 Radio Configuration........................................................................................................5
2.5.1 TK-x80 Series......................................................................................................... 5

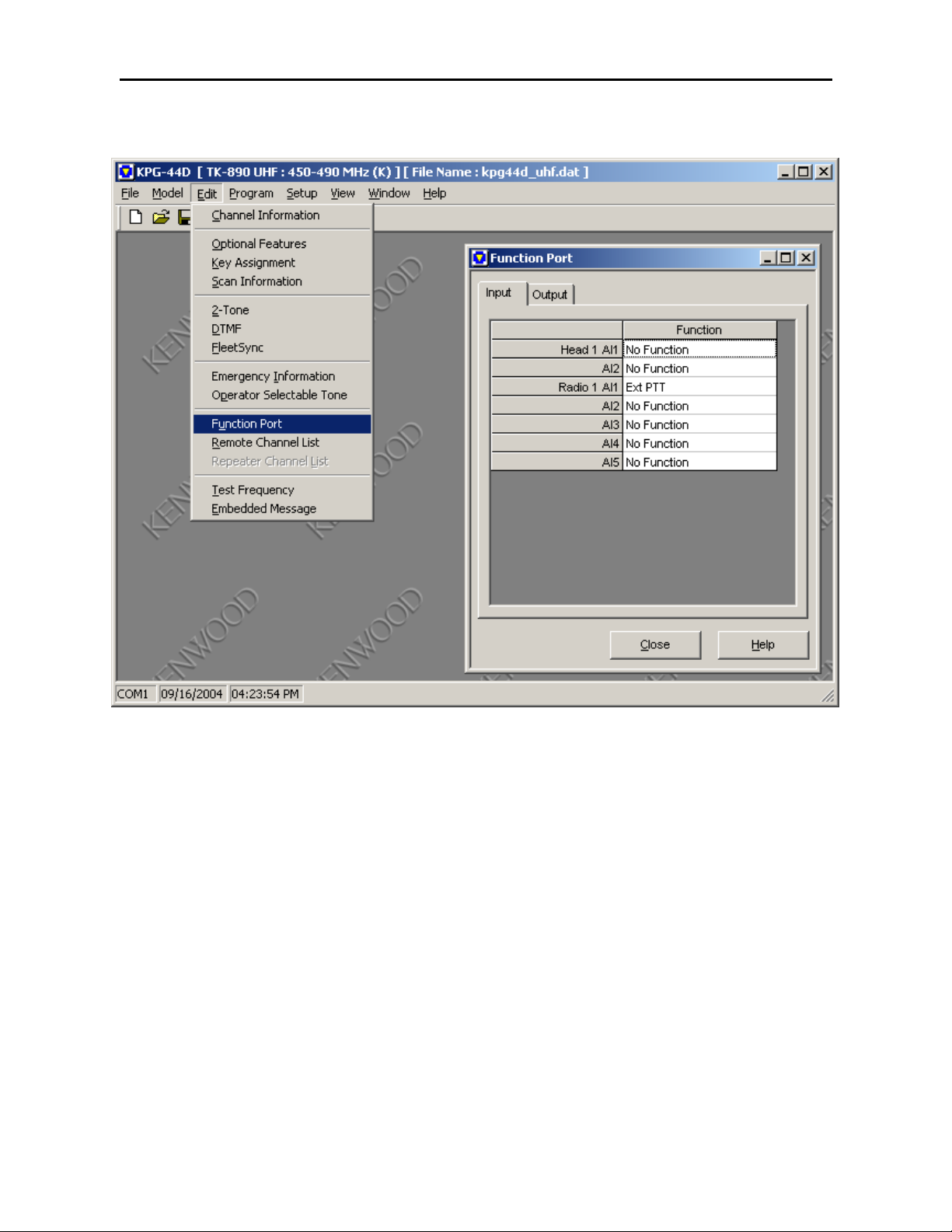

2.5.2 TK-x90 Series......................................................................................................... 6
2.5.3 TK-x150/180 Series................................................................................................ 8
IP-223 to Kenwood Radios 1
1 General
The application note is intended to show how to assemble the cable and setup the hardware of
the IP223 for channel change and FleetSync applications using Kenwood radio.
2 Setup
2.1 TK-x150/180 Model Cable Assembly:
NOTE: There are differences between the TK-x150 and TK-x180 radios DB25 connectors.
If COR is used, pin 20 (TK-x150 an output only) will be programmed for that function and
the cable will route that signal to the IP-223. On the TK-x180 the same pin is a general
purpose I/O and has an additional 470 ohm series resistance added. This requires that the IP223 external pull-up resistance must be removed. Jumpers J8 (Line 1) and J30 (Line 2)
should be placed in a neutral position (neither A or B, hanging).
The tables below show the assembly cable for the TK-x150 model radios.
Signal IP223 DB25 TK-x150 Radio DB25
Ground
PTT Common
PTT
COR
RX+
TX+
IP223 Serial
Signal
Line 1 Line 2
7 7
2 7
14 12 (Aux Input 4 Programmable)
20 20 (Aux Output 1 Programmable)
24 17
25 6
IP223 DB9
TK-x150 Radio DB25
TXD
RXD
For IP223 Rev F board or later make sure jumper J35 is in “A” position for line 1 and jumper
J26 is in “A” position for line 2.
2 8 2
3 7 3
2.2 TK-x80 Model Cable Assembly:
The KCT-19 accessory cable from Kenwood radio is needed and the 'E' connector is
connected to CN4 inside the radio to establish the serial communication.
The tables below show the assembly cable for the TK-x80 model radios.
Signal IP223 DB25 KCT-19 Accessory Conn.
Ground
PTT Common
PTT
COR
RX+
TX+
7 6
2 6
14 8
20 11
24 12
25 5
2 IP-223 to Kenwood Radios
2.2.1 IP223 Rev F or higher Board Configuration:
Set the jumper J35 to B position for line 1 and the jumper J26 to B position for line 2
IP223 Serial
Signal
TXD
RXD
IP223 DB9
KCT-19 Accessory Conn.
Line 1 Line 2
9 4 14
1 6 15
2.2.2 IP223 Rev A to Rev E Board Modifications:
Lift Pin 12(line 1) or pin 9(line 2) of U45 according to the line selected and solder to its PCB
Pad. Please refer to the Figure 1 for better demonstration.
IP223 Serial
Signal
TXD
RXD
Pin on U45 of the board
Line 1 Line 2
11 10 14
To the pad
of pin 12
To the pad
of pin 9
KCT-19 Accessory Conn.
15
2.3 TK-x90 Model Cable Assembly:
The tables below show the assembly cable for the TK-x90 model radio.
Signal IP223 DB25 TK-x90 Radio DB25
Ground
PTT Common
PTT
COR
RX+
TX+
7 7
2 7
14 2 Aux Input (Programmable)
20 20 AO1 (Programmable)
24 17
25 13
2.3.1 IP223 Rev F or higher Board Configuration:
Set the jumper J35 to B position for line 1 and the jumper J26 to B position for line 2
IP223 Serial
Signal
TXD
RXD
IP223 DB9
TK-x90 Radio DB25
Line 1 Line 2
9 4 10
1 6 9
