TeleWell EA-310v3 User Manual

TW-3G Flash-OFDM Router

3G Flash-OFDM Router

(USB and PC Card interfaces)

Wireless access Point

802.11b/g 54 Mbps

User Guide

2

3

INDEX

1. INTRODUCTION....................................................................................4

1.1. Package contents ............................................................................... 4

1.2. Features ..........................................................................................5

1.3. System requirements for configuration...................................................... 5

1.4. Rear ports ........................................................................................ 6

1.5. Front LEDs........................................................................................ 6

2. CONFIGURING TW-3G Flash-OFDM ............................................................7

2.1. Installation Considerations .................................................................... 7

2.2 Installation Instructions .........................................................................7

2.3 Establishing WAN connection................................................................... 9

3. SETTINGS WIZARD ............................................................................. 11

4. ADDITIONAL SETTINGS......................................................................... 17

4.1. Status ........................................................................................... 18

4.2. Main Settings................................................................................... 18

Quick Start .......................................................................... 18

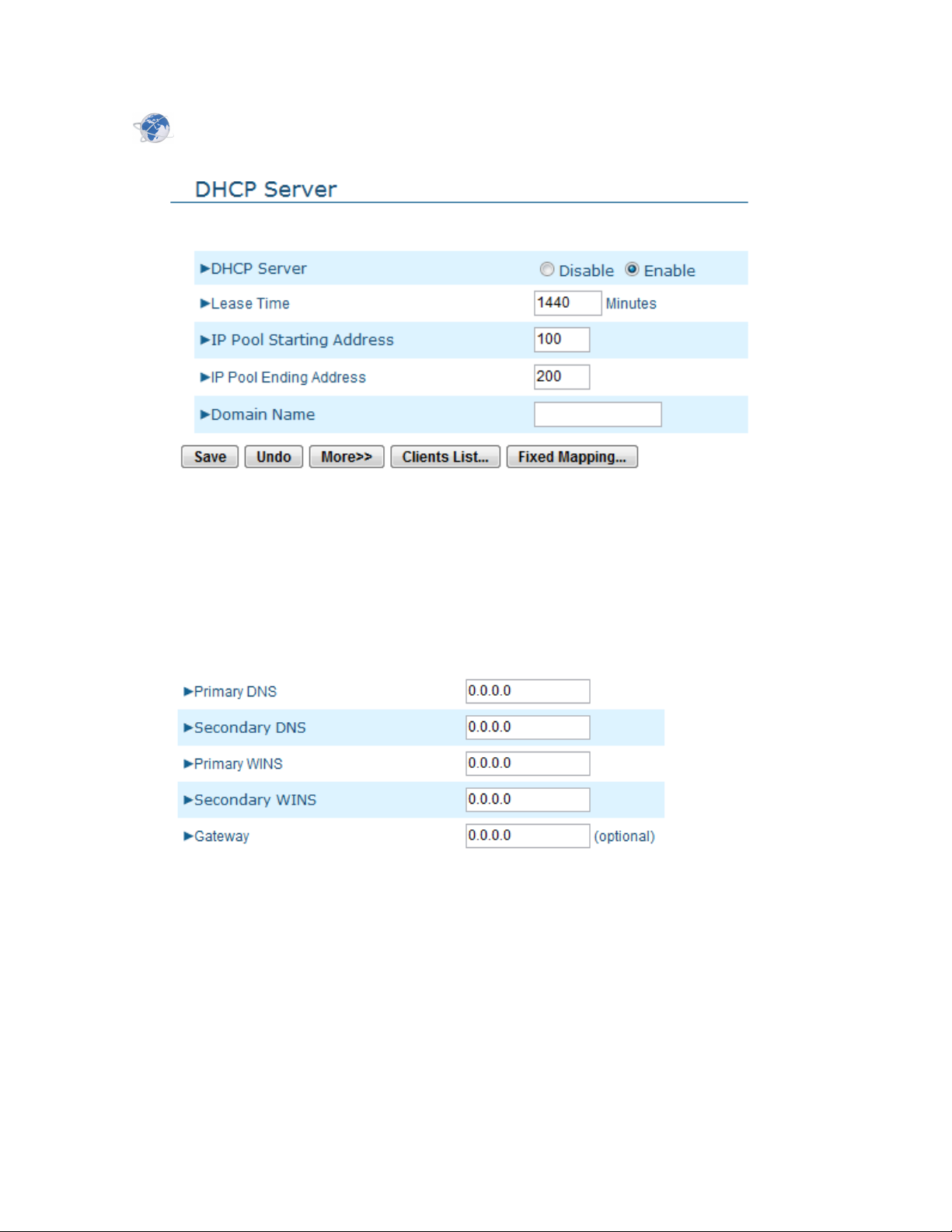

DHCP.................................................................................. 21

Wireless .............................................................................. 22

Change Password ................................................................... 23

4.3. Forwarding Rules.............................................................................. 24

Virtual Server ....................................................................... 24

Miscellaneous ....................................................................... 25

4.4 Security Settings ............................................................................... 26

Packet filters........................................................................ 26

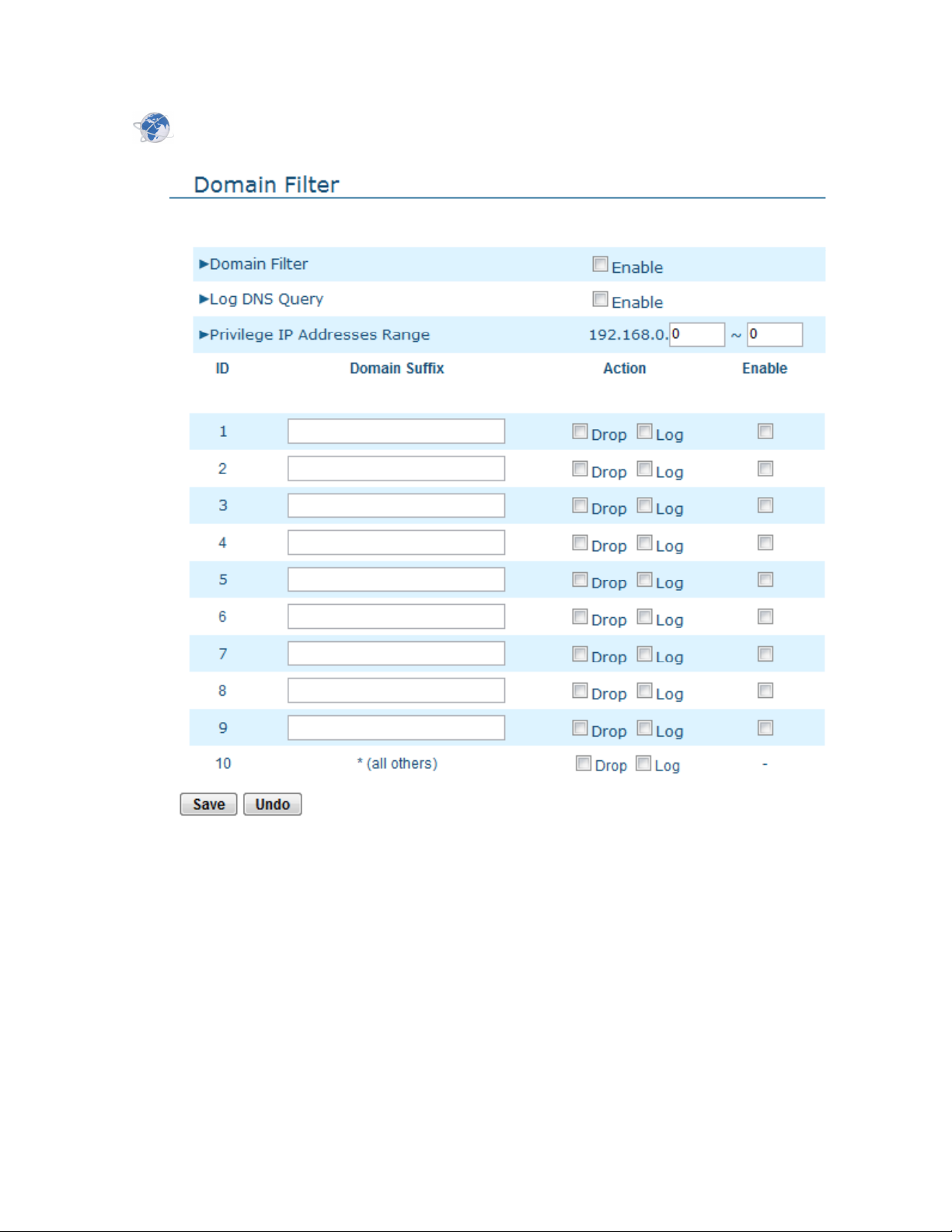

Domain Filters ...................................................................... 28

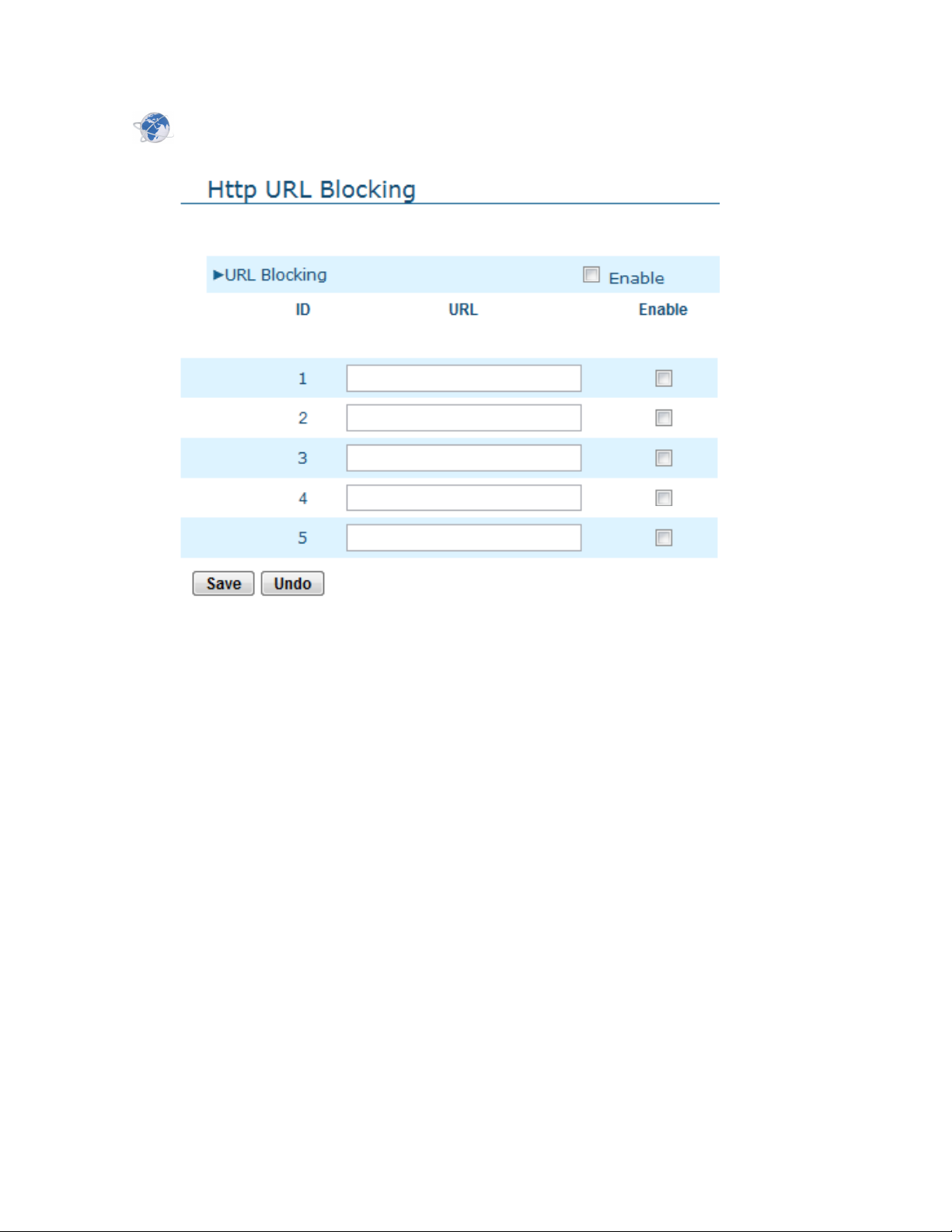

URL Blocking......................................................................... 29

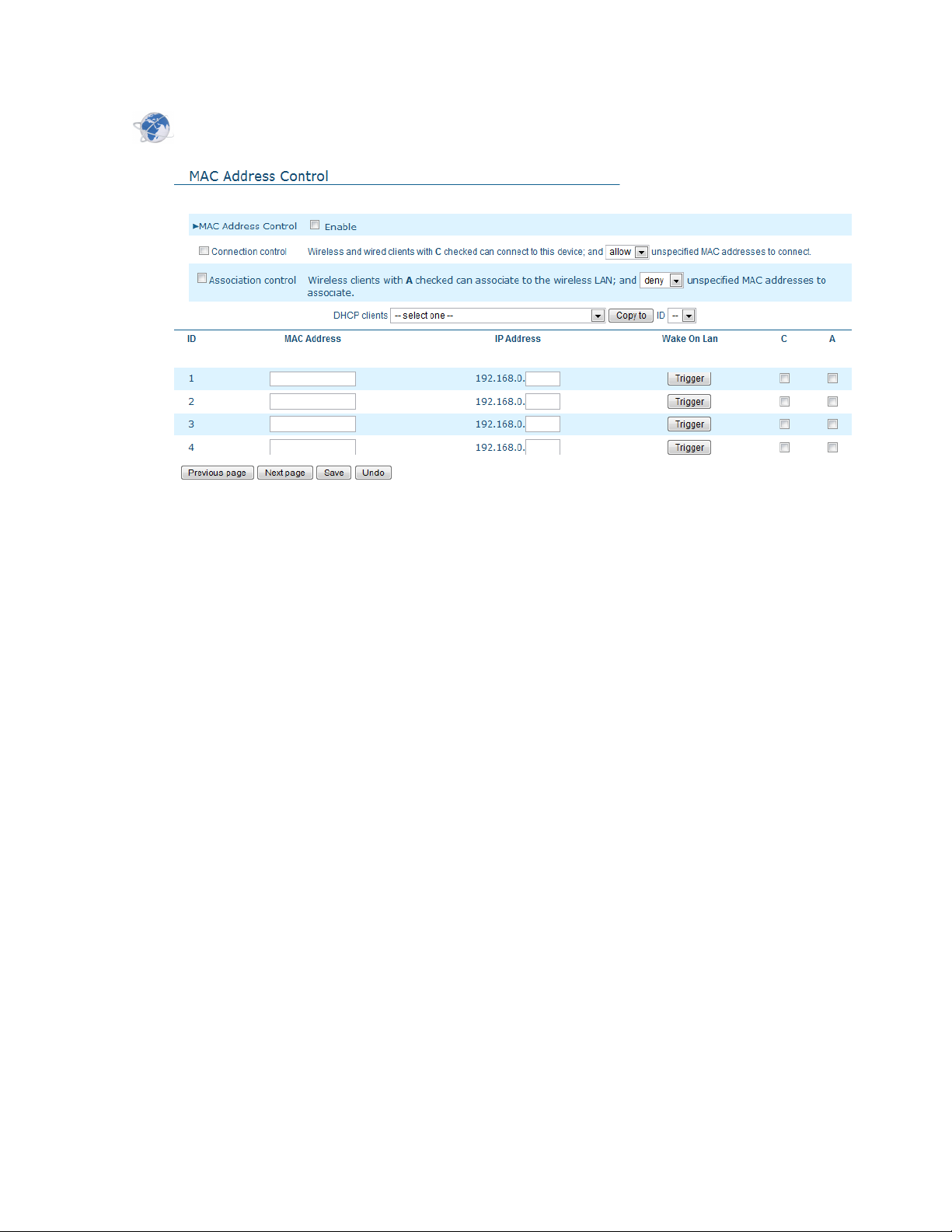

MAC Control ......................................................................... 30

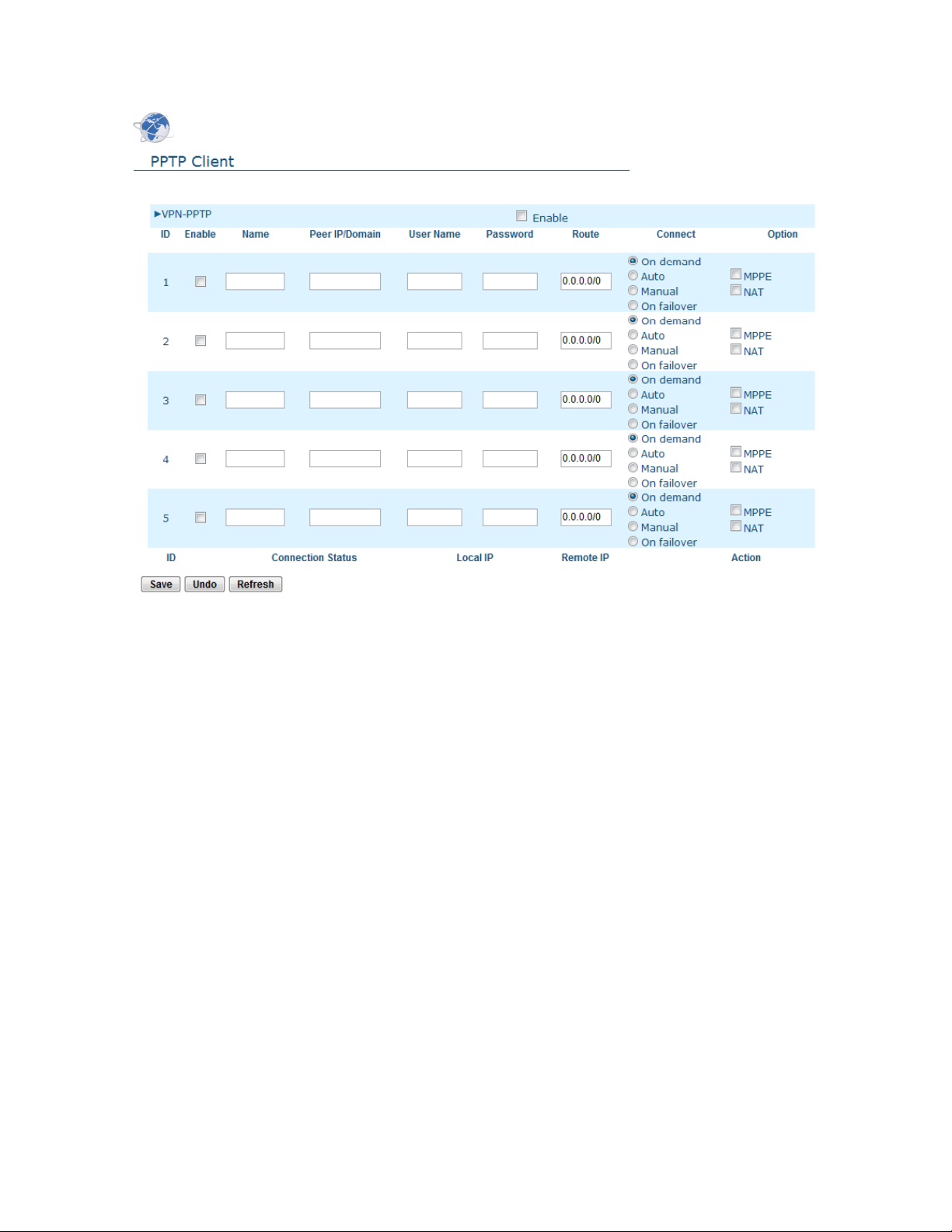

PPTP Client .......................................................................... 31

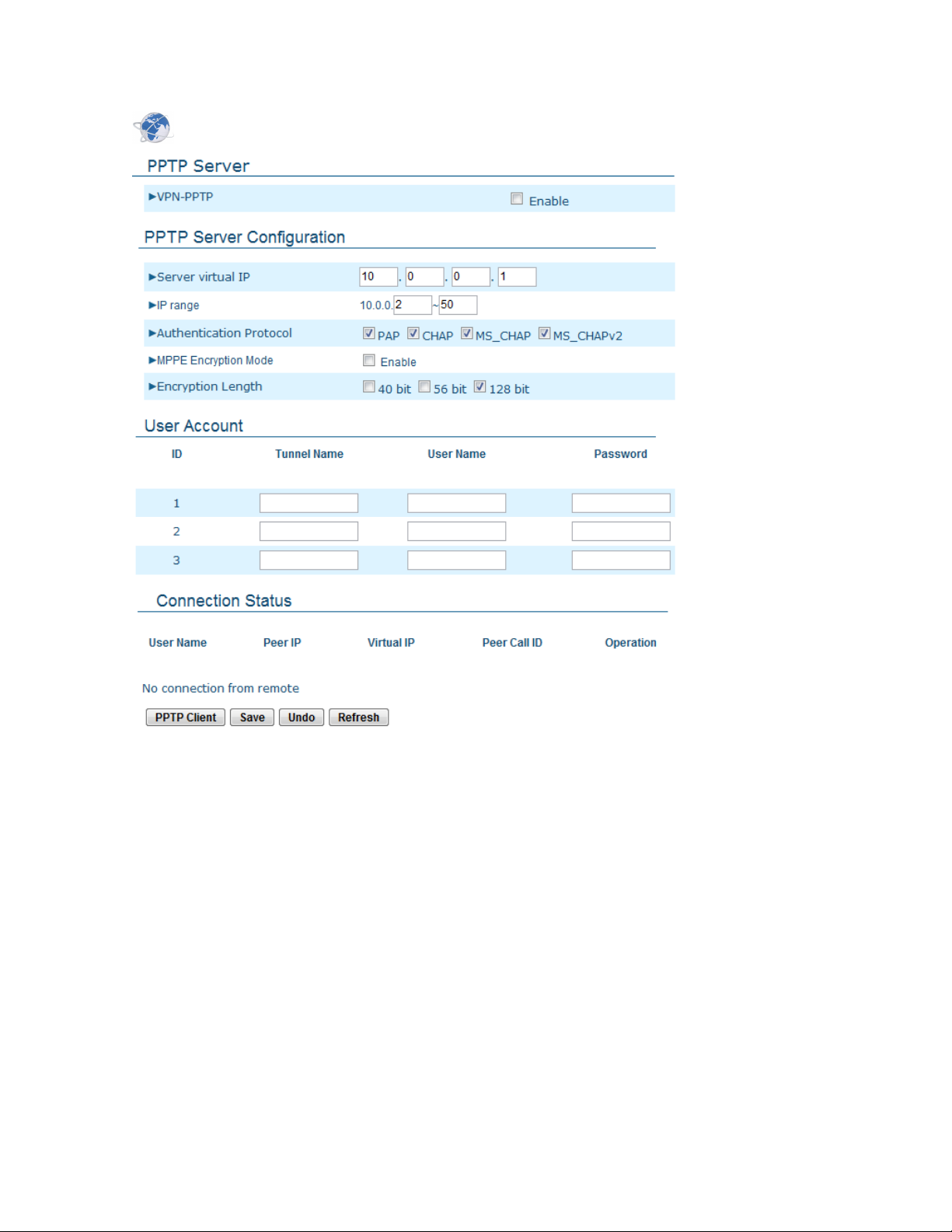

PPTP Server.......................................................................... 32

Miscellaneous ....................................................................... 33

4.5 Advanced Settings.............................................................................. 34

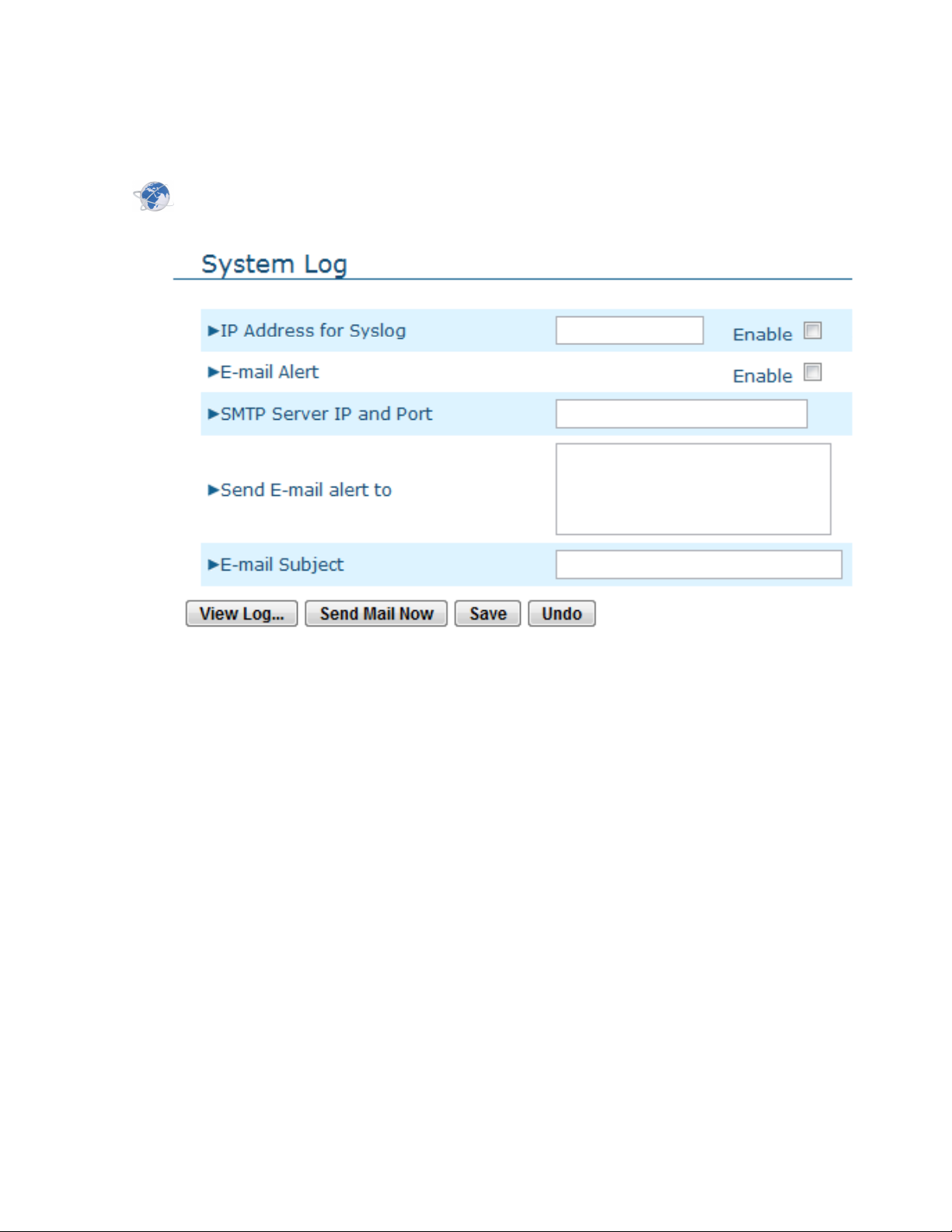

System Log........................................................................... 34

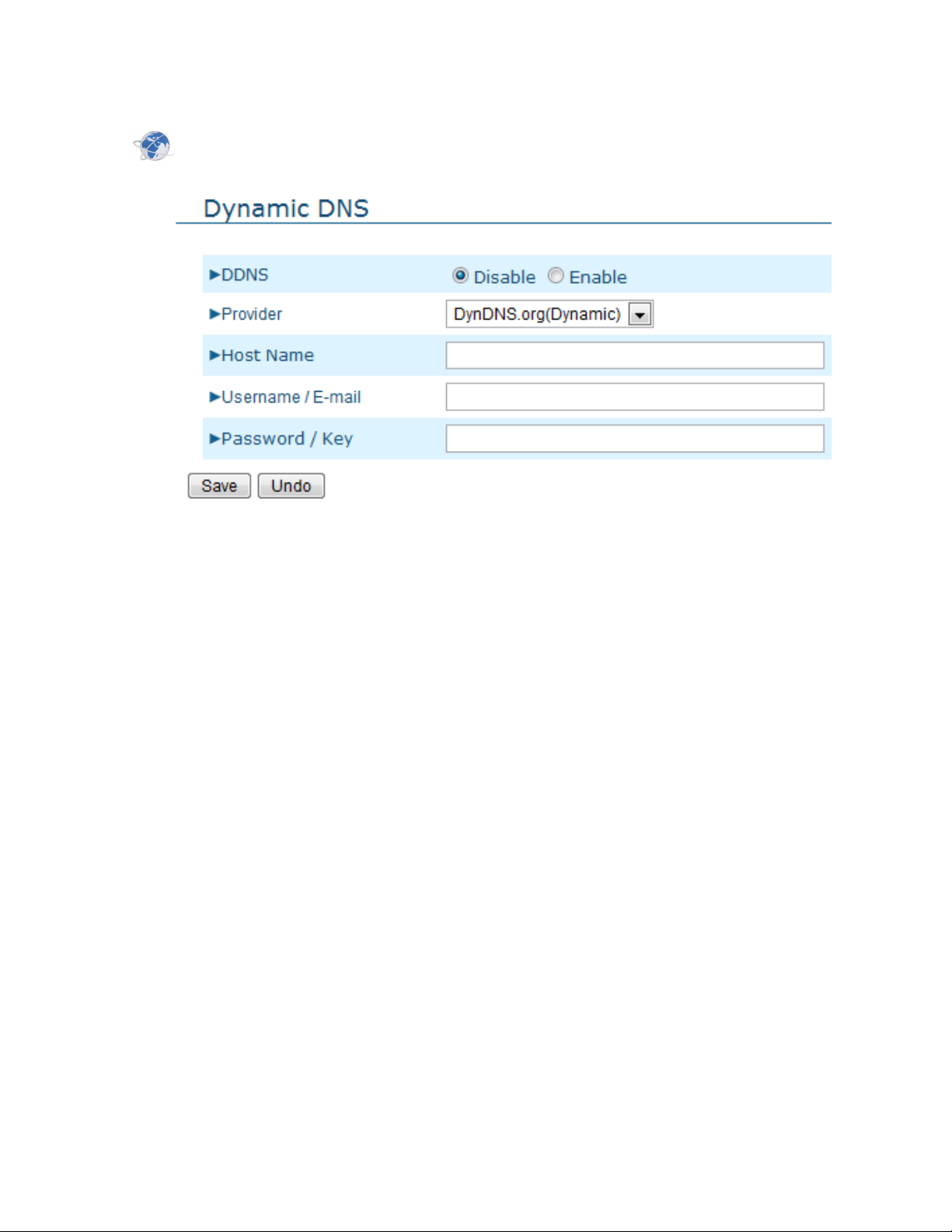

Dynamic DNS ........................................................................ 35

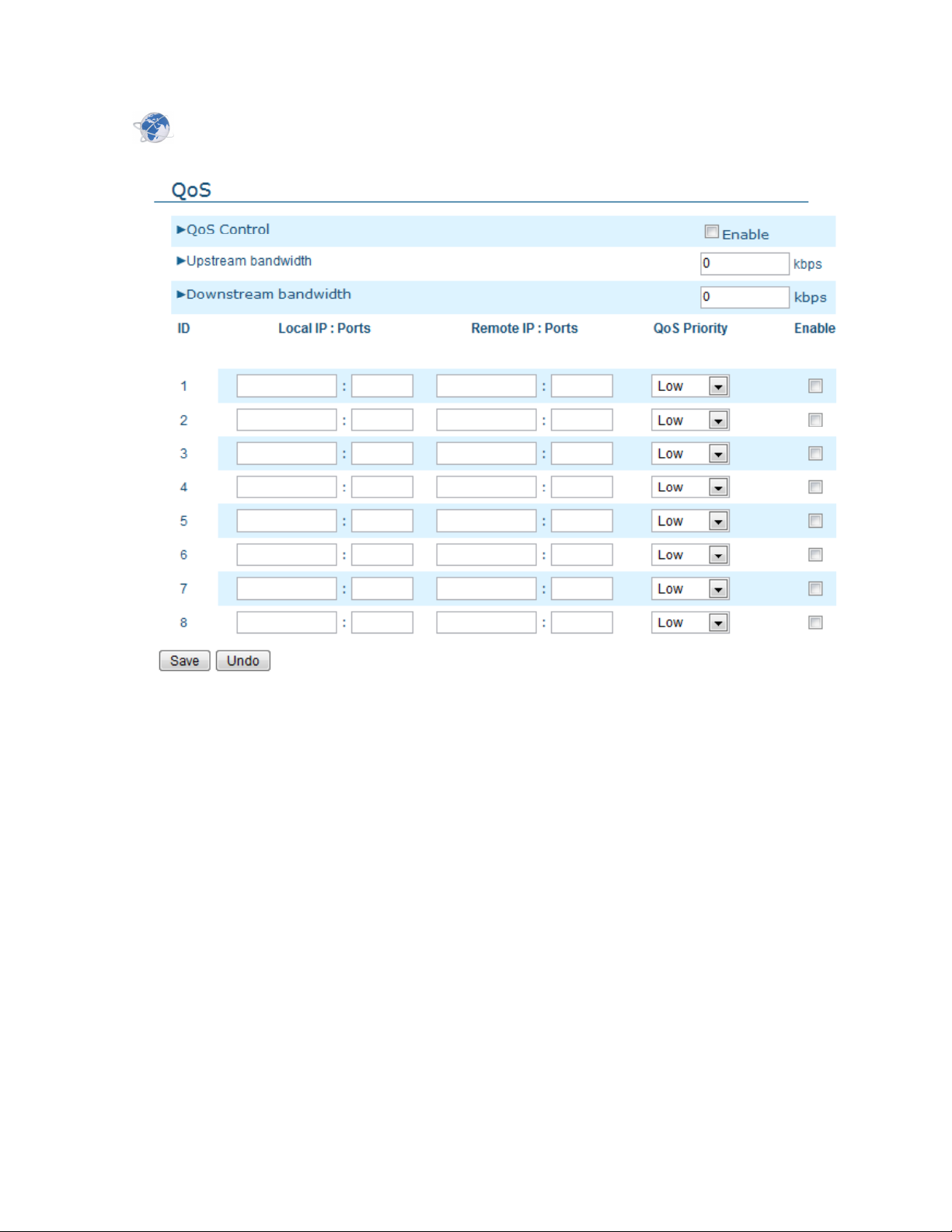

QoS.................................................................................... 36

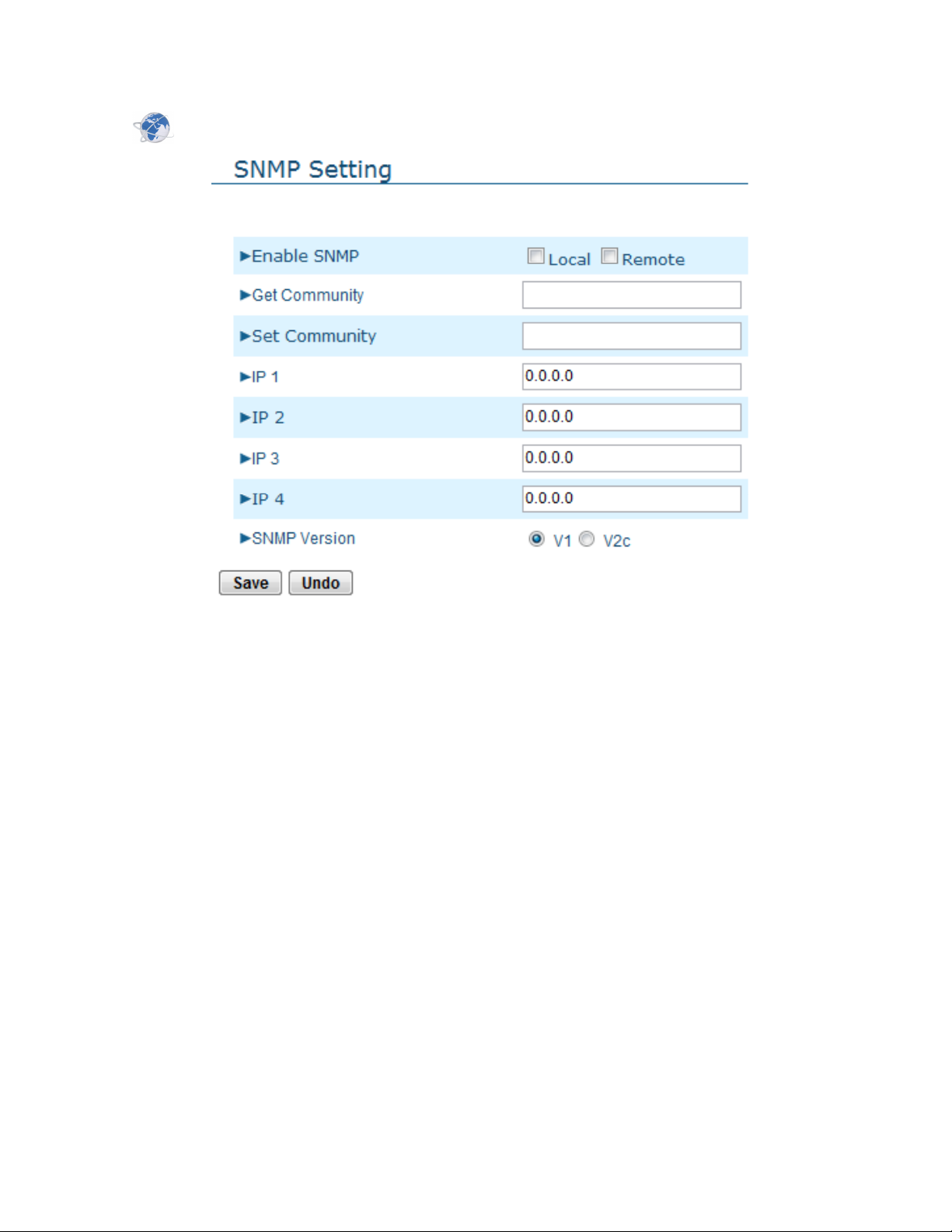

SNMP.................................................................................. 37

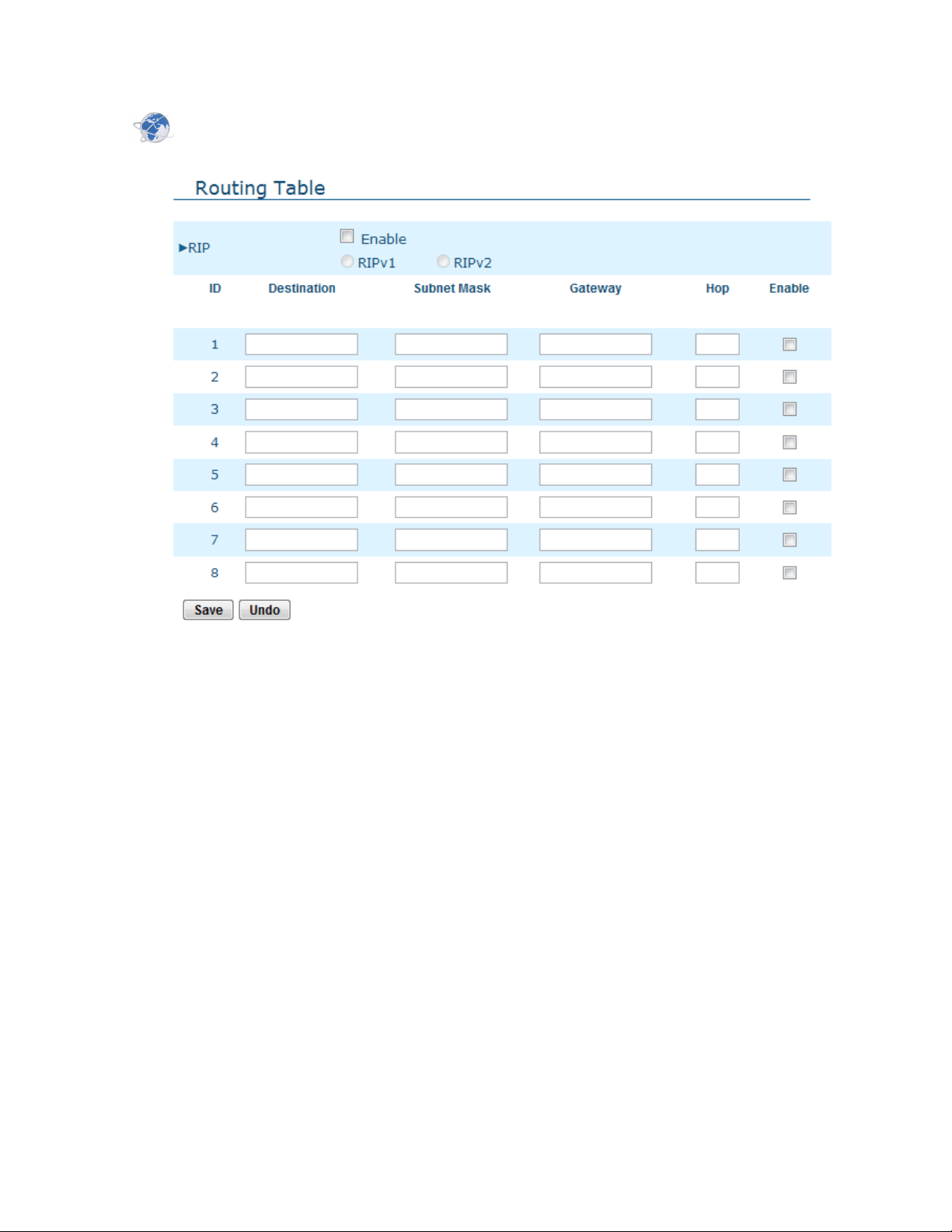

Routing ............................................................................... 38

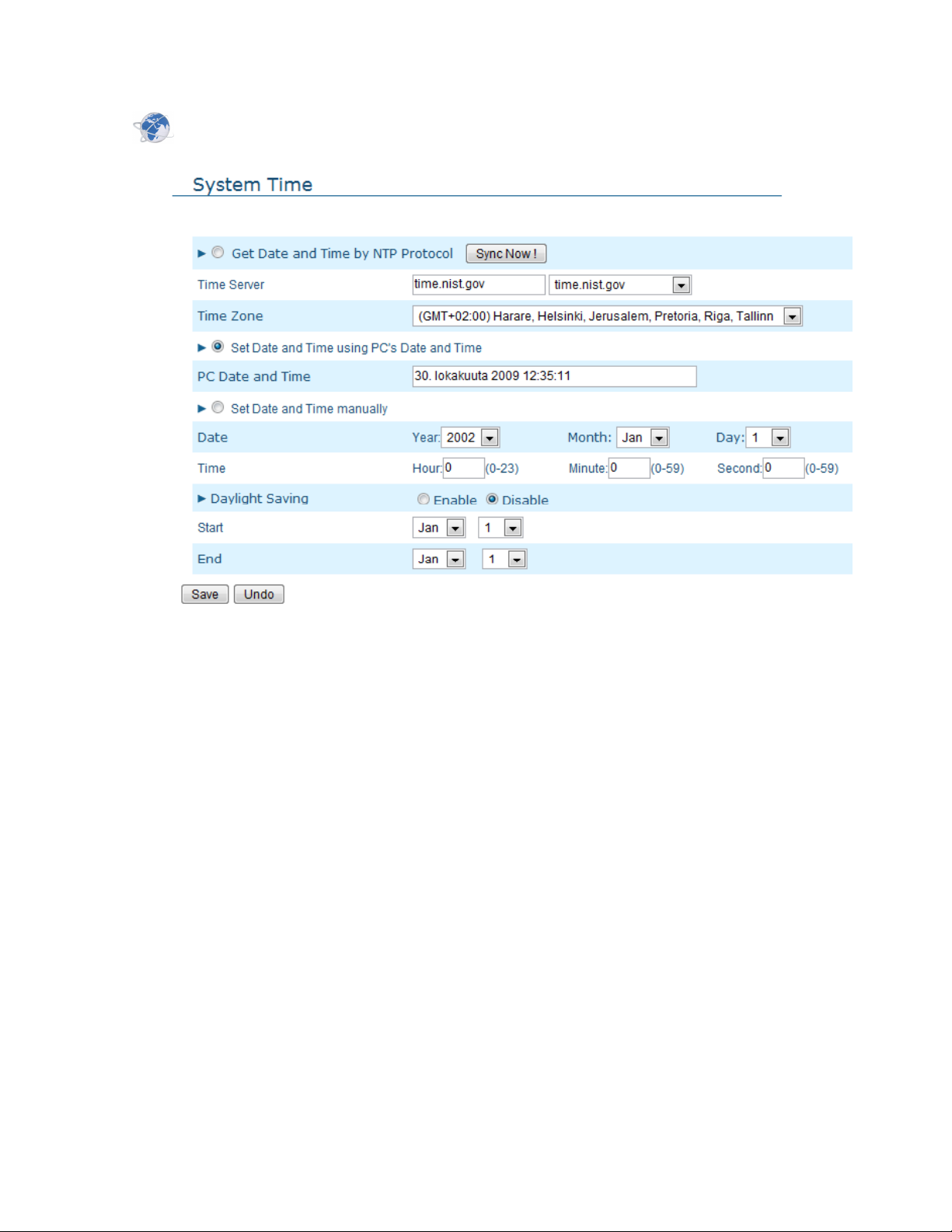

System Time......................................................................... 39

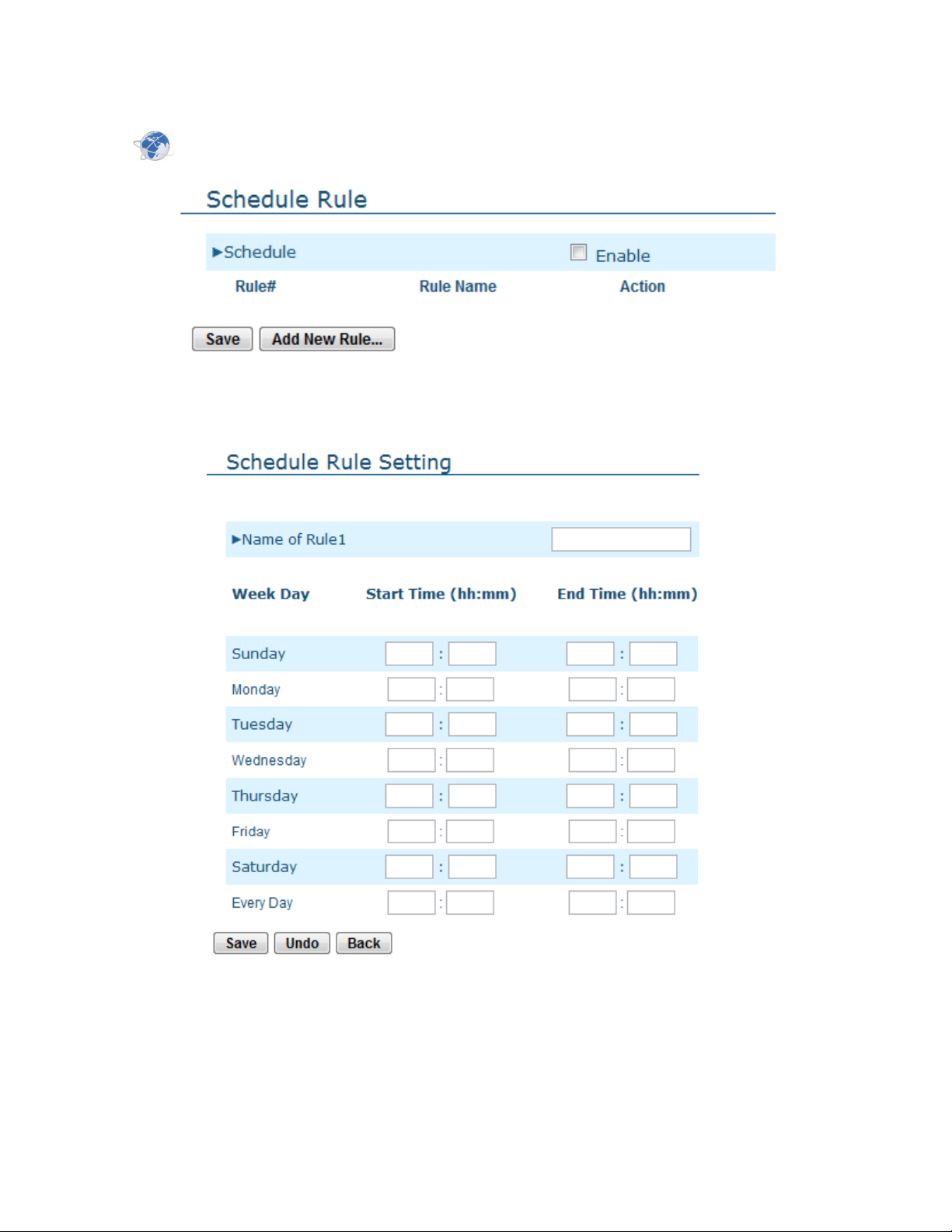

Scheduling ........................................................................... 40

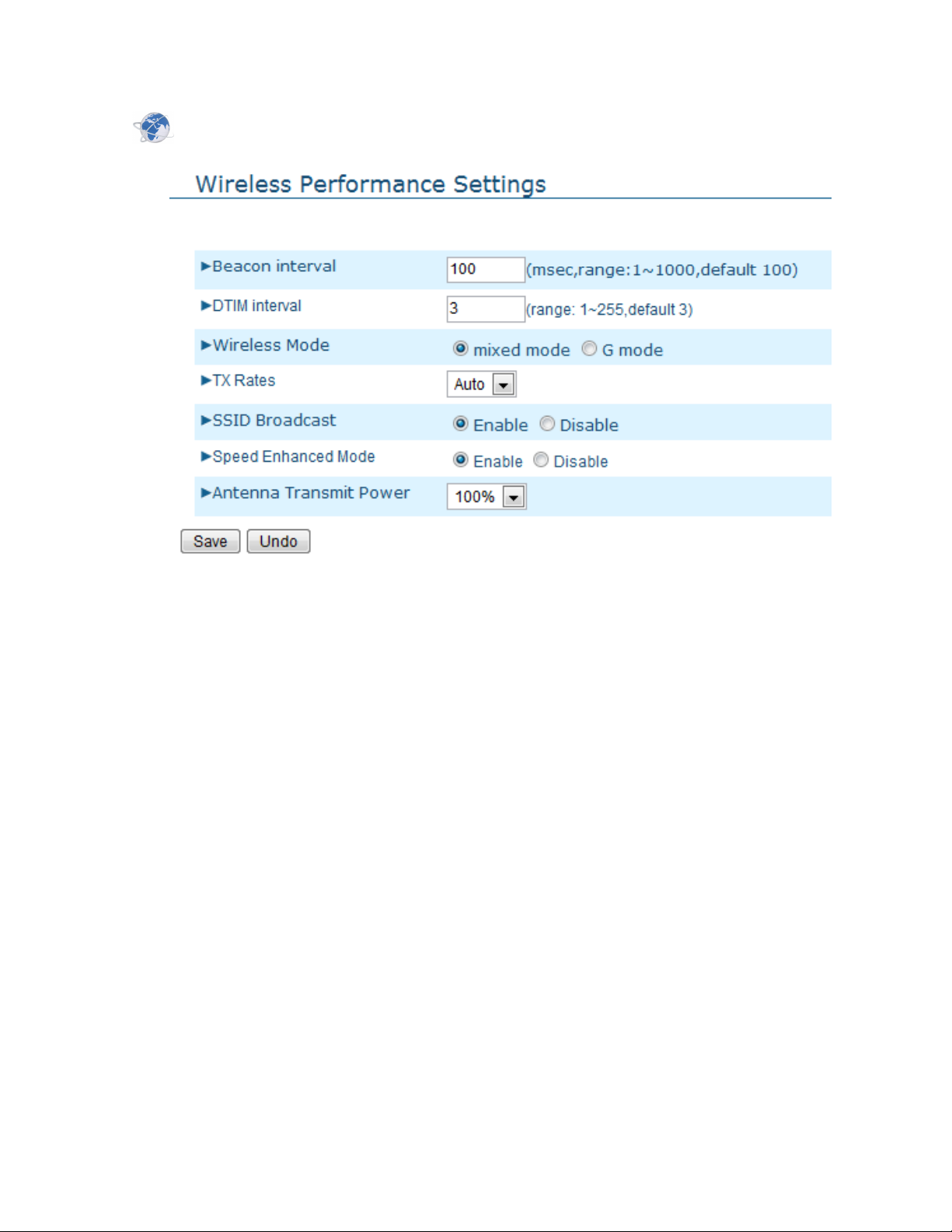

Performance......................................................................... 41

4.6 Tools ............................................................................................. 42

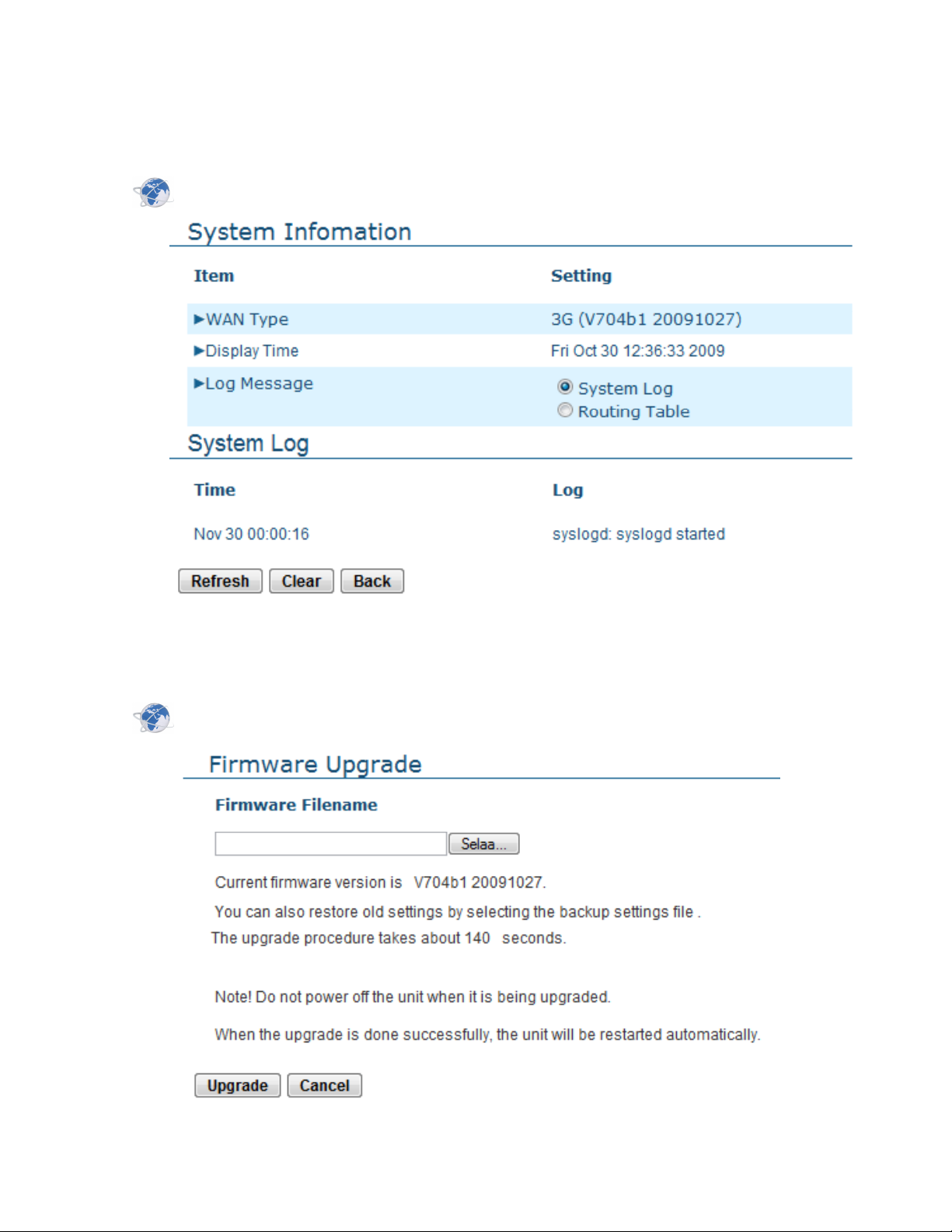

System Info .......................................................................... 42

Firmware Upgrade.................................................................. 42

Backup Setting ...................................................................... 43

Reset to Default .................................................................... 43

Reboot................................................................................ 43

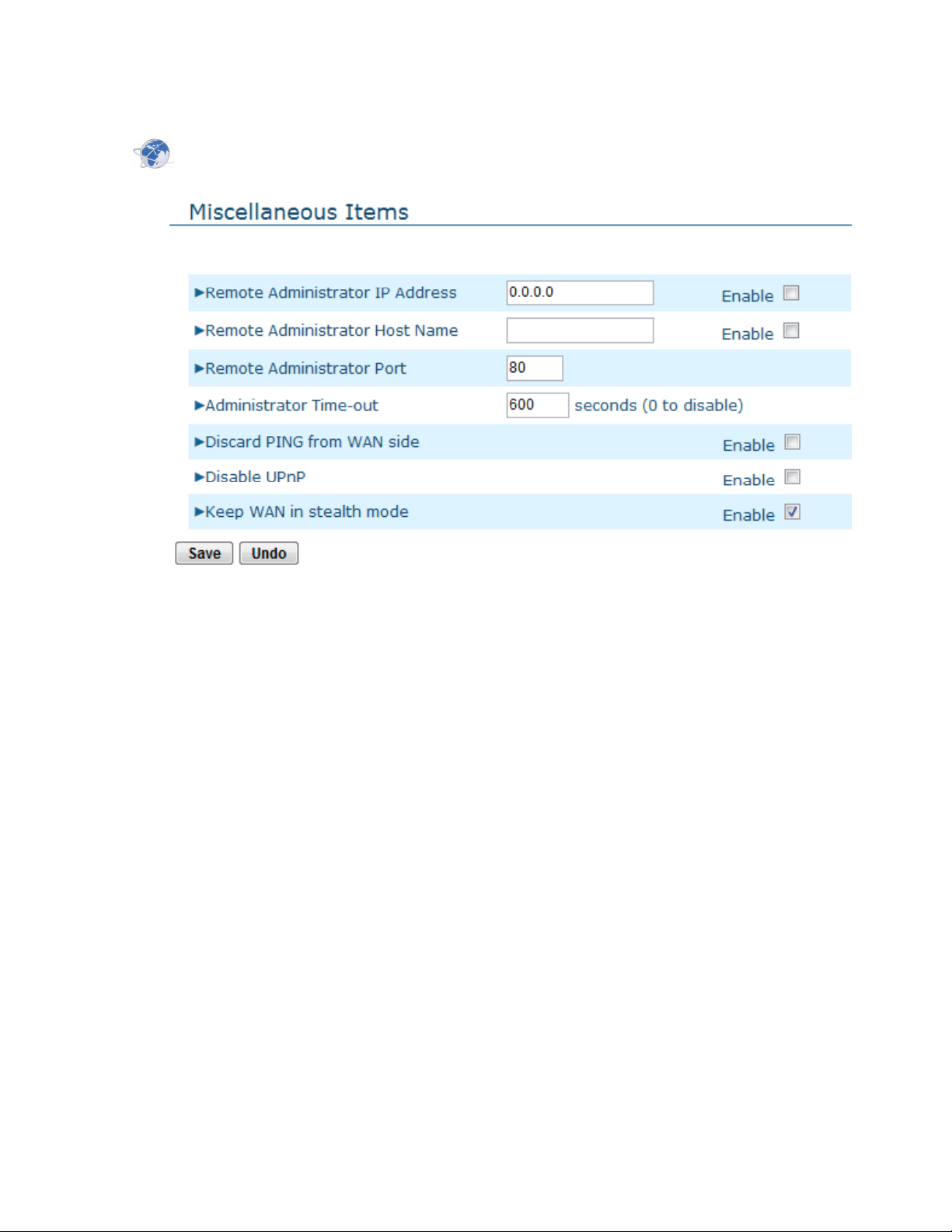

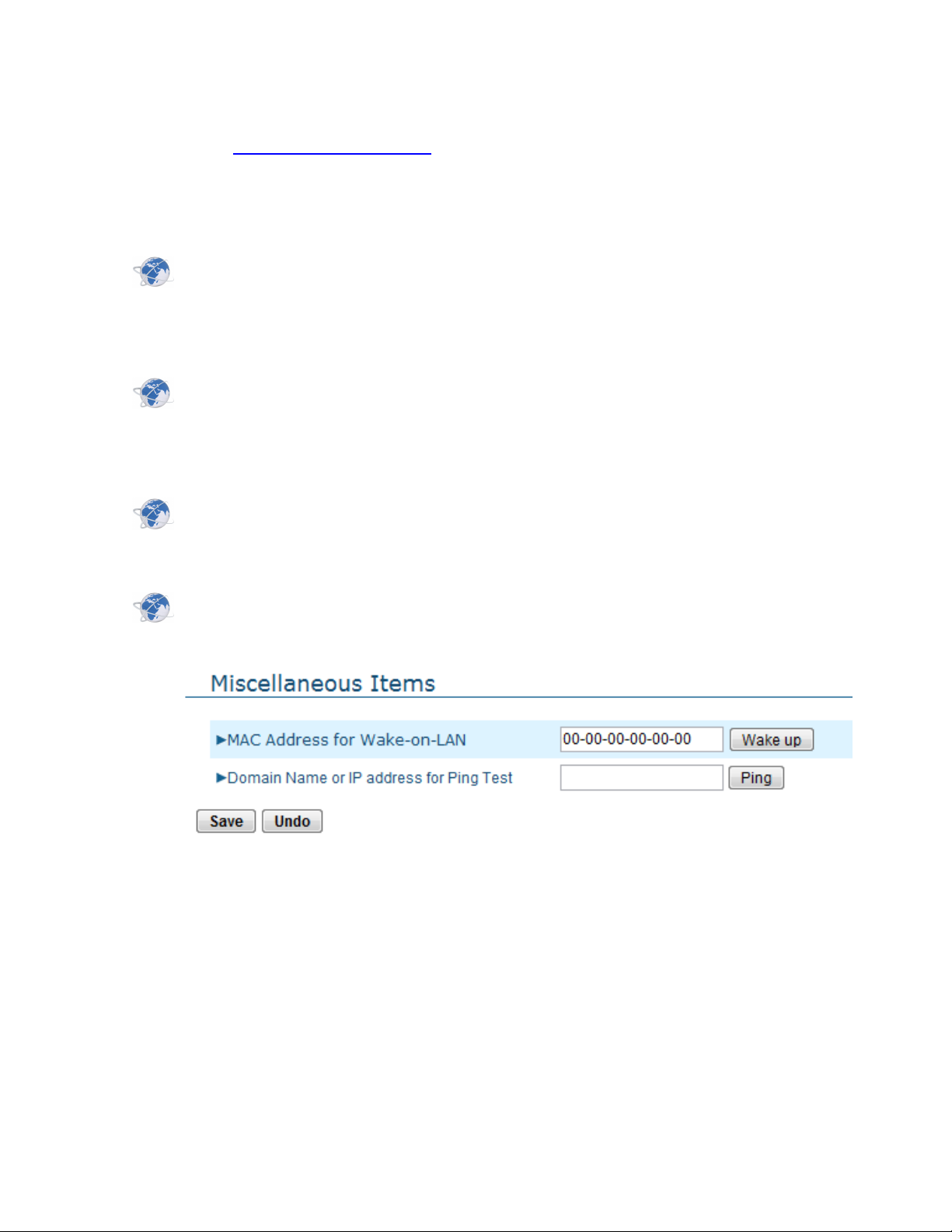

Miscellaneous ....................................................................... 43

4

1. INTRODUCTION

With TeleWell TW-3G+WLAN Router it's possible to share one 3G or Flash-OFDM
connection to multiple PC's. Device includes both USB and PC Card interfaces for
3G or Flash-OFDM card (not included).

3G or Flash-OFDM connection can be used via Ethernet or Wlan interfaces. It's
also possible to share xDSL connection by connecting extrenal xDSL modem* to
the devices WAN port.

3G or Flash-OFDM connection can be used as main WAN connection or as
secondary backup connection for external xDSL.

When used as backup connection, in case of main WAN xDSL connection failure
device can automatically connect to 3G or Flash-OFDM network.

1.1. Package contents

TW-3G Flash-OFDM Router package should contain the items listed below. If
any of the items are missing, please contact your reseller.

• TW-3G Flash-OFDM Router

• RJ45 cable

• Power adapter 5V 3A

• Manual

Caution: Using a power supply with a different voltage rating than the one
included with the TW-3G Flash-OFDM Router will cause damage and void the
warranty for this product.

5

1.2. Features

• Automatic take over back up with 3G connection as Ethernet WAN
failover.

• Implementation within 3 minutes allows the network to go where wires
cannot go – even outside the home or office.

• Fully compatible with the 802.11g standard to provide a wireless data
transfer rate of up to 54Mbps.

• Backwards compatible with the 802.11b standard to provide a wireless
data rate of up to 11Mbps.

• Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing).

• User-friendly configuration and diagnostic utilities.

• Operates in the 2.4GHz frequency range.

• Advanced Firewall features.

• Supports NAT with VPN pass-through, providing added security.

o MAC Filtering
o IP Filtering
o Port Scheduling

• DHCP server enables all networked computers to automatically receive
IP addresses.

• Web-based interface for Managing and Configuring.

• Access Control to manage users on the network.

• Supports special applications that require multiple connections.

• Equipped with 2*10/100 Ethernet ports, for LAN and WAN access, and a

Type II PC card (for both 16-Bit and 32Bit) Slot or USB port for 3G
network connection.

• Connects multiple computers to a Broadband either WCDMA or EV-DO
even HSDPA modem to share the Internet connection.

Note: TW-3G Flash-OFDM Router is designed to work with either EVDO or
WCDMA (UMTS) even up to 3.5G HSPA PC interface.
Please refer to your service provider for detailed feature information.

1.3. System requirements for configuration

• A compatible either 16-bit or 32-bit PCMCIA or USB 3G modem card with

service

Note: Subject to services and service terms available from your carrier.

• Computers with Windows, Macintosh, or Linux-based operating systems
with an installed Ethernet adapter.

• Internet Explorer version 6.0 or Netscape Navigator version 7.0 and above.

WiFi System Requirements

• A 802.11b, 802.11g Adapter

6

1.4. Rear ports

ANTENNA

WAN

WAN port for ADSL cable

LAN

LAN port for Ethernet cable

USB

USB port for connecting with 3G USB modem

RESET

Restore to Original factory default settingS

POWER

Receptor for Power adapter

1.5. Front LEDs

3G

Green light as power is on and ready

LAN

Green light as connected to local Ethernet and blinks
during data transmission

WAN

Green light as WAN is connected

WiFi

Green light when connection on WLAN available

7

2. CONFIGURING TW-3G Flash-OFDM

2.1. Installation Considerations

TW-3G Flash-OFDM Router allows you access your network using a wireless
connection, from virtually anywhere within its operating range. Keep in
mind however, that the number, thickness, and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit this
range.
Typical ranges vary depending on the types of materials used, and
background RF (radio frequency) noise in your home or business.

To maximize your wireless range, please follow these guidelines:

1. Keep the number of walls and ceilings between the TW-3G Flash-OFDM
Router and other network devices to a minimum. Each wall or ceiling can
reduce the TW-3G Flash-OFDM Router’s range from 3-90 feet (1-30
meters).

Note: The same considerations apply to your broadband EVDO connection.

2. Keep your product aware from electrical devices (such as microwaves, air
conditioners, and televisions) that emit large quantities of RFI (Radio
Frequency Interference).

2.2 Installation Instructions

Connect the Wireless Router to Your Network
Note: DO NOT connect TW-3G Flash-OFDM Router to power before

performing the installation steps below.

1. Attach the antenna

Screw the antenna in a clockwise direction to the back panel of the
unit. Once secured, position the antenna upward at its connecting
joint. This will ensure optimal reception.

8

2. Connect a compatible Type II 3G cards or USB modem with service to
the TW-3G Flash-OFDM Router in one of the following ways:

- Insert your wireless Type II 3G card (either 16-bit or 32-bit ) into

the WAN PCMCIA Card Slot or you can plug your USB modem into
the USB interface.

3. Insert the Ethernet patch cable into LAN Port on the back panel of
the TW-3G Flash-OFDM Router, and an available Ethernet port on the
network adapter in the computer you will use to configure the unit.

4. Connect the power adapter to the receptor on the back panel of your
TW-3G Flash-OFDM Router. Then plug the other end of the power
adapter into a wall outlet or power strip.

The Power LED will turn ON to indicate power has been applied.
Other LEDs will flash ON and OFF as the TW-3G Flash-OFDM Router
performs initialization and Internet connection processes. This will
take a few minutes. When complete, the following LEDs will
illuminate green: M1, WAN, LAN, and WiFi

9

2.3 Establishing WAN connection

Once properly configured, TW-3G Flash-OFDM Router will obtain and assign
IP address information automatically. Configuration settings can be
established through the TW-3G Flash-OFDM Router Configuration Menu. You
can access this interface by performing the steps listed below:

NOTE: THE ROUTERS SETTINGS SHOULD ONLY BE MODEFIED VIA
ETHERNET CABLE; NOT THROUGH WIRELESS CONNECTION!

1. Open a web-browser.

2. Type in the IP Address (http://192.168.0.254) of the TW-3G Flash-OFDM
Router

Note: If you have changed the default IP Address assigned to the TW-3G
Flash-OFDM Router, ensure you enter the correct IP Address now.

3. The default language of the web GUI is Finnish. You can change the
language settings after logging in. Type “admin” in the Password field
(Järjestelmän salasana).

-> Click “logon” button (Kirjaudu).

10

4. Language settings can be modified from the “Kieli”-menu at the
top right corner

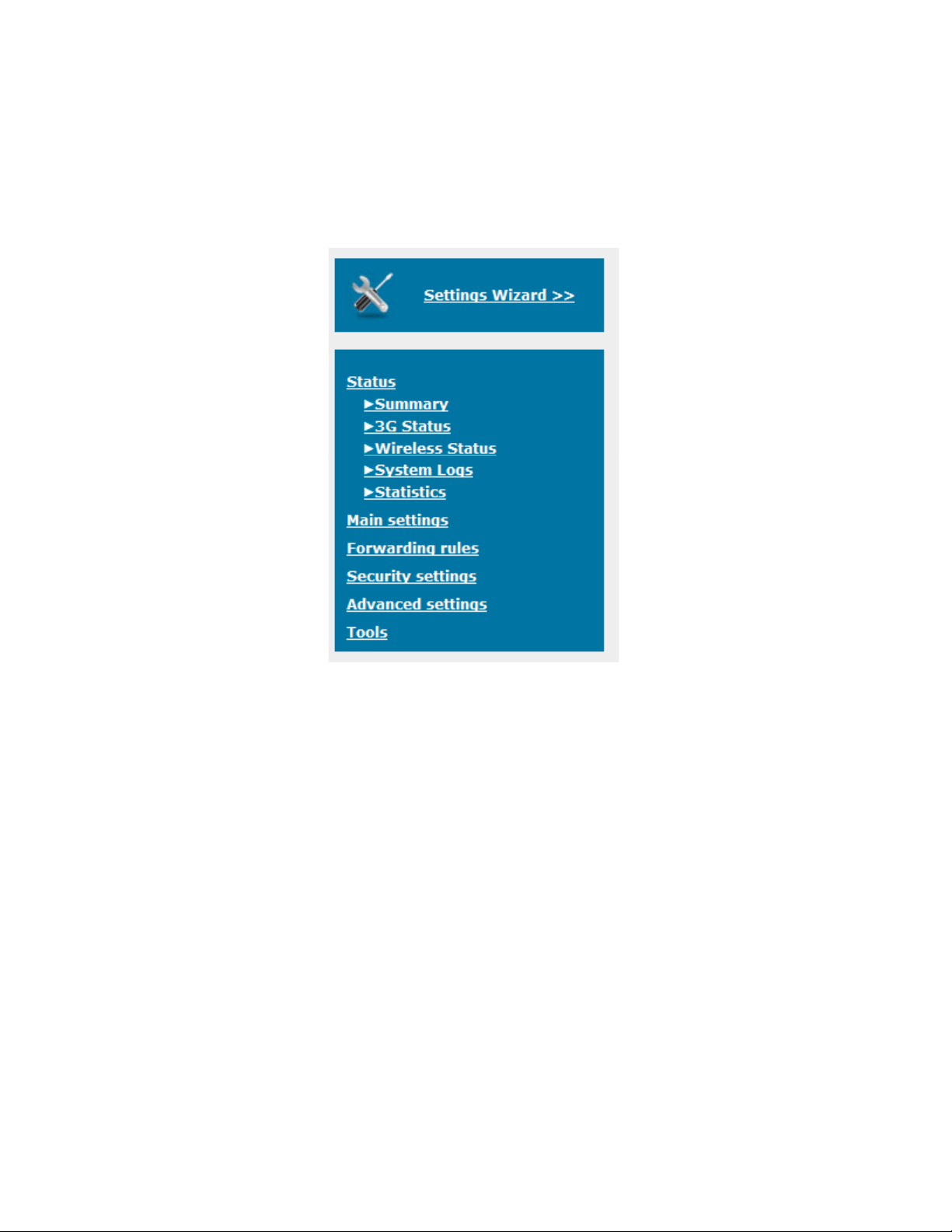

5. From the left sidebar you can choose between Settings wizard
(chapter 3) or modifying all settings separately (chapter 4)

6. At the top right corner you can also find shortcuts to quick start,
firmware upgrade and system log.

11

3. SETTINGS WIZARD

With wizard setting steps, you could configure the router in a very simple way.
This configuration wizard includes settings of

a. Login Password,
b. WAN Setup
c. Wireless Setup,

Press “Next” button to start configuration.

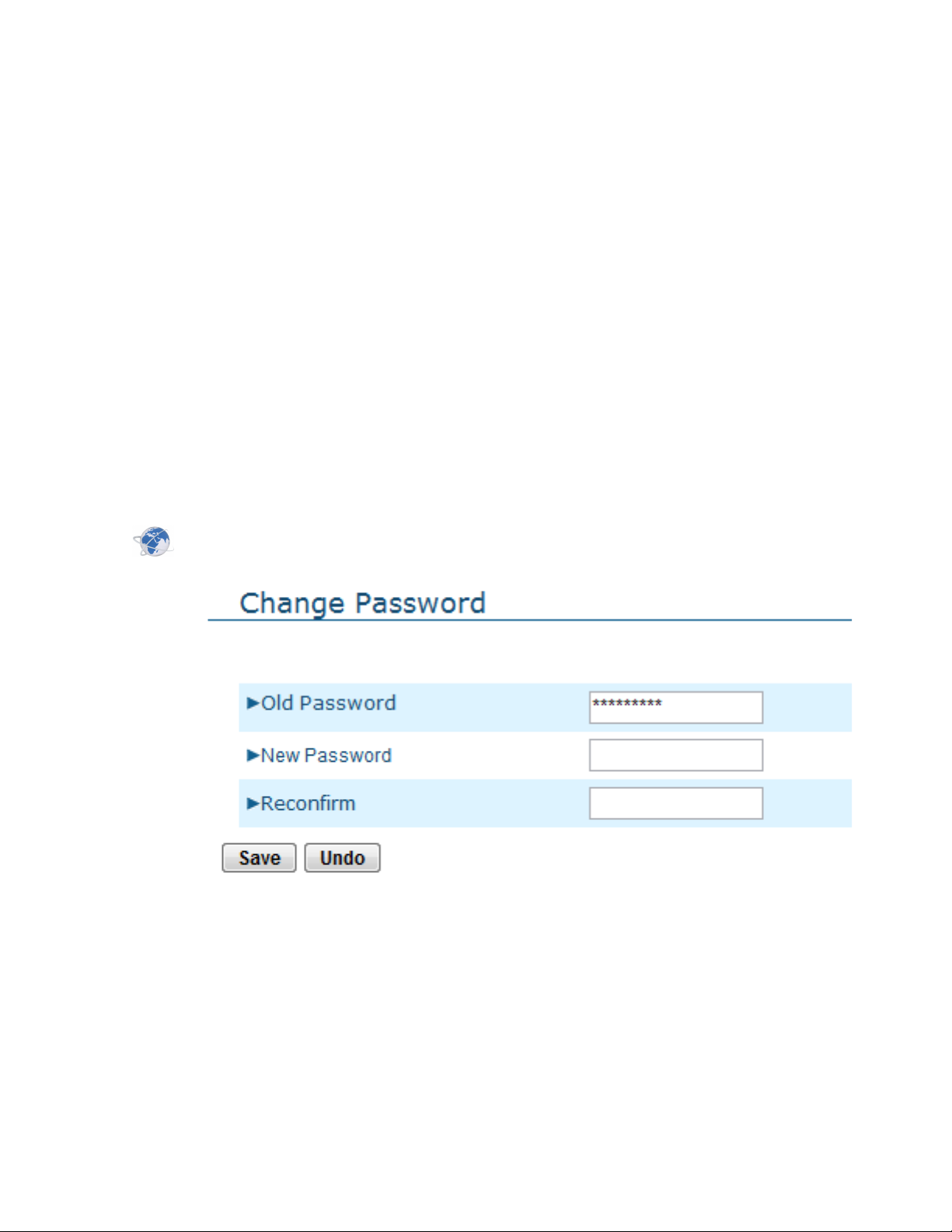

Step 1: Allow you to change the system password.

It is recommended that you change the system password into the one
you prefer to on the basis of security

• Key in your Old Password (if it is the first initiation, the “admin” will be
the defaulted one.

• Enter your New Password

• Enter your Password again for confirmation; it must be the same as the

New Password.

-> Next

12

Step 2：Select WAN Types will be used for Internet connection

-> Next

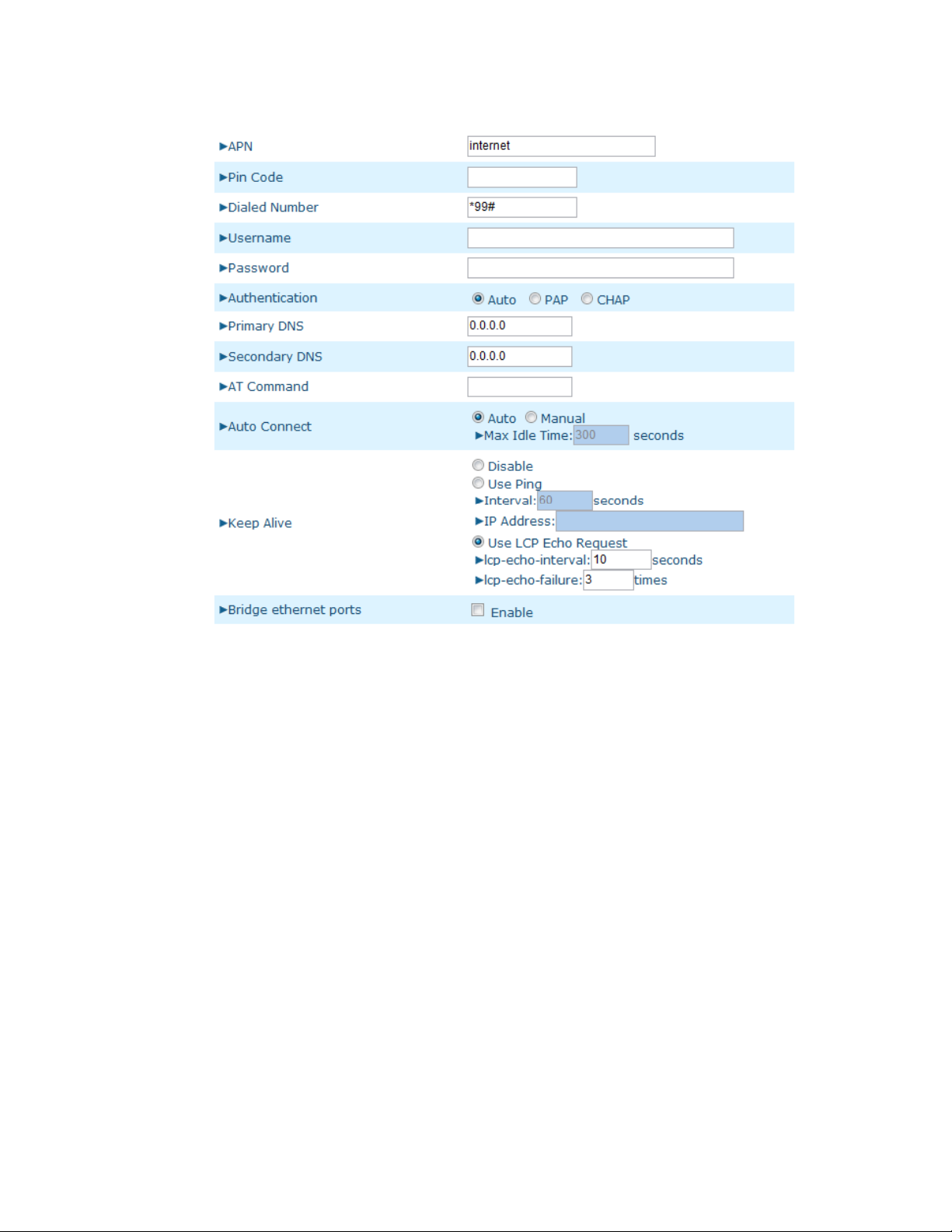

Step 3：If chosen 3G, configure the 3G settings

• APN: Enter the APN for your PC card here.

• Pin Code: Enter the Pin Code for your PC card

• Dialed Number: This field should not be altered except when required

by your service provider.

• Username: Enter the new Username for your PC card here.

• Password: Enter the new Password for your PC card here.

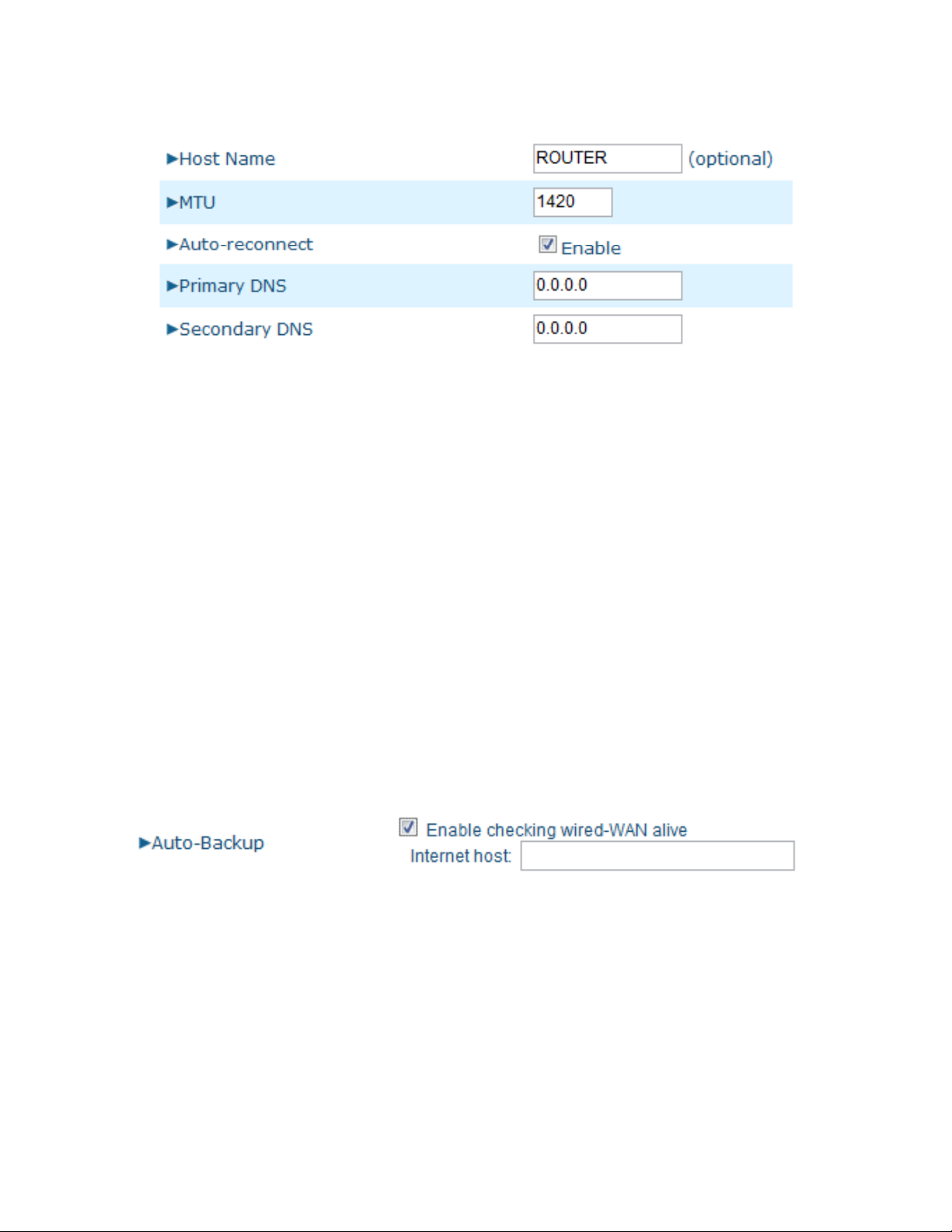

• Primary DNS: This feature allows you to assign a Primary DNS

Server（Optional）

• Secondary DNS: This feature allows you to assign a Secondary DNS
Server（Optional）

• Maximum Idle Time: The Connection will be broken when the idle time
arrives.

-> Next

13

Step 3：If chosen Flash-OFDM, configure the Flash-OFDM settings

• LAN IP-address: Can be modified if necessary. Default 192.168.0.254

-> Next

Step 3：If chosen WAN Ethernet port, configure the WAN settings

Choose ”Obtain an IP address from ISP automatically”

-> Next

• LAN IP Address: The IP address of the LAN interface. The default IP
address is 192.168.0.254

• Host Name is optional

• WAN’s MAC Address: If you click the Clone MAC button, you will find the

MAC address of your NIC shown in WAN's MAC Address. Note: Do not
modify this, if not necessary!

-> Next

14

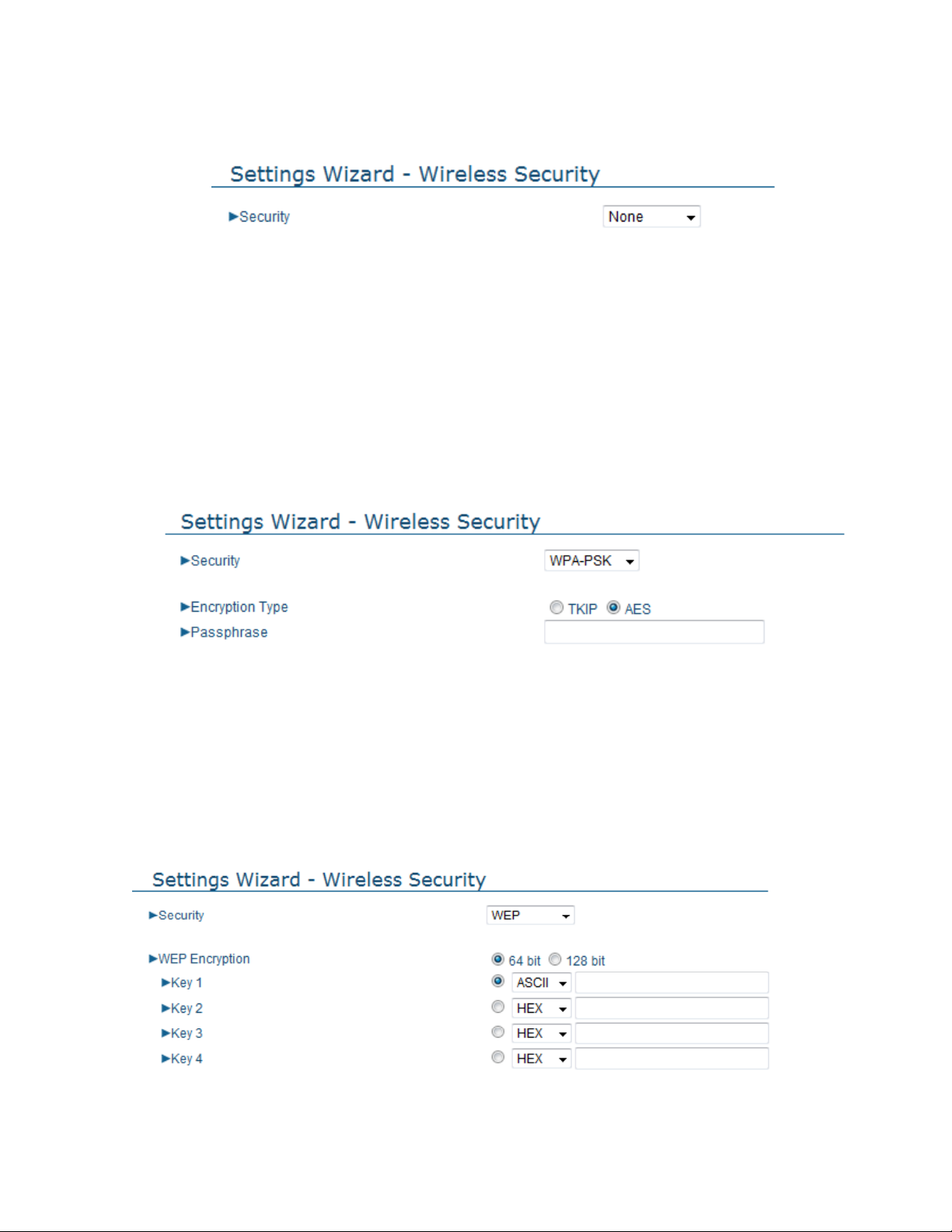

Step 4: Configure the wireless settings.

• Select Enabled or Disabled. The default setting is Enabled.

• Network ID (SSID) will be as a default TW-3G_ofdm_router. It is

recommended that you change the SSID for making it easier to identify.

• Channel: The channel selection is at auto by default, which means that
your router will automatically choose the channel with least traffic. If
necessary, you might pick a specific channel.

•

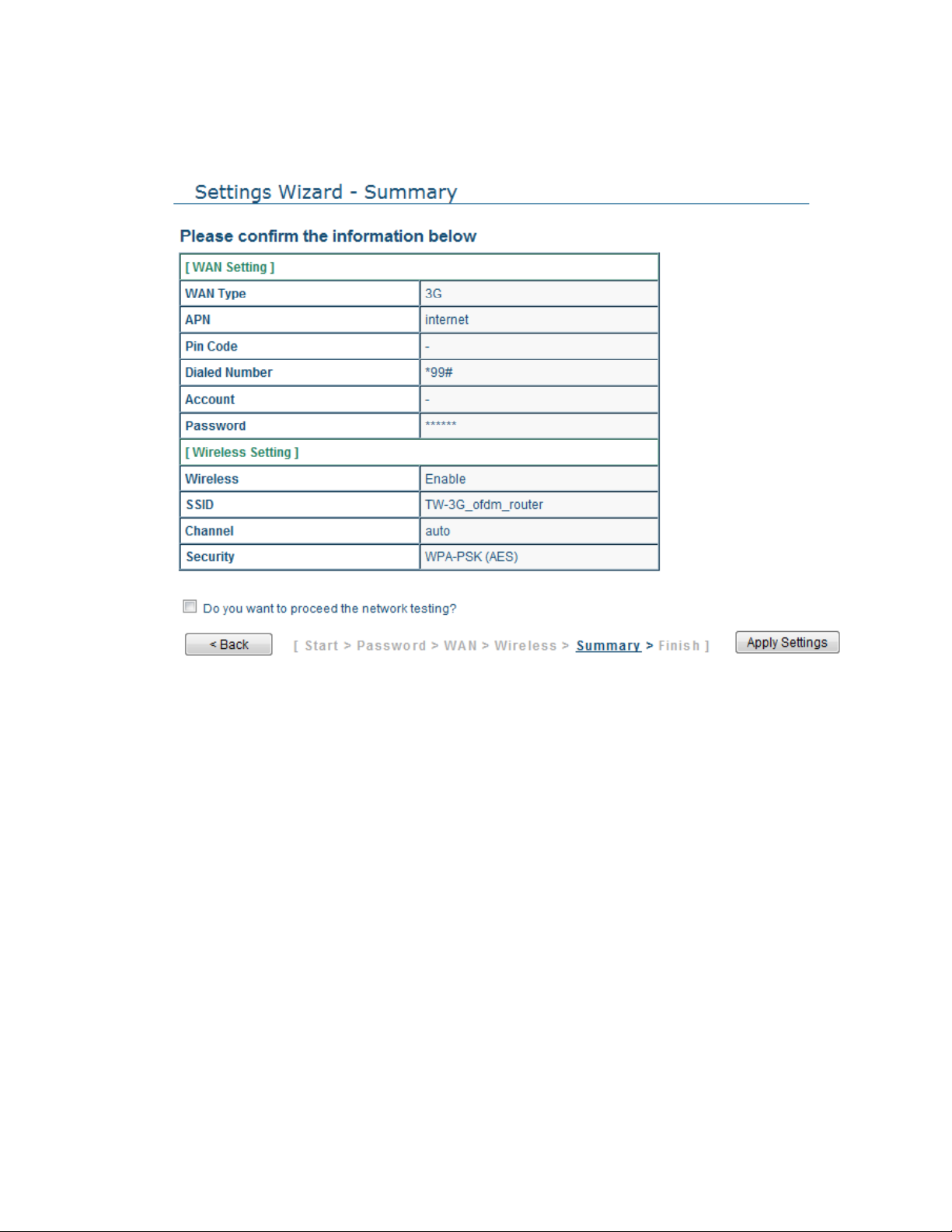

-> Next
