Page 1
Mode# DFA003
Dock FM Transmitter for iPhone
Page 2
Important Information Required By the FCC
The Manufacturer is not responsible for any radio or
TV interference caused by unauthorized modifications
to this equipment. Such modifications could void the
user's authority to operate the equipment
Waste electrical products /batteries should not be
disposed of with household waste. Separate disposal
facilities exist, for your nearest facilities.
EN Touch Screeen FM Transmitter
FR Touch Screeen FM Transmitter
DE Touch Screeen FM Transmitter
ES Touch Screeen FM Transmitter
NL Touch Screeen FM Transmitter
IT Touch Screeen FM Transmitter
PT Touch Screeen FM Transmitter
2
RU Touch Screeen FM Transmitter
8
A
R Touch Screeen FM Transmitter
14
JP Touch Screeen FM Transmitter
20
CN Touch Screeen FM Transmitter
26
32
38
44
50
56
62
Page 3
◆ Contents :
1- FM Transmitter unit
1- USB Charging Cable
◆ Product Layout :
①
Dock connector
DC 5V adapter jack
③
②
Frequency button
◆ Specifications:
Compatiblility:
iPhone 3G,iPhone, All iPod models except shuffle
Capacity:
1200mA Polymer Li-ion battery
FM Stereo Transmitter
Full frequency FM transmitter
Frequency range: 88.1-107.9MHz
Operation range: 0-3m
Power off automaticallywhen there is no input audio signal within 60
seconds
Power:
Input power voltage: 5V DC
Power source: connected iPhone or iPod
Car charger: 5V DC output; 12V DC input
Fuse: 2A 250V replaceable
Display:
LCD display with integrated blue backlight function
USB Charging Cable
Car Chager with 2.5DC jack
Page 4

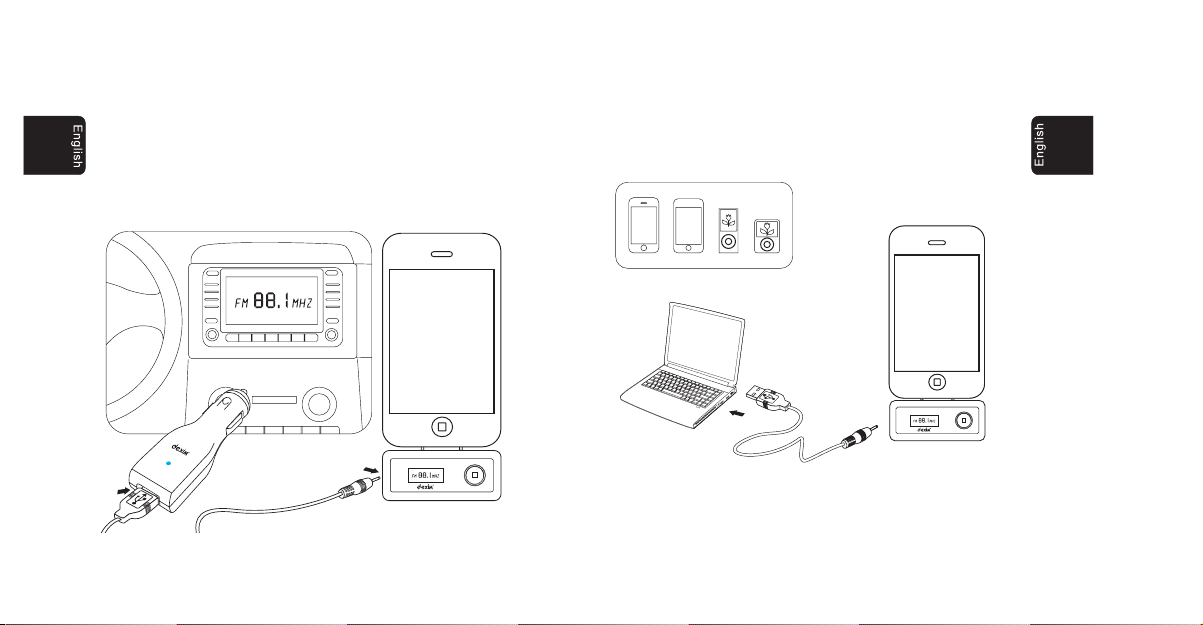

◆:Instruction
1.Plug dock connector into dock slot of iPhone/iPod player.
2.Turn on your car radio or home radio, then select a frequency with a weak
broadcast signal (eg.88.1MHz).3.Press to select the same frequency as
radio s (eg.88.1MHz).
’
①
②
4.In case the signal quality is not satisfactory, try another FM Frequency.
5.Plug included USB cable into DC 5V adapter jack to charge connected
iPhone/iPod player.
③
--4
