Tele Vue TRF-2008 User Manual

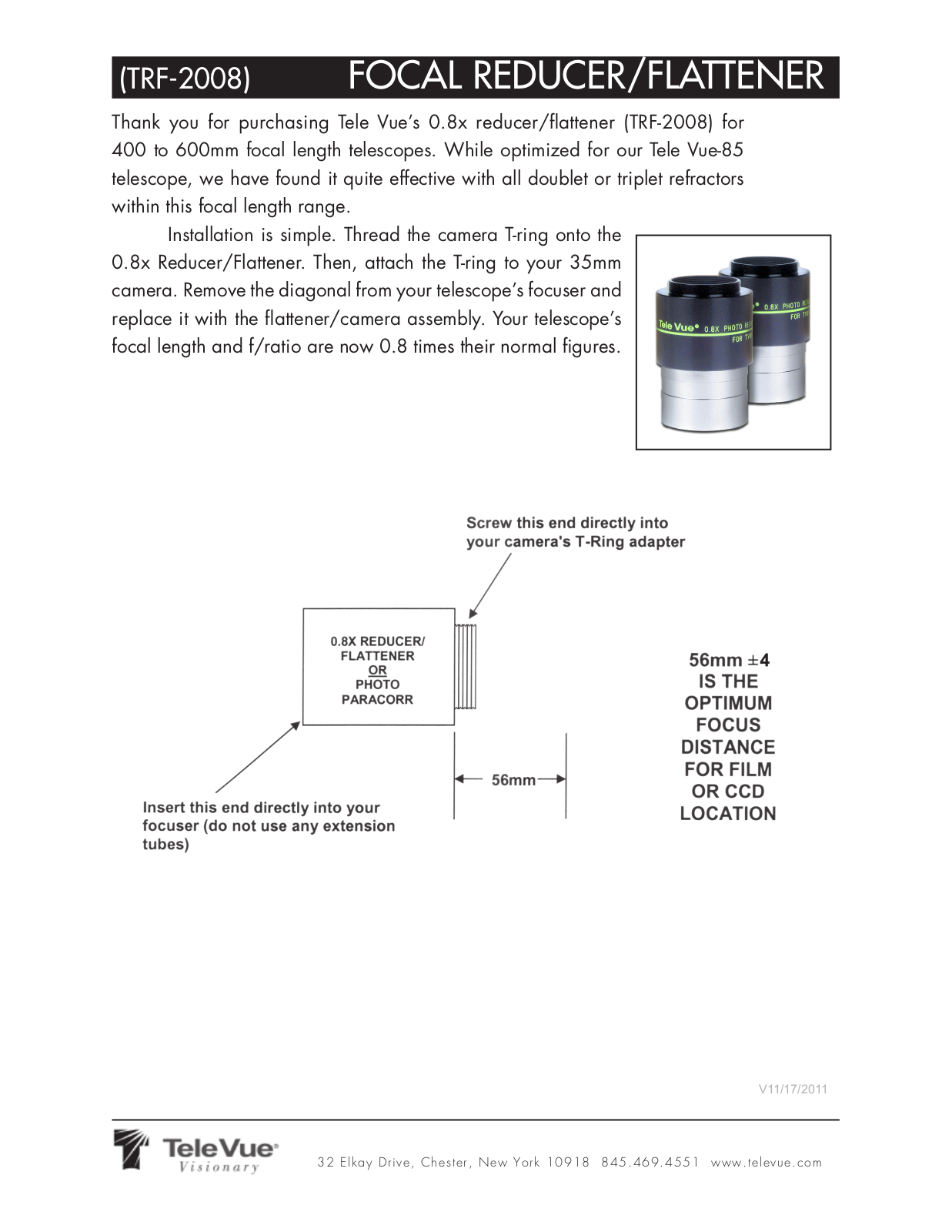

(TRF-2008) FOCAL REDUCER/FLATTENER

Thank you for purchasing Tele Vue’s 0.8x reducer/flattener (TRF-2008) for
400 to 600mm focal length telescopes. While optimized for our Tele Vue-85
telescope, we have found it quite effective with all doublet or triplet refractors
within this focal length range.

Installation is simple. Thread the camera T-ring onto the

0.8x Reducer/Flattener. Then, attach the T-ring to your 35mm
camera. Remove the diagonal from your telescope’s focuser and
replace it with the flattener/camera assembly. Your telescope’s
focal length and f/ratio are now 0.8 times their normal figures.

V11/17/2011

32 Elkay Drive, Chester, New York 10918 845.469.4551 www.televue.com

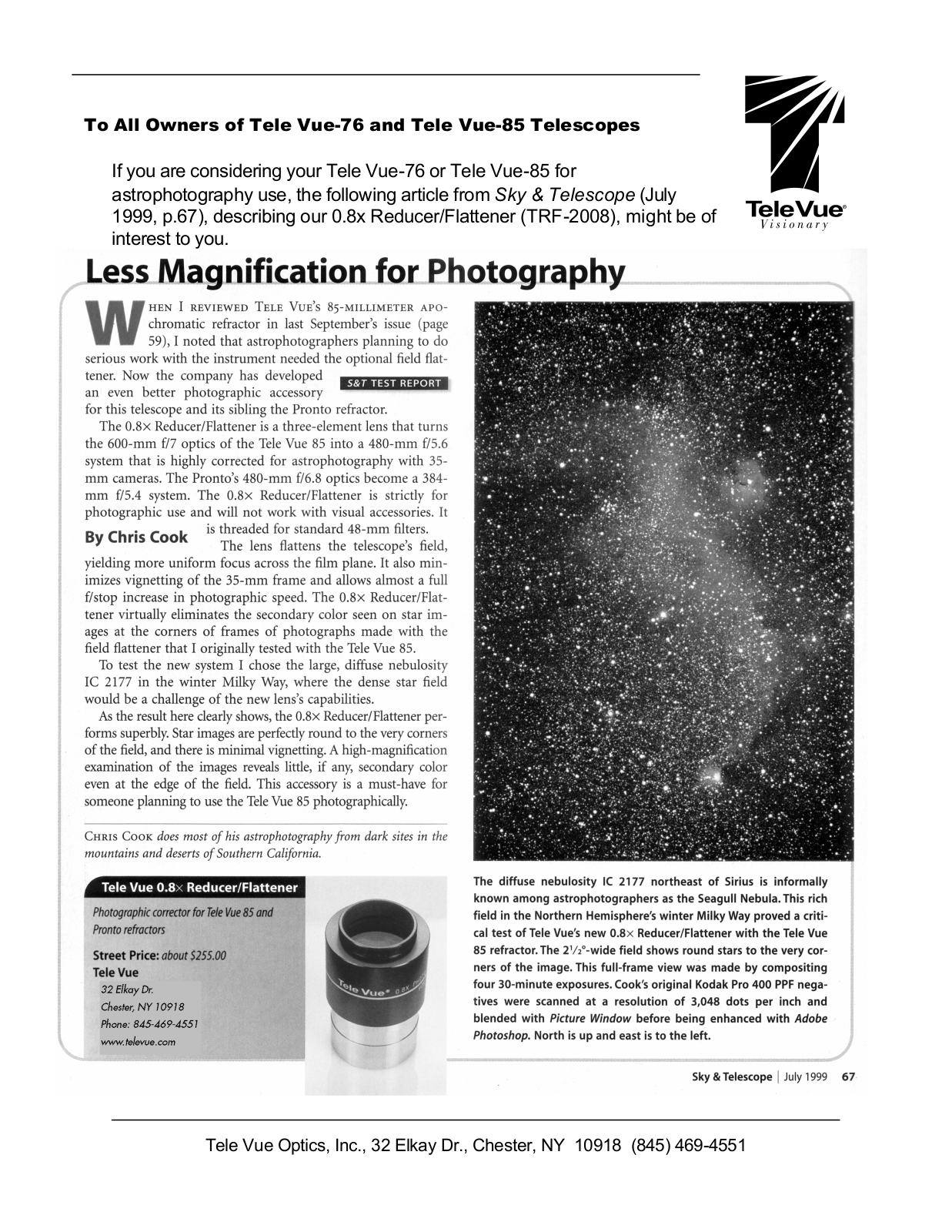

To All Owners of Tele Vue-76 and Tele Vue-85 Telescopes

If you are considering your Tele Vue-76 or Tele Vue-85 for
astrophotography use, the following article from Sky & Telescope (July
1999, p.67), describing our 0.8x Reducer/Flattener (TRF-2008), might be of
interest to you.

Tele Vue Optics, Inc., 32 Elkay Dr., Chester, NY 10918 [phone]
