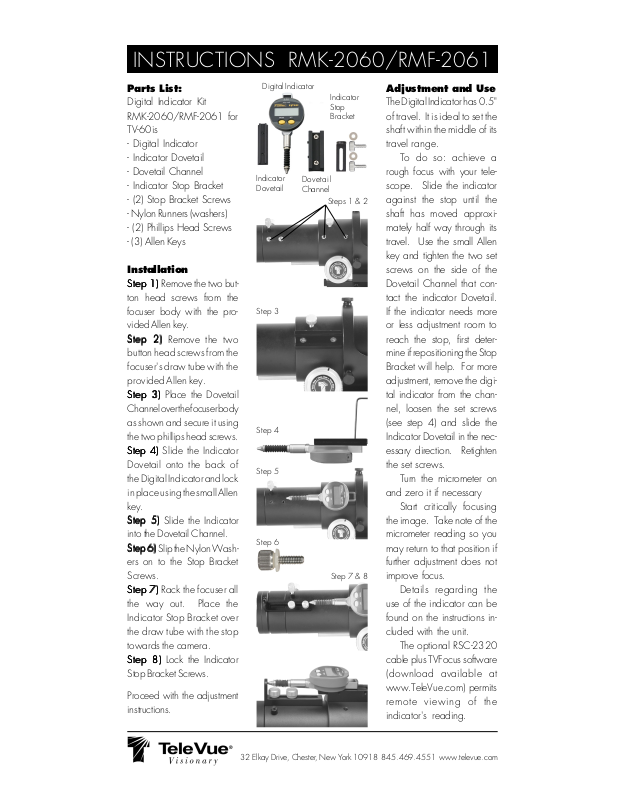

INSTRUCTIONS RMK-2060/RMF-2061
Parts List:
Digital Indicator Kit RMK-2060/RMF-2061 for TV-60is
- Digital Indicator
- Indicator Dovetail
- Dovetail Channel
- (2) Stop Bracket Screws
- Nylon Runners (washers)
- (2) Phillips Head Screws
- (3) Allen Keys
Installation
Step 1)Step 1)
Step 1) Remove the two but-
Step 1)Step 1) ton head screws from the focuser body with the pro­vided Allen key. Step 2)Step 2)
Step 2) Remove the two
Step 2)Step 2) button head screws from the focuser's draw tube with the provided Allen key. Step 3)Step 3)
Step 3) Place the Dovetail
Step 3)Step 3) Channel over the focuser body as shown and secure it using the two phillips head screws. Step 4)Step 4)
Step 4) Slide the Indicator
Step 4)Step 4) Dovetail onto the back of the Digital Indicator and lock in place using the small Allen key. Step 5)Step 5)
Step 5) Slide the Indicator
Step 5)Step 5) into the Dovetail Channel. Step 6) Step 6)
Step 6) Slip the Nylon Wash-
Step 6) Step 6) ers on to the Stop Bracket Screws. Step 7)Step 7)
Step 7) Rack the focuser all
Step 7)Step 7) the way out. Place the Indicator Stop Bracket over the draw tube with the stop towards the camera. Step 8)Step 8)
Step 8) Lock the Indicator
Step 8)Step 8) Stop Bracket Screws.
Proceed with the adjustment instructions.
Digital Indicator
Indicator Dovetail
Step 3
Step 4
Step 5
Step 6
Dovetail Channel
Indicator Stop Bracket
Steps 1 & 2
Step 7 & 8
Adjustment and Use
The Digital Indicator has 0.5" of travel. It is ideal to set the shaft within the middle of its travel range.
To do so: achieve a rough focus with your tele­scope. Slide the indicator against the stop until the shaft has moved approxi­mately half way through its travel. Use the small Allen key and tighten the two set screws on the side of the Dovetail Channel that con­tact the indicator Dovetail. If the indicator needs more or less adjustment room to reach the stop, first deter­mine if repositioning the Stop Bracket will help. For more adjustment, remove the digi­tal indicator from the chan­nel, loosen the set screws (see step 4) and slide the Indicator Dovetail in the nec­essary direction. Retighten the set screws.
Turn the micrometer on and zero it if necessary
Start critically focusing the image. Take note of the micrometer reading so you may return to that position if further adjustment does not improve focus.
Details regarding the use of the indicator can be found on the instructions in­cluded with the unit.
The optional RSC-2320 cable plus TVFocus software (download available at www.TeleVue.com) permits remote viewing of the indicator's reading.
32 Elkay Drive, Chester, New York 10918 845.469.4551 www.televue.com
