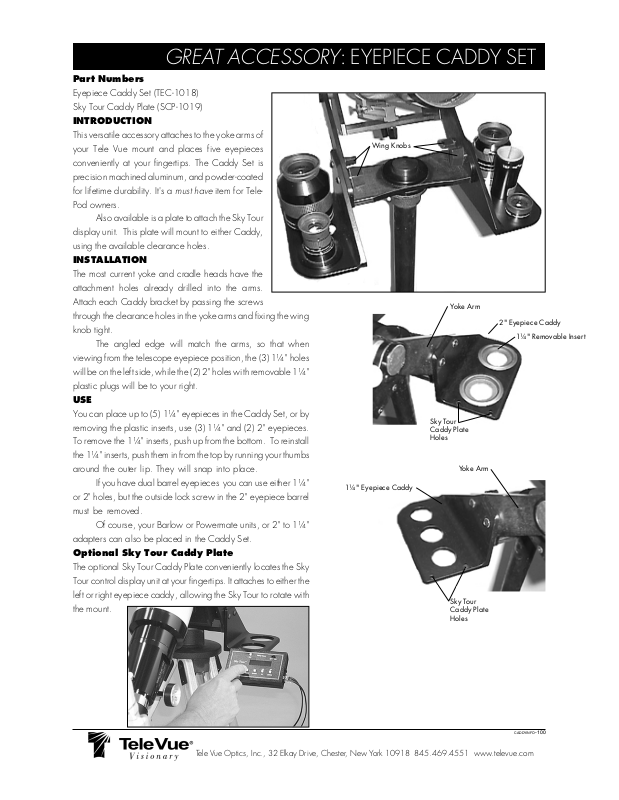

Tele Vue Great Accessory User Manual

GREAT ACCESSORY

Part Numbers

Eyepiece Caddy Set (TEC-1018)
Sky Tour Caddy Plate (SCP-1019)

INTRODUCTION

This versatile accessory attaches to the yoke arms of
your Tele Vue mount and places five eyepieces
conveniently at your fingertips. The Caddy Set is
precision machined aluminum, and powder-coated
for lifetime durability. It's a
Pod owners.

Also available is a plate to attach the Sky Tour
display unit. This plate will mount to either Caddy,
using the available clearance holes.

INSTALLATION

The most current yoke and cradle heads have the
attachment holes already drilled into the arms.
Attach each Caddy bracket by passing the screws
through the clearance holes in the yoke arms and fixing the wing
knob tight.

The angled edge will match the arms, so that when
viewing from the telescope eyepiece position, the (3) 1¼" holes
will be on the left side, while the (2) 2" holes with removable 1¼"
plastic plugs will be to your right.

USE

You can place up to (5) 1¼" eyepieces in the Caddy Set, or by
removing the plastic inserts, use (3) 1¼" and (2) 2" eyepieces.
To remove the 1¼" inserts, push up from the bottom. To reinstall
the 1¼" inserts, push them in from the top by running your thumbs
around the outer lip. They will snap into place.

If you have dual barrel eyepieces you can use either 1¼"
or 2" holes, but the outside lock screw in the 2" eyepiece barrel
must be removed.

Of course, your Barlow or Powermate units, or 2" to 1¼"
adapters can also be placed in the Caddy Set.

Optional Sky Tour Caddy Plate

The optional Sky Tour Caddy Plate conveniently locates the Sky
Tour control display unit at your fingertips. It attaches to either the
left or right eyepiece caddy, allowing the Sky Tour to rotate with
the mount.

must have

item for Tele-

: EYEPIECE CADDY SET

Wing Knobs

Yoke Arm

2" Eyepiece Caddy

1¼" Removable Insert

Sky Tour
Caddy Plate
Holes

Yoke Arm

1¼" Eyepiece Caddy

Sky Tour
Caddy Plate
Holes

CADDYINFO-100
