Tele Vue BVP-2001 User Manual

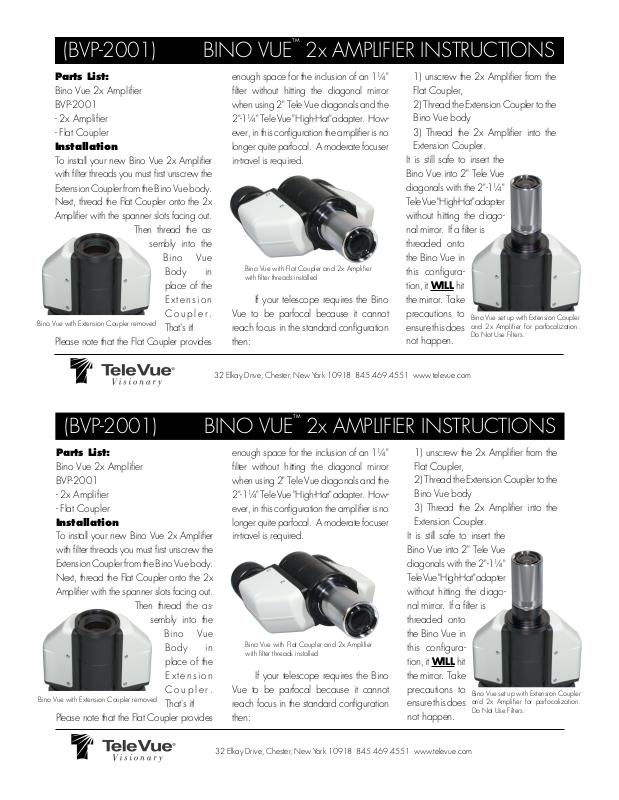

(BVP-2001) BINO VUETM 2x AMPLIFIER INSTRUCTIONS
Parts List:
- 2x Amplifier
- Flat Coupler
Installation
To install your new Bino Vue 2x Amplifier with filter threads you must first unscrew the Extension Coupler from the Bino Vue body. Next, thread the Flat Coupler onto the 2x Amplifier with the spanner slots facing out.
Then thread the as-
sembly into the
Bino Vue
Body in place of the Extension Coupler.
Bino Vue with Extension Coupler removed
That's it!
Please note that the Flat Coupler provides
enough space for the inclusion of an 1¼" filter without hitting the diagonal mirror when using 2" Tele Vue diagonals and the 2"-1¼" Tele Vue "High-Hat" adapter. How­ever, in this configuration the amplifier is no longer quite parfocal. A moderate focuser in-travel is required.
Bino Vue with Flat Coupler and 2x Amplifier with filter threads installed
If your telescope requires the Bino Vue to be parfocal because it cannot reach focus in the standard configuration then:
1) unscrew the 2x Amplifier from the Flat Coupler,
2) Thread the Extension Coupler to the Bino Vue body
3) Thread the 2x Amplifier into the
Extension Coupler. It is still safe to insert the Bino Vue into 2"
Tele Vue diagonals with the 2"-1¼" Tele Vue "High-Hat" adapter
without hitting the diago­nal mirror. If a filter is threaded onto the Bino Vue in this configura­tion, it WILL hit the mirror. Take precautions to ensure this does not happen.
Bino Vue set up with Extension Coupler and 2x Amplifier for parfocalization. Do Not Use Filters.
32 Elkay Drive, Chester, New York 10918 845.469.4551 www.televue.com
(BVP-2001) BINO VUETM 2x AMPLIFIER INSTRUCTIONS
Parts List:
- 2x Amplifier
- Flat Coupler
Installation
To install your new Bino Vue 2x Amplifier with filter threads you must first unscrew the Extension Coupler from the Bino Vue body. Next, thread the Flat Coupler onto the 2x Amplifier with the spanner slots facing out.
Then thread the as-
sembly into the
Bino Vue
Body in place of the Extension Coupler.
Bino Vue with Extension Coupler removed
That's it!
Please note that the Flat Coupler provides
enough space for the inclusion of an 1¼" filter without hitting the diagonal mirror when using 2" Tele Vue diagonals and the 2"-1¼" Tele Vue "High-Hat" adapter. How­ever, in this configuration the amplifier is no longer quite parfocal. A moderate focuser in-travel is required.
Bino Vue with Flat Coupler and 2x Amplifier with filter threads installed
If your telescope requires the Bino Vue to be parfocal because it cannot reach focus in the standard configuration then:
1) unscrew the 2x Amplifier from the Flat Coupler,
2) Thread the Extension Coupler to the Bino Vue body
3) Thread the 2x Amplifier into the
Extension Coupler. It is still safe to insert the Bino Vue into 2" Tele Vue
diagonals with the 2"-1¼" Tele Vue "High-Hat" adapter
without hitting the diago­nal mirror. If a filter is threaded onto the Bino Vue in this configura­tion, it WILL hit the mirror. Take precautions to ensure this does not happen.
Bino Vue set up with Extension Coupler and 2x Amplifier for parfocalization. Do Not Use Filters.
32 Elkay Drive, Chester, New York 10918 845.469.4551 www.televue.com
