Amplicador / Multiplexor óptico con alimentación
Amplier / Multiplexer Optical with power unit
Ref. 769611
Art. Nr. OLTWDMA32
FIBREDATA
Introducción / Introduction
Este dispositivo se compone de: Un multiplexor de longitud de onda
(1550nm + 1490/1310nm), un amplicador óptico de tecnología YEDFA
y dos fuentes de alimentación intercambiables en un chasis formato
rack de 2U, diseñado para funcionar con las OLTs de la gama FibreData.
Las dos fuentes de alimentación son intercambiables en caliente para
proporcionar redundancia al amplicador óptico.

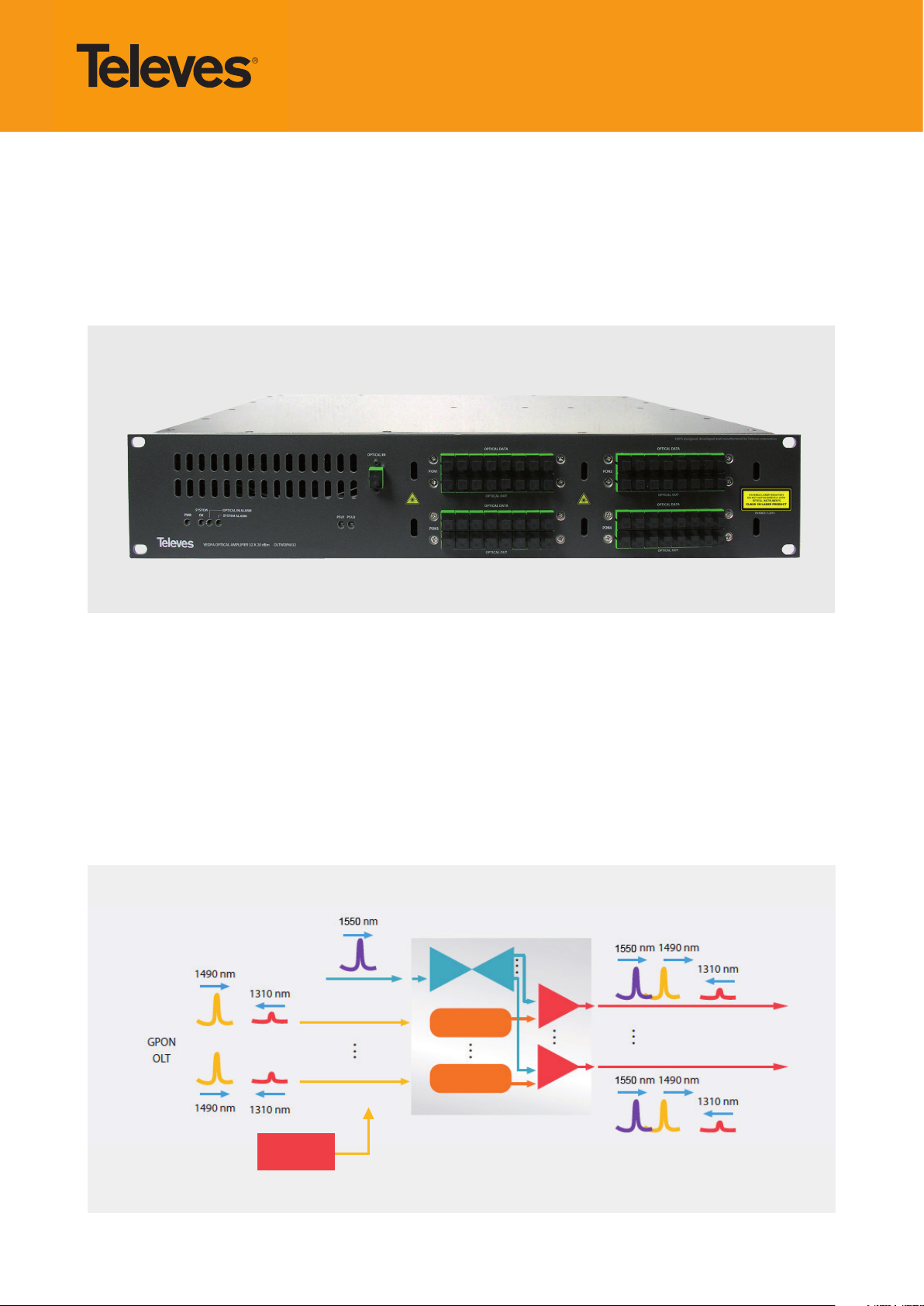

Diagrama de bloques / Blocks diagram
Optical IN
x32
Optical DATA
This device comprises: A wavelength multiplexer (1550nm + 1490/
1310nm), an optical amplier with YEDFA technology and two swappable
power supplies in a 2U rack format, designed to work with the OLTs of the
FibreData range.
The two power supplies are hot-swappable to provide redundancy to
optical amplier.
Optical OUT
x32
Power
Page 2
ES
INVISIBLE LASER RADIATION
DO NOT WATCH DIRECTLY WITH
OPTICAL INSTRUMENTS
CLASS 1M LASER PRODUCT
Importantes instrucciones de seguridad
Condiciones generales de instalación
1. Lea las instrucciones.
2. Conserve estas instrucciones.
3. Preste atención a todas las advertencias.
4. Siga todas las instrucciones.
5. No utilice este aparato cerca del agua.
6. Limpie la unidad sólo con un paño seco.
7. No bloquee las aberturas de ventilación. Realizar
la instalación de acuerdo con las instrucciones del
fabricante.
8. No la instale cerca de fuentes de calor tales como radiadores, registros de calor, estufas u otros aparatos
(incluyendo amplicadores) que produzcan calor.
9. No anule la característica de seguridad del enchufe po-
larizado o con conexión a tierra. Un enchufe polarizado
tiene dos patillas planas, una más ancha que la otra.
Un enchufe con toma de tierra tiene dos patillas planas
y una tercera de conexión a tierra. La patilla ancha o la
tercera patilla, están pensadas para su seguridad. Si el
enchufe suministrado no encaja en su toma, consulte
con un electricista para que reemplace la toma corriente obsoleta.
10. Utilice solamente los aditamentos/accesorios especi-
cados por el fabricante.
11. No pise ni pellizque el cable de red; tenga especial
cuidado con las clavijas, tomas de corriente y en el
punto del cual salen del aparato.
12. Desenchufe este aparato durante las tormentas eléctricas o cuando no lo utilice durante largos períodos
de tiempo.
13. Use únicamente la carretilla, plataforma, trípode,
soporte o tableros especicados por el fabricante, o
vendidos con el aparato. Cuando se usa una carretilla,
tenga cuidado al mover el conjunto carretilla/aparatos para evitar lesiones en caso de vuelco.
14. Solicite todas las reparaciones a personal de servicio
cualicado. Solicite una reparación cuando el aparato
se haya dañado de cualquiera forma, se ha derramado líquido o han caído objetos dentro del aparato, el
aparato ha sido expuesto a la lluvia o humedad, no
funciona normalmente, o haya sufrido una caída.
Atención
Para reducir el riesgo de fuego o choque eléctrico, no
exponer el equipo a la lluvia o a la humedad.
El aparato no debe ser expuesto a caídas o salpicaduras
de agua. No situar objetos o recipientes llenos de líquidos, como jarrones, sobre o cerca del aparato.
Cómo utilizar el equipo de forma segura
La tensión de red de este producto ha de ser: 99-
264V~ 50/60Hz.
En el caso de que cualquier líquido u objeto caigan
dentro del aparato, debe de ponerse en contacto con
el servicio técnico.
Para desenchufar el equipo de la red, tire siempre de la
clavija, nunca del cable.
No enchufe el equipo a la red eléctrica hasta que todas
las demás conexiones hayan sido realizadas.
La toma de red eléctrica debe estar cerca del equipo y
ser fácilmente accesible.
No quitar la tapa del equipo sin desconectarlo de la red.
Instalación segura
La temperatura ambiente no debe superar los 45°C.
No situar el equipo cerca de fuentes de calor o en am-
bientes de humedad elevada.
No situar el equipo donde pueda estar sometido a fue-
tes vibraciones o sacudidas.
Deje un espacio libre alrededor del aparato para pro-
porcionar una ventilación adecuada.
No situar sobre el aparato fuentes de llama desnuda,
tales como velas encendidas.
Precauciones de conexionado:
Tratar con sumo cuidado la punta desprotegida de los
conectores, pequeños arañazos, rascaduras, impurezas
y/o partículas de suciedad, aceites, grasas, sudor, etc..
Pueden degradar signicativamente la señal.
Para la limpieza de la punta de los conectores, frotar (sin
ejercer presión) con una toallita de limpieza con base
en alcohol isopropílico, especíca para la limpieza de
elementos ópticos. Antes de realizar la conexión dejar
secar totalmente el alcohol.
Reservar las tapas de conectores y capuchones de los
cables para futuras operaciones de extracción/protección de los mismos.
Colocar siempre las tapas protectoras a los conectores
de los equipos que no estén conectados a cables para
evitar que el haz láser pueda alcanzar los ojos.
Evite en lo posible el encendido del transmisor sin tener
la bra conectada a dicho transmisor.
Precauciones de Seguridad
Aviso.-
Este producto emite un rayo de luz invisible láser.
Evite exponerse a la radiación láser. El uso de aparatos de
ayuda visual (por ejemplo binoculares, lupas, etc.) puede
aumentar el peligro a los ojos
INVISIBLE LASER RADIATION
DO NOT WATCH DIRECTLY WITH
OPTICAL INSTRUMENTS
CLASS 1M LASER PRODUCT
Acorde a EN 60825-1: 2014
Emisión máxima de radiación láser: 20dBm
Longitud de onda emitida: 1550nm
Precaución
- El uso de controles o ajustes, así como procedimientos
diferentes a los especicados en este manual puede
provocar la exposición de partes del cuerpo a radiaciones
nocivas.
- Lea y siga las instrucciones en este manual cuidadosamente, retenga este manual para referencia futura.
- No utilice los equipos de forma no conforme con estas
instrucciones de operación ni bajo cualquier condición
que exceda las especicaciones ambientales estipuladas.
- El usuario no puede dar servicio técnico a estos equipos.
Para asistencia técnica contacte con nuestro departamento de asistencia técnica.
- El rayo láser no debe ser apuntado a las personas y/o
animales intencionadamente.
Simbología
Equipo diseñado para uso en interiores.
Precaución, peligro de descargar eléctrica.
El equipo cumple los requerimientos del
marcado CE.
EN
Important Safety Instructions
Caution Statements
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety.
When the provided plug does not t into your outlet,
consult an electrician for replacement of the obsolete
outlet.
10. Only use attachments/accessories specied by the
manufacturer.
11. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit the
apparatus.
12. Unplug this apparatus during lightning storms or
when unused for long periods of time.
13. Use only with the cart, stand, tripod, bracket, or
table specied by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, liquid has been spilled or
objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Warning
Reduce the risk of re or electric shock, do not expose
this apparatus to rain or moisture
Apparatus shall not be exposed to dripping or
splashing and no objects lled with liquids, such as
vases, shall be placed on the apparatus.
.
Safe operation
Power requirements for this product are 99 - 264V~
50/60 Hz.
Should any liquid or object fall into the equipment,
please refer to qualied personnel for service.
To disconnect the equipment from the mains pull the
plug never the cable.
It is strongly recommended not to connect the
equipment to the mains until all connections have
been done.
Do not connect the equipment to the mains until it has
been screwed to the wall.
The socket outlet shall be installed near the equipment
and shall be easily accessible.
Do not take the cover o the equipment without
disconnecting it from the mains.
Safe installation
Ambient temperature should not be higher than 113°F.
Do not place the equipment near heat sources or in a
highly humid environment.
Do not place the equipment in a place where it can
suer vibrations or shocks.
Please allow air circulation around the equipment.
Do not place naked ames, such as lighted candles on
or near the product.
Handling optical connections:
An SC/APC single mode ber cable must be used.
Remove the protective cover from the optical connector
on the unit and the cap on the cable connector.
Carefully align the guides on both connectors
when plugging a cable to the device, then push the
connector all the way in.
Take special care to avoid damaging the unprotected
ends of the connectors, as small scratches, impurities
and/or particles of dirt, oil, grease, sweat, etc. may
signicantly aect the quality of the signal.
To clean the ends of the connectors, gently rub with
a lint-free lens cleaning cloth, dampened using
additive-free isopropyl alcohol. Make sure the alcohol
evaporates fully before connecting. Keep the connector
covers and cable caps in a safe place in case they are
needed in the future. Always t the covers on the
connectors of devices that are not connected to cables
to prevent the laser beam from damaging the eyes.
Do not turn the transmitter on without a ber optic
cable connected to it.
Safety precautions
Warning.-
This product emits an invisible laser beam. Avoid contact
with laser radiation. The use of equipment such as
binoculars or magnifying glasses may increase damage
caused to the eyes.
According to EN 60825-1: 2014
Maximum Output: 20dBm
Emitted Wavelength (s): 1550nm
Caution
The use of the equipment in any other way than the
specied in this manual may lead to exposure to
harmful radiation.
Do not use the equipment in any way that does not
comply with the operating instructions or in any
conditions that exceed the stipulated atmospheric
specications.
Never point the laser beam at people or animals.
Class B equipment
EEUU
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help.
Symbology
Equipment designed for indoor use.
Caution, risk of electrical shock.
The equipment complies with the
equirements of the CE mark.
Page 3

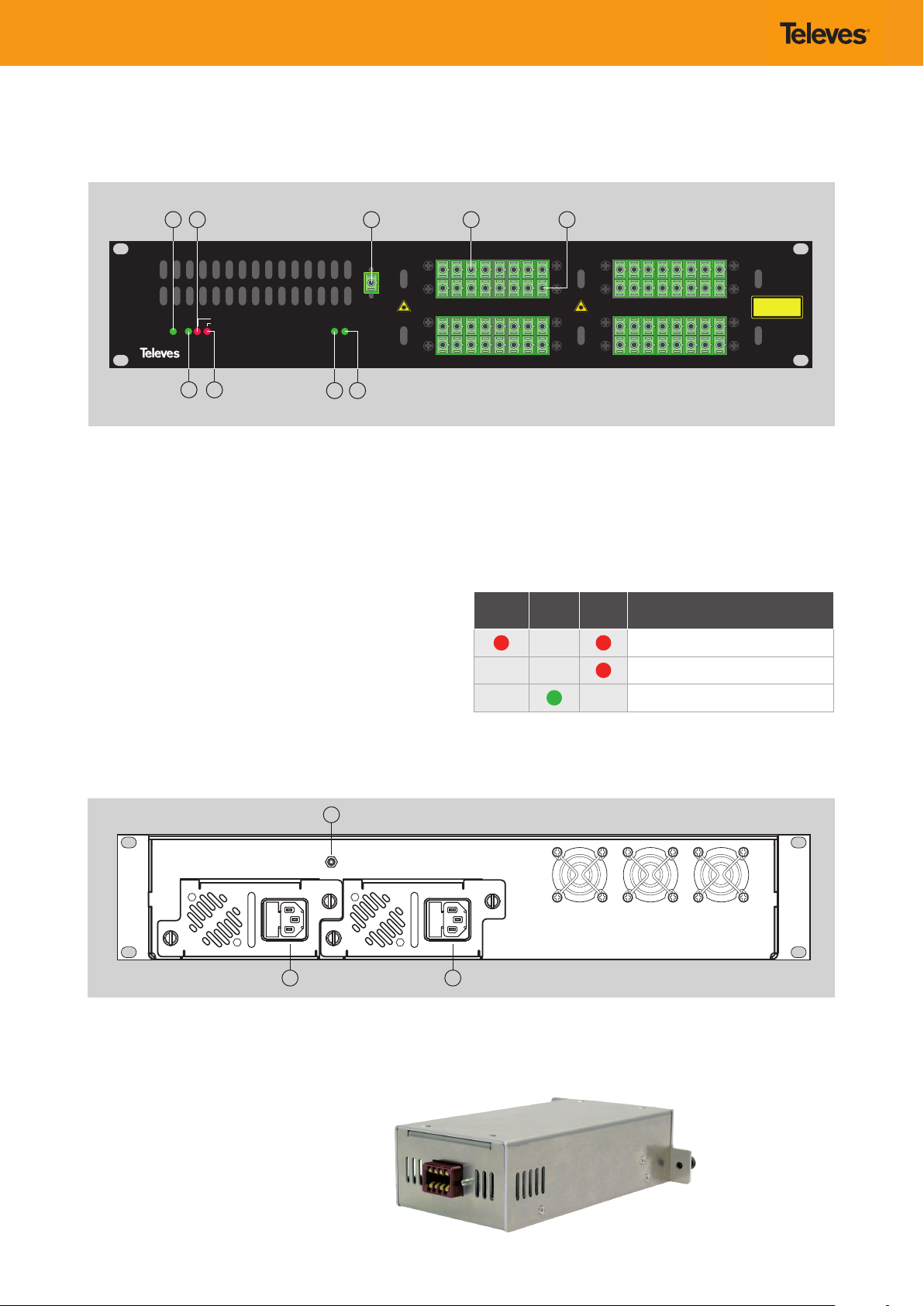

Descripción de producto / Mechanical overview:
Descripción panel frontal / Front panel description
51 2 8 9
OPTICAL IN
OPTICAL IN ALARM
SYSTEM
SYSTEM ALARM
OK
PWR
YEDFA OPTICAL AMPLIFIER 32 X 20 dBm OLTWDMA32
3
4
PSU1 PSU2
6 7
OPTICAL DATA
PON1
OPTICAL OUT
OPTICAL DATA
PON3
OPTICAL OUT
PON2
PON4
100% designed, developed and manufactured by Televes corporation
OPTICAL DATA
OPTICAL OUT
OPTICAL DATA
OPTICAL OUT
INVISIBLE LASER RADIATION
DO NOT WATCH DIRECTLY WITH
OPTICAL INSTRUMENTS
CLASS 1M LASER PRODUCT
EN 60825-1: 2014
1.- LED de encendido
Power LED
2.- Alarma de entrada óptica
LED optical input alarm
3.- LED de estado (verde cuando está OK)
LED status OK (green when system OK)
4.- Alarma
LED system error indication
5.- Entrada RF overlay
Input RF overlay
6.- Funcionamiento de la fuente de alimentación PSU1 OK
Operation of PSU1 power supply unit OK
Descripción panel trasero / Rear panel description
3
7.- Funcionamiento de la fuente de alimentación PSU2 OK
Operation of PSU2 power supply unit OK
8.- Puertos conexión OLT
OLT connection ports
9.- Puertos conexión red GPON
GPON network connection ports
2
Optical IN
alarm
OFF OFF
OFF
3
System
OK
OFF
4
System
alarm
Hay potencia óptica de entrada RF y fallo en el sistema/
OFF
Resultado/result
No hay potencia óptica de entrada RF/
No RF input optical power
RF optical input power and system failure
Funcionamiento correcto/
Correct operation
1
1.- Conexión PSU1 a la red
PSU1 mains connection
2.- Conexión PSU2 a la red
PSU2 mains connection
Fuente de alimentación / Power supply unit
Fuente intercambiable en caliente
Hot Swapping OLT power supply
2
3.- Conexión a tierra
Ground connection
Page 4
Especicaciones técnicas / Technical specications
Ópticas
Optical
General
Número de puertos / Ports number
32 GPON @ Optical DATA
32 (GPON + RF Overlay) @ Optical OUT
1 RF Overlay @ Optical IN
Longitud de onda de trabajo
Operating wave length
nm
1310 ± 20 @ Upstream
1490 ± 20 @ Downstream
1548 ...1565 @ RF Overlay
Entrada RF Overlay / Input RF overlay dBm -5 … +10
Potencia de salida RF overlay
Output power RF overlay
dBm 20 @ 1550 nm
Uniformidad / Uniformity dB 0,5
Figura de ruído / Noise gure dB 5 (Pin= 0 dBm @ 1550 nm)
Pérdida de inserción (1310 &1490nm)
Insertion loss (1310 &1490nm)
dB
Conectores entrada-salida / Optical connector type
<1
SC/APC
Pérdidas de retorno / Return loss dB >40
Tensión entrada / Input power V~ 99 - 264
Frecuencia / Frequency range Hz 50/60
Consumo máx. entrada / Max. input consumption mA~ 600
Potencia máx. entrada / Max. input power W 55
Temperatura de funcionamiento
Working temperature
ºC / ºF -5 ... + 45 / + 23 ... + 113
Humedad funcionamiento / Humidity % 10 ... 95
Dimensiones / Dimensions mm / in 483 x 88 x 440 / 19.02” x 3.46” x 17.32”
Peso / Weight Kg / lb 15,2 / 33,51
Índice de protección / Protection Index IP 20
Televes Limited Warranty
Televes S.A guarantees this product as
per legislation applicable for this type of
product at the time and in the country of
purchase.
(A) Televes warrants, only to the original Purchaser,
all Products be free from any defect in materials or
workmanship for a period of two (2) years from the
date of original purchase, unless otherwise specied.
(B) Televes shall, free of charge and in its sole discretion,
either repair, replace with a new or factory
reconditioned equivalent, or refund the purchase price
of the Product(s), that has been determined by Televes
to be defective in material or workmanship, subject to
the limits of this warranty.
(C) This warranty excludes any damage or inoperability
resulting from:
