Optical ber

Características técnicas Technical specications 238201

Parámetro RF RF Parameter

Rango frecuencia Frequency range MHz 47 ... 2200

Planicidad (47-1200MHz) Flatness (47-1200MHz) dB +/- 0,75

Impedancia entrada Input impedance Ω 75

Planicidad (950-2200MHz) Flatness (950-2200MHz) dB +/- 2,5

Nivel entrada RF (47-1200MHz) RF input level (47-1200MHz) dBmV / dBuV

19/Channel (42ch CENELEC) /

79/Channel (42 ch CENELEC)

C/N C/N dB

>51 note 1

(42ch CENELEC)

CSO CSO dB

>60 note1 (Typ >70)

(42ch CENELEC)

CTB CTB dB

>65 note1 (Typ >70)

(42ch CENELEC)

Toma test OMI

OMI Test point

dBmV / dBuV

4/Channel (42ch CENELEC) /
64/Channel (42 ch CENELEC)

Nivel entrada (950-2200MHz) RF input level (950-2200MHz) dBmV / dBuV

35 dBmV (DIN-VDE 0855/12)/

95 (DIB-VDE 0855/12)

Cong.

recomendada:

Nivel entrada RF

(47-1200MHz)

Recommended

conguration:

RF input level

(47-1200MHz)

dBmV / dBuV

19/Channel (42ch CENELEC) /
79 /Channel (42 ch CENELEC)

Nivel entrada RF

(950-2200MHz)

RF input level

(950- 2200 MHZ)

dBmV / dBuV

20/Channel(Full polarity satellite) /

80/Channel (Full polarity satellite)

Parámetros ópticos Optical parameter

Láser Laser type MQW-DFB

Longitud de onda Wavelength nm 1310
Potencia de salida Output power dBm +3

General General

Conector RF RF connector Type F-female

Conector de alimentación Power supply connector Type F-female

Tensión de alimentación Power supply voltage

V

/ mA

11-35 / 120-40

Material del chasis Housing material Type Zamak/ABS

Rango de temperatura Operating temperature ºC / ºF -5 ... +45 / +23 ...+113

Dimensiones Dimensions mm / in 185 x 80 x 35 / 7.27” x 3.15” x 1.38”

Peso Weight g / lb 400 / 0.88

Indice de protección Index operation IP 30

Note 1: Rx inpur power -1dBm.

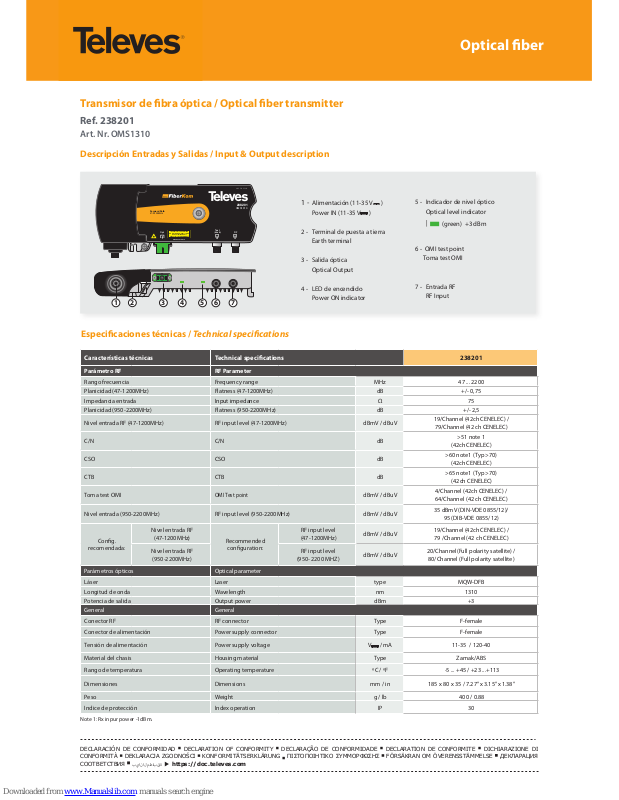

Transmisor de bra óptica / Optical ber transmitter

Ref. 238201

Art. Nr. OMS1310

MADE IN SPAIN

Opt RF

Test

(-30dB)

Forward Path

47-2200MHz

INVISIBLE LASER RADIATION

DO NOT WATCH DIRECTLY WITH

OPTICAL INSTRUMENTS

CLASS 1M LASER PRODUCT

EN 60825-1: 2014

238201

OMS1310

3

1 - Alimentación (11-35 V )

Power IN (11-35

V )

2 - Terminal de puesta a tierra
Earth terminal

3 - Salida óptica
Optical Output

4 - LED de encendido
Power ON indicator

5 - Indicador de nivel óptico
Optical level indicator

|

(green) +3 dBm

6 - OMI test point
Toma test OMI

7 - Entrada RF
RF Input

Descripción Entradas y Salidas / Input & Output description

Especicaciones técnicas / Technical specications

4 5 6 71

DECLARACIÓN DE CONFORMIDAD DECLARATION OF CONFORMITY DECLARAÇÃO DE CONFORMIDADE DECLARATION DE CONFORMITE DICHIARAZIONE DI
CONFORMITÀ

DEKLARACJA ZGODNOŚCI KONFORMITÄTSERKLÄRUNG ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΣΥΜΜΟΡΦΩΣΗΣ FÖRSÄKRAN OM ÖVERENSSTÄMMELSE ДЕКЛАРАЦИЯ

СООТВЕТСТВИЯ

بيان المطابقة https://doc.televes.com

2

2017© Copyright, Televés S.A.

Televes S.A guarantees this product as
per legislation applicable for this type of
product at the time and in the country of
purchase.

(A) Televes warrants, only to the original Purchaser,

all Products be free from any defect in materials
or workmanship for a period of two (2) years from
the date of original purchase, unless otherwise
specied.

(B) Televes shall, free of charge and in its sole discretion,

either repair, replace with a new or factory
reconditioned equivalent, or refund the purchase
price of the Product(s), that has been determined by
Televes to be defective in material or workmanship,
subject to the limits of this warranty.

(C) This warranty excludes any damage or inoperability

resulting from:

(I) use or installation that is not in strict compliance

with the written instructions and specications;

(II) any modication or alteration per formed by any

third party not authorized in writing by Televes;

(III) service or repair performed by any third party not

authorized in writing by Televes;

(IV) misuse, abuse, intentional harm, or lack of

reasonable care;

(V) re, ice, snow, rain, wind, water, volcano,

excessive heat or cold, lightning, ood, power
surge, earthquake, or any other acts of God;

(VI) war, crime, strike, riot, elec tro-magnetic pulse,

or any other acts beyond the control of Televes;

(VII) shipping.

(D) All claims under the terms of this warranty must be

made in writing, by the original Purchaser, within
fourteen (14) days of the defect being known to
the Purchaser. Such claims shall be accompanied

by a description of any material facts related to
the claimed defect and the invoice or other proof
of original purchase date and price. If Televes so
requests, the Purchaser shall, at Purchaser’s expense,
deliver the claimed Product(s) to Televes, within 14
days of the date of the return authorization. Under
no circumstances shall the Product(s) be returned to
Televes without a return authorization.

(E) Any refund to the Purchaser, shall be limited to

the purchase price of the Product(s), excluding any
applicable taxes, duties, freight costs, removal costs,
installation costs, or any other charges incident to
the purchase of the product.

(F) Any damage caused by shipper shall be claimed with

the shipper in accordance with the shipper’s policies
and procedures.

(G) Televes shall in no event and under no circumstances

be liable or responsible for any consequential,

indirect, incidental, punitive, direct or special
damages based upon breach of warranty, breach
of contract, negligence, strict tort liability or
otherwise or any other legal theory, arising directly
or indirectly from the sale, use, installation or failure
of any product acquired by Purchaser from Televes.

(H) This limited warranty extends to the original

Purchaser and cannot be assigned or transferred to
any other party without the prior express written
permission of Televes, which permission Televes may
withhold for any reason or for no reason at all.

(I) Televes will not assume any liabilities for any other

warranties, whether statutory, express or implied,
made by any other person.

(J) Televes reserves the right to modify or discontinue

this warranty at Televes’ sole discretion without
notication. No other warrantees are expressed or
implied.

Condiciones generales de
instalación

1. Lea las instrucciones.

2. Conserve estas instrucciones.

3. Preste atención a todas las advertencias.

4. Siga todas las instrucciones.

5. No utilice este aparato cerca del agua.

6. Limpie la unidad sólo con un paño seco.

7. No bloquee las aberturas de ventilación. Realizar
la instalación de acuerdo con las instrucciones del
fabricante.

8. No la instale cerca de fuentes de calor tales como
radiadores, registros de calor, estufas u otros aparatos
(incluyendo amplicadores) que produzcan calor.

9. Utilice solamente los aditamentos/accesorios
especicados por el fabricante.

10. Desenchufe este aparato durante las tormentas
eléctricas o cuando no lo utilice durante largos
períodos de tiempo.

11. Solicite todas las reparaciones a personal de servicio
cualicado. Solicite una reparación cuando el aparato
se haya dañado de cualquiera forma, se ha derramado
líquido o han caído objetos dentro del aparato, el
aparato ha sido expuesto a la lluvia o humedad, no
funciona normalmente, o haya sufrido una caída.

Atención

Para reducir el riesgo de fuego no exponer el equipo a la

lluvia o a la humedad.

El aparato no debe ser expuesto a caídas o salpicaduras

de agua. No situar objetos o recipientes llenos de
líquidos, como jarrones, sobre o cerca del aparato.

En el caso de que cualquier líquido u objeto caigan dentro

del aparato, debe de ponerse en contacto con el servicio
técnico.

Instalación segura

La temperatura ambiente no debe superar los 45°C.
No situar el equipo cerca de fuentes de calor o en

ambientes de humedad elevada.

No situar el equipo donde pueda estar sometido a fuertes

vibraciones o sacudidas.

Deje un espacio libre alrededor del aparato para

proporcionar una ventilación adecuada.

No situar sobre el aparato fuentes de llama desnuda,

tales como velas encendidas.

Precauciones de conexionado:

Tratar con sumo cuidado la punta desprotegida
de los conectores, pequeños arañazos,
rascaduras, impurezas y/o partículas de suciedad,
aceites, grasas, sudor, etc.. Pueden degradar
signicativamente la señal.
Para la limpieza de la punta de los conectores, frotar
(sin ejercer presión) con una toallita de limpieza
con base en alcohol isopropílico, especíca para la
limpieza de elementos ópticos. Antes de realizar la
conexión dejar secar totalmente el alcohol.
Reservar las tapas de conectores y capuchones de
los cables para futuras operaciones de extracción/
protección de los mismos.
Colocar siempre las tapas protectoras a los
conectores de los equipos que no estén conectados

a cables para evitar que el haz láser pueda alcanzar
los ojos.
Evite en lo posible el encendido del transmisor sin
tener la bra conectada a dicho transmisor.

Precauciones de Seguridad

Aviso.-

Este producto emite un rayo de luz invisible láser.
Evite exponerse a la radiación láser. El uso de aparatos
de ayuda visual (por ejemplo binoculares, lupas, etc.)
puede aumentar el peligro a los ojos.

INVISIBLE LASER RADIATION

DO NOT WATCH DIRECTLY WITH

OPTICAL INSTRUMENTS

CLASS 1M LASER PRODUCT

Emisión máxima de radiación láser: 3dBm

Longitud de onda emitida: 1310nm

Precaución

- El uso de controles o ajustes, así como
procedimientos diferentes a los especicados en
éste manual puede provocar la exposición de partes
del cuerpo a radiaciones nocivas.

- Lea y siga las instrucciones en este manual
cuidadosamente, retenga éste manual para
referencia futura.

- No utilice los equipos de forma no conforme
con estas instrucciones de operación ni bajo

cualquier condición que exceda las especicaciones
ambientales estipuladas.

- El usuario no puede dar servicio técnico a estos
equipos. Para asistencia técnica contacte con
nuestro departamento de asistencia técnica.

- El rayo láser no debe ser apuntado a las personas y/o
animales intencionadamente.

Simbología

Equipo diseñado para uso en interiores.

Terminal de puesta a tierra.

El equipo cumple los requerimientos del

marcado CE.

Este símbolo indica el pleno cumplimiento con
los estándares FCC.

ES

Importantes instrucciones de seguridad

Caution Statements

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.

9. Only use attachments/accessories specied by the
manufacturer.

10. Unplug this apparatus during lightning storms or

when unused for long periods of time.

11. Refer all servicing to qualied service personnel.

Servicing is required when the apparatus has been
damaged in any way, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.

Warning

Reduce the risk of re, do not expose this apparatus to

rain or moisture.

Apparatus shall not be exposed to dripping or splashing

and no objects lled with liquids, such as vases, shall be
placed on the apparatus.

Should any liquid or object fall into the equipment,

please refer to qualied personnel for service.

Safe installation

Ambient temperature should not be higher than 113°F.
Do not place the equipment near heat sources or in a

highly humid environment.

Do not place the equipment in a place where it can suer

vibrations or shocks.
Please allow air circulation around the equipment.
Do not place naked ames, such as lighted candles on

or near the product.

Optical connection instructions:

An SC/APC single mode ber cable must be used.
Remove the protective cover from the optical
connector on the unit and the cap on the cable
connector.
Carefully align the guides on both connectors
when plugging a cable to the device, then push
the connector all the way in.
Take special care to avoid damaging the
unprotected ends of the connectors, as small
scratches, impurities and/or particles of dirt, oil,
grease, sweat, etc. may signicantly aect the
quality of the signal.

To clean the ends of the connectors, gently rub
with a lint-free lens cleaning cloth, dampened
using additive-free isopropyl alcohol. Make sure
the alcohol evaporates fully before connecting.
Keep the connector covers and cable caps in a safe
place in case they are needed in the future. Always
t the covers on the connectors of devices that are
not connected to cables to prevent the laser beam
from damaging the eyes.
Do not turn the transmitter on without a ber optic

cable connected to it.

Safety measures

Warning.-

This product emits an invisible laser beam. Avoid
contact with laser radiation. The use of equipment
such as binoculars or magnifying glasses may increase
damage caused to the eyes.

INVISIBLE LASER RADIATION

DO NOT WATCH DIRECTLY WITH

OPTICAL INSTRUMENTS

CLASS 1M LASER PRODUCT

According to EN 60825-1: 2014

Maximum Output: 3dBm

Emitted Wavelength (s): 1310nm

Caution

The use of the equipment in any other way than
the specied in this manual may lead to exposure
to harmful radiation.
Do not use the equipment in any way that does not
comply with the operating instructions or in any
conditions that exceed the stipulated atmospheric
specications.
Never point the laser beam at people or animals.

Symbology

Equipment designed for indoor use.

Earth terminal.

The equipment meets the CE marking

requirements.

This symbol indicates full compliance with

the FCC Standards.

EN

Important Safety Instructions

Televes Limited Warranty

Acorde a EN 60825-1: 2014
