Teletype WorldNav 7400 User Manual

Printed in China

All rights reserved. No parts of this work may be reproduced in any form or by any means - graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems - without the written permission of the publisher.

Products that are referred to in this document may be either trademarks and/or registered trademarks of the respective owners. The publisher and the author make no claim to these trademarks.

While every precaution has been taken in the preparation of this document, the publisher and the author assume no responsibility for errors or omissions, or for damages resulting from the use of information contained in this document or from the use of programs and source code that may accompany it. In no event shall the publisher and the author be liable for any loss of profit or any other commercial damage caused or alleged to have been caused directly or indirectly by this document.

7400 Hardware User Guide

Index

- A -

Accessories 8

- B -

Backlight 24 Bluetooth 18

- C -

Calculator 21 Calender 21 Calibration 24 Cell Phone 18

- D -

Date 24

- E -

Ebook 20

- F -

Flash Movie 20 FM 23 Frequency 23

- M -

Movies 20 Music 20

- N -

Navigation 17 Notepad 21

- P -

Photo 20 Power 24 Power Cord 8

- R -

Radio 23

- S -

Serial Expansion 24 Specs 9 System Info 24

- T -

Technichal Specfications 9 Time 24 Tools 21

- V -

Volume 24

Contents

Table of Contents

Part I

Getting Started

..........................................................................61 Disclaimer

..........................................................................82 Accessories

..........................................................................93 Specifications

Part II

Basic Operation

Part III Main Menu

..........................................................................171 Navigation

..........................................................................18

Bluetooth

..........................................................................20

Media Player

..........................................................................214 Tools

..........................................................................235 FM Radio

..........................................................................246 Serial Expansion

..........................................................................247 System

Part IV

Troubleshooting

Index 31

Troubleshooting

Cannot

communicate

with computer

The USB cable is

not connected

well

Connect USB cable; check

ActiveSync settings

No GPS signal

Poor reception

area such as inside

a building, an

urban area or a

mountainous

region; interference from another device in

the vehicle

Mount the GPS on the

windshield with a clear

view of the sky; try

obtaining a signal outside

your vehicle; note that

some electronics and

windshield treatments

interfere with GPS signal

strength

Unable to use

navigation

function

Contact TeleType GPS Support Staff

7400 Hardware User Guide

4 Troubleshooting

Problem Reason Solution

GPS will not

power on

Lack of power

Plug in the device to AC

or DC power

Power is off Press the Power button

Screen is too

dark

The backlight is

not bright enough

Adjust the backlight to a

brighter setting

The backlight has

been turned off

Touch the screen and

screen will turn on

Touch screen

function is

abnormal

Touch screen

calibration is off

Use System Tools to

recalibrate the screen

No Sound

The volume level is

at its lowest

setting

Increase the volume using

the WorldNav software

or the hardware system

settings

Poor connection

between

earphones and

device

Check the connection to

the earphones

FM Transmitter is

enabled

Disable your FM

Transmitter

Part

7400 Hardware User Guide

1 Getting Started

1.1 Disclaimer

Use the WorldNav at your own risk. To reduce the risk of unsafe operation, please carefully review and understand this user manual.

It is the user's responsibility to use this product prudently. This product is intended to be used only as a navigational aid and must not be used for any purpose requiring precise measurement of direction, distance, location, or topography. Statistics provided such as trip time are best estimates and may not accurately reflect true conditions.

The Global Positioning System (GPS) is operated by the United States Government, which is solely responsible for its accuracy and maintenance. The system is subject to changes which could affect the accuracy and performance of all GPS equipment.

Part

7400 Hardware User Guide

moves to the left, right, upper and lower parts of the screen. Click <OK> when complete.

2. GPS Reset - resets the satellite receiver.

3. Factory Reset - Automatically returns to default settings. WARNING: Will erase all data!

Getting Started

For use in vehicles, it is the sole responsibility of the operator of the TeleType GPS WorldNav to place and secure the GPS unit so that it will not interfere with the vehicle operating controls and safety devices, obstruct the driver's view of driving conditions, or cause damage or personal injury in the event of an accident. Do not mount the TeleType GPS WorldNav in a place where the driver or passengers are likely to impact it in an accident or collision. The mounting hardware supplied by TeleType Co. is not warranted against collision damage or the consequences thereof.

It is the sole responsibility of the driver of the vehicle to operate the vehicle in a safe manner, to maintain full surveillance of all driving conditions at all times, and not become distracted by the GPS system to the exclusion of safe driving practices. It is unsafe to operate the controls of the GPS system while you are driving. Failure by the driver of a vehicle equipped with a TeleType GPS system to pay full attention to operation of the vehicle and road conditions while the vehicle is in motion could result in an accident or collision with property damage and personal injury.

7400 Hardware User Guide

IN NO EVENT SHALL TELETYPE CO BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

1.2 Accessories

Before using the GPS, make sure you have all of the accessories listed below. If any of the accessories are damaged or missing, contact TeleType.

1. AC (Wall) Charger

2. DC (Cigarette Lighter) Charger

3. USB Cord

4. Window Mount (Cradle and Suction Cup)

5. User Manuals

Main Menu

volume setting at 100% and use the software to adjust the volume. (If you lower the sound in the software, the System will have less control of the volume.)

Power: Displays battery power remaining and allows you to set the time for automatic power-off.

Backlight: Adjust screen brightness and set automatic screen power to "Off". Date/Time: This function is used to adjust the internal calendar. Refer to the WorldNav Software Guide for instructions on how to set the time for navigation.

Language: Set the default language. Please note that the WorldNav software will override these settings for navigation. Refer to the WorldNav software user guide for details.

System Info: Displays a detailed summary of system information:

1. Calibration - click this icon to adjust the screen

calibration. Move the [+] by pressing directly in the center of the icon. Repeat this process as it

7400 Hardware User Guide

3.6 Serial Expansion

The Serial Expansion Port is for use with traffic incident reporting, tire pressure monitoring or other features based on serial communications. Contact TeleType for details regarding available options sold separately.

3.7 System

The <System> icon allows you to set several different system functions. Here you can adjust the backlight strength, change the language, set the time and much more.

System Menu

Volume: Adjust the speaker volume* and enable/

disable "screen clicks".

Note: For maximum range of sound adjustment, keep the System

Getting Started

1.3 Specifications

CPU SiRF Atlas IV AT842 533MHz

NAND Flash 4 GB

DDR 128 MB

LCD

7.0 inch TFT screen, resolution: 800 x 480 pixels

Touch Screen High precision touch screen

USB USB Client 2.0,MINI USB interface

Micro SD

Micro SD slot, supports Micro SD

card (maximum 32GB)

Antenna Internal antenna

Precision Position < 10 meters / 32 ft

Audio frequency

1. 2Watt Built-in Speaker

2. Hi-Fi stereo sound

3. 20mW@32ohm audio output

Bluetooth

Built-in Bluetooth with Bluetooth

1.2 standard; allows for hands-free cell phone use

FM Transmitter

Broadcasts GPS audio through

vehicle speakers

7400 Hardware User Guide

GPS

Cold boot:<42 seconds

Hot boot:<9 seconds (with

unobstructed view of the sky)

Warm boot:<18 seconds

Battery

Built-in high capacity Lithium back

up battery (1200 mAh)

Battery charging DC 5V (use together with USB-in)

Power Adaptor 100/220V power adaptor, 5V/1.5A

Car Charger Converts 12V to 5V/1.5A

LED status

Red light: Charging; Green light:

Fully Charged

Temperature

Working temperature:

0 °C - 60 °C (32°F - 140°F)

Storing temperature:

-20 °C - 60 °C (-4°F - 140°F)

New Weight 366 grams / 13 oz

Dimensions

175 x 109.2 x 14.1 mm

6.88” x 4.29” x .55”

System Platform Microsoft Windows CE 6.0

Navigation software

location

Internal flash memory or Micro SD

card

Main Menu

3.5 FM Radio

The <FM> button enables you to link your device to an unused radio frequency channel, thereby allowing you to hear your route instructions over the radio speakers. Select a frequency from the FM Page and then set your radio dial to that frequency. Be sure you have selected <FM Switch>.

FM Frequency Selection Scre en

7400 Hardware User Guide

2. Click on the <Calculator> icon to access the

calculator. Here you can switch between a standard calculator and a scientific calculator.

Calculator Screen

3. Click on the <Calendar> icon to access your

calendar.

Calendar Screen

Part

7400 Hardware User Guide

2 Basic Operation

Turning on and off

Turn on or off your GPS by pressing the power button on the top of the device.

Hardware Reset

Occasionally, you may need to perform a hardware reset when your GPS stops responding or appears to be "frozen" or "locked up." You can perform a reset by pressing the RESET button on the back of the device.

Power Supply

In addition to the built-in lithium battery, you may power the device using the cigarette lighter charger (DC), the wall charger (AC), or the USB charger.

Micro SD Card

This device supports micro SD cards. Be sure the card is securely inserted before use.

Touch Screen/ Stylus Pen

Your device comes equipped with an LCD touch screen, allowing you to move the screen using your

Main Menu

3.4 Tools

By clicking on the <Tools> icon, you will have access to features such as a notepad, calculator and calendar.

Tools Menu

1. Click on the <Note> icon to access your

Notepad. Here you can manually type in notes. This is useful as a driver log, address book, or reminder list.

Notepad Screen

7400 Hardware User Guide

3.3 Media Player

1. Click the icon to access your media player menu. Here you can select <Music>, <Video>, <Ebook>, <Photo>, or <Flash>.

2. Select the type of media (music, video, etc)

you want to play. For this example, choose Ebook. Browse to your memory card folder. Select the desired file from your selections.

3. You can now view the selected file. You can scroll from page to page (or song/video/photo) by using the arrows on the right side.

Ebook Selection Screen Ebook Reader

Basic Operation

finger or a stylus pen (included). Simply press the desired icon or location on the map to move the screen.

Window Mount

Attach your device to the included window mount and position in a location where it has an unobstructed view of the sky so it receives a strong satellite signal. You may choose to provide some additional cushioning, such as foam on your dashboard, to help absorb shock.

Main Menu

press the icon to confirm the pin.

Pin Entry Screen

5. Click the icon. This will pair your phone to

the GPS. This may take a few minutes. Once the phone recognizes the GPS, it will ask for the pin code, enter 8888 and then confirm. The pair is complete.

6. To make calls from your GPS, press the

icon. When receiving calls, the callers phone number will appear on-screen.

7. Access your Call Log by pressing on the

icon.

8. Display a record of all the devices paired with

you GPS by pressing .

7400 Hardware User Guide

3.2 Bluetooth

This GPS device has the ability to sync with a Bluetooth-enabled cell phone, allowing you to make and receive calls directly from your GPS. Instructions for setting up your Bluetooth feature are below:

1. Begin by enabling the Bluetooth setting on your cell phone.

2. Click on the <Bluetooth> icon on the GPS Main Menu screen.

3. Click the icon.

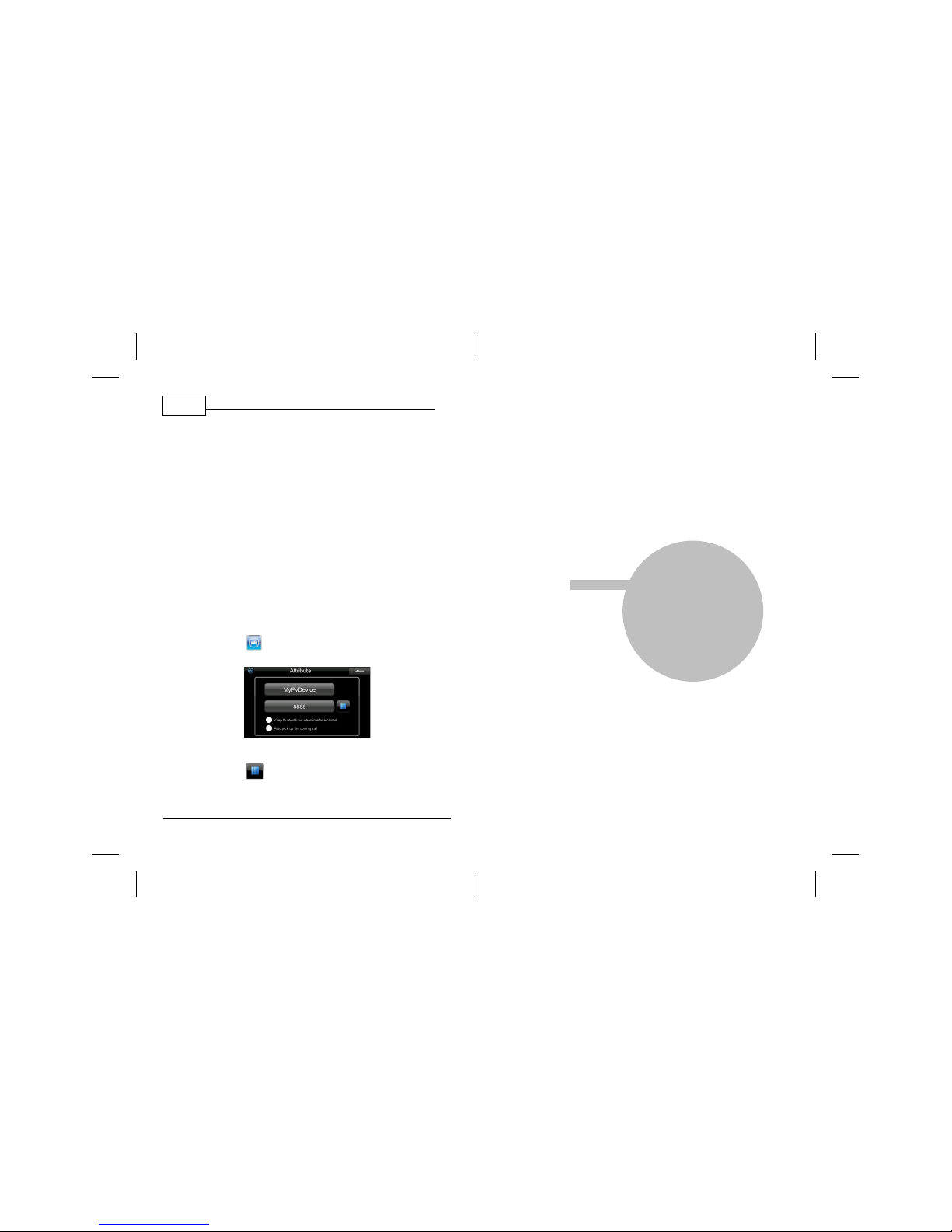

Bluetooth Settings Screen

4. Click the icon and set the pin code, then

Part

III

7400 Hardware User Guide

3 Main Menu

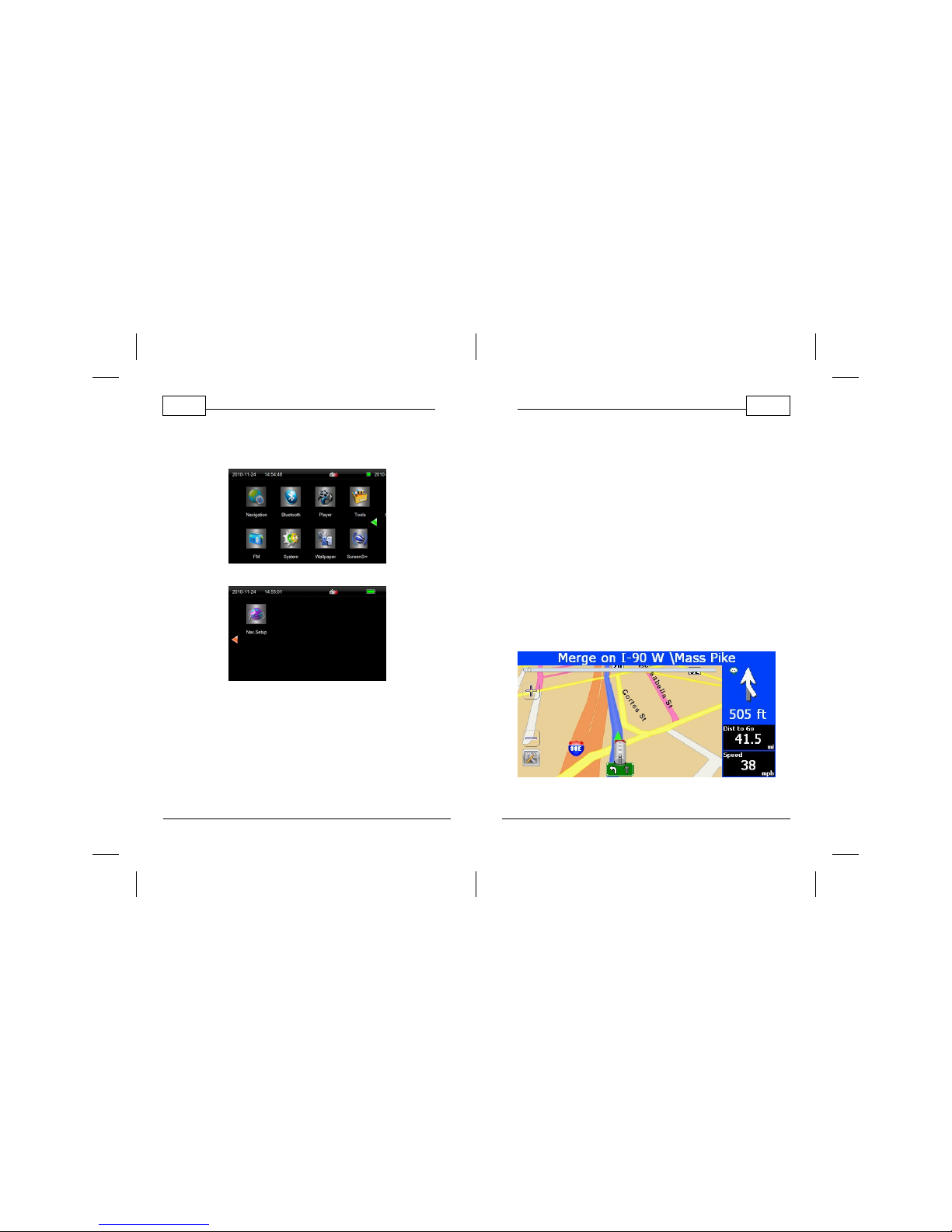

Main Menu Page 1

Main Menu Page 2

• Navigation - Provides navigation function

• Bluetooth - Allows you to connect you

Bluetooth-enabled cell phone directly to the GPS; you can then dial numbers and receive calls directly from your GPS

• Media Player - Allows you to access media files

Main Menu

such as videos, music and eBooks

• Tools - Offers a variety of useful tools such as a

calculator, notepad and calendar

• FM Radio - Allows you to hear your GPS

instructions over your vehicle's speakers

• Serial Expansion Port - for use with features

based on serial communications

• System - Allows you to set your device's system

functions such as volume, power and language

3.1 Navigation

Please carefully read the WorldNav Software Guide for navigation instructions.

WorldNav Software

Teletype WorldNav 7400 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
