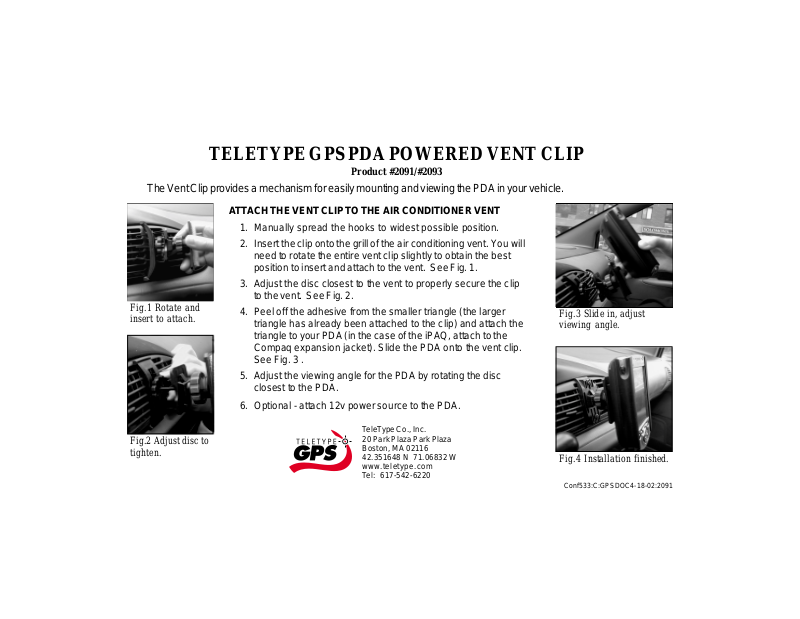

TELETYPE GPS PDA POWERED VENT CLIP

Product #2091/#2093

The Vent Clip provides a mechanism for easily mounting and viewing the PDA in your vehicle.

A TT ACH THE VENT CLIP TO THE AIR CONDITIONER VENT

1. Manually spread the hooks to widest possible position. 2 . Insert the clip onto the grill of the air conditioning vent. You will

need to rotate the entire vent clip slightly to obtain the best position to insert and attach to the vent. See Fig. 1.

3. Adjust the disc closest to the vent to properly secure the clip to the vent. See Fig. 2.

Fig.1 Rotate and insert to attach.

Fig.2 Adjust disc to tighten.

4 . Peel off the adhesive from the smaller triangle (the larger

triangle has already been attached to the clip) and attach the triangle to your PDA (in the case of the iPAQ, attach to the Compaq expansion jacket). Slide the PDA onto the vent clip. See Fig. 3 .

5 . Adjust the viewing angle for the PDA by rotating the disc

closest to the PDA.

6 . Optional - attach 12v power source to the PDA.

T eleT ype Co., Inc. 20 Park Plaza Park Plaza Boston, MA 02116

42.351648 N 71.06832 W www.teletype.com Tel: 617-542-6220

Fig.3 Slide in, adjust viewing angle.

Fig.4 Installation finished.
