Teletype 1240 Instruction

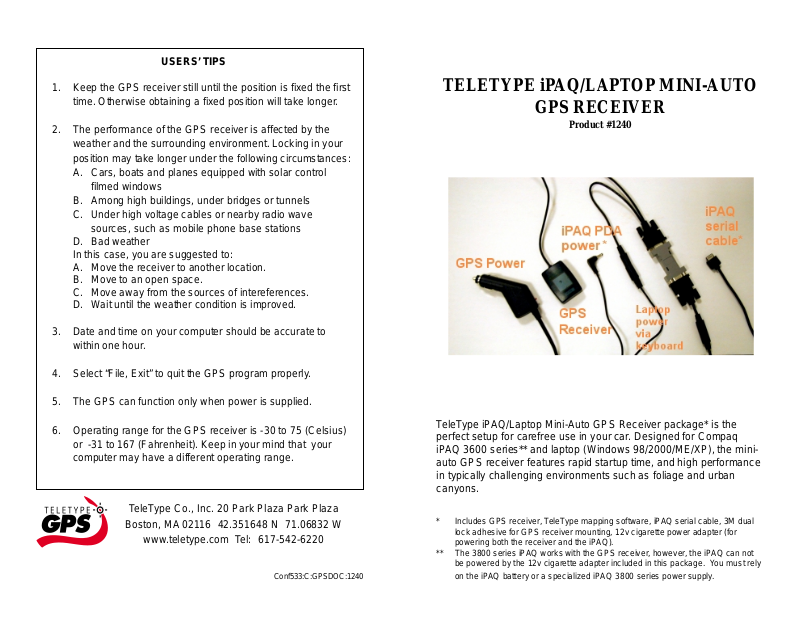

USERS’ TIPS

1. Keep the GPS receiver still until the position is fixed the first
time. Otherwise obtaining a fixed position will take longer.

2. The performance of the GPS receiver is affected by the
weather and the surrounding environment. Locking in your
position may take longer under the following circumstances:
A. Cars, boats and planes equipped with solar control

filmed windows
B. Among high buildings, under bridges or tunnels
C. Under high volt age cables or nearby radio wave

sources, such as mobile phone base stations
D. Bad weather
In this case, you are suggested to:
A. Move the receiver to another location.
B. Move to an open space.
C. Move away from the sources of intereferences.
D. Wait until the weather condition is improved.

3. Date and time on your computer should be accurate to
within one hour.

4. Select “File, Exit” to quit the GPS program properly.

TELETYPE iPAQ/LAPTOP MINI-AUTO

GPS RECEIVER

Product #1240

5. The GPS can function only when power is supplied.

6. Operating range for the GPS receiver is -30 to 75 (Celsius)
or -31 to 167 (Fahrenheit). Keep in your mind that your
computer may have a different operating range.

TeleType Co., Inc. 20 Park Plaza Park Plaza

Boston, MA 02116 42.351648 N 71.06832 W

www.teletype.com Tel: [phone]

Conf533:C:GPSDOC:1240

TeleType iPAQ/Laptop Mini-Auto GPS Receiver package* is the
perfect setup for carefree use in your car. Designed for Compaq
iPAQ 3600 series** and laptop (Windows 98/2000/ME/XP), the mini­auto GPS receiver features rapid startup time, and high performance
in typically challenging environments such as foliage and urban
canyons.

* Includes GPS receiver, TeleType mapping software, iPAQ serial cable, 3M dual

lock adhesive for GPS receiver mounting, 12v cigarette power adapter (for
powering both the receiver and the iPAQ).

** The 3800 series iPAQ works with the GPS receiver, however, the iPAQ can not

be powered by the 12v cigarette adapter included in this package. You must rely
on the iPAQ battery or a specialized iPAQ 3800 series power supply.

INST ALLATION ON POCKET PC

INST ALLA TION ON LAPTOP

1. Turn on the Pocket PC.

2. Attach the GPS receiver to the 12v cigarette power adapter.
You should see a green light inside the receiver. Note that
the GPS receiver must be POWERED in order to function.

3. Product ships assembled for use with iPAQ. Attach the
product to the iPAQ serial port.

4. Activate the TeleType GPS program.

5. Select Tools, GPS Status.

6. Select Serial I/O tab. Select COM1 from the comm port list,
since the serial port is always comm 1.

7. Make sure the port is open by clicking the button “Open
Port”. If the button shows “Close Port”, that means the port
is already opened. After the port is opened, you should see
the GPS code scrolling down the screen.

8. Go to your car. Be sure to plug in the 12v cigarette power
adapter (Required).

9. Select the Satellites tab and you will find the message
“Position not fixed” at the bottom of the screen. Wait until
the screen shows “Position is fixed”. It may take several
minutes to lock in the first time. Subsequent uses will lock in
faster. Please refer to the Users’ Tips section on the back
cover for more information.

10. Select the Position tab and your position will be indicated as
a large red arrow on the screen.

1. Turn on the laptop.

2. Attach the GPS receiver to the 12v cigarette power adapter
or to the laptop keyboard power connector if available. You
should see a green light inside the receiver when the
receiver has power. Note that the GPS receiver must be
POWERED in order to function.

3. Detach the 9-pin connector of the iPAQ serial cable from
the assembled product such that you can now attach the 9­pin serial cable to your laptop serial port.

4. Activate the TeleType GPS program.

5. Select Tools, GPS Status.

6. Select Serial I/O tab. Select COM1 from the comm port list,
since typically the serial port is comm 1.

7. Make sure the port is open by clicking the button “Open
Port”. If the button shows “Close Port”, that means the port
is already opened. After the port is opened, you should see
the GPS code scrolling down the screen. If the screen is
blank, that means the serial port of your laptop may not be
comm 1. To find the correct comm port, select Control
Panel/System/Hardware/Device Manager/Ports(COM &
LPT). Note the number of the comm port in use. Assign the
same port number for the serial port in the TeleType GPS
program.

8. Go to your car. Be sure to plug in the 12v cigarette power
adapter if you attached the GPS receiver to the 12v
cigarette power adapter in Step 2.

9. Select the Satellites tab and you will find the message
“Position not fixed” at the bottom of the screen. Wait until
the screen shows “Position is fixed”. It may take several
minutes to lock in the first time. Subsequent uses will lock
in faster. Please refer to the Users’ Tips section on the back
cover for more information.

10. Select the Position tab and your position will be indicated as

a large red arrow on the screen.
