User’s manual – WL11000SA-N
1
The WL11000SA-N
Wireless Access Point
WL11000SA-N Access Point is an 11 Mbps wireless device that seamlessly integrates
with existing Ethernet networks to support applications such as mobile users or temporary
conferences. This solution offers fast, reliable wireless connectivity with considerable cost
savings over wired LANs (which include long-term maintenance overhead for cabling.) Just
install enough wireless access points to cover your network area, plug wireless cards into your
notebooks or install wireless adapters into your desktops, and start networking.
Using this device in conjunction with WL11000/WL11000P Wireless PC/PCI Cards, you
can create an instant network that integrates seamlessly with 10 Mbps Ethernet LANs.
Moreover, moving or expanding your network is as easy as moving or installing additional
access points, no wires!
User’s manual – WL11000SA-N
2
Table of Contents
Package Checklist 3
Hardware Description 3
Application 4
LED Indicators 5
System Requirements 6
Installation 7

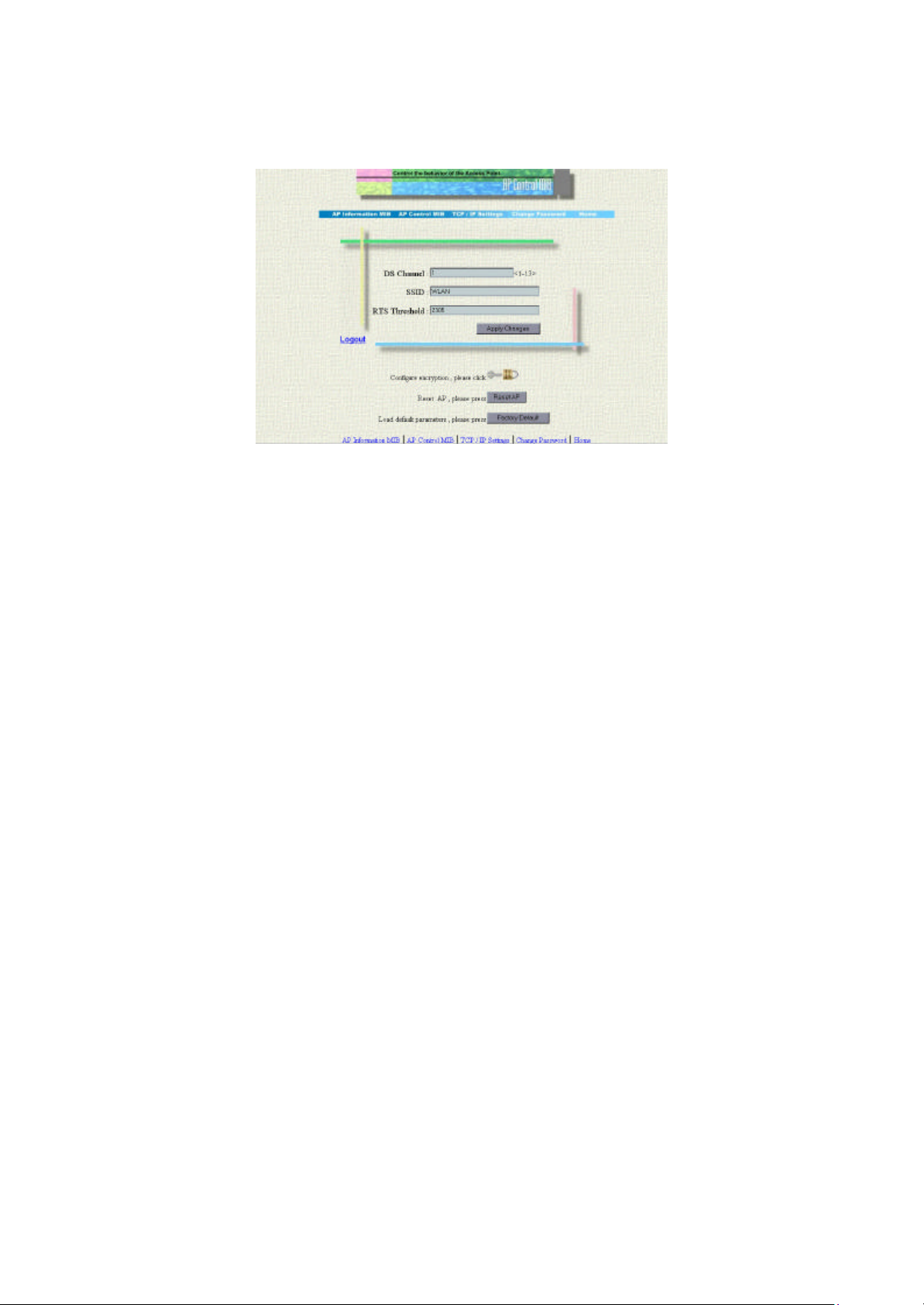

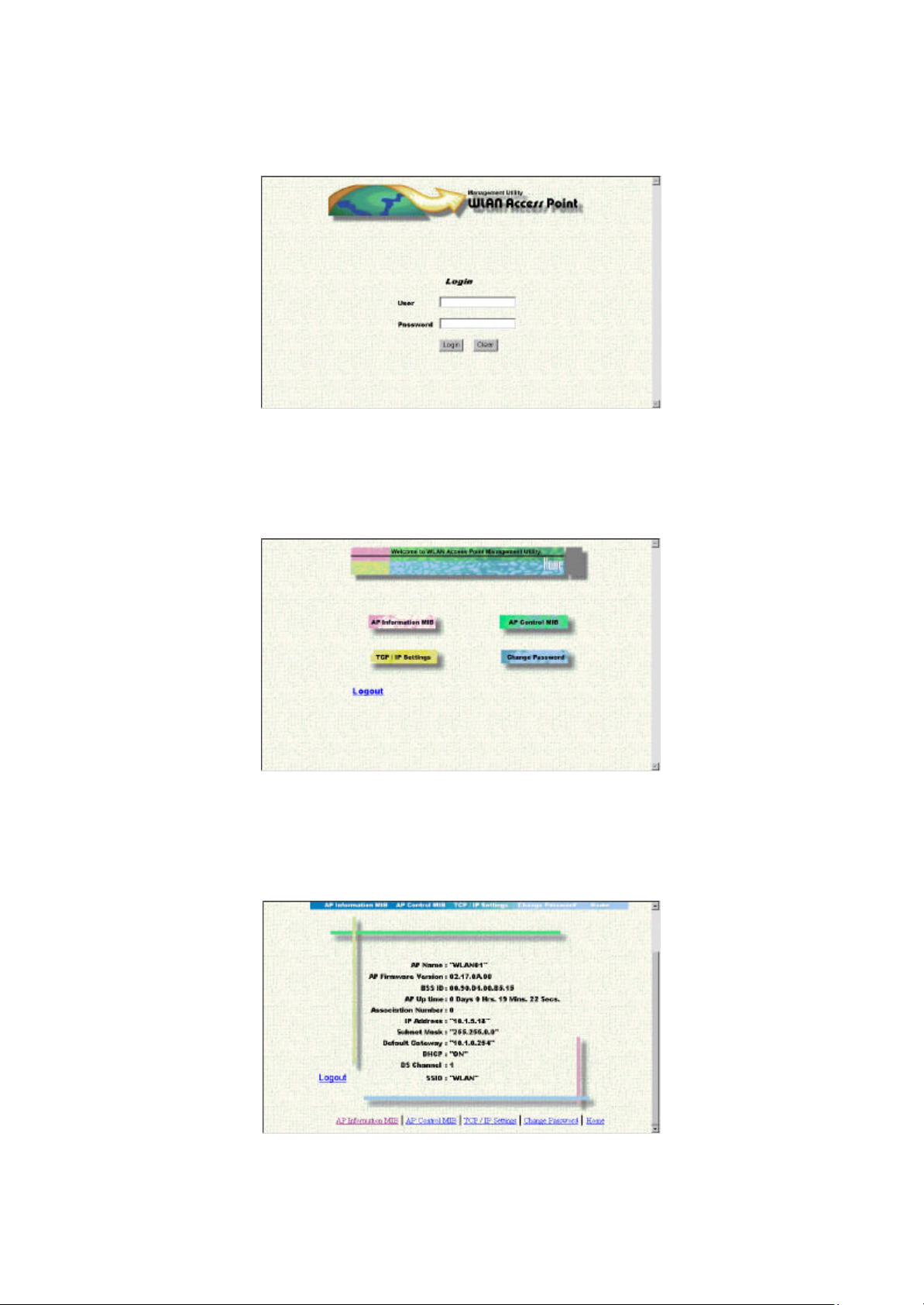

Configuration 8
Windows 95/98ME/2000/NT4.0 Installation 8
Network Configuration and Planning 13
Network Topologies 13

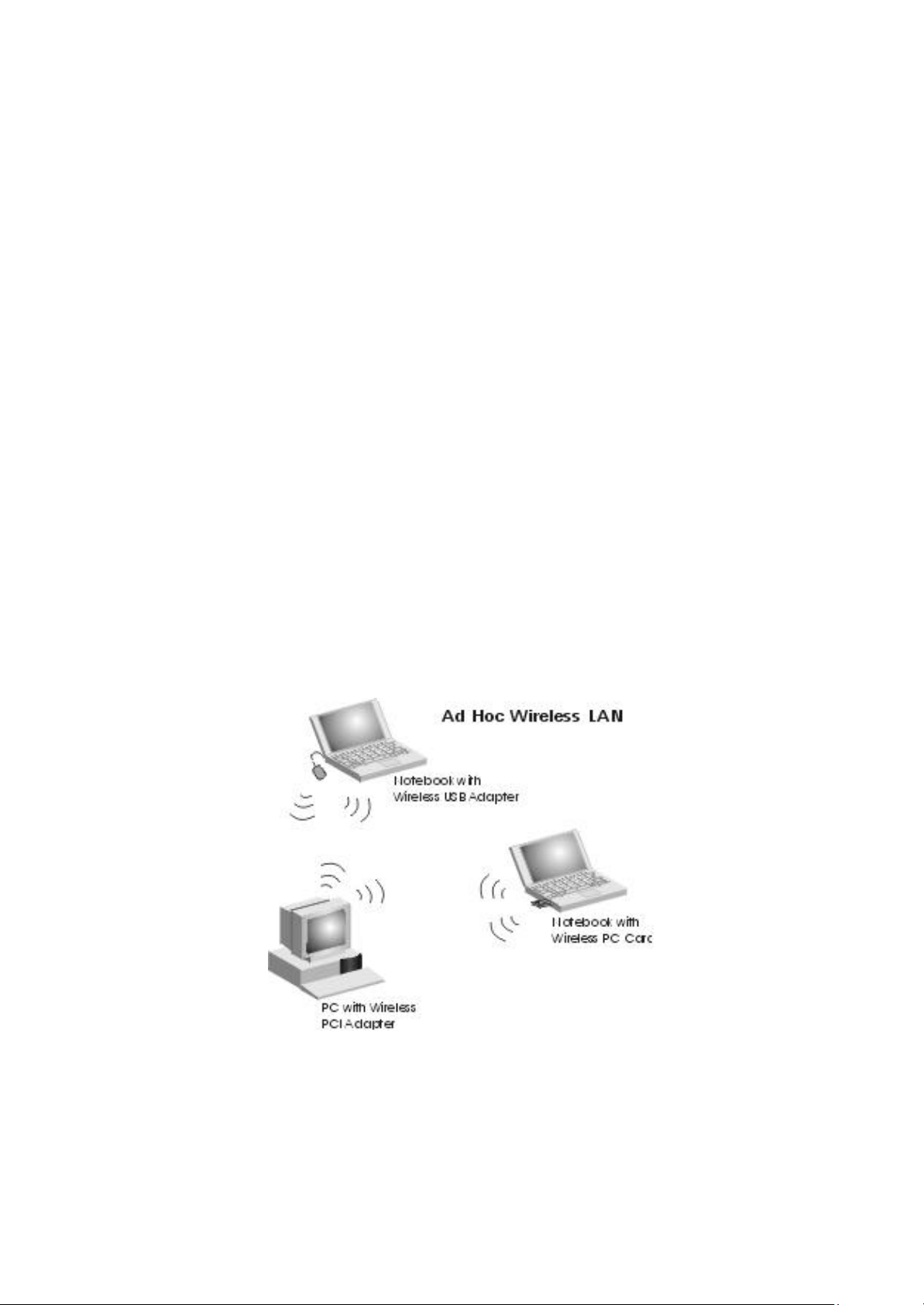

Ad Hoc Wireless LAN 13
Infrastructure Wireless LAN 14
Setting the Communication Domain 15
Stationary Wireless PCs 15
Roaming Wireless PCs 15
Troubleshooting 16
Compliances 17
FCC - Class B 17
CSA Statement (Canada) 18
CE Mark Declaration of Conformance 18
Specifications 21
Terminology 22
User’s manual – WL11000SA-N
3
Package Checklist
WL11000SA-N Wireless Access Point package includes:
² 1 WL11000SA-N Wireless Access Point
² 1 Antenna (dipole, omni-directional)
² 1 DC power adapter
² 1 Utility diskette
² 1 Quick Installation Guide
² 1 This User Guide
Please inform your dealer if there are any incorrect, missing or damaged parts. If
possible, retain the carton, including the original packing materials. Use them again to repack
the product in case there is a need to return it for repair.
Hardware Description
The WL11000SA-N Wireless Access Point serves as a Media Access Control (MAC)
bridge between your wired Local Area Network (LAN) and one or more Wireless Local Area
Networks (WLANs) (including wireless clients or other access points). Just attach the access
point anywhere along your Ethernet LAN to provide wireless stations within its area of
coverage with transparent access to the local wired and wireless LAN.
The WL11000SA-N Wireless Access Point supports an 11 Mbps half-duplex connection
to Ethernet networks for each active channel. It is fully compliant with 2.4 GHz DSSS
CSMA/CA Wireless networking as defined in IEEE 802.11b, and 10 Mbps Ethernet as defined
in IEEE 802.3
User’s manual – WL11000SA-N
4

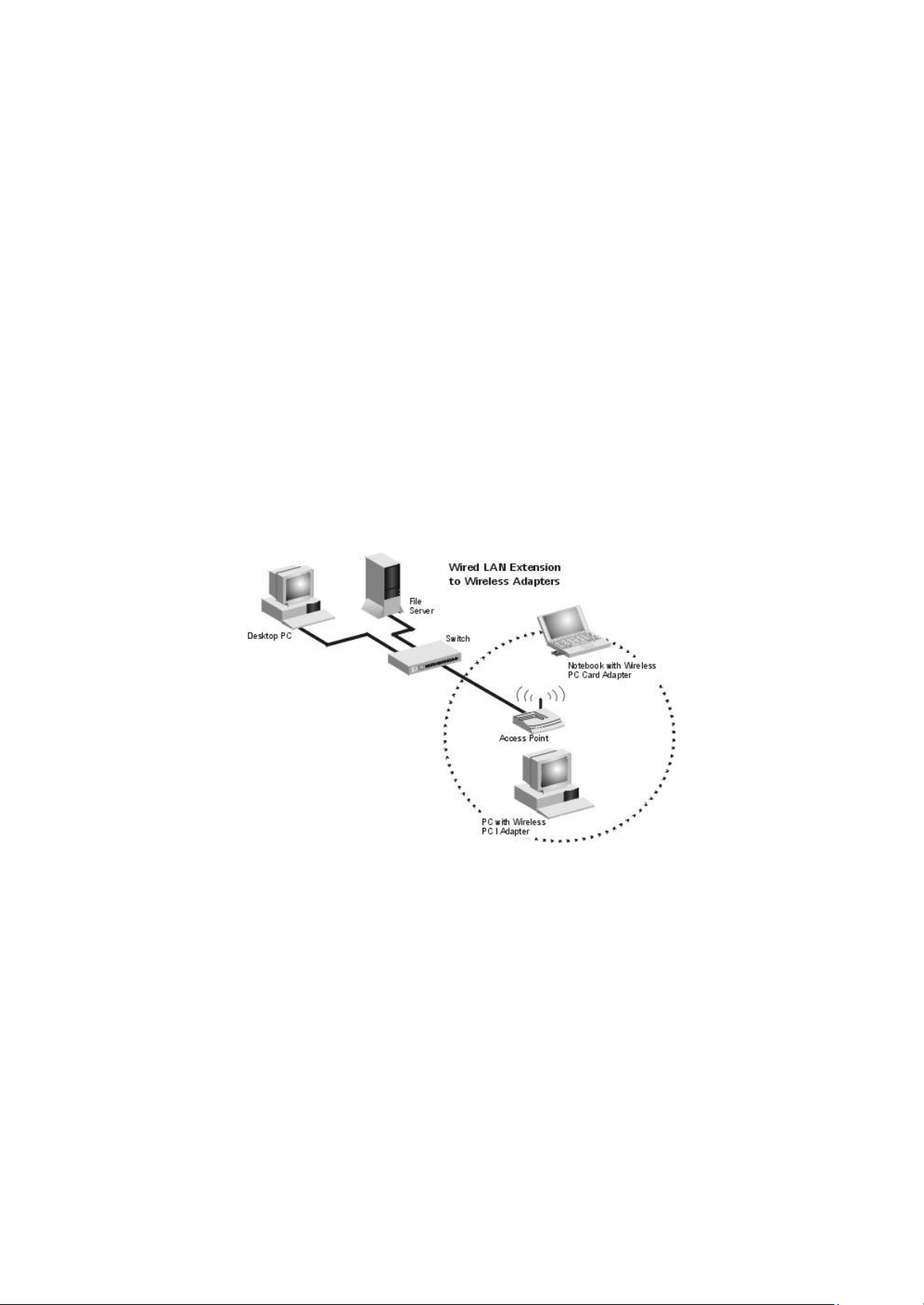

Applications
The WL11000SA-N Wireless products offer a fast, reliable, cost-effective solution for
wireless client access to the network in applications such as:
² Remote access to corporate network information
E-mail, file transfer and terminal emulation
² Difficult-to-wire environments
Historical or old buildings, asbestos installations, and open areas where wiring is
difficult to employ,
² Frequently changing environments
Retailers, manufacturers and banks that frequently rearrange the workplace and
change location
² Temporary LANs for special projects or peak time
Trade shows, exhibitions and construction sites, which need temporary setup for a
short time period. Retailers, airline and shipping companies who need additional
workstations for a peak period.
² Access to databases for mobile workers
Doctors, nurses, retailers, white-collar workers who need access to databases
while being mobile in the hospital, retail store or office campus.
² SOHO (Small Office and Home Office) users
SOHO users who need easy and quick installation of a small computer network
functions.
User’s manual – WL11000SA-N
5
LED Indicators
The WL11000SA-N Wireless Access Point includes five status LED indicators, as
described in the following figure and table.
LED Status Description
Power ON Red Indicates the power is being supplied.
Ethernet Link On Green Indicates a valid Ethernet cable link.
Ethernet
Activity
Wireless
Link
Wireless
Activity
Flashing Yellow Indicates that the access point is
transmitting or receiving data on the
Ethernet LAN.
Flashing Green Indicates valid wireless station links.
The rate of flashing increases with the
number of links
Flashing Yellow Indicates that the access point is
transmitting or receiving data through
wireless links
User’s manual – WL11000SA-N
6
System Requirements
Before you install the WL11000SA-N Wireless Access Point, be sure you can meet the
following requirements:
² An A/C power outlet (100~240V, 50~60Hz) which will supply power for the access
point
² An available RJ-45 (UTP) port on a 10BASE-T or 10/100BASE-T Ethernet hub or
switch.
² 802.11 compliant Wireless Ethernet adapters with TCP/IP compatible protocol
installed.
² Web Browser for configuration.
User’s manual – WL11000SA-N
7
Installation
1. Select the Site - Choose a proper place for your WL11000SA-N Access Point. In general,
the best location to place the access point is at the center of your wireless coverage area,
within line of sight to all your mobile stations.
2. Attach the Antenna - Screw the antenna into the antenna connector (ANT) on the back
panel. Proper placement will improve performance. Try to place the access point in a position
that can best cover its BSS. Normally, the higher you place the antenna, the better the
performance.
3. Connect the Ethernet Cable - The WL11000SA-N can be wired to a 10 or 10/100 BASE-T
Ethernet with a network device such as a hub or a switch. Connect into the RJ-45 connector
socket on the back panel with category 3, 4 or 5 UTP Ethernet cable and an RJ-45 connector.
4. Connect the Power Cable - Connect the power adapter cable to the 9V
DC power Socket on the rear panel.
Warning: ONLY USE the power adapter supplied with the WL11000SA-N.
Otherwise, the product may be damaged.
Note: The RS -232 Port is a reserve port for future function. There is no any
function or configure interface in currently model.
