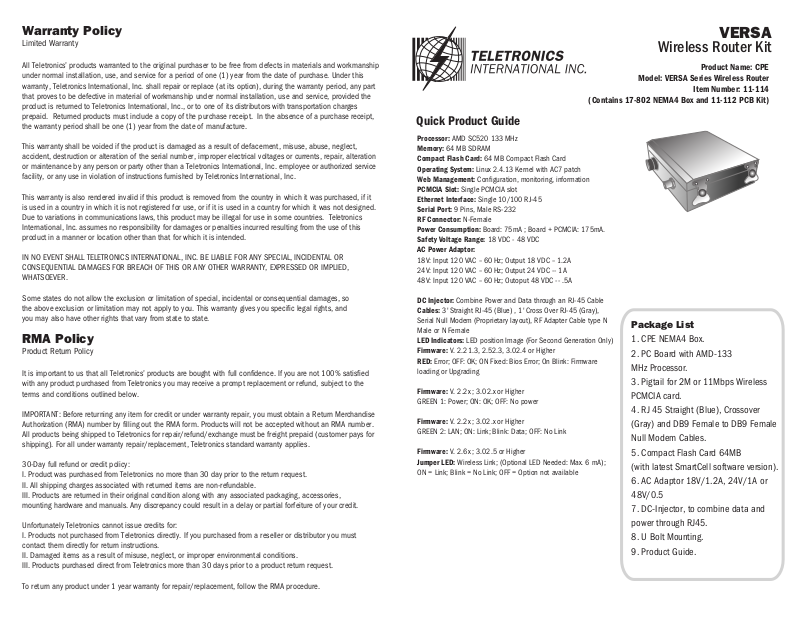

Teletronics VERSA User Manual

Warranty Policy

Limited Warranty

All Teletronics’ products warranted to the original purchaser to be free from defects in materials and workmanship
under normal installation, use, and service for a period of one (1) year from the date of purchase. Under this
warranty, Teletronics International, Inc. shall repair or replace (at its option), during the warranty period, any part
that proves to be defective in material of workmanship under normal installation, use and service, provided the
product is returned to Teletronics International, Inc., or to one of its distributors with transportation charges
prepaid. Returned products must include a copy of the purchase receipt. In the absence of a purchase receipt,
the warranty period shall be one (1) year from the date of manufacture.

This warranty shall be voided if the product is damaged as a result of defacement, misuse, abuse, neglect,
accident, destruction or alteration of the serial number, improper electrical voltages or currents, repair, alteration
or maintenance by any person or party other than a Teletronics International, Inc. employee or authorized service
facility, or any use in violation of instructions furnished by Teletronics International, Inc.

This warranty is also rendered invalid if this product is removed from the country in which it was purchased, if it
is used in a country in which it is not registered for use, or if it is used in a country for which it was not designed.
Due to variations in communications laws, this product may be illegal for use in some countries. Teletronics
International, Inc. assumes no responsibility for damages or penalties incurred resulting from the use of this
product in a manner or location other than that for which it is intended.

IN NO EVENT SHALL TELETRONICS INTERNATIONAL, INC. BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESSED OR IMPLIED,
WHATSOEVER.

Some states do not allow the exclusion or limitation of special, incidental or consequential damages, so
the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and
you may also have other rights that vary from state to state.

RMA Policy

Product Return Policy

It is important to us that all Teletronics’ products are bought with full confidence. If you are not 100% satisfied
with any product purchased from Teletronics you may receive a prompt replacement or refund, subject to the
terms and conditions outlined below.

IMPORTANT: Before returning any item for credit or under warranty repair, you must obtain a Return Merchandise
Authorization (RMA) number by filling out the RMA form. Products will not be accepted without an RMA number.
All products being shipped to Teletronics for repair/refund/exchange must be freight prepaid (customer pays for
shipping). For all under warranty repair/replacement, Teletronics standard warranty applies.

30-Day full refund or credit policy:
I. Product was purchased from Teletronics no more than 30 day prior to the return request.
II. All shipping charges associated with returned items are non-refundable.
III. Products are returned in their original condition along with any associated packaging, accessories,
mounting hardware and manuals. Any discrepancy could result in a delay or partial forfeiture of your credit.

Unfortunately Teletronics cannot issue credits for:
I. Products not purchased from Teletronics directly. If you purchased from a reseller or distributor you must
contact them directly for return instructions.
II. Damaged items as a result of misuse, neglect, or improper environmental conditions.
III. Products purchased direct from Teletronics more than 30 days prior to a product return request.

(Contains 17-802 NEMA4 Box and 11-112 PCB Kit)

Quick Product Guide

Processor: AMD SC520 133 MHz
Memory: 64 MB SDRAM
Compact Flash Card: 64 MB Compact Flash Card
Operating System: Linux 2.4.13 Kernel with AC7 patch
Web Management: Configuration, monitoring, information
PCMCIA Slot: Single PCMCIA slot
Ethernet Interface: Single 10/100 RJ-45
Serial Port: 9 Pins, Male RS-232
RF Connector: N-Female
Power Consumption: Board: 75mA ; Board + PCMCIA: 175mA.
Safety Voltage Range: 18 VDC - 48 VDC
AC Power Adaptor:

18V: Input 120 VAC – 60 Hz; Output 18 VDC – 1.2A
24V: Input 120 VAC – 60 Hz; Output 24 VDC -- 1A
48V: Input 120 VAC – 60 Hz; Outoput 48 VDC -- .5A

DC Injector: Combine Power and Data through an RJ-45 Cable
Cables: 3' Straight RJ-45 (Blue) , 1' Cross Over RJ-45 (Gray),

Serial Null Modem (Proprietary layout), RF Adapter Cable type N
Male or N Female

LED Indicators: LED position Image (For Second Generation Only)
Firmware: V. 2.21.3, 2.52.3, 3.02.4 or Higher
RED: Error; OFF: OK; ON Fixed: Bios Error; On Blink: Firmware

loading or Upgrading

Firmware: V. 2.2x ; 3.02.x or Higher
GREEN 1: Power; ON: OK; OFF: No power

Firmware: V. 2.2x ; 3.02.x or Higher
GREEN 2: LAN; ON: Link; Blink: Data; OFF: No Link

Firmware: V. 2.6x ; 3.02.5 or Higher
Jumper LED: Wireless Link; (Optional LED Needed: Max. 6 mA);

ON = Link; Blink = No Link; OFF = Option not available

VERSA

Wireless Router Kit

Product Name: CPE

Model: VERSA Series Wireless Router

Item Number: 11-114

Package List

1. CPE NEMA4 Box.

2. PC Board with AMD-133

MHz Processor.

3. Pigtail for 2M or 11Mbps Wireless

PCMCIA card.

4. RJ 45 Straight (Blue), Crossover

(Gray) and DB9 Female to DB9 Female

Null Modem Cables.

5. Compact Flash Card 64MB

(with latest SmartCell software version).

6. AC Adaptor 18V/1.2A, 24V/1A or

48V/0.5

7. DC-Injector, to combine data and

power through RJ45.

8. U Bolt Mounting.

9. Product Guide.

To return any product under 1 year warranty for repair/replacement, follow the RMA procedure.

Assembly Instruction

Quick Setup Guide

*Part pictures will vary, please use it only for general guide line.

Enclosure: Waterproof
Dimensions: (PCB): 6.4" x 5.2" x 0.7"
Enclosure Dimensions Outside:

7.5" x 9" x 2.75"

Enclosure Dimensions Inside:

7" x 7.5" x 2"
Operating Temperature: -10 ~ 60° C

(14~140° F)

Humidity (non condensing): 5 ~ 80%
Weight: 3.51lbs (Box, Board, Adaptor

Cable, AC Adaptor, DC Injector,

RJ-45) (PCB 0.7lb)

I. Initial Setup

Requirements

-One or more PCs (desktop or notebook) with Ethernet interface.

-TCP/IP protocol must be installed on all PCs. (Refer to User Manual for additional information)

-Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors.

-All wireless devices must be compliant with the IEEE 802.11B specifications.

-Microsoft Internet Explorer 5.0 or later or Netscape Navigator 4.7 or later.

* To avoid damage to the EZ Bridge, do not connect the power adapter to a power source
until all other connections has been established.

II. Unit login info

After all initial setup requirements are checked type the following IP under
the address bar of a web browser to login.

VERSA Router Default IPs
Address = https://192.168.1.1
Authentication
User Name: admin

Default Factory Settings
Ethernet interface IP: 192.168.1.1
WLAN interface IP: 192.168.2.1
Wireless Mode: Access Point and ESSID: DEFAULT

Password: 1234

Note: For a back-to-back connection between the CPE unit and any Network
Interface Card using a crossover cable, please use 10M or 100M Half Duplex
fix speed rate. Some cards do not Auto Sense or Auto Negotiates properly
with the NIC card in the unit.

Waterproof RJ-45

Connector Assembly

PLEASE VISIT OUR WEBSITE AT WWW.TELETRONICS.COM FOR MORE INFORMATION

NEMA 4 Enclosure

1

Safety Cap

2

Re-using items (1) and (2) from the safety cap, assemble the waterproof RJ-45

connector as shown below:

2

3

1

4

5

6
