Telesystems EDIC-mini Tiny 16 A52 Short Operating Instruction

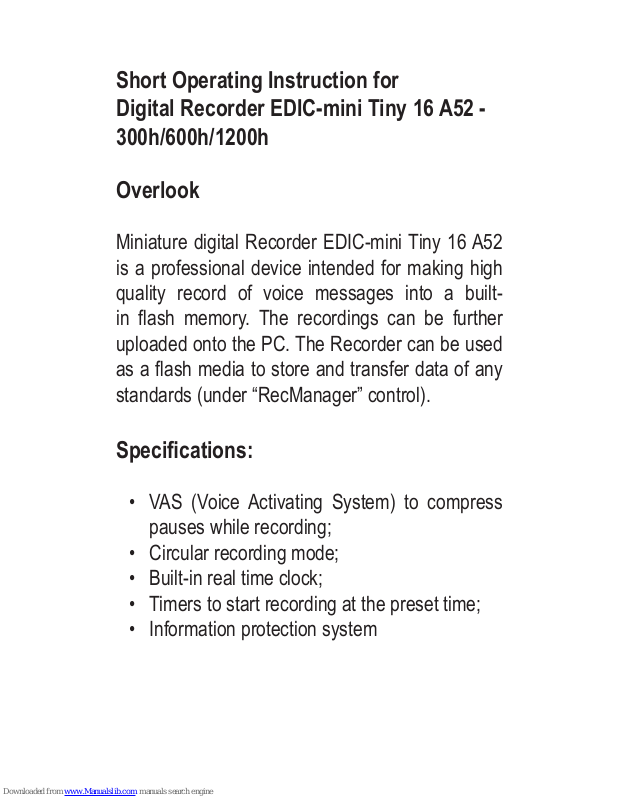

Short Operating Instruction for
Digital Recorder EDIC-mini Tiny 16 A52 ­300h/600h/1200h

Overlook

Miniature digital Recorder EDIC-mini Tiny 16 A52
is a professional device intended for making high
quality record of voice messages into a built-

in ash memory. The recordings can be further
uploaded onto the PC. The Recorder can be used
as a ash media to store and transfer data of any
standards (under “RecManager” control).

Specications:

• VAS (Voice Activating System) to compress

pauses while recording;

• Circular recording mode;

• Built-in real time clock;

• Timers to start recording at the preset time;

• Information protection system

2

Supplied Software makes it possible to

• Save the recorded messages on the PC
as standard sound les;

• Restore deleted pauses when uploading les

onto the drive;

• Set the recorder’s parameters;

• Apply password protection of the access

to the recorder’s settings and information;

• Update software.

PC system requirements

Operating systems: Windows XP, Windows Vista,

Windows 7.

Recorder’s Appearance

LED

Memory
Capacity
in Hours

USB connector

Serial

Number

Reset Button

Mic

Rec.

button

300h №123456

3

Technical Characteristics

• Last digits in the models’ names specify the
maximum recording duration in hours (built-in
memory capacity) for the Mode: 8 kHz, and

compression 2 bit ADPCM.

• Battery life in record mode (8 kHz, without

compression): up to 65 hours;

• Battery life in stand-by mode: up to 9 months;

• Battery life in record mode with VAS (audio

signal below threshold): up to 200 hours;

• Case: leather

• Dimensions: 43х11 mm

• Weight: 21 g

• Exchange rate: up to 0.7 Mb/s

• Frequency band: 0,1÷10 kHz

• Signal-to-noise ratio: -80 dB

• Sensitivity of built-in microphone: 10-12 m

• Storage life of built-in ash memory:

up to 10 years

• Power supply, battery capacity:
Li-Pol, 250 mAh

• Operating temperature range: 0-40 °С

4

Recorder's Functional Testing

Starting Recording.

Keep the Rec button pressed for about 2 seconds.
The LED ashes ve times to indicate start of
recording. While recording the series of LED
ashes indicate battery charge level and free

memory capacity (for more detail see Operation
Manual located in the internal memory of the

Recorder). To stop recording keep Rec button
pressed for about 2 seconds. The LED ashes

once, the duration depending on the memory

capacity.

Playing back the Recording.

Connect USB cable to the Recorder, then to the

USB port of the PC. The system recognizes a new
storage device. Launch «RecManager.exe». The

content of the Recorder is on the left side of the

window. Select the recording, right-click and select
“Copy to PC” in the context menu. The recording

will be converted to WAV and appears at the right

side of the window. To play back the recording
left-click it twice. To connect the Recorder off the

PC disconnect USB cable off the PC, then off the

Recorder.

5

Instructions

Operating instructions for the Recorder and
“RecManager” are located in the internal memory
of the Recorder, namely: “Operation manual for

Tiny16.pdf” and “RecManager for Tiny16.pdf»
which are displayed in the storage device.

It is recommended to copy the contents of the
storage device onto the hard drive of the PC to

solve all the possible problems with the Recorder.

Battery Charging

Connect USB cable to the Recorder, then to the

USB port of the PC. The LED ashes once to
indicate start of charging. While charging, the
recorder’s LED is ashing gradually with a ve­second interval. When the rechargeable battery
is fully charged the LED ashes without intervals.
Connect the cable off the PC. After a short pause
the LED ashes one more time.

Attention! If you don’t use the Recorder for a
long time it is necessary to charge the battery at

least once in six months.

6

In Box

• Recorder

• USB cable

• Instructions

• Wooden case

Additional accessories

• Miniature amplifying external microphone
[+10 dB] for Tiny 16

• Programmed External Microphone with AGC
for Tiny 16

7

Manufacturer Warranty Coupon

The manufacturer undertakes warranty repair

liabilities for 1 year from the date of purchase,

but no longer than 2 years from the date of

manufacture of the product (warranty does not

cover batteries). Paid repair is provided within

recorder’s operation lifetime (5 years). The

manufacturer reserves the right to refuse in repair

after the expiration of recorder operation life.

This warranty is voided if the recorder is:

• improperly used;

• mechanically damaged;

• received without supplier warranty tag on this

document.

All questions regarding product exchange and

return must be solved with the seller’s company

according to Protection of Consumers Law.
