Page 1

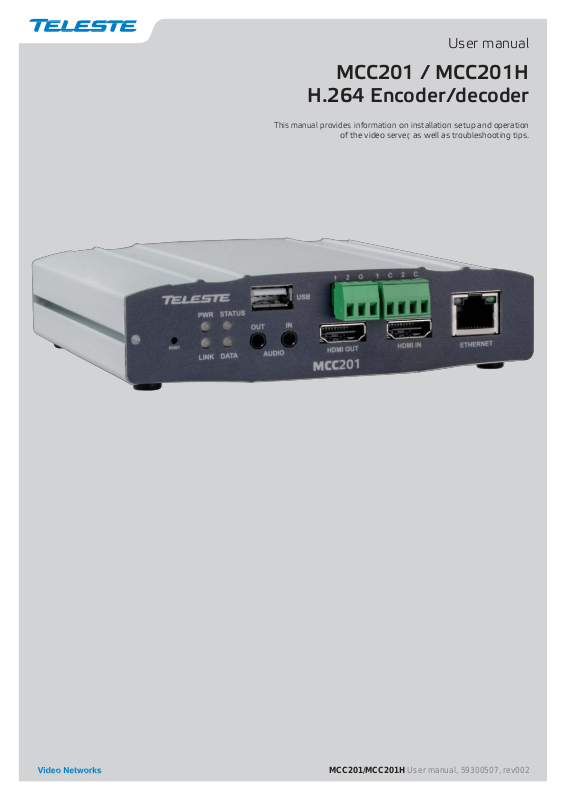

User manual
MCC201 / MCC201H
H.264 Encoder/decoder
operation
troubleshooting tips.
MCC201/MCC201H User manual, 5930 050 7, rev002
This manual provides information
of the video
server,
on
installation
as well as
setup and
Page 2
Page 3
MCC201/MCC201H User manual
• I
1. Introduction........................................................................................................................... 1
2. Installation ............................................................................................................................ 8
3. System Operation ................................................................................................................. 11
4. Remote Configuration ........................................................................................................... 16
5. Decoder Configuration .......................................................................................................... 51
6. Appendix ............................................................................................................................ 57
Legal Declarations ................................................................................................................... 60
Table of Content
About this manual ............................................................................................................... 1
Features............................................................................................................................. 1
Product and Accessories ...................................................................................................... 2
Part Names and Functions .................................................................................................... 3
System Connections ............................................................................................................ 5
Remote Video Monitoring ................................................................................................... 11
Live View controls ............................................................................................................. 12
Initialization of IP address ................................................................................................... 15

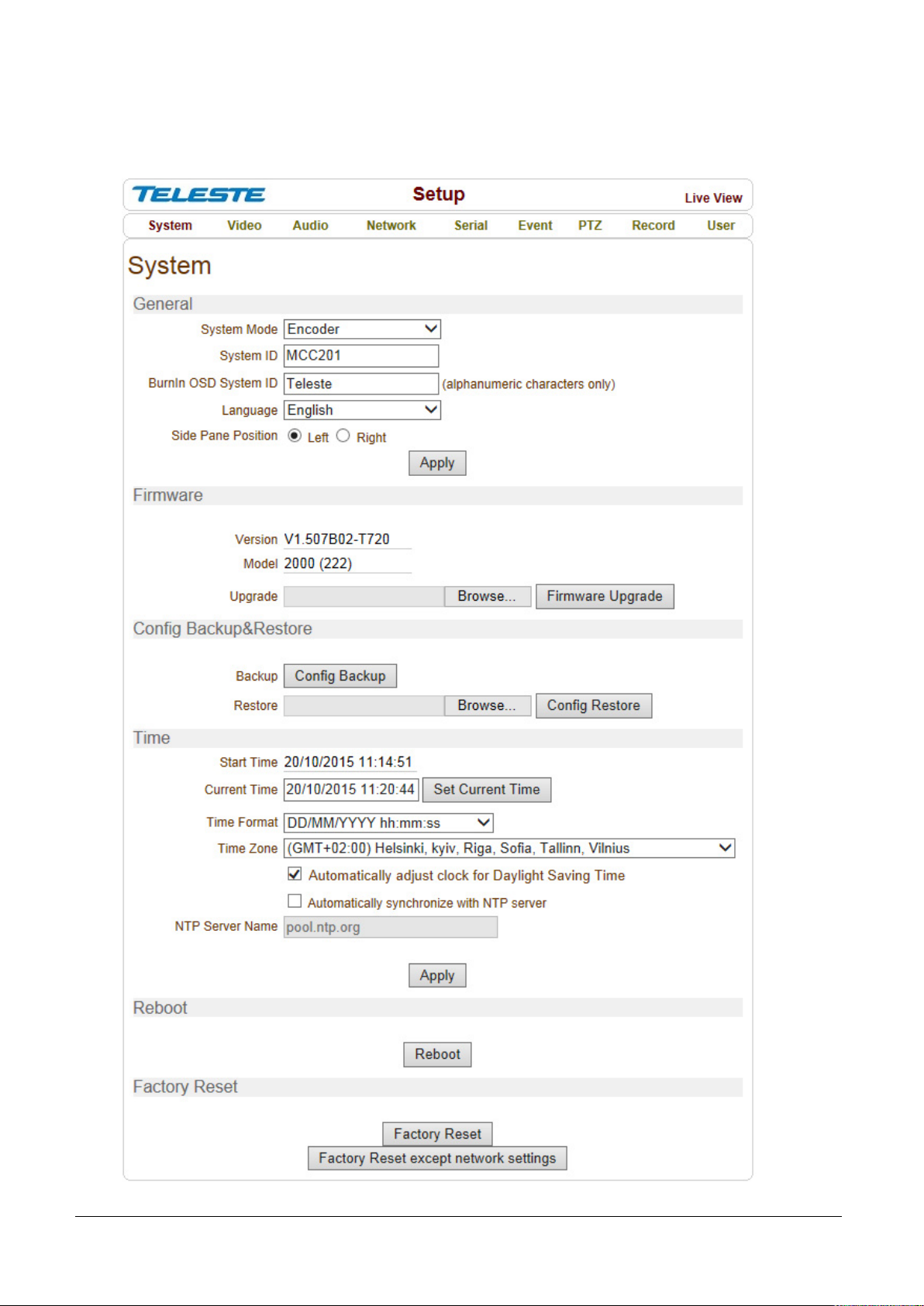

System Configuration ......................................................................................................... 17

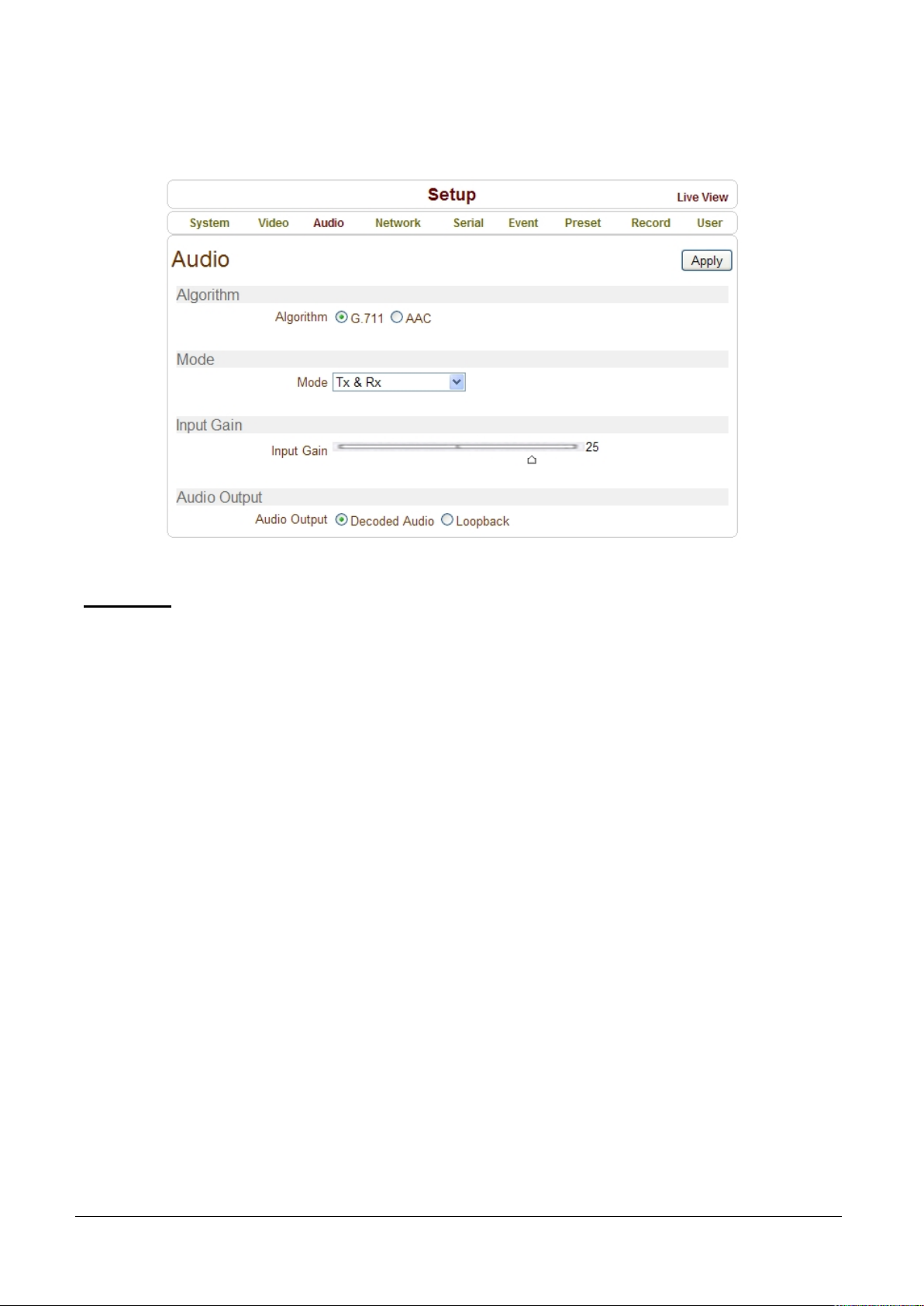

Audio Configuration ........................................................................................................... 26

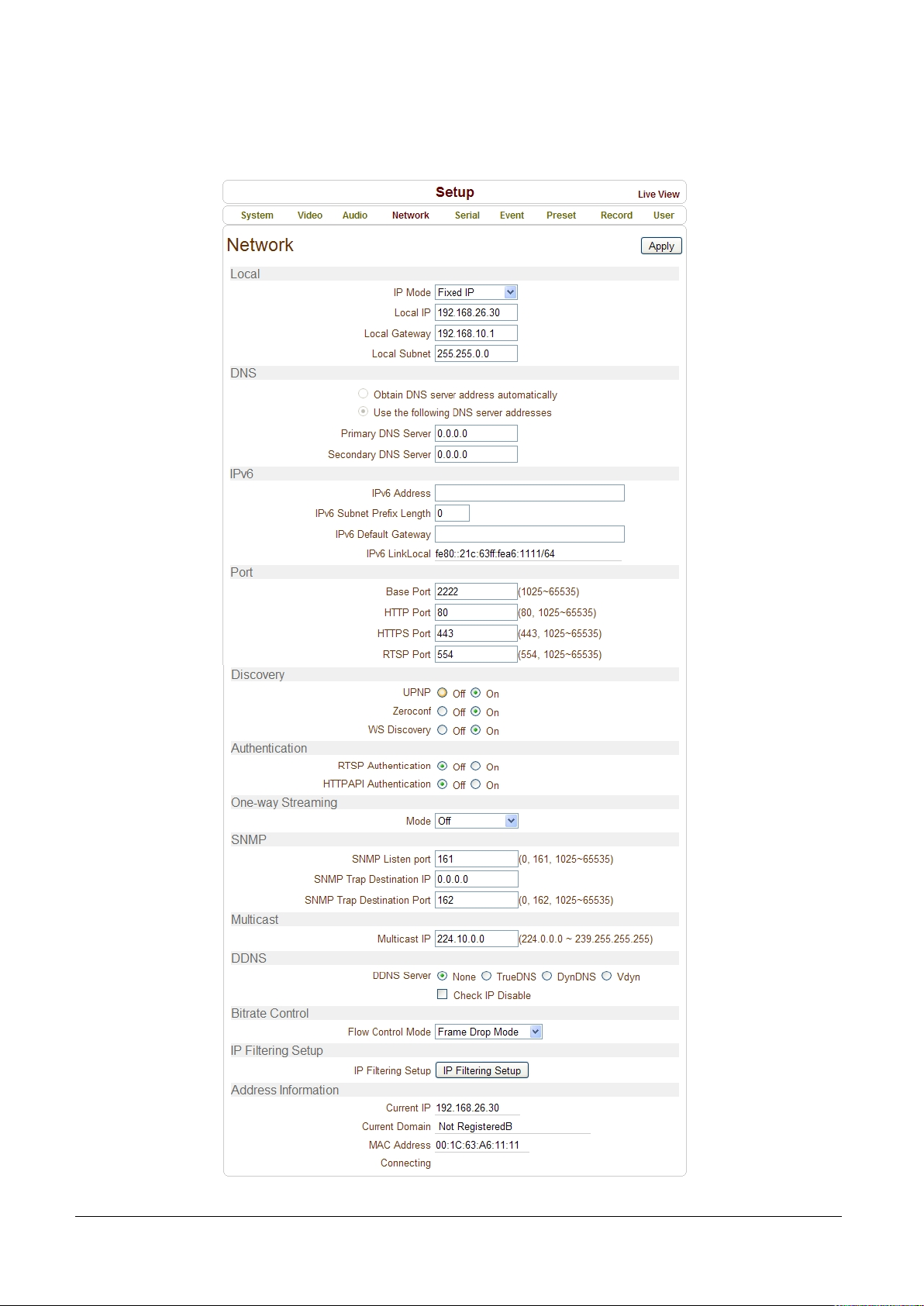

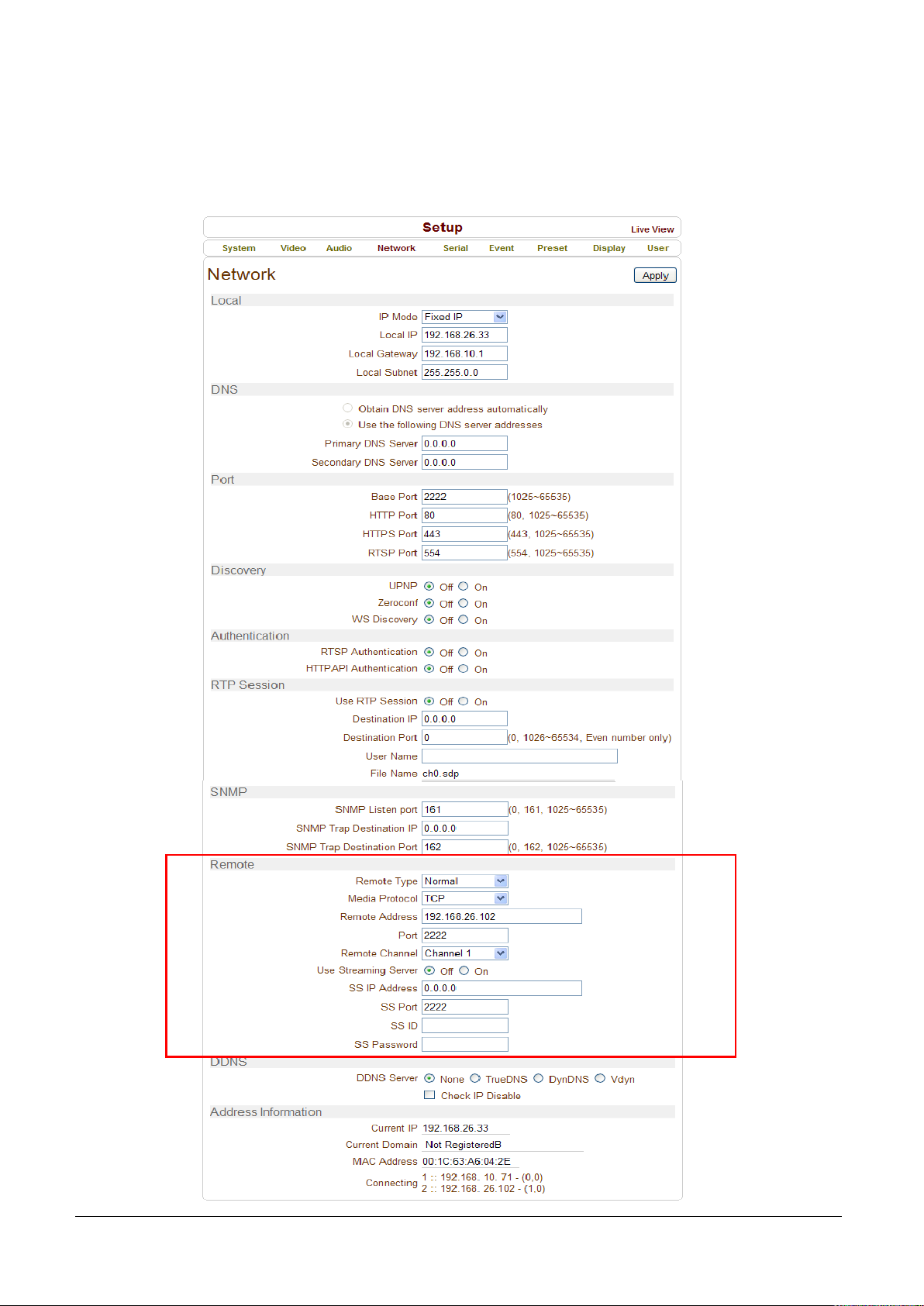

Network Configuration ........................................................................................................ 28
Serial Configuration ........................................................................................................... 34

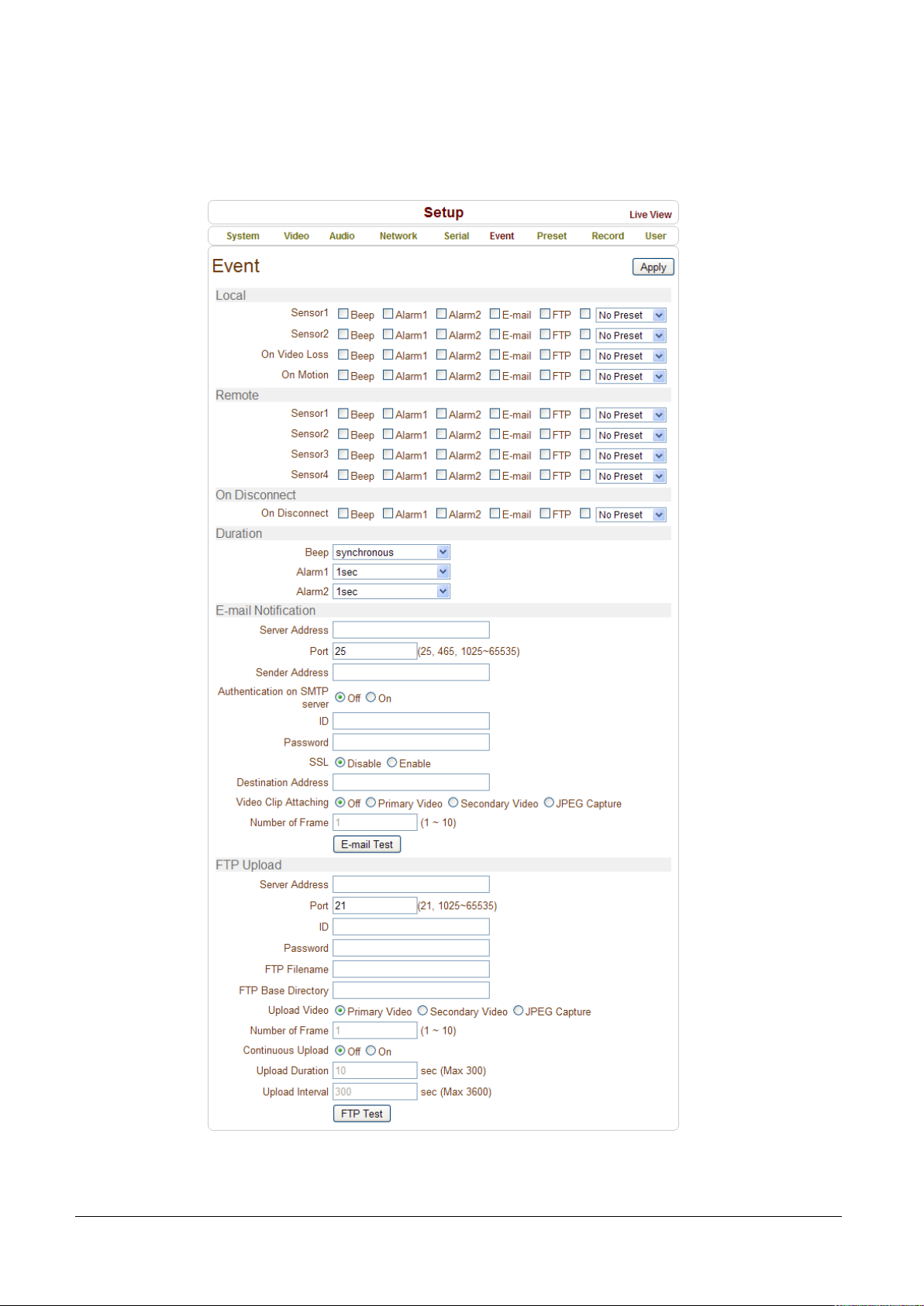

Event Configuration ........................................................................................................... 37

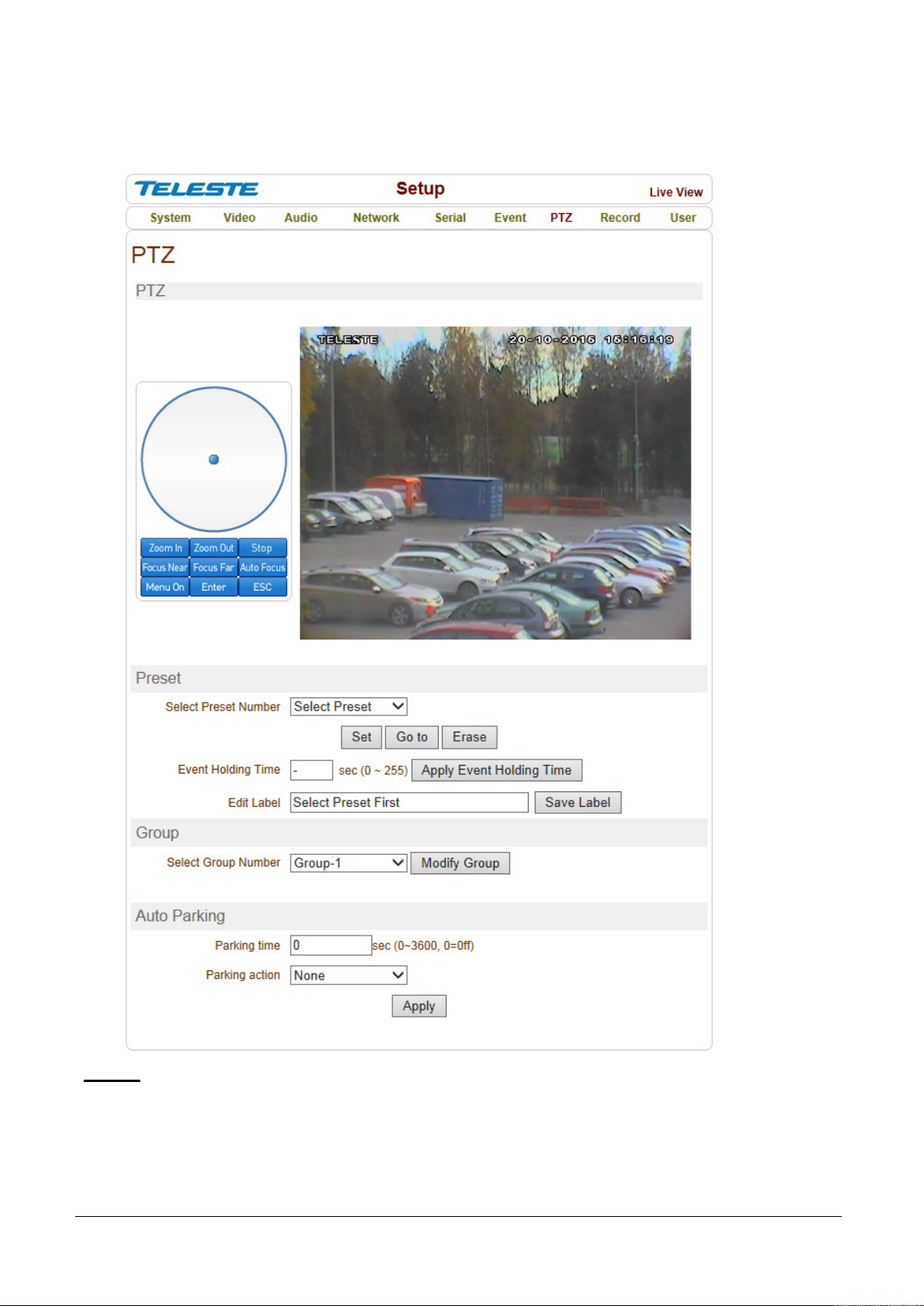

PTZ Configuration ............................................................................................................. 42
Record Configuration ......................................................................................................... 43
System Configuration ......................................................................................................... 51
Network Configuration ........................................................................................................ 53
Event Configuration ........................................................................................................... 55
Display Configuration ......................................................................................................... 56
Page 4
Page 5
MCC201/MCC201H User manual
1. Introduction • 1
1. Introduction
About this manual
This User Manual provides information on installation setup and operation of the MCC201 and MCC201H,
as well as troubleshooting tips.
Features
MCC201 is a video and audio transm is sion s ystem that pro vides broadcast quality audio and video, based on
IP networking. MCC201 can operate either as an Encoder or as a Decoder, the desired mode is userselectable. MCC201H is a model variant which has all other functions available except HD-SDI operation.
Video
Highly efficient compression algorithm, H.264 (Baseline and High profiles) & MJPEG support
Wide range of transmission rates: Primary stream 32 kbps...10 Mbps, secondary stream max. 1 Mbps
Various transmission modes: CBR, VBR

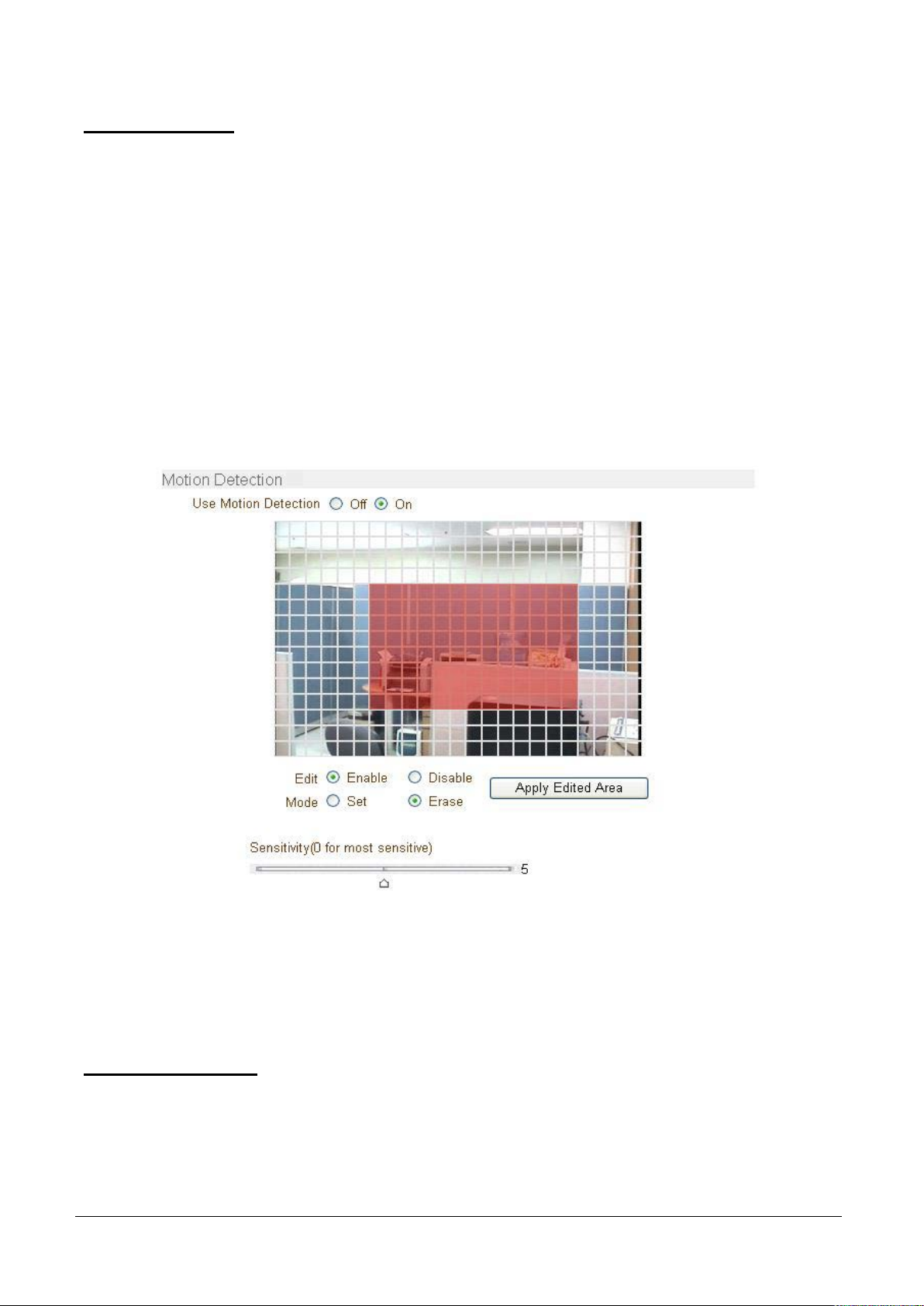

Motion detection
Support for analogue baseband video, HDMI video and HD-SDI video
(Note! HD-SDI video not available on MCC20 1H )
Audio
Multi-Transmission Mode : Unidirectional Mode (IP-server to Client PC or Decoder / Client PC or
Decoder to IP-server), Bi-directional Mode
Network
Fixed IP & Dynamic IP (DHCP) support
1:1, 1:N support
Multicasting
Automatic transmit rate control according to network conditions
OnVIF, PSIA compliant
Serial Data
RS-232 support
RS-422 (4-w) or RS-485 (2-w) support
Data pass-through mode : Serial data communication betwe en Enco der - Decoder
Page 6
2 • 1. Introduction
MCC201/MCC201H User manual
Sensor and Alarm
Support direct connections of external sensor and alarm devices
Event Alarm
USB
Connection to internal or external USB storage for remote access, recording and playback
User Interface
System configuration by web browser (Internet Explorer recommended)
High Reliability
Reliable embedded system
System recovery by watchdog functions
Product and Accessories
MCC201/MCC201H User Manual
(in CD)
Power adapter and Cable
Page 7
MCC201/MCC201H User manual
1. Introduction • 3
Part Names and Functions
Front View
2
3
1
4
5
6
7
8
Position Description Function
1 Reset button Initialization of network setting
2 LEDs Display power On/Off condition, Link, Status and data
3 USB USB (2.0) port for any USB device
4 Audio In, Out Audio Input and Output
5 Sensor Sensor Input
6 Alarm Alarm or Relay Output
7 HDMI In, Out HDMI Video Input and Output
8 LAN (Ethernet) 10/100Base-TX electrical Ethernet interface
Page 8
4 • 1. Introduction
MCC201/MCC201H User manual
Rear View
1
2 3 4 5
6
7
Position Description Function
1 POWER In DC +12V power input

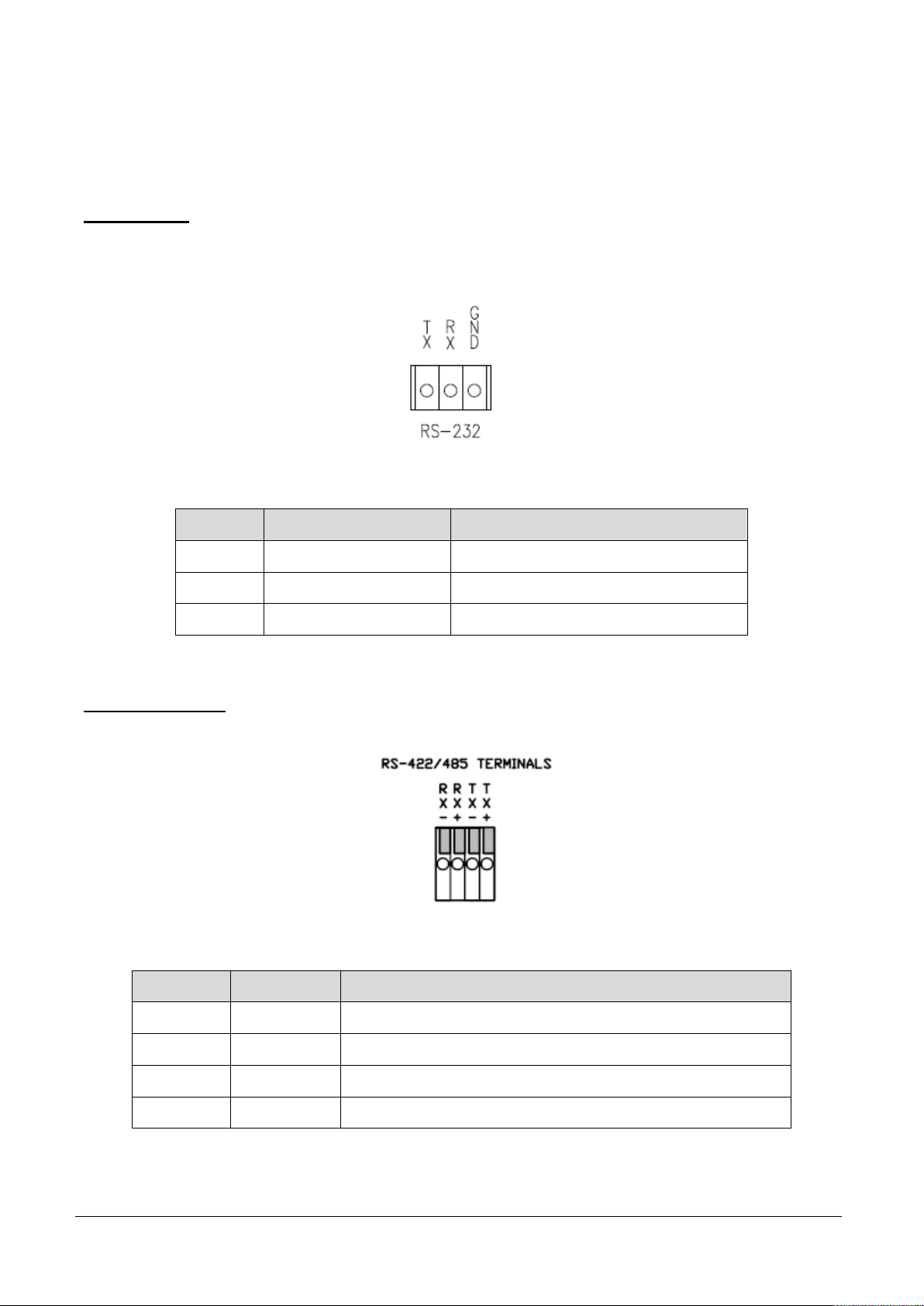

2 RS-422/485 Serial port for PTZ control and etc.
3 RS-232 Serial port for PTZ control and etc.
4 Composite Out
5 Composite In
6 HD/SD-SDI Out
7 HD/SD-SDI In
Composite Video Output
Composite Video Input
HD/SD-SDI Video Output (MCC20 1H , not in use)
HD/SD-SDI Video Input (MCC201H, not in use)
Page 9
MCC201/MCC201H User manual
1. Introduction • 5
Site
System Connections
MCC201 operates as one of two modes; as Encoder or Decoder. MCC201 systems can be connected in
either 1-to-1 fashion where one encoder is connected one decoder or 1-to-m any fashion where one encoder
connected to many decoders.
Following chart shows data status of video, audio and serial data on each mode.
System Mode Video Audio Serial Data
Encoder Transmit Transmit/Receive Transmit/Receive
Decoder Receive Transmit/Receive Transmit/Receive
Therefore, the system modes are defined by the video comm unication and all system m odes are capable of
bi-directional transmission of audio or serial data.
Topology
Generally, the encoder and a decoder are connected in 1-to-1 mode. To support specific situation,
1-to-multiple connection is also supported.
1:1 Connection (Unidirectional Transmission).
Remote Center
Encoder Decoder
The most commonly used configuration is 1 to 1 connection. An encoder is installed at a site where video
images can be transmitted and a decoder is installed at a center location to receive and view the video images
on monitors. Audio and serial data are transferred in either direction.
A decoder and encoder can be connected by setting the encoder’s address at the decoder’s remote IP.
Page 10
6 • 1. Introduction
MCC201/MCC201H User manual
1:N Connection (Unidirectional Transmission).
server
Site
Remote Center #1
Decoder
Remote Center #2
Decoder
Remote Center
Site
Encoder
Decoder
Decoder
Decoder
In this configuration, a site can be monitored from many remote center locatio ns . Maximum connections would
be limited by the network bandwidth.
Functionally, the VMS (Video Management System) software can replace the decoder.
Multicast Mode
In the network support ing multicast mode, if Multicast is setup as a system protocol, you can use bandwidth
efficiently regardless of the number of dec oders. In 1:N conn ection, a large number of decoders can receive
audio and video data from an encoder by using a single streaming transmission.
Relaying
IP-
In this arrangement, video and audio ca n be retransmitte d from a center to ano ther center. The arrangement
is useful when the network bandwidth at the site is limited while there is m ore than one center wanting to
monitor the site.
Page 11
MCC201/MCC201H User manual
1. Introduction • 7
Site
VMS
VMS
VMS (Video Management System)
Site
Remote Center
Encoder
Remote Center
Encoder Decoder
VMS (Video Management System) is a Windows based remote monitoring program to access multiple
encoders for real-tim e monitoring or control of the enc oders and connected camer as. A typical integration to
VMS system is done via OnVIF interface.
Page 12
8 • 2. Installation
MCC201/MCC201H User manual
2. Installation
Connecting Video
Connecting with Megapixel Camera
Connect a camera which supports HDMI or HD-SDI output to the HDMI or HD-SDI Input port
of video encoder accordingly. (Note! HD-SDI not available on MCC201H)
Connecting with Analogue Camera
Connect a camera to the encoder BNC video Input port.
Decoder System
Connect a monitor to HDMI or COMPOSITE (BNC) output of the decoder.
Connecting Audio
Audio is full-duplex. It is possible to set the mode as Tx-only, Rx-only or Tx-Rx.
Connect audio input and output ports to audio devices accordingly.
The Audio signal required is line level, so audio equipment with an amp, mixer or
other amplifier should be used.
Connecting Serial Ports
For camera control, PTZ controller (keyboard) and receiver can be connected to serial ports. Two
corresponding seria l ports in encoder and decoder which are con nected in con nected i n 1-to-1 fashion wor ks
in pass-through mode. This means that commands at a local system’s COM1 port will be transparently passed
to the remote s ystem’s COM1 port. Also, a com mand at a local system COM2 port will pass to the remote
system’s COM2 port.

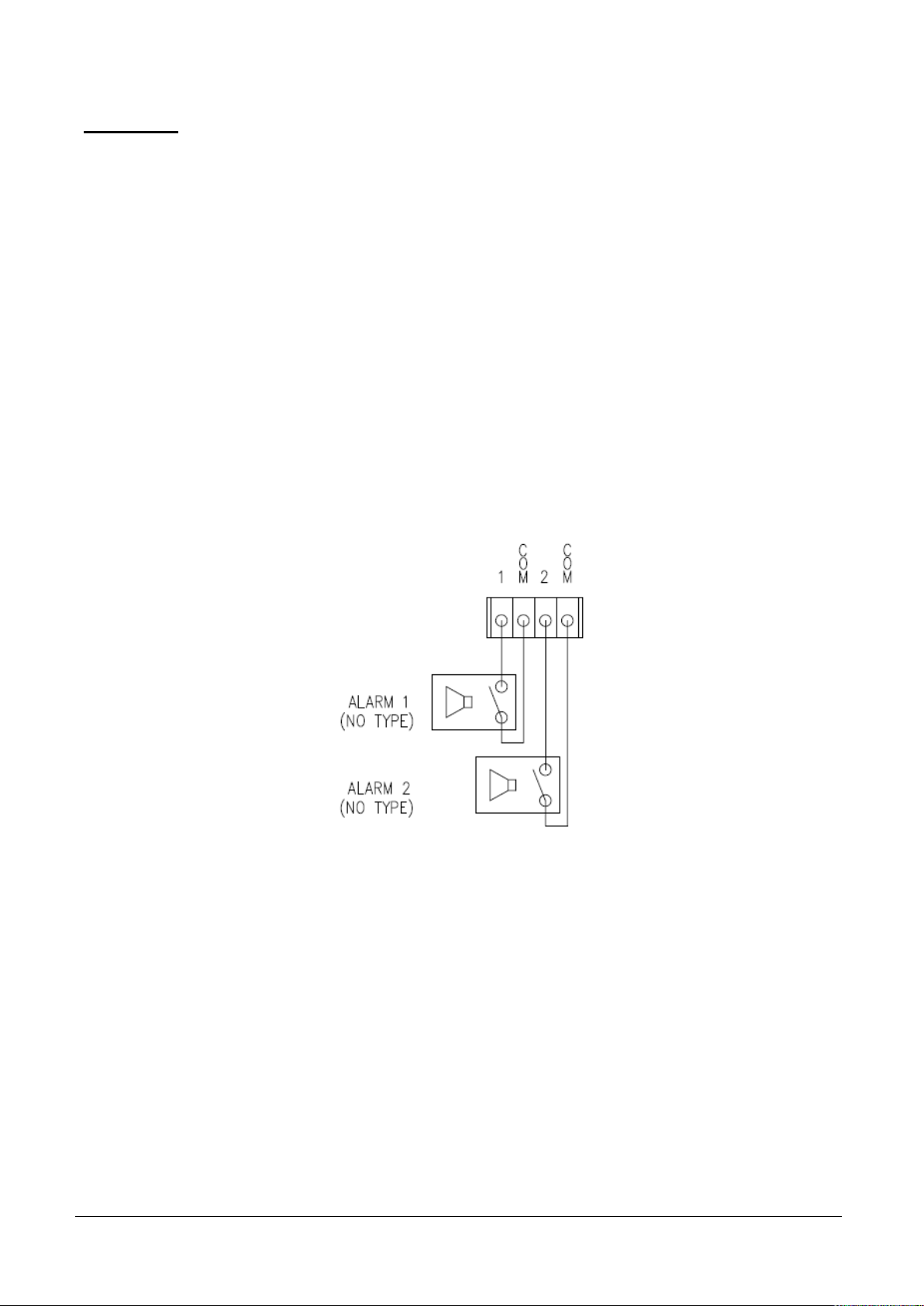

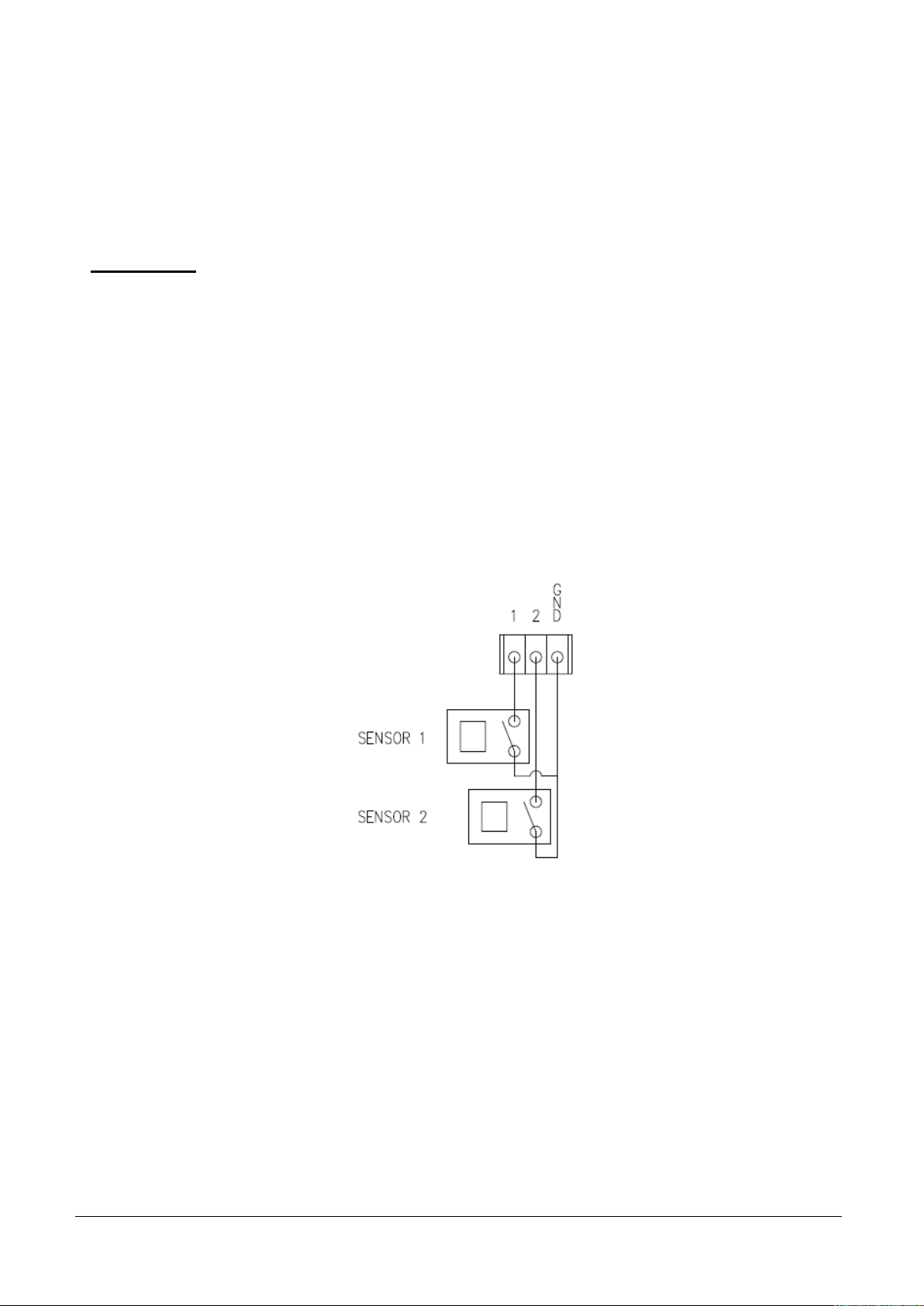

Connecting Sensor and Alarm
Connect sensor and alarm devices to corresponding terminals accordingly.
Connecting Power
After confirming the power source, connect power adaptor and connect the 12VDC connector to the system.
Page 13
MCC201/MCC201H User manual
2. Installation • 9
PWR
OFF
Green
PWR
STATUS
LINK
Green
DATA
Check the system start-up
Once the po wer is supplied to the cam era, it will start booting. The system will boot up to an operatin g mode
after approximately 40 - 60 seconds. The gre en LED on the Ethernet port will flash indicating t he system is
ready.
Encoder LED Display
STATUS
LINK DATA
Red
Blinking
OFF
These LEDs show that the camera is connected but a decoder is not connected.
Once the encoder is conne cted to a decoder, color of “LINK” LED will turn into green c olor and “ DATA” LED
will blink as video or audio transmissions occur.
Decoder LED Display
Red
Blinking
OFF
These LEDs show that the Decoder has started without connecting to an encoder. Once an encoder is
connected, the color of “LINK” LED will be turned to green and the “DATA” LED will blink as video or audio
data transmissions occur.
Page 14
10 • 2. Installation
MCC201/MCC201H User manual
Description of LEDs
System status can be monitored with LED display
LED State Description
Off Power off
PWR
Red Power on
Green blinking Normally operating
Red System failure: Needs diagnostics
STATUS
LINK
Constant change of colors between
Red and Green
Red blinking Failed to obtain IP address in DHCP mode
Constant change of colors
between Green blinking 2 times
and Red blinking once
Green blinking, Red blinks
once every 5 seconds
Constant change of colors:
Green, Orange, Red color in turn
Off No connection to remote system
Green Connected to a remote system
Red blinking Decoder only: trying to connect to an Encoder
Orange
Green Data transmission in progress
NTSC/PAL setting does not match with input video
signal
Failed to register on DDNS server
Video loss in Encoder system
Formatting USB storage device
Illegal connection
(unsupported combination of system modes)
DATA
Red Data loss
Off No data transmission
Page 15
MCC201/MCC201H User manual
3. System Operation • 11
3. System Operation
Remote Video Monitoring
There are two ways to monitor video when the center system and MCC201 are connected. In order for
a proper operation, an IP address must be set accordingly.
Default IP Address : http://192.168.10.100
Default ID : admin Default Password : 1234
Video Monitoring with Decoder System
Once the encoder I P address is s et in the rem ote IP address section of the decoder, the decoder s ystem will
connect to the encoder s ystem and start receiving the video images. Norm ally, a monitor connected to the
decoder will display video images.
Page 16
12 • 3. System Operation
MCC201/MCC201H User manual
Video Monitoring using Internet Explorer
When the MMC201 or MCC201H is managed by a Windows Explorer browse r, shortly after logging th e OS
will ask permis sion to i nstall an Acti ve-X c om ponent (p ublis her is Teleste Corporation) to the user ´s c om puter.
This plug-in component is needed in order to acti vate the Live View software video dec oder as sho wn below.
Should you not accept the activation the video is not available within the browser. However, the further
configuration of the device is not prohibited and all other device settings are available in a normal fashion.

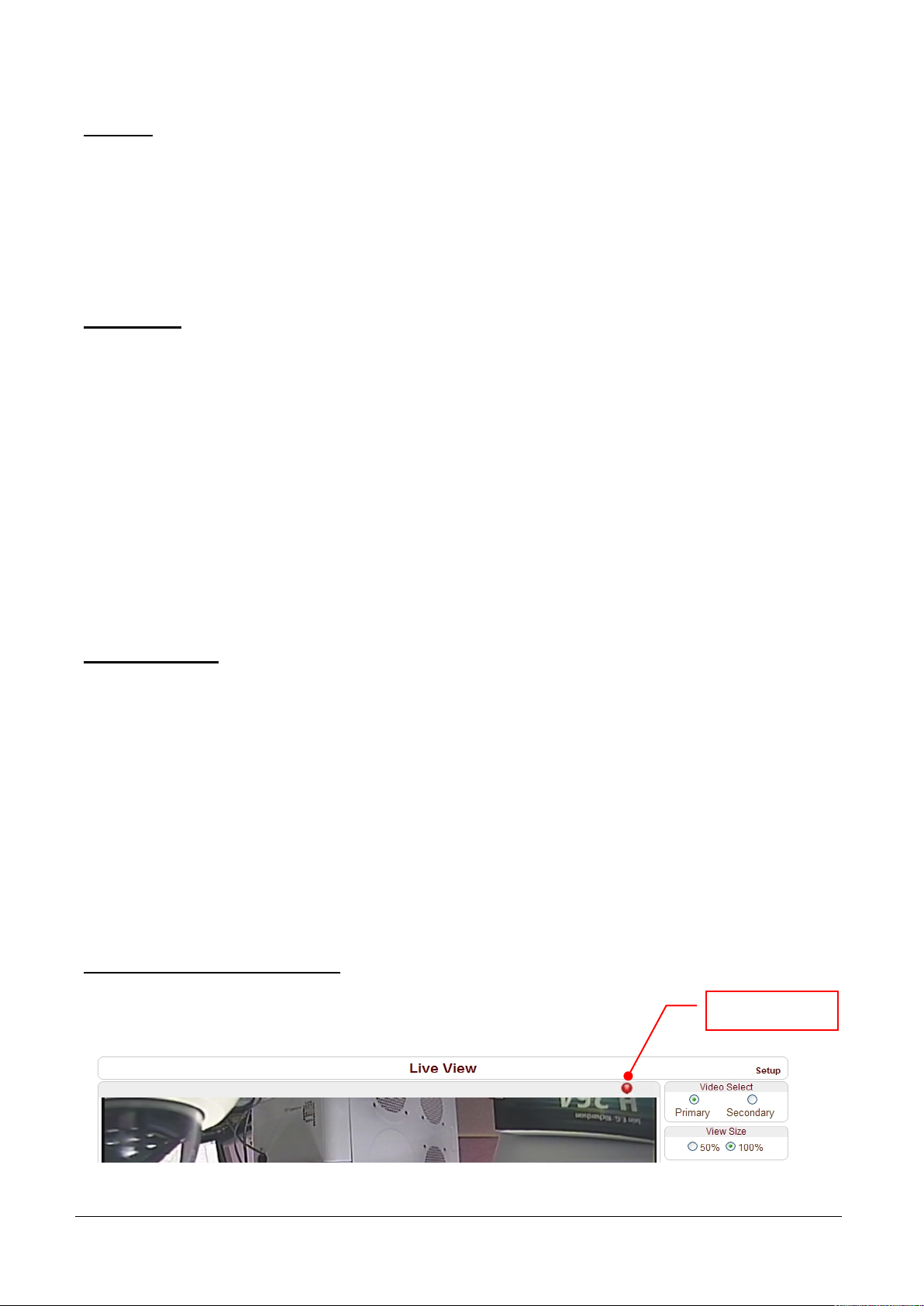

Live View controls
Page 17
MCC201/MCC201H User manual
3. System Operation • 13
Video Select
Select the Video stream to be viewed: Primary or Secondary
This camera is capable of dual streaming; primary streaming and secondary streaming.
Video will be displayed according to the resolution set on video configuration. If dual streaming
(“Use Dual Encode” Menu in Video page) is not activated, secondary video is not available.
View Size
Adjust the Screen size
Screen size is initially adjusted according to the compression resolution. If you click 50% icon,
the whole screen size will be reduced to half size.
Digital Zoom
Control the Digital zoom on the screen
The more the camera zooms in, the smaller the square of control panel is.
Position of the image can be changed by moving position of the square.
If you press x1, the screen will return to the normal size.
PTZ Control (Optical Zoom & Digital zoom built-in the camera)
Control PTZ and PTZ Control Panel is used for controlling external PTZ devices
when the external PTZ devices are connec ted throu gh s er ial port.
It is possible to make zooming control by Zoom in/out buttons of PTZ control Panel
(In order to use digital zoom, select Digital zoom ON in the Camera tab)
- Stop
Stop on-going PTZ action.
- Focus Near, Focus Far, Auto Focus
Adjust the focus of the lens.
Select Preset
Set preset position and move to the specific preset position.
- Goto: Move to the selected preset entry if the preset entry is set.
- Set: Set the current position to the selected preset entry.
- Clear: Delete the selected preset entry.
Sensor Input
Display the status of the sensor in real time.
This camera supports one sensor input. When the sensor of the camera is working, the sensor light
turns red.
Page 18
14 • 3. System Operation
MCC201/MCC201H User manual
Alarm Output
Operate the alarm device by pressing the number icon.
This camera supports one alarm output. A number icon indicates status of the alarm device.
Snapshot
Capture video images and store them as BMP or JPEG files.
Talk
Transfer audio from PC’s mic to the camera.

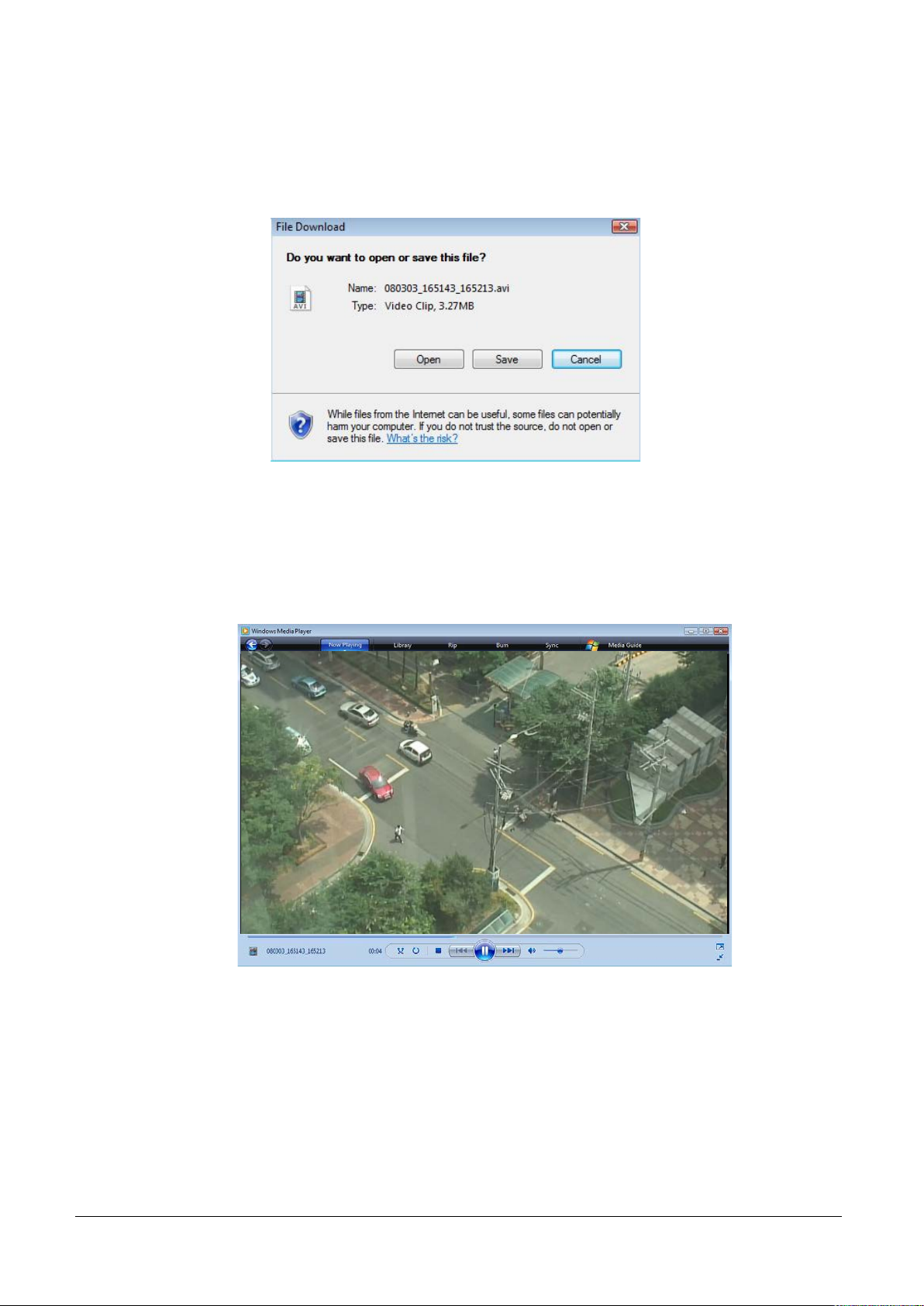

File Record
Recording to an AVI file on Live View page is available. AVI files are generated in the specified folder
or in specified file name on the PC where web browser is running.
1. Press “Set” button to select folder or create a new folder. Enter the file name on Filename field.
2. Press “Start” button to start to record.
3. Press “Stop” button to stop to record.
4. AVI file named “IP address_hh_mm_ss” or “File name_IP
address_hh_mm_ss” will be generated in the specified folder depending on
whether the path specified a folder or a prefix of the file name.
Display Buffer
Set the number of video frames to be buffered before being displ a yed on web br o wser. Lar ger valu e
results in smoother video by sacrificing the la tency. A setting of 10 ~ 15 frames can be used generally for
most situations.
Page 19
MCC201/MCC201H User manual
3. System Operation • 15
•
•
•
•
•
•
Initialization of IP address
If needed the IP address of the device can be restored to factory default values by using th e reset butto n on
the rear side of the MCC device.
1. While system is in operation, press the reset button for more than 5 seconds.
2. The device shall reboot (see the led indicators).
3. Once the device has completed the reboot and has restarted, the default IP address settings are as follows:
IP mode Fixed IP
Subnet mask 255.255.255.0
Base port 2222
IP address 192.168.10.100
Gateway 192.168.10.1
HTTP port 80
Page 20
16 • 4. Remote Configuration
MCC201/MCC201H User manual
4. Remote Configuration
Remote setting is available by using web browser. Enter IP address of camera and then a live view
screen appears as below. Press Setup button located in the upper right area of the monitoring screen to
go to the server setup. For Remote Setting, user should be authorized higher than manager level.
Enter IP address Press Setup button
The remote configurati on wind o w m ay be slightly different depends on t he system modes (Encoder, Decoder).
The general explanation of the configuration in this manual is based on Encoder system and differences
according to the modes will be clarified when needed.
The configurations are grouped into 10 categories: System, Video, Audio, Network, Serial, Event, PTZ,
Record, User an d C am e ra . Any configuration ch ang e s are not app li ed unt il Apply button is pressed. Le av in g
the page without pressing Apply button, any changes in the page will be discarded.
Page 21
MCC201/MCC201H User manual
4. Remote Configuration • 17

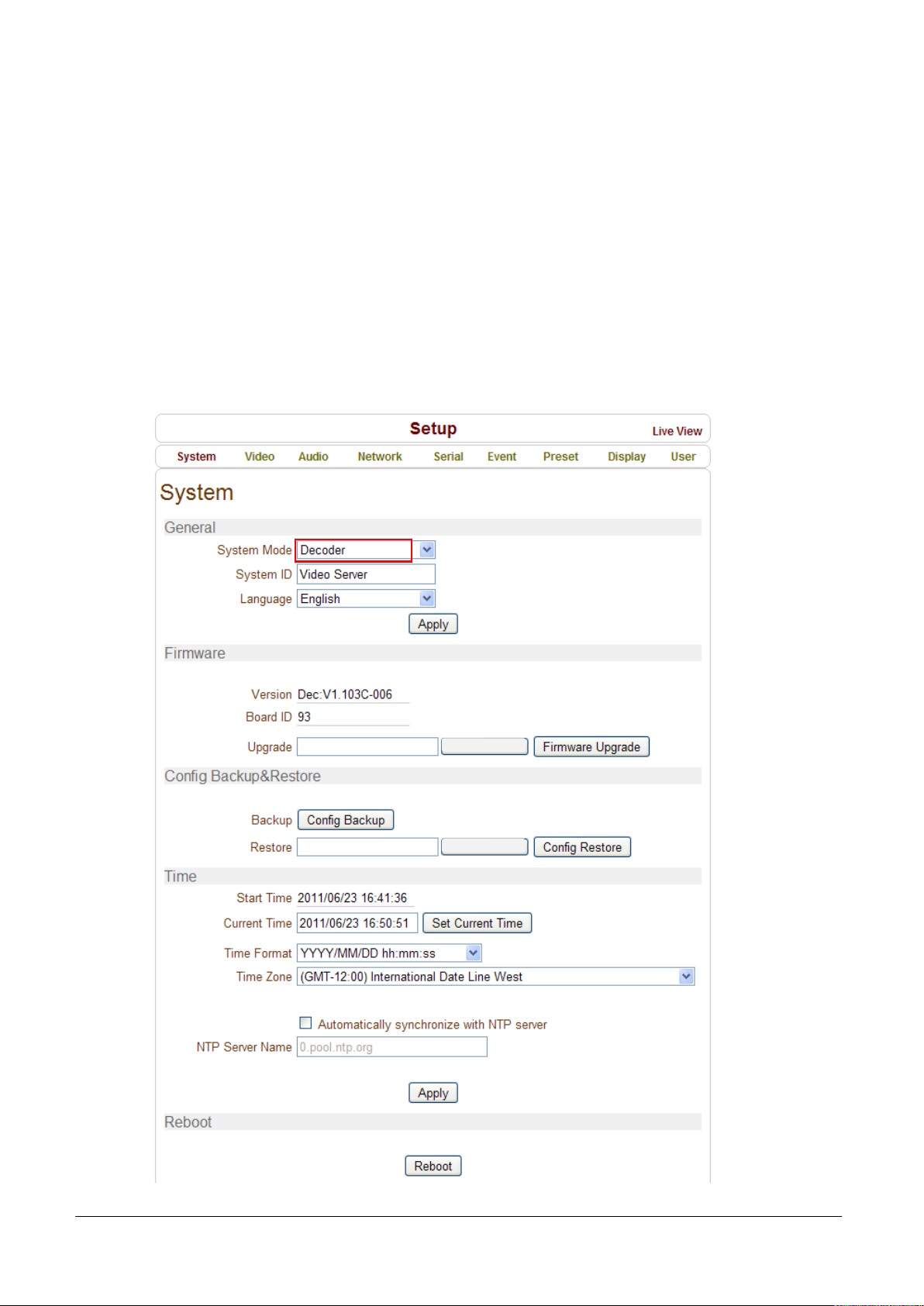

System Configur ation
Page 22
18 • 4. Remote Configuration
MCC201/MCC201H User manual
General
System ID
Enter System ID that is used as a camera title.
The set System ID is displayed with video im age on Web browser.
The System ID is also transferred to remote software, such as VMS, and displayed on it.
Burnin OSD System ID
The text string added in here shall be inserted on top of video before encoding and it is
permanently included with video stream.
Only alphanumeric and blank characters are allowed. Position and size can be configured on
Burnin OSD section of Video page.
Language
Select the language to be used for web-based configuration.
Firmware
Firmware version
Displays the current firmware version.
Board ID
Displays the network board ID of the video server.

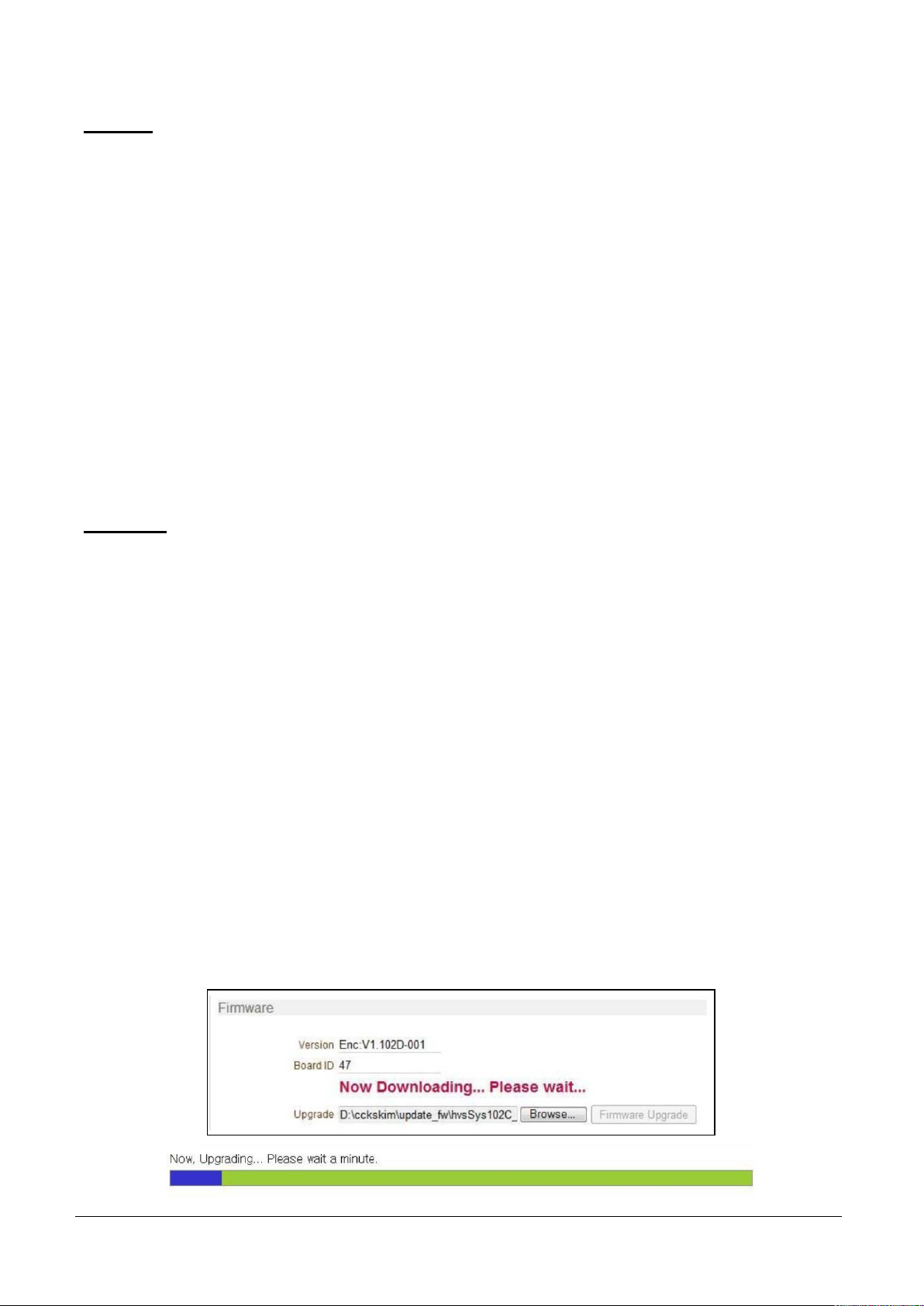

Upgrade
For the firmware upgrade.
1. Press Browse button to select a firmware file from the computer or network drive.
2. Press Firmware Upgrade button to start to upgrade.
3. Messages for showing status (downloading / upgrading) will be displayed.
4. The video server will reboot automatically after completing upgrade.
Note! Do not switch the power of f d u ring the firmware upgrade.
Be patient - the process may take several minutes.
Page 23
MCC201/MCC201H User manual
4. Remote Configuration • 19
Config Backup and Restore
Backup
All the device settings can be stored into a backup file for a later use
(such as recovery or setting a spare part unit).
Restore
Stored configuration can be browsed and restored. The server is rebooted once Config Restore
button is pressed.
Time
Start Time
Displays the date and time for the last system startup.
Current Time
Current date and time.
Enter a new date and time and press Set Current Time button to update date and time.
Time Format
Change the time format. Selectable time formats are as below.
- YYYY/MM/DD hh:mm:ss (Ex. 2010-4-11 18:18:42)
- DD/MM/YYYY hh:mm:ss (Ex.11-4-2010 18:18:42)
- MM/DD/YYYY hh:mm:ss (Ex. 4-11-2010 18:18:42)
Time Zone
Select the desired time zone for the system.
Depending on the time zone, Daylight Saving Time will work automatically.
A time zone is a region of the earth that has u niform standard tim e, usually referred to as th e local
time. By convention, time zones compute their local time as an offset from UTC (Coordinated
Universal Time). In casual use, GMT (Gr eenwich Me an Time) c an be considere d equiv alent to UTC.
Local time is UTC plus the current time zone offset for the considered location.
Page 24
20 • 4. Remote Configuration
MCC201/MCC201H User manual
Automatically synchronize with NTP server
Synchronize the camera time with an NTP server using NTP (network time protocol).
Name of the NTP server should be registered on NTP server Name.
The Network Time Protocol (NTP) is a protocol for synchron izing the clocks of computer systems
over packet-switched, variable-latency data networks. It is designed part icularly to resist the effects
of variable latency by using a jitter buffer.
Reboot
To reboot the video server operation.
Do not press the Reboot button unless the server needs a reboot.
Factory Reset
All settings including user accounts and logs are cleared.
Factory Reset except network settings
All the settings except for current network settings are changed to default values.
Page 25
MCC201/MCC201H User manual
4. Remote Configuration • 21

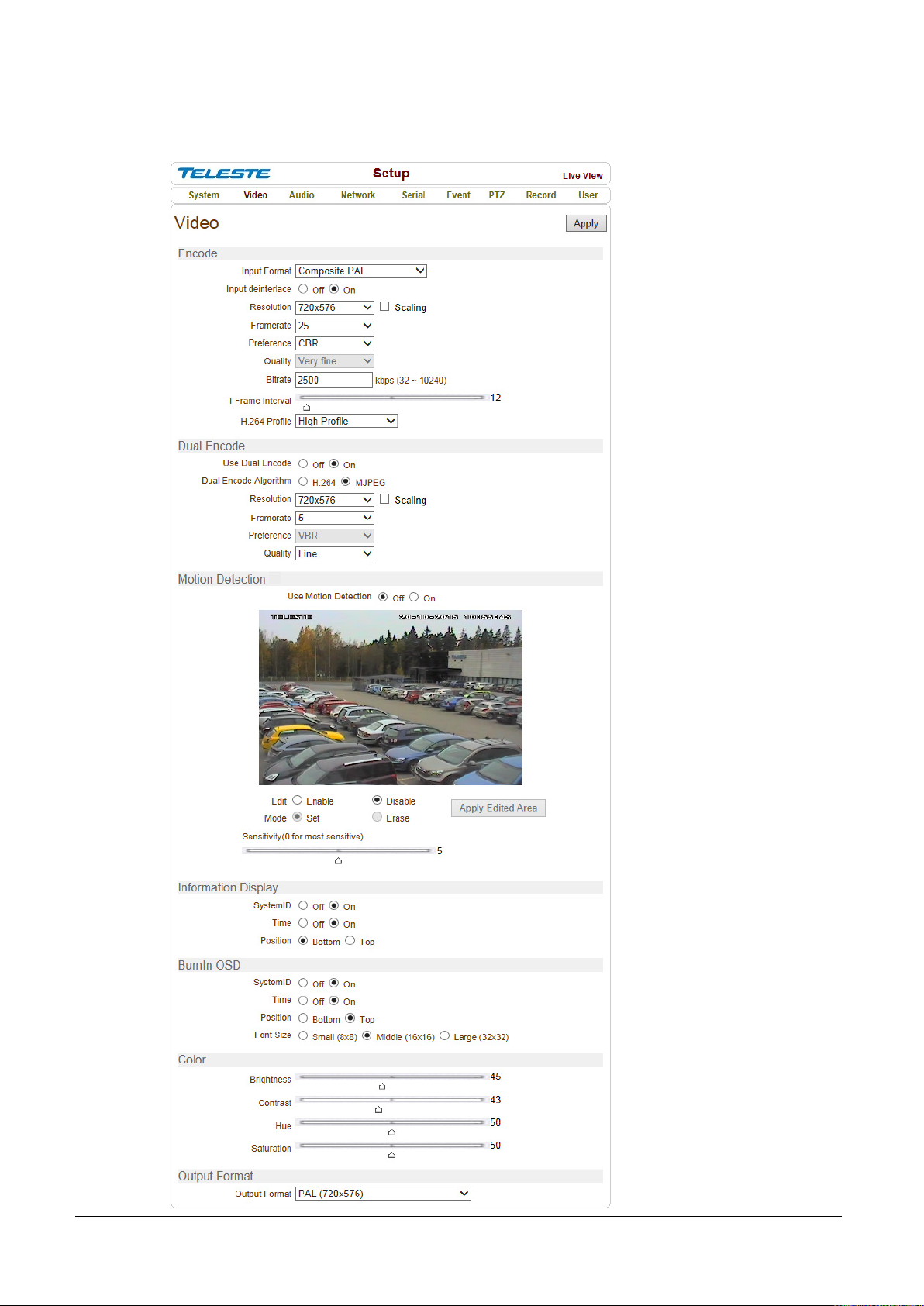

Video Configuration
Page 26
22 • 4. Remote Configuration
MCC201/MCC201H User manual
Encode
Note! Some of the features are not available until the unit is connected to video signal.
Input Format
Select the desired v ideo input f orm at acc ording to th e vi deo s ource. When in encoder m ode th e MCC20 1
supports analogue composite video (PAL & NTSC) but also d igital HDMI and HD-SDI signals. For the
digital signals the dropdown menu is containing a selection of supported video resolutions.
Note! MCC201H supports only HDMI and analogue video formats.
Input Deinterlace
When operating with interlaced analogue video the deinterlacing function can set either ON or OFF.
Resolution
Select video encoding resolution.
Scaling option is us ed whe n encod ing reso lution is d ifferent from input resolut ion. Without scaling option
the input video is cropped according to defined encoding resolution. If scaling is enabled the input video is
adjusted to match the encoding resolution.
Framerate
Determine the maximum number of frames per second for the video stream.
1, 2, 3, 4, 5, 6, 8, 10, 15, 20, 25 and 30 (60) frame rate can be selected.
Preference
Available video bit rate controls are CBR (for constant bit rate) and VBR (for variable bit rate).
CBR mode presents a fixed bit rate defined for the video stream in the network. The user must define
a fixed value on the bitrate field.
VBR mode presents a variable bit rate and corresponds the changes on the video content.
When VBR mode is selected the user have to define the desired video quality level (not bitrate).
Quality
Select the video q uality level for th e VBR mode. Available le vels are Ultra fine, Very fine, Fine, N ormal,
Below normal, Economy, Poor and Very poor.
Quality mode (VBR encoding) tries to encode every frame in a constant quality. Therefore, resulting
bitrate may vary a lot depending on the complexity or activity changes in the input video. It is preferred
when constant video quality is required and network bandwidth is enough for delivering the stream of
highly varying bitrate.
Page 27
MCC201/MCC201H User manual
4. Remote Configuration • 23
Bit rate
Determine bitrate value bet ween 32 ~ 10240 kbps.
Bitrate mode (CBR encoding) allows you to set a fixed target bitrate that consumes a predictable
amount of bandwidth. In order to maintain the bitrate limit, the video is dynamically controlled regardless
the complexity or content changes on the incoming video.
I-Frame Interval
The I-frame interval can b e selected between values 1 to 255. For exam ple a value of 1 is meaning t hat
every sent frame is I-frame whereas a value of 25 is meaning that every 25th frame is an I-frame.
H.264 Profile
Select H.264 Profile: High Profile or Baseline Profile.
The standard defines various sets of capabilities, which are referred to as profiles, targeting specific
classes of applications.
- High Profile (HiP)
The primary profile for br oadcast and disc storage applications, part icularly for high-definition tele vision
applications (for example, this is the profile adopted by the Blu-ray Disc storage format and the DVB
HDTV broadcast service).
- Baseline Profile (BP)
Primarily for low-cost applications that require additional data loss robustness, this profile is used in
some videoconferencing and mobile applications. This profile includes all features that are supported in
the Constrained Baseline Profile, plus three additional features that can be used for loss robustness
(or for other purposes such as low-delay multi-point video stream compositing).
Dual Encode
Use Dual Encode
Select ON to enable the dual encoding with a secondary video stream.
The secondary video can be viewed on Liv e View window by selecting Secondary on Video selection.
Dual Encode Algorithm
Select H.264 or MJPEG for the secondary streaming.
Both CBR and VBR m odes are available. Ho wever the MJPEG is supported only b y the VBR mode and
hence the video quality level needs to be assigned.
Page 28
24 • 4. Remote Configuration
MCC201/MCC201H User manual
Motion Detection
Use Motion Detection
Determine to use Motion Detection function.
Motion Detection Area Editing
Configure regions for motion detection. Regions of arbitrary shape can be configured by
the following steps.
1. Select Enable on Edit tab.
2. Select editing Mode. Set is for including cells to motion detection region and Erase is for excluding.
3. Select cells using the r ight button of the mouse. Multip le cells can be selected convenient ly by press
and dragging.
4. Press Apply Edited Area to save the editing.
Sensitivity
Sensitivity is the condition to trigger an event of motion detection.
The value determines the s ensit iv ity of the motion detection with in a b lock: the smaller, the more sensitive.
It is selectable from 0 to 10.
Information Display
System ID and/or server time can be display over the video window in Internet Explorer. Each item can be
turn on or off separately, and position also can be configured. This information is displayed after the video
is decompressed.
Page 29
MCC201/MCC201H User manual
4. Remote Configuration • 25
BurnIn OSD
Insert text for System ID and ena ble t imestamp (date & time) for the s treamed video. The inf ormation is added
on top of video before encoding. System ID and time respectively can be turned on or off in the video. Position
and Font size can be configured also. System ID for BurnIn OSD exists independently from normal System ID.
Note! That size of Burnin OSD disp lay varies according to t he encoding resolution set ting. This is inevitable
because Burnin OSD is inserted to the frames before encoding is performed. The following table describes the
rule for BurnIn OSD display.
Resolution Small (8x8) Middle (16x16) Large (32x32)
352x480 / 352x240 / 352x576 / 352x288 2 1 0
720x480 / 720x240 / 720x576 / 720x288 /
640x480 / 800x600
1024 x 768 / 1280x720 / 1280 x 960 / 1280x1024 /
1440x900 / 1600x900 / 1680x1050 / 1920x1056 /
1920x1080 / 2048x1536 / 2560x1600 / 2592x1936
2 : Both System ID and Time are displayed.
1 : Either System ID or Time can be displayed. When both are enabled, System ID is displayed.
0 : No items are displayed. This is because video area is too small to display OSD text in large text.
2 2 1
2 2 2

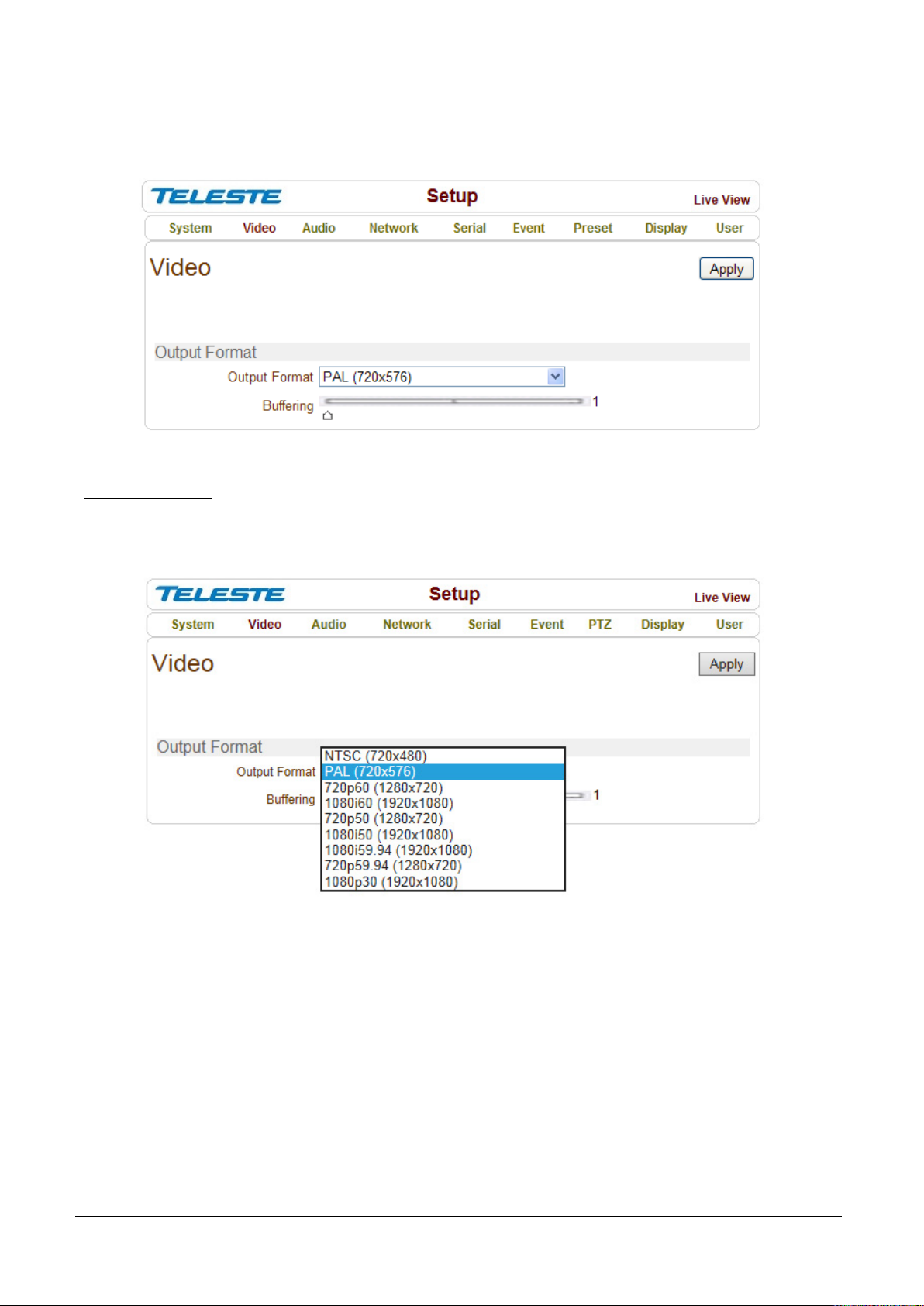

Output Format
When in encoder mode the input video signal is available for local monitoring and previewing either on
the composite video output (BNC out) or on the digital output (HDMI out).
Note! The preview video is captured before entering the encoding engine of the device.
Select the output format for the monitor preview according to the video output and monitor specification.
The available preview modes are:
• NTSC (720 x 480)
• PAL (720 x 576)
• 720p60 (1280 x 720)
• 1080i60 (1920 x 1080)
• 720p50 (1280 x 720)
• 1080i50 (1920 x 1080)
• 1080i59.94 (1920 x 1080)
• 720p59.94 (1280 x 720)
• 1080p30 (1920 x 1080)
Page 30
26 • 4. Remote Configuration
MCC201/MCC201H User manual
Audio Configuration
Algorithm
Algorithm
Select the audio algorithm: G.711 or AAC.
G.711 and AAC from client to server direction are supported. Thus, bidirectional audio communication
is supported.
Bit rate
Select the bitrate between 64Kbps and 128kbps when AAC is selected.
The sampling rate is fixed to 8KHz and 32KHz for G.711 and AAC respectively.
Note!
When two MCC units are connected together (encoder - decoder) the audio settings should be
identical.
Page 31
MCC201/MCC201H User manual
4. Remote Configuration • 27
Mode
Select audio operation mode:
Mode Action
Off No operation
Tx - Only Transmit only
Rx - Only Rec ei ve onl y
Tx & Rx Transmit and Receive
Input Gain
Set audio input gain from 0 to 31.
Audio Output
Configure the audio source to be played on audio output port.
Decoded Audio: Audio stream from client is played.
Loopback: Audio data from audio input port is loop-backed to the audio output port.
Page 32
28 • 4. Remote Configuration
MCC201/MCC201H User manual
Network Configuration
Page 33
MCC201/MCC201H User manual
4. Remote Configuration • 29
Local
IP mode
Select the IP mode: Fixed IP or DHCP (Dynamic Host Configuration Protocol).
Depending on the selected mode, further configuration items come as follows:
IP Mode Selection Description
Local IP Fixed IP address
Fixed IP
DHCP
Local Gateway Gateway IP address
Local Subnet Subnet mask
N/A
DNS
Obtain DNS server address automatically
Get DNS server address automatically when IP mode is DHCP.
Use the following DNS server addresses
Enter the DNS server IP address manually.
- Primary DNS server
- Secondary DNS server
Ipv6
Ipv6 Address
Enter the designated Ipv6 address.
Ipv6 Subnet Prefix Length
Enter the bit number of Ipv6 Subnet.
Ipv6 Default Gateway
Enter the designated Ipv6 gateway.
Ipv6 Link Local
Display Ipv6 Link Local.
Page 34
30 • 4. Remote Configuration
MCC201/MCC201H User manual
Port
Base Port (1025 ~ 65535)
Enter the Base Port number.
Network base port is use for comm unication with remote clie nts. In ord er for camera and remote s ystem s
(decoder or VMS, NVR software) to be connected, the port number must be identically configured in
camera side and client side.
HTTP Port (80, 1025 ~ 65535)
Enter HTTP port used for web-based connection.
HTTPS Port (443, 1025 ~ 65535)
Enter HTTPS port used for secured HTTP connection.
RTSP Port (554, 1025 ~ 65535)
Enter RTSP port used for RTSP-based connection. The default RTSP port is 554.
RTSP (Real Time Streaming Protocol) is a standard for media streaming between server and client.
Discovery
UPNP
By setting UPNP to ON, it allows the discovery by the client according to UPNP (Universal Plug and Play)
protocol.
Zeroconf
By setting Zeroconf to ON, it allows the discovery by the client according to Zeroconf protocol.
WS Discovery
Discovery function based on web service is enabled. It allows the discovery by Client SW which is
supporting Onvif.
Authentication
RTSP Authentication
If RTSP Authenticati on set to ON, user in the client side is asked to enter User ID and Password.
HTTP API Authentication
When HTTP API authentication set to ON, HTTP Authentication is asked for all clients
which use HTTP API.
Page 35
MCC201/MCC201H User manual
4. Remote Configuration • 31

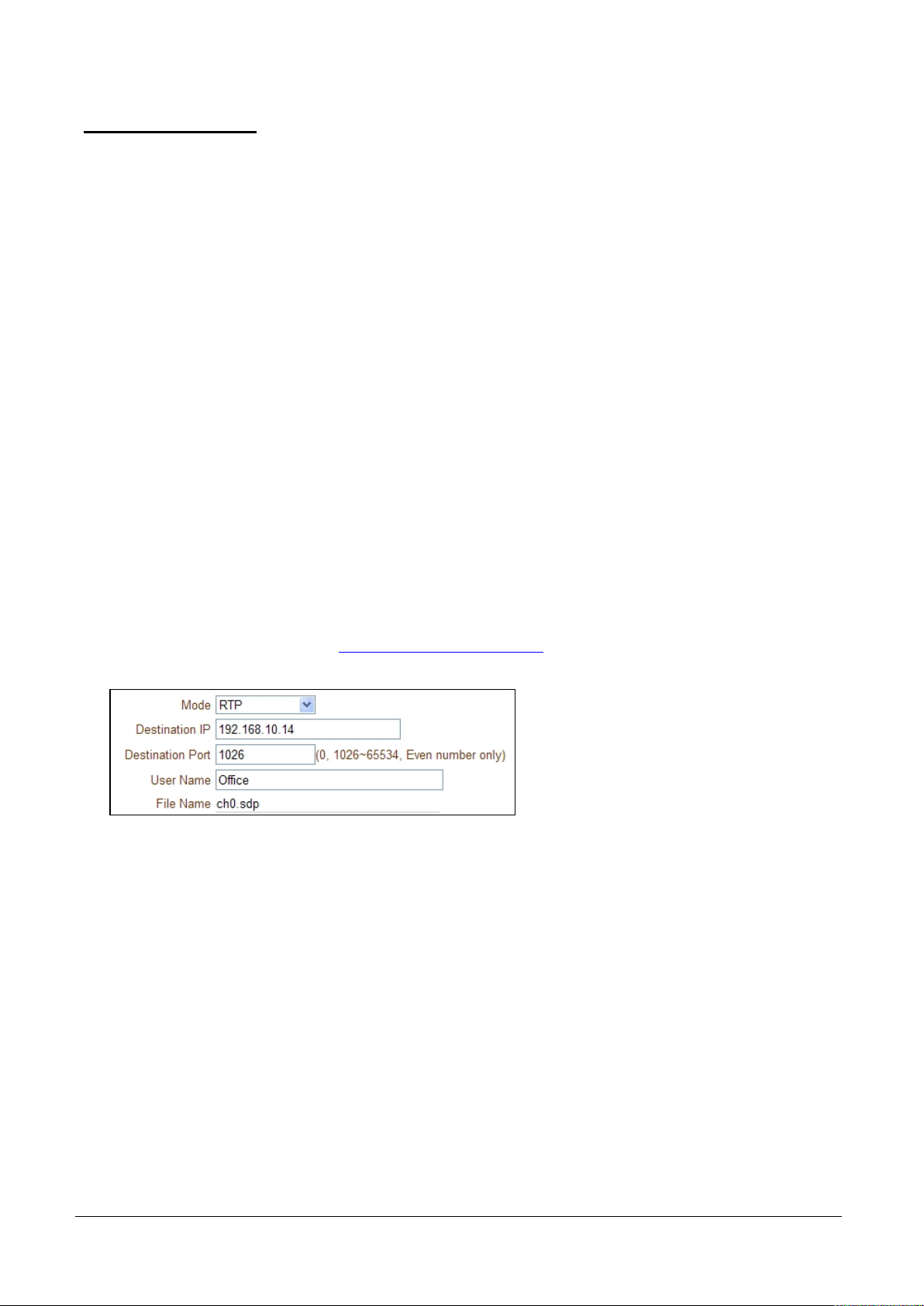

One-way Streaming
This encoder provides two k inds of one-way (unid irec ti ona l) s tr eaming based on UDP to clie nts: RTP and
MPEG-TS. Both are a kind of broadcasting where traffic from client to server is not generated at all.
RTP (Real-Time Transport Protocol) is an Internet protocol used for transmitting single real-time
multimedia data such as audi o and video to a select group of connected cl ients. Normally RTSP uses
RTP to format packets of multimedia content . RTP menu is used when the RTP only streaming without
RTSP connection. RTP stream will be transm itted to the destination set. T he SDP (Session Description
Protocol) file can be found in the server, and a client can retrieve it using http connection.
Related settings are as follows:
- Destination IP: Set the IP Address of the destination system which will receive RTP stream.
If the system is decoder, RTSP authentication information can be entered in the middle of RTSP URL
as follows:
rtsp://admin:[email protected]:554/video1
- Destination Port: Set the Port of the destination system which will receive RTP stream.
- User Name: Enter the User name that will be used as session name in the SDP file.
- File Name: Enter the file name that will be used as the name of the SDP file.
Then, it can be accessed through http://ServerAddress/filename
MPEG-TS is a standard format for transmission and storage of audio, video, and data, [7] and is used in
broadcast systems such as DVB and ATSC. Transport Stream is specified in MPEG-2 Part 1, Systems
(formally known as ISO/IEC standard 13818-1 or ITU-T Rec. H.222.0). Transport stream specifies
a container format encapsulating packetized elementary streams, with error correction and stream
synchronization features for maintaining transmission integrity when the signal is degraded.
As MPEG-TS itself supports only AAC as the audio algorithm, only video is streamed when audio
algorithm is set to G.711.
Page 36
32 • 4. Remote Configuration
MCC201/MCC201H User manual

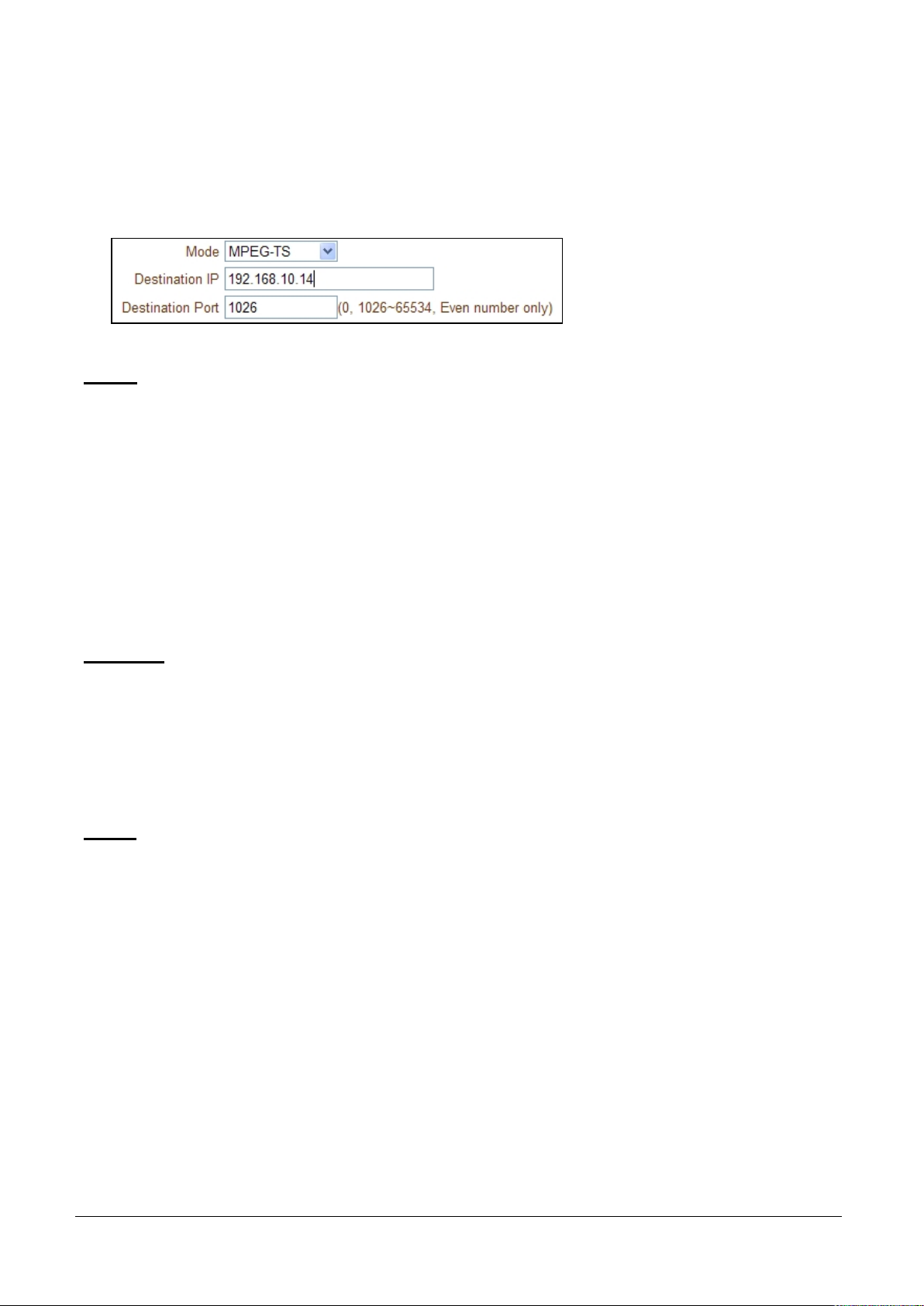

Related settings are as follows:
-
Destination IP: Set the IP Address of the destination system which will receive MPEG-TS stream.
-
Destination Port: Set the Port of the destination system which will receive MPEG-TS stream.
SNMP
Setup for using SNMP (Simple Network Management Protocol). It is compatible to both SNMPv1 and
SNMPvec. Settings for using SNMP (Simple Network Management Protocol) are as following:
SNMP Listen Port (0, 161, 1025 ~ 65535): The port is for connecting external devices when system
operates as a SNMP client. SNMP is not used by setting 0 value.
SNMP Trap Destination IP: Set the SNMP Trap Destination IP.
SNMP Trap Destination Port (0, 162, 1 025 ~ 655 35): Set the SNM P Trap Destination Port. SNM P is not
used by setting 0 value.
Multicast
Multicast IP
The Multicast menu is use d for configuring the multicas t IP address to which media stream is delivered
when a client such as a De c oder, VMS or N VR sof tware is c o nnect e d in multicast mode. The multicast IP
address selection range is between 224.0.0.0 and 239.255.255.255. The selection can be used only
when media protocol is set to Multicast.
DDNS
Recommended setting is none.
Check I P Disable: If “Check IP Disable” is selected, it will skip to check its own IP. In Fixed IP mode, the
set IP will be registered on D DNS server. In DHC P mode, dynamically assigned IP will be regis tered on
DDNS server. Normally Check IP Disable should be unchecked in order to obtain public IP in the network.
Page 37
MCC201/MCC201H User manual
4. Remote Configuration • 33
Bitrate control
When there are more than one c lient co nnecte d to th e cam era, due to ba ndwidth differ ence am ong the cli ents
some of them do not have enough bandwidth to receive encoded stream completely. In this case, it is possible
to select the way to stream video to clients as following.
- Frame Drop Mode: Encoding is performed strictly according to video settings. When a client is
connected through a network with less band width, it may not receive all the frames. T hat is, frames are
dropped on sending module if the network is bottlenecked.
- Suppression Mode: Encoding bitrate and frame rate are adjusted not to drop any frames when the
network bandwidths to som e clients are limited. In this cas e, all clients can be affected by the averag ed
bitrate and frame rate.
Address Information
Followed network information is displayed (Read only).
IP Address: The IP address for the video server (either defined fixed address or address assigned
by the DHCP).
Domain Name: In case the video server is registered at DDNS server, the registered domain name
is displayed.
MAC Address: Display the MAC address of the vid eo s erver. In case the video server is registered at
DDNS server, the MAC address is used in DDNS registration.
Connecting: Client IP Addresses that are currently connected to system are listed.
Page 38
34 • 4. Remote Configuration
MCC201/MCC201H User manual

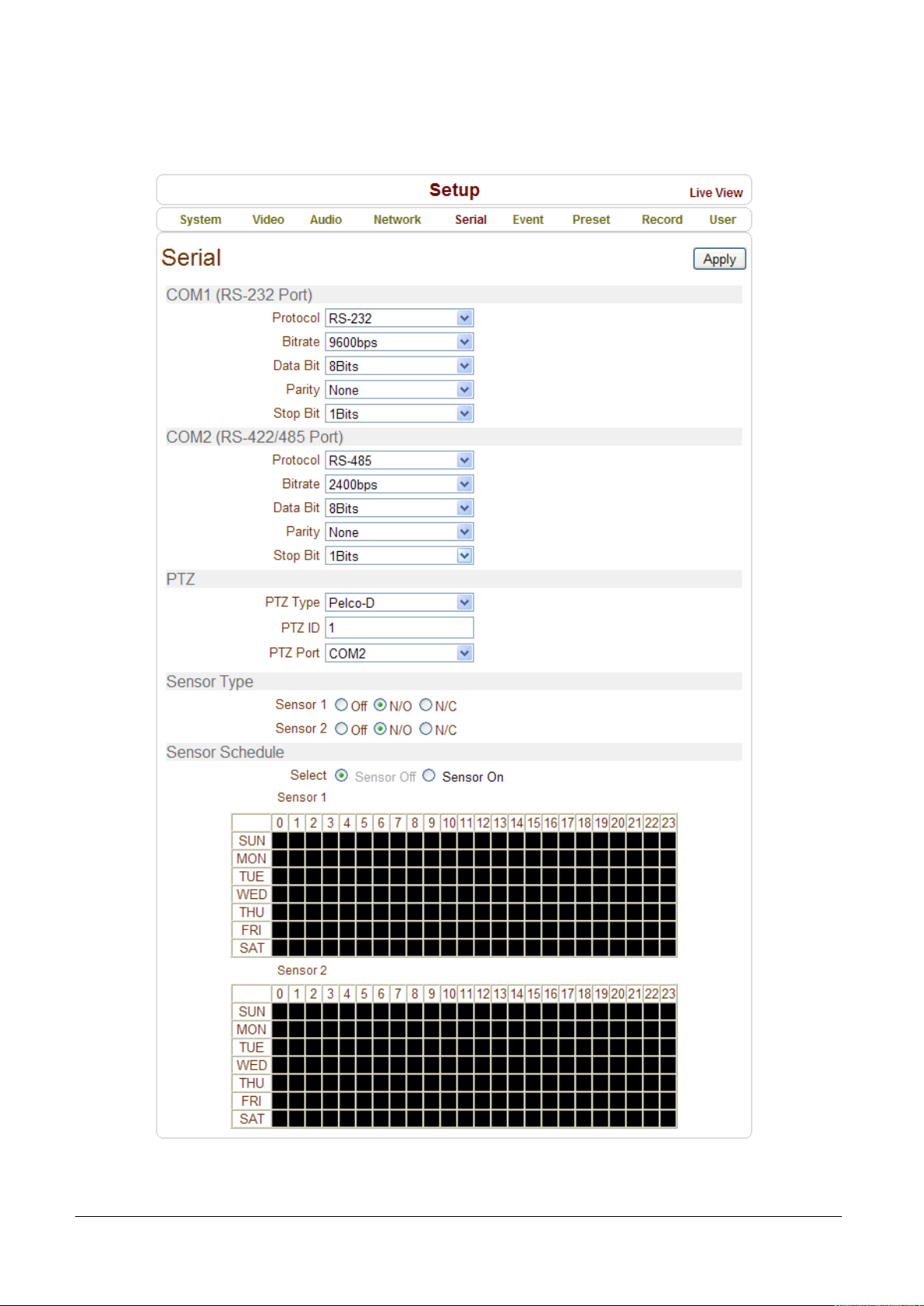

Serial Configuration
Page 39
MCC201/MCC201H User manual
4. Remote Configuration • 35
Serial Port Configuration
Serial Protocol: Two COM ports are available at MCC201 and MCC201H; RS-232 and RS-422/485.
See more information in appendix 6 (e.g. wiring details).
Serial Port Configuration: The serial ports can be configured as follows.
Note! Each of the serial ports confi g u rations must be same as the connecting device.
Mode Selection
Bitrate 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Data Bits 5, 6, 7, 8 bits
Parity NONE, EVEN, ODD bit
Stop Bit 1, 2 bit
PTZ
PTZ Type: Select the type of PTZ camera or receiver.
PTZ ID: Since it is possible to control multiple PTZ cameras or receivers over single control line,
each camera or recei ver wil l be ass ign ed with un iqu e I D. Ent er PT Z ID of a c amera or receiver for contr o l.
The ID value range can be between 0 and 255.
PTZ Port: Select the serial port used for PTZ camera control.
Sensor Type
There are two sensor input ports on MCC201. Eac h of the sensor ports can be configured to the following.
The function of the sensor port is set based on the type of the sensor connected.
Function Operation
OFF Not used.
NO (Normally Open) The port is normally open and activated when closed.
NC (Normally Closed) The port is normally closed and activated when opened.
Page 40
36 • 4. Remote Configuration
MCC201/MCC201H User manual
Sensor Schedule
Choose Sensor OFF or Sensor ON and click the below schedule cells to make Sensor Schedule
according to day of week and hour.
- Click desired “Cell” to set schedule.
- Click desired “Time Line or Date Line” to set schedule.
- To set cells in the schedule, click below “Empty Cell”.
Page 41
MCC201/MCC201H User manual
4. Remote Configuration • 37

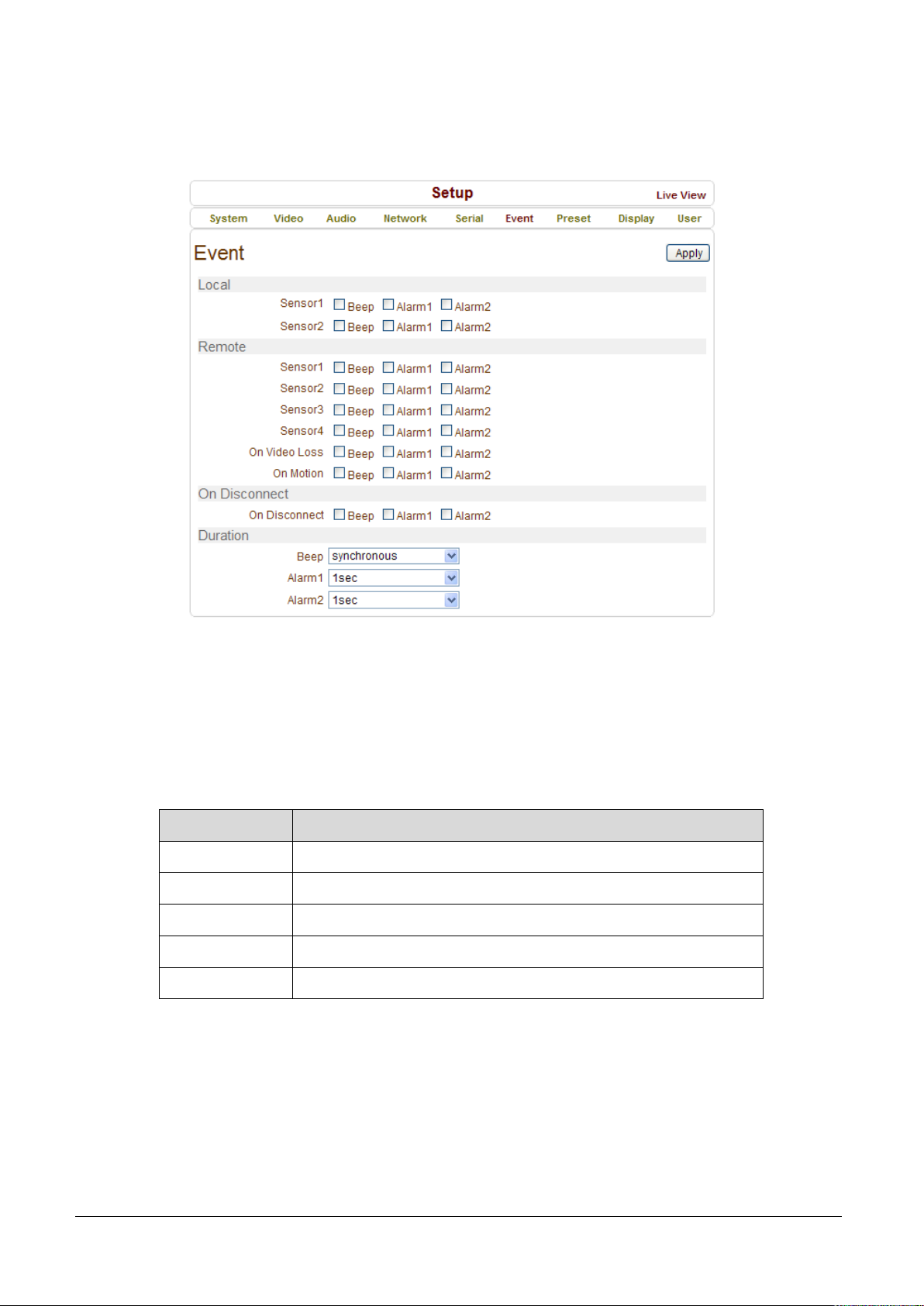

Event Configuration
Page 42
38 • 4. Remote Configuration
MCC201/MCC201H User manual
This product has two sensor ports and two alarm ports.
When a decoder instead of a PC client is connected to encoder, one system becomes a Local system and
the other as a Remote system (in general a system which is being used by the user is called as Local
system). Then, actions for events can be configured for events from the remote system as well as for local
system. For example, it is possible to turn on an alarm device in local (center) decoder system when
a sensor device in remote end (site) encoder is triggered. Local section configures the actions for events
from local (self) system, and configuration activates local devices and Remote sections configure
the actions for events from remote (peer) system.
The following table lists the possible actions for events.
Action Description
Beep Triggers beep port.
Alarm out Triggers alarm (relay) port.
E-mail S ends E-mail to the specified address. AVI file can be attached.
FTP Upload AVI file to a specified FTP server.
Preset Move to the Preset position.
Local & Remote Event Configuration
Sensor1 / Sensor2
Configure the actions when the sensor is activated. Multiple actions can be set for a single event.
On Video Loss
Configure the actions when video input signal is lost. Multiple actions can be set for a single event.
On Motion
Configure the actions when motion is detected. Multiple actions can be set for a single event.
On Disconnect
Configure the actions when the link (connectio n) with peer system is disconnec ted. Multiple actions can
be set for a single event. This event happens when the last client whic h has been receiving video from
the camera loses the connection.
Alarm and Beep activation duration
Set the duration of alarm or beep activation in case of an event. If it is set to continuous, it will be in
active state until the operator resets it manually.
Page 43
MCC201/MCC201H User manual
4. Remote Configuration • 39
E-mail Notification
Specify the information to send event information, wh e n E-mail is selected as an event action.
- Server Address: Enter an address of mail (SMTP) server.
- Port: Specify a port for SMTP operation (Port 25 is the default port in SMTP operation.
If a different port is configured in the SMTP server, this port needs to be changed accordingly).
- Sender Address: Enter an account registered in the SMTP server.
- Authentication on SMTP server: Specify if the E-mail server requires authentication for E-mail sending.
- ID & password: When the server requires authentication, ID and Password of an E-mail account need
to be entered.
- Destination address: Enter Destinatio n address. More than one address can be enter ed by delimiting
comma (,) or semi-colon (;). Destination address can take up to 63 characters.
- Video Clip Attaching: Video clip store d at the m oment of event can be a ttached as an AVI or JPEG file
format. When dual encoding is enabled, Primary video, Secondary video (H.264 only) or JPEG
Capture c an be selected. The duration of video clip can be configured with Pre-Event Time and PostEvent Time in Event Record section.
- Number of Frame: The number of JPEG frames is configured. This setting is applicable only when JPEG
Capture is selected.
- E-mail Test: E-mail sending can be tested with this button. Please note that configured settings should
be saved first by pressing Apply button before using E-mail Test function. One of the following messages
will come as a result of the test.
Message Description
E-mail sent successfully
Failed to connect SMTP server
Authentication failed
SMTP server rejected the mail
Test E-mail has been sent successfully.
Reception in the client can be checked.
Connection to the SMTP server failed. It is necessary to check if the
server is reachable and server address and port are correct.
The server is reachable but authentication failed.
ID and/or password need to be checked.
The server is reachable, but mail sending failed due to a reason
other than authentication. This error happens often when the server
authenticates according to its own rule. For example, IP addresses
of a specific range or addressed of a specific suffix are allowed.
Page 44
40 • 4. Remote Configuration
MCC201/MCC201H User manual
FTP Upload
Specify the information to upload event information, when FTP is selected as an event action.
Server Address: Enter an address of an FTP server to receive video files.
Port: Specify a port for FTP operation (Port 21 is the default port in FTP operation. If a different port
is configured in the FTP server, this port needs to be changed accordingly).
ID & password: Enter ID and Password for accessing the FTP server.
FTP File name: The names of files upload by FT P can be specified by user. If a fixed name is specified,
the file is overwritten repeatedly.
Max length of a file nam e is 60 char acters. If the name is left blank, f ile name is deter mined acc ording to
the internal rule implemented in the firmware.
The following macros are supported to form variable parts of file names. The strings are case-sensitive.
%YYYY : year
%MM : month
%DD : day
%hh : hour
%mm : minute
%ss : second
%EVENT : event type (Sensor1, Motion, ...)
%ADDR : address of the server (Domain name when DDNS is used.
Otherwise IPaddress)
“.avi” or “.jpg” will be added automatically at the end of the filename depending on the type of video file.
FTP Base Directory: Specify the nam e of the directory to be created in the FTP server. It is vali d only
when Use Record is set to Use FTP on Record session.
Upload video: Primary Video and Secondary Video (H.264 onl y), JPEG Capture can be selected for
uploading. The durat ion of video clip can be configured with Pre-Event Time and Post-Event Time in
Event Record section.
Number of Frame: Enter frame number of JPEG Capture (from 1 to 10).
Page 45
MCC201/MCC201H User manual
4. Remote Configuration • 41
Continuous Upload: Continuous upload ‘On’ allows video clips to be transmitted regularly regardless
of occurrence of events. When this mode is turned on, FTP upload by events is suppressed.
Upload Duration: Specify recording duration of a video clip to be transmitted. (Max 300 sec).
Upload Interval: Specify transmission interval. (Max 3600 sec).
Upload Duration is not included in Upload interval. For example, if Upload Interval is 60 seconds
and Upload Duration is 20 seconds, a video clip for 20 seconds is transmitted every 80 seconds.
FTP Test: FTP upload function can be tested with this button. Please note that configured settings should
be saved first by pressing Apply button before using FTP Test function. One of the following messages
will come as a result of the test.
Message Description
FTP connection tested
successfully
Failed to connect FTP server
Authentication failed
Failed to upload file
Failed to erase file
The connection to the FTP server is successful.
The connection to the FTP server failed. It is necessary to check
if the server is reachable and server address and port are correct.
The server is reachable but authentication failed.
ID and/or password need to be checked.
File upload failed. The user of the ID is not allowed for
writing into the directory or FTP server can be full.
Failed to delete the test file. The user of the ID doesn’t have
the privilege for file deletion.
Page 46
42 • 4. Remote Configuration
MCC201/MCC201H User manual
PTZ
Preset
Select preset # and insert the name of preset.
Set camera position for the preset and press Save Label button.
Page 47
MCC201/MCC201H User manual
4. Remote Configuration • 43

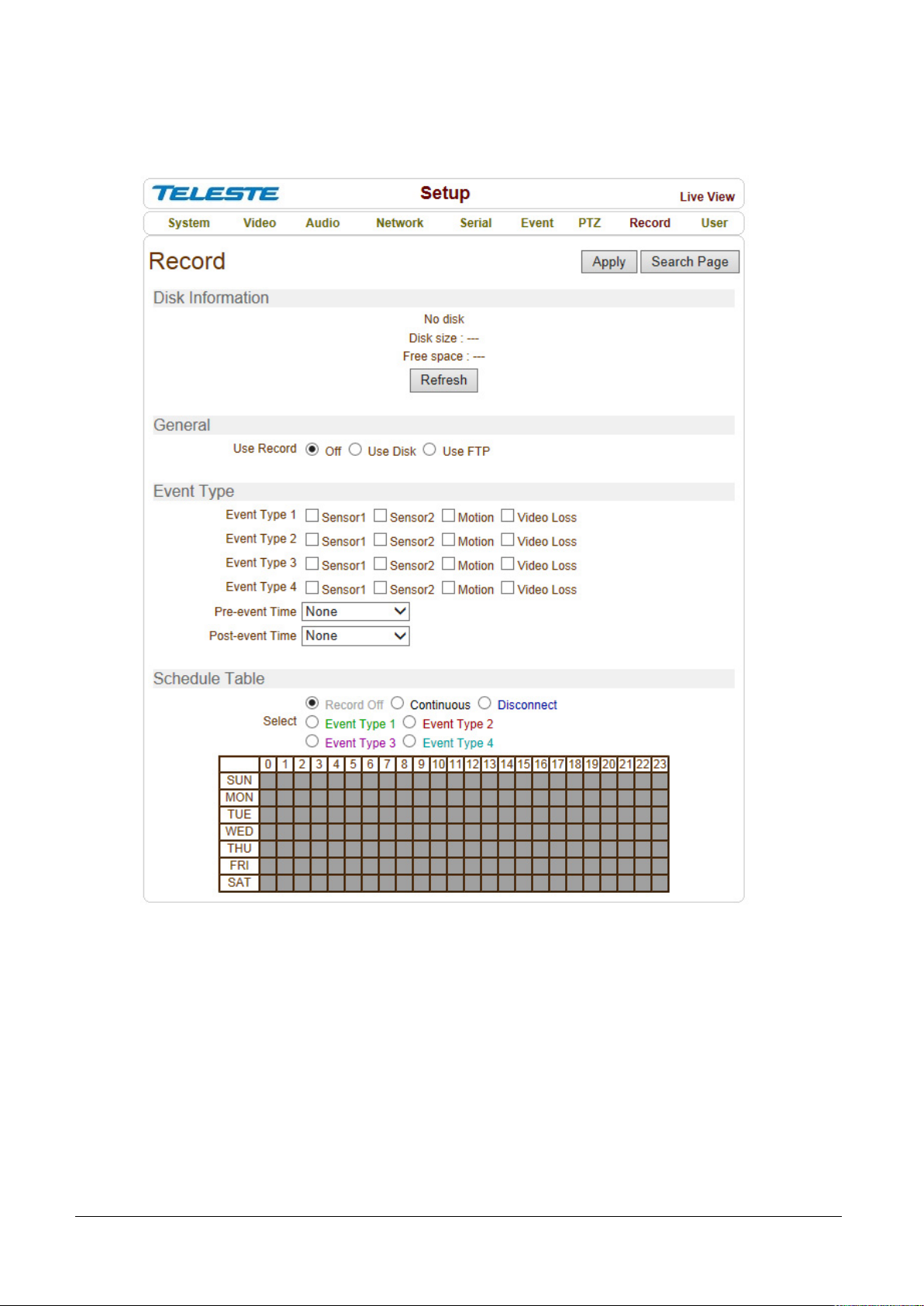

Record Configur ation
Page 48
44 • 4. Remote Configuration
MCC201/MCC201H User manual

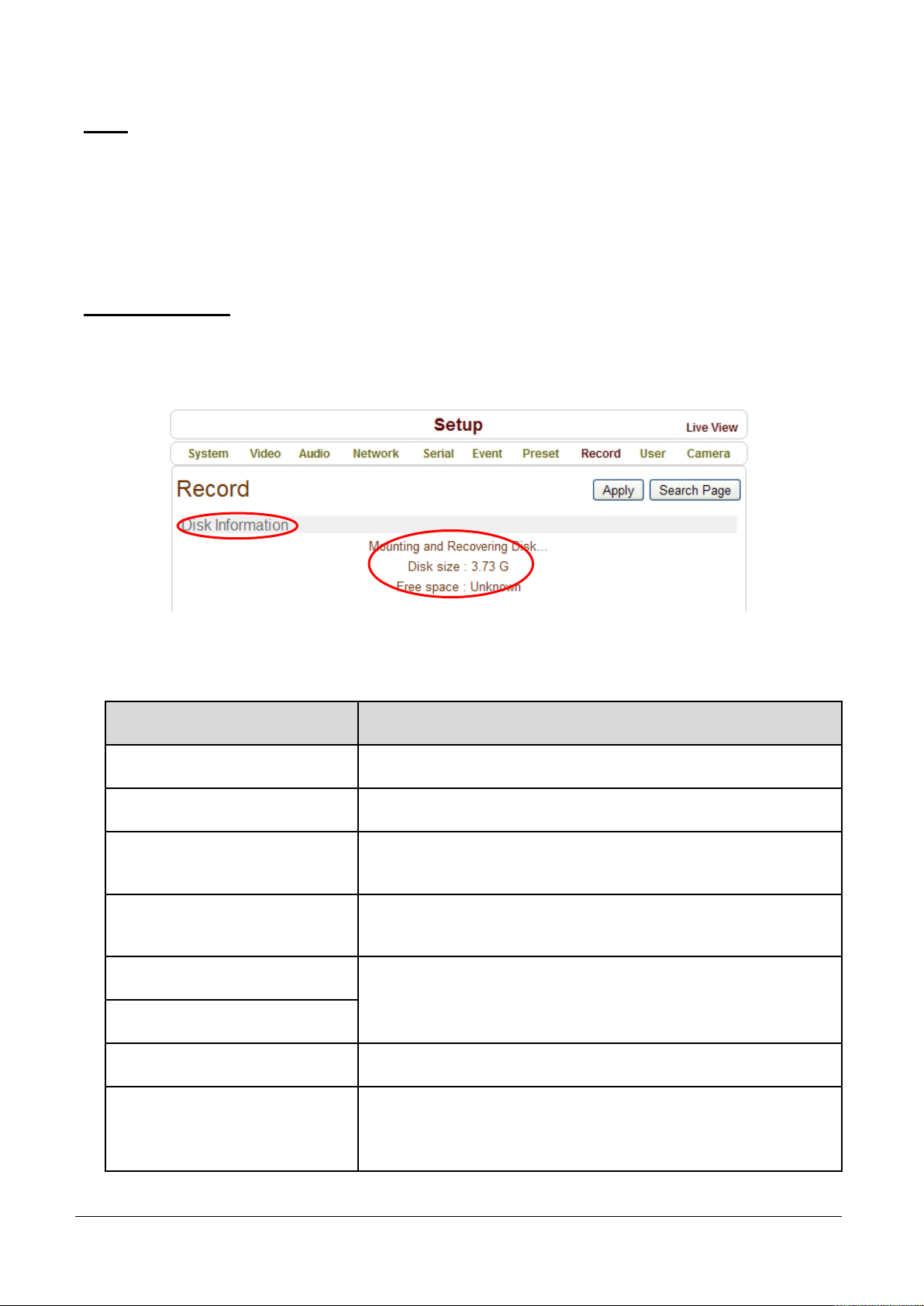

DISK
SD memory can be used, and at l east 1GB size is recommended. E ither EXT3 or FAT32 f ile system can b e
used. A disk with either EXT3 or FAT32 file system can be read in Linux PC. Ho wever, only disk with FAT32
file system can be read in Windows PC.
Less than 4Mbps of video bit rate is recom mended when you rec ord and monito r video simultaneously since
frame dropping may happen due to performance limitation.
Disk information
Be sure to restart the system after connecting an SD card. During booting, the system reads status of disk
and initializes it. Once the initialization of a disk is finished, the status of disk is shown on Record page of
web-based setup.
Refer to the chart for checking the status of disk.
Disk status Description
Disk error detected Error.
No disk Disk is not connected to the system.
Searching Disk information
Mounting and
Recovering Disk...
Disk format needed
Unknown disk type detected
Checking the status of disk.
Refresh the page and wait until the status is changed.
Performing recovery process when disk damage is found.
It takes from seconds to minutes for recovering.
Disk is attached, but the type of the file
system is unknown or damaged.
USB Disk available Available to be used for recording.
Disk removed or in
abnormal state
Disk is detached during op er atio n or there is damage on the file
system. If it happens while disk is connected, it is recommended
to format the disk.
Page 49
MCC201/MCC201H User manual
4. Remote Configuration • 45
General
Use record
- Off: Recording function will not be used when “Off” is selected.
- Use Disk: Recording will be enabl ed and data will be written to a disk.
- Use FTP: Recording will be enabled and data will be uploaded to an FTP server.
In this mode FTP upload by event is automatically disabled.
Event Type
Three recording m odes are supported: Continuous, Event, Disconnect. In cas e of Event recording, event
types can be selected among severa l events. Selected e vent type is used f or configuring th e schedule table.
Up to 4 event types can be configur ed and each event type can be a combinati on of sensor, video loss and
motion event.
Pre-event Time
Specify the duration of recording before an event happens.
Post-event Time
Specify the duration after the event is cleared.
Schedule Table
Actual recording mode is determined by Schedule Table, where recording mode configur ed b y da y
(of a week) and hour.
Each of recording mode configures the recording operation as follows:
- Record off: No recording.
- Continuous: Records continuously.
- Disconnect: Recording is started when the system loses the connection to its last client (Decoder,
VMS/NVR) etc. When there are multiple clients and one of the c l ient is disconnected, th is do es n’t happen.
- Event Type: Records when an event configured in Event Type setting happens.
Checking status of recording
Recording status can be checked on the main view page.
Recording status
Page 50
46 • 4. Remote Configuration
MCC201/MCC201H User manual
Search and Playback
Recorded video a nd au dio data can be sa ved as AVI format in the dis k. In general, one AVI file is created f or
an event in case of event-bas ed recording. However, it is possible that recorded data by serious of events
happening continuous l y can be m erged t o a s ingle AVI file depending on pr e/post event t im e setting . T he s ize
of file is limited to 10 ~ 2 00MB or 10 minutes. In case of continuo us record ing, AVI files are created in seri es
and the size of each is limited to 10 ~ 200MB or 10 minutes.

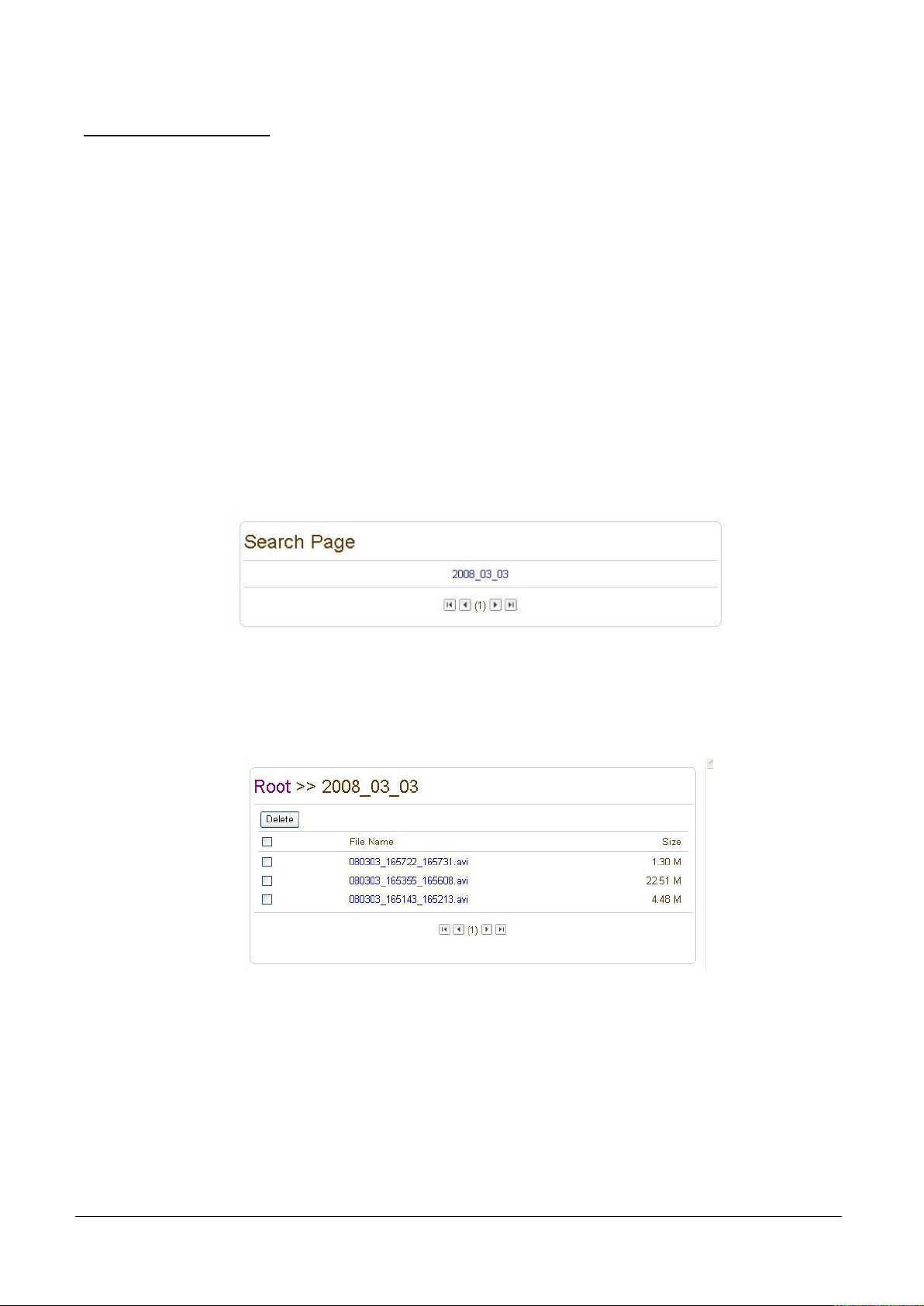

Search
Actual recording a file currently being recorded doesn’t appear until it is completed.
In case of Cont inu ous r ec o rding, a f il e wi ll be s ho wn a fter 10 minutes from the sta rt of r ec ordi ng, f or a f ile
is generated every 10 minutes.
1. Press Search Page button on the Record setup page. Dates with rec or d ing d ata will be s hown as follows.
2. First, choose the date for search and the list of AVI files will be shown.
3. The file name shows the date and time: “Date Begin Time End Time.avi”.
4. Press Root to move back to the page with date list.
Page 51
MCC201/MCC201H User manual
4. Remote Configuration • 47
Playback
1. Selecting an AVI file will show a dialog for opening or saving the file
.
2. Pressing Save button, the file will be stored in the PC. The AVI file can be played with Windows
Media Player.
3. If you press Open in the dialog, the file will be downloaded and played automatically with Media Player.
4. Another connection thro ugh web is disabled during download ing and it is also not allowed to downlo ad
two AVI files at the same time.
Page 52
48 • 4. Remote Configuration
MCC201/MCC201H User manual

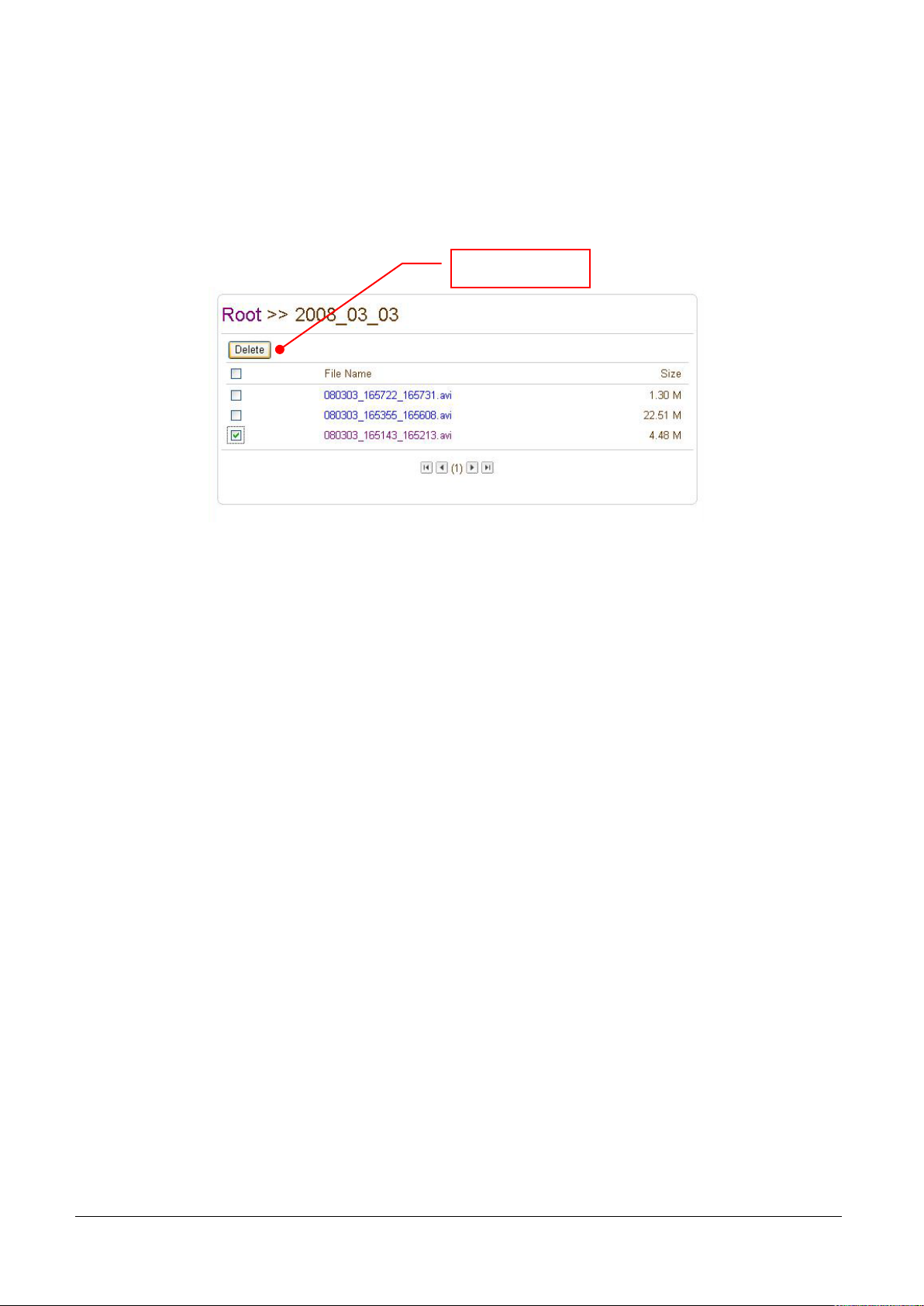

Deletion of data
1. If you want to delete recor ded files, select the files by chec king the item in front of each f ile and press
Delete button.
2. It is possible to delete multiple files at once.
Press Delete button
Page 53
MCC201/MCC201H User manual
4. Remote Configuration • 49

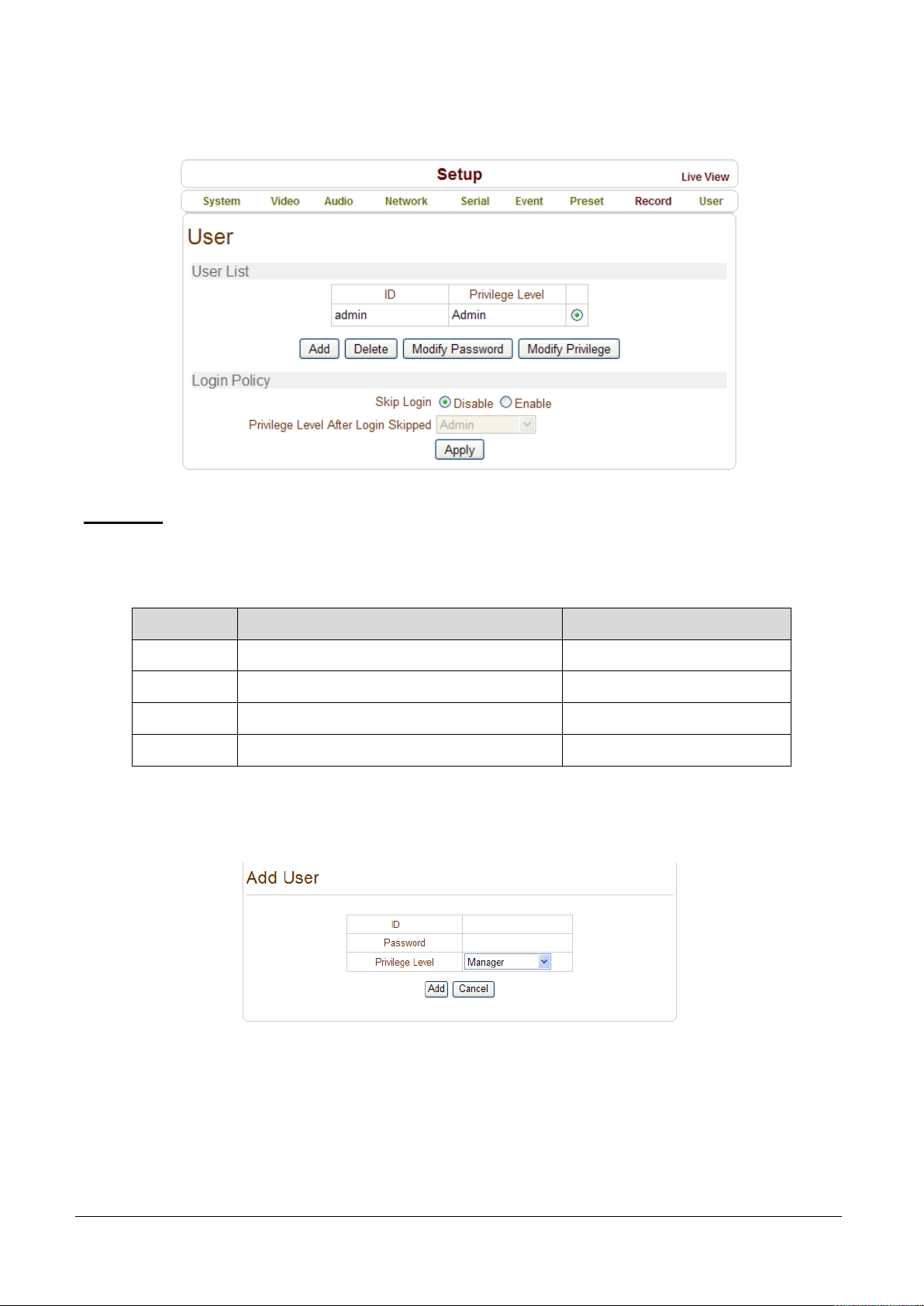

User Configuration
User List
User can be registered and privilege level of a user can be specified. User configuration is allowed only
to admin user. Max 16 users can be registered and each user can have one of four privileges.
Privilege Allowed Operations Remarks
Admin All operations User ID = admin
Manager All operations except for user configuration
User Live viewing and PTZ control
Guest Live viewing only
Add User
Press Add button. The following window will appear.
Enter User ID and password (Up to 15 characters) and select Privilege Level.
Page 54
50 • 4. Remote Configuration
MCC201/MCC201H User manual
Delete User
Select the User to be deleted and press Delete button.

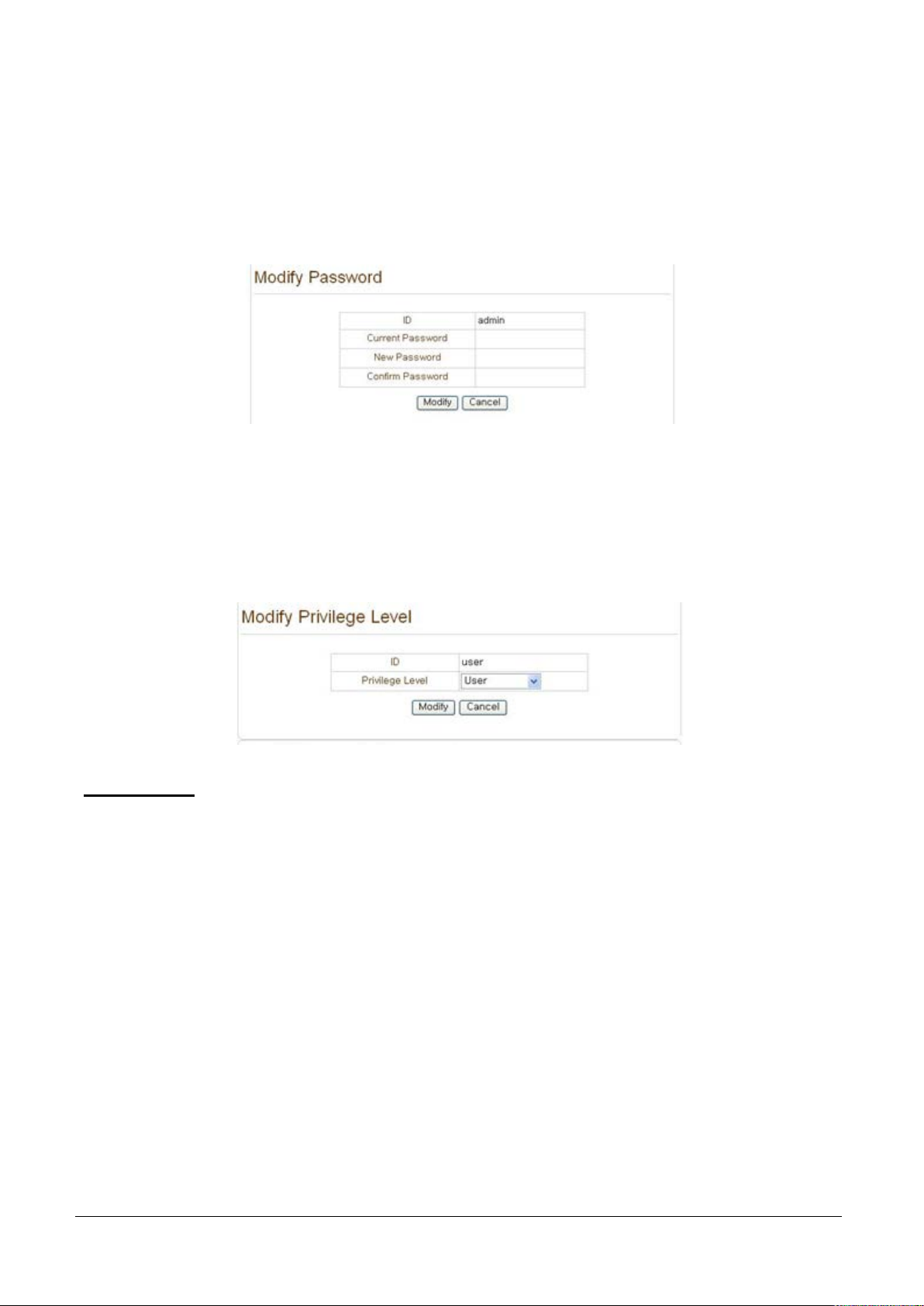

Change Password
Press Modify Password button. The following window will appear.
Enter the current password and then set a new password.
Modify Privilege Level
Press Modify Privilege button to change User level. It is not allowed to change the privilege level of
admin user.
Login Policy
Authentication Type
HTTP authentication based on RFC 2617 (HTTP Authentication: Basic and Digest Access Authentication)
is supported.
Skip Login provides for conveni ent acces s to th e server when aut hentic ation is not r equired. W hen Sk ip
Login is set to Enable, logi n step is skipped. T he privilege level after logi n in this way is deter mined by
the setting of Privilege Level after Login Skipped.
Page 55
MCC201/MCC201H User manual
5. Decoder Configuration • 51
5. Decoder Configuration
The unit can be also c onfigured to a deco der operation. On the follo wing pages are presented some m ajor
differences on the configuration settings compared to encoder operation.
Note! When turning the op eration from a n encoder to a decoder requires a s election of the system mo de and
reboot of the device. Once the Apply button is pressed a windows dialogue will appear to confirm the restart.
System Configuration
Page 56
52 • 5. Decoder Configuration
MCC201/MCC201H User manual
Video Configuration
Output Format
When MCC is used as a decoder, only the basic video resolution formats are s upported on the device
outputs. The list of formats is shown below.
Buffering
You can store m aximum 30 d ecoded fram es temporarily b y using buffering bef ore displa ying the fram es.
Displaying stored frames is smoother than displaying in real time. However, displaying stored frames
causes delay because of process of buffering.
Page 57
MCC201/MCC201H User manual
5. Decoder Configuration • 53
Network Configuration
Network configuration page has a section for specifying the remote system to be connected to (MCC encoder
or IP camera).
Page 58
54 • 5. Decoder Configuration
MCC201/MCC201H User manual

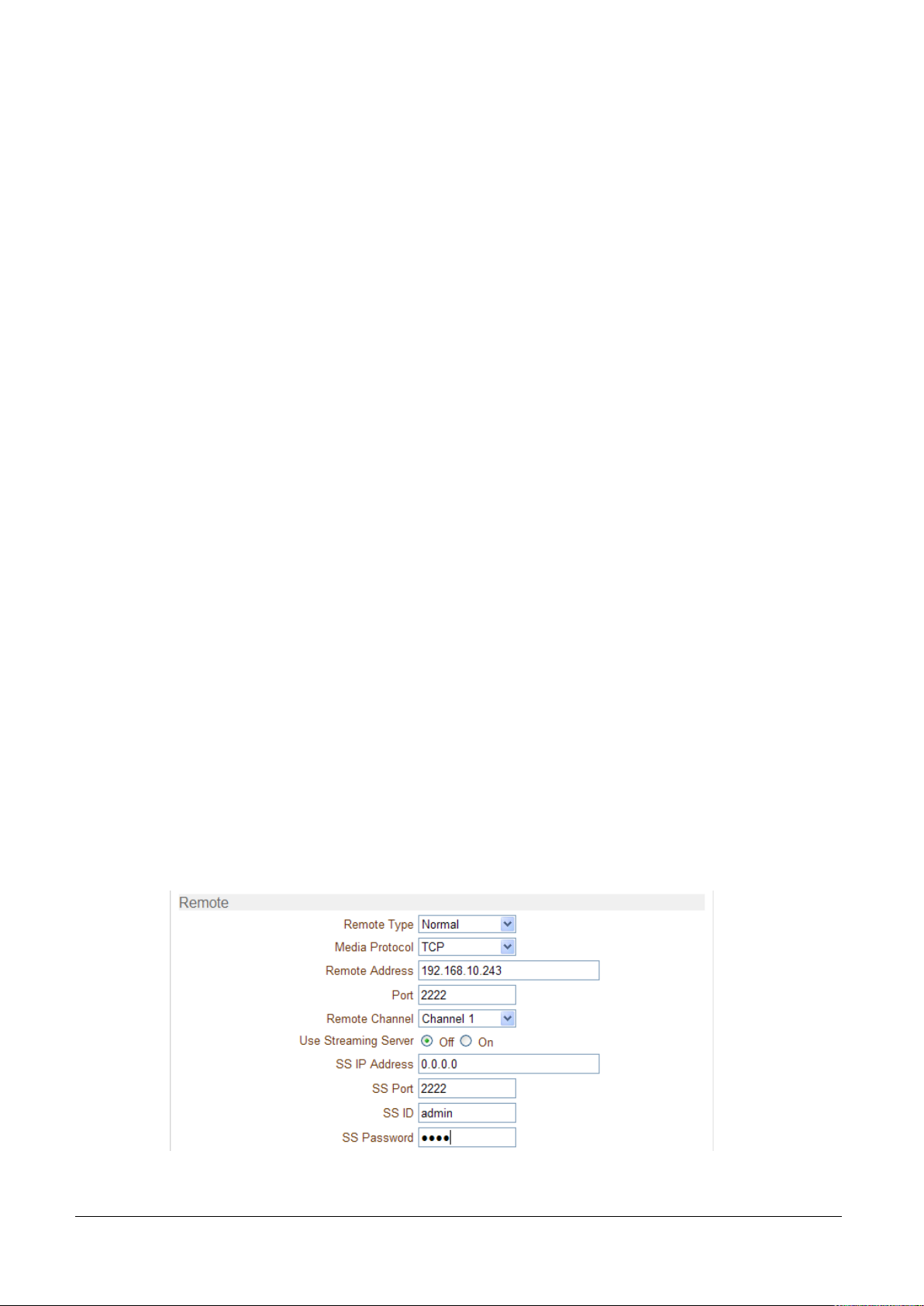

Remote Type
- Normal: Connection for Encoder and decoder.
- RTSP/RTP: Decoder system can make connection though RTSP protocol and get the stream via RTP.
It is also possible to make connection with other vendor’s H.264 IP camera supporting standard
RTSP/RTP and standard H.264 algorithm.
- To make RTSP connection, set Remote Type to “RTSP”, enter the RTSP URL of remote system to
Remote Address, and RTSP access port number to Remote Port. Currently it supports only video.
Media Protocol
Select protocol used for transmission of audio and video data between remote system and decoder.
The decoder system or VMS can choose media protocol among TCP, UDP and Multicast.
Remote Address
Address of the remote system to connect.
Port
Port of the remote system to connect.
Remote Channel
The channel can be selectable when the remote system has more than multiple video channels.
Use Streaming Server
- Decoder system has the settings to connect to Encoder or IP Camera via the Streaming Server.
To connect to Encoder or IP Camera via Streaming Server, Use Streaming Se rver of Remote group in
Network page should be set to On and information of the Streaming Server (SS) needs to be
configured appropriately.
- SS IP address: IP address of Streaming server.
- SS port: Enter Port number that is set when registering Streaming server.
- SS ID: Enter Streaming Server ID.
- SS password: Enter Streaming Server Password.
Page 59
MCC201/MCC201H User manual
5. Decoder Configuration • 55
Event Configuration
The event configurati on configures the actions for each event type. Local sec tion configures the acti ons for
events from local (self = Decoder) system, and configuration activates local devices and Remote sections
configures the actions for events from remote (Encoder or IP Camera) system.
The following table lists the possible actions for events:
Action Description
Beep Outputs beep sound using the buzzer in the system.
Alarm1/Alarm2 Triggers alarm (relay) port.
E-mail Sends E-mail to the specified address. AVI file can be attached.
FTP Upload AVI file to a specified FTP server.
Preset Moves the PTZ to associated preset position.
Sensor1 / Sensor2
Configure the actions when the sensor 1 or 2 is activated. Multiple actions can be set for a single event.
On Video Loss
Configure the actions when video input signal is lost. Multiple actions can be set for a single event.
Page 60
56 • 5. Decoder Configuration
MCC201/MCC201H User manual
On Motion
Configure the actions when motion is detected. Multiple actions can be set for a single event.
On Disconnect
Configure the actions when the link ( connection) with peer system is disconnected. M ultiple actions can
be set for a single event.
Alarm and Beep activation duration
Set the duration of alarm or beep activation in case of an event. If it is set to continuous, it will be in active
state until an operator reset it manually.

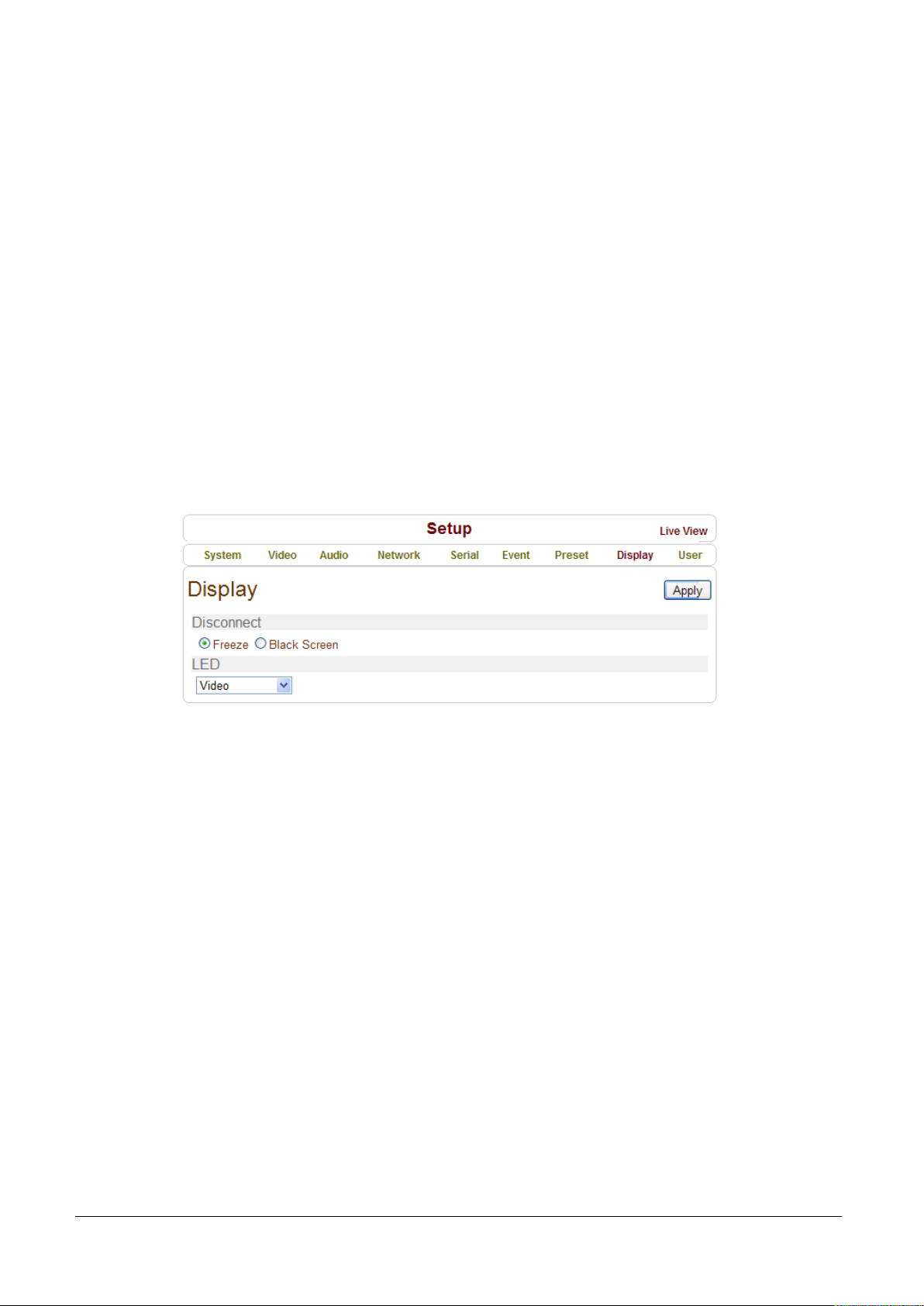

Display Configuration
Disconnection
Decoder system’s output mode on disconnected state can be configured.
- Freeze: Video image of the last frame is shown when there is disconnection.
- Black Screen: Black Screen is shown when there is disconnection.
LED
Select from Video, Audio and Serial to be indicated by Data LED. When there is the selected data
(Video or Audio or Serial) communication betwee n the encoder and the d ecoder, Data LED will indicate
the status.
Page 61
MCC201/MCC201H User manual
6. Appendix • 57
6. Appendix
Appendix A: Sensor and Alarm Port
Sensor Port
Terminal Type
- Voltage Rating: 150VAC
- Current Rating: 2A
- Color: Red
Sensor Signal Input Type
- NO Contact Signals
Connection to External Device
Page 62
58 • 6. Appendix
MCC201/MCC201H User manual
Alarm Port
Terminal Type
- Voltage Rating: 150VAC
- Current Rating: 2A
Relay Type
- Contact Rating: 1A 30VDC
- Switching Power: Max 30W 62.5VA
- Switching Voltage: Max 60VDC
Alarm Signal Output Type
- NO/NC Contact Signals
Connection to External Device
Page 63
MCC201/MCC201H User manual
6. Appendix • 59
Appendix B: Serial Port
RS-232 Port
Port Type
- 3 PIN
- Pin Arrangement
- Pin Description
Pin No. Pin Name Description
1 TX RS232 TX(Transmit)
2 RX RS232 RX(Receive)
3 GND Ground
RS-422/485 Port
Port Type
- 4 PIN
- Pin Diagram
- Pin Description
Pin No. Pin Name Description
1 RX- RS422 RX-
2 RX+ RS422 RX+
3 TX- RS422 TX- or RS485 TRX- (It is selectable by S/W Setup)
4 TX+ RS422 TX+ or RS485 TRX+ (It is selectable by S/W Setup)
Page 64
Legal declarations
Copyright © 2015 Teleste Corporation. All rights reserved.
TELESTE is a registered trademark of Teleste Corporation. Other product and
service marks are property of their respective owners.
This document is protected by copyright laws. Unauthorized distribution or
reproduction of this document is strictly prohibited.
Teleste reserves the right to make changes to any of the products described in
this document without notice and all specications are subject to change without
notice. Current product specications are stated in the latest versions of detailed
product specications.
To the maximum extent permitted by applicable law, under no circumstances shall
Teleste be responsible for any loss of data or income or any special, incidental,
consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable
law, no warranties of any kind, either express or implied, including, but not limited
to, the implied warranties of merchantability and tness for a particular purpose, are
made in relation to the accuracy, reliability or contents of this document.
Teleste reserves the right to revise this document or withdraw it at any time
without notice.
Teleste Corporation
P.O. Box 323
FI-20101 Turku
Street address: Telestenkatu 1, 20660
Littoinen
FINLAND
www.teleste.com
Loading...
