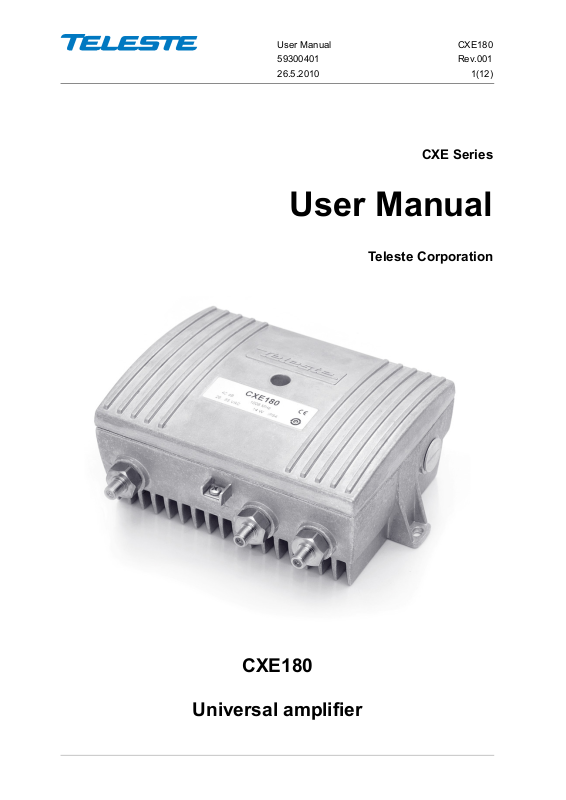

Teleste CXE180 User Manual
User Manual CXE180
59300401 Rev.001
26.5.2010 1(12)
CXE Series
User Manual
Teleste Corporation
CXE180
Universal amplifier
User Manual CXE180
59300401 Rev.001
26.5.2010 2(12)
Contents
Introduction ........................................................................................................ 3
Technical specifications ................................................................................... 4

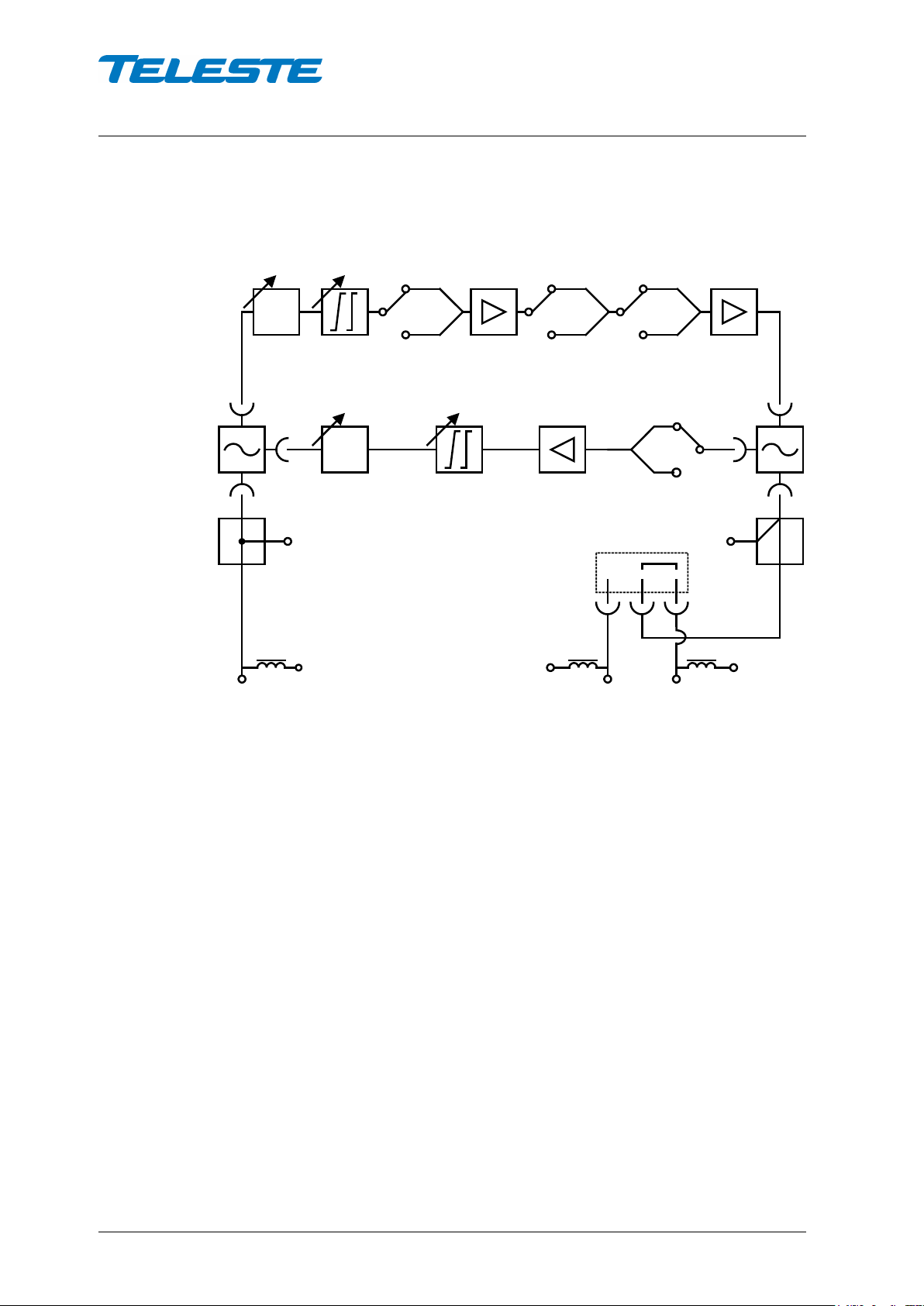

Block diagram .................................................................................................... 5
Installation .......................................................................................................... 6

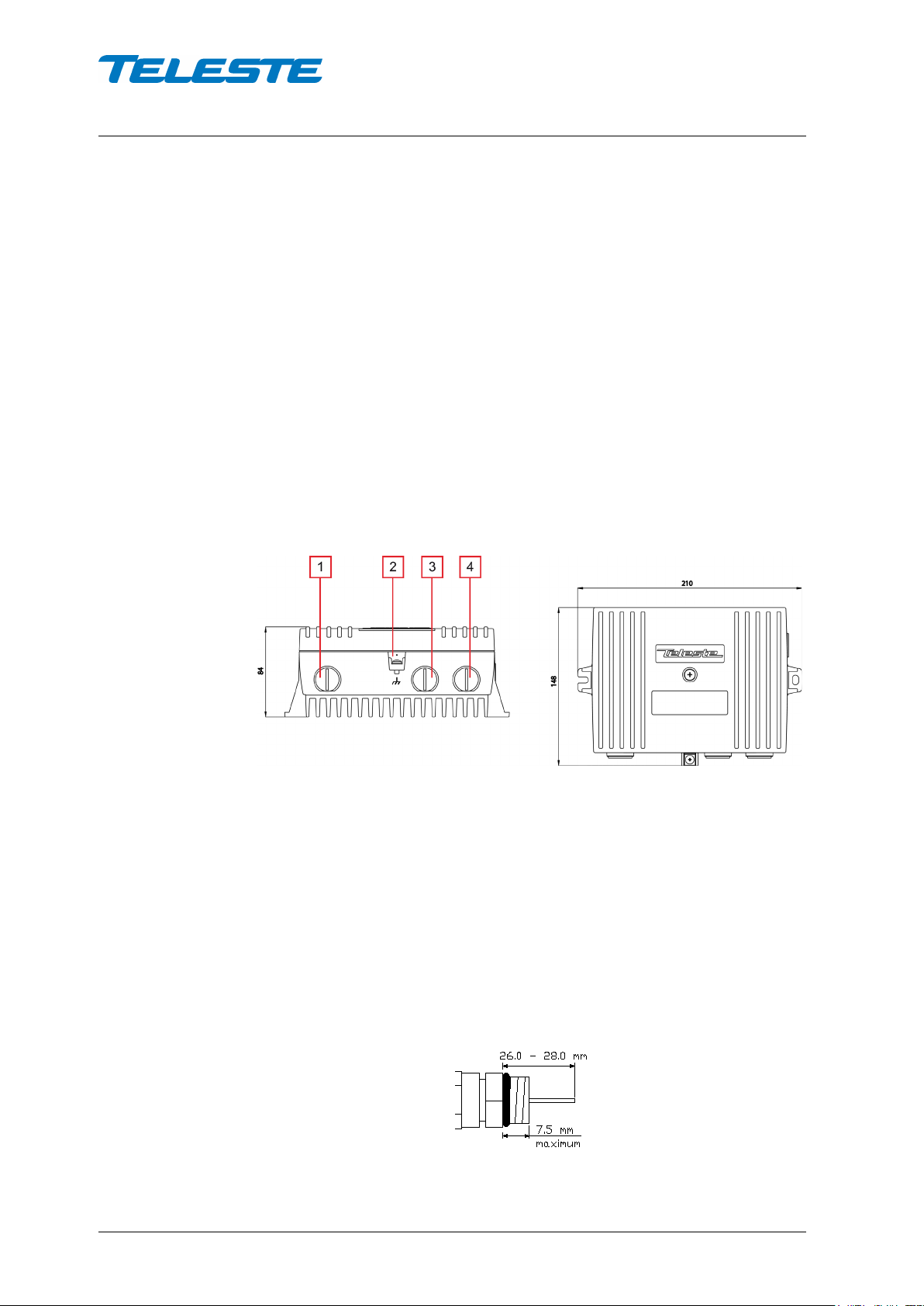

Housing ................................................................................................................ 6
Interfaces ............................................................................................................. 6

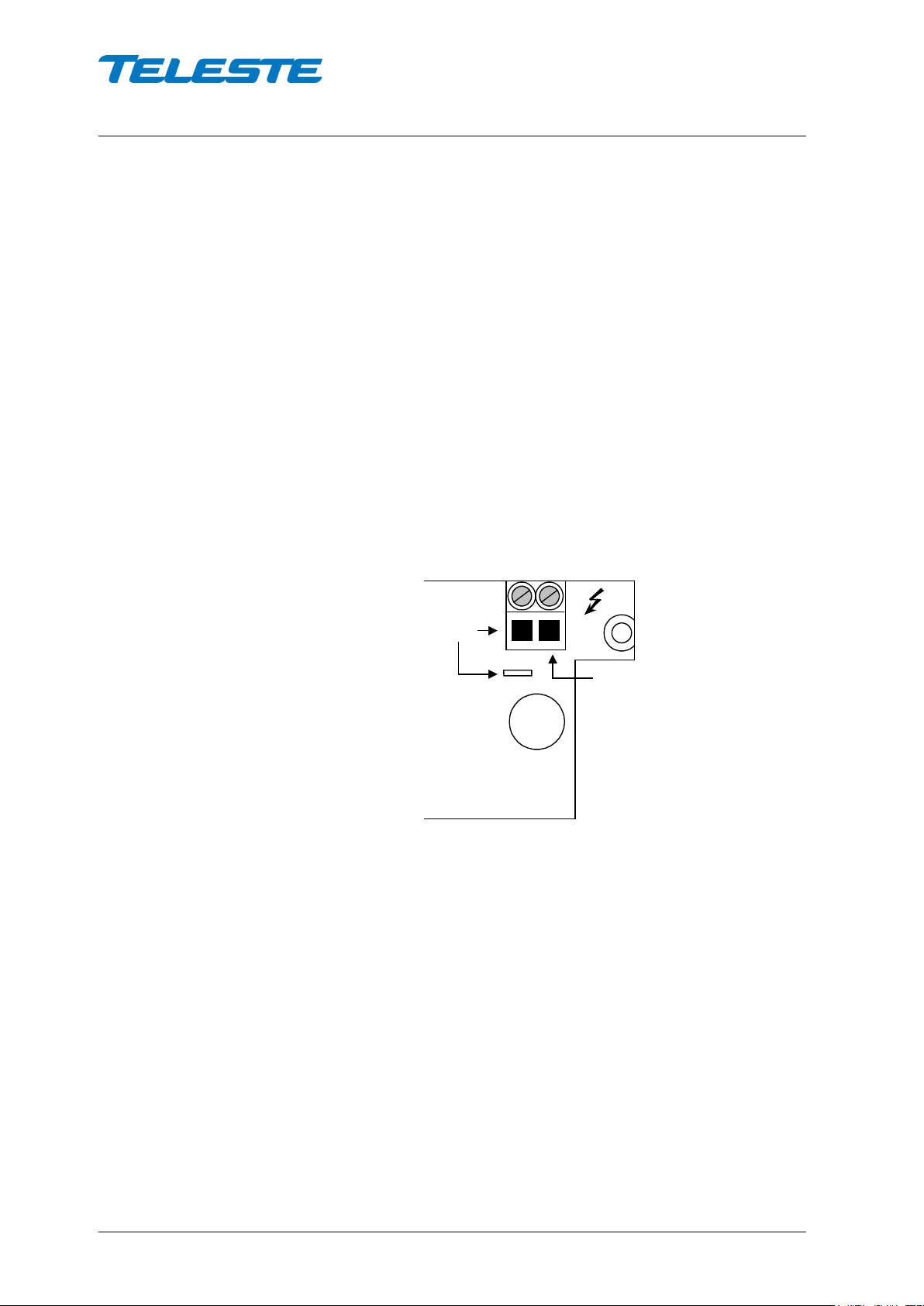

Powering .............................................................................................................. 7

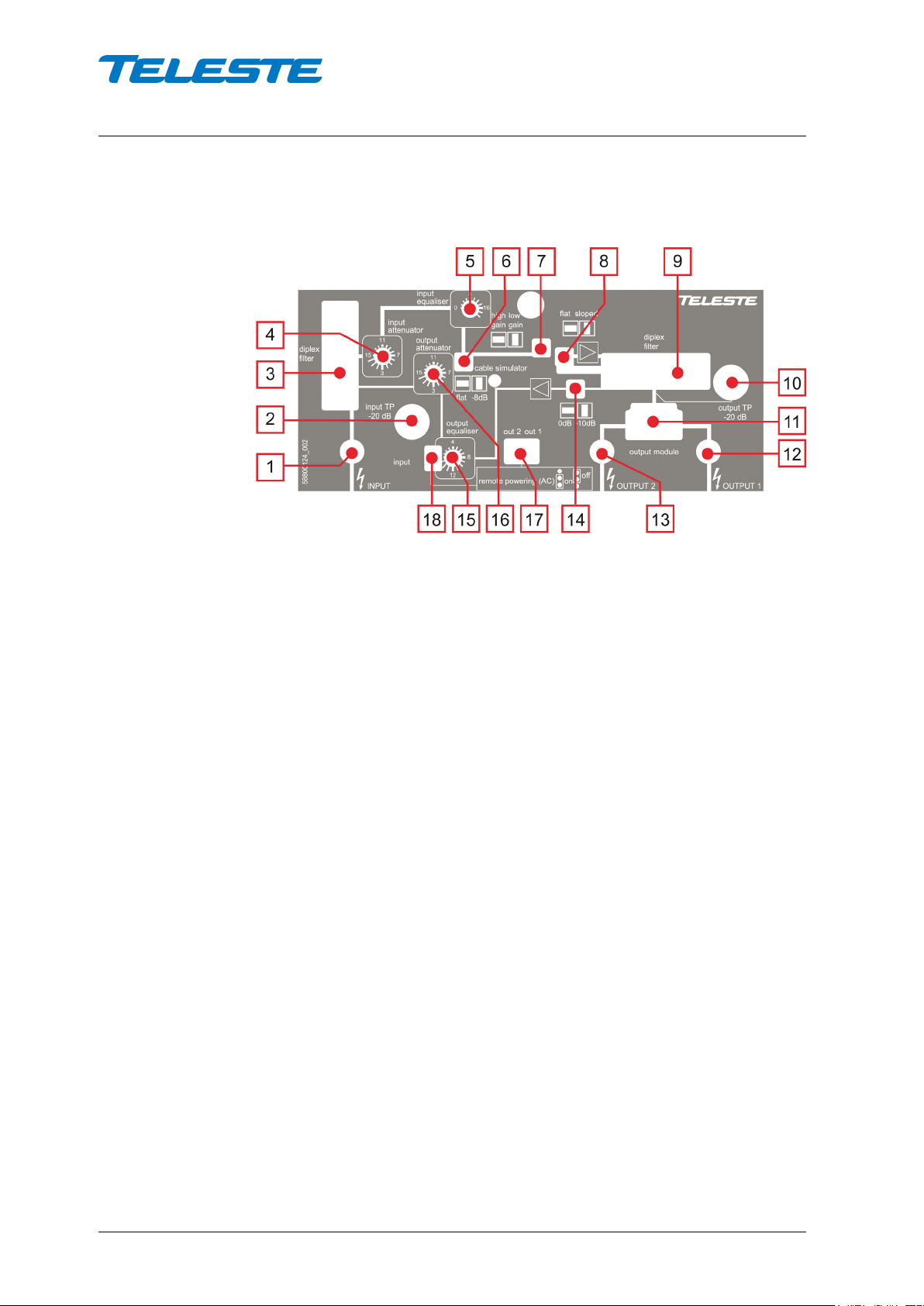

Front panel ........................................................................................................... 8

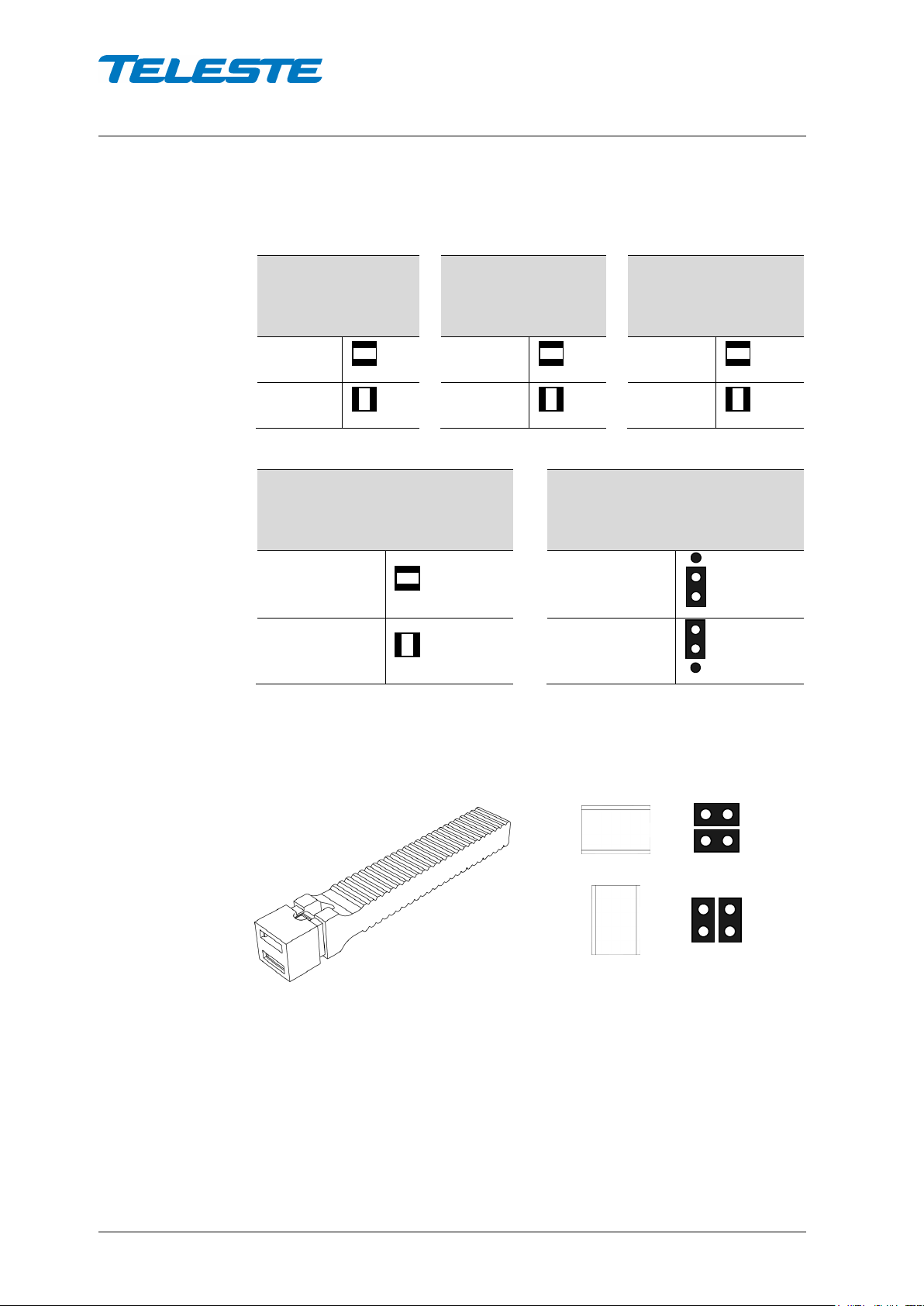

Jumper settings ................................................................................................... 9
Adjustments ..................................................................................................... 10
Downstream signal path .................................................................................... 10
Upstream signal path ......................................................................................... 11
Legal declarations ........................................................................................... 12
User Manual CXE180
59300401 Rev.001
26.5.2010 3(12)
Introduction
CXE180 is a compact dual output amplifier. It has two gain modes in one
product. Gain can be selected on the field according to wanted operation.
Higher gain (40 dB) is designed for distribution purposes and lower gain (32
dB) is suitable for line extender use. CXE180 house distribution amplifier
supports 1 GHz frequency range in the downstream and up to 85 MHz in the
upstream.
Adjustments use electrical controls thus eliminating the need of the usual plugin attenuators in the system set-up. Other standard features include reliable
power supply, built-in US amplifier as well as an efficient surge and ESD
protection.
Caution!
− Services and repairs should only be carried out by
authorised personnel.
− Do not touch live parts.
− The amplifier has no separate power switch thus
the power plug must be easily accessible.
− The power must be cut when installing or removing the
amplifier.
− The amplifier must not be operated without its Standard fitted
power supply unit protection cover. The lid must be closed.
User Manual CXE180
All specifications are subject to change without notice
59300401 Rev.001
26.5.2010 4(12)
Technical specifications
Downstream signal path ( all values with the diplex filters)
Frequency range 47 / 54 / 70 / 85 / 108..1006 MHz
Return loss 18 dB
Gain 40.0 dB
Input attenuator control range 0...15 dB @ 1 dB
Input equaliser control range 0...20 dB @ 2 dB
Cable simulator 0 / -8 dB
Mid-stage slope 0 dB / 8 dB
Mid-stage gain selection 40.0 dB / 32.0 dB
Flatness ± 0.5 dB
Noise figure 7.0 dB
Output level, CTB CENELEC 42 ch 112.0 dBμV
Output level, CSO CENELEC 42 ch 114.0 dBμV
Output level, XMOD CENELEC 42 ch 111.0 dBμV
Upstream signal path (return module and diplex filters are installed into the CXE202)
Frequency range 5...30 / 42 / 50 / 65 / 85 MHzMHz
Return loss 18 dB
Gain 28.0 dB
Gain control range (output) 0... -15 dB @ 1 dB
Gain control range (input) 0 / -10 dB
Slope control range 0...15 dB @ 1 dB
Flatness ± 0.75 dB
Noise figure 5.0 dB
Output level, DIN 45004B 114.0 dBμV
General
Power consumption 14 W
Supply voltage 26...65 V AC, 180…255 V AC
Maximum current feed through 3.0 A / port
Input / Output connectors PG11 (several adaptors available)
Test point connectors F female (20 dB)
Dimensions (h x w x d) 140 (148) mm x 182 (210) mm x 84 mm
Weight 1.5 kg
Operating temperature -40...+55 °C
Class of enclosure IP54
EMC EN 60728-2
Additional EMC tests for RF ports ESD 4 kV / Surge 4 kV
